EDK Introduction

1. EDK Introduction This material exempt per Department of Commerce license exception TSU

2. Objectives After completing this module, you will be able to: • Describe the embedded systems development flow • Understand the components in the hardware design • Specify ways to create a hardware design • Identify the tools included in EDK • Locate the EDK documentation

3. Outline • Introduction • EDK • Overview of EDK • Embedded Development Design Flow • XPS Platform Management • Supported Platforms • Appendix: Project Files and Structures

4. Embedded Systems • An embedded system is nearly any computing system (other than a general-purpose computer) with the following characteristics • Single-functioned • Typically, is designed to perform predefined function • Tightly constrained • Tuned for low cost • Single-to-fewer components based • Performs functions fast enough • Consumes minimum power • Reactive and real-time • Must continually monitor the desired environment and react to changes • Hardware and software co-existence

5. Embedded Systems • Examples: • Mobile phone systems • Customer handsets and base stations • Communication devices • Wired and wireless routers and switches • Automotive applications • Braking systems, traction control, airbag release systems, and cruise-control applications • Aerospace applications • Flight-control systems, engine controllers, auto-pilots and passenger in-flight entertainment systems • Defense systems • Radar systems, fighter aircraft flight-control systems, radio systems, and missile guidance systems

6. Current Technologies • Microcontroller-based systems • DSP processor-based systems • ASIC technology • FPGA technology

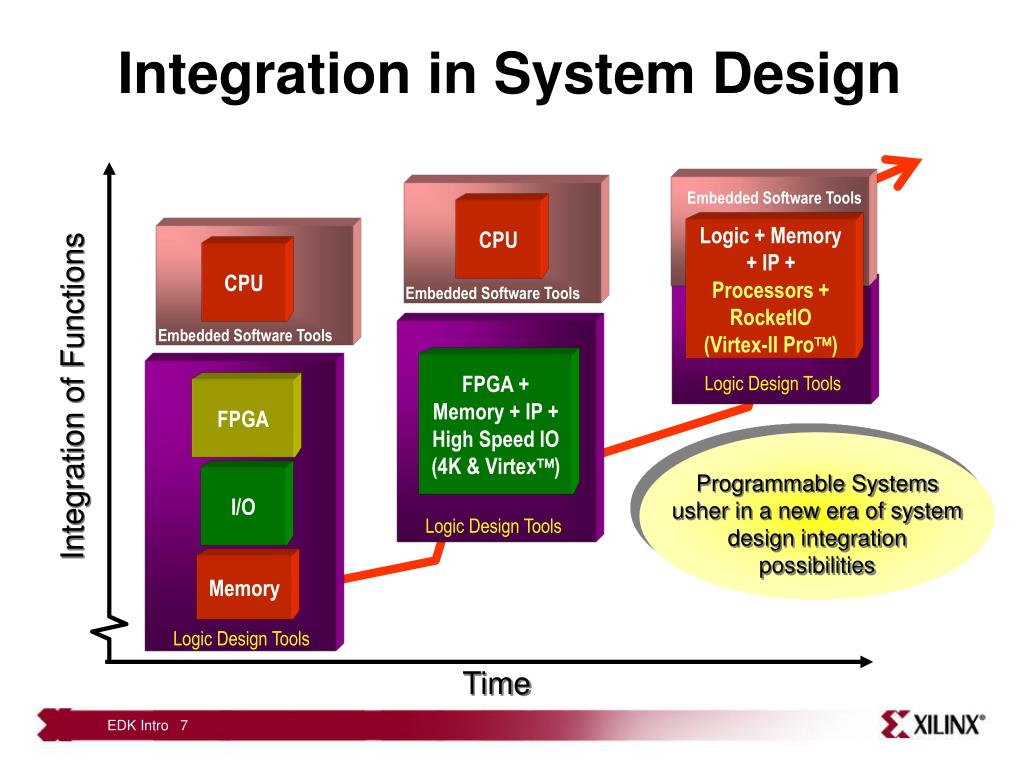

7. Embedded Software Tools CPU Logic + Memory + IP + Processors + RocketIO (Virtex-II Pro) CPU Embedded Software Tools Embedded Software Tools FPGA + Memory + IP + High Speed IO (4K & Virtex) Logic Design Tools FPGA Programmable Systems usher in a new era of system design integration possibilities I/O Logic Design Tools Memory Logic Design Tools Integration in System Design Integration of Functions Time

8. Embedded Design in an FPGA • Embedded design in an FPGA consists of the following: • FPGA hardware design • C drivers for hardware • Software design • Software routines • Interrupt service routines (optional) • Real Time Operating System (RTOS) (optional)

9. IBM CoreConnect™ on-chip bus standard PLB, OPB, and DCR RocketIO Dedicated Hard IP DSOCM BRAM ISOCM BRAM Flexible Soft IP PowerPC 405 Core DCR Bus Instruction Data PLB OPB Bus Bridge Arbiter Arbiter Processor Local Bus On-Chip Peripheral Bus e.g. Memory Controller Hi-Speed Peripheral GB E-Net On-Chip Peripheral UART GPIO Off-Chip Memory ZBT SRAM DDR SDRAM SDRAM PowerPC-based Embedded Design Full system customization to meet performance, functionality, and cost goals

10. MicroBlaze 32-Bit RISC Core Possible in Virtex-II Pro OPB On-Chip Peripheral Bus Arbiter Custom Functions Custom Functions Memory Controller 10/100 E-Net UART MicroBlaze Processor-Based Embedded Design I-Cache BRAM Local Memory Bus Flexible Soft IP BRAM Configurable Sizes D-Cache BRAM Fast Simplex Link 0,1….7 CacheLink Off-Chip Memory FLASH/SRAM SRAM

11. Outline • Introduction • EDK • Overview of EDK • Embedded Development Design Flow • XPS Platform Management Hardware Design • Supported Platforms • Appendix: Project Files and Structures

12. Embedded Development Kit • What is Embedded Development Kit (EDK)? • The Embedded Development Kit is the Xilinx software suite for designing complete embedded programmable systems • The kit includes all the tools, documentation, and IP that you require for designing systems with embedded IBM PowerPC™ hard processor cores, and/or Xilinx MicroBlaze™ soft processor cores • It enables the integration of both hardware and software components of an embedded system

13. VHDL or Verilog C Code Standard Embedded SW Development Flow Standard FPGA HW Development Flow Embedded Development Kit Code Entry HDL Entry C/C++ Cross Compiler Simulation/Synthesis Board Support Package System Netlist Data2MEM Linker Implementation Compiled ELF Compiled ELF Compiled BIT Compiled BIT ? ? Download Combined Image to FPGA Load Software Into FLASH Download Bitstream Into FPGA Debugger Chipscope Embedded DevelopmentTool Flow Overview Instantiate the ‘System Netlist’ and Implement the FPGA Include the BSP and Compile the Software Image 2 3 1 RTOS, Board Support Package

14. Embedded System Tools • GNU software development tools • C/C++ compiler for the MicroBlaze™ and PowerPC™ processors (gcc) • Debugger for the MicroBlaze and PowerPC processors (gdb) • Hardware and software development tools • Base System Builder Wizard • Hardware netlist generation tool: PlatGen • Software Library generation tool: LibGen • Simulation model generation tool: SimGen • Create/Import Peripherals Wizard • Xilinx Microprocessor Debug (XMD) • Hardware debugging using ChipScope™ Pro Analyzer cores • Eclipse IDE-based Software Development Kit (SDK) • Application code profiling tools • Virtual Platform generator: VPGen • Flash Writer utility

15. Embedded System Tools • Board Support Packages (BSPs) • Standalone BSP • Wind River VxWorks • MontaVista Linux • Xilinx MicroKernel (XMK) • Xilinx Platform Studio • Xilinx Platform Studio (XPS) is a graphical Integrated Design Environment (IDE) that incorporates all the Embedded System Tools for seamless creation of hardware and software components and, optionally, a verification component

16. Xilinx Platform Studio (XPS) See notes section for detailed explanation

17. XPS Functions • Project management • MHS or MSS file • XMP file • Software application management • Platform management • Tool flow settings • Software platform settings • Tool invocation • Debug and simulation XPS HW/SW Simulation Hardware Design HW/SW Debug Software Design

18. Outline • Introduction • EDK • Overview of EDK • Embedded Development Design Flow • XPS Platform Management • Supported Platforms • Appendix: Project Files and Structures

19. Project Management • Create a new project • Using File  New Project or toolbar button • Select Base System Builder option • The Base System Builder (BSB) wizard is a software tool that helps you quickly build a working system targeted at a specific development board • Select Blank XPS Project option • Open an existing project • Using File  Open Project or toolbar button • Browse to a pre-created project directory and selecting an xmp file • Using File  New Project or toolbar button • Select Open a Recent Project option and selecting a project • Project information is saved in the Xilinx Microprocessor Project (XMP) file

20. Project Creation Using Base System Builder (BSB) Option • Select a target board • Select a processor • Configure the processor • Select and configure I/O interfaces • Add internal peripherals • Generate the system software and the linker script • Generate the design • Generated files: • system.mhs system.mss • System.xmp data/system.ucf • etc/fast_runtime.opt etc/download.cmd • pcore directory (empty) system.bsb (optional, if selected) • TestApp_Memory/src directory containing (optional, if selected) • TestApp_Memory.c TestApp_Memory_LinkScr.ld • TestApp_Peripheral/src directory containing (optional, if selected) • TestApp_Peripheral TestApp_Peripheral/src/TestApp_Periperal_LinkScr.ld

21. Project CreationUsing Blank XPS Project Option • Identify a New XPS Project location • Select target FPGA, and optionally import an MHS file and/or user repository directory • Using IP Catalog add processor(s) and peripheral(s) • Configure the processor(s) and peripherals • Specify Software Configuration for the hardware components • Develop application software • Generate Bitstream • Download Bitstream and Execute

22. EDK Tool Flow Simulation Generator Library Generation Hardware Platform Generation CompEDKLib CompXLib MSS MHS TestbenchStimulus IP Models ISE Models IP Library or User Repository SimGen EDK SWLibraries Drivers,MDD LibGen MPD, PAO PlatGen .a PCoreHDL System andWrapper VHD BehavioralVHD Model system.BMM ISETools Synthesis (XST) Embedded Software Development NGC ApplicationSource.c, .h, .s SimGen UCF NGDBuild NGD Compiler (GCC) StructuralVHD Model MAP .o NCD, PCF Linker (GCC) PAR NCD system.BIT BitGen SimGen system_BD.BMM ELF BitInit TimingVHD Model download.BIT Simulation download.CMD iMPACT

23. Hardware Creation Flow • Platform Generator – PlatGen • Input file → MHS and MPD • MHS file defines the configuration of the embedded processor system including bus architecture, peripherals and processor(s), interrupt request priorities, and address space • MPD file defines the configurable parameters with their default values and available ports for a peripheral • Output files → system netlist, peripheral netlists, and BMM file • Creates the synthesis, HDL, and implementation directories • Generates the HDL wrapper files for the peripherals • Generates the top-level system HDL file • Extracts the peripheral netlists from the EDK install directory • Generates the BMM file • Calls XST to synthesize the top-level wrapper file

24. Hardware Implementation Flow • Hardware netlists must be implemented with the Xilinx implementation tools • Either the ISE™ Project Navigator or Xflow batch tool can be used to implement the design • The ISE Project Navigator GUI gives you access to the whole suite of Xilinx design entry and physical implementation point tools • Xflow is a non-graphical tool that encapsulates the Xilinx implementation and simulation flows • Device independent and has a simple interface to the Xilinx tools that is flexible, extensible, and user customizable • Using this batch tool enables an abbreviated and simplified flow

25. Hardware Implementation XPS/Xflow • Xflow – Implement hardware and generate the bitstream • Input files → .ngc netlists, .bmm file, system.vhd, .ucf • Output Files → system.bit, system_bd.bmm • Xflow calls the ISE™ Implementation tools using fast_runtime.opt file • NGDBuild, MAP, PAR, and TRACE are executed • Xflow then calls the BitGen program using bitgen.ut file • BitGen generates the bit file system.bit • BitGen also generates the back-annotated system_bd.bmm BMM file, which contains the physical location of the block RAMs

26. Hardware Implementation ISE/XPS Flow • The ISE/XPS flow provides integration of a processor system at two levels as a component in a FPGA design : • The processor system is the top-level design • The processor system is a submodule • Once the processor system is added in the ISE project, XPS can be invoked from ISE by selecting xmp file in Sources window and double-clicking Manage Processor System in the Processes window • Add user constraint file in ISE • Implement design in ISE by selecting top-level module in Sources window and double-clicking Implement Design in Processes window • Executable software can be merged by selecting top-level module in Sources window and double-clicking UpdateBitstream with Processor Data in Processes window • This will call XPS in background to update the bitstream and generate system.bit and download.bit files in implementation directory as well as copy the file as system_stub.bit and system_stub_download.bit files in the ISE project directory

27. Software Flow Library Generation • Library Generator – LibGen • Input files → MSS • Output files → libc.a, libXil.a, libm.a • LibGen is generally the first tool run to configure libraries and device drivers • The MSS file defines the drivers associated with peripherals, standard input/output devices, interrupt handler routines, and other related software features • LibGen configures libraries and drivers with this information and produces an archive of object files: • libc.a - Standard C library • libXil.a - Xilinx library • libm.a - Math functions library

28. Software FlowCompilation • Compile program sources • Input files → *.c, *.c++, *.h, libc.a, libXil.a, libm.a • Output files → executable.elf • This invokes the compiler for each software application and builds the executable files for each processor • Four stages: • Pre-processor: Replaces all macros with definitions as defined in the .c or .h files • Machine-specific and language-specific compiler: Compiles C/C++ code • Assembler: Converts code to machine language and generates the object file • Linker: Links all the object files using user-defined or default linker script

29. UART GPIO Arbiter MicroBlaze™/PPC Merging Hardware and Software Flows Hardware Flow Software Flow data2MEM download.bit

30. Merging Hardware and Software Flows • Data2MEM – Update the bitstream • Input files → system_bd.bmm, system.bit, executable.elf • Output file → download.bit • This invokes the BitInit tool, which initializes the instruction memory of the processor • The instruction memory may be initialized with a bootloop, bootloader, or an actual application • This is the stage where the hardware and the software flows come together. This stage also calls the hardware and software flow tools if required

31. Configuring the FPGA • Download the bitstream • Input file → download.bit • This downloads the download.bit file onto the target board using the Xilinx iMPACT tool in batch mode • XPS uses the etc/download.cmd file for downloading the bitstream • The download.cmd file contains information such as the type of cable is used and the position of the FPGA in a JTAG chain

32. Outline • Introduction • EDK • Overview of EDK • Embedded Development Design Flow • XPS Platform Management • Supported Platforms • Appendix: Project Files and Structures

33. Platform Management • XPS manages the interaction of the following tools: • Platform generator (PlatGen) • Library and device driver configuration (LibGen) • Simulation model generation (SimGen) • Implementation (Xflow or ISE™) • Compilation (GNU Compiler) • Bitstream initialization (Data2MEM) • For changing the system specification and software settings, XPS supports the following features and processes: • Add cores, edit core parameters, and make bus and port connections through System Assembly view • Generate and modify MSS file through Software Platform Settings • Tool Flow Settings • Tool Invocation

34. Add/Edit Cores • Add cores, edit core parameters, and make bus and port connections through System Assembly view • Select IP Catalog tab to add peripherals • Select a core and drop it in the system view or double-click on it to add • In the System View select an instance, right click, and then select Delete Instance • Change settings using appropriate filters and select an instance • Base and end addresses • Parameters • Ports 1 3 2 1 3 2

35. Software Platform Settings • Sets all of the software platform-relatedoptions in the design • Has multiple forms selection: • Software Platform • CPU Driver • OS and OS Version selection • Libraries selection • Set core clock frequencies • OS and Libraries • Identify stdin and stdout devices • Configure OS and selected libraries • Drivers • Select drivers and versions • Core clock frequency • Interrupt Handlers • Enter interrupt handler function names

36. Project Options Settings • XPS supports project options settings for: • Device and Repository tab • Hierarchy and Flow tab • HDL and Simulation tab

37. Project OptionsDevice and Repository Tab • Set/Change Target Device • Architecture • Device Size • Package • Grade • Peripheral Repository Directory • Provide path to custom IP not present in the current project directory structure • Custom Makefile Directory Note: Detailed information on the other two tabs is provided in the “Adding Your Own IP to the OPB Bus” and the “System Simulation” modules in this course.

38. Outline • Introduction • EDK • Project Management • Software Application Management • Platform Management • Supported Platforms • Appendix: Project Files and Structures

39. Supported Platforms • Operating systems • Windows 2000 (Service Pack 2) • Windows XP • Solaris Operating System 2.8/2.9 • Linux Red Hat Enterprise 3.0 • FPGA families • Spartan™-II/IIE (MicroBlaze™ processor) • Spartan-3/3E (MicroBlaze processor) • Virtex™ and Virtex-E (MicroBlaze processor) • Virtex-II (MicroBlaze processor) • Virtex-II Pro (MicroBlaze and PowerPC™ processors) • Virtex-4 FX (MicroBlaze and PowerPC processors) and LX/SX (MicroBlaze processor)

40. BSB-Supported Platforms • A list of supported Xilinx hardware boards: • AFX board • Spartan-3 Starter Board • Virtex-4 ML401 Evaluation Platform • Virtex-4 ML402 Evaluation Platform • Virtex-4 ML403 Evaluation Platform • Virtex-II Multimedia FF896 Development Board • Virtex-II Pro ML300 Evaluation Platform • Virtex-II Pro ML310 Evaluation Platform • XUP Virtex-2 Pro Educational Platform (.xbd files downloadable from XUP web) • Custom board • Board definition (.xbd) files for third party boards can be downloaded from the board vendor web site • Links from the BSB wizard and Xilinx embedded Web page

41. Knowledge Check • What is the MHS file? • What does the PlatGen tool do? • What tool is used to place executable code in an FPGA block RAM?

42. Answers • What is the MHS file? • The MHS file is the Microprocessor Hardware Specification; it specifies processors, hardware peripherals, bus connections, and address spaces for the hardware • What does the PlatGen tool do? • PlatGen takes the MHS file and creates the system and peripheral netlists, HDL wrapper files, BMM file, etc. • What tool is used to place executable code in an FPGA block RAM? • The Data2Mem tool will take the BMM file and create the proper initialization for the block RAM that is assigned to the executable memory space

43. Knowledge Check • How can you add or change configuration settings once the hardware system is build? • What does the LibGen tool do? • What is the difference between system.bit and download.bit files?

44. Answers • How can you add or change configuration settings once the hardware system is build? • Select IP Catalog tab, expand related IP peripheral folder, select a desired IP, and double-click on it to add it to the design • Select an IP instance in the System Assembly View panel, right click on it, and select desired configuration • What does the LibGen tool do? • Read MSS file and generate libraries • What is the difference between system.bit and download.bit files? • The system.bit file contains only hardware description whereas download.bit file contains both hardware description as well as executable software

45. Where Can I Learn More? • Tool documentation • Getting Started with the Embedded Development Kit • Processor IP Reference Guide • Embedded Systems Tools Guide • Xilinx Drivers • Processor documentation • PowerPC Processor Reference Guide • PowerPC 405 Processor Block Reference Guide • MicroBlaze Processor Reference Guide • Support Website • Tech Tips: www.xilinx.com/xlnx/xil_tt_home.jsp • EDK Website: www.xilinx.com/edk

46. Outline • Introduction • EDK • Overview of EDK • Embedded Development Design Flow • XPS Platform Management • Supported Platforms • Appendix: Project Files and Structures

47. project_directory data - created by default upon project creation etc - created by default upon project creation pcores - created by default upon project creation hdl - created during PlatGen implementation - created during PlatGen __xps - created by default upon project creation ppc405_0/microblaze_0 - created by default upon project creation synthesis - created during PlatGen Project Directory Structure

48. Project Files and Structure • ppc405_0 / microblaze_0 • include • *.h header files • libsrc • BSP, drivers, etc. • lib • libc.a file • libm.a file • libxil.a file • boot.o file • Code (default repository if user application is not defined) • executable.elf file

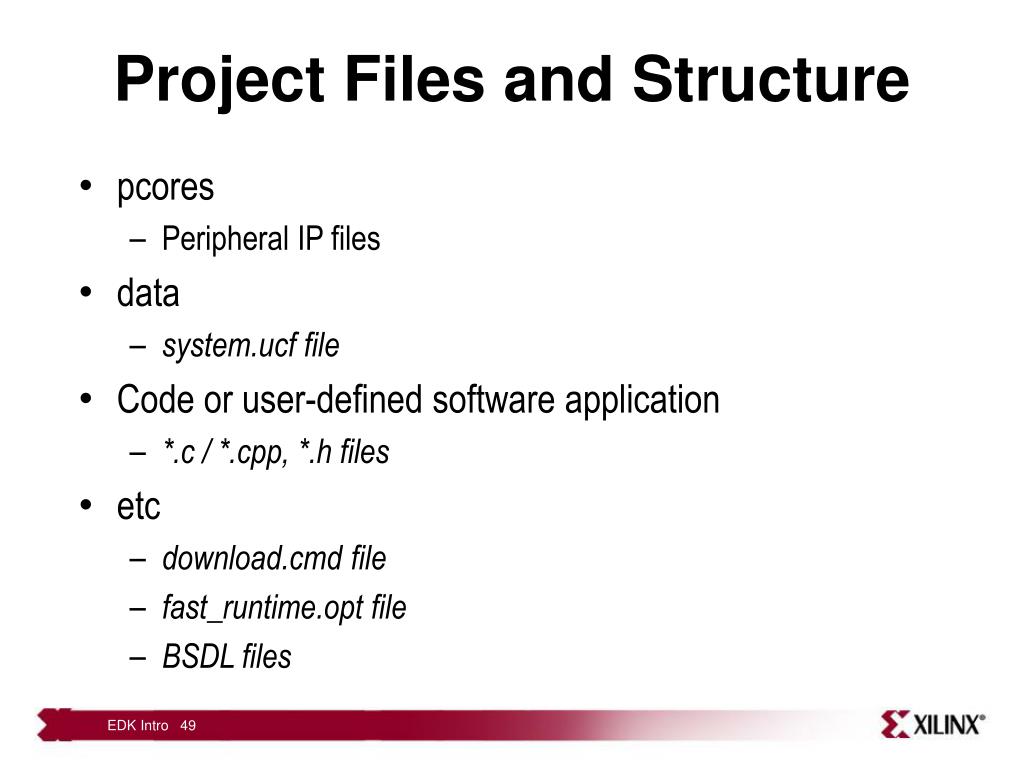

49. Project Files and Structure • pcores • Peripheral IP files • data • system.ucf file • Code or user-defined software application • *.c / *.cpp, *.h files • etc • download.cmd file • fast_runtime.opt file • BSDL files

50. Project Files and Structure • __xps • makefile • synthesis • system.scr file • HDL • system.[vhd|v], system_stub.[vhd|v]* file • Peripheral_wrapper.[vhd|v] files • implementation • peripheral_wrapper.ngc files • system.ngc, system_stub.ngc* file • system.bmm file * files created if system is a submodule
