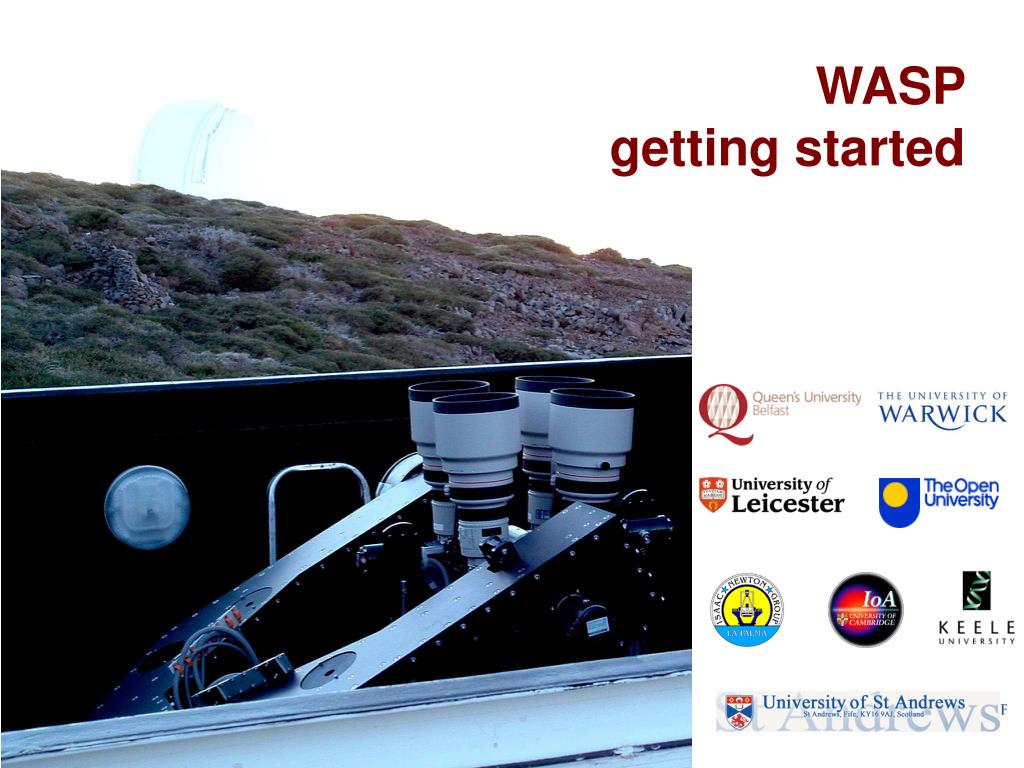

  1. WASP getting started

  2. Horne 2006

  3. Mass-Radius Relation Radius and inclination from transits Mass from inclination and radial velocity

  4. Aperture Horne 2002

  5. Optics: sky coverage and depth 1% of sky with 1 CCD WASP LSST 11cm aperture 16 CCDs 2.5% of sky 8m aperture - 750 CCDs – 0.02% of sky

  6. 11cm aperture; f/1.8 16 CCDs; 1000 sqr deg

  7. Survey Grasp

  8. INT Parameter Space VST • For flat logN-logS, best to survey shallow and wide • WASP will find the rare bright examples of variable objects WASP

  9. WASP-South

  10. Status • WASP-N • Operated with 5 cameras for 5 months in 2004 • 2004 data reduced and available in archive • Operations with 8 cameras due to begin in April 2006 • WASP-S • Operations recently begun with 8 cameras

  11. Archive contents: August 2005 Star counts

  12. Archive contents: August 2005 Number of observations

  13. Archive contents: 11 Feb 2006 6,712,926 stars

  14. Archive contents: 11 Feb 2006 6,712,926 stars; 12,791,907,925 observations

  15. Archive contents: 11 Feb 2006 6,712,926 stars; 12,791,907,925 observations

  16. WASP Archive • Designed and built by Richard West (Leicester) • development on-going; issues of scaling and access times • documentation at http://www.wasp.le.ac.uk/archive/ • Archive use is a two stage process • Search the catalogue for objects of interest • Download and analyse light curves • Access is via command-line-driven perl scripts • use of web-protocols to be firewall compatible • Philosophy is avoid reinventing the wheel • Data served as FITS files, so compatible with existing software • Each user can use their favourite scripting language (e.g. IDL) • Expect users to share analysis tools for common tasks • Users can also share results via new database tables

  17. Archive contents: 11 Feb 2006 pl_sky.qin 6,712,926 stars

  18. Remote user Internet Archive Archive software Catalogue database tables Bulk photometry The WASP Archive • User interface via perl scripts • wcatquery – filter database tables to select objects of interest • wlcextract – download light curves for selected objects

  19. wcatquery > wcatquery –qryfile=filename.qry 1SWASP J141609.92+512202.0 214.041369 51.367231 4.640000 11SWASP J152617.38+342009.5 231.572433 34.335994 4.650000 11SWASP J173055.37+310929.2 262.730717 31.158136 5.110000 11SWASP J165258.05+314206.0 253.241906 31.701675 5.180000 11SWASP J170136.36+333405.7 255.401503 33.568267 5.260000 11SWASP J170330.21+352450.5 255.875897 35.414053 5.460000 21SWASP J163102.78+351330.2 247.761597 35.225061 5.480000 51SWASP J113832.32+333733.0 174.634678 33.625833 5.520000 11SWASP J103330.91+345919.2 158.378794 34.988694 5.540000 21SWASP J153848.85+344030.1 234.703547 34.675039 5.570000 41SWASP J173608.10+281106.3 264.033756 28.185089 5.590000 21SWASP J165043.14+323313.2 252.679792 32.553667 5.610000 21SWASP J103752.26+340443.0 159.467772 34.078625 5.630000 11SWASP J173149.58+282426.9 262.956586 28.407494 5.650000 21SWASP J123347.41+332304.8 188.447561 33.384669 5.660000 11SWASP J174041.18+311714.9 265.171611 31.287483 5.730000 11SWASP J170217.10+315302.7 255.571286 31.884108 5.770000 21SWASP J172644.24+481536.2 261.684339 48.260064 5.770000 11SWASP J164351.68+340219.6 250.965361 34.038803 5.860000 21SWASP J103151.37+322246.3 157.964064 32.379553 5.860000 1

  20. WASP Query Language (WQL) # Example WQL query # load database tables (main table available by default) using photsummary # select attributes to be returned display obj_id, ra, declination, usno_rmag1, npts # format for output file qdat/text/html format text # filters filter npts > 0 filter usno_rmag1 < 10.0

  21. Catalogue tables Root (available by default)

  22. Catalogue tables Photsummary (derived from WASP data) Fieldnames

  23. Catalogue tables GCVS (cross-correlations) Also Veron, ROSAT… Analysis results…

  24. wcatquery > wcatquery –qryfile=filename.qry 1SWASP J141609.92+512202.0 214.041369 51.367231 4.640000 11SWASP J152617.38+342009.5 231.572433 34.335994 4.650000 11SWASP J173055.37+310929.2 262.730717 31.158136 5.110000 11SWASP J165258.05+314206.0 253.241906 31.701675 5.180000 11SWASP J170136.36+333405.7 255.401503 33.568267 5.260000 11SWASP J170330.21+352450.5 255.875897 35.414053 5.460000 21SWASP J163102.78+351330.2 247.761597 35.225061 5.480000 51SWASP J113832.32+333733.0 174.634678 33.625833 5.520000 11SWASP J103330.91+345919.2 158.378794 34.988694 5.540000 21SWASP J153848.85+344030.1 234.703547 34.675039 5.570000 41SWASP J173608.10+281106.3 264.033756 28.185089 5.590000 21SWASP J165043.14+323313.2 252.679792 32.553667 5.610000 21SWASP J103752.26+340443.0 159.467772 34.078625 5.630000 11SWASP J173149.58+282426.9 262.956586 28.407494 5.650000 21SWASP J123347.41+332304.8 188.447561 33.384669 5.660000 11SWASP J174041.18+311714.9 265.171611 31.287483 5.730000 11SWASP J170217.10+315302.7 255.571286 31.884108 5.770000 21SWASP J172644.24+481536.2 261.684339 48.260064 5.770000 11SWASP J164351.68+340219.6 250.965361 34.038803 5.860000 21SWASP J103151.37+322246.3 157.964064 32.379553 5.860000 1

  25. Archive contents: 11 Feb 2006 pl_sky.qin 6,712,926 stars

  26. Analysis tasks • Individual light curves • Variability selection • Period searches • Advanced/custom analysis

  27. Individual objects cone 220.5 31.1 0.005 cone 08h30m 45d15m30s 15s cone "Her X-1" 0.25m > wcatquery –qryfile=filename.qry 1SWASP J165749.80+352032.8 254.457536 35.342456 13.880000 1072 > wlcextract –object=’1SWASP J165749.80+352032.8’ > ls 1SWASPJ165749.80+352032.8.fits . . . # filters

  28. Her X-1 Flux2 Rmag~13.9 pl_lc_all.qin

  29. pl_lc.qin

  30. pl_lc_nights.qin

  31. pl_lomb.qin

  32. pl_lomb.qin

  33. pl_lfold.qin

  34. Analysis tasks • Individual light curves • Variability selection • Period searches • Advanced/custom analysis

  35. pl_sky.qin

  36. pl_sky.qin

  37. pl_sky.qin

  38. pl_sky.qin

  39. pl_sky.qin

  40. wcatquery . . . # select attributes to be returned display obj_id, ra, declination, usno_rmag1, \ npts, flux_mean, flux_chisq, blend_fraction # filters filter field = “SW1543+3126” # remembering to load all necessary database tables using photsummary, fieldnames

  41. pl_chi_lc3.qin

  42. pl_chi_lc3.qin Blend fraction < 6 % Blend fraction > 10 %

  43. Ghost images

  44. pl_chi_lc3.qin
