  1. Drawing flow charts:A dairy

  2. The dairy • Number of employees: 100 • Production volume: 200 t/d of milk processed into drinking milk • Water consumption: 500 m³/d • Losses: approx. 2.5% milk The company has a wastewater treatment plant.

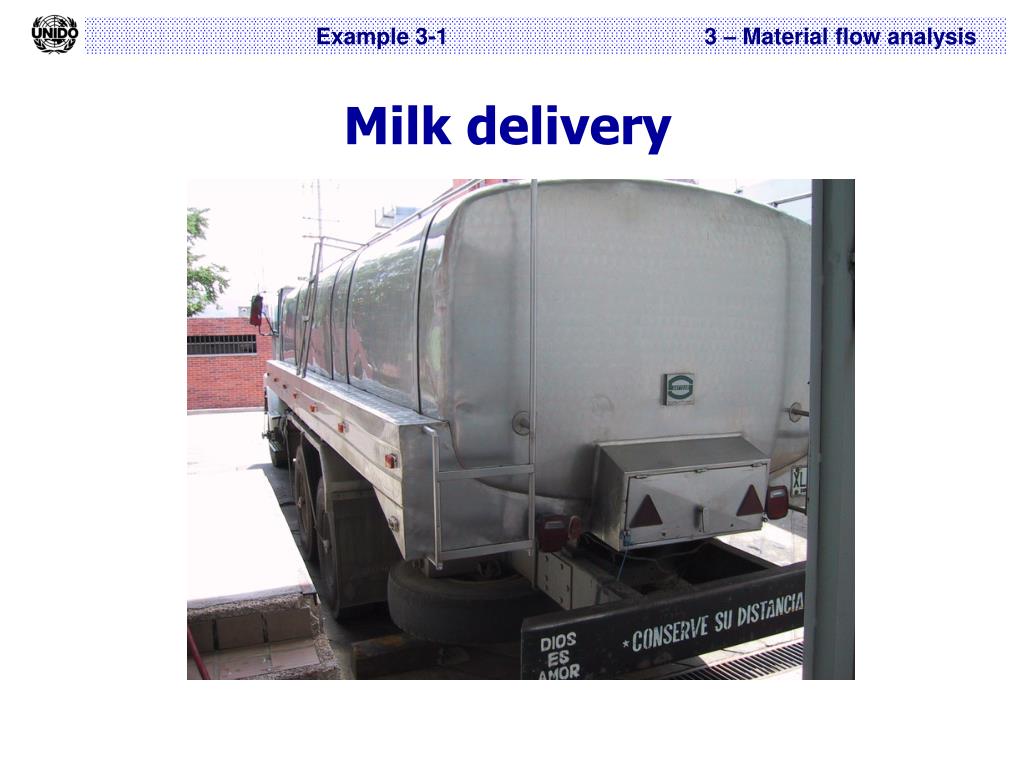

  3. Milk delivery

  4. Cleaning Milk delivery

  5. Metering

  6. Cooling

  7. Cleaning Cooling

  8. Storage

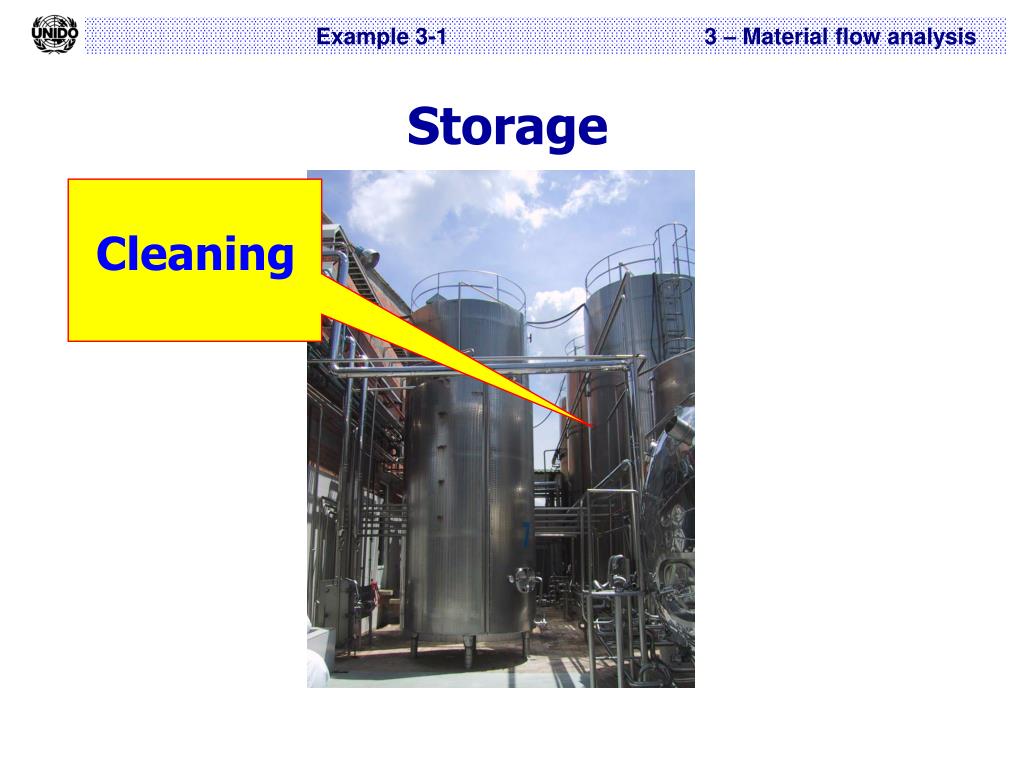

  9. Cleaning Storage

  10. Pasteurization

  11. Cleaning Cooling Pasteurization

  12. Packaging material

  13. Filling

  14. Cleaning Cooling Filling

  15. Finished product

  16. Storage

  17. Cooling – compressor

  18. CIP plant

  19. Wastewater treatment

  20. Draw a flowchart! • Represent process steps by rectangles! • Represent material flows by arrows!

  21. Delivery Metering Cooling Storage Pasteurization Filling Product storage

  22. One possible solution: Reception Metering Cooling Storage Pasteurization Filling Product storage

  23. Municipal water Wastewater withlost product Wastewatertreatment One possible solution: Reception Metering Cooling Storage Pasteurization Filling Product storage

  24. Municipal water Wastewater withlost product Chiller Wastewatertreatment One possible solution: Reception Metering Cooling Storage Pasteurization Filling Product storage

  25. Data collection
