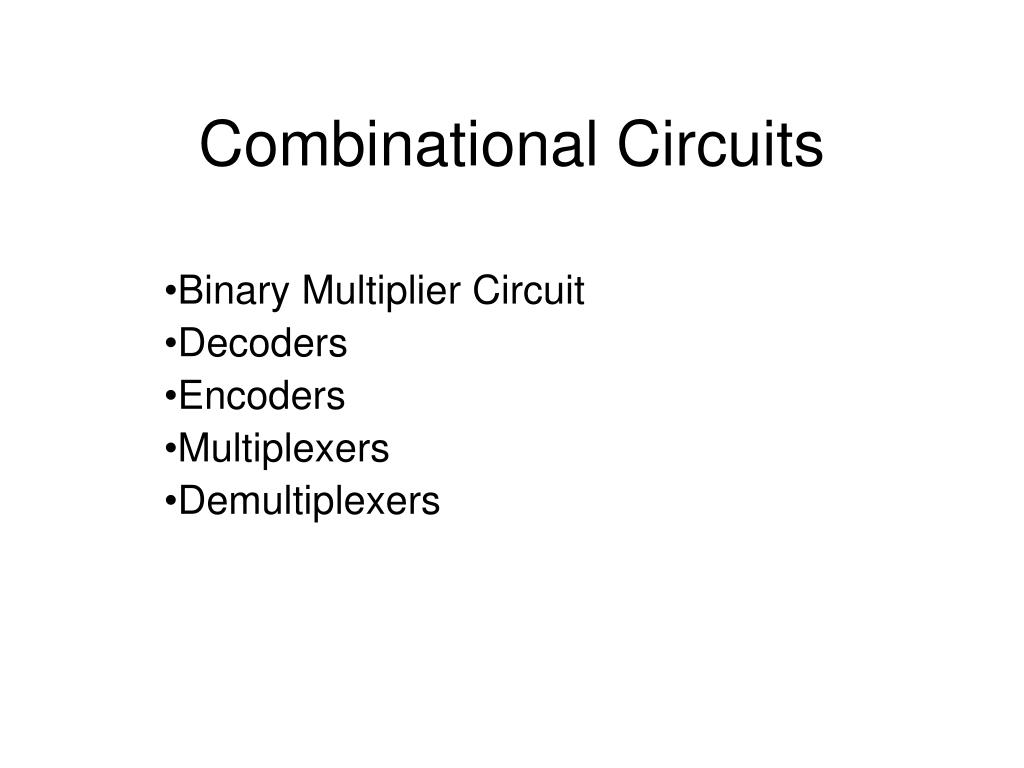

  1. Combinational Circuits Binary Multiplier Circuit Decoders Encoders Multiplexers Demultiplexers

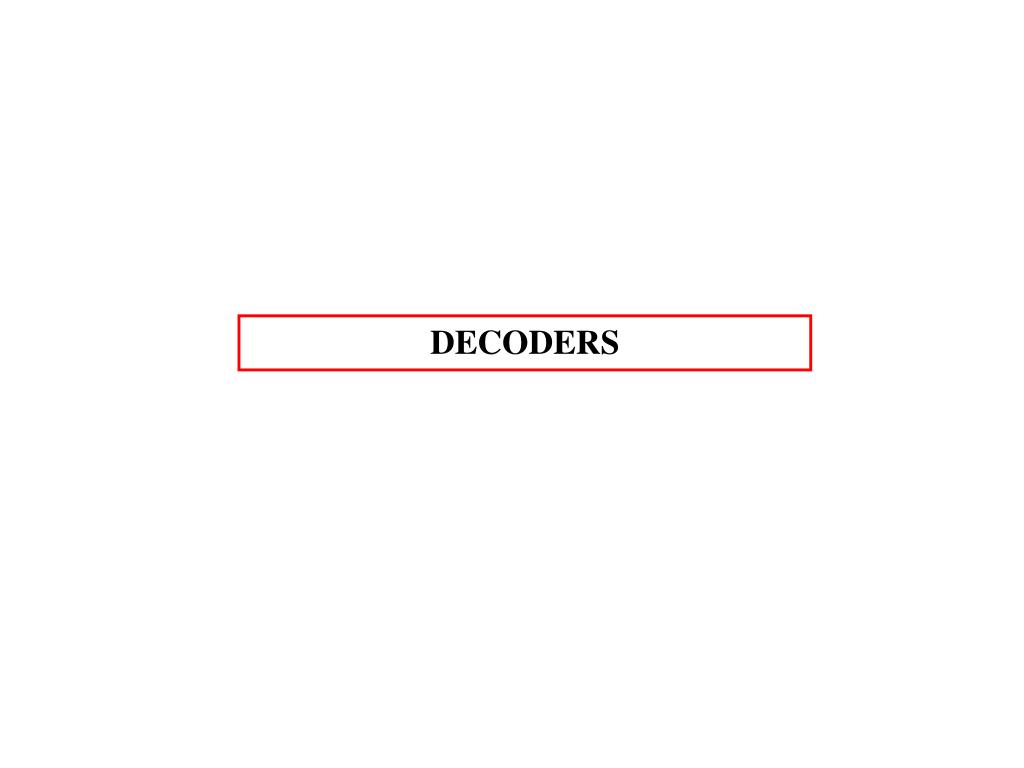

  2. DECODERS

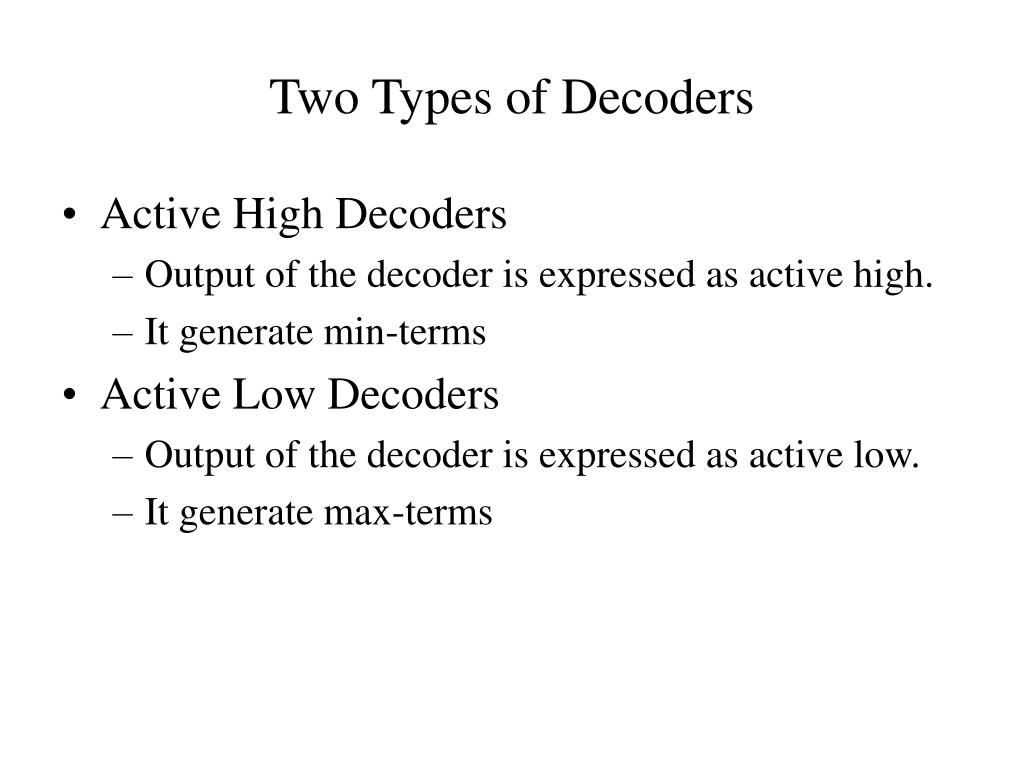

  3. Two Types of Decoders • Active High Decoders • Output of the decoder is expressed as active high. • It generate min-terms • Active Low Decoders • Output of the decoder is expressed as active low. • It generate max-terms

  4. D7 D0 A0 A1 A2 V
