Energy-efficient control of constant-flow pumping systems

The 1100 provides energy-efficient control of constant-flow pumping used in golf course and agricultural irrigation systems.<br>Where used : With any electric-motor-driven submersible pump, centrifical pump, turbine pump, vertical hollow-shaft pump, or inline booster pump<br>Applications Flux Vector AC Drive 1100 Whenever there is a need to control the speed of an electric motor in your farm or rural application, the UNICO 1100 Flux Vector AC Drive should be your first choice. <br>https://www.unicous.com/?utm_source=macawdigital&utm_medium=offpage&utm_campaign=slideserv

usunic
Download Presentation

Energy-efficient control of constant-flow pumping systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

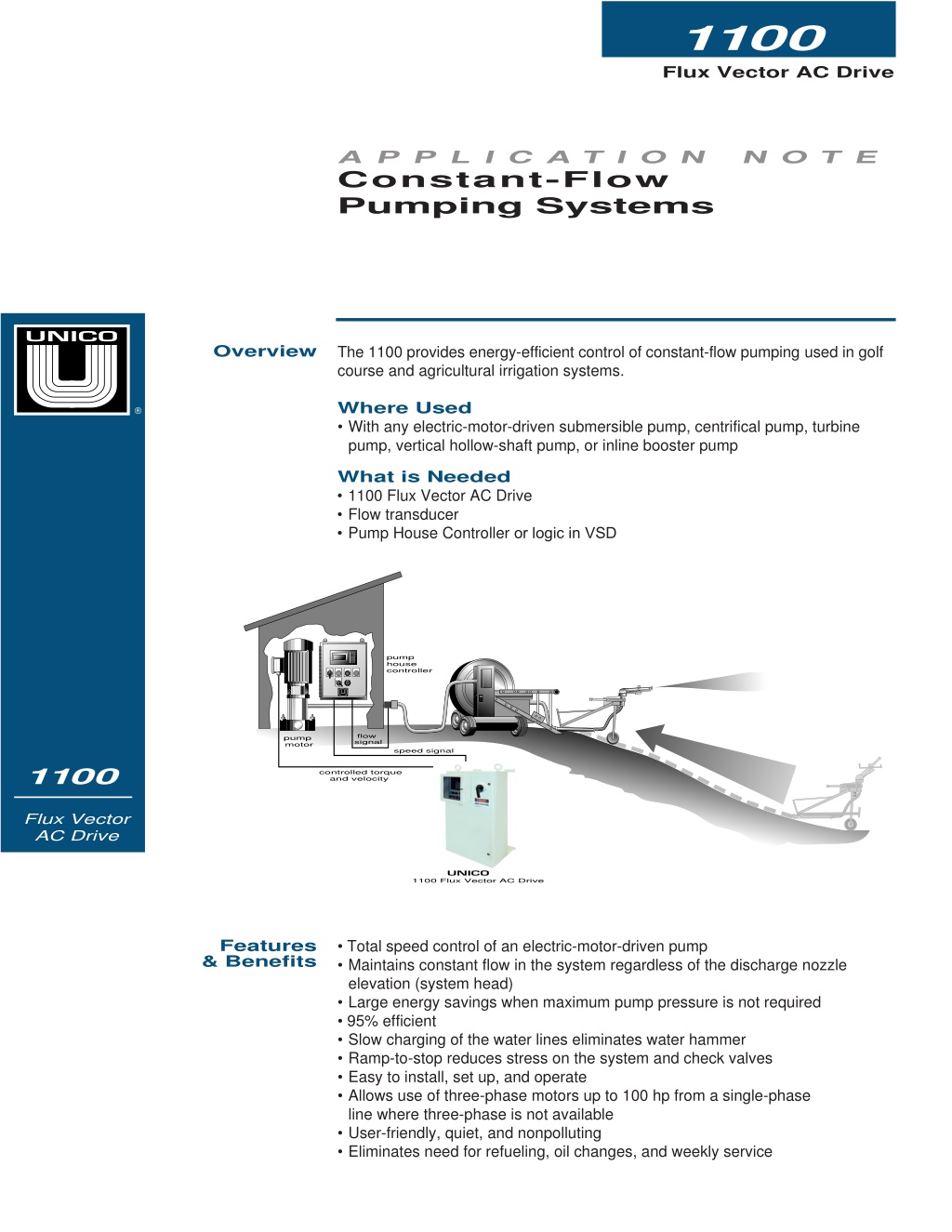

  1. Flux Vector AC Drive 1100 N O T E A P P L I C A T I O N Constant-Flow Pumping Systems Overview The 1100 provides energy-efficient control of constant-flow pumping used in golf course and agricultural irrigation systems. Where Used • With any electric-motor-driven submersible pump, centrifical pump, turbine pump, vertical hollow-shaft pump, or inline booster pump ® What is Needed • 1100 Flux Vector ACDrive • Flow transducer • Pump HouseController or logic in VSD pump house controller flow signal pump motor speed signal 1100 controlled torque and velocity Flux Vector AC Drive UNICO 1100 Flux Vector AC Drive Features & Benefits • Total speed control of an electric-motor-driven pump • Maintains constant flow in the system regardless of the discharge nozzle elevation (system head) • Large energy savings when maximum pump pressure is not required • 95% efficient • Slow charging of the water lines eliminates water hammer • Ramp-to-stop reduces stress on the system and check valves • Easy to install, set up, and operate • Allows use of three-phase motors up to 100 hp from a single-phase line where three-phase is not available • User-friendly, quiet, and nonpolluting • Eliminates need for refueling, oil changes, and weekly service

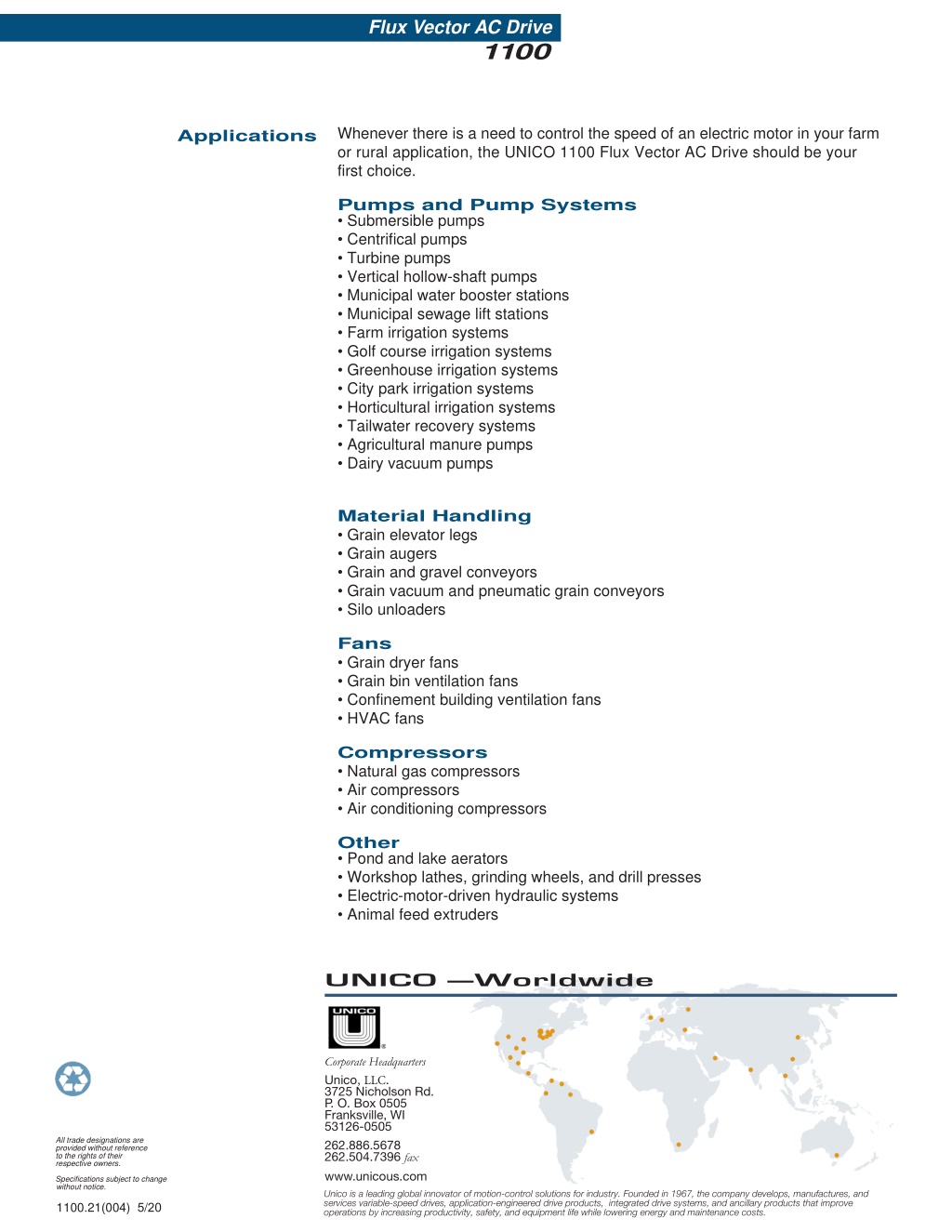

  2. Flux Vector AC Drive 1100 Whenever there is a need to control the speed of an electric motor in your farm or rural application, the UNICO 1100 Flux Vector AC Drive should be your first choice. Applications Pumps and Pump Systems • Submersible pumps • Centrifical pumps • Turbine pumps • Vertical hollow-shaft pumps • Municipal water booster stations • Municipal sewage lift stations • Farm irrigation systems • Golf course irrigation systems • Greenhouse irrigation systems • City park irrigation systems • Horticultural irrigation systems • Tailwater recovery systems • Agricultural manure pumps • Dairy vacuum pumps Material Handling • Grain elevator legs • Grain augers • Grain and gravel conveyors • Grain vacuum and pneumatic grain conveyors • Silo unloaders Fans • Grain dryer fans • Grain bin ventilation fans • Confinement building ventilation fans • HVAC fans Compressors • Natural gas compressors • Air compressors • Air conditioning compressors Other • Pond and lake aerators • Workshop lathes, grinding wheels, and drill presses • Electric-motor-driven hydraulic systems • Animal feed extruders UNICO —Worldwide Corporate Headquarters Unico, LLC. 3725 Nicholson Rd. P. O. Box 0505 Franksville, WI 53126-0505 262.886.5678 262.504.7396 fax www.unicous.com All trade designations are provided without reference to the rights of their respective owners. Specifications subject to change without notice. Unico is a leading global innovator of motion-control solutions for industry. Founded in 1967, the company develops, manufactures, and services variable-speed drives, application-engineered drive products, integrated drive systems, and ancillary products that improve operations by increasing productivity, safety, and equipment life while lowering energy and maintenance costs. 1100.21(004) 5/20
