Presentation Transcript
early discoveries
Early Discoveries
  • Mid 1600s - Robert Hooke observed and described cells in cork
  • Late 1600s - Antony van Leeuwenhoek observed sperm, microorganisms
  • 1820s - Robert Brown observed and named nucleus in plant cells
developing cell theory

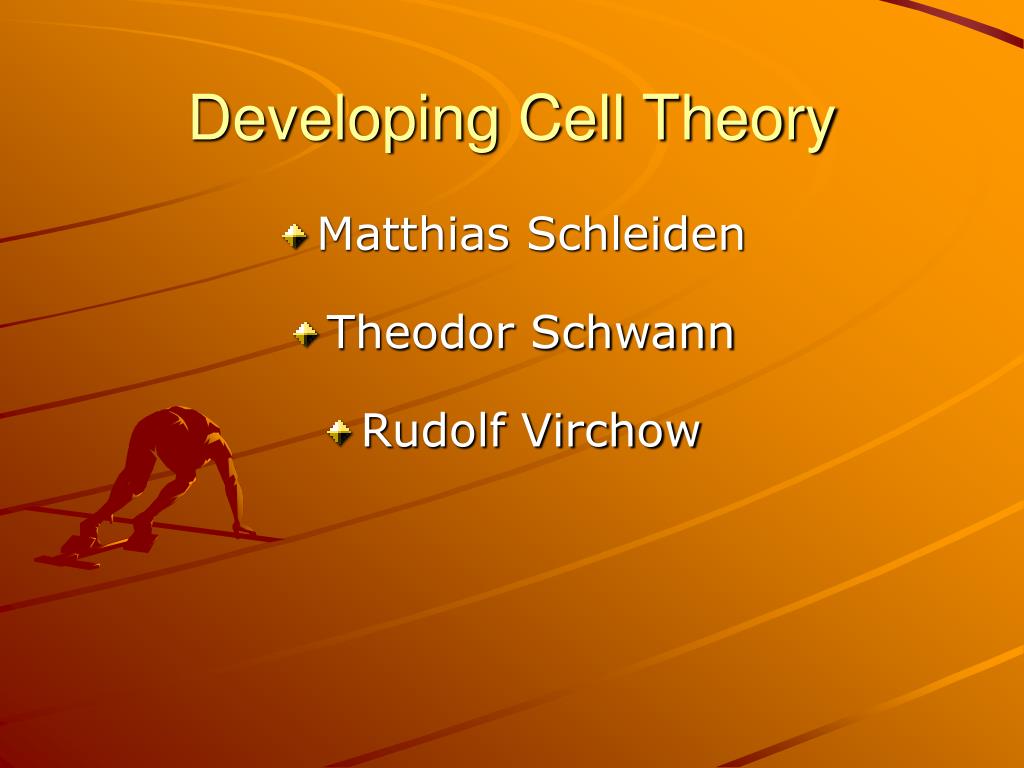

Developing Cell Theory
  • Matthias Schleiden
  • Theodor Schwann
  • Rudolf Virchow
cell theory

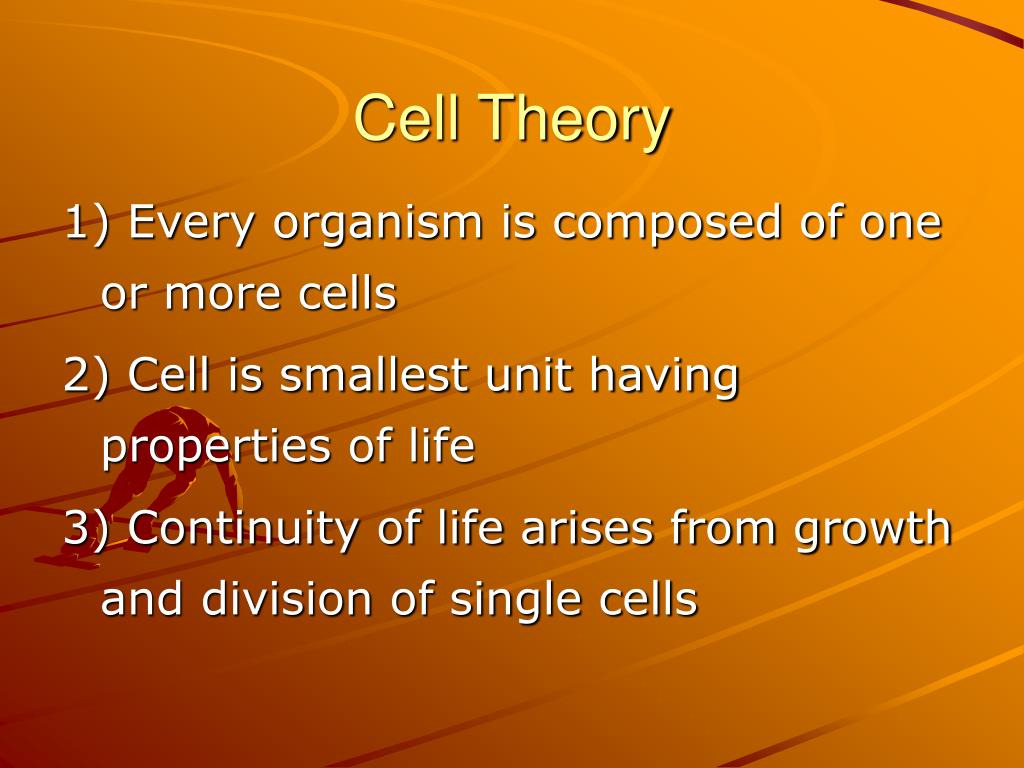

Cell Theory

1) Every organism is composed of one or more cells

2) Cell is smallest unit having properties of life

3) Continuity of life arises from growth and division of single cells

  • Smallest unit of life
  • Can survive on its own or has potential to do so
  • Is highly organized for metabolism
  • Senses and responds to environment
  • Has potential to reproduce
structure of cells

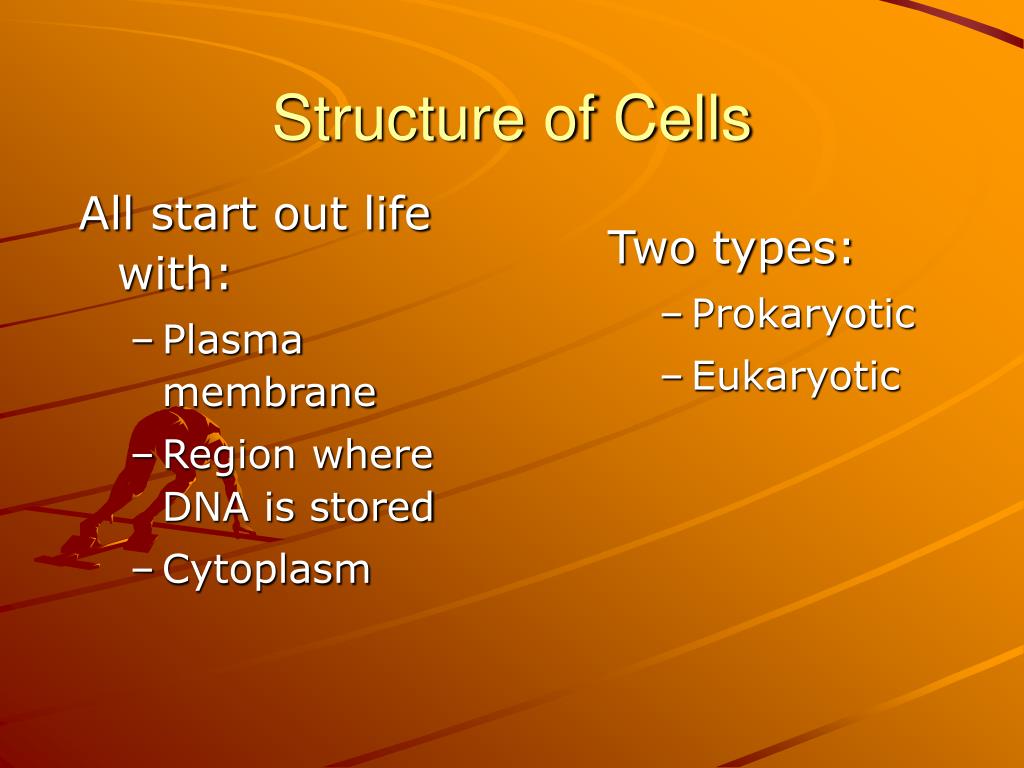

Structure of Cells

All start out life with:

  • Plasma membrane
  • Region where DNA is stored
  • Cytoplasm

Two types:

  • Prokaryotic
  • Eukaryotic
lipid bilayer

one layer

of lipids

one layer

of lipids

Lipid Bilayer
  • Main component of cell membranes
  • Gives the membrane its fluid properties
  • Two layers of phospholipids

Figure 4.3Page 56

membrane proteins
Membrane Proteins

Recognition protein

Receptor protein

extracellular environment

lipid bilayer


Protein pump across bilayer

Protein channel across bilayer

Protein pump

Figure 4.4Page 57

why are cells so small

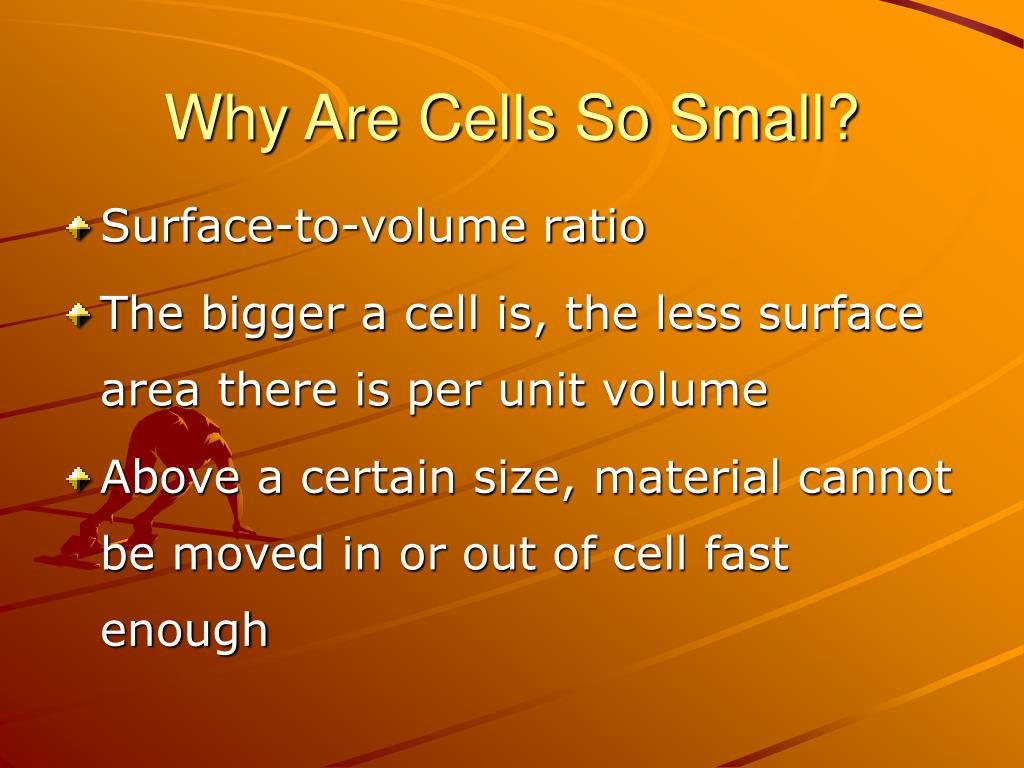

Why Are Cells So Small?
  • Surface-to-volume ratio
  • The bigger a cell is, the less surface area there is per unit volume
  • Above a certain size, material cannot be moved in or out of cell fast enough

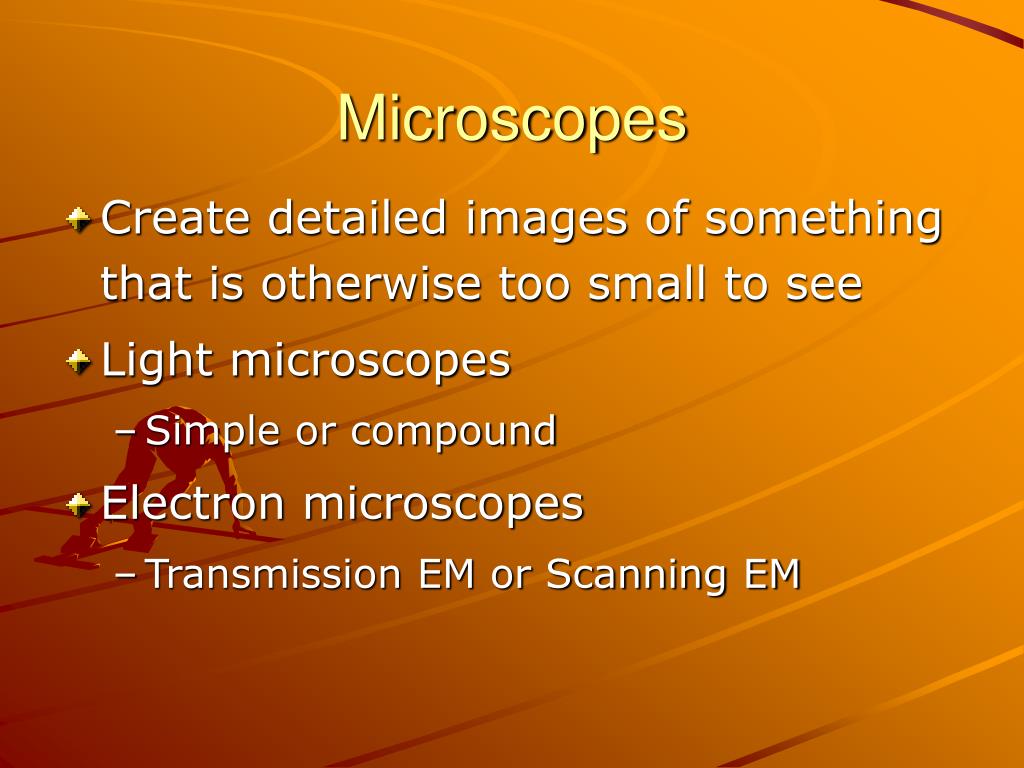

  • Create detailed images of something that is otherwise too small to see
  • Light microscopes
    • Simple or compound
  • Electron microscopes
    • Transmission EM or Scanning EM
eukaryotic cells
Eukaryotic Cells
  • Have a nucleus and other organelles
  • Eukaryotic organisms
    • Plants
    • Animals
    • Protistans
    • Fungi
animal cell features
Animal Cell Features
  • Plasma membrane
  • Nucleus
  • Ribosomes
  • Endoplasmic reticulum
  • Golgi body
  • Vesicles
  • Mitochondria
  • Cytoskeleton

Figure 4.10bPage 61

plant cell features
Cell wall

Central vacuole


Plant Cell Features
  • Plasma membrane
  • Nucleus
  • Ribosomes
  • Endoplasmic reticulum
  • Golgi body
  • Vesicles
  • Mitochondria
  • Cytoskeleton

Figure 4.10aPage 61

functions of nucleus

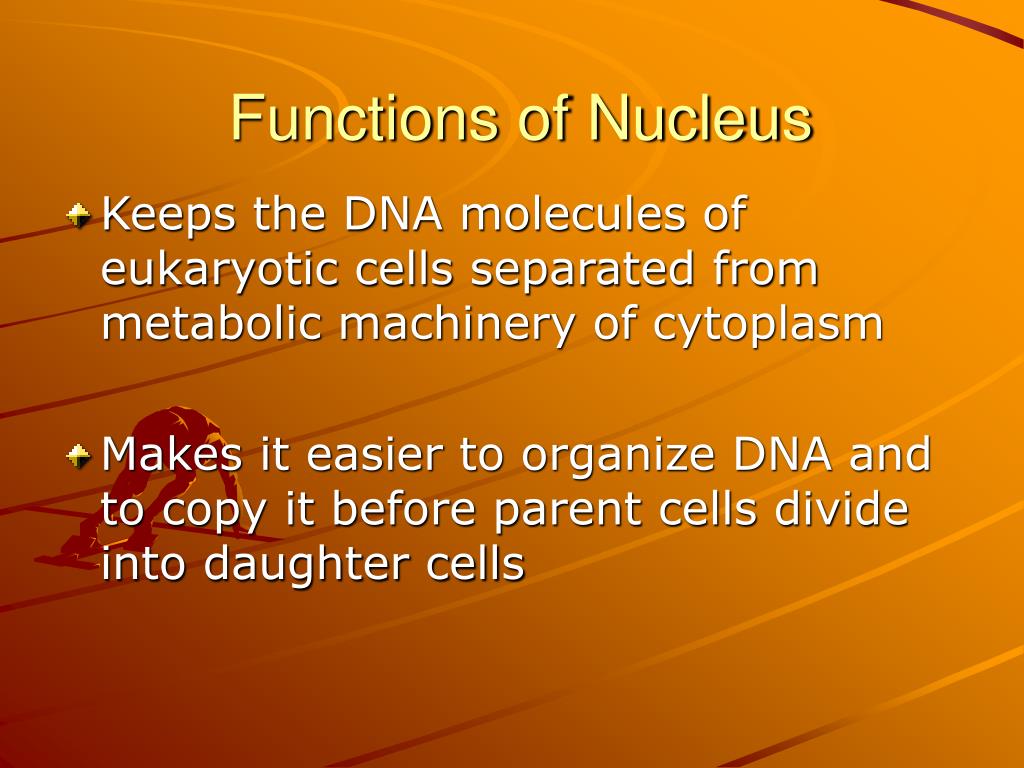

Functions of Nucleus
  • Keeps the DNA molecules of eukaryotic cells separated from metabolic machinery of cytoplasm
  • Makes it easier to organize DNA and to copy it before parent cells divide into daughter cells
components of nucleus

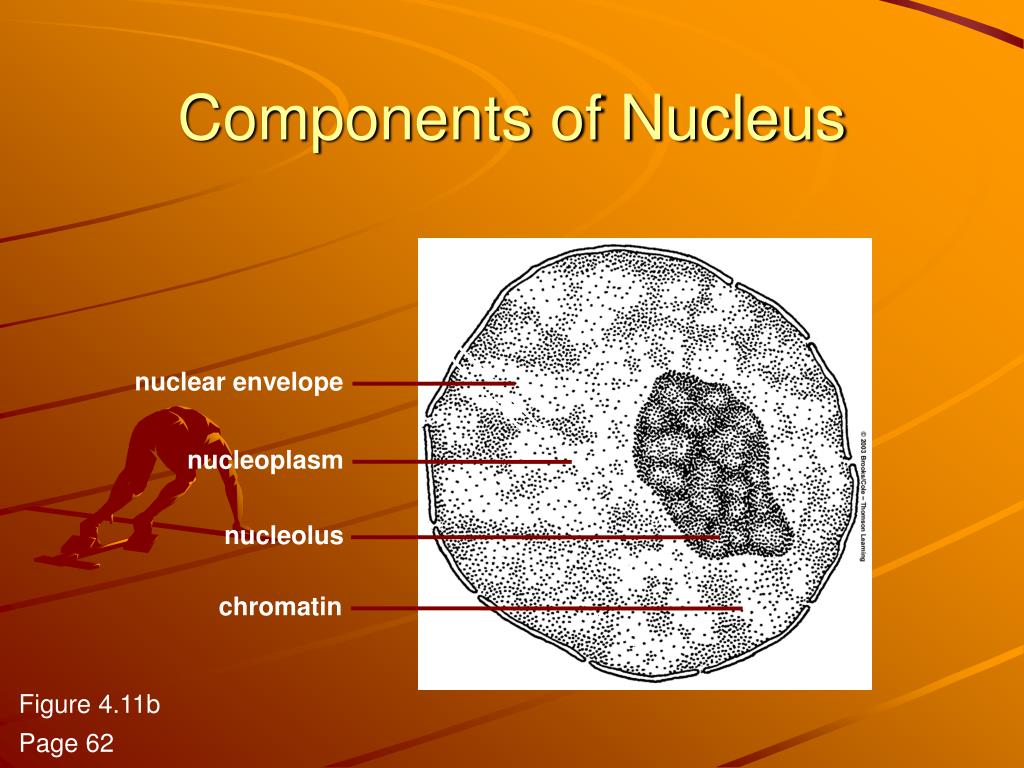

Components of Nucleus

nuclear envelope




Figure 4.11bPage 62

nuclear envelope
Nuclear Envelope
  • Two outer membranes (lipid bilayers)
  • Innermost surface has DNA attachment sites

Nuclear pore

bilayer facing cytoplasm

Nuclear envelope

bilayer facing nucleoplasm

Figure 4.12bPage 63

cytomembrane system

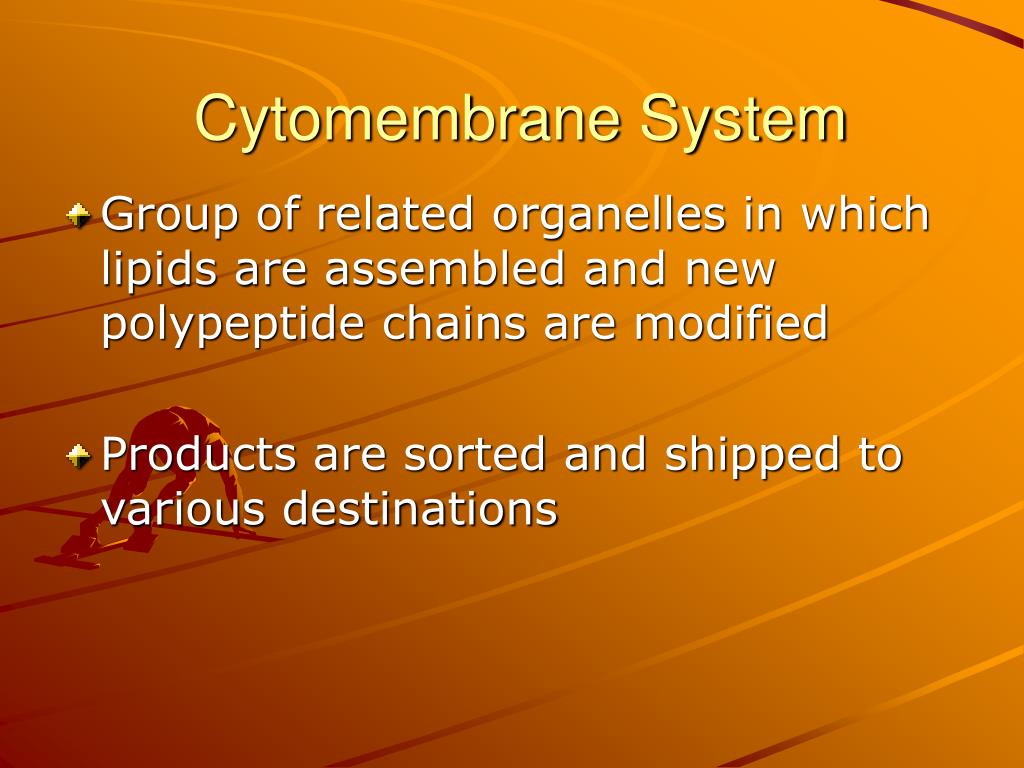

Cytomembrane System
  • Group of related organelles in which lipids are assembled and new polypeptide chains are modified
  • Products are sorted and shipped to various destinations
components of cytomembrane system

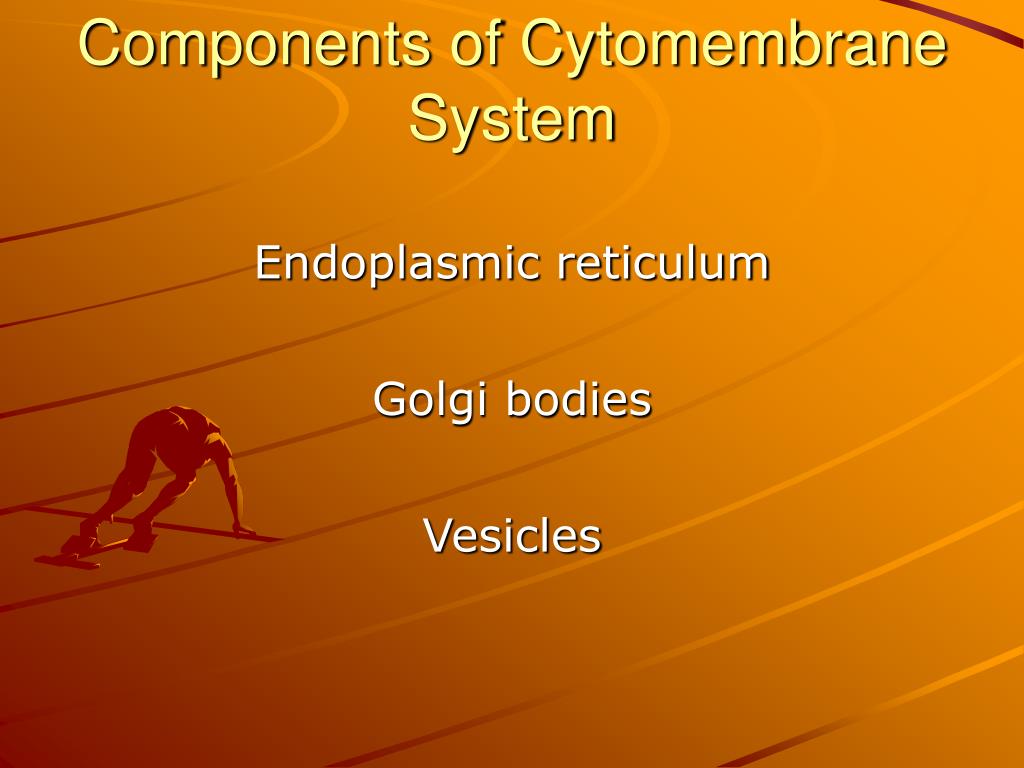

Components of Cytomembrane System

Endoplasmic reticulum

Golgi bodies


endoplasmic reticulum
Endoplasmic Reticulum
  • In animal cells, continuous with nuclear membrane
  • Extends throughout cytoplasm
  • Two regions - rough and smooth
golgi body

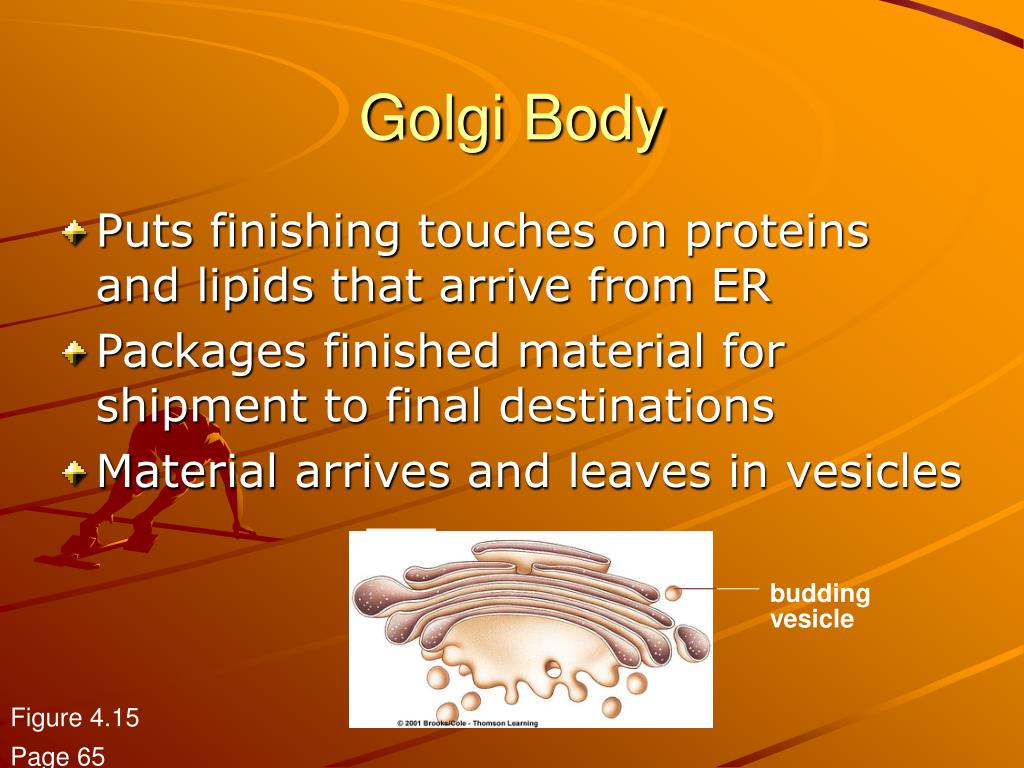

Golgi Body
  • Puts finishing touches on proteins and lipids that arrive from ER
  • Packages finished material for shipment to final destinations
  • Material arrives and leaves in vesicles



Figure 4.15Page 65

  • Membranous sacs that move through cytoplasm
  • Lysosomes
  • Peroxisomes
  • ATP-producing powerhouses
  • Membranes form two distinct compartments
  • ATP-making machinery embedded in inner mitochondrial membrane
mitochondrial origins
Mitochondrial Origins
  • Mitochondria resemble bacteria
    • Have own DNA, ribosomes
    • Divide on their own
  • May have evolved from ancient bacteria that were engulfed but not digested
specialized plant organelles
Specialized Plant Organelles
  • Plastids
  • Central Vacuole

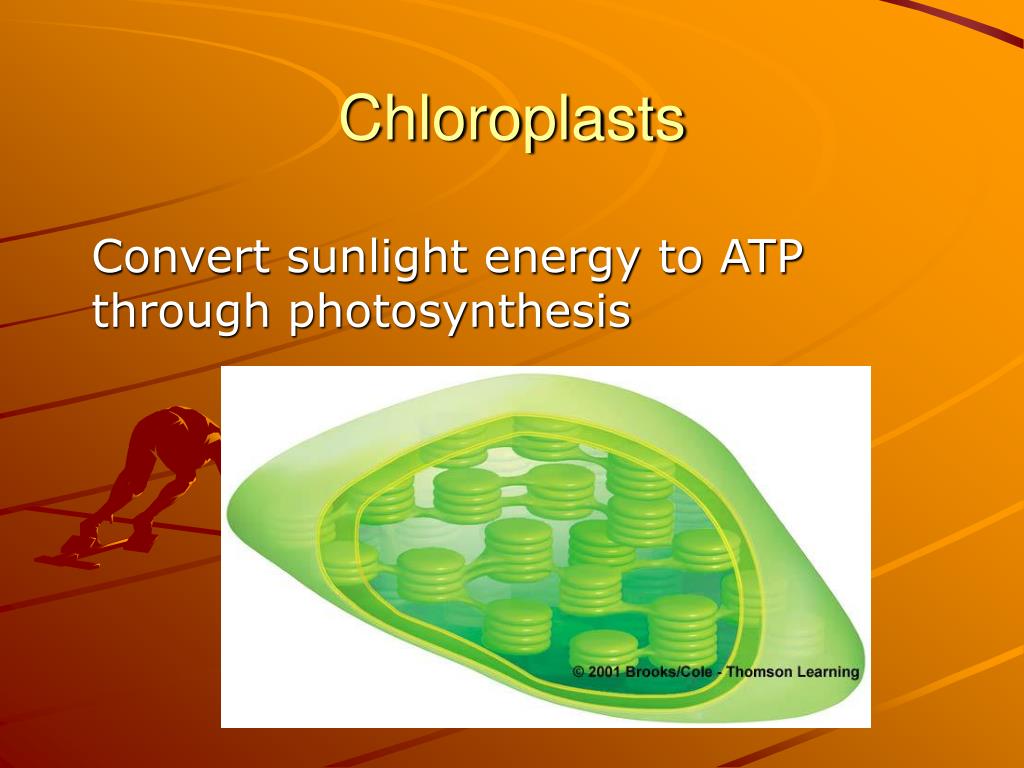

Convert sunlight energy to ATP through photosynthesis

other plastids
Other Plastids
  • Chromoplasts
    • No chlorophyll
    • Abundance of carotenoids
    • Color fruits and flowers red to yellow
  • Amyloplasts
    • No pigments
    • Store starch

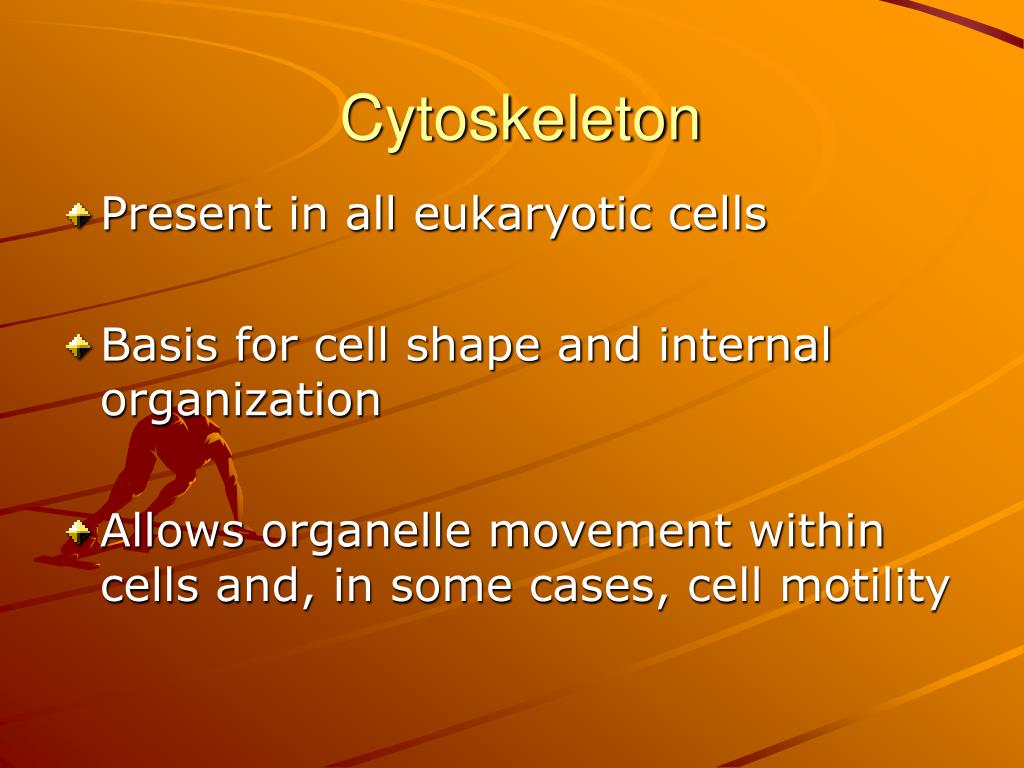

  • Present in all eukaryotic cells
  • Basis for cell shape and internal organization
  • Allows organelle movement within cells and, in some cases, cell motility
flagella and cilia
Flagella and Cilia


  • Structures for cell motility
  • 9 + 2 internal structure


Figure 4.25Page 73

plant cell walls
Plant Cell Walls

Secondary cell wall

(3 layers)

Primary cell wall

plant cuticle
Plant Cuticle
  • Cell secretions and waxes accumulate at plant cell surface
  • Semitransparent
  • Restricts water loss
matrixes between animal cells
Matrixes between Animal Cells
  • Animal cells have no cell walls
  • Some are surrounded by a matrix of cell secretions and other material
prokaryotic structure

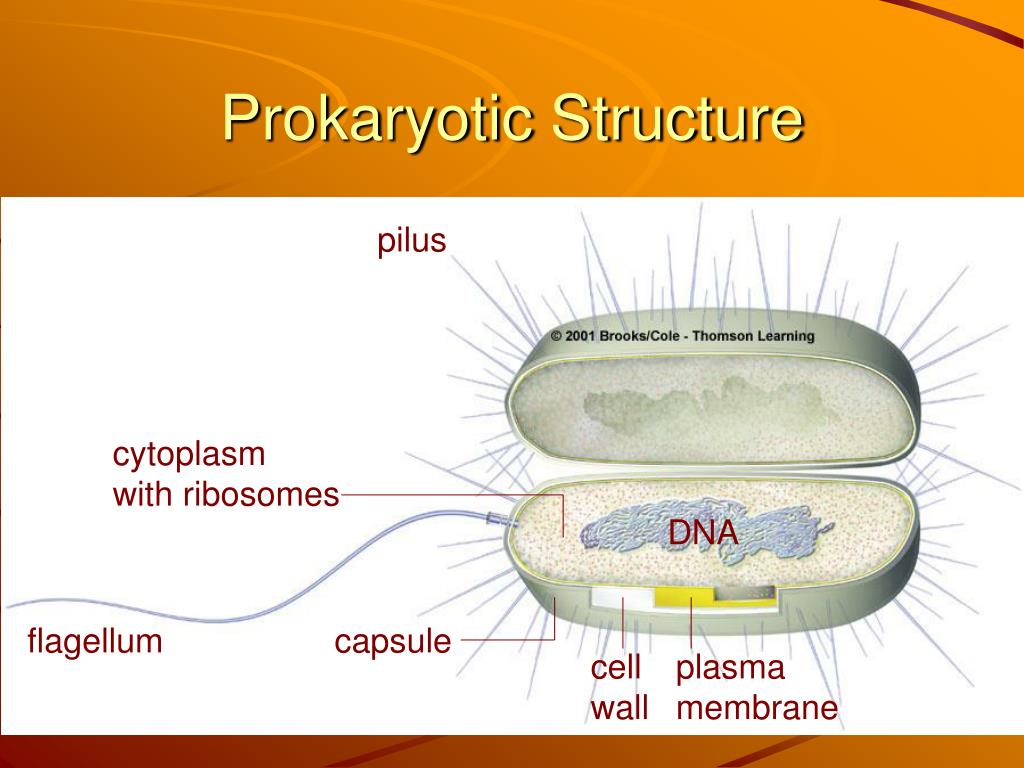

Prokaryotic Structure



with ribosomes




cell wall

plasma membrane
