  1. Texture Splicing Yiming Liu, Jiaping Wang, Su Xue, Xin Tong, Sing Bing Kang, BainingGuo

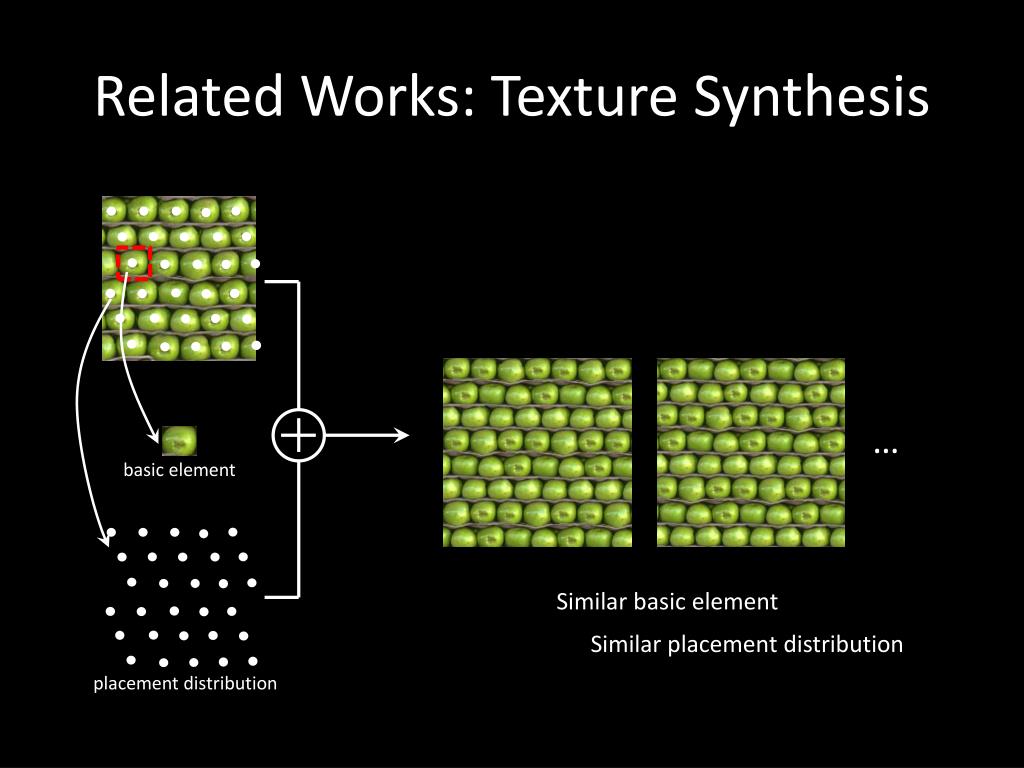

  2. Related Works: Texture Synthesis … basic element Similar basic element Similar placement distribution placement distribution

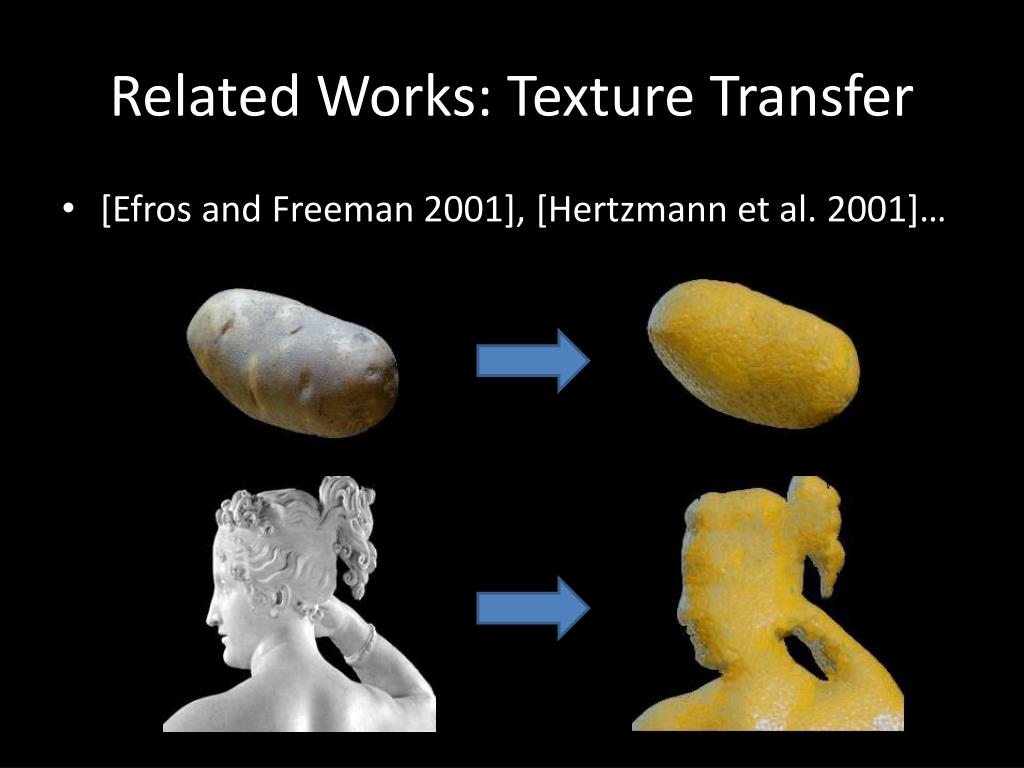

  3. Related Works: Texture Transfer • [Efros and Freeman 2001], [Hertzmann et al. 2001]…

  4. Related Works: Texture Design • [Matusik et al. 2005] and other works…

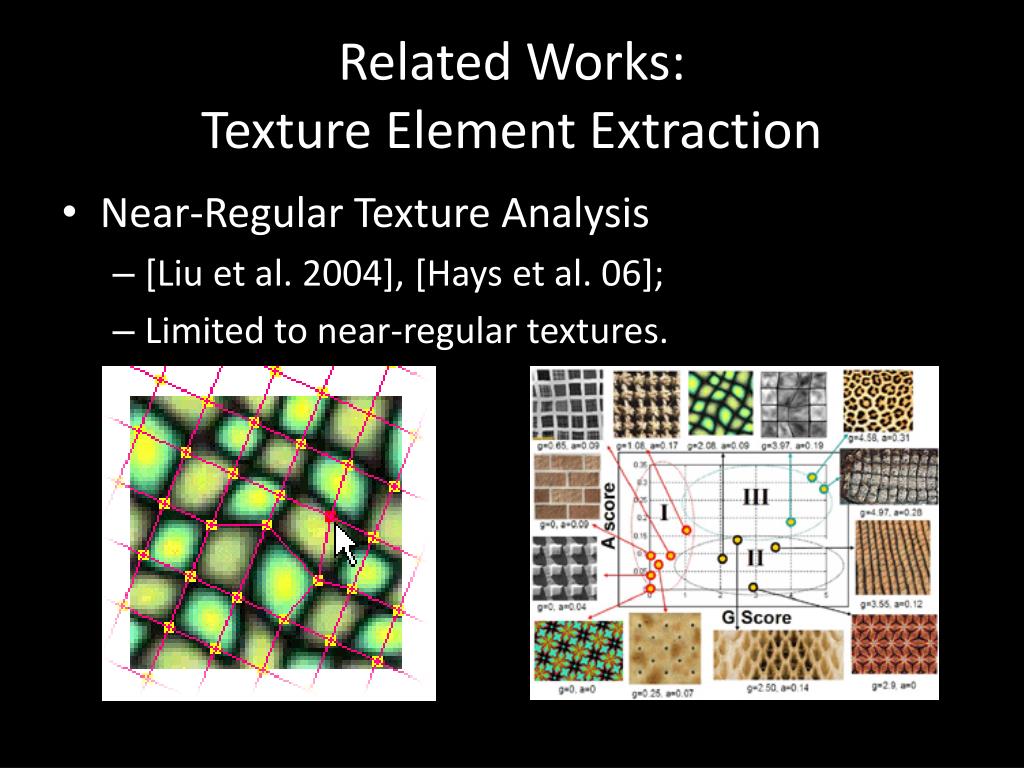

  5. Related Works: Texture Element Extraction • Near-Regular Texture Analysis • [Liu et al. 2004], [Hays et al. 06]; • Limited to near-regular textures.

  6. Texture Splicing = + basic element = + placement distribution new texture

  7. Texture Analysis (1) self-similarity search

  8. Self-Similarity Search Normalized Cross Correlation Sliding Window Template Patch Texture Image Normalized Cross Correlation Value

  9. Placement Distribution Extraction Texture Image Placement Distribution Normalized Cross Correlation Value

  10. Texture Analysis (2) Graph Cut

  11. Graph Cut based Segmentation Minimize: F B

  12. Different Types of Textures Foreground:Rigid Disjoint Foreground:Rigid Connected Background:Rigid Connected

  13. New Texture Generation Texture A Distribution A Deformation Field Texton Mask Texture B Distribution B New Texture

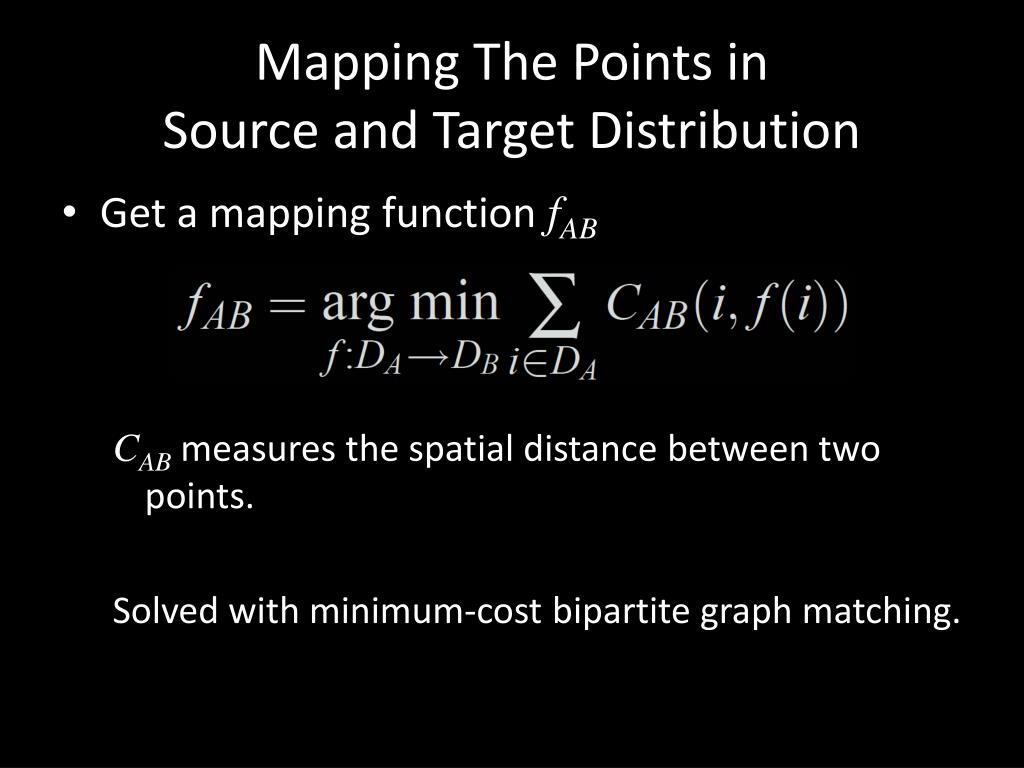

  14. Mapping The Points in Source and Target Distribution • Get a mapping function fAB CAB measures the spatial distance between two points. Solved with minimum-cost bipartite graph matching.

  15. Getting Deformation Field W • Find a deformation field WAB which: • Map texture element p(x, y) in source distribution to its correspondent position in target distribution (fx(p), fy(p)); • Preserve the rigidity in the rigid area as much as possible. Rigid area Non-rigid area

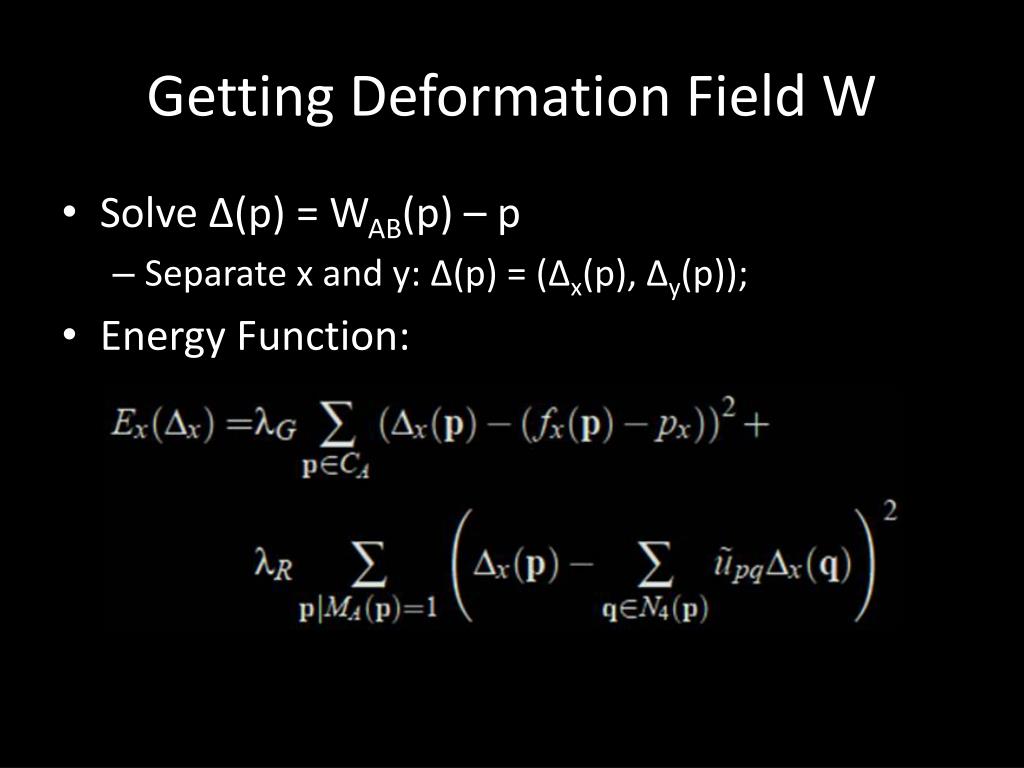

  16. Getting Deformation Field W • Solve ∆(p) = WAB(p) – p • Separate x and y: ∆(p) = (∆x(p), ∆y(p)); • Energy Function:

  17. Non-Rigid vs. Rigid (1) Non-Rigid Rigid Texture Deformation Field Deformation Field Result Result Texton Mask

  18. Non-Rigid vs. Rigid (2) Non-Rigid Rigid Texture Deformation Field Deformation Field Result Result

  19. Non-Rigid vs. Rigid (3) Non-Rigid Rigid Texture Deformation Field Deformation Field Result Result

  20. Barycentric Interpolation WBA(q) q source output

  21. Final Refinement • Texture Synthesis [Lefebvre and Hoppe 2006] • Add fine details to the texture. • Fix the incorrectly deformed area in the texture. Before texture synthesis After texture synthesis

  22. Splicing Result (1)

  23. Splicing Result (2)

  24. Splicing Result (3)

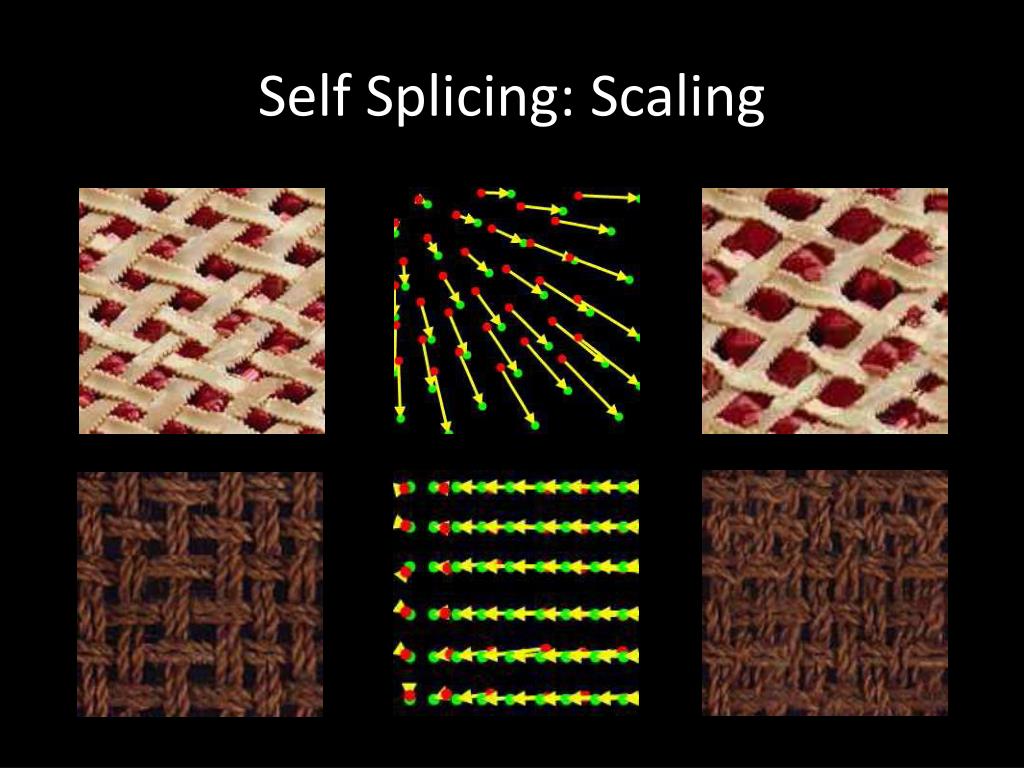

  25. Self Splicing: Scaling

  26. Self Splicing: Randomization

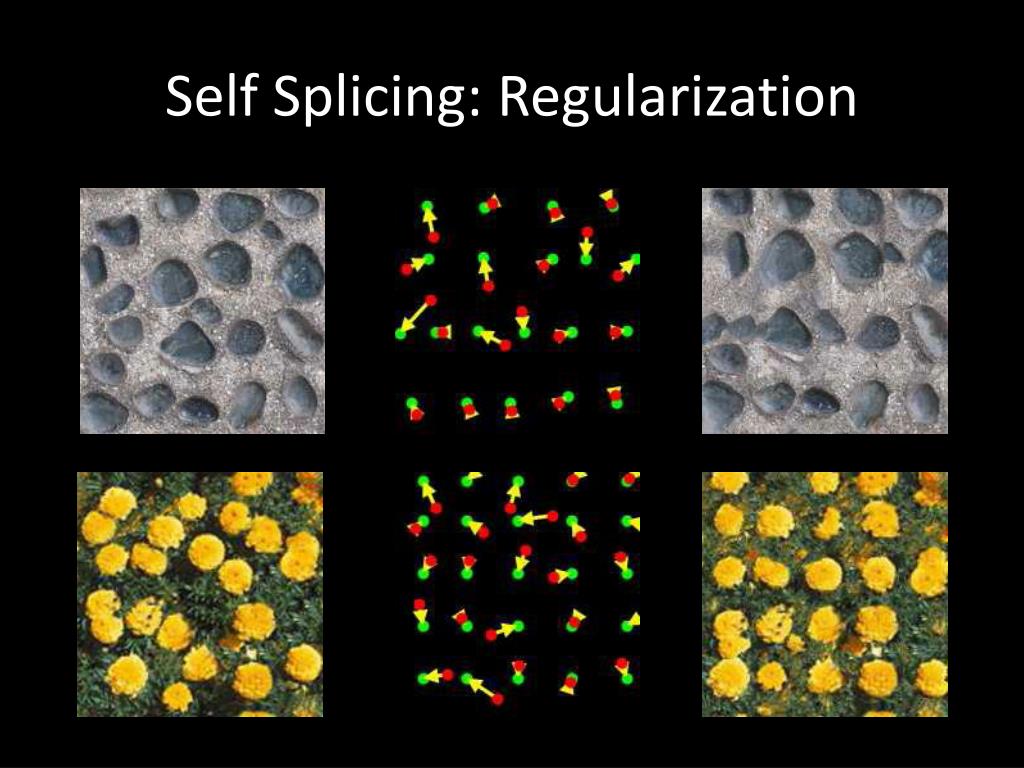

  27. Self Splicing: Regularization

  28. Self Splicing: Specific Rearrangement

  29. Summary • Texture Splicing: a novel method for texture editing. • Simple idea: generate new textures with one texture’s element and another’s spatial placement distribution: • Self-similarity search; • Graph-cut based segmentation; • Image deformation with rigid constraint.

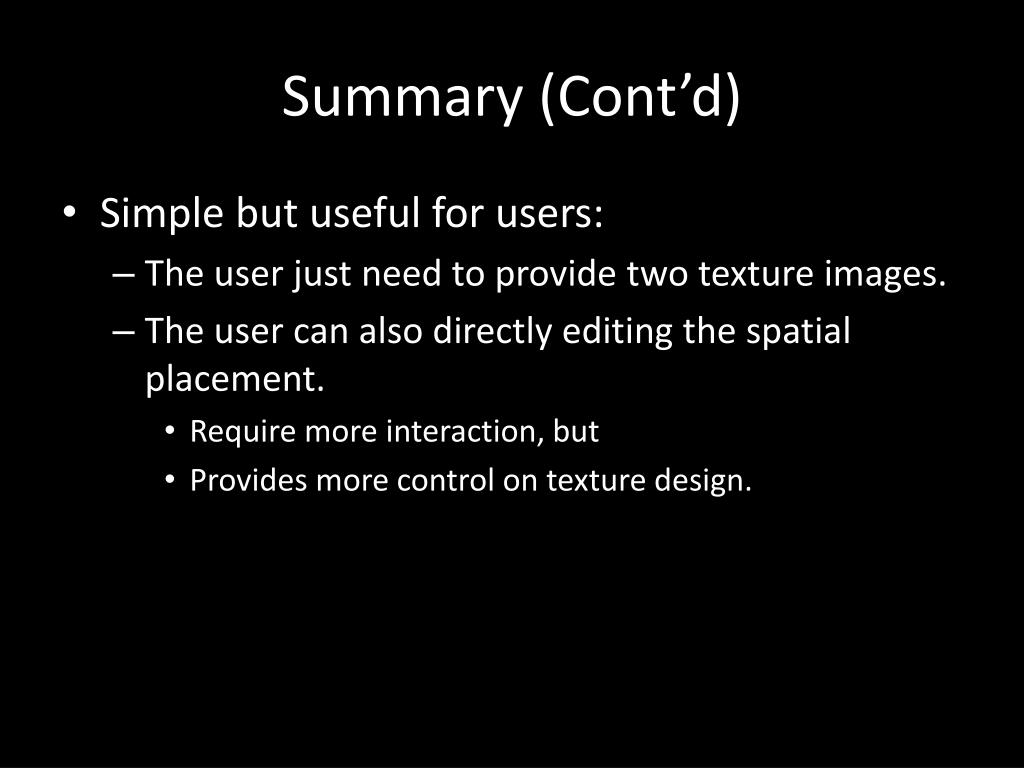

  30. Summary (Cont’d) • Simple but useful for users: • The user just need to provide two texture images. • The user can also directly editing the spatial placement. • Require more interaction, but • Provides more control on texture design.

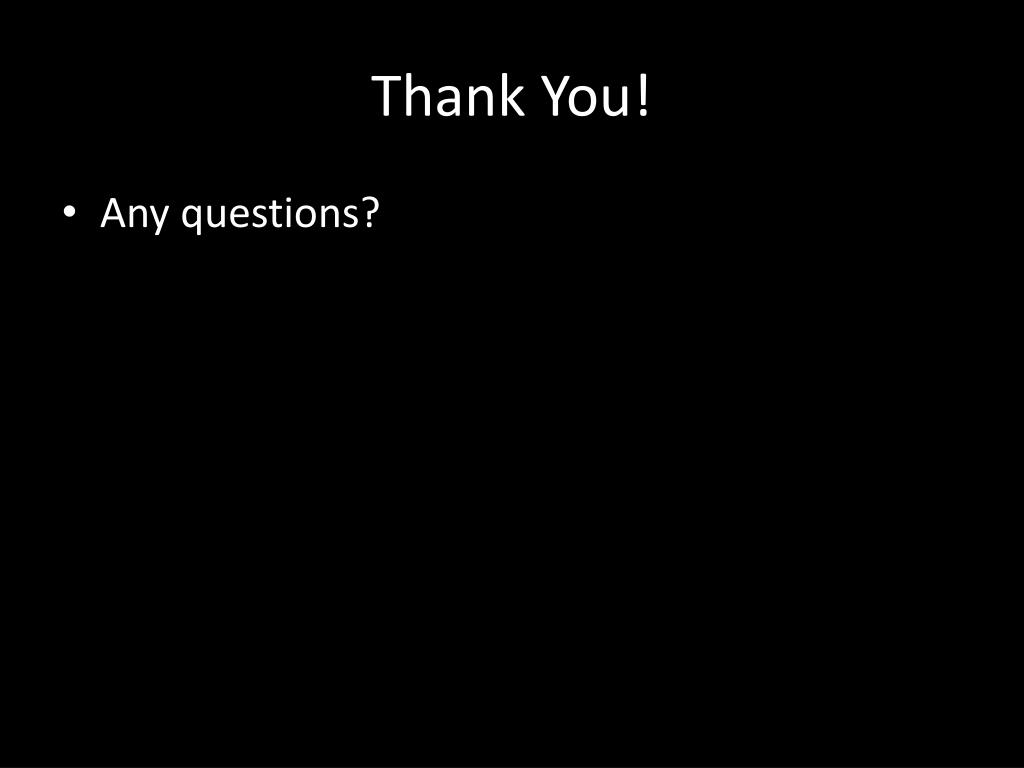

  31. Thank You! • Any questions?
