Presentation Transcript
states of matter
States of Matter

LACC Chem101

  • Solids
    • High density
    • Little translational motion (if any)
    • Rotations/vibrations give temperature
    • Intermolecular forces cause 3D structures
  • Liquids
    • High density
    • Translational motion limited by frequent collisions
    • High degree of intermolecular forces
  • Gases
    • Low density
    • Very high speed translational motion
    • Little intermolecular forces
      • Often approximated as no interactions (ideal gases)
phase transitions

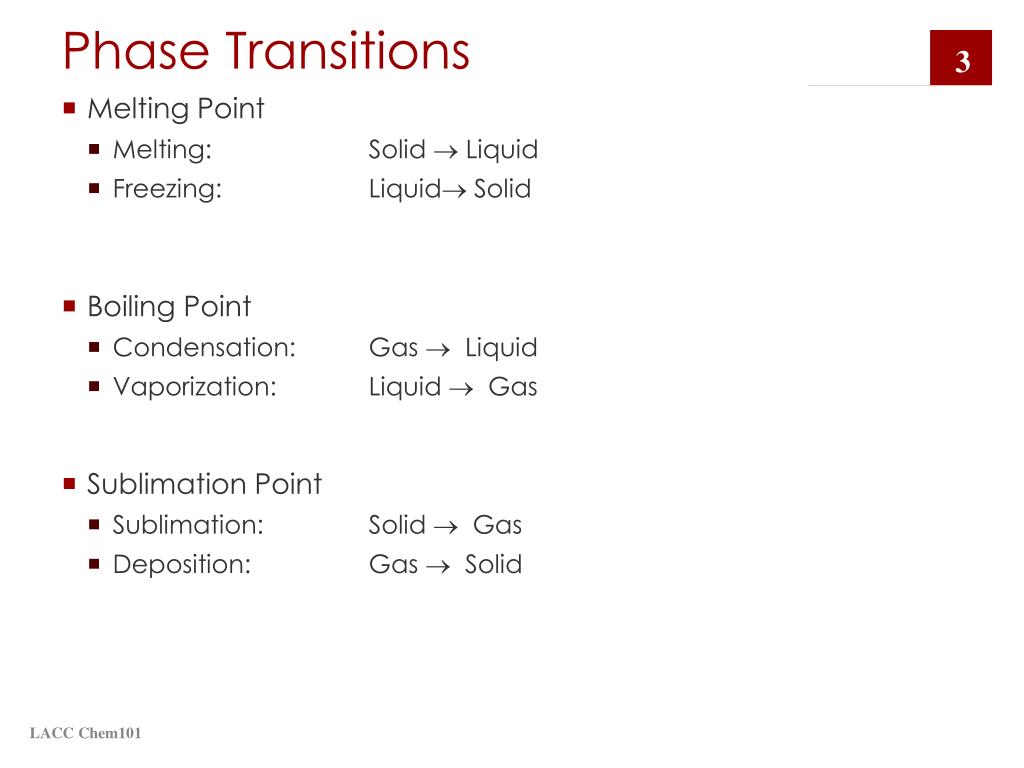

Phase Transitions

LACC Chem101

  • Melting Point
    • Melting: Solid  Liquid
    • Freezing: Liquid Solid
  • Boiling Point
    • Condensation: Gas  Liquid
    • Vaporization: Liquid  Gas
  • Sublimation Point
    • Sublimation: Solid  Gas
    • Deposition: Gas  Solid
phase diagrams
Phase Diagrams

LACC Chem101

  • Show equilibrium lines between phases
  • Phases defined by both temperature and pressure
  • Key Parts
    • Triple point
    • Critical point
    • Normal boiling point
latent heat
Latent Heat

LACC Chem101

  • Heat transfer of a constant temperature process
    • Heat energy added/lost, but no associated temperature change
  • Energy used to change structure of the material
  • Energy transfer changes the internal energy of the substance, and is therefore an enthalpy
  • We define enthalpies phase changes:
heating cooling curve
Heating/Cooling Curve

LACC Chem101

Graphical representation of the temperature/energy of a substance

Example: Water moving from ice to gas

water example
Water example

LACC Chem101

  • Calculate the amount of energy required to change 15.0g of ice at -5.00C to steam at 125.0C.
  • The first step is to design a pathway:
    • q1= msDT for ice from -5.0 to 0.0 oC, the specific heat of ice is 4.213 J/goC
    • q2 = DHfus for ice to liquid at 0.0oC
    • q3 = msDT for liquid 0.0oC to 100.0 oC
    • q4 = DHvap for liquid to steam at 100.0oC
    • q5 = msDT for steam 100.0 to 125.0 oC; the specific heat of steam is 1.900 J/g oC
    • qT= q1 + q2 + q3 + q4 + q5
  • The next step is to calculate each q:
    • q1= (15.0 g) (4.213 J/g oC) (0.0 - (-5.0) oC) = 316 J
    • q2 = (15.0 g) (335 J / g) = 5025 J
    • q3= (15.0 g) (4.184 J/g oC) (100.0 - (0.0) oC) = 6276 J
    • q4 = (15.0 g) (2260 J / g) = 33900 J
    • q5= (15.0 g) (1.900 J/g oC) (110 - 100 oC) = 285 J
  • qT = 316 J + 5025 J + 6276 J + 33900 J + 285 J = 45.8 kJ
intermolecular forces1

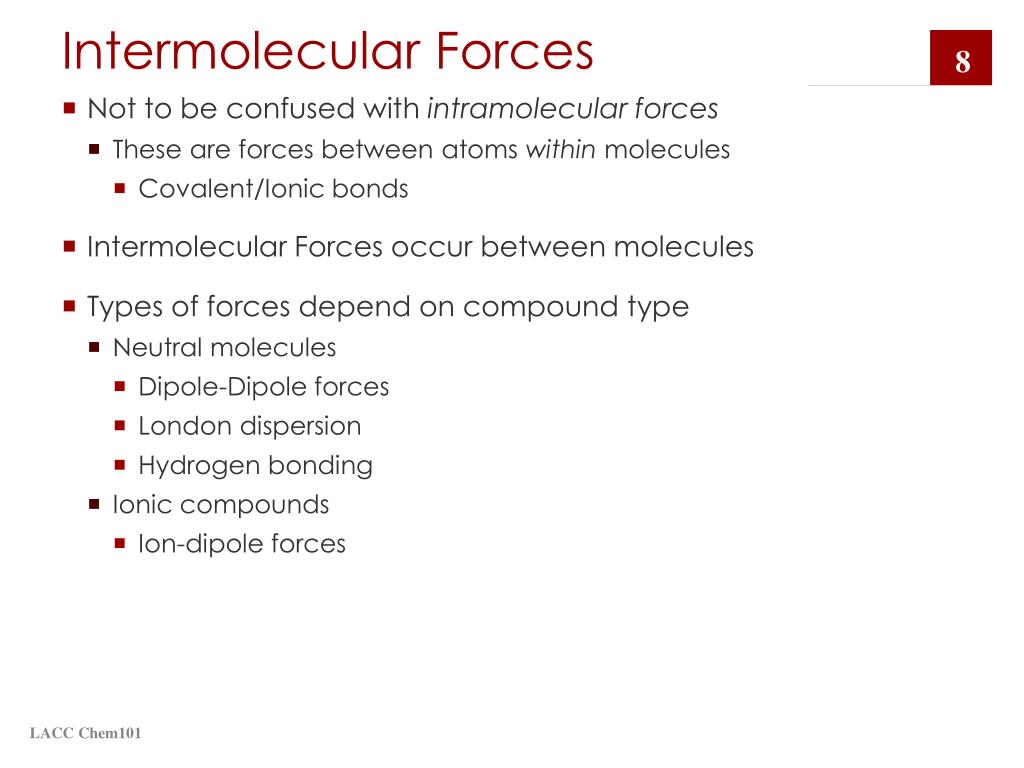

Intermolecular Forces

LACC Chem101

  • Not to be confused with intramolecular forces
    • These are forces between atoms within molecules
      • Covalent/Ionic bonds
  • Intermolecular Forces occur between molecules
  • Types of forces depend on compound type
    • Neutral molecules
      • Dipole-Dipole forces
      • London dispersion
      • Hydrogen bonding
    • Ionic compounds
      • Ion-dipole forces
intermolecular forces2

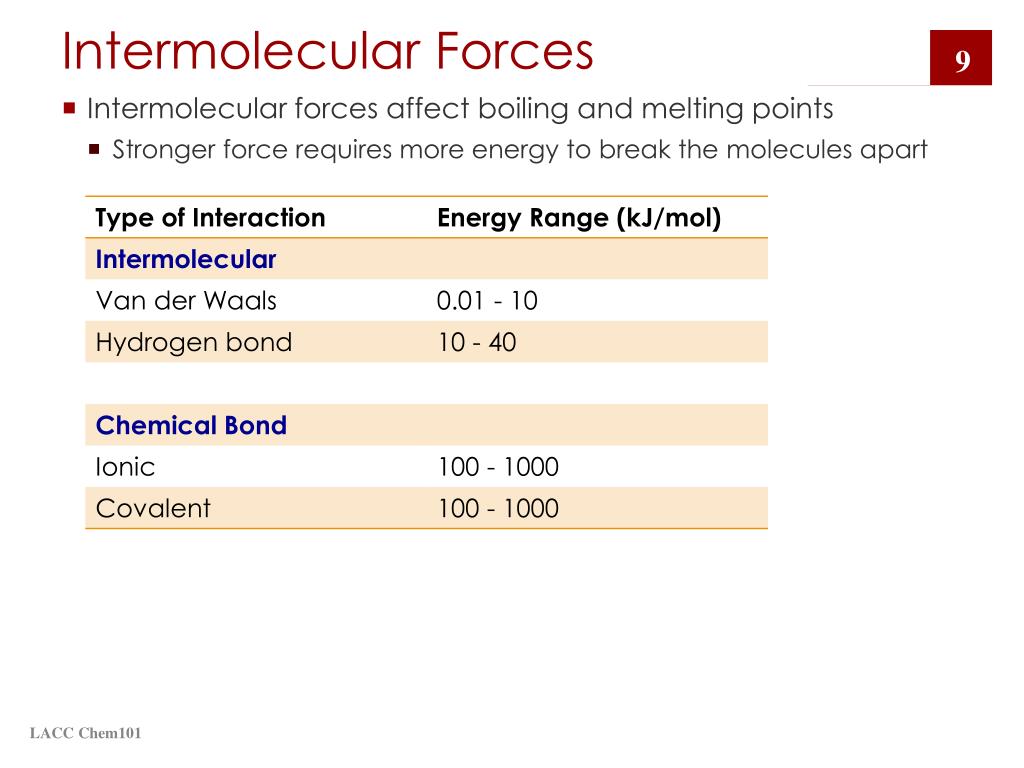

Intermolecular Forces

LACC Chem101

  • Intermolecular forces affect boiling and melting points
    • Stronger force requires more energy to break the molecules apart
intermolecular forces3
Intermolecular Forces

LACC Chem101

  • Ion-Dipole
    • between ions and polar molecules
    • strength is dependent on charge of the ions or polarity of the bonds
    • usually involved with salts & H20
  • Dipole-Dipole
    • between neutral polar molecules
    • weaker force than ion-dipole
    • positive dipole attracted to negative dipole
    • molecules should be relatively close together
    • strength is dependent on polarity of bonds
  • London dispersion
    • all molecules and compounds
    • involves instantaneous dipoles
    • strength is dependent on Molar Mass (size)
    • contributes more than dipole-dipole
    • shape contributes to strength
hydrogen bonding
Hydrogen Bonding

LACC Chem101

  • Exists between hydrogen atom in a polar bond and a lone pair of electrons on a nearby electronegative species
    • Oxygen, Fluorine, and Nitrogen
  • Special case of dipole-dipole interaction
  • Stronger than dipole-dipole and London dispersion
  • Accounts for water’s notable properties
    • High boiling point for small size
    • Solid expands from liquid volume
      • Less dense than the liquid
    • “universal” solvent
    • High heat capacity

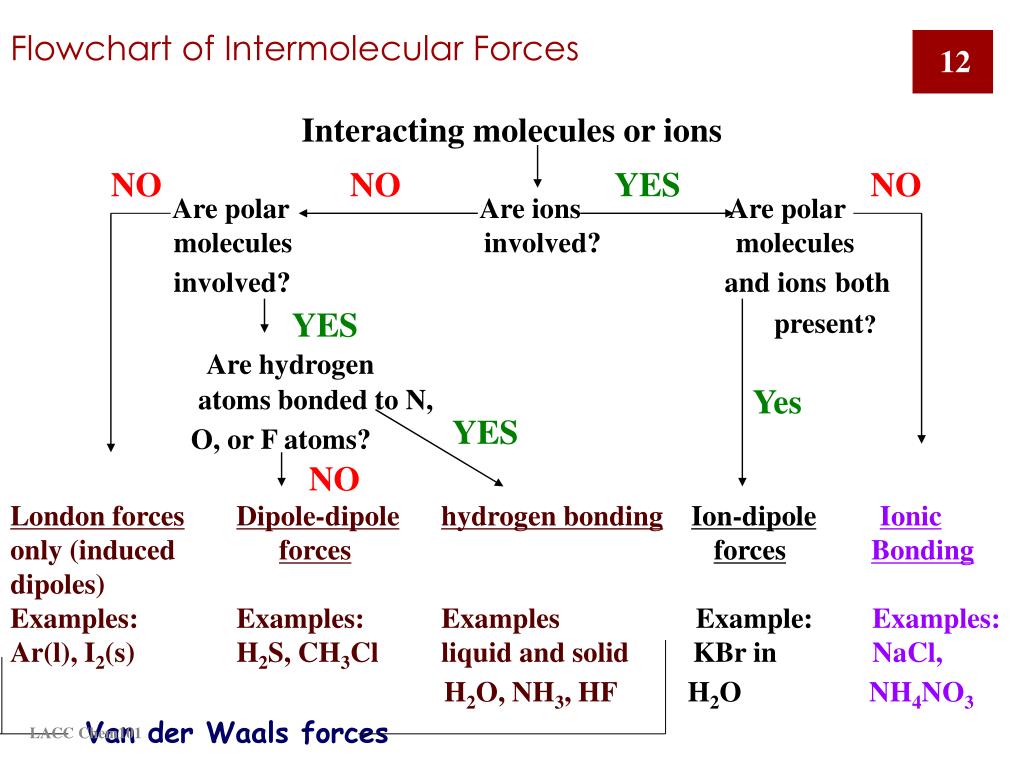

Flowchart of Intermolecular Forces

Interacting molecules or ions

Are polar Are ions Are polar

molecules involved? molecules

involved? and ionsboth


Are hydrogen

atoms bonded to N,

O, or F atoms?

London forcesDipole-dipolehydrogen bondingIon-dipoleIonic

only (induced forcesforcesBonding


Examples: Examples: Examples Example: Examples:

Ar(l), I2(s) H2S, CH3Cl liquid and solidKBr in NaCl,










Van der Waals forces

LACC Chem101

properties of liquids

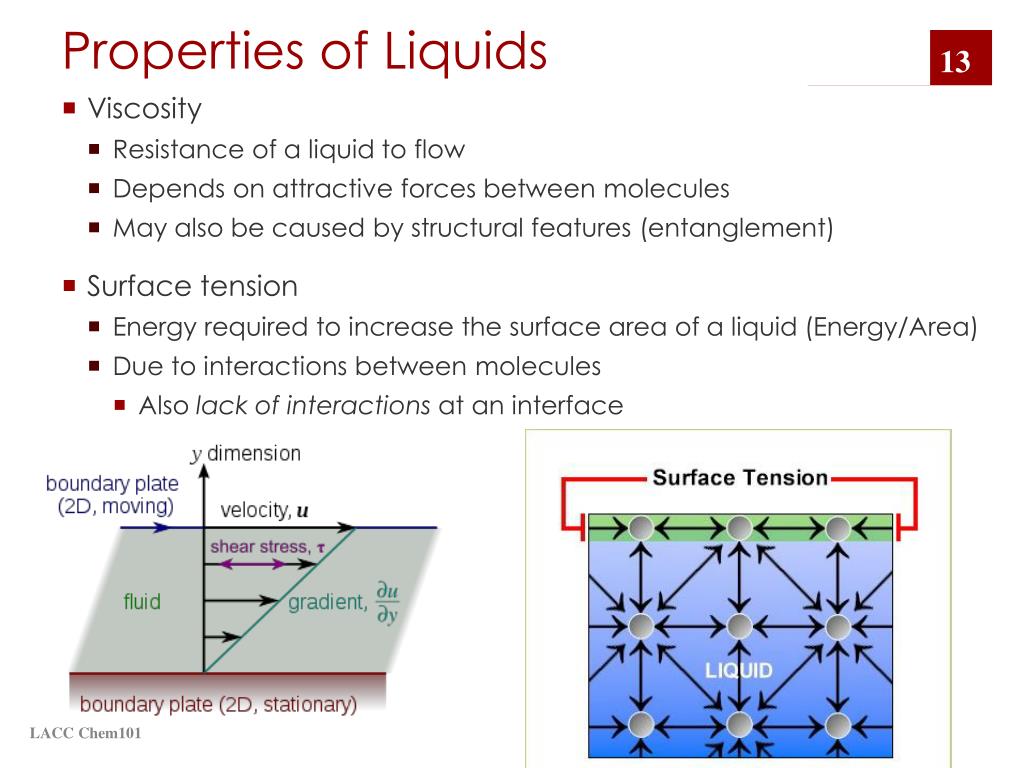

Properties of Liquids

LACC Chem101

  • Viscosity
    • Resistance of a liquid to flow
    • Depends on attractive forces between molecules
    • May also be caused by structural features (entanglement)
  • Surface tension
    • Energy required to increase the surface area of a liquid (Energy/Area)
    • Due to interactions between molecules
      • Also lack of interactions at an interface
vapor pressure

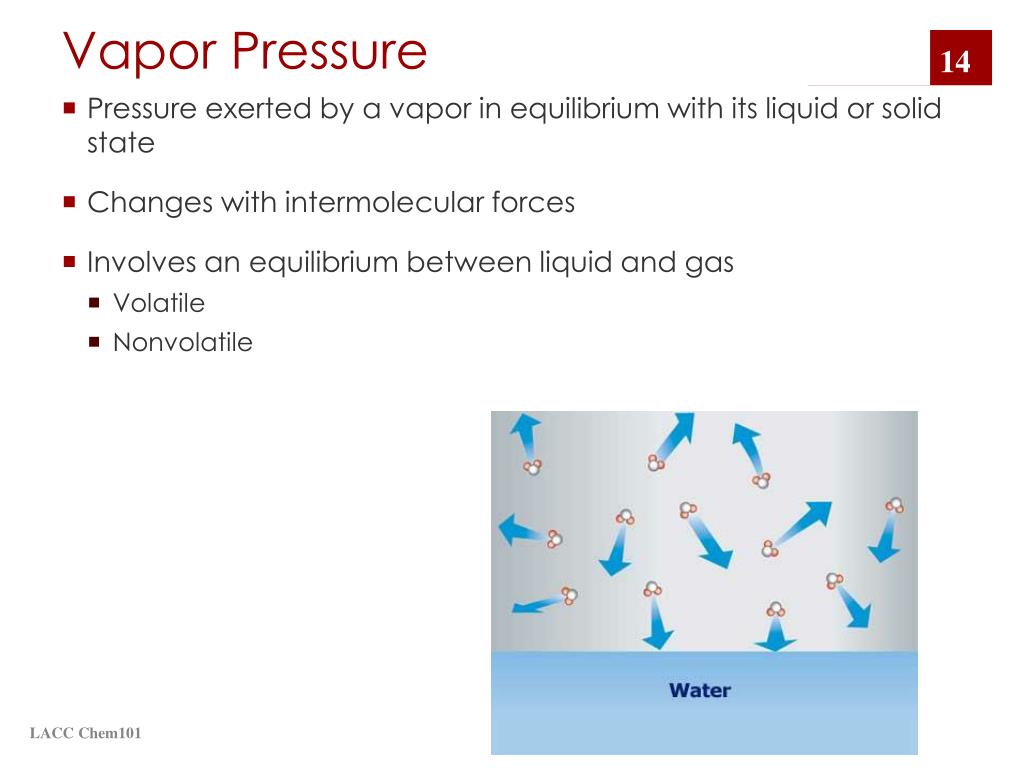

Vapor Pressure

LACC Chem101

  • Pressure exerted by a vapor in equilibrium with its liquid or solid state
  • Changes with intermolecular forces
  • Involves an equilibrium between liquid and gas
    • Volatile
    • Nonvolatile
clausius clapeyron equation
Clausius-Clapeyron Equation

LACC Chem101

  • Higher temperature causes a weakening of intermolecular forces
    • This causes higher vapor pressure
  • Relationship is a differential equation:
clausius clapeyron example

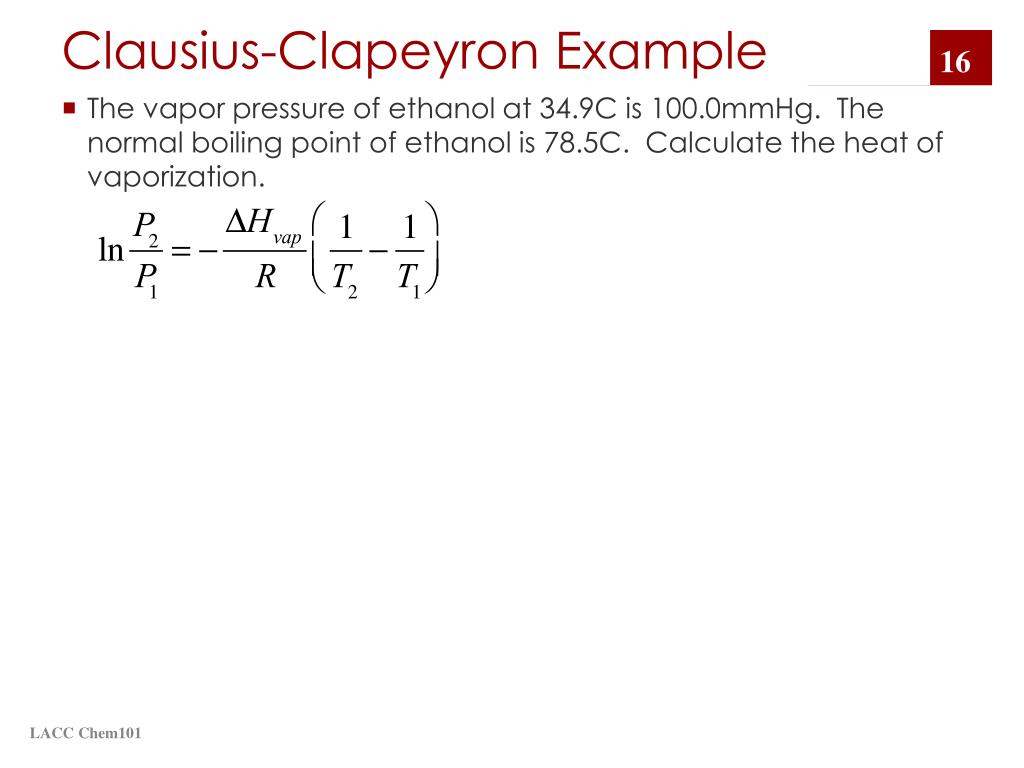

Clausius-Clapeyron Example

LACC Chem101

The vapor pressure of ethanol at 34.9C is 100.0mmHg. The normal boiling point of ethanol is 78.5C. Calculate the heat of vaporization.

crystalline solid

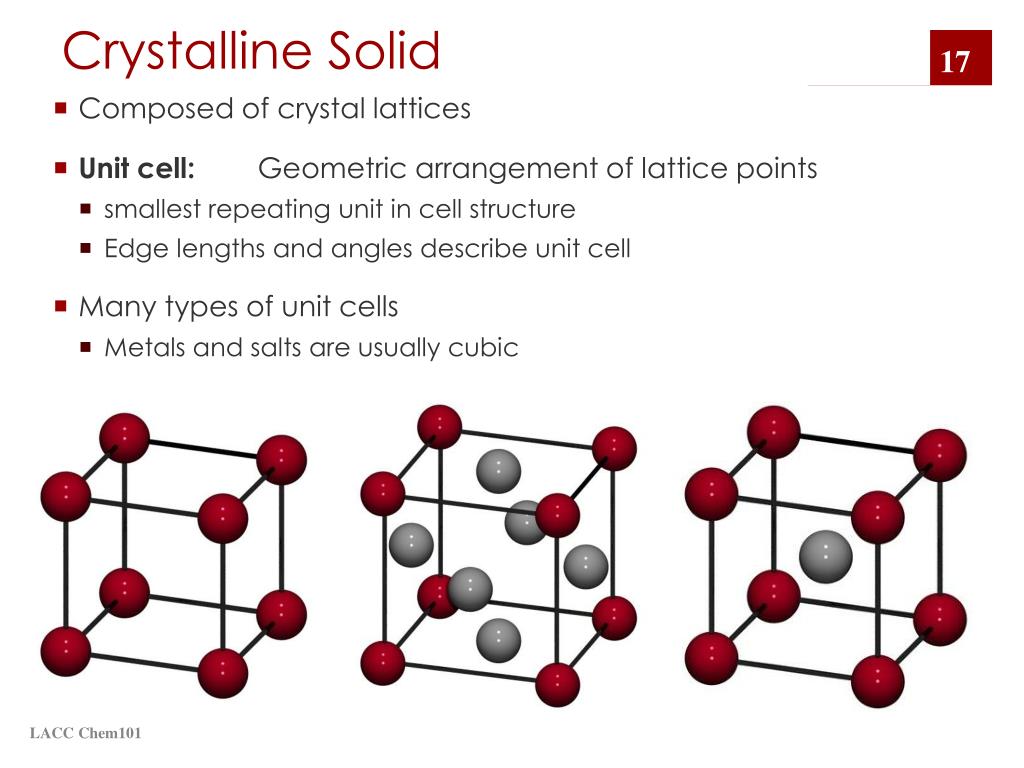

Crystalline Solid

LACC Chem101

  • Composed of crystal lattices
  • Unit cell: Geometric arrangement of lattice points
    • smallest repeating unit in cell structure
    • Edge lengths and angles describe unit cell
  • Many types of unit cells
    • Metals and salts are usually cubic
unit cell example
Unit cell example

LACC Chem101

Determine the number of ions in the lithium fluoride unit cell. The structure is a face centered cube.

molecular solids

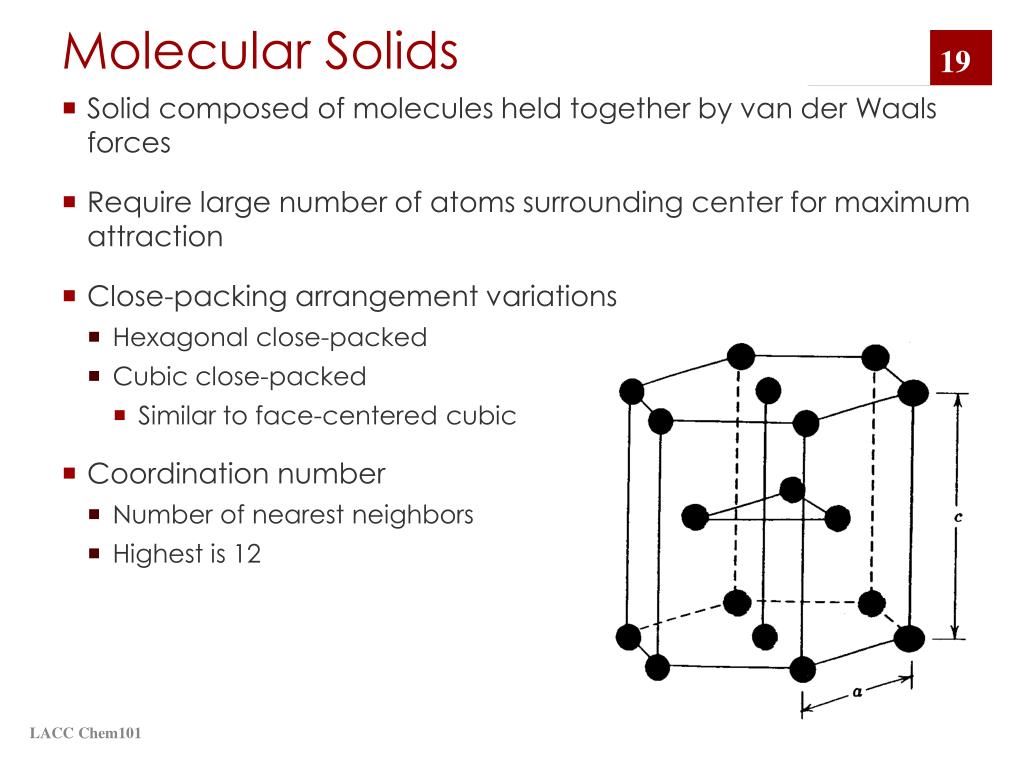

Molecular Solids

LACC Chem101

  • Solid composed of molecules held together by van der Waals forces
  • Require large number of atoms surrounding center for maximum attraction
  • Close-packing arrangement variations
    • Hexagonal close-packed
    • Cubic close-packed
      • Similar to face-centered cubic
  • Coordination number
    • Number of nearest neighbors
    • Highest is 12
metallic solids
Metallic Solids

LACC Chem101

Sea of delocalized electrons

Usually cubic or hexagonal close-packed

covalent network

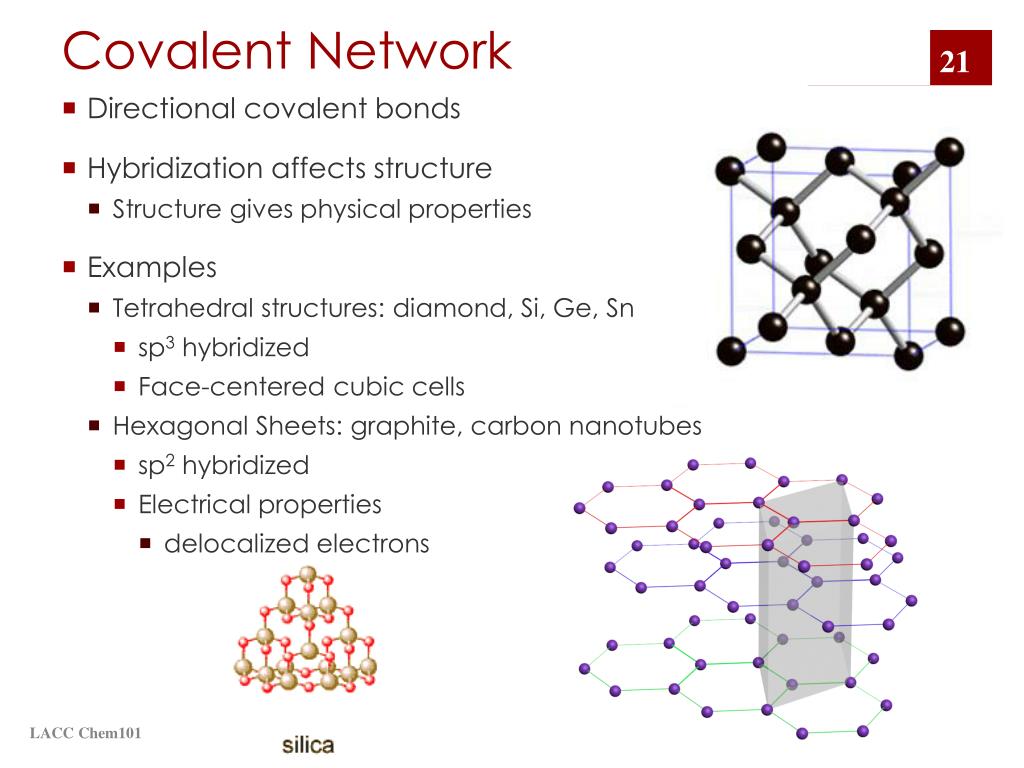

Covalent Network

LACC Chem101

  • Directional covalent bonds
  • Hybridization affects structure
    • Structure gives physical properties
  • Examples
    • Tetrahedral structures: diamond, Si, Ge, Sn
      • sp3 hybridized
      • Face-centered cubic cells
    • Hexagonal Sheets: graphite, carbon nanotubes
      • sp2 hybridized
      • Electrical properties
        • delocalized electrons

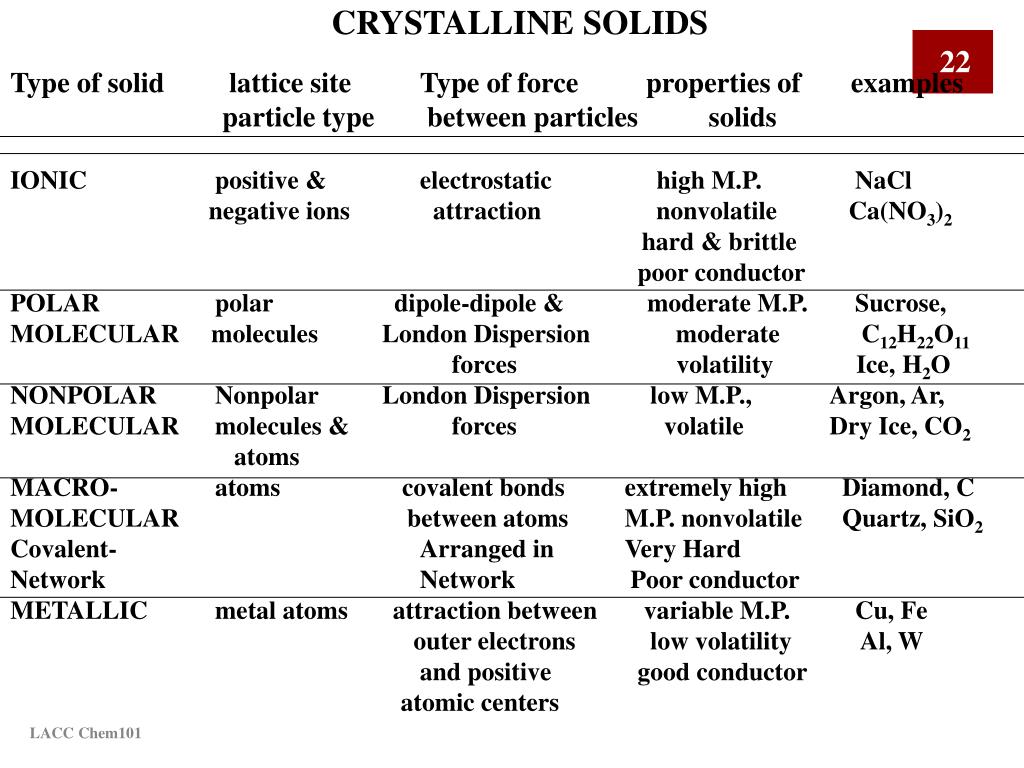

Type of solid lattice site Type of force properties of examples

particle type between particles solids

IONIC positive & electrostatic high M.P. NaCl

negative ions attraction nonvolatile Ca(NO3)2

hard & brittle

poor conductor

POLAR polar dipole-dipole & moderate M.P. Sucrose,

MOLECULAR molecules London Dispersion moderate C12H22O11

forces volatility Ice, H2O

NONPOLAR Nonpolar London Dispersion low M.P., Argon, Ar,

MOLECULAR molecules & forces volatile Dry Ice, CO2 atoms

MACRO- atoms covalent bonds extremely high Diamond, C

MOLECULAR between atoms M.P. nonvolatile Quartz, SiO2

Covalent- Arranged in Very Hard

Network Network Poor conductor

METALLIC metal atoms attraction between variable M.P. Cu, Fe

outer electrons low volatility Al, W

and positive good conductor

atomic centers

LACC Chem101




Molecular Low soft & brittle Nonconducting

Metallic Variable Variable hardness, conducting


Ionic High to very hard & brittle Nonconducting

high solid



Covalent Very high Very hard Usually

Network nonconducting

LACC Chem101

x ray diffraction

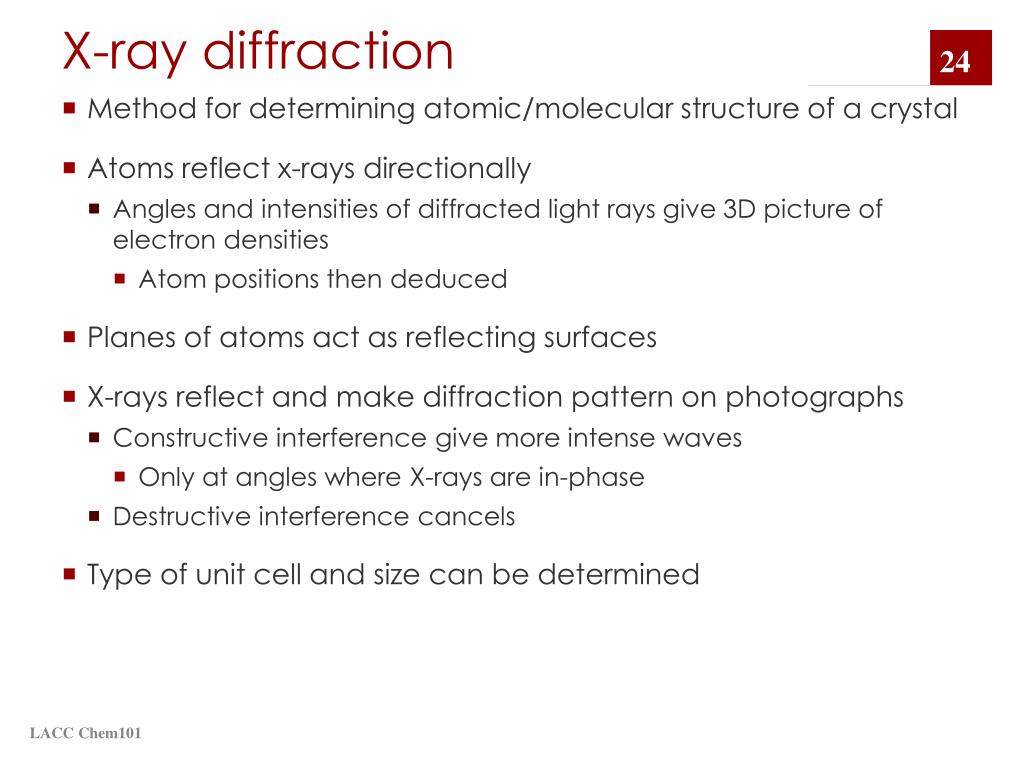

X-ray diffraction

LACC Chem101

  • Method for determining atomic/molecular structure of a crystal
  • Atoms reflect x-rays directionally
    • Angles and intensities of diffracted light rays give 3D picture of electron densities
      • Atom positions then deduced
  • Planes of atoms act as reflecting surfaces
  • X-rays reflect and make diffraction pattern on photographs
    • Constructive interference give more intense waves
      • Only at angles where X-rays are in-phase
    • Destructive interference cancels
  • Type of unit cell and size can be determined
x ray diffraction1
X-Ray Diffraction

LACC Chem101

If molecular, the position of atoms can be determined using the Bragg equation
