facility layout

Facility Layout

Chapter 10

pages 343-355, 366-367

slide2

MGMT 326

Products &

Processes

Quality

Assurance

Planning

& Control

Foundations

of Operations

Facilities

Capacity

and Location

Managing

Projects

Managing

Quality

Introduction

Strategy

Product

Design

Statistical

Process

Control

Facility

Layout

Process

Design

Just-in-Time & Lean Systems

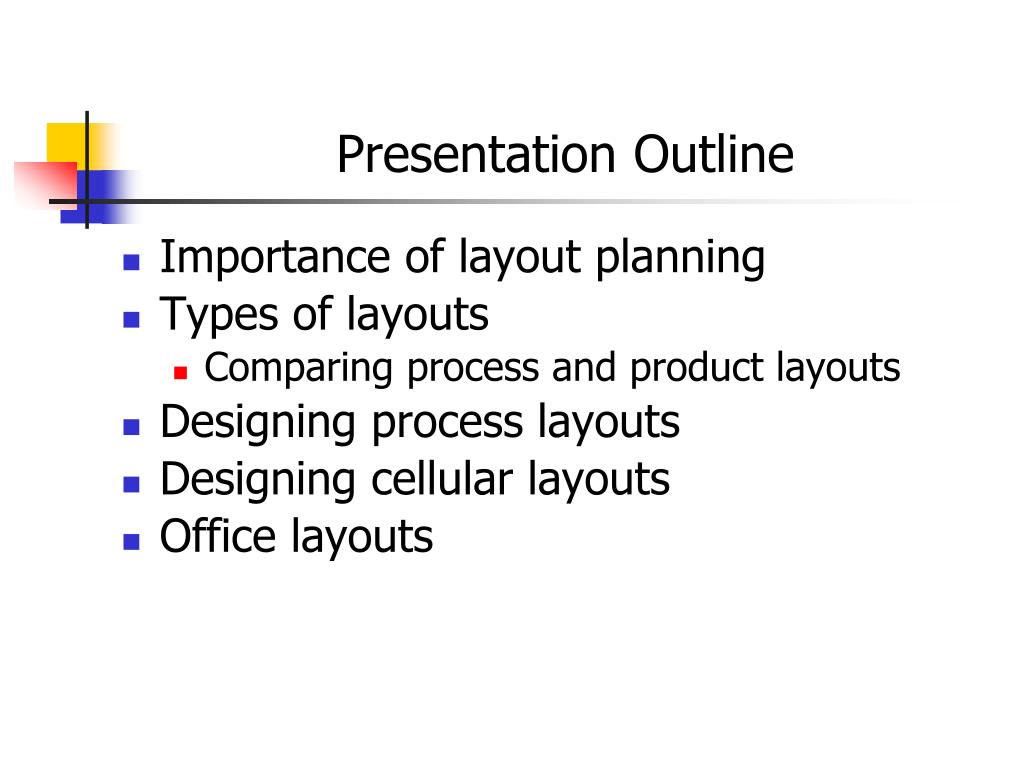

presentation outline
Presentation Outline
  • Importance of layout planning
  • Types of layouts
    • Comparing process and product layouts
  • Designing process layouts
  • Designing cellular layouts
  • Office layouts
what is layout planning
What Is Layout Planning?
  • Layout planning is determining the best physical arrangement of resources within a facility
why is layout planning important

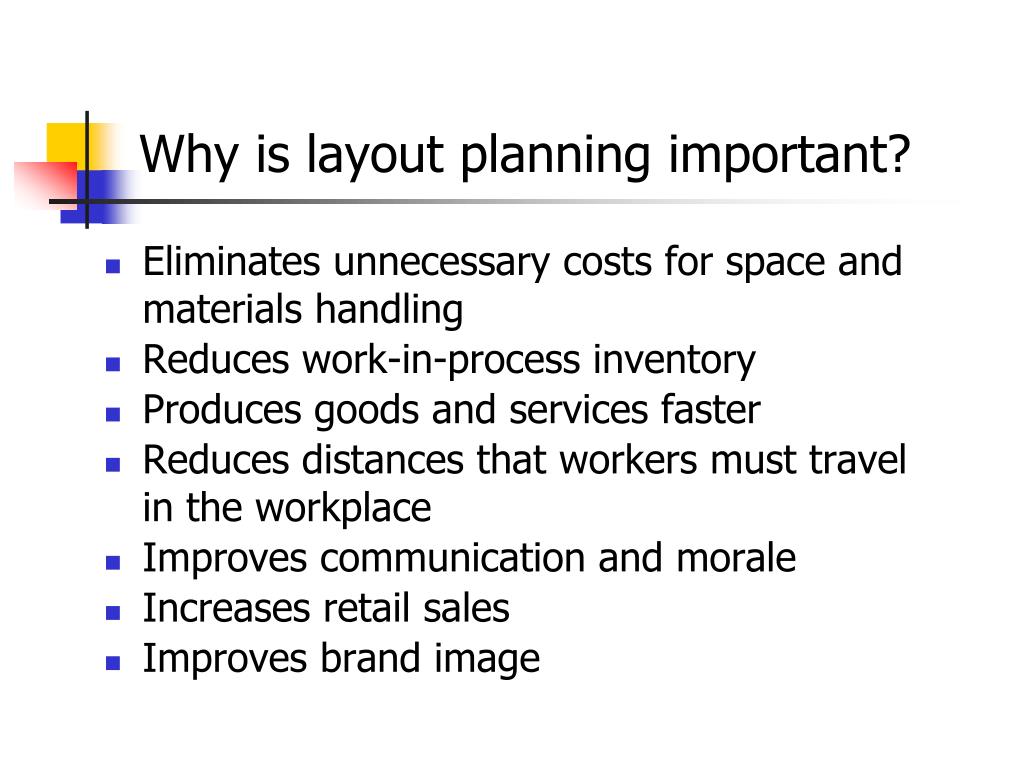

Why is layout planning important?
  • Eliminates unnecessary costs for space and materials handling
  • Reduces work-in-process inventory
  • Produces goods and services faster
  • Reduces distances that workers must travel in the workplace
  • Improves communication and morale
  • Increases retail sales
  • Improves brand image
types of layouts

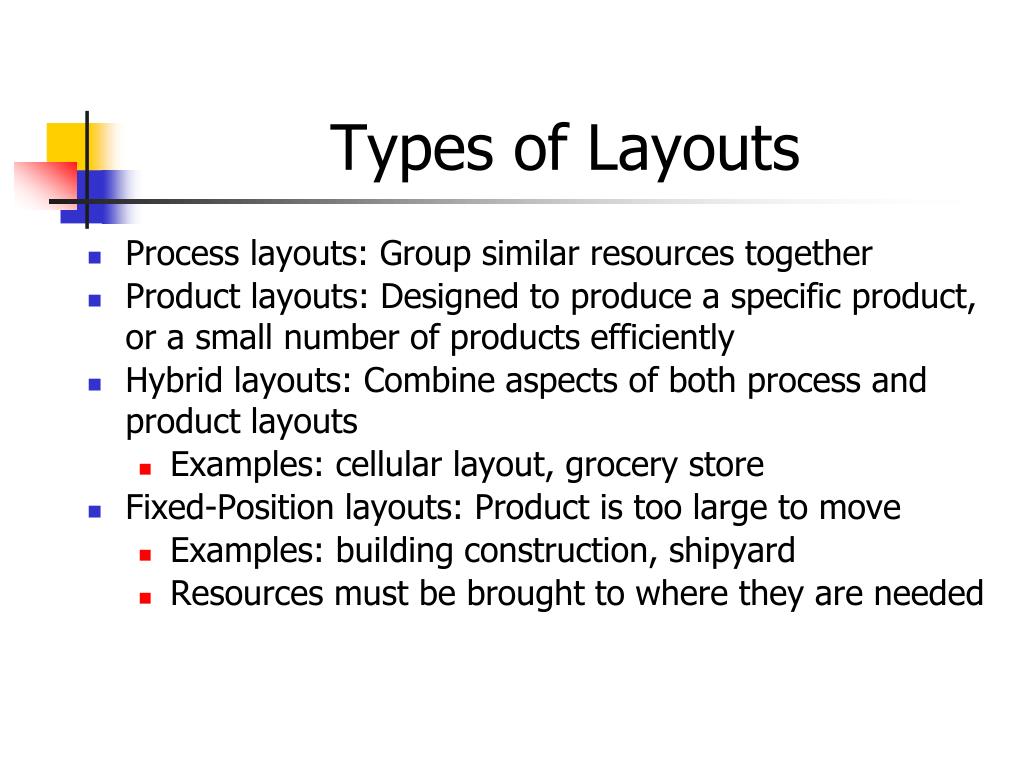

Types of Layouts
  • Process layouts: Group similar resources together
  • Product layouts: Designed to produce a specific product, or a small number of products efficiently
  • Hybrid layouts: Combine aspects of both process and product layouts
    • Examples: cellular layout, grocery store
  • Fixed-Position layouts: Product is too large to move
    • Examples: building construction, shipyard
    • Resources must be brought to where they are needed
process layouts

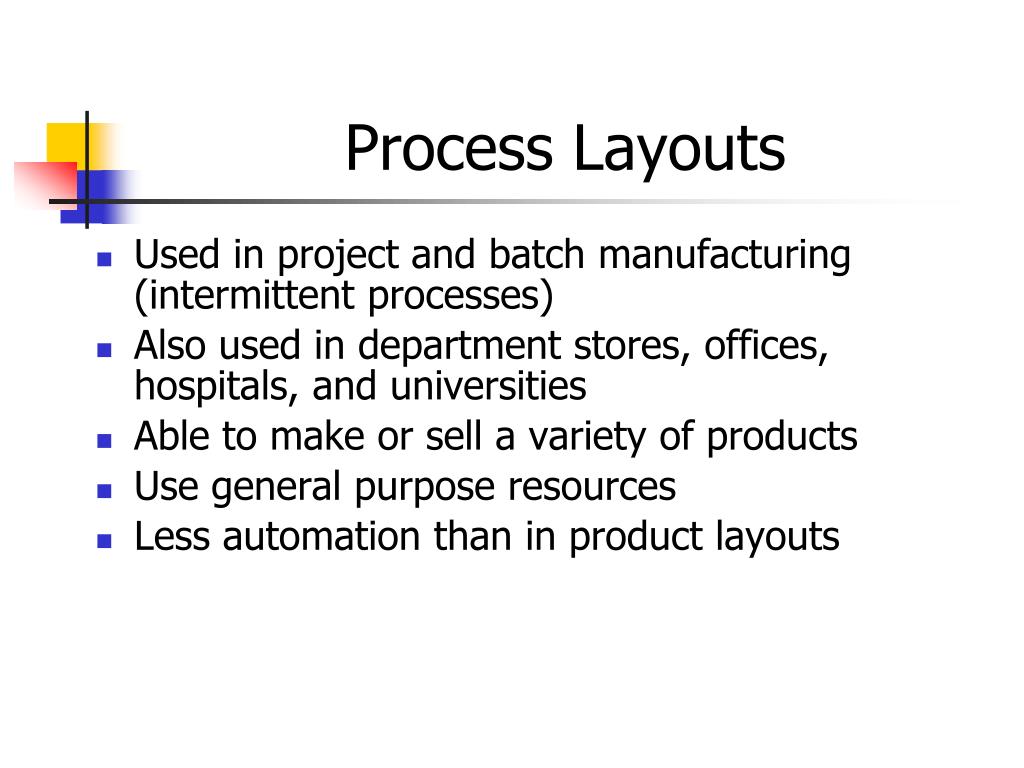

Process Layouts
  • Used in project and batch manufacturing (intermittent processes)
  • Also used in department stores, offices, hospitals, and universities
  • Able to make or sell a variety of products
  • Use general purpose resources
  • Less automation than in product layouts
process layouts 2
Process Layouts (2)
  • Material handling costs per unit are higher than in product layouts
  • Scheduling production is more complex than in product layouts
product layouts

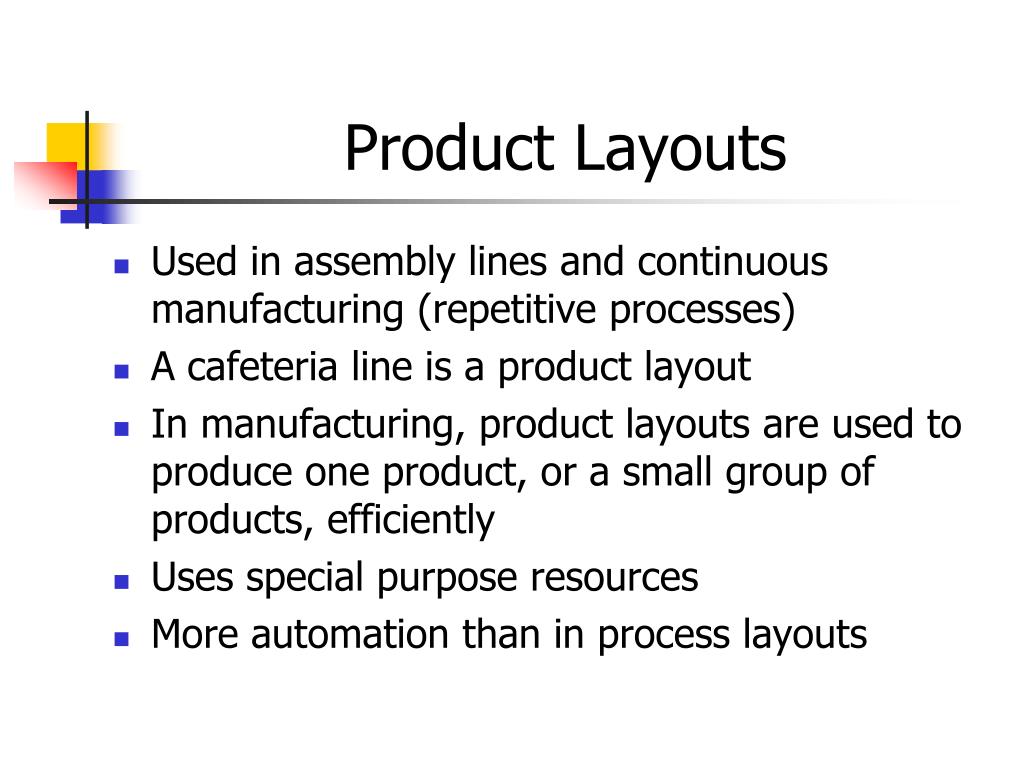

Product Layouts
  • Used in assembly lines and continuous manufacturing (repetitive processes)
  • A cafeteria line is a product layout
  • In manufacturing, product layouts are used to produce one product, or a small group of products, efficiently
  • Uses special purpose resources
  • More automation than in process layouts
product layouts 2

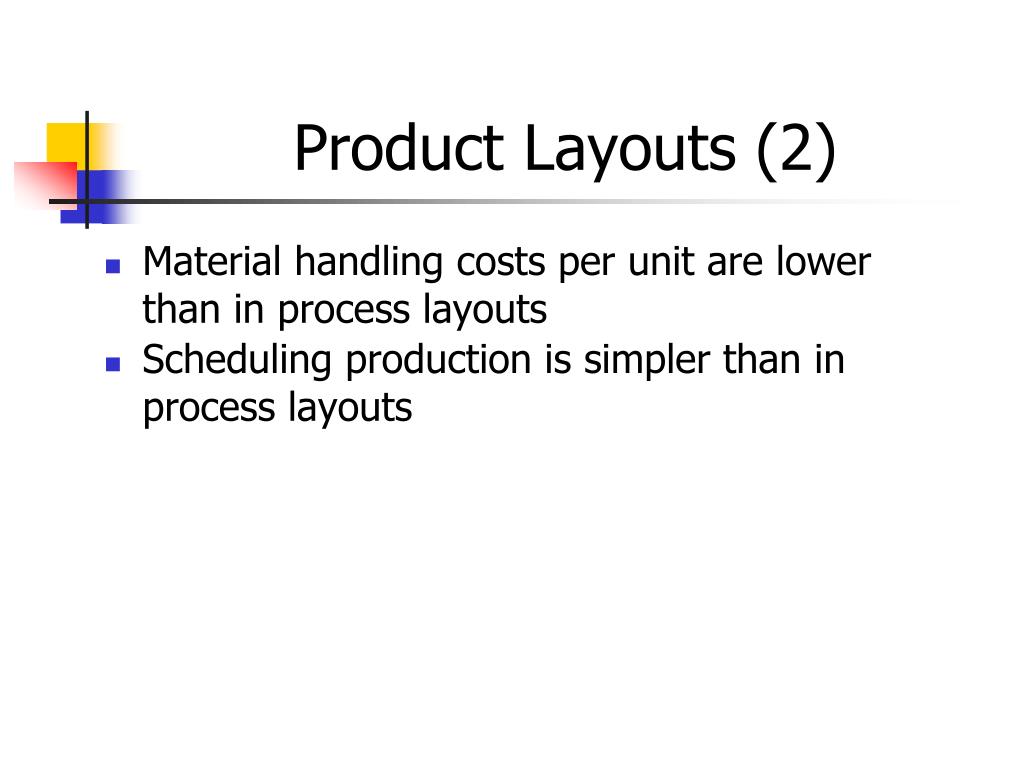

Product Layouts (2)
  • Material handling costs per unit are lower than in process layouts
  • Scheduling production is simpler than in process layouts
designing process layouts
Designing Process Layouts
  • Step 1: Gather information:
    • Space needed, space available, importance of proximity between various units
  • Step 2: Develop alternative block plans:
    • Using trial-and-error or decision support tools
    • 2 approaches
      • Relationship (REL) chart
      • From-to matrix
    • Can use both
    • Decision support systems are heuristic methods
      • Usually give a "good" solution
      • Solution may not be optimal (best solution)
designing process layouts 2
Designing Process Layouts (2)
  • Step 3: Develop a detailed layout
    • Consider exact sizes and shapes of departments and work centers including aisles and stairways
    • Tools like drawings, 3-D models, and computer-assisted design (CAD) software are often used
process layout example
Process Layout Example

Block layout for a sports medicine clinic

cellular layouts

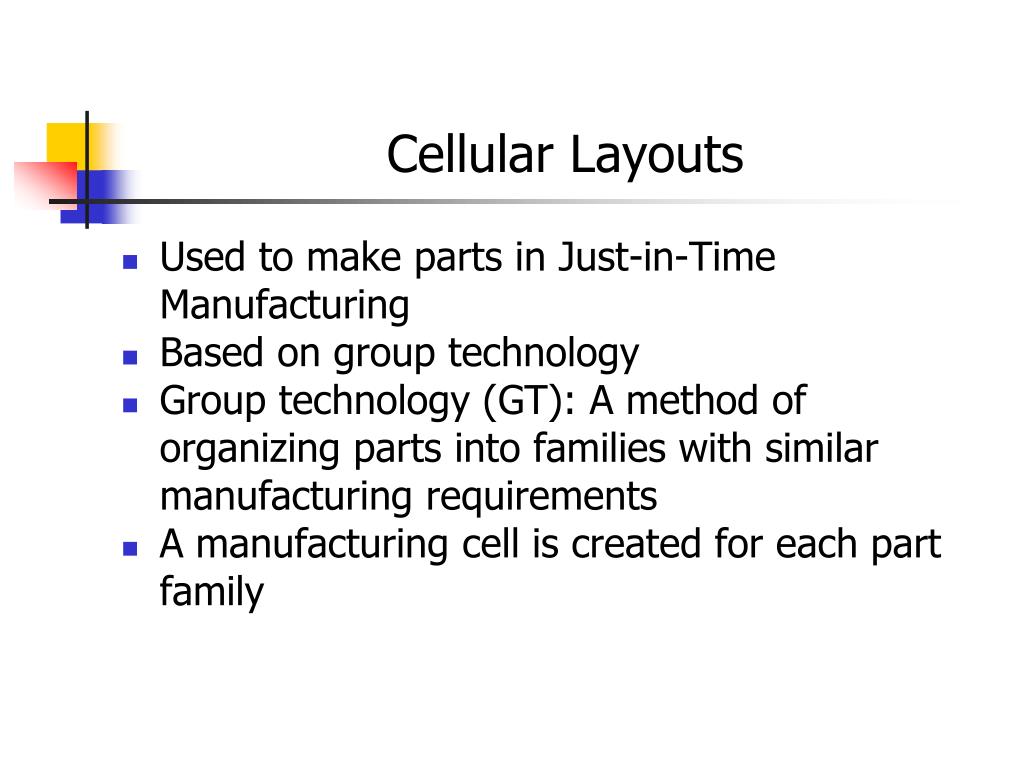

Cellular Layouts
  • Used to make parts in Just-in-Time Manufacturing

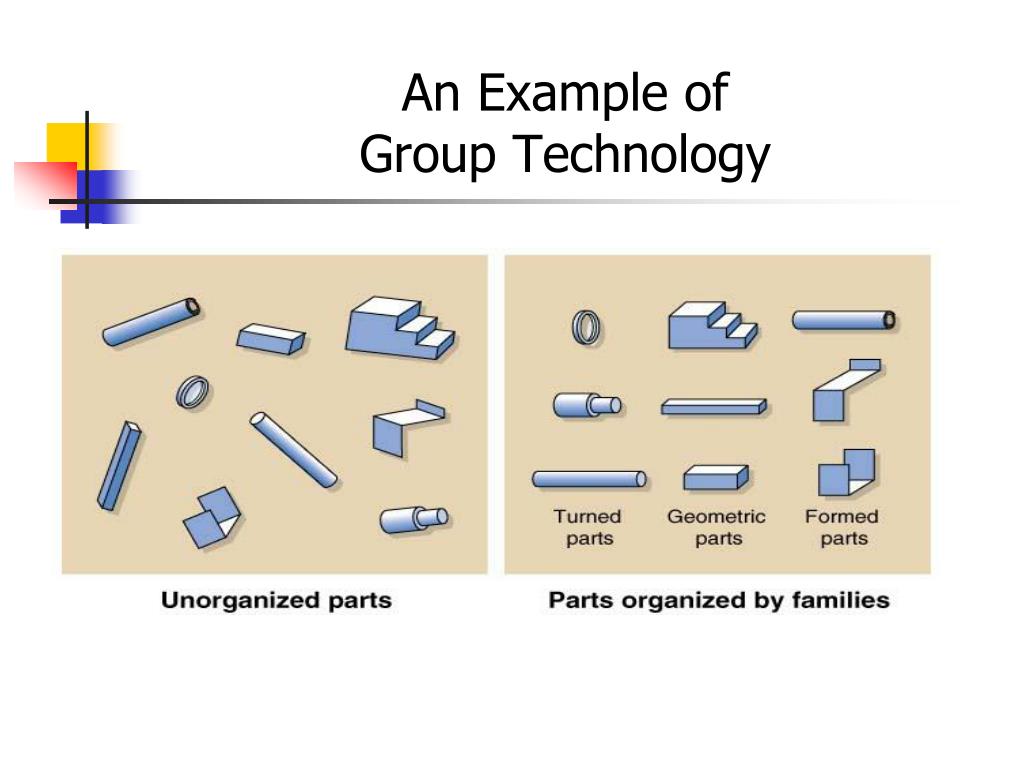

  • Based on group technology

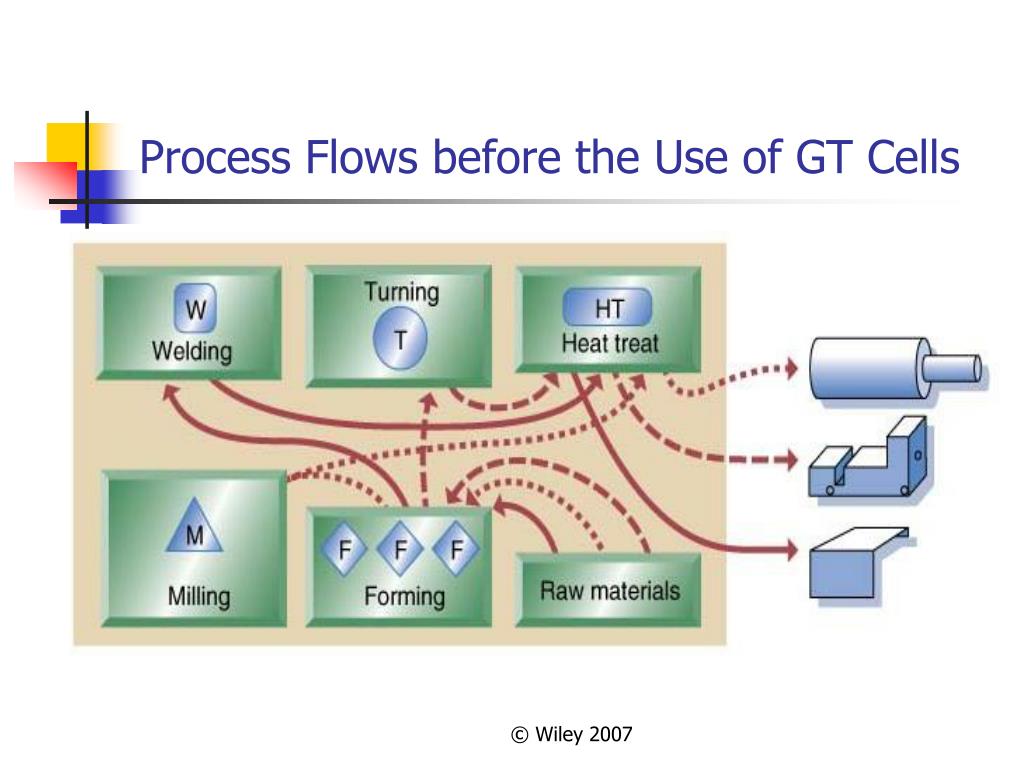

  • Group technology (GT): A method of organizing parts into families with similar manufacturing requirements
  • A manufacturing cell is created for each part family
office layouts

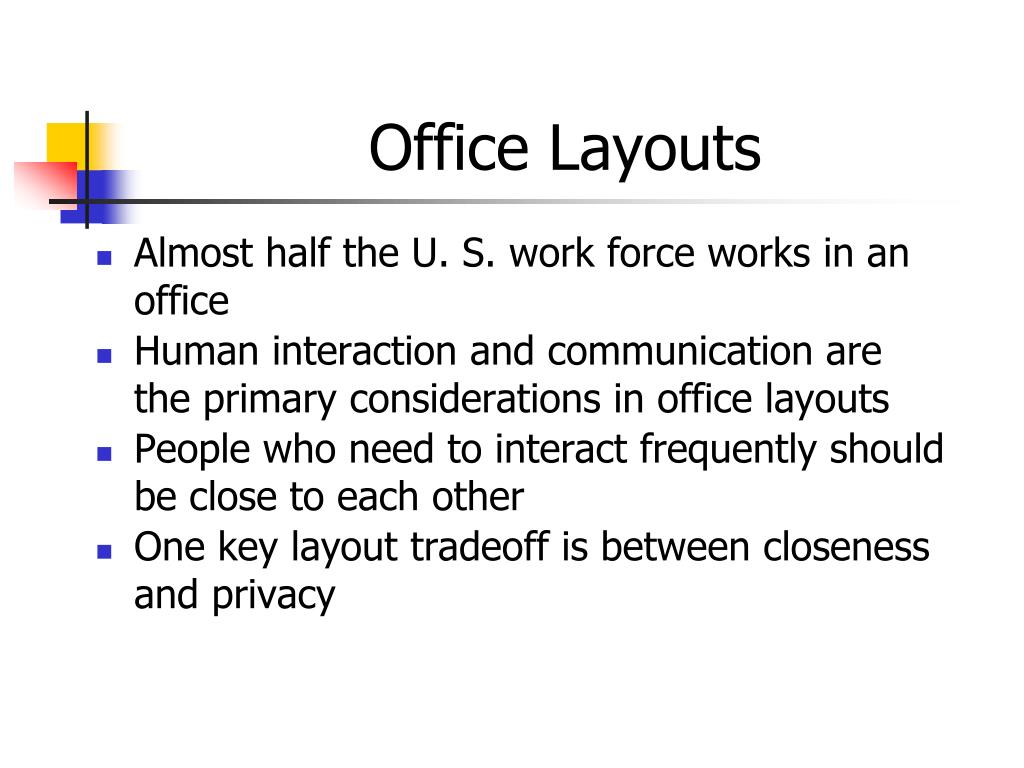

Office Layouts
  • Almost half the U. S. work force works in an office
  • Human interaction and communication are the primary considerations in office layouts
  • People who need to interact frequently should be close to each other
  • One key layout tradeoff is between closeness and privacy
office layouts 2
Office Layouts (2)
  • Open concept officespromote understanding and trust.
  • A few closed rooms are needed for private discussions, such as personnel matters.
  • Moveable walls provide flexibility to change the layout when needed.

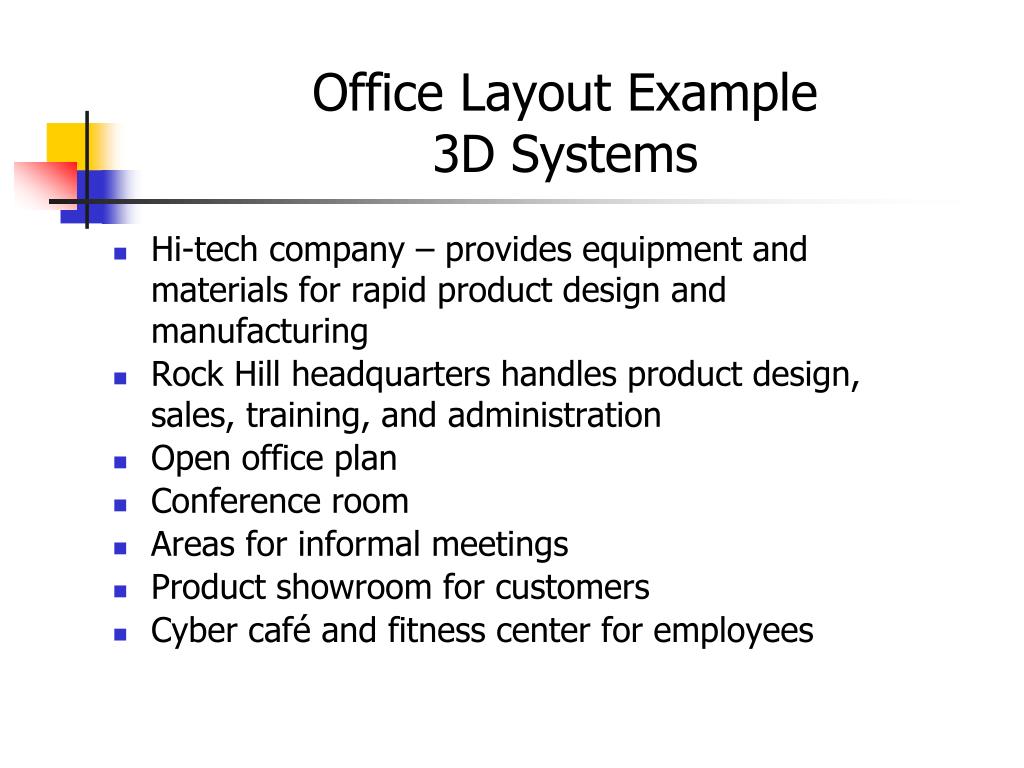

office layout example 3d systems
Office Layout Example3D Systems
  • Hi-tech company – provides equipment and materials for rapid product design and manufacturing
  • Rock Hill headquarters handles product design, sales, training, and administration
  • Open office plan
  • Conference room
  • Areas for informal meetings
  • Product showroom for customers
  • Cyber café and fitness center for employees
