Presentation Transcript

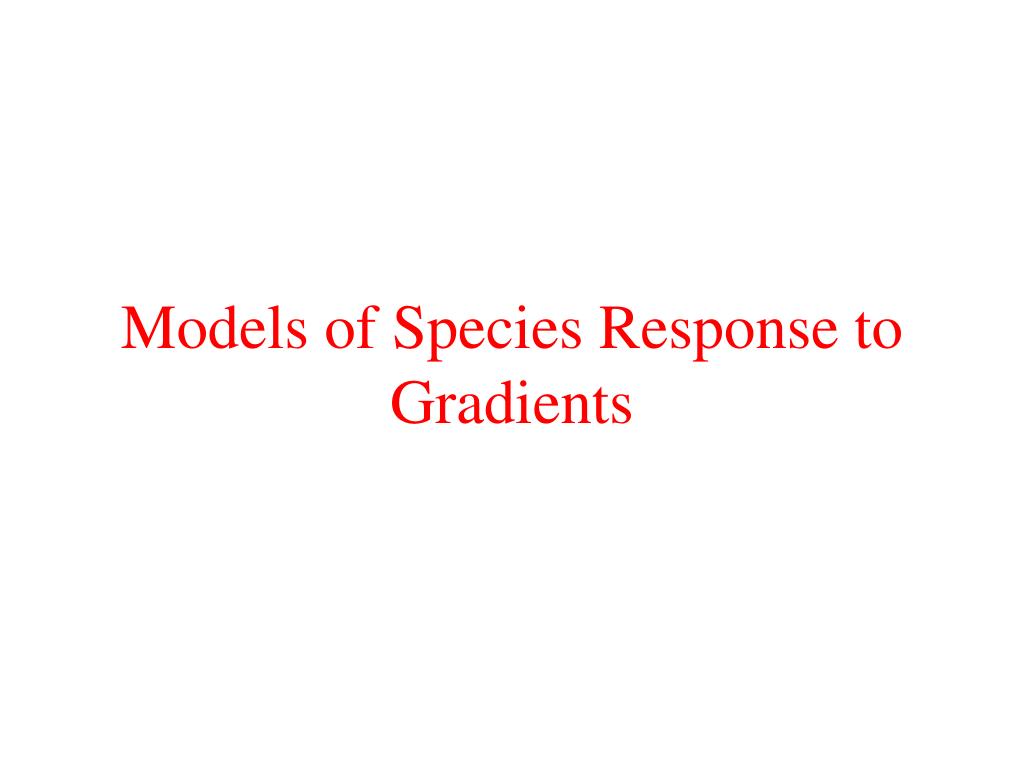

models of species response
Models of Species Response

There are (at least) two models:-

  • Linear - species increase or decrease along the environmental gradient

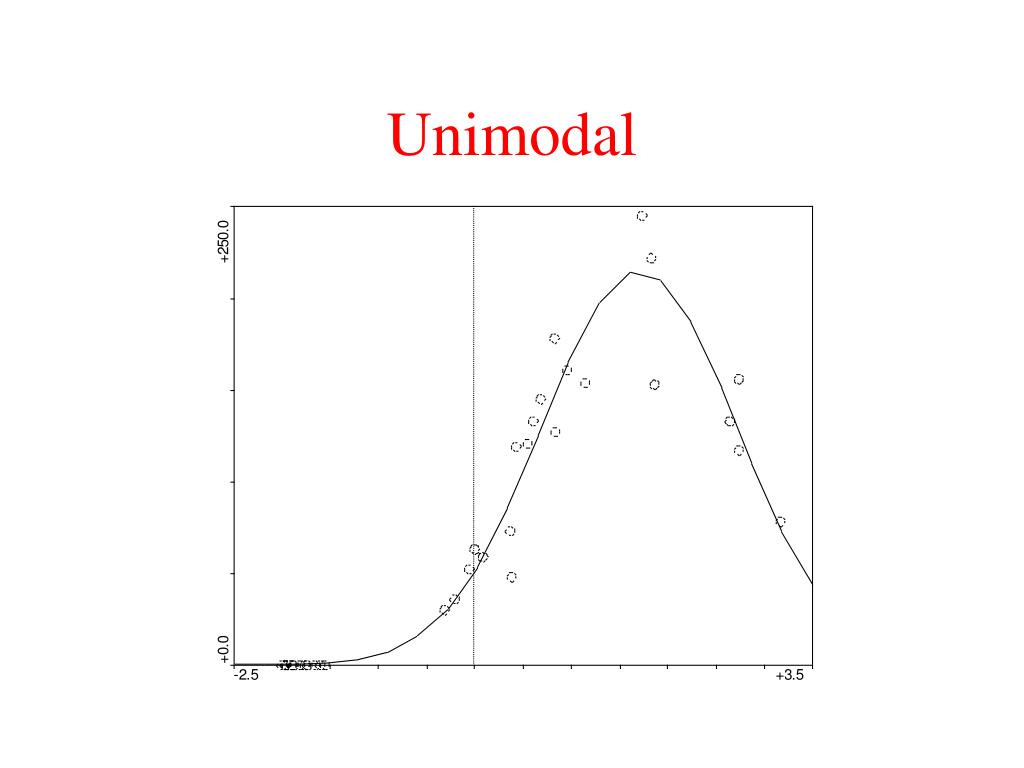

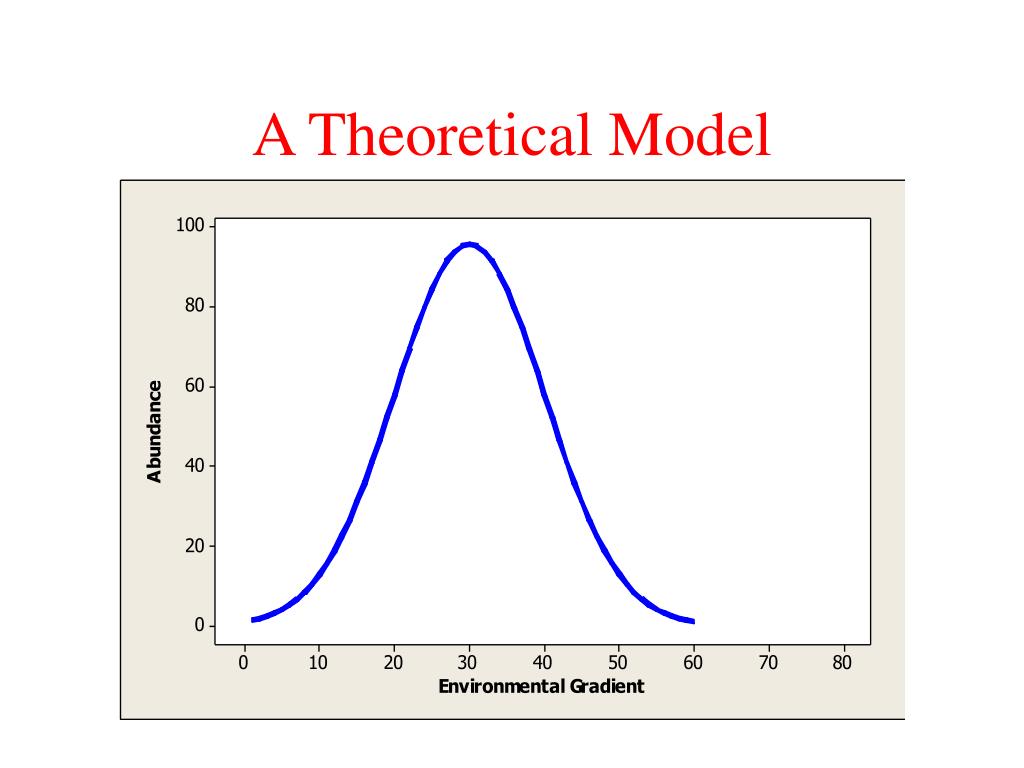

  • Unimodal - species rise to a peak somewhere along the environmental gradient and then fall again
alpha and beta diversity
Alpha and Beta Diversity
  • alpha diversity is the diversity of a community (either measured in terms of a diversity index or species richness)
  • beta diversity (also known as ‘species turnover’ or ‘differentiation diversity’) is the rate of change in species composition from one community to another along gradients; gamma diversity is the diversity of a region or a landscape.

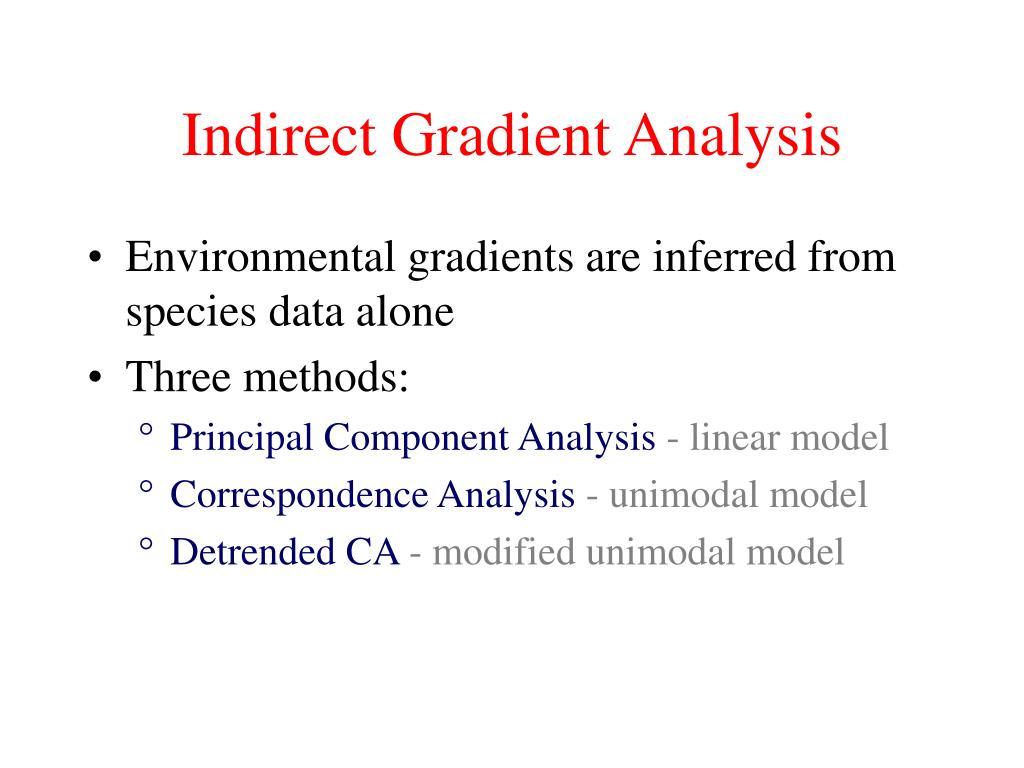

indirect gradient analysis
Indirect Gradient Analysis
  • Environmental gradients are inferred from species data alone
  • Three methods:

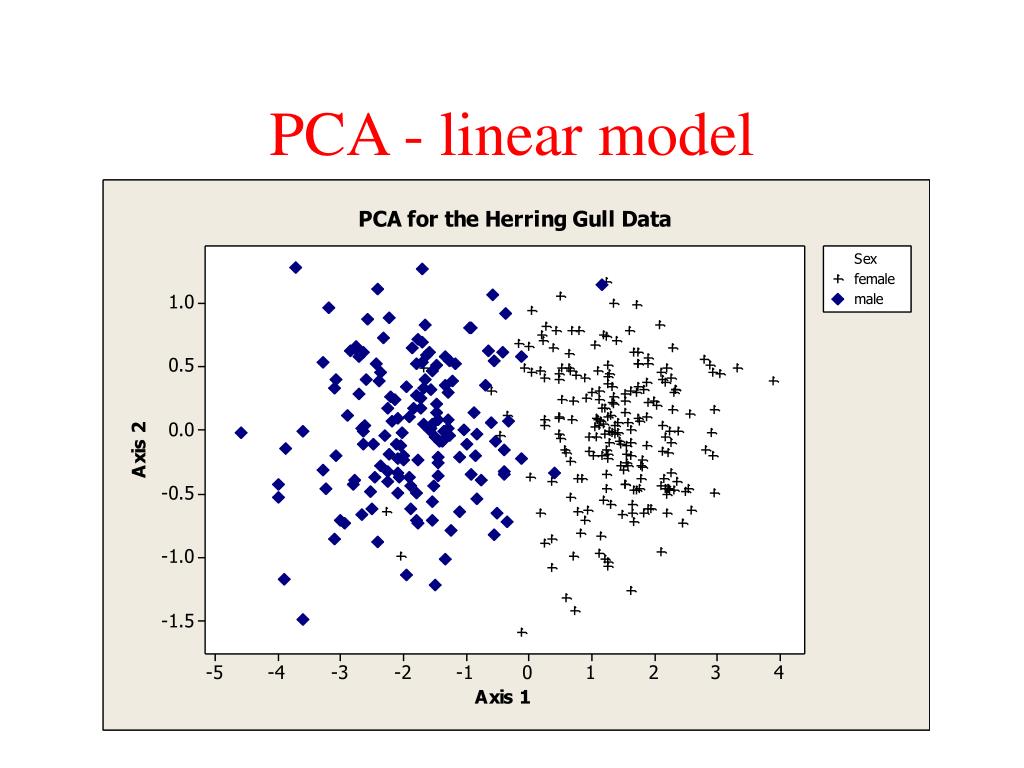

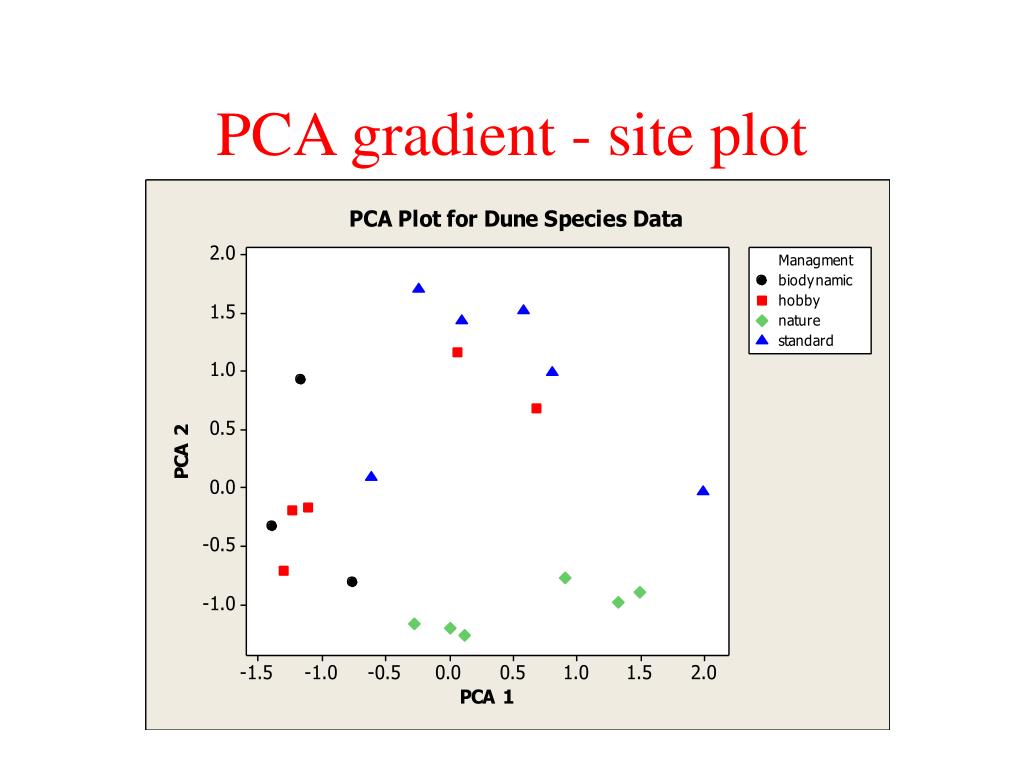

    • Principal Component Analysis - linear model
    • Correspondence Analysis - unimodal model

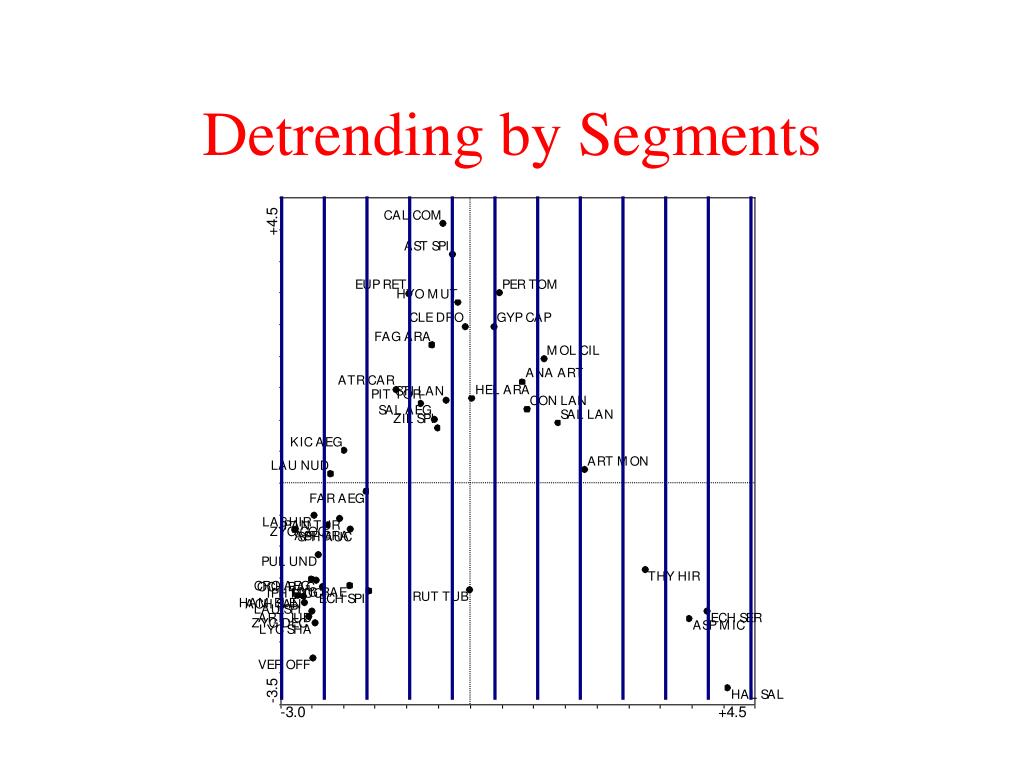

    • Detrended CA - modified unimodal model
reciprocal averaging
Site A B C D E F SpeciesPrunus serotina 6 3 4 6 5 1Tilia americana2 0 7 0 6 6Acer saccharum0 0 8 0 4 9Quercus velutina0 8 0 8 0 0Juglans nigra3 2 3 0 6 0Reciprocal Averaging

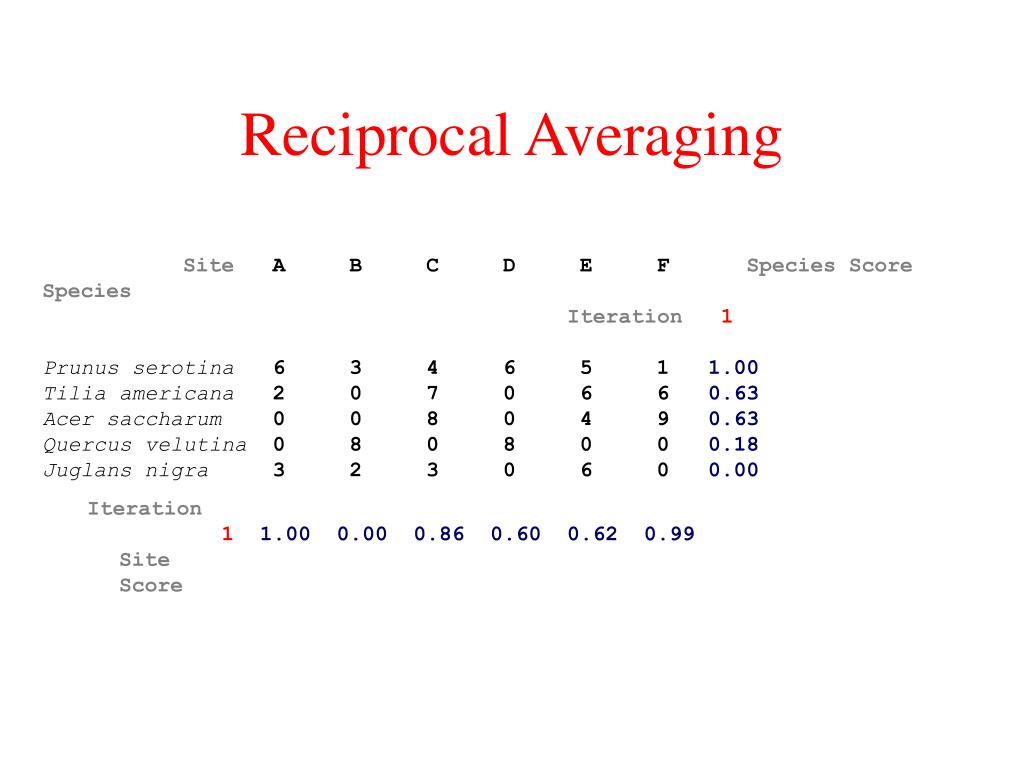

reciprocal averaging1
Site A B C D E F Species ScoreSpecies Iteration 1Prunus serotina 6 3 4 6 5 11.00Tilia americana2 0 7 0 6 60.63Acer saccharum0 0 8 0 4 90.63Quercus velutina0 8 0 8 0 00.18Juglans nigra3 2 3 0 6 00.00

Iteration11.00 0.00 0.86 0.60 0.62 0.99SiteScore

Reciprocal Averaging
reciprocal averaging2
Site A B C D E F Species ScoreSpecies Iteration 12Prunus serotina 6 3 4 6 5 1 1.00 0.68Tilia americana2 0 7 0 6 6 0.63 0.84Acer saccharum0 0 8 0 4 9 0.63 0.87Quercus velutina0 8 0 8 0 0 0.18 0.30Juglans nigra3 2 3 0 6 0 0.00 0.67

Iteration 1 1.00 0.00 0.86 0.60 0.62 0.99Site20.65 0.00 0.88 0.05 0.78 1.00Score

Reciprocal Averaging

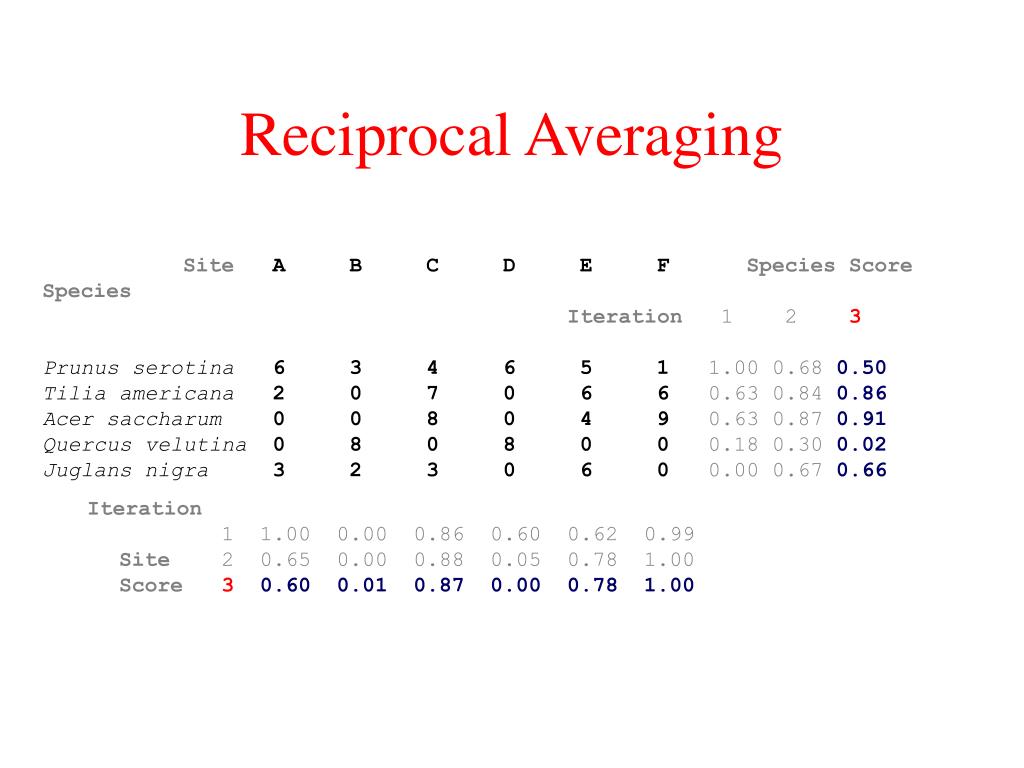

reciprocal averaging3
Site A B C D E F Species ScoreSpecies Iteration 1 23Prunus serotina 6 3 4 6 5 1 1.00 0.68 0.50Tilia americana2 0 7 0 6 6 0.63 0.84 0.86Acer saccharum0 0 8 0 4 9 0.63 0.87 0.91Quercus velutina0 8 0 8 0 0 0.18 0.30 0.02Juglans nigra3 2 3 0 6 0 0.00 0.67 0.66

Iteration 1 1.00 0.00 0.86 0.60 0.62 0.99Site 2 0.65 0.00 0.88 0.05 0.78 1.00Score30.60 0.01 0.87 0.00 0.78 1.00

Reciprocal Averaging

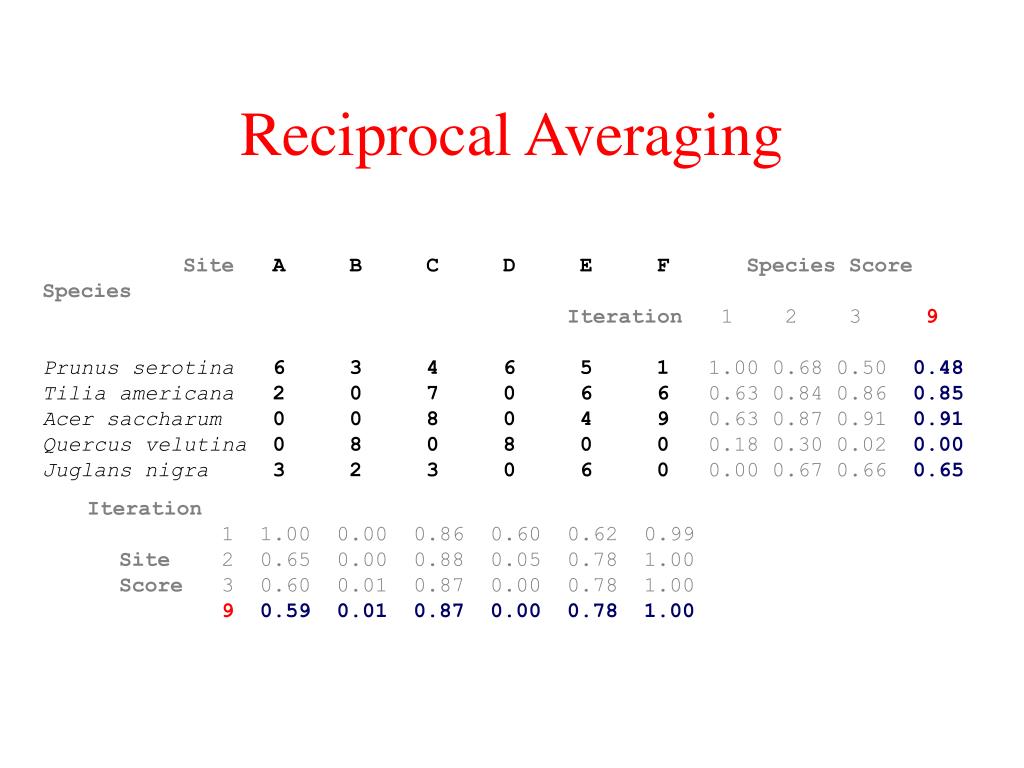

reciprocal averaging4
Site A B C D E F Species ScoreSpecies Iteration 1 2 3 9Prunus serotina 6 3 4 6 5 1 1.00 0.68 0.50 0.48Tilia americana2 0 7 0 6 6 0.63 0.84 0.86 0.85Acer saccharum0 0 8 0 4 9 0.63 0.87 0.91 0.91Quercus velutina0 8 0 8 0 0 0.18 0.30 0.02 0.00Juglans nigra3 2 3 0 6 0 0.00 0.67 0.66 0.65

Iteration 1 1.00 0.00 0.86 0.60 0.62 0.99Site 2 0.65 0.00 0.88 0.05 0.78 1.00Score 3 0.60 0.01 0.87 0.00 0.78 1.0090.59 0.01 0.87 0.00 0.78 1.00

Reciprocal Averaging
reordered sites and species
Site A C E B D F Species SpeciesScoreQuercus velutina8 8 0 0 0 0 0.004Prunus serotina6 3 6 5 4 10.477Juglans nigra0 2 3 6 3 0 0.647Tilia americana0 0 2 6 7 6 0.845Acer saccharum0 0 0 4 8 9 0.909Site Score0.000 0.008 0.589 0.778 0.872 1.000Reordered Sites and Species
ca unimodal model

3

2

1

0

CA2

-1

-2

-3

-4

-2

0

2

4

CA1

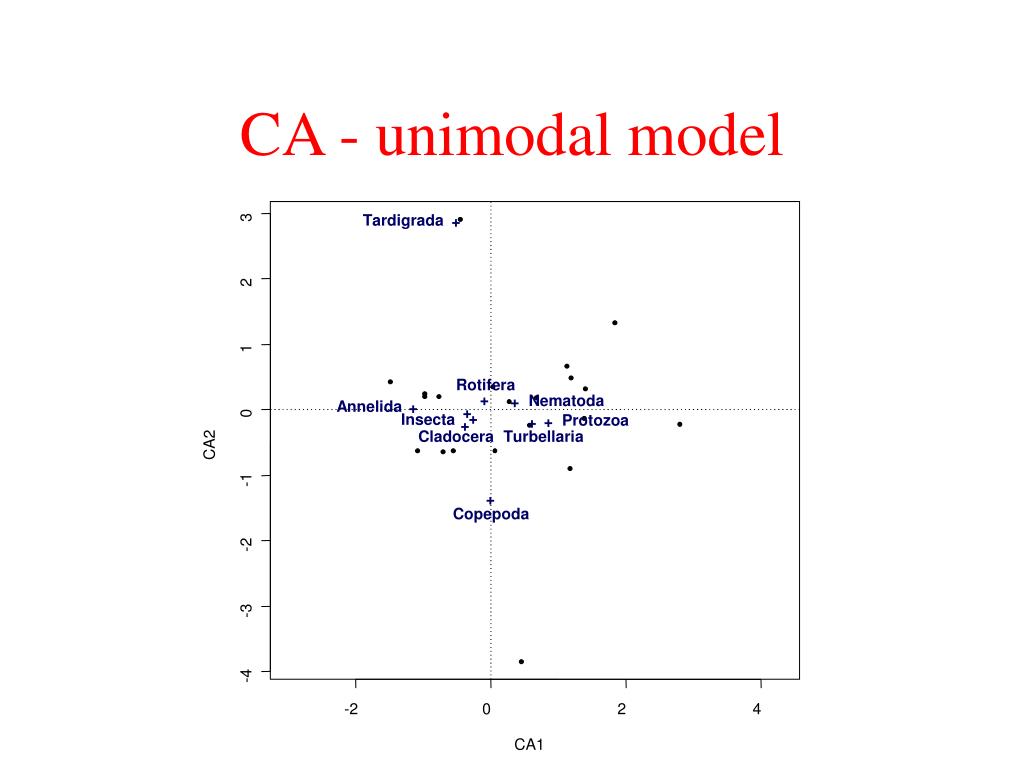

CA - unimodal model

Tardigrada

+

Rotifera

+

Nematoda

+

Annelida

+

+

+

Insecta

Protozoa

+

+

+

Cladocera

Turbellaria

+

Copepoda

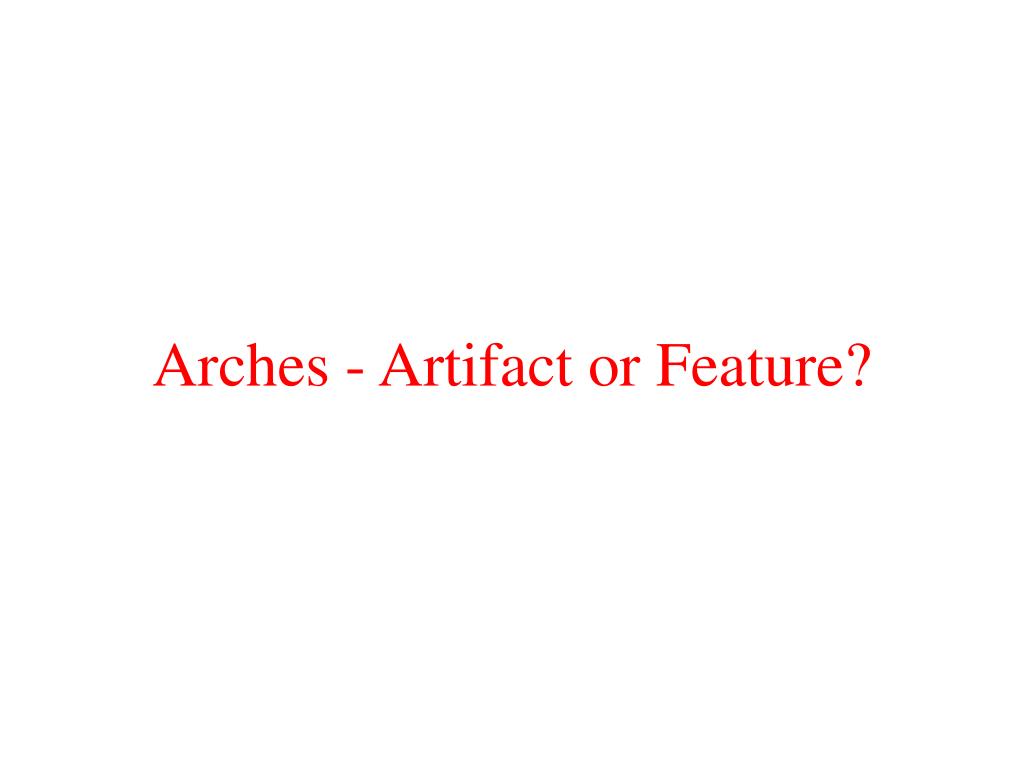

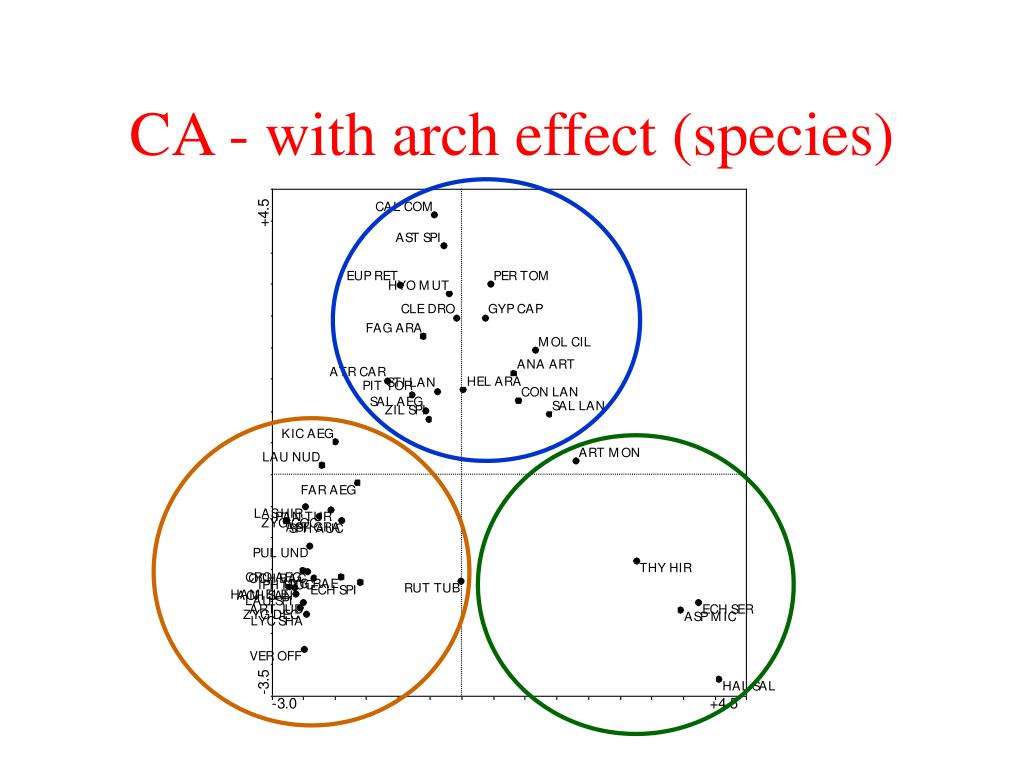

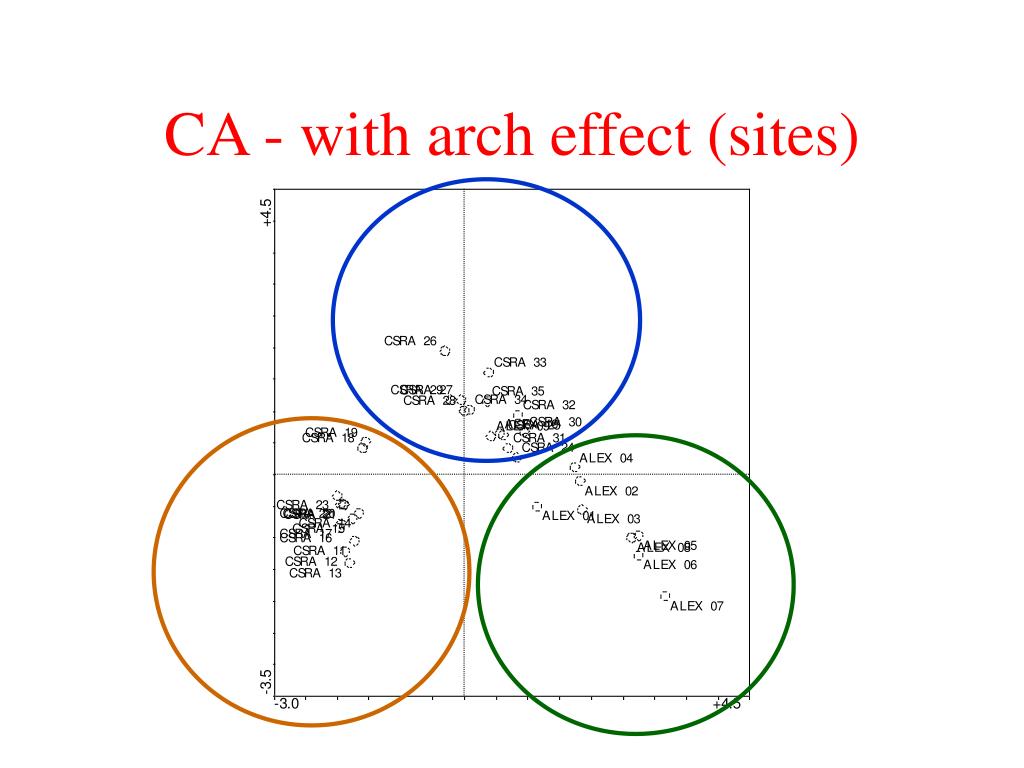

the arch effect
The Arch Effect
  • What is it?
  • Why does it happen?
  • What should we do about it?

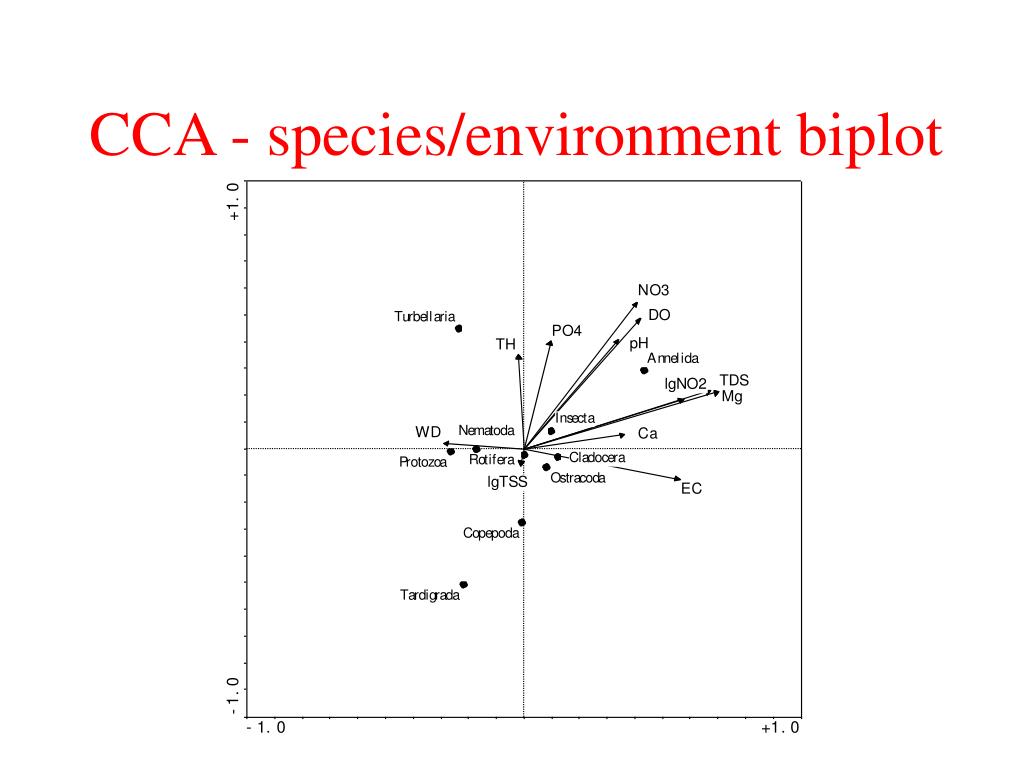

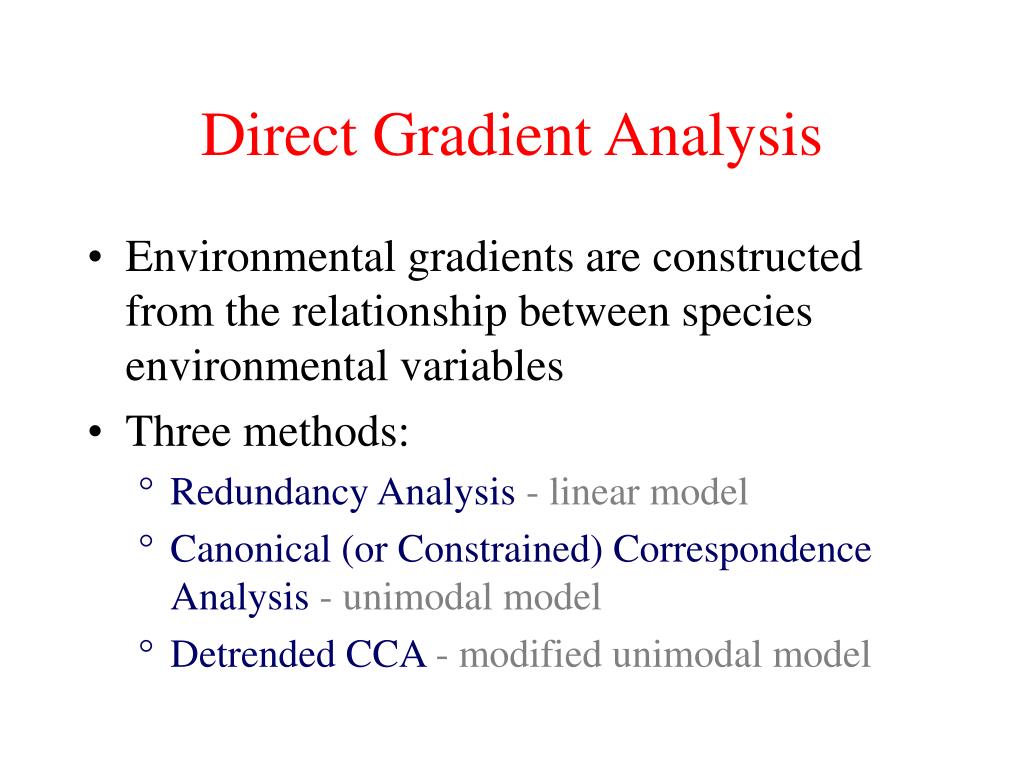

direct gradient analysis
Direct Gradient Analysis
  • Environmental gradients are constructed from the relationship between species environmental variables
  • Three methods:
    • Redundancy Analysis - linear model
    • Canonical (or Constrained) Correspondence Analysis - unimodal model
    • Detrended CCA - modified unimodal model

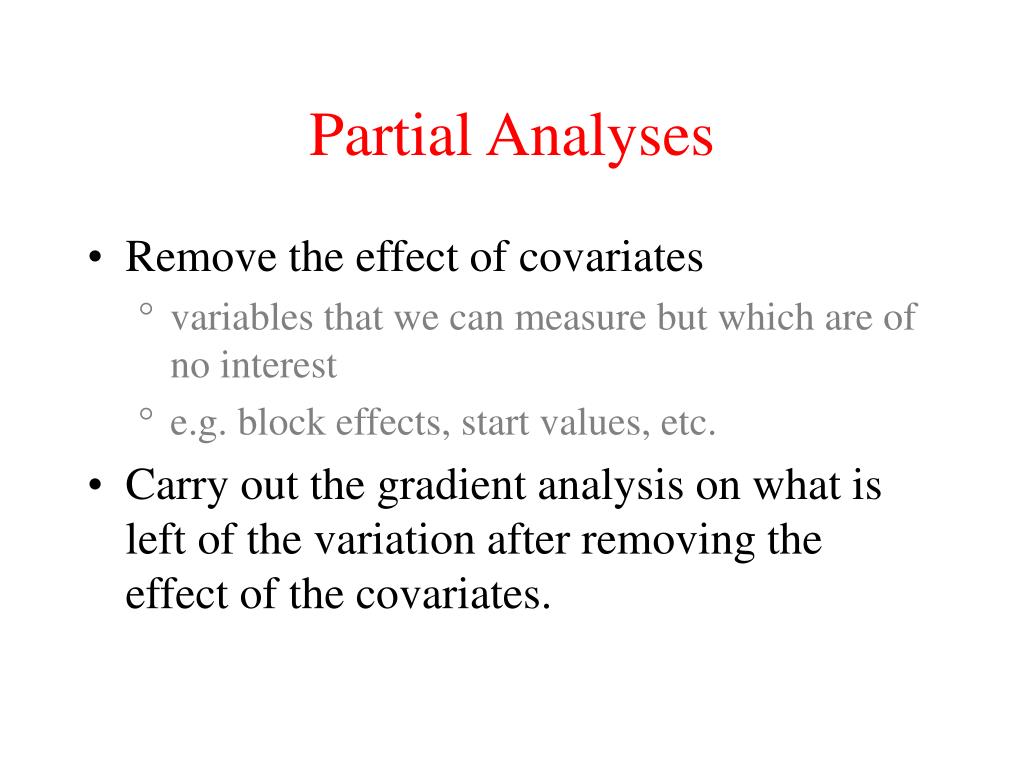

partial analyses
Partial Analyses
  • Remove the effect of covariates
    • variables that we can measure but which are of no interest
    • e.g. block effects, start values, etc.
  • Carry out the gradient analysis on what is left of the variation after removing the effect of the covariates.
randomisation example
Randomisation Example

Model: cca(formula = dune ~ Moisture + A1 + Management, data = dune.env)

Df Chisq F N.Perm Pr(>F)

Model 7 1.1392 2.0007 200 < 0.005 ***

Residual 12 0.9761

Signif. codes: 0 *** 0.001 ** 0.01 * 0.05
