  1. Introducing Dolphin7500

  2. Dolphin7500Overview • Rugged vehicle and/ or stationary ADC solution • Batch or real-time via RF or ethernet • Full screen (VGA) • Tethered key board • Tethered scanner options

  3. Product positioningIn premise application areas • Full screen information content (80 cols. by 24 lines) • Large font support • Full keyboard • Tethered scanning options (extended range) Vehicle (fork lift) Stationary Cart Receiving Cross docking Put away

  4. Dolphin7200RF Small rugged design Integrated scanning 20 & 36 keys keyboard options 8 lines by 20 chars LCD Integrated W-LAN radio DOS, PC architecture Product positioningHHP in premise RF product family Dolphin7500 • Rugged industrial PC, sealed enclosure • Tethered scanning • Tethered keyboard options • Large full size VGA color screen • MS DOS • Integrated W-LAN radio • On board ethernet • Internal PCMCIA card slots • RS-232 & LPT interfaces

  5. Host connectivityTerminal emulation based • Direct connect • TNVT100/220 • TN5250 • TN3270 • Screen mapping • No controller required IBM/DEC/HP/ Unix/Windows NT Host/Application Environment (telnet) Ethernet

  6. Host connectivity Terminal emulation based -SNA/ SDLC - V.24 (RS-232) - V.35 • Universal Gateway • VT100/220 • 5250 • 3270 • Screen mapping • Fault resilient configuration option IBM/DEC/HP/ Unix/Windows NT Host/Application Environment Ethernet

  7. Host connectivityClient server based • RF SimplicityTM • Visual Basic add in • 3 tier client/server • Major time savings • Touch screen support WIN NT /9* Ethernet

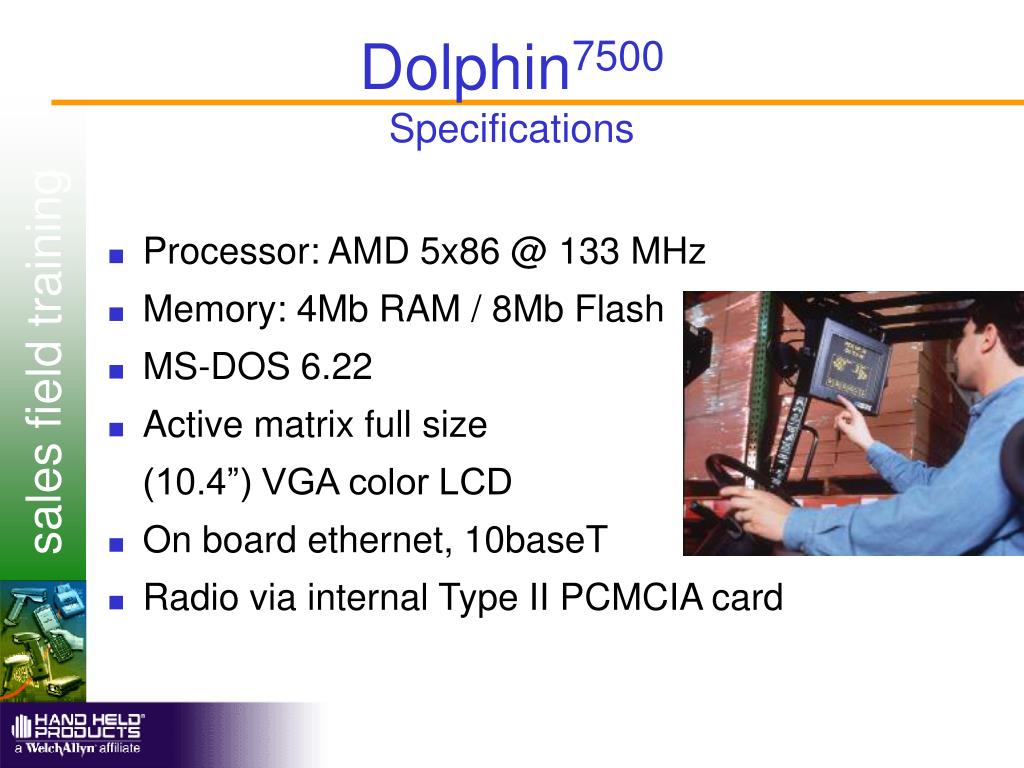

  8. Dolphin7500Specifications • Processor: AMD 5x86 @ 133 MHz • Memory: 4Mb RAM / 8Mb Flash • MS-DOS 6.22 • Active matrix full size (10.4”) VGA color LCD • On board ethernet, 10baseT • Radio via internal Type II PCMCIA card

  9. Dolphin7500Specifications • I/O (2x RS232, Parallel, keyboard) • Audible indicator 95 dBA or phone jack • Power: • 12 - 48 Volts DC (forklift / vehicle based) • 110 - 220 Volts AC

  10. Dolphin7500Specifications • Rugged vibration proof design: • rubber suspension for complete unit and inner electronics • sealed aluminum exterior • scratch resistant screen • connectors (locking) positioned at secure location • 23oF to 1220F / -5oC to 500Coperating temperature range (extended temperature range option available)

  11. Base unit: batch Ethernet List: US$ 4,995.00 RF enabled (Proxim) List: US$ 5,995.00 Configuration options

  12. Keyboard & mounting: Sealed stand alone with PS/2 connector List: US$ 160.00 With mounting bracket and RJ type locking List: US$ 375.00 Universal mounting bracket List: US$ 125.00 Configuration options

  13. Power: 12 Volts DC/DC converter List: US$ 510.00 24 - 48 Volts DC/DC List: US$ 510.00 110 - 220 AC wall adapter List: US$ 150.00 Configuration options

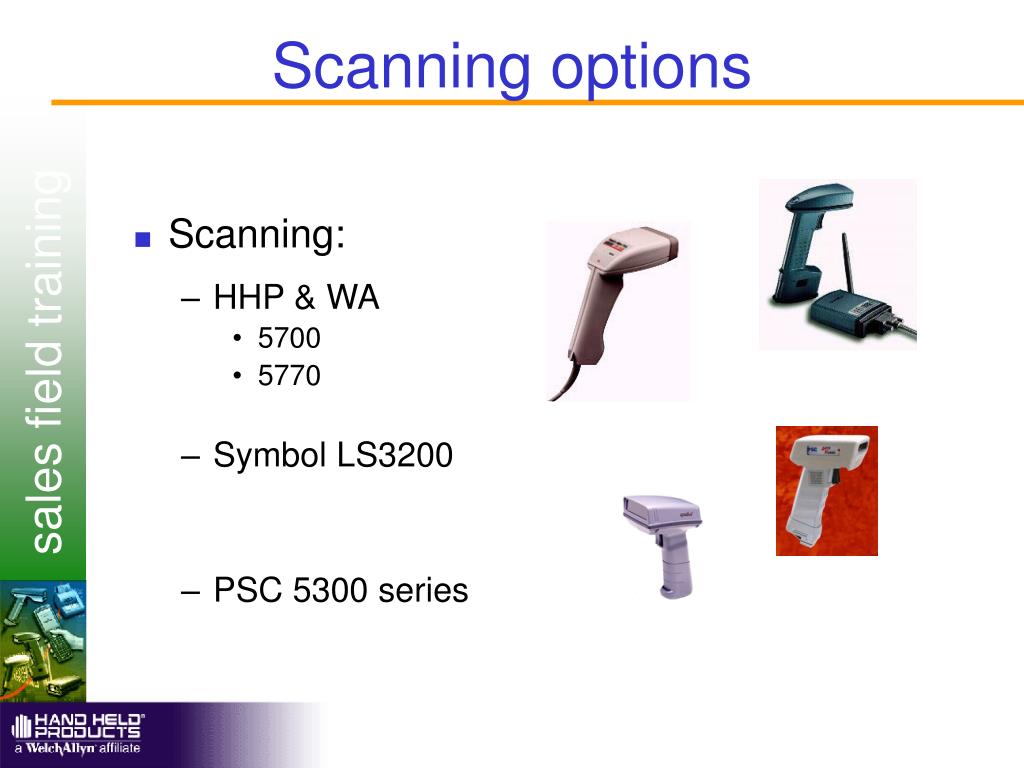

  14. Scanning: HHP & WA 5700 5770 Symbol LS3200 PSC 5300 series Scanning options

  15. Feature - benefits • Full size screen • easy readable screen information • large fonts support • PC Architecture with standard interfaces • system implementation time / system administration • connectivity solutions to host • tethered scanner options

  16. Feature - benefits • PCMCIA card based radio • radio infrastructure independent design • Dolphin7200 similarity • product family extension • same host connectivity solutions • same system administration & unit configuration • 95dBA audible beeper • proper audible feedback in noisy environments
