  1. Section 6.1 Recurrence Relations

  2. Recursive definition of a sequence • Specify one or more initial terms • Specify rule for obtaining subsequent terms from preceding terms • We can use such definitions to solve counting problems that cannot easily be solved using techniques from chapter 4

  3. Recurrence Relations • When rule for finding subsequent terms from previous is used for solving counting problems, we call the rule a recurrence relation • Stated more formally: A recurrence relation for the sequence {an} is an equation that expresses an in terms of one or more of the previous terms of the sequence a0, a1, … an-1 for all integers n with nn0, where n0 is non-negative

  4. Solutions • A sequence whose terms satisfy a recurrence relation is called a solution of the recurrence relation • Example 1: Let {an} be a sequence that satisfies the recurrence relation an = an-1- an-2 for n = 2, 3, 4 … • Suppose a0=3 and a1=5. What are a2 and a3? • a2 = a1 - a0 = 2, a3 = a2 - a1 = -3

  5. Example 2 • Find the first 5 terms of a sequence defined as follows: • recurrence relation: an = nan-1 + n2an-2 • initial condition: a0 = 1, a1 = 1 • Applying the rules: a2 = 2(1) + (2)21 = 6 a3 = 3(6) + (3)21 = 27 a4 = 4(27) + (4)26 = 204

  6. Example 2 • Determine whether {an} is a solution of the recurrence relation an = 2an-1-an-2 for n=2, 3, 4 … where an = 3n if an = 3n, then for n  2: 2an-1 - an-2 = 2[3(n-1)] - 3(n-2) = 2(3n - 3) - 3n + 6 = 6n - 6 - 3n + 6 = 3n So {an}, where an = 3n, is a solution

  7. Example 3 • Determine whether {an} is a solution of the recurrence relation an = 2an-1-an-2 for n=2, 3, 4 … where an = 2n: • By this rule, a0 = 20 = 1; a1 = 21 = 2; a2 = 22 = 4 • Applying original recurrence relation: an = 2a n-1 - a n-2 a2 = 2a1 - a0 substituting actual values: 4 = 2*2 - 1 4 = 3 not true, so {an} where an = 2n is not a solution

  8. Summary of Recurrence Relations • Initial conditions for a sequence specify terms that precede the first term where recurrence relation takes effect • Recurrence relation & initial conditions uniquely determine a sequence, providing a recursive definition of the sequence • Any term of a sequence can be found from initial conditions using recurrence relation a sufficient number of times (but there are better ways for computing certain classes of sequences)

  9. Example 4: modeling with recurrence relations • Suppose you invest $1,000 in a money market account that yields 7% per year (wow!) with interest compounded annually (oh). How much money will be in the account in 25 years? • Let Pn = amount in account after n years • Since Pn = amount after n-1 years + interest in nth year, {Pn} satisfies the recurrence relation: Pn = Pn-1 + .07(Pn-1) = 1.07(Pn-1)

  10. Example 4 continued • We are given P0 = 1000; so P1 = (1.07)(P0) P2 = (1.07)(P1) = (1.07)(1.07)(P0) = (1.07)2(P0) P3 = (1.07)(P2) = (1.07)(1.07)(1.07)(P0) = (1.07)3(P0) … thus Pn = 1.07(Pn-1) = (1.07)nP(0) so if n=25, P25 = (1.07)25(1000) = $5,427.43

  11. Example 5: is Fibonacci Italian for “bunny”? • Suppose 2 baby rabbits (aw!), a buck and a doe, are placed on an uninhabited island • They don’t breed until they’re 2 months old (we don’t know what they’re up to before that) • After they are 2 months old, each pair of rabbits produces another pair each month • How many rabbits are there after n months, assuming no rabbits die?

  12. Example 5 continued • Let fn = number of rabbit pairs after n months • At end of first month, f1 = 1 (too young to breed) • At end of second month, f2 = 1 (allow for gestation time!)

  13. Example 5 continued • To find the number of pairs after n months, add the number from the previous month (fn-1) to the number of newborn pairs (fn-2, since each newborn pair comes from a pair at least 2 months old) • So {fn} satisfies the recurrence relation: fn = f n-1 + f n-2 for n  3 with f1 = f2 = 1 • So the number of pairs of bunnies after n months is the nth Fibonacci number

  14. Example 6: how long before the world ends? • The Towers of Hanoi is an ancient puzzle, with the following characteritics: • You start with 3 pegs, one of which has a stack of disks on it (bird’s-eye view shown) • The disks are stacked by size, with the largest on the bottom and the smallest on top

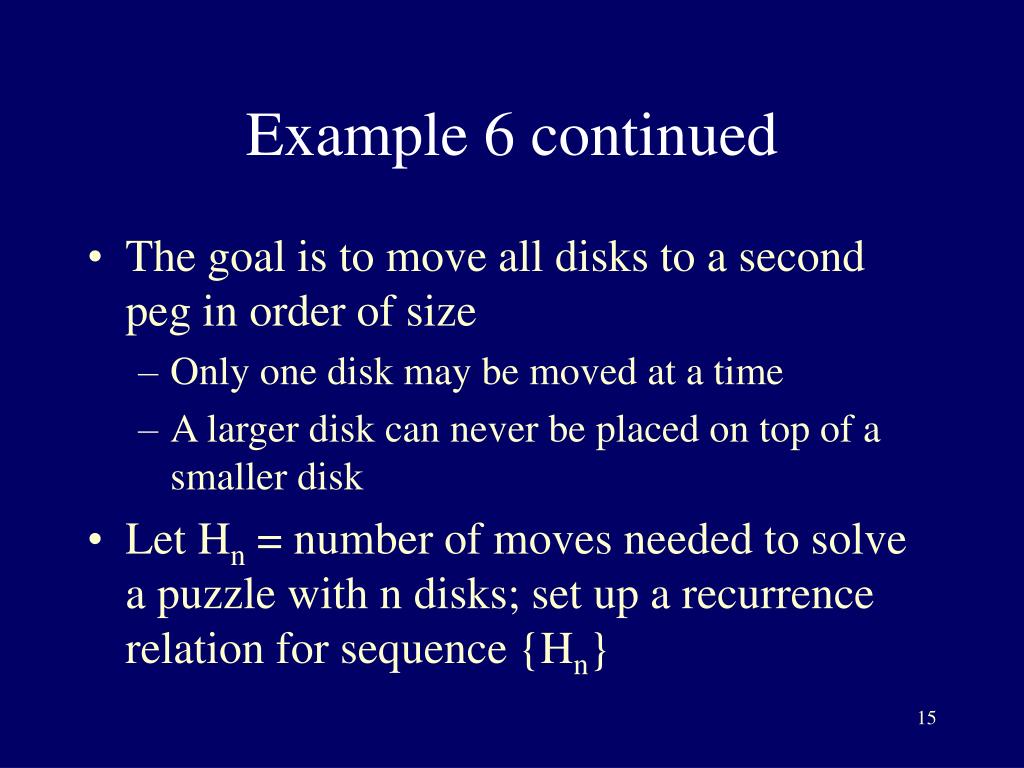

  15. Example 6 continued • The goal is to move all disks to a second peg in order of size • Only one disk may be moved at a time • A larger disk can never be placed on top of a smaller disk • Let Hn = number of moves needed to solve a puzzle with n disks; set up a recurrence relation for sequence {Hn}

  16. Example 6 continued • Starting with n disks on peg 1, we can transfer n-1 disks to peg 3 using Hn-1 moves • It takes 1 move to transfer the largest disk to peg 2 • Then we can move the n-1 disks from peg 3 to peg 2 using another Hn-1 additional moves • So Hn = 2(Hn-1) + 1 with initial condition H1 = 1 (one disk can be transferred in one move)

  17. Example 6 continued • We can use an iterative approach to solve the relation: Hn = 2(Hn-1) + 1 = 2 (2Hn-2 + 1) = 22Hn-2 + 2 + 1 = 22(2Hn-3 + 1) + 2 + 1 = 23Hn-3 + 22 + 2 + 1 … = 2n-1H1 + 2n-2 + 2n-3 + … + 2 + 1 = 2n-1 + 2n-2 + 2n-3 + … + 2 + 1 (because H1 = 1) = 2n - 1 • So for 5 disks, it takes 25-1 or 31 moves to solve the puzzle

  18. Example 6 continued • The ancient legend says that the monks of Hanoi must solve a puzzle with 64 disks, taking 1 second to move each disk, and when they are finished the world will end. How long before they’re done? • 264 - 1 = 18,446,744,073,709,551,615 seconds • At 60 seconds per minute, 60 minutes per hour, 24 hours per day and 365.25 days per year, there are 31,557,600 seconds in a year • So the world should end something over 500 billion years since they started (but we don’t know when they started …)

  19. Example 7 • Find a recurrence relation and give initial conditions for the number of bit strings of length n that do not have consecutive 0s. How many such strings are there of length 5? • Let an denote the number of bit strings of length n that do not have 2 consecutive 0s; to obtain recurrence relation for {an}, note that: • by the sum rule, the # of bit strings of length n that do not have 2 consecutive 0s = # ending with 0 + # ending with 1 • assuming n  3, bit string has at least 3 bits

  20. Example 7 continued • Bit strings of length n ending with 1 that do not have 2 consecutive 0s are precisely the bit strings of length n-1 with no 2 consecutive 0s and with a 1 added to the end - there are an-1 such bit strings • Bit strings of length n ending with a 0 must have a 1 as their (n-1)th bit (otherwise there’d be 2 0s at the end) - bit strings of length n, ending with 0, without consecutive 0s, are precisely those bit strings of length n-2 with 10 appended to them - there are an-2 such strings

  21. Example 7 continued • So we conclude: an = an-1 + an-2 for n  3 Initial conditions: a1 = 2 since bit strings of length 1 have no consecutive bits and there are 2 possible values a2 = 3 since valid strings are 01, 11, 10 • a5 = a4 + a3; a4 = a3 + a2; a3 = a2 + a1 • a3 = 5; a4 = 8; so a5 = 13

  22. Catalan numbers • The number of ways to parenthesize the product of n+1 numbers to specify the order of multiplication is represented by Cn • For example, C3 = 5; since n=3, there are 4 terms: x0 * x1 * x2 * x3 and 5 ways to parenthesize: (x0 * x1) * (x2 * x3), ((x0 * x1) * x2) * x3, (x0 * (x1 * x2)) * x3, x0 * ((x1 * x2) * x3) and x0 * (x1 * (x2 * x3))

  23. Catalan numbers • However we insert parentheses, one multiplication operator remains outside all parentheses (and is therefore the last operation performed) • The final operator appears between some pair of the n+1 numbers - say xk and xk+1

  24. Catalan numbers • There are CkCn-k-1 ways to insert parentheses to determine order of multiplication of n-1 numbers when the final operator appears between xk and xk+1 because there are Ck ways to insert parentheses in x0*x1*…*xk and Cn-k-1 ways to insert parentheses in xk+1*xk+2*… *xn

  25. Catalan numbers • Since the final operator can appear between any 2 of the n+1 numbers, it follows that: Cn = C0Cn-1 + C1Cn-2 + … + Cn-2 C1 + Cn-1C0 = CkC n-k-1 with initial conditions C0=1, C1=1 • It can be shown that Cn = C(2n,n)/(n+1)

  26. Section 5.1 Recurrence Relations
