UCI Fall 2012 - Dr. Marc Madou. Fundamentals of MICROFABRICATION. Chapter 1 Si as an Electronic. Photonic and Mechanical material Chapter 2 Lithography Chapter 3 Advanced Lithography Chapter 4 Additive Techniques: Oxidation of Si

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Fundamentals of MICROFABRICATION' - ull

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

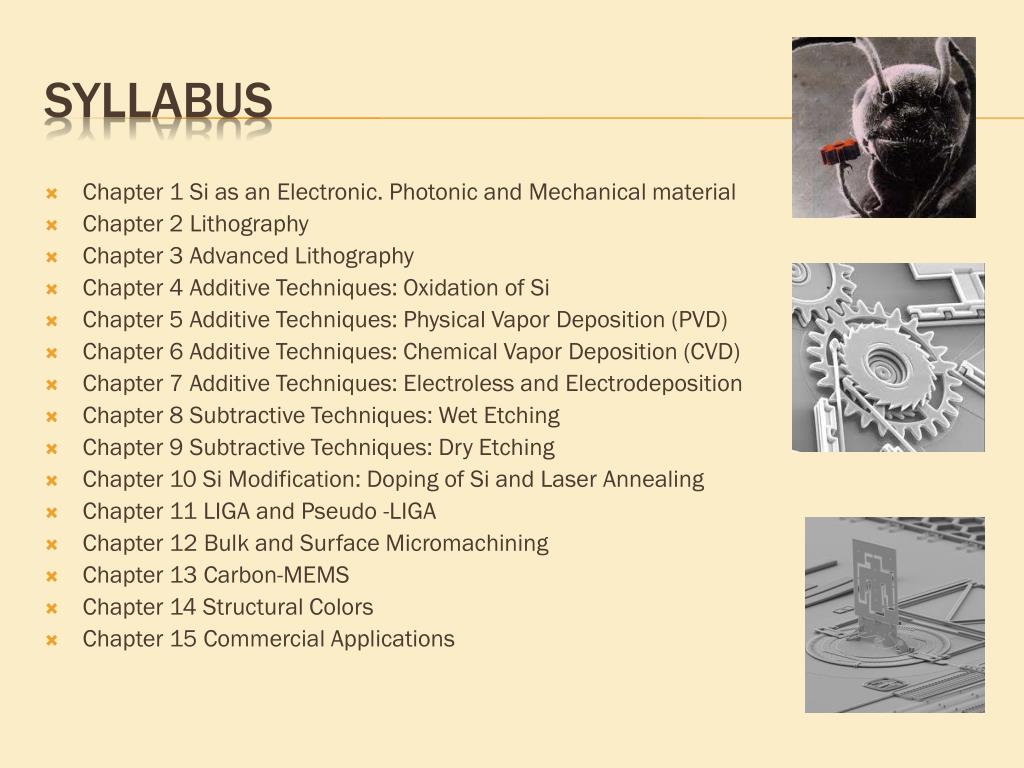

Chapter 1 Si as an Electronic. Photonic and Mechanical material

Chapter 2 Lithography

Chapter 3 Advanced Lithography

Chapter 4 Additive Techniques: Oxidation of Si

Chapter 5 Additive Techniques: Physical Vapor Deposition (PVD)

Chapter 6 Additive Techniques: Chemical Vapor Deposition (CVD)

Chapter 7 Additive Techniques: Electroless and Electrodeposition

Chapter 8 Subtractive Techniques: Wet Etching

Chapter 9 Subtractive Techniques: Dry Etching

Chapter 10 Si Modification: Doping of Si and Laser Annealing

Chapter 11 LIGA and Pseudo -LIGA

Chapter 12 Bulk and Surface Micromachining

Chapter 13 Carbon-MEMS

Chapter 14 Structural Colors

Chapter 15 Commercial Applications


One Midterm (20 %)

Attendance, class activity (15%)

Three Assignments (15 %). First one today.

Final (50 %)

Videos are a frequent feature of this class, do check them out before exams. Example: How the Accelerometer in your iPhone works.

Comments: Fundamentals of MicrofabricationFacebook Site.

explanation assignment

The refractive index of porous Si is lower than for bulk Si: it is inversely proportional to the anodization etch current density. A distributed Bragg reflector (DBR) selectively reflects a band of incident wavelengths and is easily formed in highly doped p-type Si by periodically lowering and raising the etch current density, resulting in a sequence of porous layers with alternating high and low refractive index. Panel a shows an optical image of a 500 × 500 μm2 region irradiated with different overlaid scan patterns, with different doses . The wafer was etched with an alternating high/low current density for 4 s per layer, with a total of 15 bilayers formed. The etch rate is progressively slowed by larger irradiation doses, resulting in thinner porous layers that reflect shorter incident wavelengths. Each dose produces a different reflected color when illuminated with white light, with red/orange colors corresponding to areas of lowest dose. The potential of this approach to form patterned arrays of color pixels and lines for display applications is shown in b, where vertical lines, each 10 μm wide, were irradiated to form alternating red-green-blue stripes. Panels c and d show examples of selectively patterning color reflective areas in which two dragon images appear in different colors, corresponding to different irradiated doses in each area. http://www.pbeam.com/siliconmodification.php
