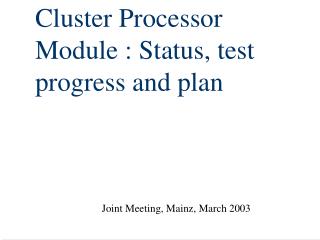

Cluster Processor Module : Status, test progress and plan PowerPoint Presentation
Download Presentation
Cluster Processor Module : Status, test progress and plan

Loading in 2 Seconds...

play fullscreen
1 / 13

Cluster Processor Module : Status, test progress and plan - PowerPoint PPT Presentation


  • 65 Views
  • Uploaded on

Cluster Processor Module : Status, test progress and plan. Joint Meeting, Mainz, March 2003. Cluster Processor Module: plan. Real Time Data Path: SRL Chip to CP chip Lvds Rx to SRL chip Latency measurement 2nd CPM to be tested Subsystem Test Lvds Source Module.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Cluster Processor Module : Status, test progress and plan' - tyrone


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
cluster processor module plan
Cluster Processor Module: plan
  • Real Time Data Path:
    • SRL Chip to CP chip
    • Lvds Rx to SRL chip
  • Latency measurement
  • 2nd CPM to be tested
  • Subsystem Test
  • Lvds Source Module
real time data path test choice of the cp chip f w
Real Time Data Path Test: Choice of the CP chip F/W
  • Real Time Data path was tested via the “ScanPath” F/W, which record 160 MHz data at the input of the 108 input of the CP chip
  • Previous test shown that always couple of data are corrupted
  • The F/W used was selected among 4 phases the best one for all inputs
  • But the present device used (XCV1000E upgrade 6) has not enough resources to give a stable calibration for all channels
  • F/W changed for 2 phases , a bit better but still not enough
  • Decide to go for one phase:
    • All onboard data strobe by the same phase
    • All BP data strobe by the same phase, but delay by 1.5 ns to the phase for the onboard data
from 4 phases to 1 phase
From 4 phases to 1 phase

4 phases

2 phases

1 phase

Pin #1

160 MHz data stream….

Pin #2

Pin #3

Pin #4

real time data path test choice of the cp chip f w for the slice test
Real Time Data Path Test: Choice of the CP chip F/W for the slice test
  • The one phase works very well -> see Christian talks
  • One phase F/W will be used for the Slice Test
  • Extra boards will be assembled with same device as the CPM#1
  • Future: Fastest and bigger FPGA ,VirtexII, will be used for CPM, where the 4 phases method could be implemented
real time data path lvds data to serialiser
Real Time Data Path:LVDS data to Serialiser
  • 80 serialisers locked
  • Perform timing scan by changing clock on Serialiser
  • Stable over ~20 ns
  • Only one serialiser shows some problem:
    • One pin of one Lvds Rx not soldered: strobing on opposite edge of other receivers
  • More details in Christian Talk
  • Bit Error Rate Tester to be implemented to perform overnight run (see Tamsin Moye talk)
first latency measurement
First Latency Measurement

50 ns

.5 tck

13.4 ticks!

2 ticks

2.5 ticks

8.4 ticks

Lvds Rx

Serialiser

CP Chip

Hit

latency measurement
Latency Measurement
  • Can save a couple of ns if you strobe near the beginning of the pulse at the input of the serialiser
  • Results to be double checked with simulation for the CP and Serialiser
  • Ian claims it can save 18 ns, present design not thought enough
  • Latency expected was of 9 ticks (TDR)
2 nd cpm appears
2nd CPM appears …
  • A second CPM has been assembled
  • JTAG shows that 4 CP chips are not correctly connected
  • Assembling company blamed the board was not clean, as been stored for too long (1 year!)
  • Produce new PCBs before assembly of new boards
  • Test to be done with present 2nd CPM
subsystem test
Subsystem Test
  • With 2 CPMs working, we can tested
    • Backplane links
    • Nearly full CP algorithm
  • With one CPM and 5 DSS populated with LVDS DB
    • Fully drive LVDS input of CPM
    • Test noise and Xtalk
  • With one CPM and one ROD
    • Test G-link output
    • Test L1A handling in CPM
  • With one CMM
    • Test backplane link
cpm tests integrated with run controller
CPM Tests Integrated with Run Controller
  • RC can deal with all previous test modes
  • Still some work to be done for CPM services:
  • Loading of F/Ws from database
  • Setting thresholds, mask
  • …(discover everyday)
lvds source module
Lvds Source Module
  • Present source of Lvds signals come from DSSs.
  • Lot of DSSs required to fully populated one board
  • Limited number of DSS available
  • Decide to design a board dedicated to generated up to 44 or 88 LVDS signals
    • Use for production testing
    • Simple design, might be ready quickly and use for testing
  • Design to be talk with Richard
