  1. Games, chat, and finance Toward a truly interactive web with Comet, BAM, and HMTP Emil Ong Chief Evangelist

  2. Caucho Technology • Resin has been around for 10 years • Over 8000 customers, even more open source users • User base consists of both early and conservative adopters • Now the top Java web server in NetCraft • http://survey.netcraft.com/Reports/200805/ • 340,000 domains

  3. Groundbreaking Innovations • Hessian web services protocol • Top clustering implementation • Quercus: PHP in Java • Server-push • And now... a revolutionary approach to the interactive web

  4. The Interactive Web • Common properties • Sessions are long-lived • Must be responsive/ real time • Must not overburden server • Communication is bidirectional • Killer apps • Games • Chat • Finance

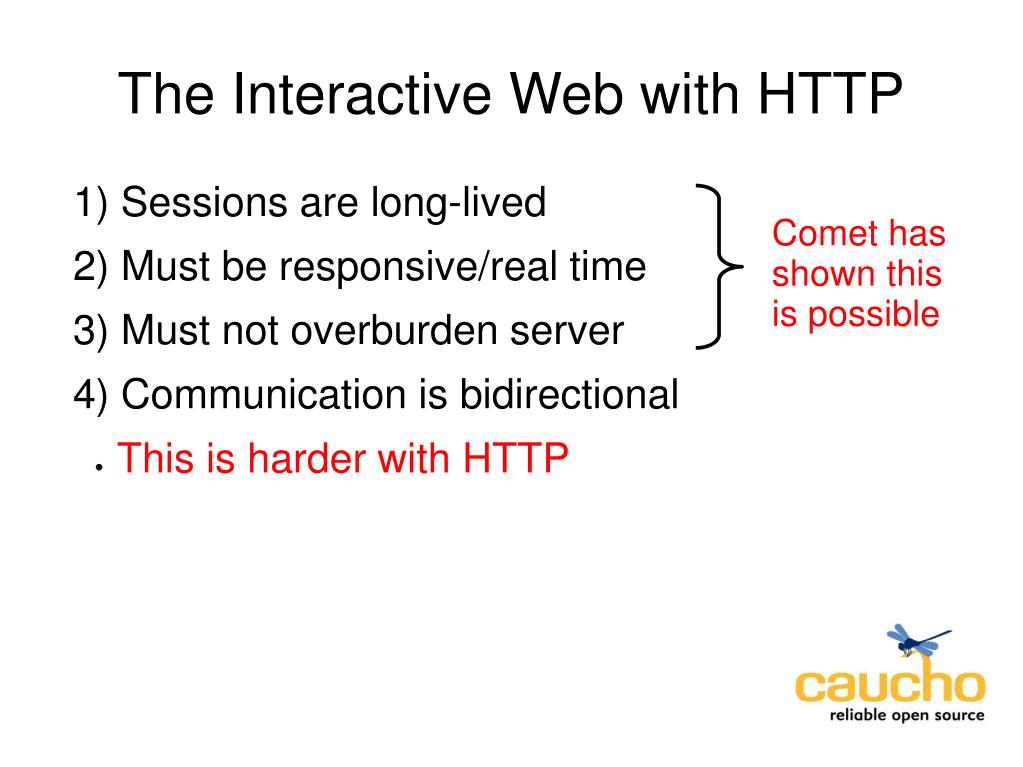

  5. The Interactive Web with HTTP • Sessions are long-lived • Must be responsive/real time • Must not overburden server • Communication is bidirectional • This is harder with HTTP Comet has shown this is possible

  6. Simulating Bidirectional Communication with HTTP • Client generated events are easy • They are simply requests • AJAX just makes those requests without changing the page • What about the other direction?

  7. Sending events from server to client using HTTP • Polling • Requests at regular intervals that complete immediately • Long Polling • Requests that wait for the next event, then restart • Server-push (Comet)‏ • Socket held open with streaming updates from the server

  8. Techniques compared

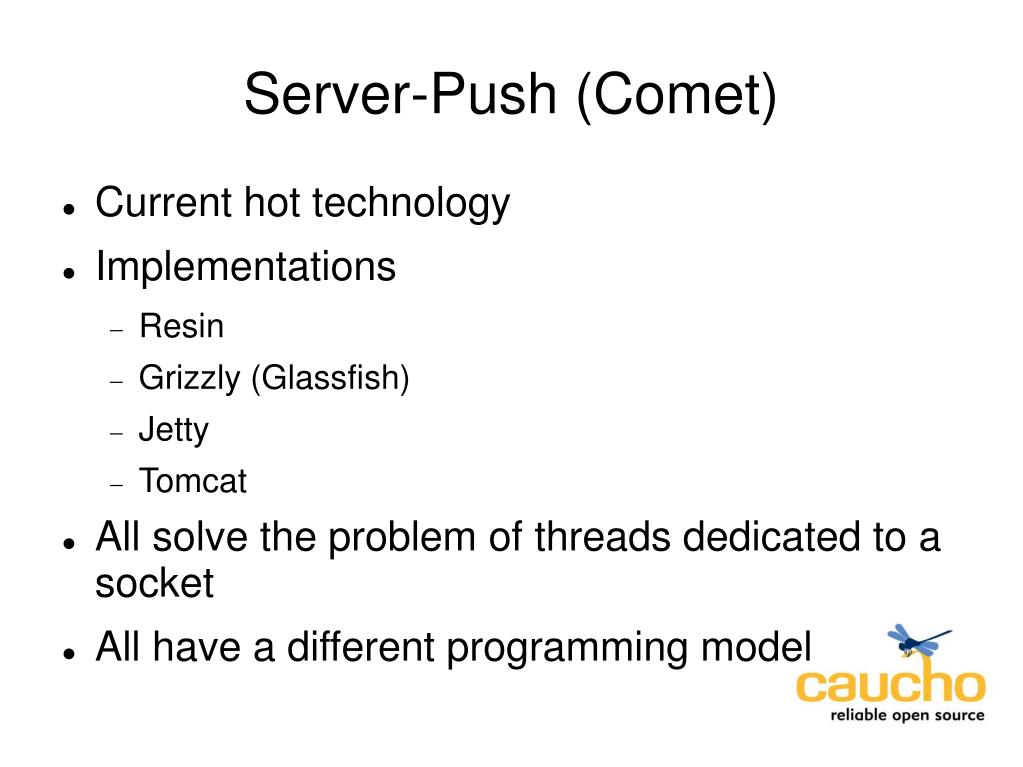

  9. Server-Push (Comet)‏ • Current hot technology • Implementations • Resin • Grizzly (Glassfish)‏ • Jetty • Tomcat • All solve the problem of threads dedicated to a socket • All have a different programming model

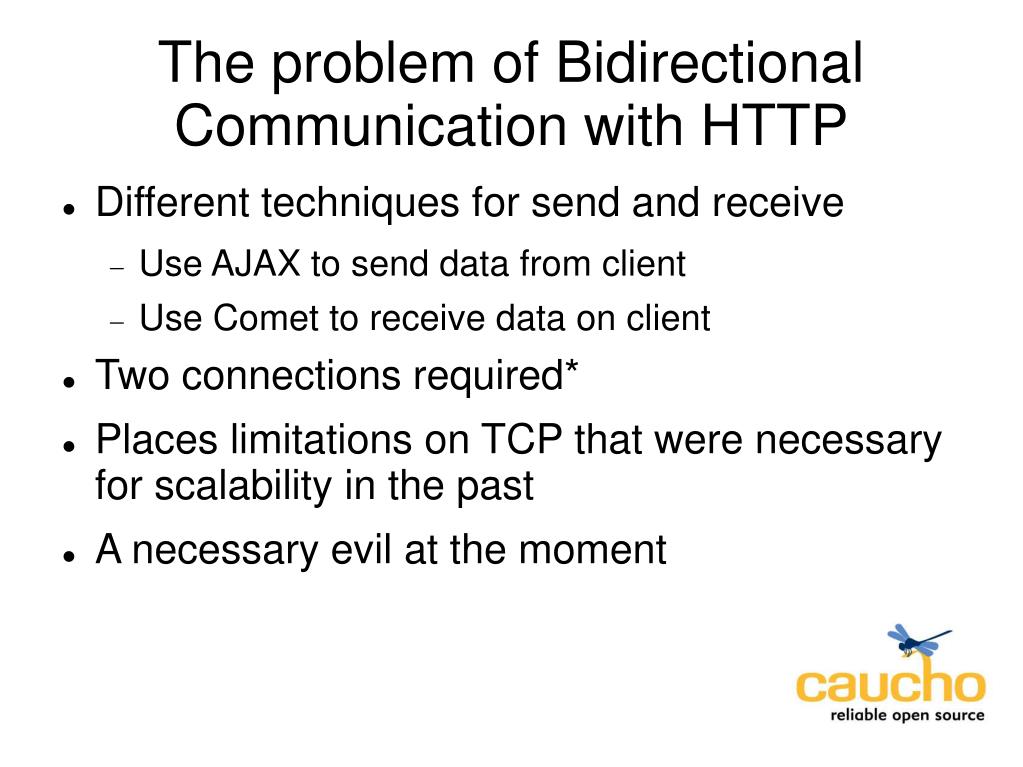

  10. The problem of Bidirectional Communication with HTTP • Different techniques for send and receive • Use AJAX to send data from client • Use Comet to receive data on client • Two connections required* • Places limitations on TCP that were necessary for scalability in the past • A necessary evil at the moment

  11. Truly Interactive Communication • Must be capable of long-lived connections • Must be responsive/real time • Must not overburden server • Must be bidirectional • Must have a simple, coherent API/architecture

  12. Creating the architecture • Start with the communication patterns • Messages • Request/response • Truly bidirectional communication • Client -> Server • Server -> Client • Both must be supported in both patterns

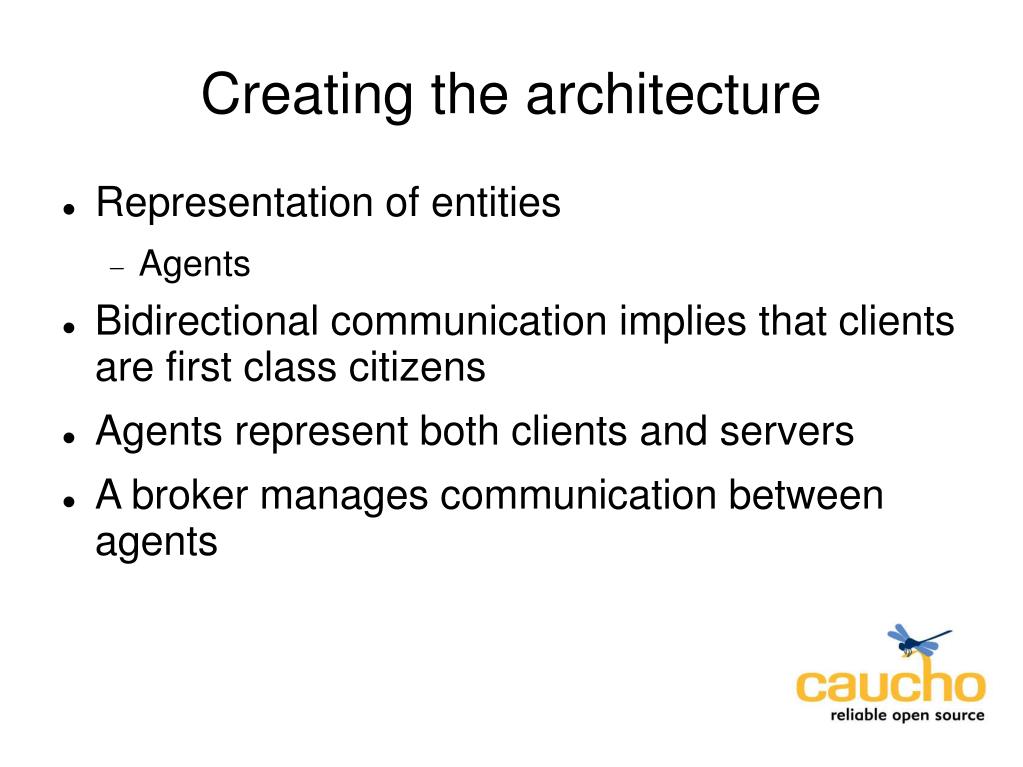

  13. Creating the architecture • Representation of entities • Agents • Bidirectional communication implies that clients are first class citizens • Agents represent both clients and servers • A broker manages communication between agents

  14. Brokered Agent Messaging (BAM)‏ • Broker • Handles communication between agents • It's not CORBA • Agents • Represent both clients and services • Messaging • Messages • Request/response (asynchronous)‏

  15. Example: Sudoku • Demo

  16. Logging In Resin Client 1 Login Query Client Agent 1 Broker Client Agent 2 Client 2 Login Query Sudoku Service

  17. Starting a game Resin Client 1 Start Query Client Agent 1 Avatar Agent 1 Broker Game 1 Avatar Agent 2 Client Agent 2 Client 2 Start Query Sudoku Service Wait Result Start Result Start Message

  18. Making a Move Resin Client 1 Move Query Client Agent 1 Avatar Agent 1 Broker Move Message Move Result Game 1 Avatar Agent 2 Client Agent 2 Client 2 Sudoku Service

  19. Ending the Game Resin Client 1 Move Query Client Agent 1 Avatar Agent 1 Broker Move Message Move Result Game over Message Game over Message Game 1 Avatar Agent 2 Client Agent 2 Client 2 Sudoku Service

  20. Design notes • Agents can be long-lived • SudokuService • Client • Agents can be short-lived • SudokuAvatar • Agents are lightweight and dynamic • Non-agents can interact with the system • SudokuGame

  21. public boolean sendQuerySet(long id, String to, String from, Serializable value)‏ { if (value instanceof MoveQuery) { MoveQuery query = (MoveQuery) value; MoveResult result = _game.move(query, getJid()); _broker.sendQueryResult(id, from, to, result); return true; ... Code sample: SudokuAvatar

  22. BAM API • void sendMessage(String to, String from, Serializable value)‏ • boolean sendQueryGet(long id, String to, String from, Serializable query)‏ • boolean sendQuerySet(long id, String to, String from, Serializable query)‏

  23. Address space • Agent names look like email addresses: • sudoku@caucho.com/3 • First component: service name (sudoku)‏ • Second component: domain (caucho.com)‏ • Third component: instance identifier (/3)‏ • Address structure reflects lightweight nature of agents

  24. Hessian Message Transfer Protocol(HMTP)‏ • Wire protocol on which BAM is based • Uses Hessian for compact serialization • Evolved from XMPP (Jabber)‏

  25. Target platforms • Flash/Flex • Silverlight • JavaFX • Java Applets • Comet (interim)‏ • Java • Quercus (PHP)‏ • .NET

  26. Conclusion • Interactive applications will become more common • HTTP is not sufficient to handle them • BAM outlines a new architecture and API to make the development of these applications easier

  27. What's next? • Technical • Convenience functions • Making a PHP page a BAM service • HMTP standardization • Promotional • Game contest

  28. Thank you! • Questions? • Comments?

  29. More information • http://hessian.caucho.com/ • http://blog.caucho.com /

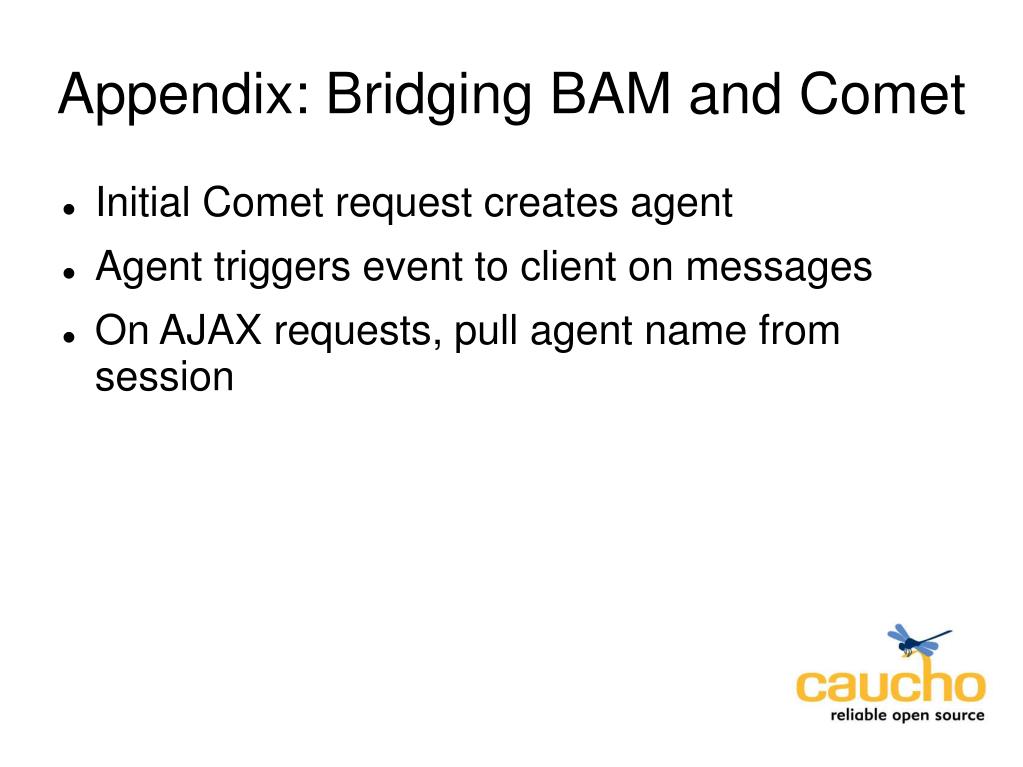

  30. Appendix: Bridging BAM and Comet • Initial Comet request creates agent • Agent triggers event to client on messages • On AJAX requests, pull agent name from session
