neuromuscular junctions

Neuromuscular Junctions

Physiology of Muscle Fibers

action potentials the role of motor neurons

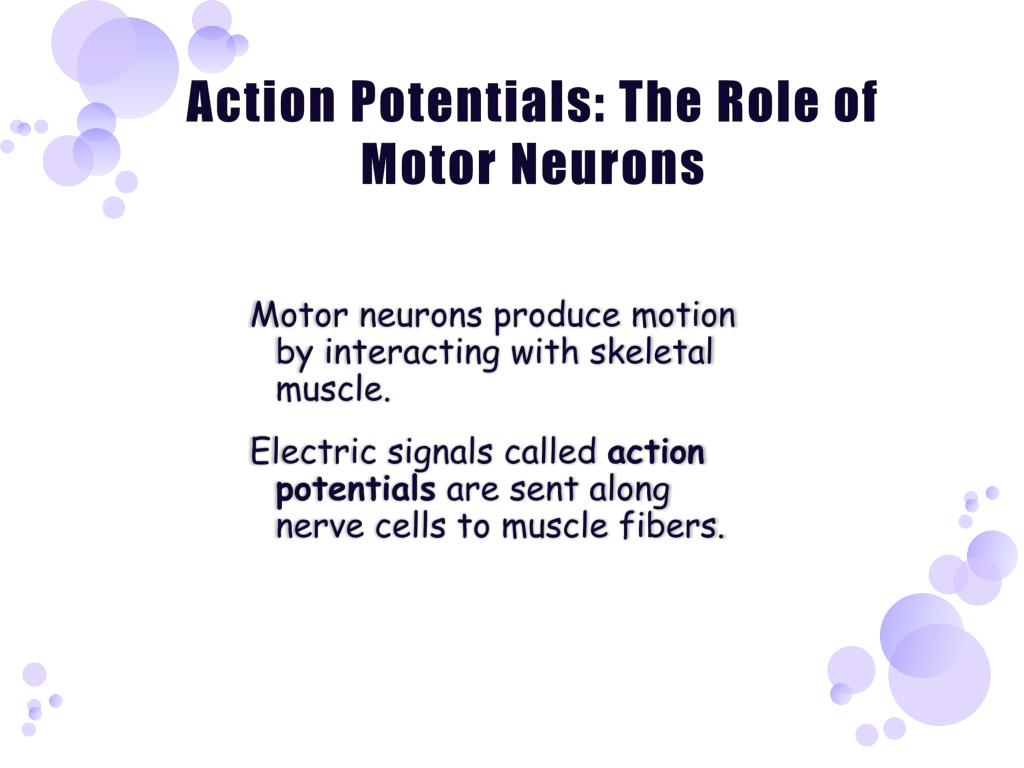

Action Potentials: The Role of Motor Neurons

Motor neurons produce motion by interacting with skeletal muscle.

Electric signals called action potentials are sent along nerve cells to muscle fibers.

polarization of a neuron

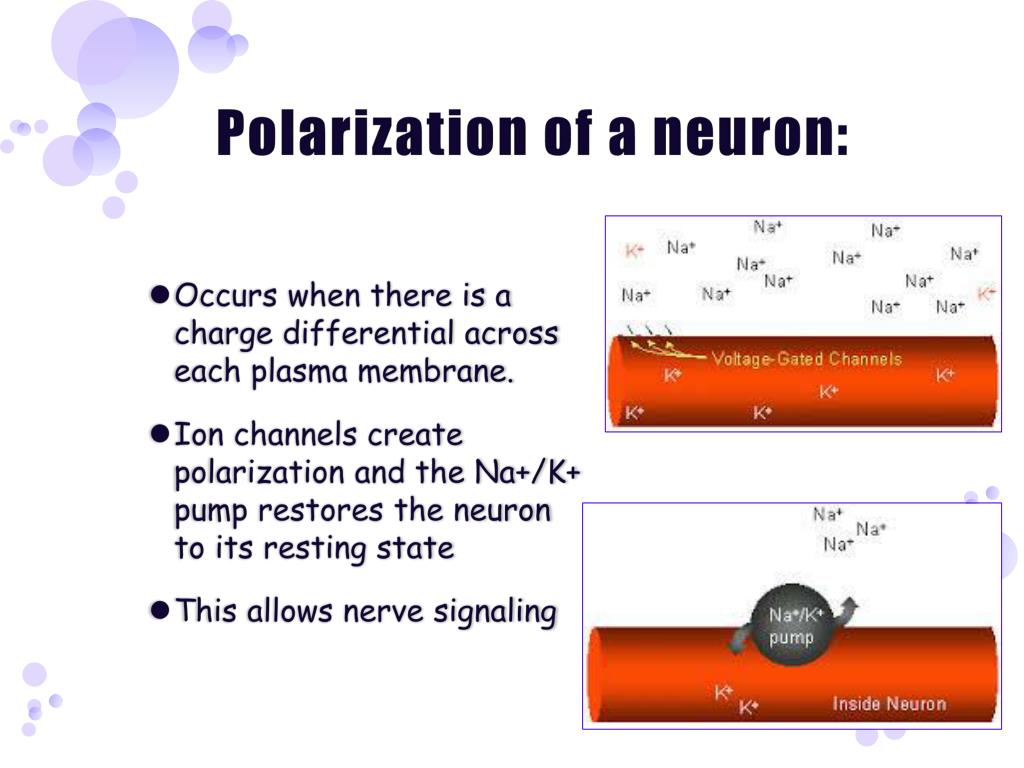

Polarization of a neuron:
  • Occurs when there is a charge differential across each plasma membrane.
  • Ion channels create polarization and the Na+/K+ pump restores the neuron to its resting state
  • This allows nerve signaling
ligand gated ion channels help neurons and muscle fibers communicate

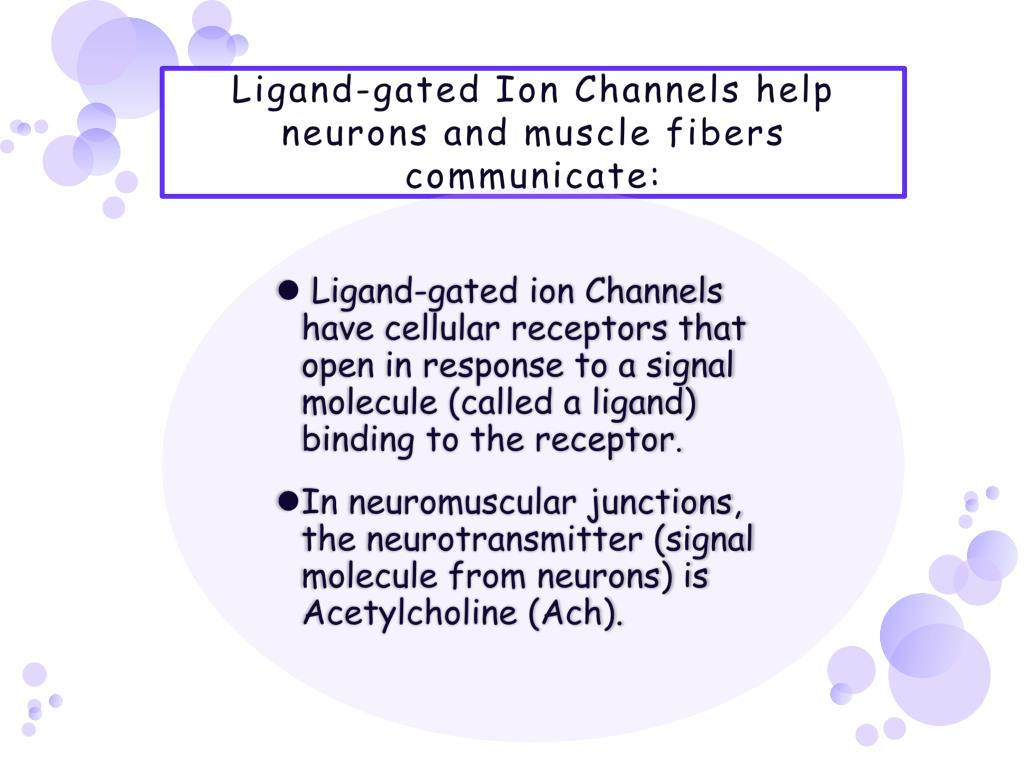

Ligand-gated Ion Channels help neurons and muscle fibers communicate:
  • Ligand-gated ion Channels have cellular receptors that open in response to a signal molecule (called a ligand) binding to the receptor.
  • In neuromuscular junctions, the neurotransmitter (signal molecule from neurons) is Acetylcholine (Ach).
when acetylcholine binds to the receptor the channel opens and na enters the muscle cell

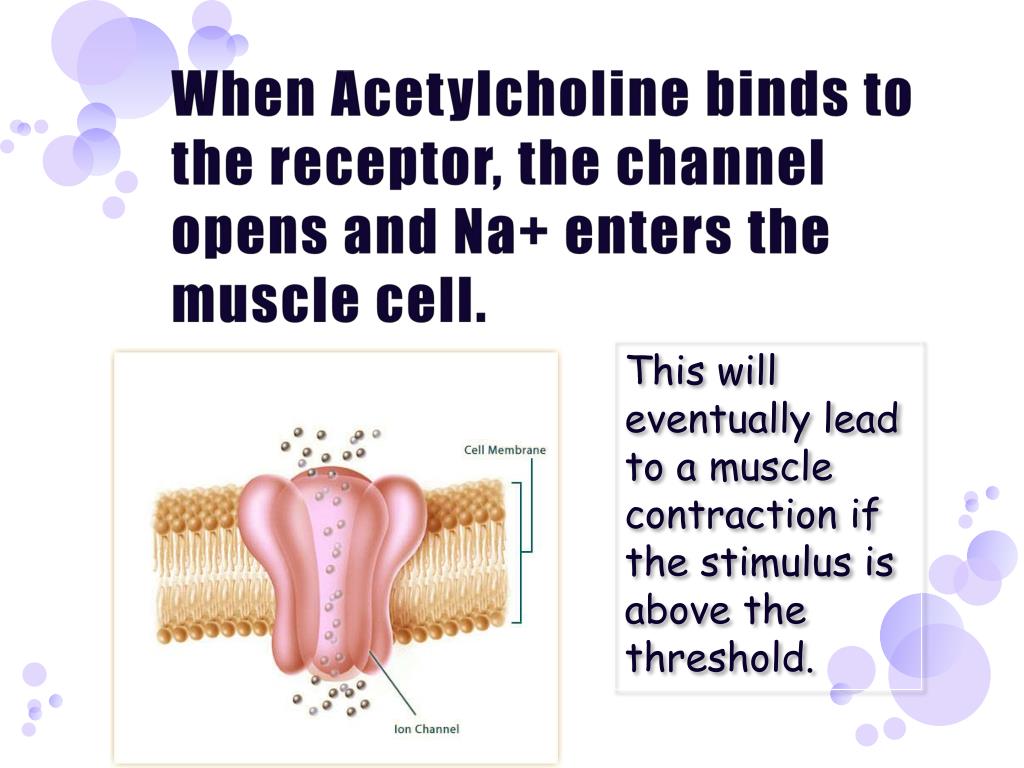

When Acetylcholine binds tothe receptor, the channel opens and Na+ enters the muscle cell.

This will eventually lead to a muscle contraction if the stimulus is above the threshold.

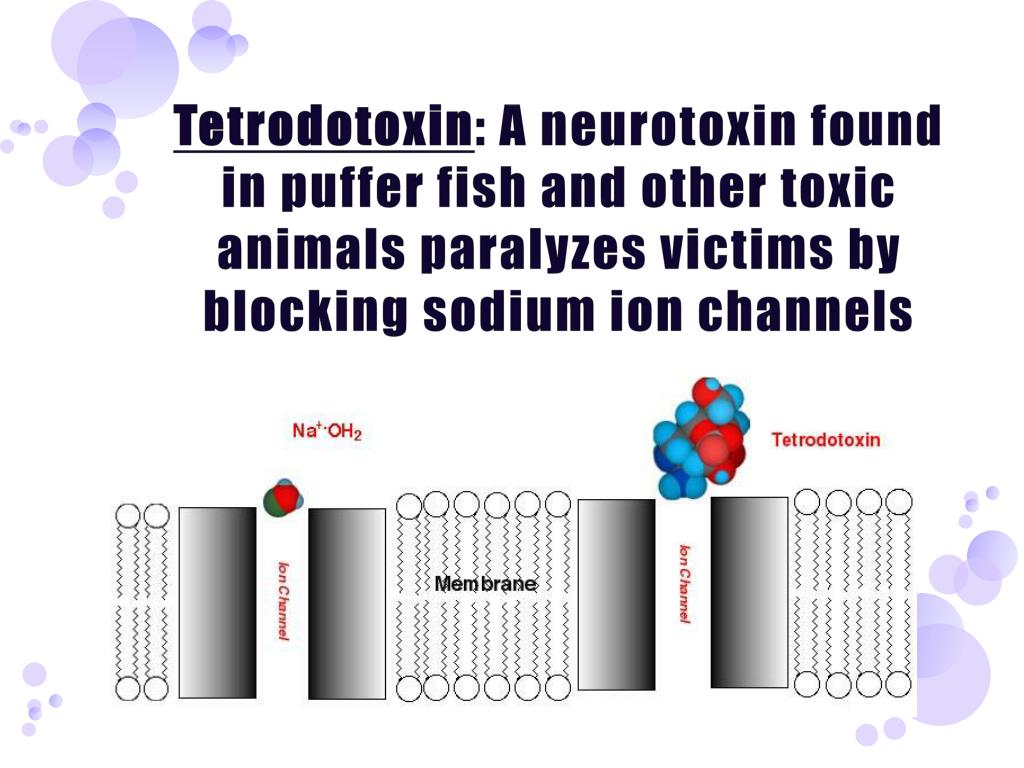

Tetrodotoxin: A neurotoxin found in puffer fish and other toxic animals paralyzes victims by blocking sodium ion channels
if you are exposed to tetrodotoxin

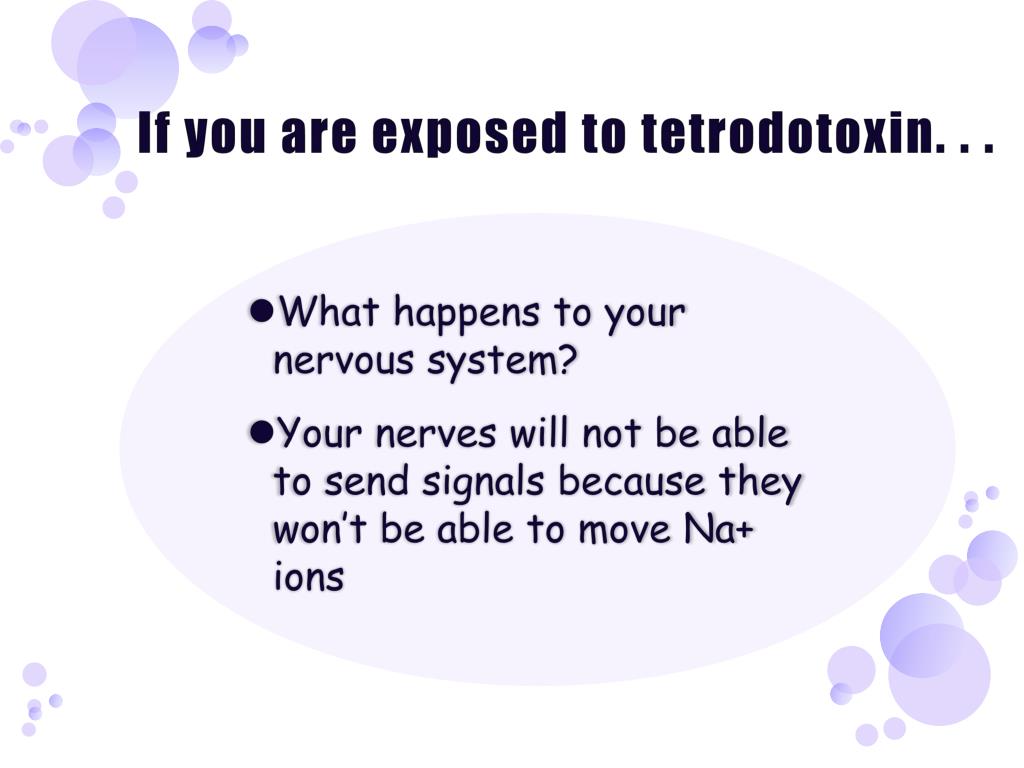

If you are exposed to tetrodotoxin. . .
  • What happens to your nervous system?
  • Your nerves will not be able to send signals because they won’t be able to move Na+ ions
what happens at a neuro muscular junction that leads to a muscle contraction
What happens at a neuromuscular junction that leads to a muscle contraction?
  • In response to a stimulus, a motor neuron releases Ach into the synaptic cleft.
  • Ach binds to the Na+ ion channels on the muscle fiber.
  • The change in Na+ concentration causes depolarization.
  • Depolarization leads to muscle contraction.

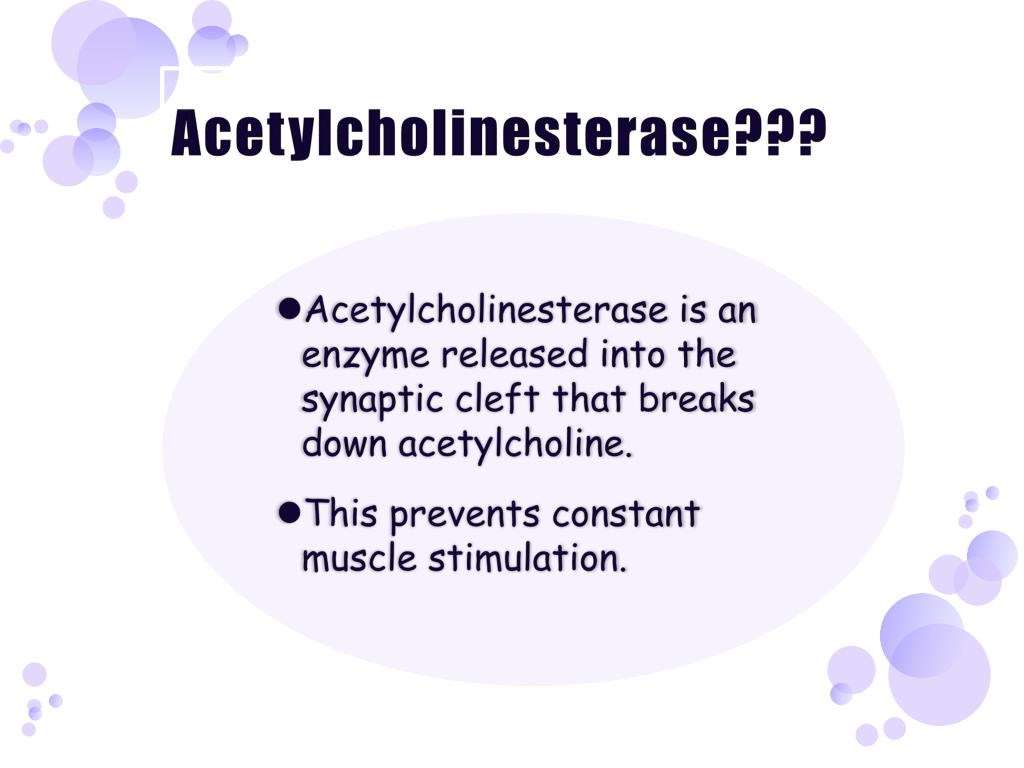

  • Acetylcholinesterase is an enzyme released into the synaptic cleft that breaks down acetylcholine.
  • This prevents constant muscle stimulation.

Neuromuscular Junction - The Real Thing!

Botulinum toxin binds to pre-synaptic membranes at neuromuscular junctions, enters the neuron, and then a component of the toxin interferes with the release of neurotransmitter.Release of acetylcholine is blocked.No acetylcholine?  No muscular contraction.(flaccid paralysis)

all or none principle

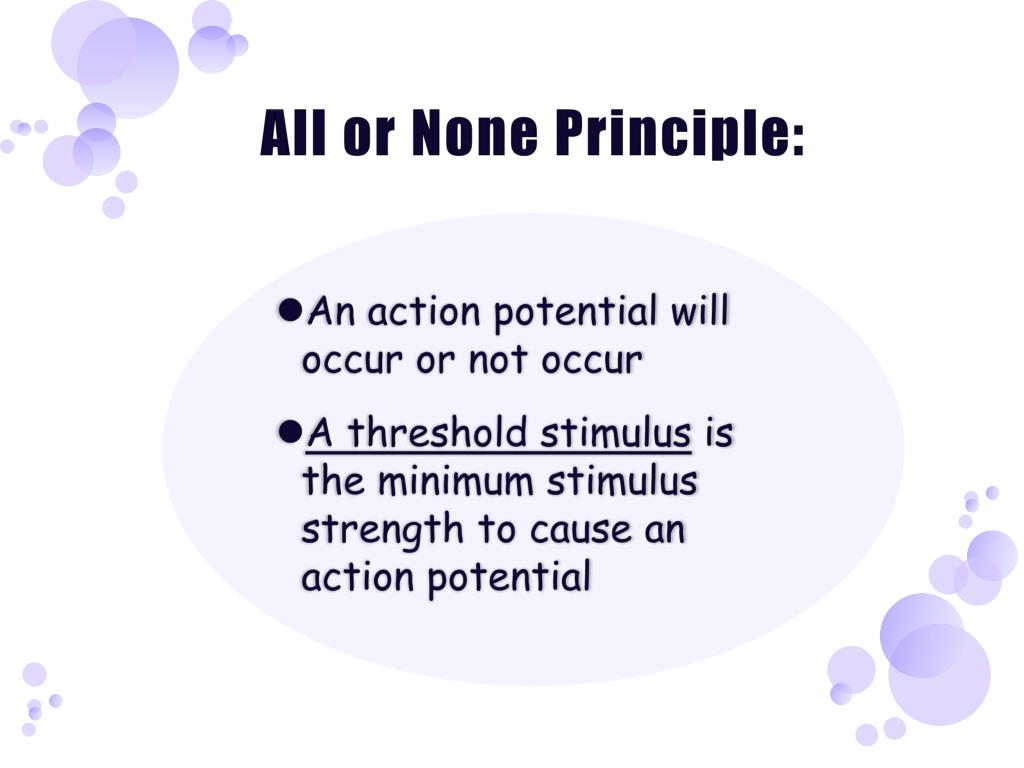

All or None Principle:
  • An action potential will occur or not occur

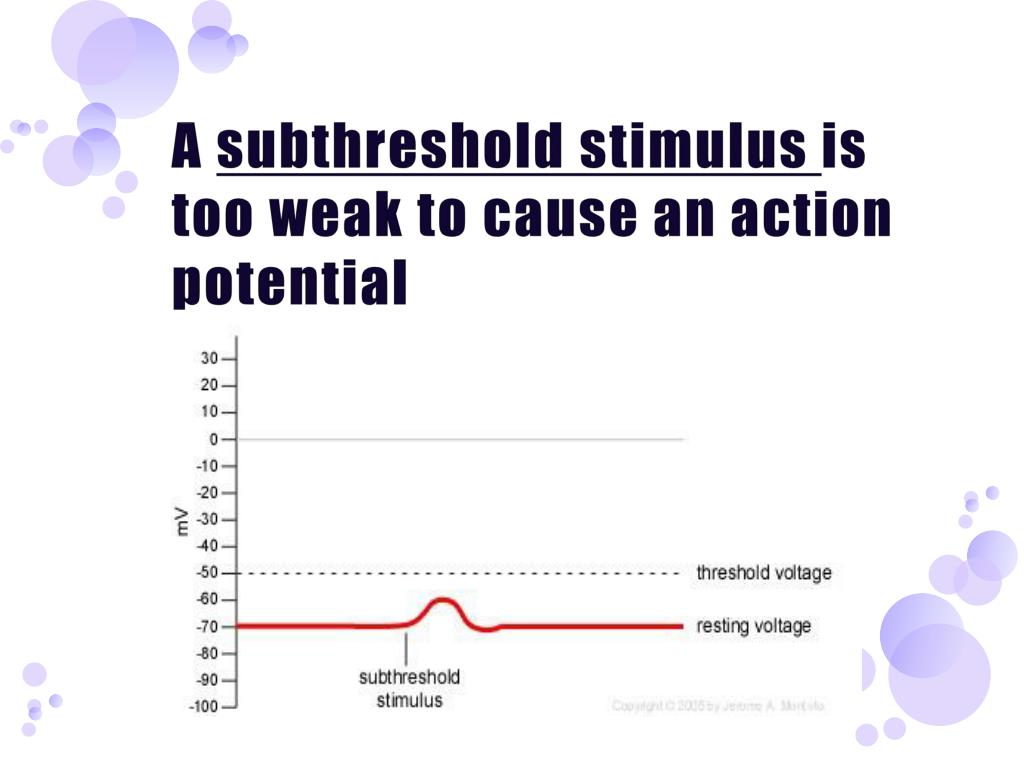

  • A threshold stimulus is the minimum stimulus strength to cause an action potential

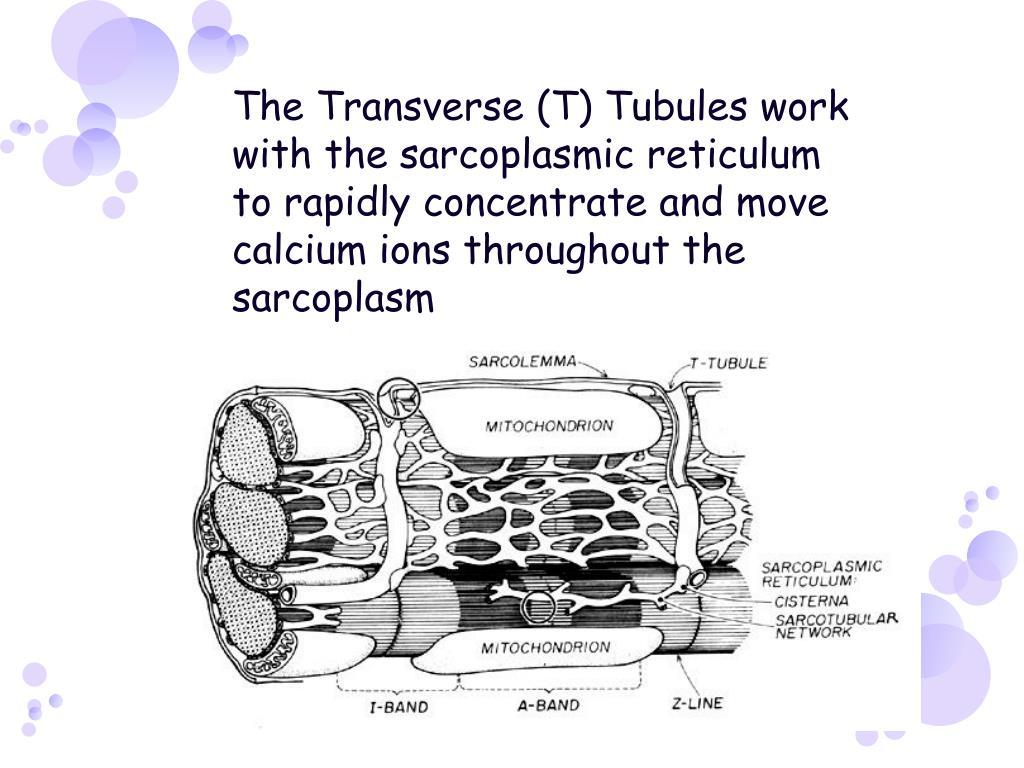

The Transverse (T) Tubules work with the sarcoplasmic reticulum to rapidly concentrate and move calcium ions throughout the sarcoplasm

the role of ca 2
The role of Ca2+
  • Calcium ions are stored in a specialized smooth ER (in muscle fibers) called the Sarcoplasmic Reticulum.
  • When released, calcium makes the actin binding sites on myosin available by removing tropomyosin
  • When actin and myosin bind, the sliding filament theory of muscle contraction can take place

Ca2+ binds the troponin molecules on the thin actinmyofilaments.

This leads to the ability of the thick myosin filaments to bind the actin.

The myosin heads pull the actin molecules inward, causing the whole fiber to shorten.

is atp needed for muscles to contract or to relax

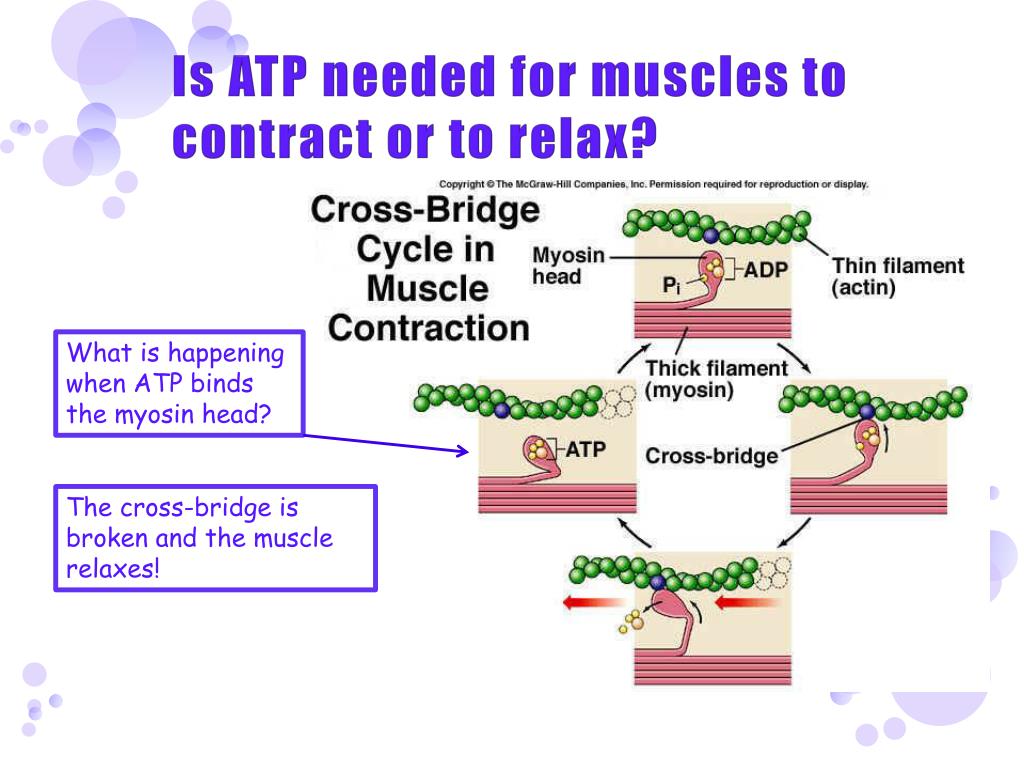

Is ATP needed for muscles to contract or to relax?

What is happening when ATP binds the myosin head?

The cross-bridge is broken and the muscle relaxes!

what is rigor mortis

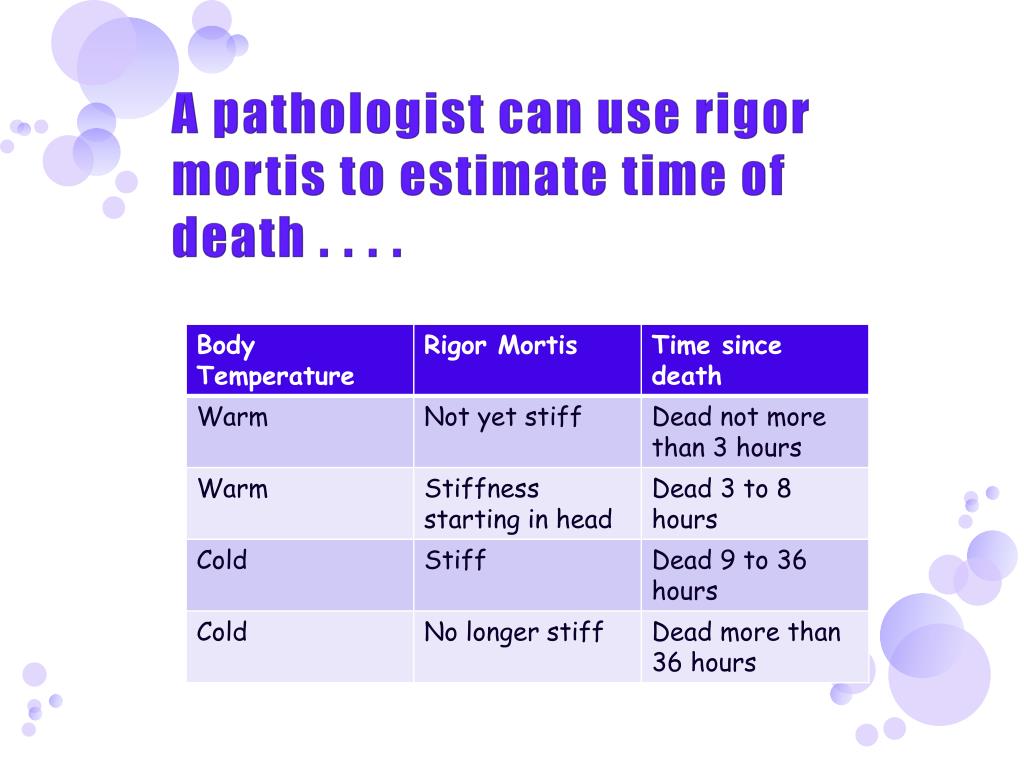

What is rigor mortis?
  • It literally means “stiffness of death”
  • When a person stops making ATP, the muscles cannot relax and they maintain contraction until the tissue starts to breakdown.
what happens at a neuromuscular junction
What happens at a neuromuscular junction?
