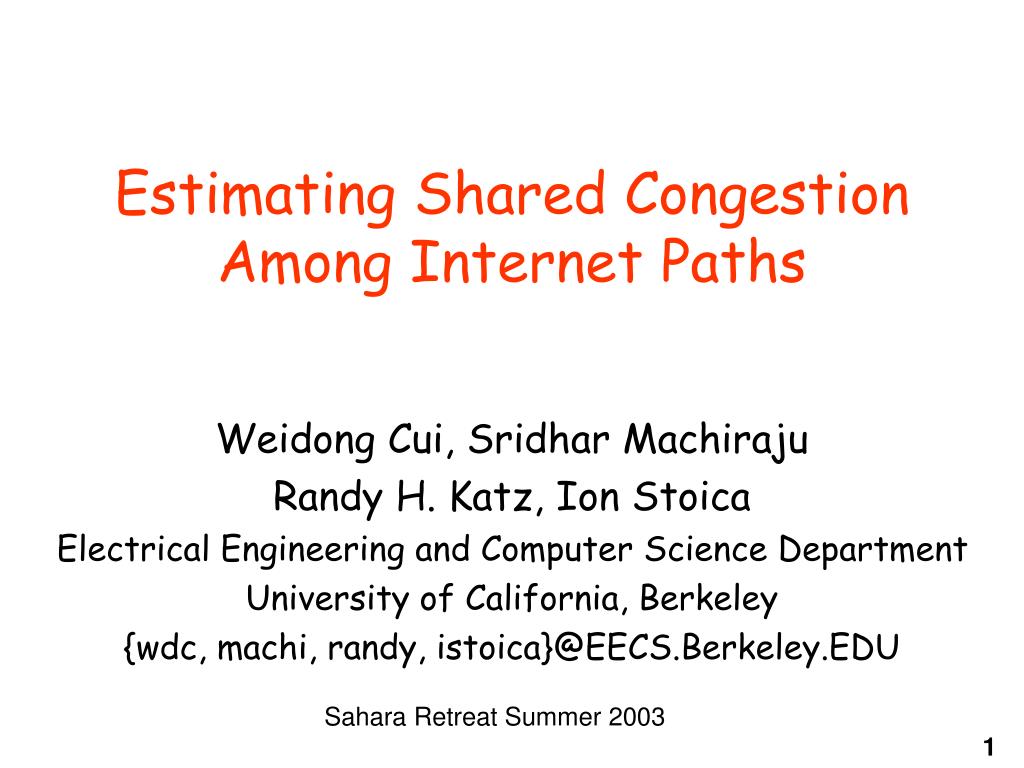

  1. Estimating Shared Congestion Among Internet Paths Weidong Cui, Sridhar Machiraju Randy H. Katz, Ion Stoica Electrical Engineering and Computer Science Department University of California, Berkeley {wdc, machi, randy, istoica}@EECS.Berkeley.EDU Sahara Retreat Summer 2003

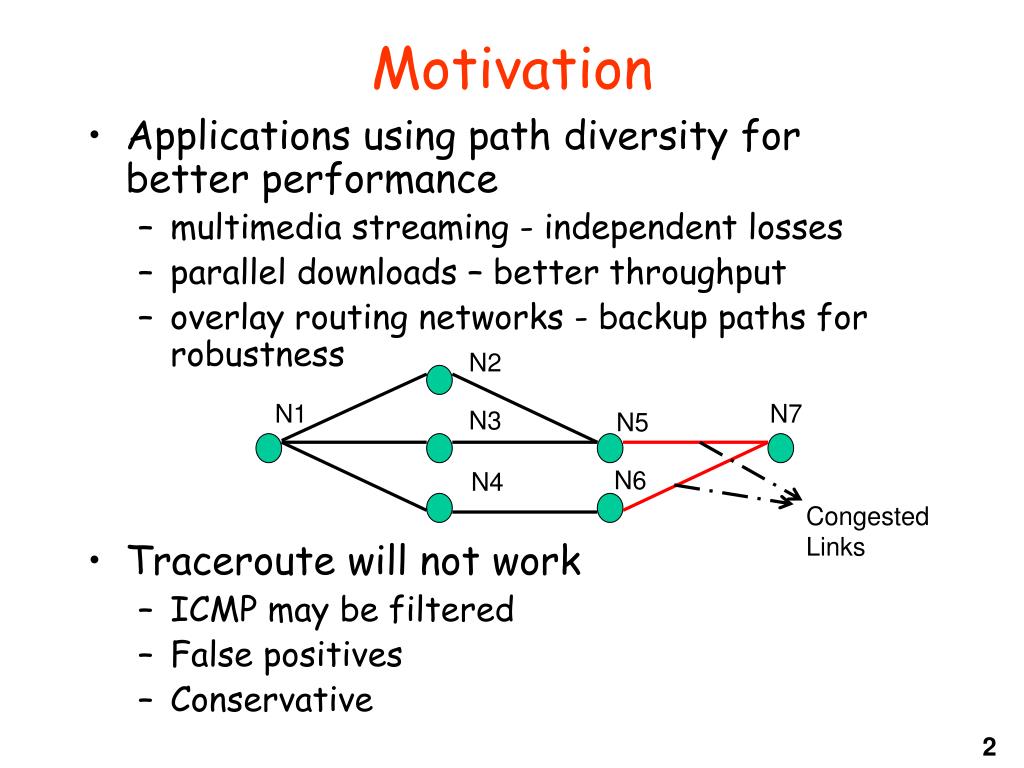

  2. Motivation • Applications using path diversity for better performance • multimedia streaming - independent losses • parallel downloads – better throughput • overlay routing networks - backup paths for robustness • Traceroute will not work • ICMP may be filtered • False positives • Conservative N2 N1 N7 N3 N5 N6 N4 Congested Links

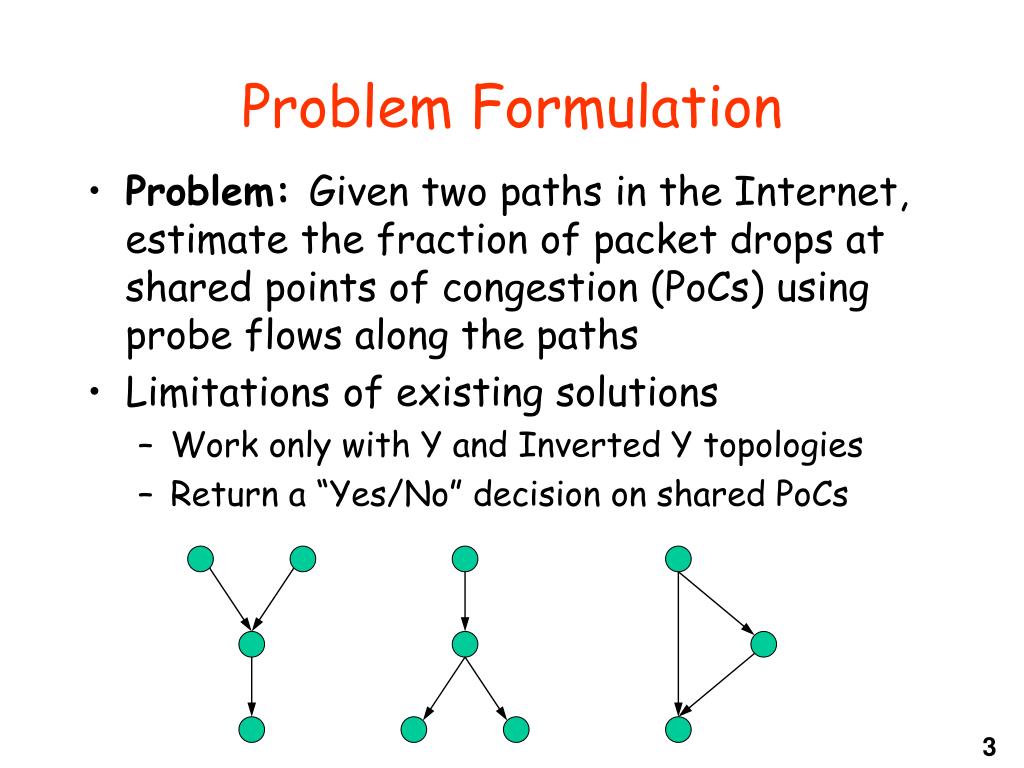

  3. Problem Formulation • Problem: Given two paths in the Internet, estimate the fraction of packet drops at shared points of congestion (PoCs) using probe flows along the paths • Limitations of existing solutions • Work only with Y and Inverted Y topologies • Return a “Yes/No” decision on shared PoCs

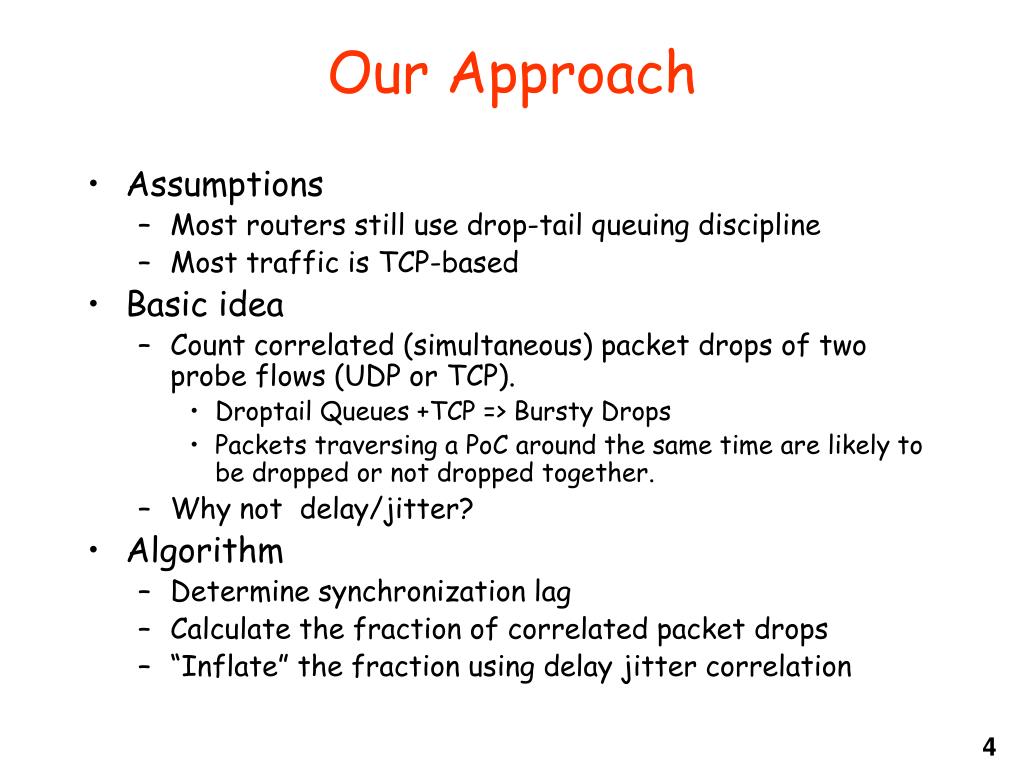

  4. Our Approach • Assumptions • Most routers still use drop-tail queuing discipline • Most traffic is TCP-based • Basic idea • Count correlated (simultaneous) packet drops of two probe flows (UDP or TCP). • Droptail Queues +TCP => Bursty Drops • Packets traversing a PoC around the same time are likely to be dropped or not dropped together. • Why not delay/jitter? • Algorithm • Determine synchronization lag • Calculate the fraction of correlated packet drops • “Inflate” the fraction using delay jitter correlation

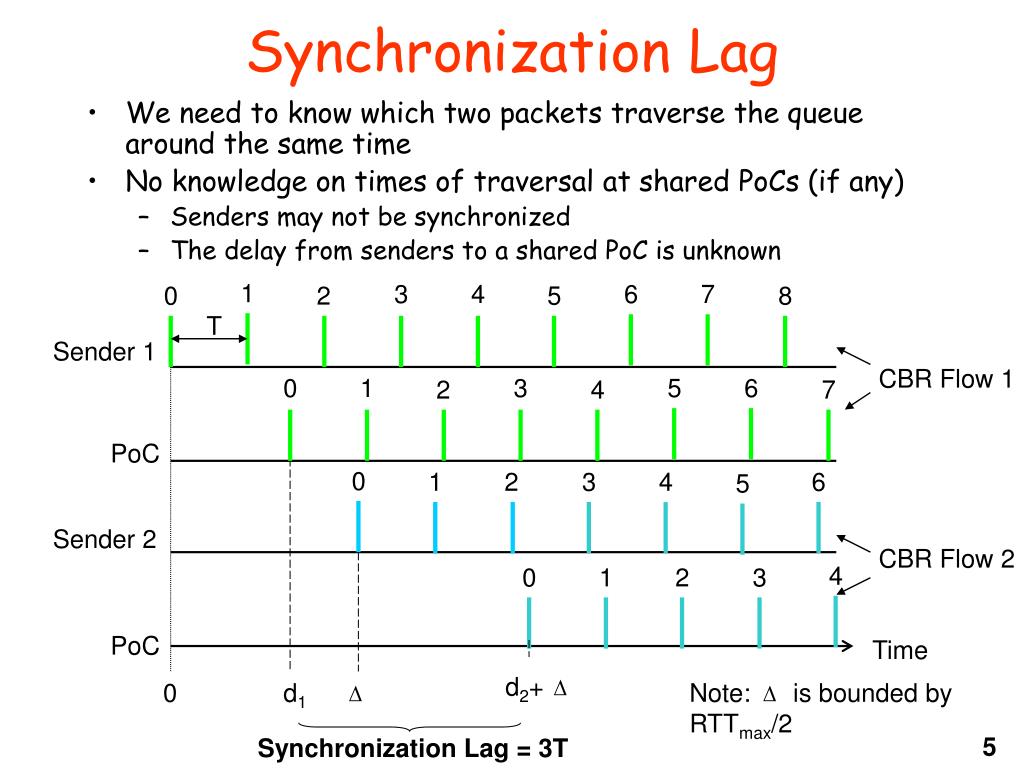

  5. 7 7 8 6 0 5 4 1 2 3 4 6 5 T 0 1 3 2 0 1 2 0 3 4 2 6 3 5 1 4 d1 d2+ Note: is bounded by RTTmax/2 Synchronization Lag = 3T Synchronization Lag • We need to know which two packets traverse the queue around the same time • No knowledge on times of traversal at shared PoCs (if any) • Senders may not be synchronized • The delay from senders to a shared PoC is unknown Sender 1 CBR Flow 1 PoC Sender 2 CBR Flow 2 PoC Time 0

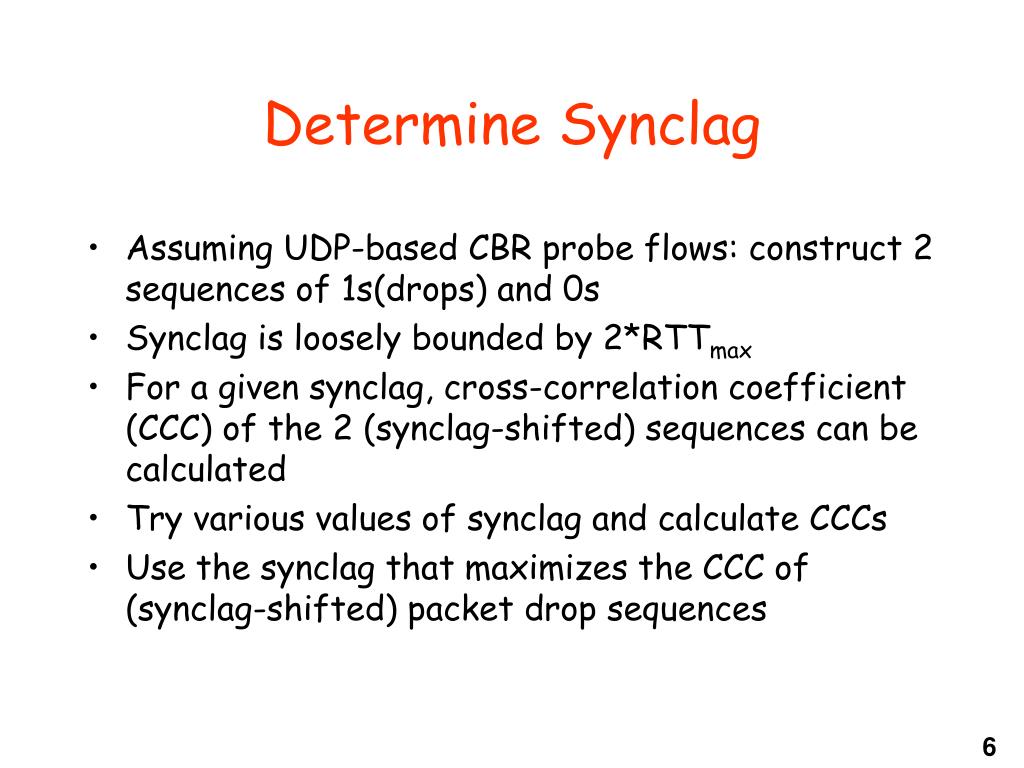

  6. Determine Synclag • Assuming UDP-based CBR probe flows: construct 2 sequences of 1s(drops) and 0s • Synclag is loosely bounded by 2*RTTmax • For a given synclag, cross-correlation coefficient (CCC) of the 2 (synclag-shifted) sequences can be calculated • Try various values of synclag and calculate CCCs • Use the synclag that maximizes the CCC of (synclag-shifted) packet drop sequences

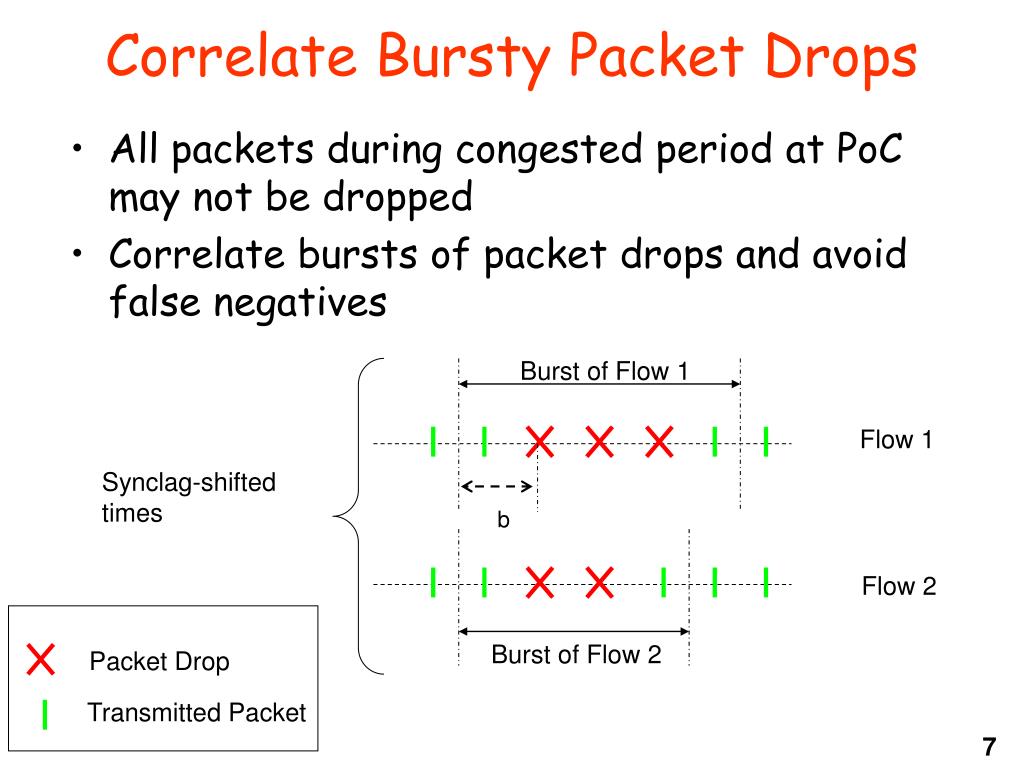

  7. Correlate Bursty Packet Drops • All packets during congested period at PoC may not be dropped • Correlate bursts of packet drops and avoid false negatives Burst of Flow 1 Flow 1 Synclag-shifted times b Flow 2 Burst of Flow 2 Packet Drop Transmitted Packet

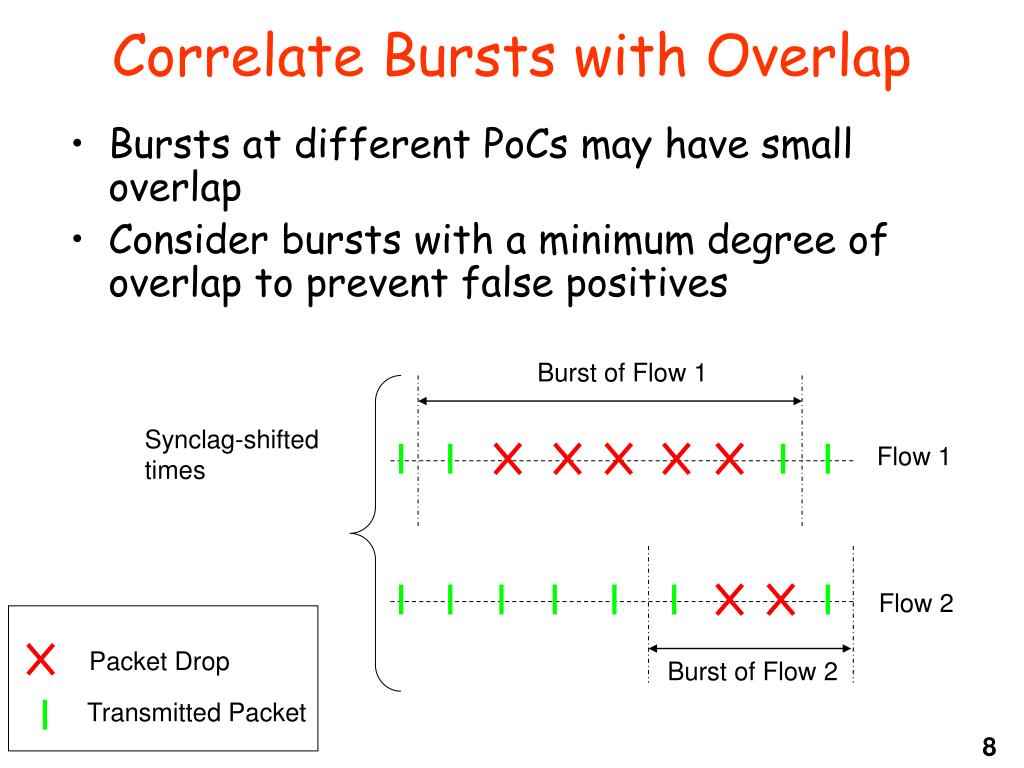

  8. Correlate Bursts with Overlap • Bursts at different PoCs may have small overlap • Consider bursts with a minimum degree of overlap to prevent false positives Burst of Flow 1 Synclag-shifted times Flow 1 Flow 2 Packet Drop Burst of Flow 2 Transmitted Packet

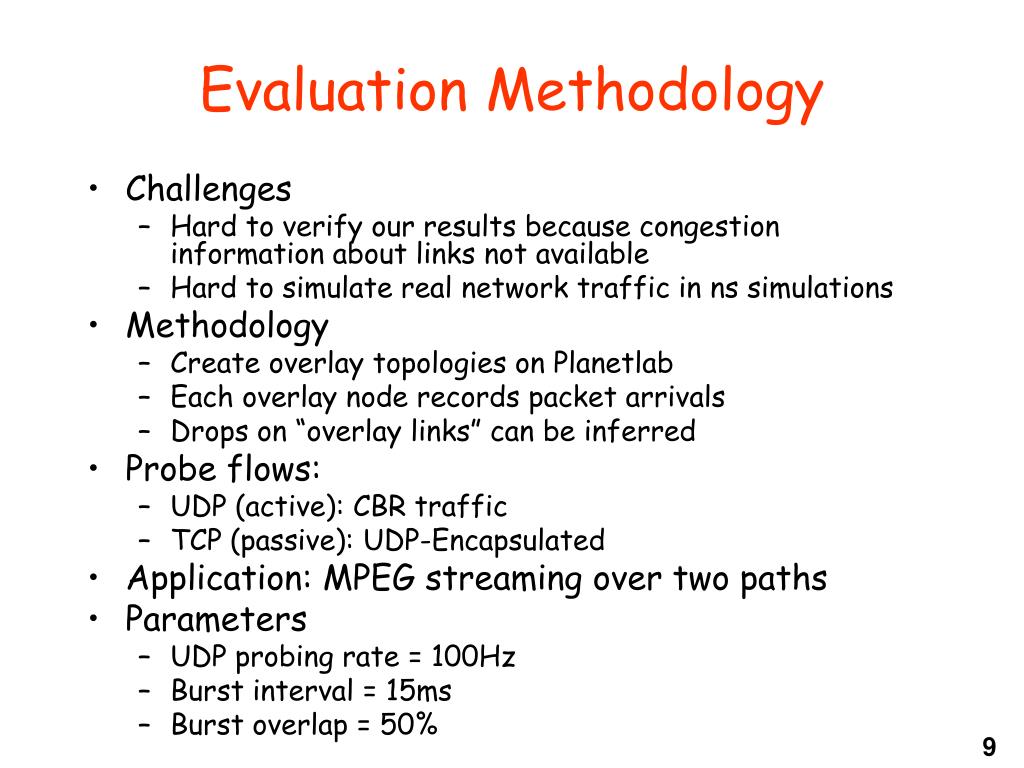

  9. Evaluation Methodology • Challenges • Hard to verify our results because congestion information about links not available • Hard to simulate real network traffic in ns simulations • Methodology • Create overlay topologies on Planetlab • Each overlay node records packet arrivals • Drops on “overlay links” can be inferred • Probe flows: • UDP (active): CBR traffic • TCP (passive): UDP-Encapsulated • Application: MPEG streaming over two paths • Parameters • UDP probing rate = 100Hz • Burst interval = 15ms • Burst overlap = 50%

  10. 4-I and 4-II Topologies (UDP) 4-I topology • 80% of the estimates > 0.8 4-II topology

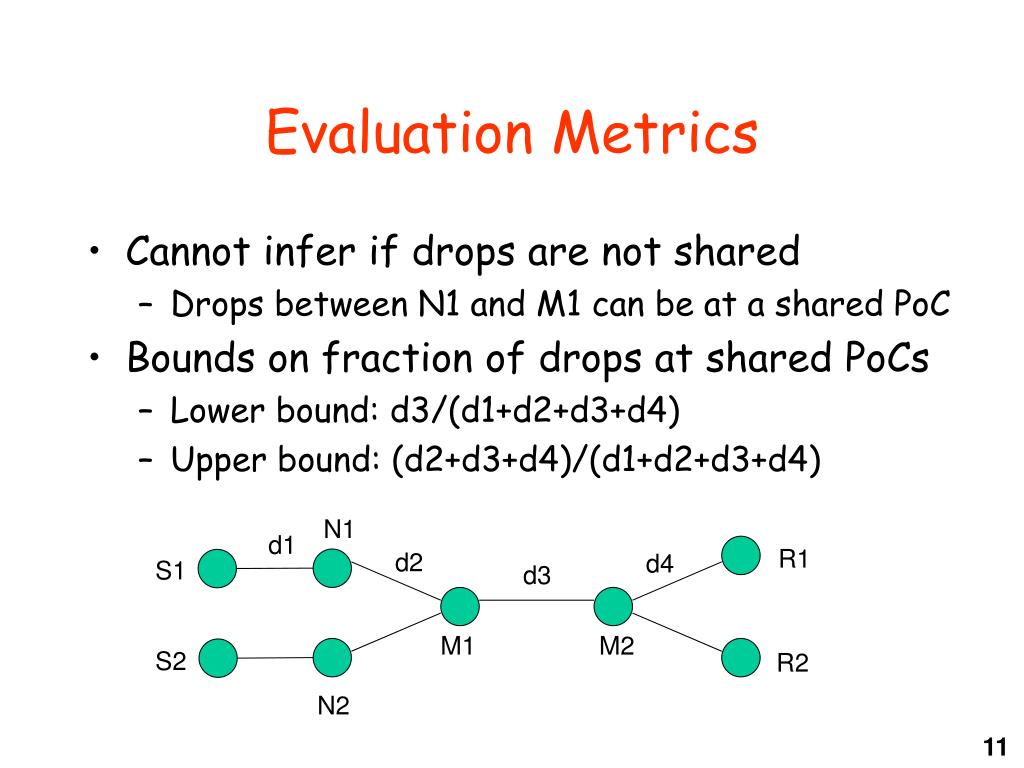

  11. Evaluation Metrics • Cannot infer if drops are not shared • Drops between N1 and M1 can be at a shared PoC • Bounds on fraction of drops at shared PoCs • Lower bound: d3/(d1+d2+d3+d4) • Upper bound: (d2+d3+d4)/(d1+d2+d3+d4) N1 d1 R1 d2 d4 S1 d3 M1 M2 S2 R2 N2

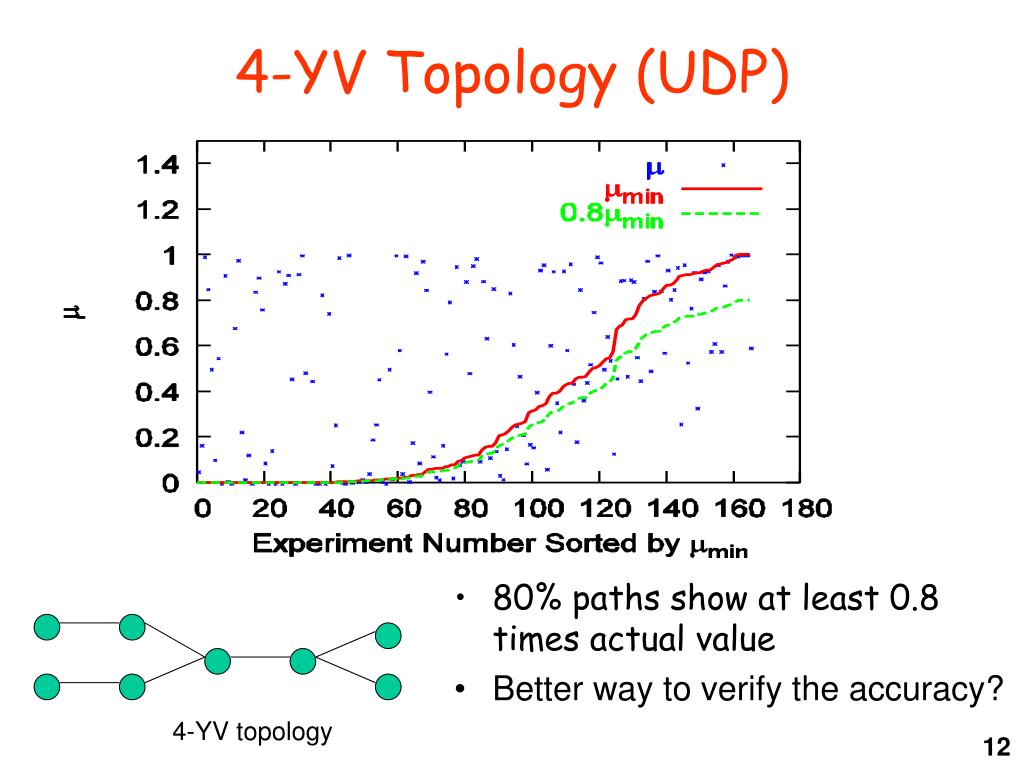

  12. 4-YV Topology (UDP) • 80% paths show at least 0.8 times actual value • Better way to verify the accuracy? 4-YV topology

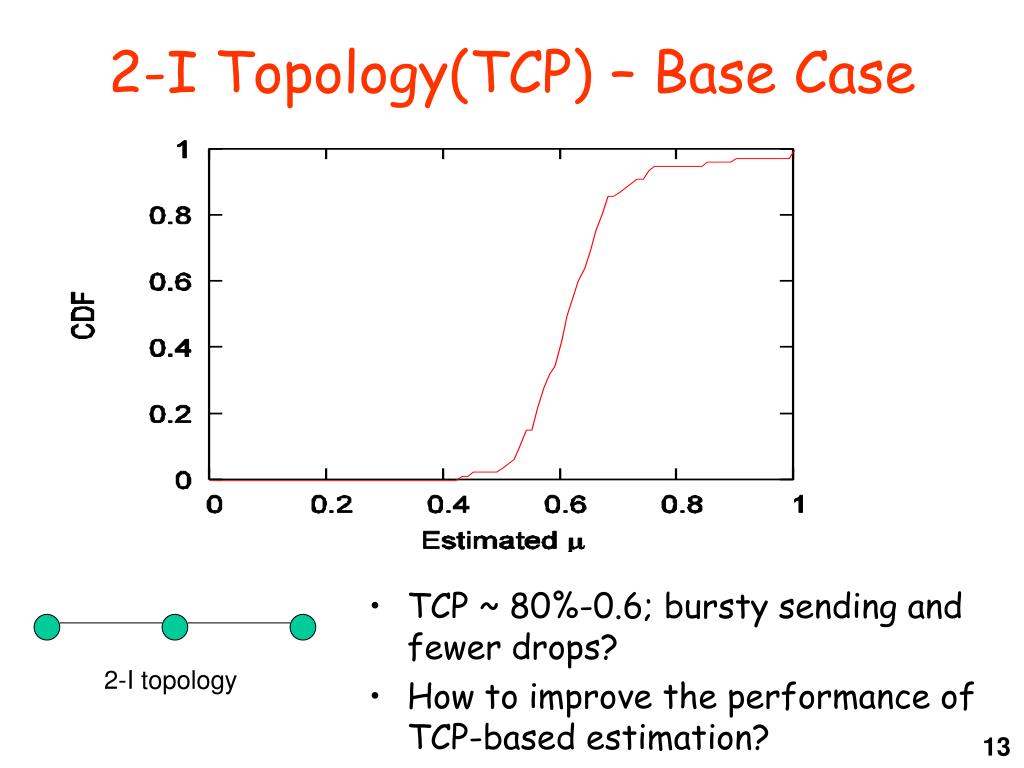

  13. 2-I Topology(TCP) – Base Case • TCP ~ 80%-0.6; bursty sending and fewer drops? • How to improve the performance of TCP-based estimation? 2-I topology

  14. Conclusions • Problem • Estimate the fraction of packet drops on shared PoCs • Challenges • Synchronization lag • False positives • False negatives • Results • Can estimate the actual fraction of shared drops within a factor of 0.8 in 80-90% UDP experiments • Can work with any general topology

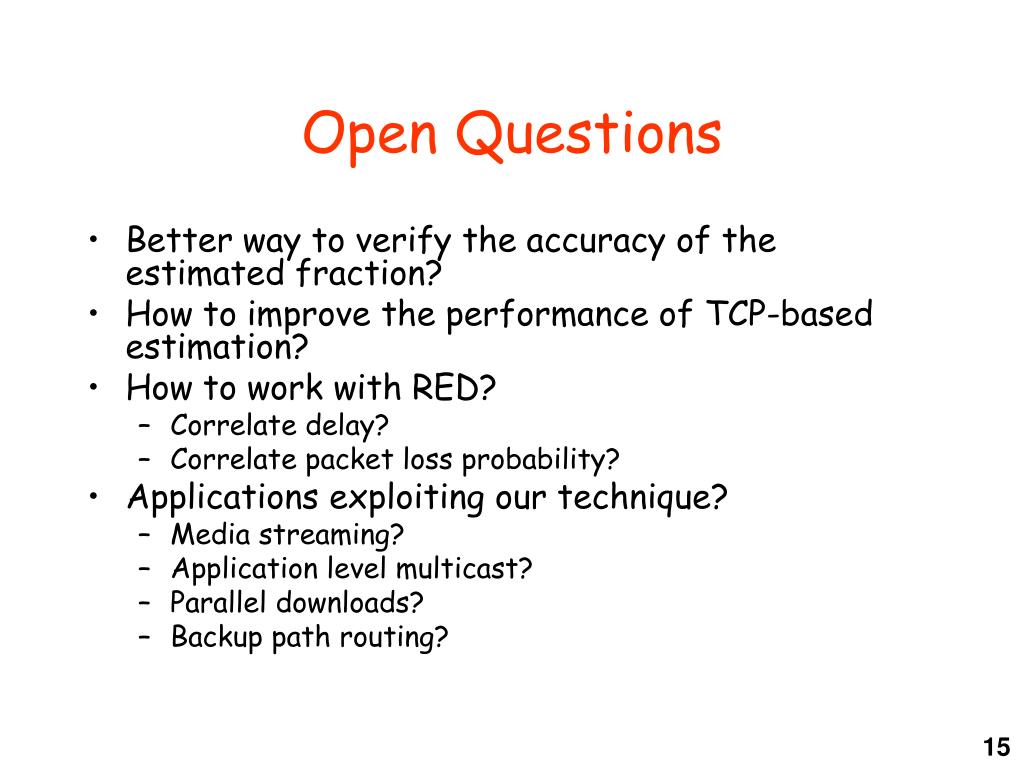

  15. Open Questions • Better way to verify the accuracy of the estimated fraction? • How to improve the performance of TCP-based estimation? • How to work with RED? • Correlate delay? • Correlate packet loss probability? • Applications exploiting our technique? • Media streaming? • Application level multicast? • Parallel downloads? • Backup path routing?
