  1. A HYBRID WARM-COLD SYNCHROTRON FOR THE MUON COLLIDER Al Garren July 28, 2011

  2. Parameters

  3. General Properties • FODO lattice similar to FNAL Main Ring • Fixed field dipoles 8T interleaved with ramped dipoles at -1.8 to 1.8T • Ramped quadruples • Beam injected at 375 GeV, extracted at 750 GeV • Circumference ~2 pi km • 8 superperiods • Superperiod contains 3 cell types: standard, short, empty • Standard 65.5m, 4 fixed-field and 4 ramped-field dipoles per half-cell • Short 49.125m (3/4Xstandard with 2/3X standard bends) • ‘Empty’ cells with no bends

  4. Arc Cell

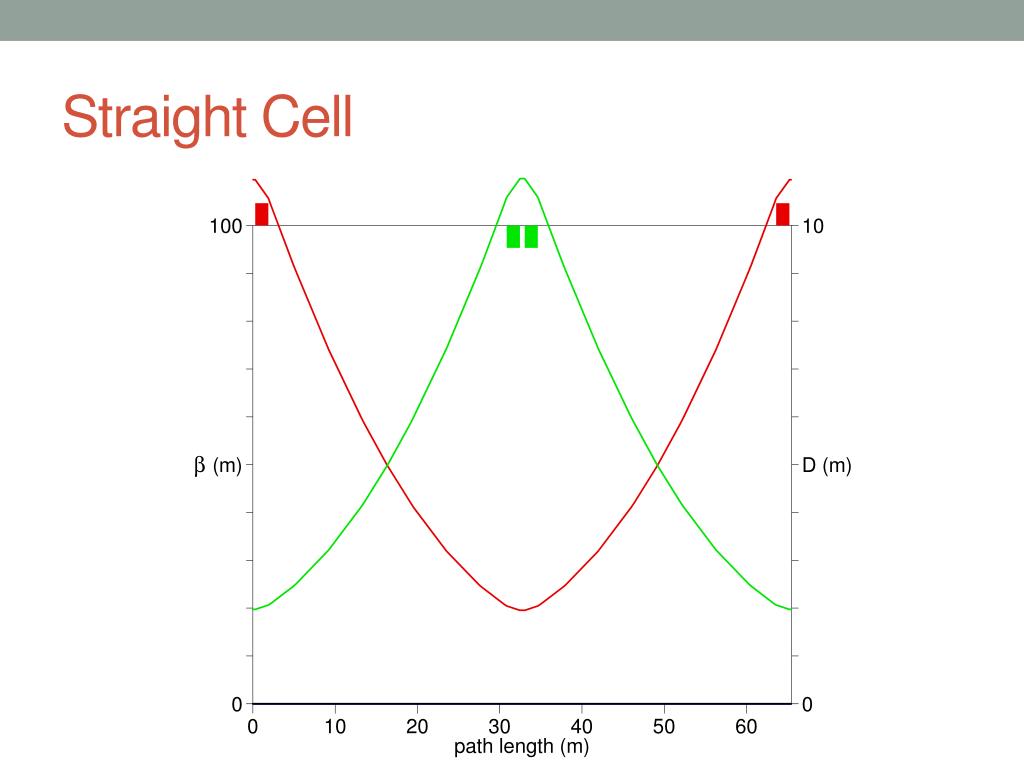

  5. Straight Cell

  6. Short Cell

  7. Insertion

  8. Superperiod

  9. Orbit Offsets
