biomedical instrumentation i

Biomedical Instrumentation I

Chapter 7 Bioelectric Amplifiers from

Introduction to Biomedical Equipment Technology

By Joseph Carr and John Brown

Part 2

differential amplifiers

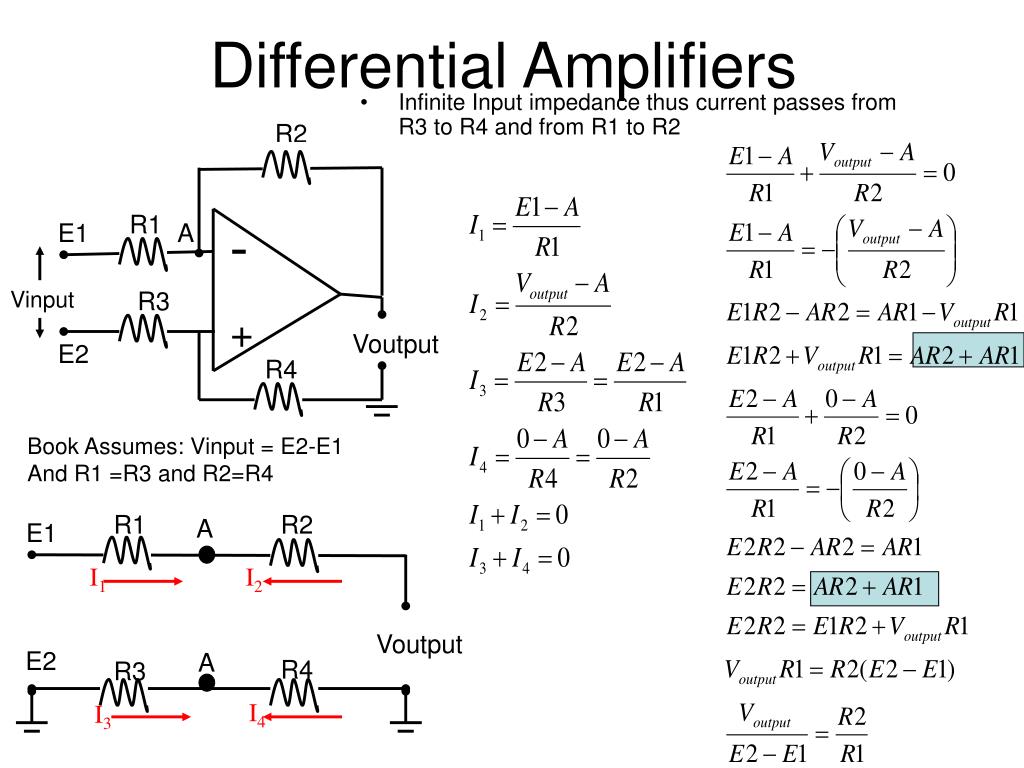

Differential Amplifiers

R2

  • Infinite Input impedance thus current passes from R3 to R4 and from R1 to R2

R1

-

E1

A

Vinput

R3

+

Voutput

E2

R4

Book Assumes: Vinput = E2-E1

And R1 =R3 and R2=R4

R1

R2

A

E1

I1

I2

Voutput

E2

A

R4

R3

I4

I3

advantages of differential amplifier
Advantages of Differential Amplifier
  • In differential mode you can cancel noise common to both input signals

R2

1V

R1

-

E1

A

2V

R3

+

3V

Voutput

E2

R4

instrumentation amplifier
Instrumentation Amplifier

E1

+

R5

R4

  • Give you high gain and high-input impedance.
  • Composed of 2 amplifiers in noninverting format and a 3rd amplifier as a differential amplifier

-

E1

-

R2

+

R1

Vinput

Voutpt

R3

R6

R7

E2

-

+

E2

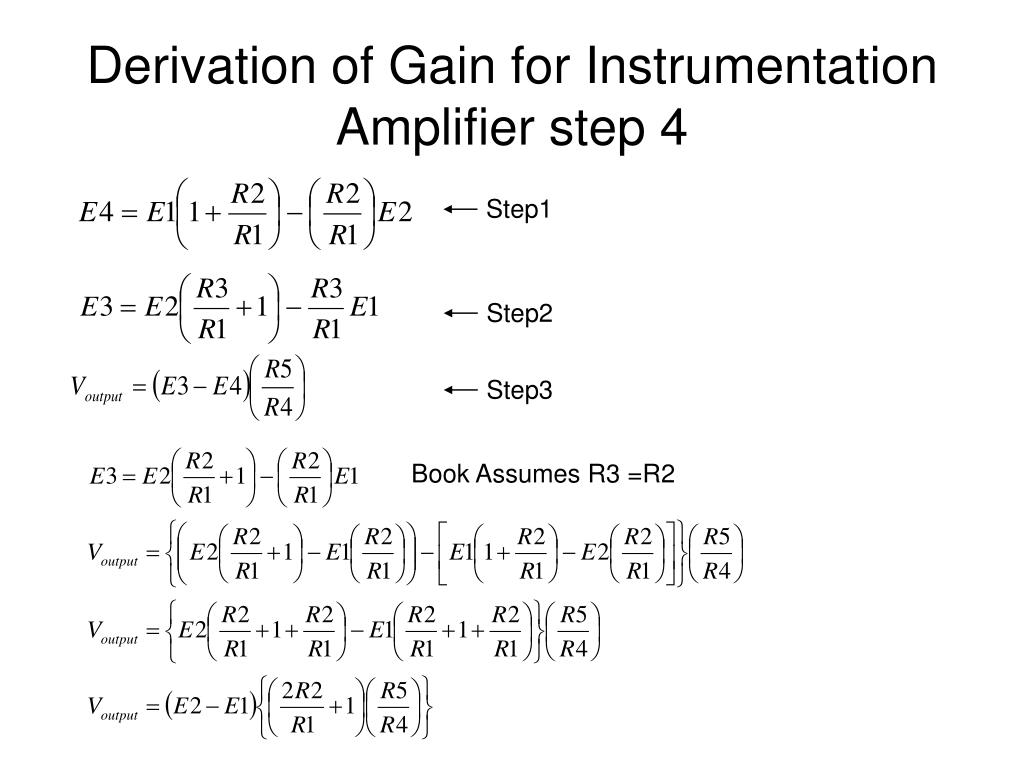

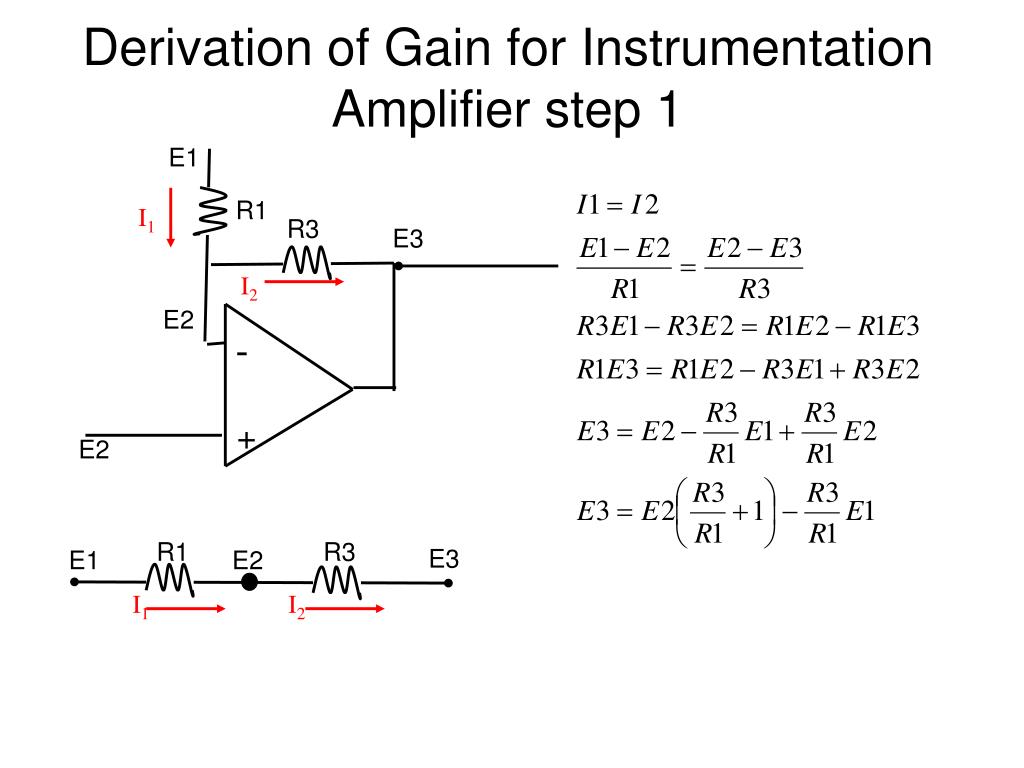

derivation of gain for instrumentation amplifier step 3

R5

R4

E4

I5

-

I4

+

I6

Voutput

I7

E3

R6

R7

Book Assumes R4 =R6 and R5=R7

R4

R5

E4

Voutput

I4

I5

E3

R7

0

R6

I7

I6

Derivation of Gain for Instrumentation Amplifier step 3

A

A

example of instrumentation amplifier
Example of InstrumentationAmplifier
  • Find the gain of the previous instrumentation amplifier if R2 = 10K; R1=500; R4 = 10K ; R5 = 100K 
problem 1
Problem 1

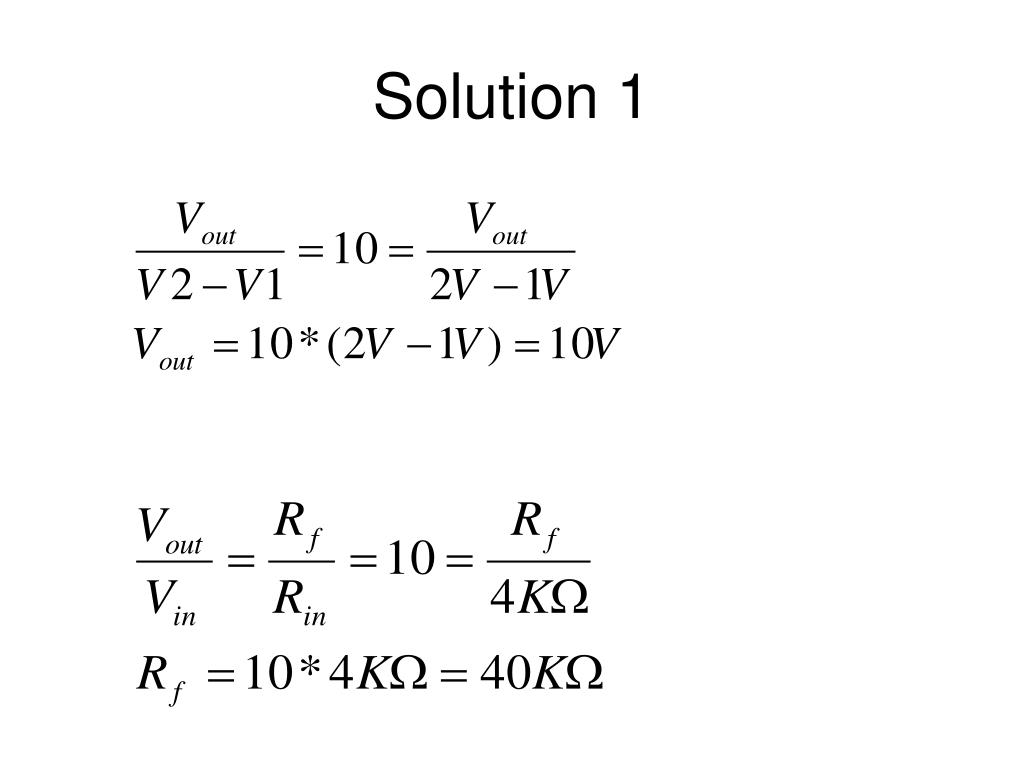

  • Design a differential amplifier where the feedback resistors are equal and the input resistors are equal. The gain should be equal to 10. One input voltage is 1 V and the second input voltage is 2 V. What is the output voltage?
  • If the input resistance is 4 K what is the feedback resistance?
problem 2
Problem 2
  • An instrumentation amplifier has a gain of 20. Using the schematic discussed earlier in the lecture, R5 = R7; R4=R6; R2 = R3.
  • If R5 = 10K and R4 = 1K. The current across R2 is 4 mA and Vinput1 is 1V. Vout1 = -2V.
    • Draw Schematic
    • Find R2 & R1.
solution 2
Solution 2

E1

+

R5

R4

Vout1

-

E1

-

R2

Vin1

IR2

+

R1

Vinput

Voutpt

R3

R6

R7

E2

-

+

E2

review for exam 1
Review for Exam 1
  • Review all Homework Problems
  • Review Wheatstone Bridge Lab & Amplifier Lab
  • Review Studio exercises (precision & accuracy and aliasing exercises)
  • Bring Calculators
  • Closed book
  • Equation sheet given previously will be given out at exam
example of a low pass filter
Example of a Low pass Filter

C

  • Vout = output potential in volts(v)
  • Vinput = input potential in volts(v)
  • R = input resistance
  • C =feedback capacitance
  • T = Time (sec)
  • Vic = initial conditions present at integrator output at t =0

Analog Integrator using a 1M resistor and a 0.2F capacitor. Find the output voltage after 1 second if the input voltage is a constant 0.5V?

R

-

A

Vinput

+

Voutput

R

Cf

Voutput

Vinput

0

IR

IC

example of a low pass filter1
Example of a Low pass Filter

C

R

-

A

Vinput

+

Voutput

R

Cf

Voutput

Vinput

0

IR

IC

low pass active filters integrator
Low Pass Active Filters = Integrator

Cf

Rf

Attenuates High frequency where cutoff frequency is =RfCf

Ri

-

A

Vinput

+

Voutput

Cf

ICf

Ri

Voutput

Rf

Vinput

0

Ii

IRf

high pass active filters differentiator

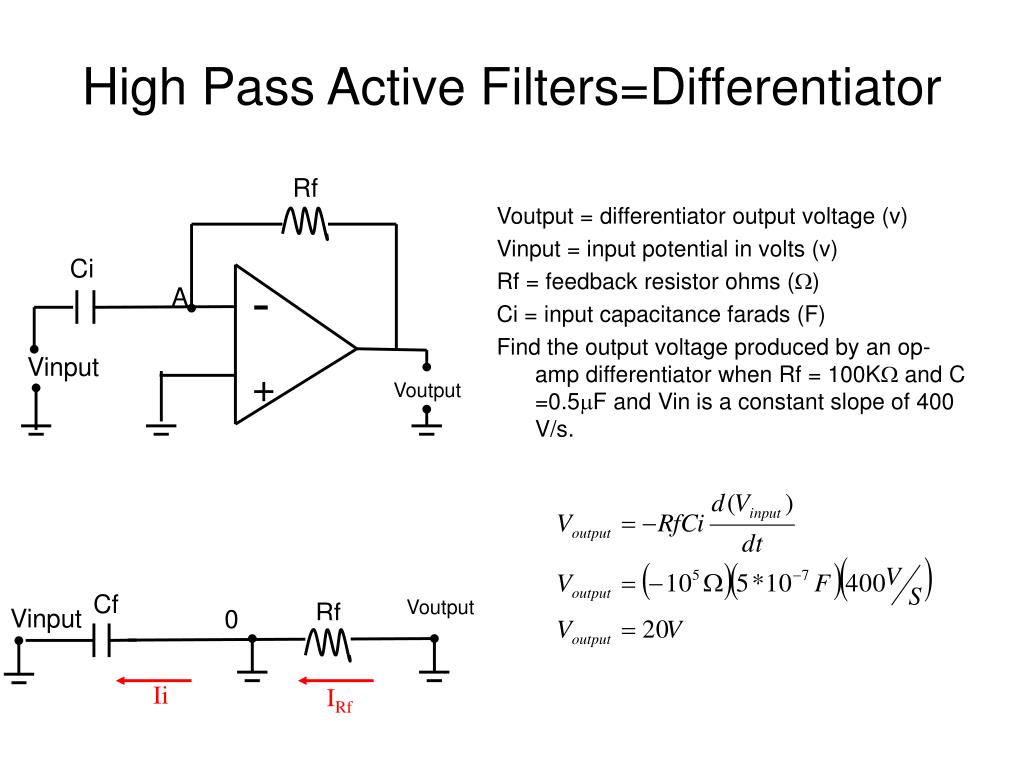

High Pass Active Filters=Differentiator

Rf

Voutput = differentiator output voltage (v)

Vinput = input potential in volts (v)

Rf = feedback resistor ohms ()

Ci = input capacitance farads (F)

Find the output voltage produced by an op-amp differentiator when Rf = 100K and C =0.5F and Vin is a constant slope of 400 V/s.

Ci

-

A

Vinput

+

Voutput

Cf

Voutput

Rf

Vinput

0

Ii

IRf

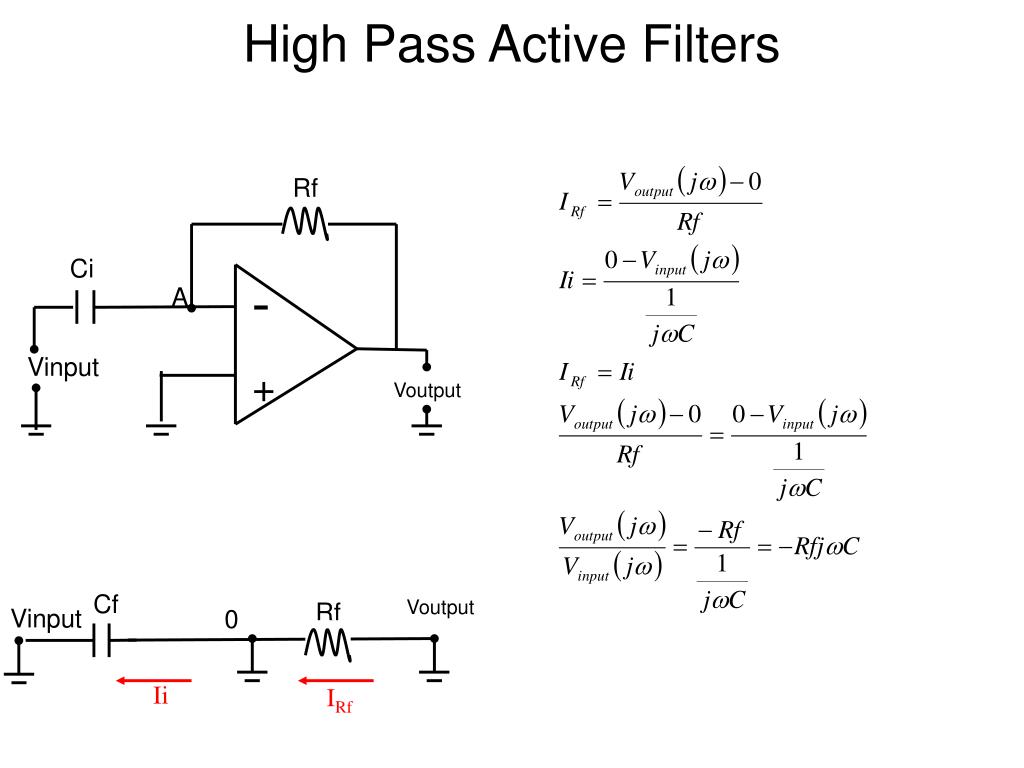

high pass active filters
High Pass Active Filters

Rf

Ci

-

A

Vinput

+

Voutput

Cf

Voutput

Rf

Vinput

0

Ii

IRf

high pass active filters1
High Pass Active Filters

Rf

Attenuates High frequency where cutoff frequency is 1/(2)

=1/ 2RiCi

Ci

Ri

-

A

Vinput

+

Voutput

Ri

Cf

Voutput

Rf

Vinput

0

Ii

IRf

band pass active filters

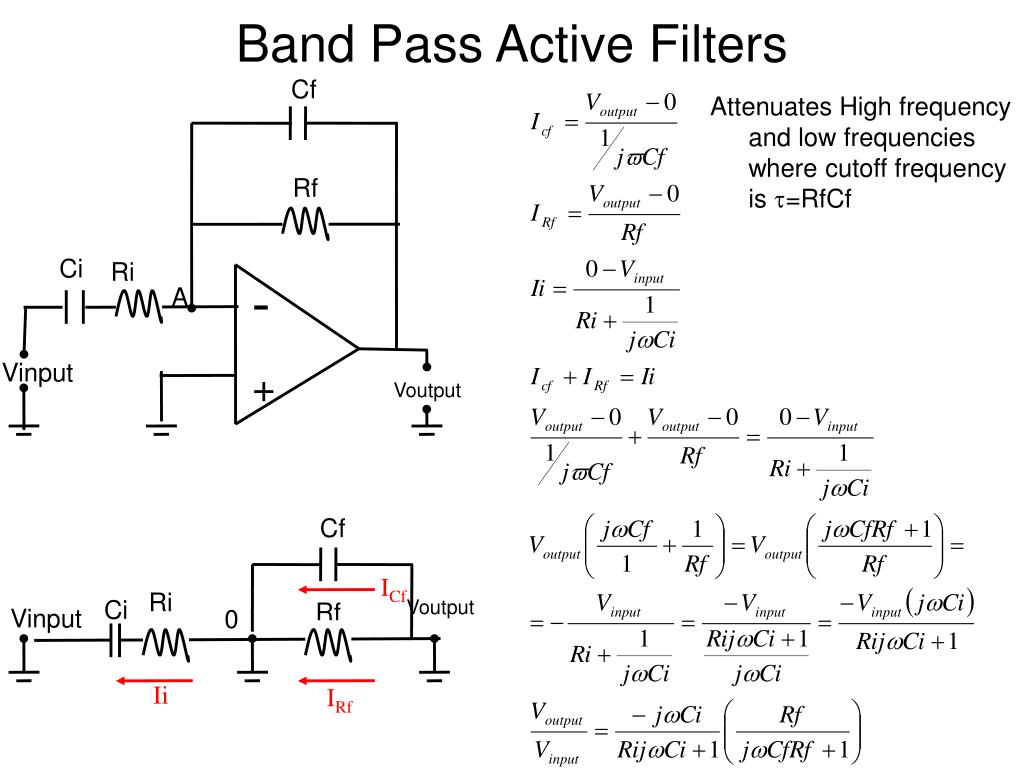

Band Pass Active Filters

Cf

Rf

Attenuates High frequency and low frequencies where cutoff frequency is =RfCf

Ci

Ri

-

A

Vinput

+

Voutput

Cf

ICf

Ri

Ci

Voutput

Rf

Vinput

0

Ii

IRf
