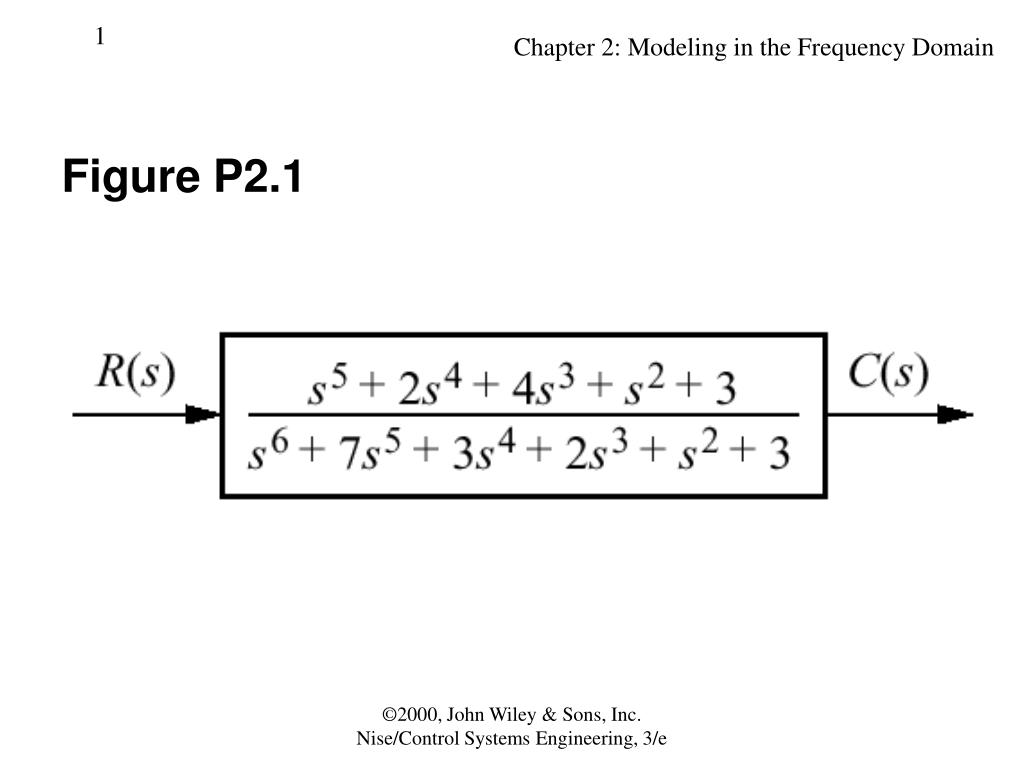

Figure P2.1 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

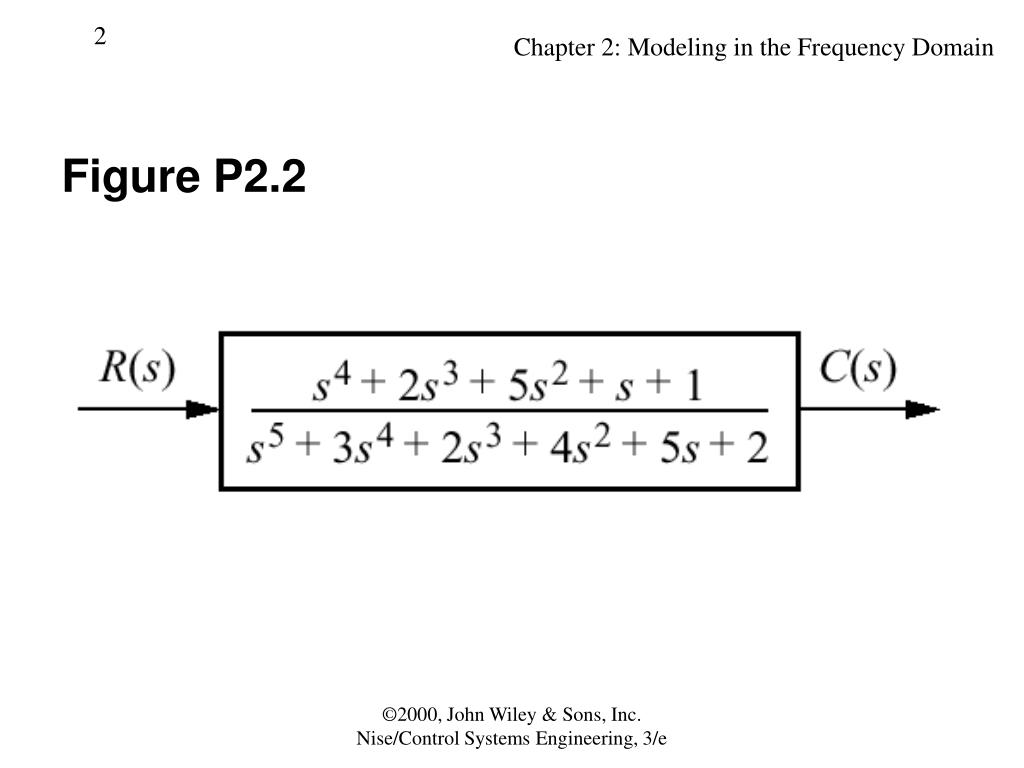

Figure P2.2 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

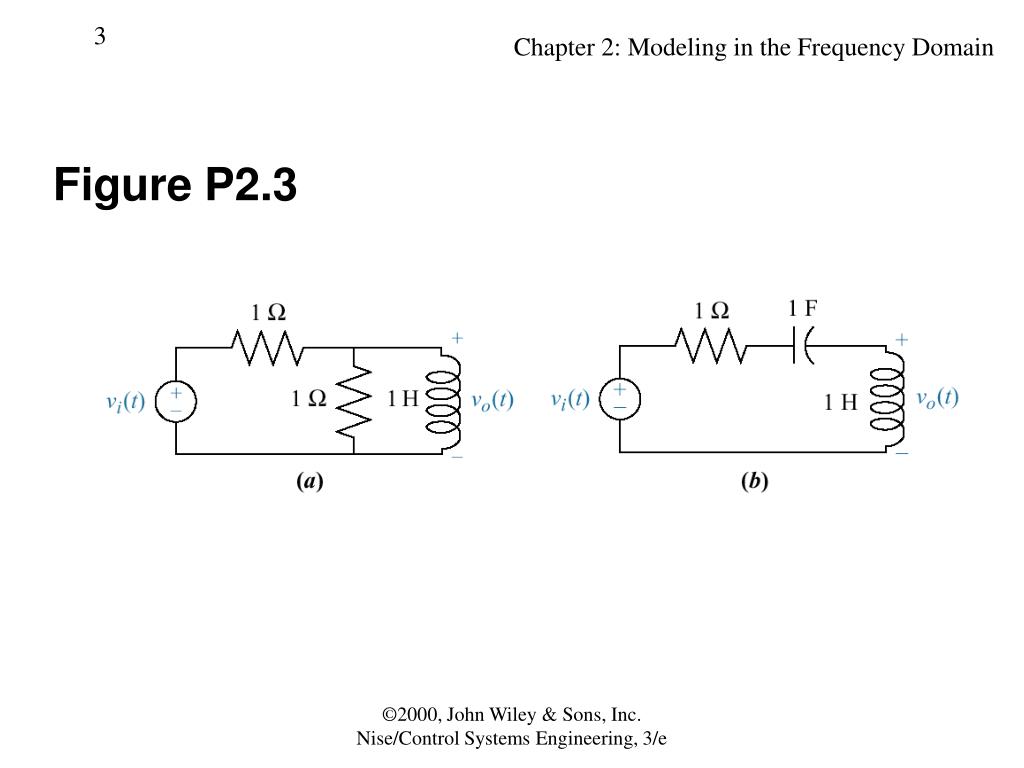

Figure P2.3 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.4 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

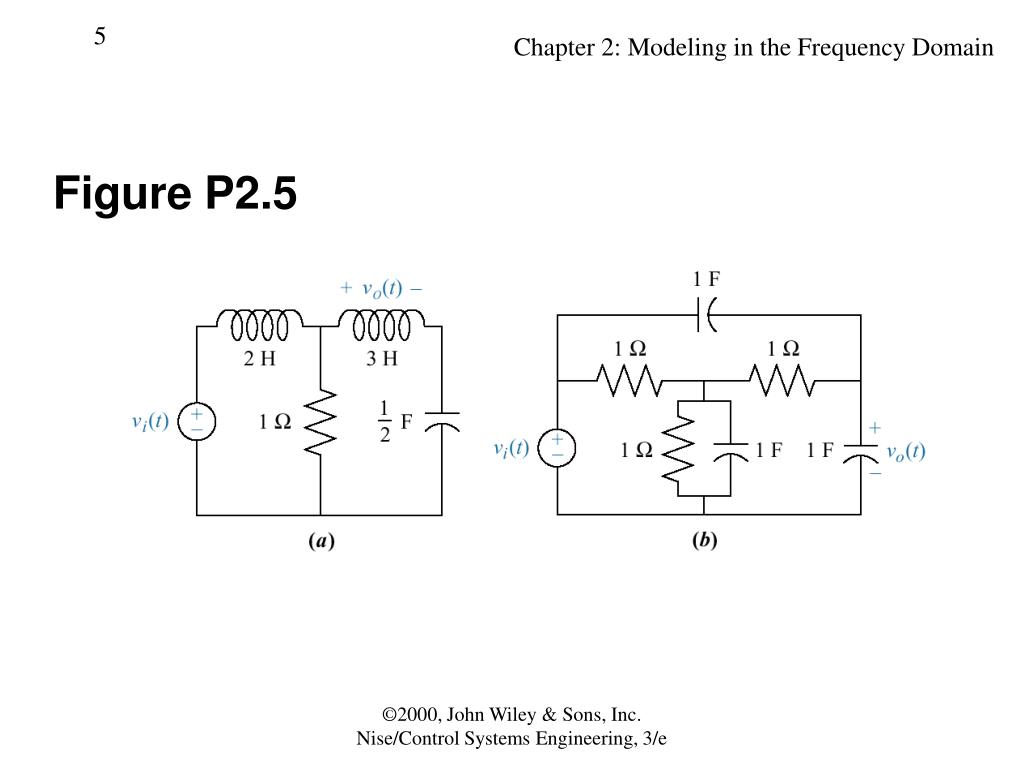

Figure P2.5 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.6 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

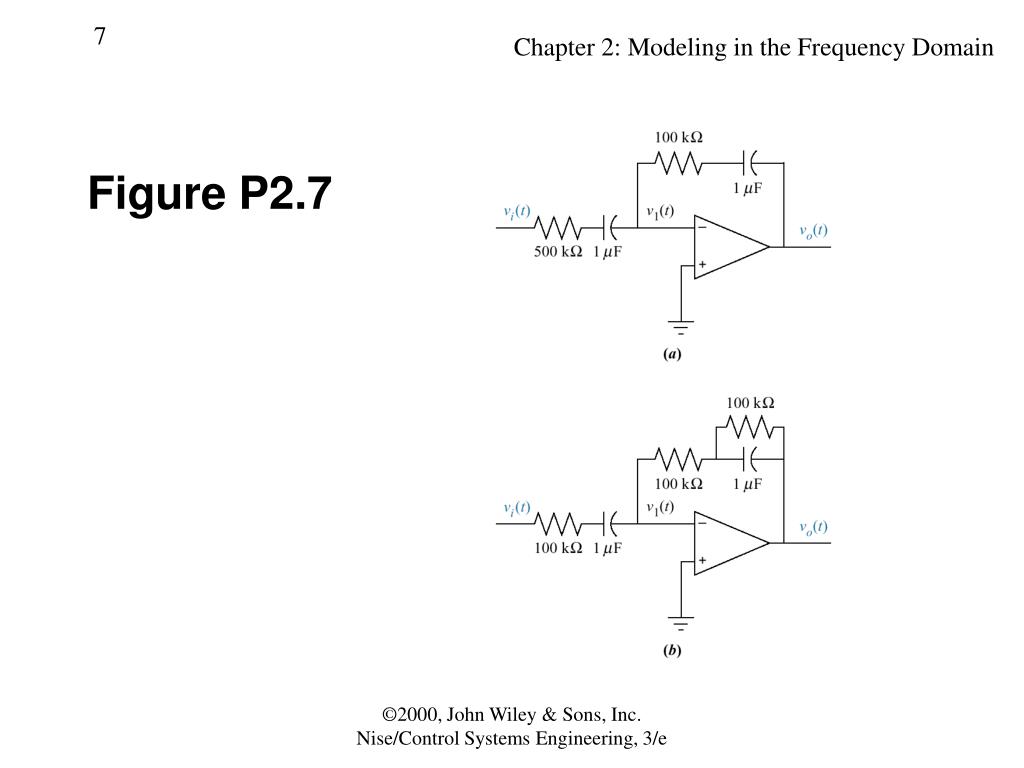

Figure P2.7 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.8 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.9 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

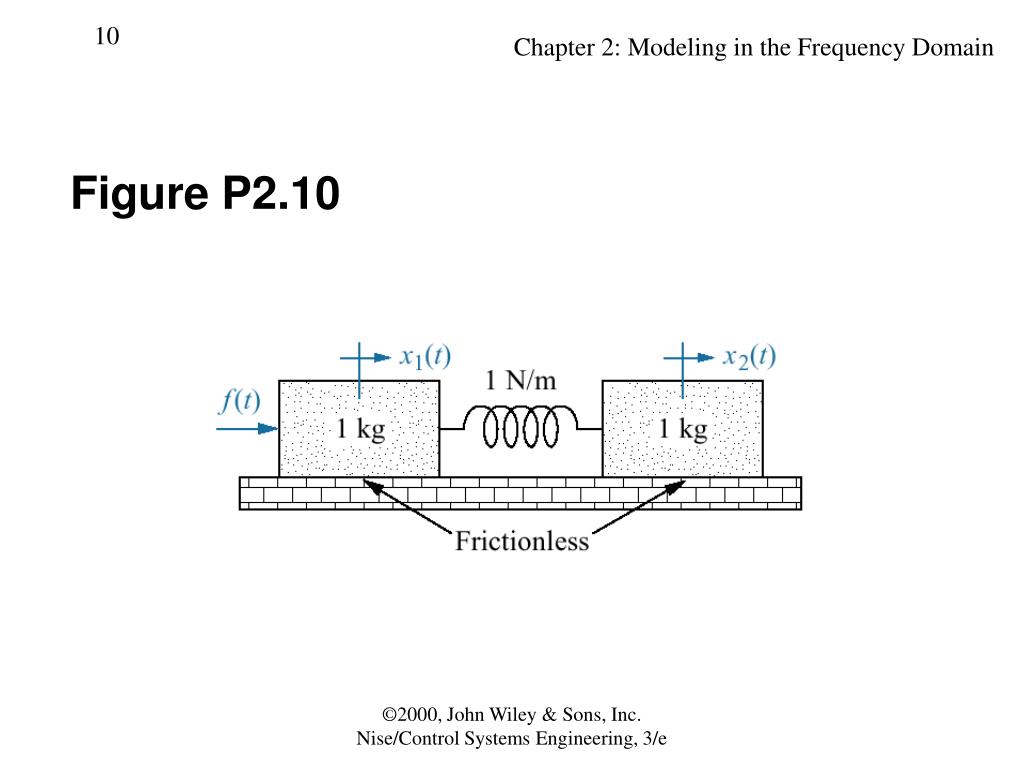

Figure P2.10 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

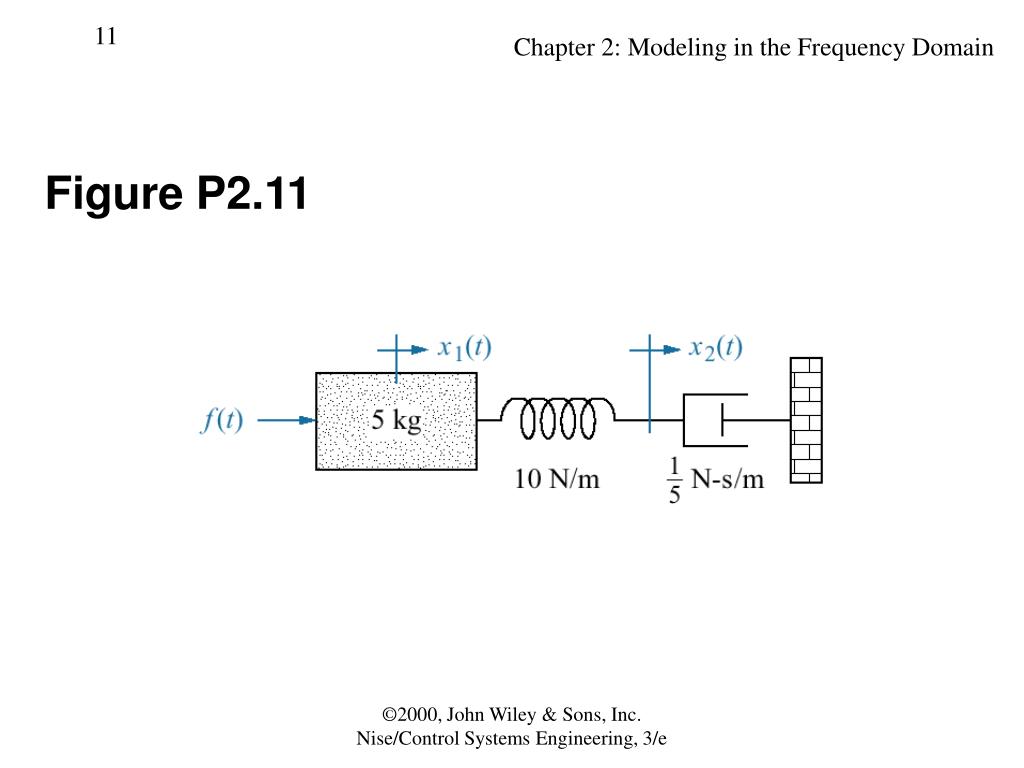

Figure P2.11 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

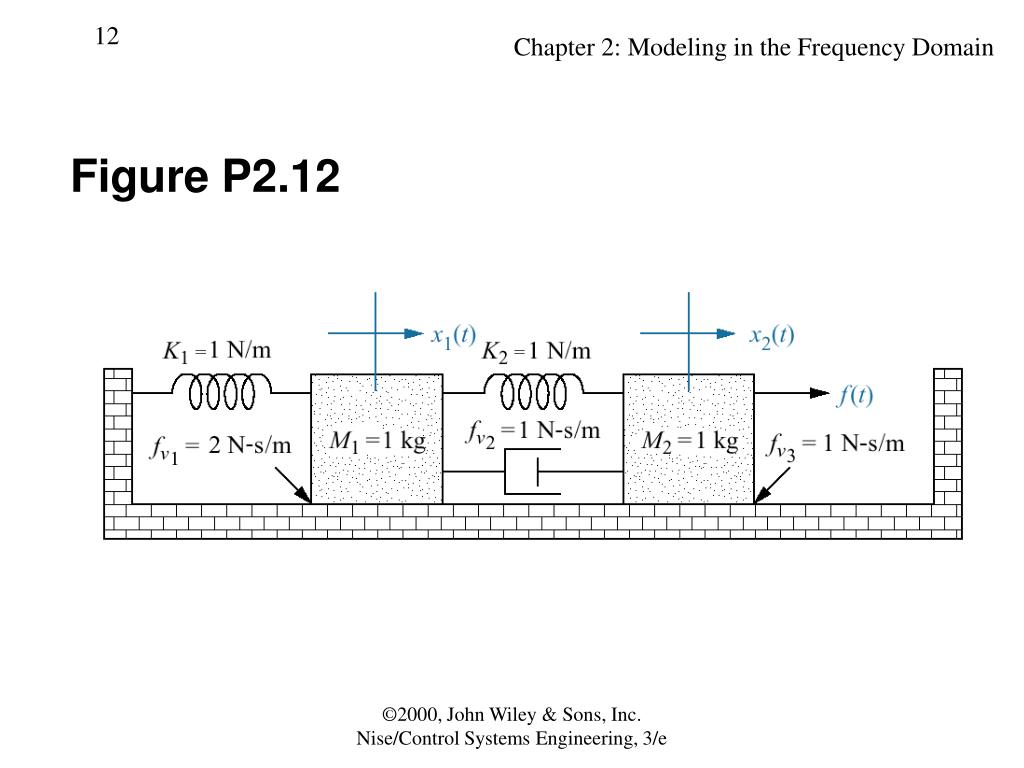

Figure P2.12 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

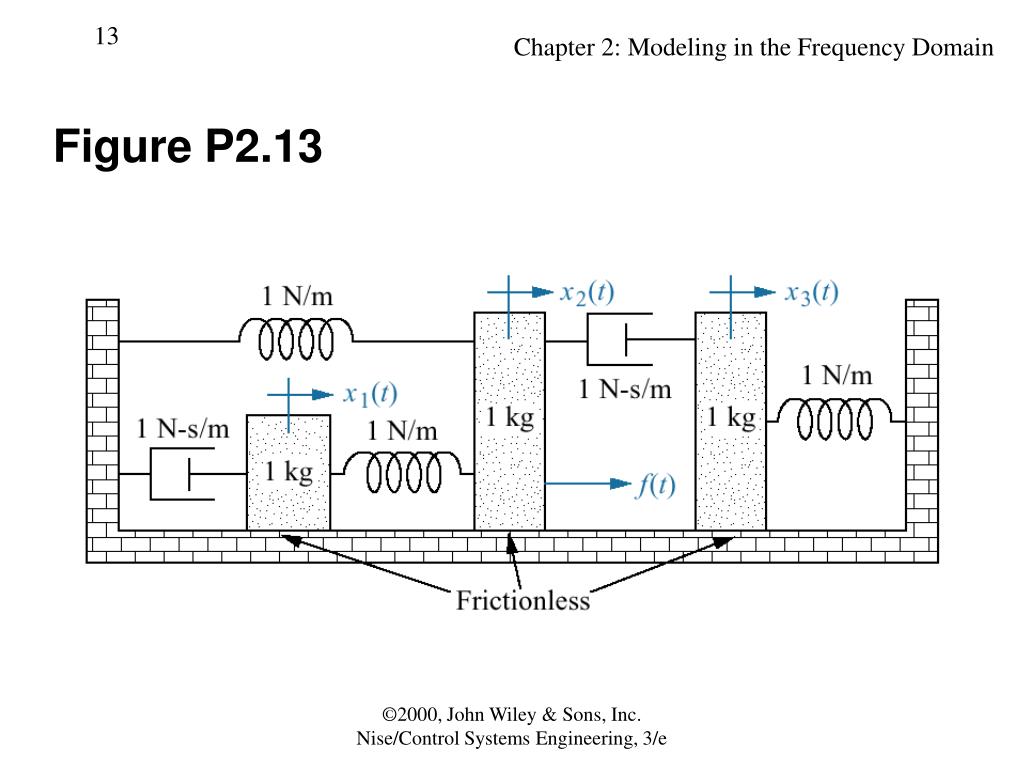

Figure P2.13 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.14 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

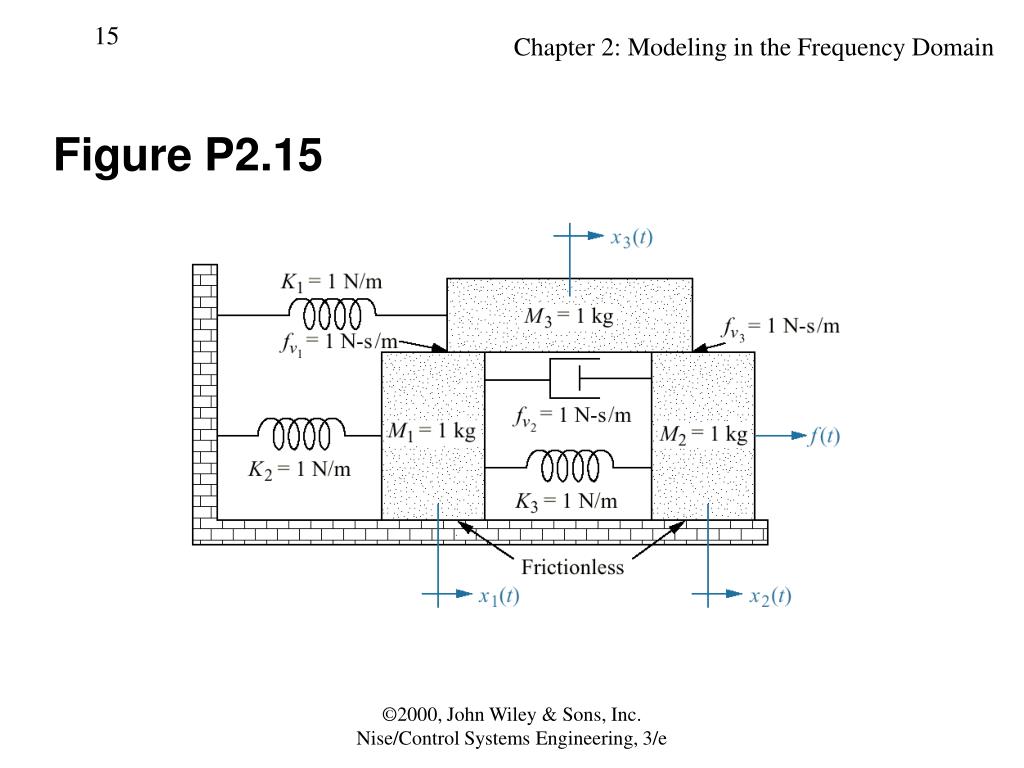

Figure P2.15 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

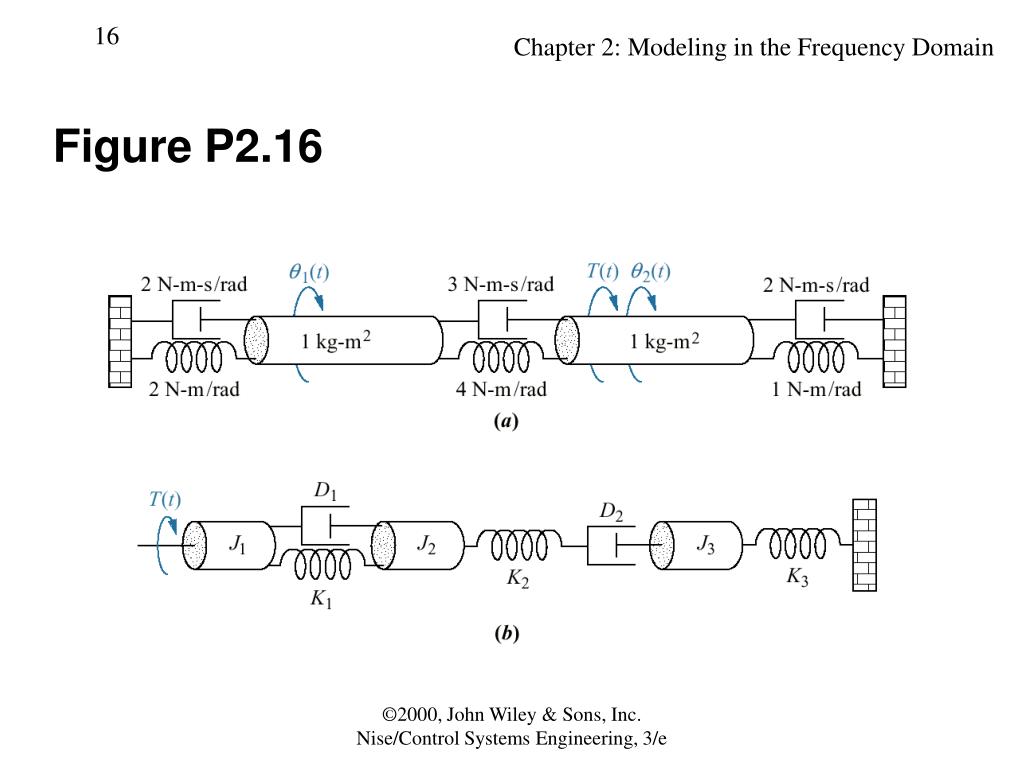

Figure P2.16 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.17 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

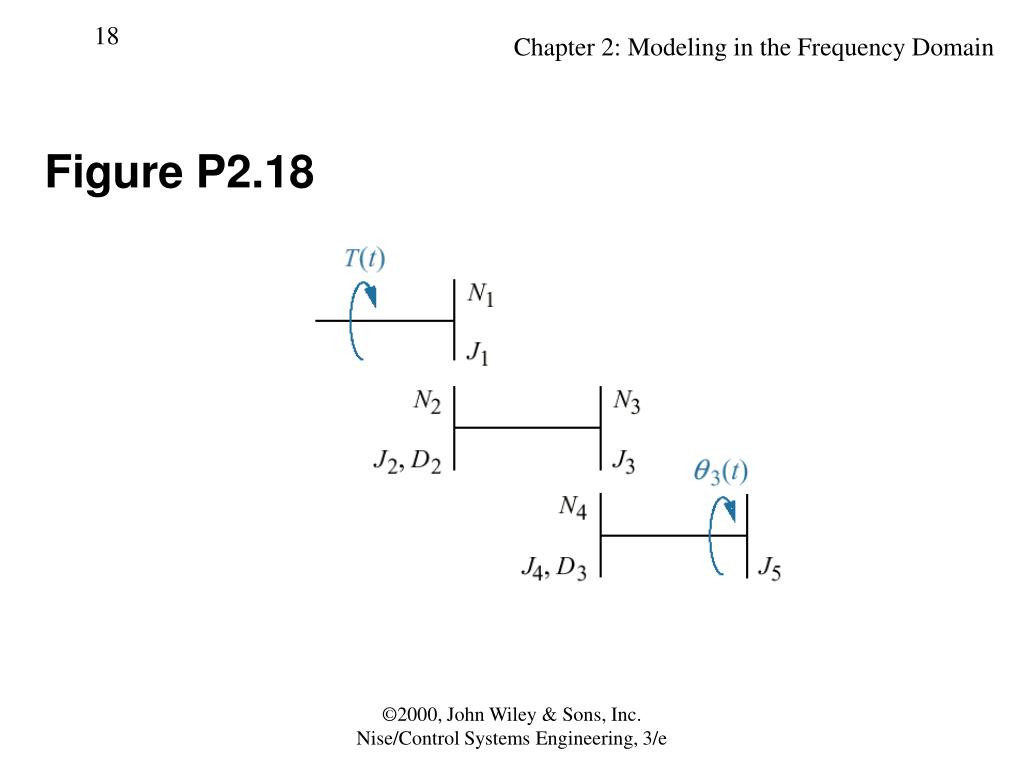

Figure P2.18 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.19 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

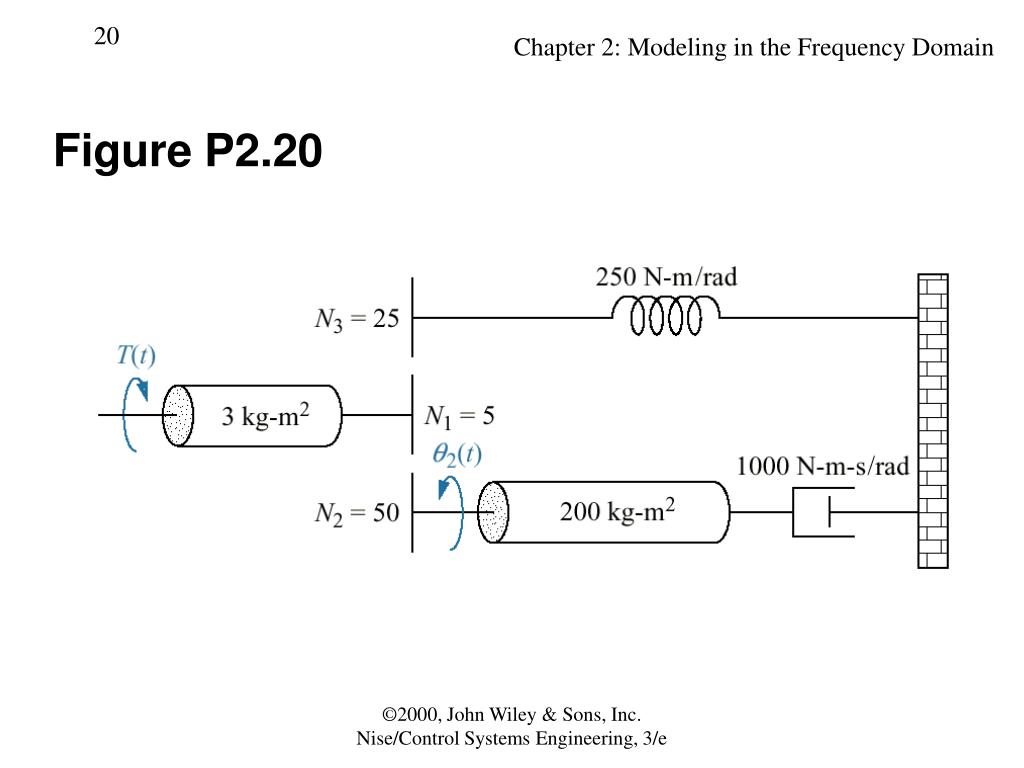

Figure P2.20 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.21 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.22 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.23 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

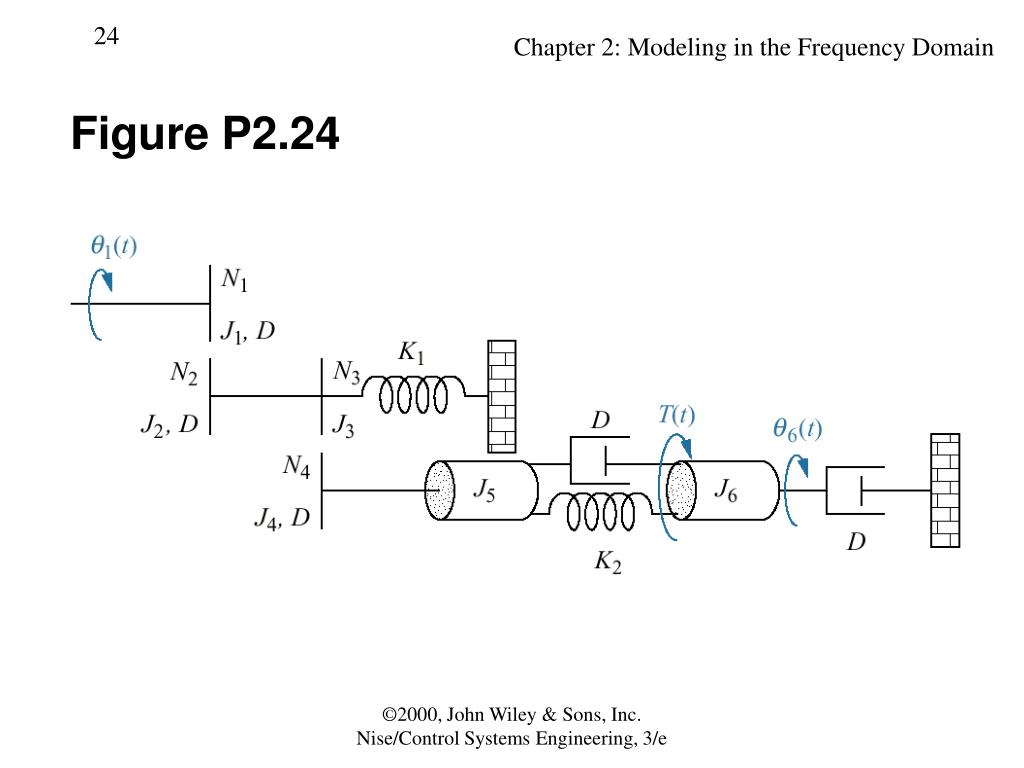

Figure P2.24 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.25 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

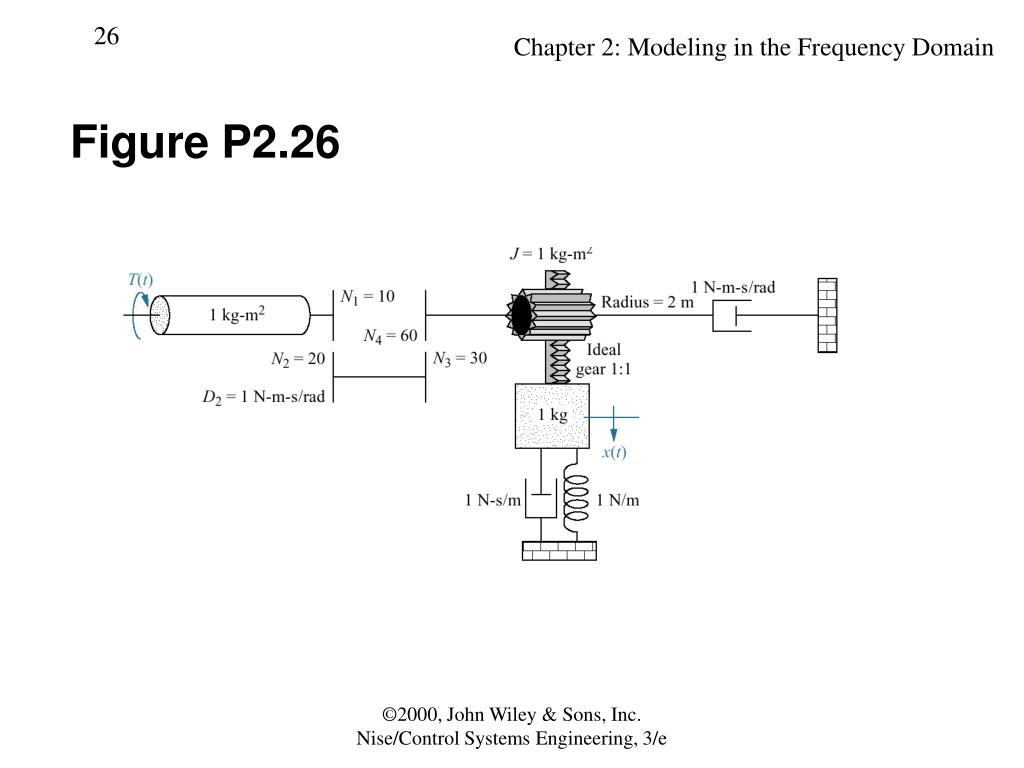

Figure P2.26 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

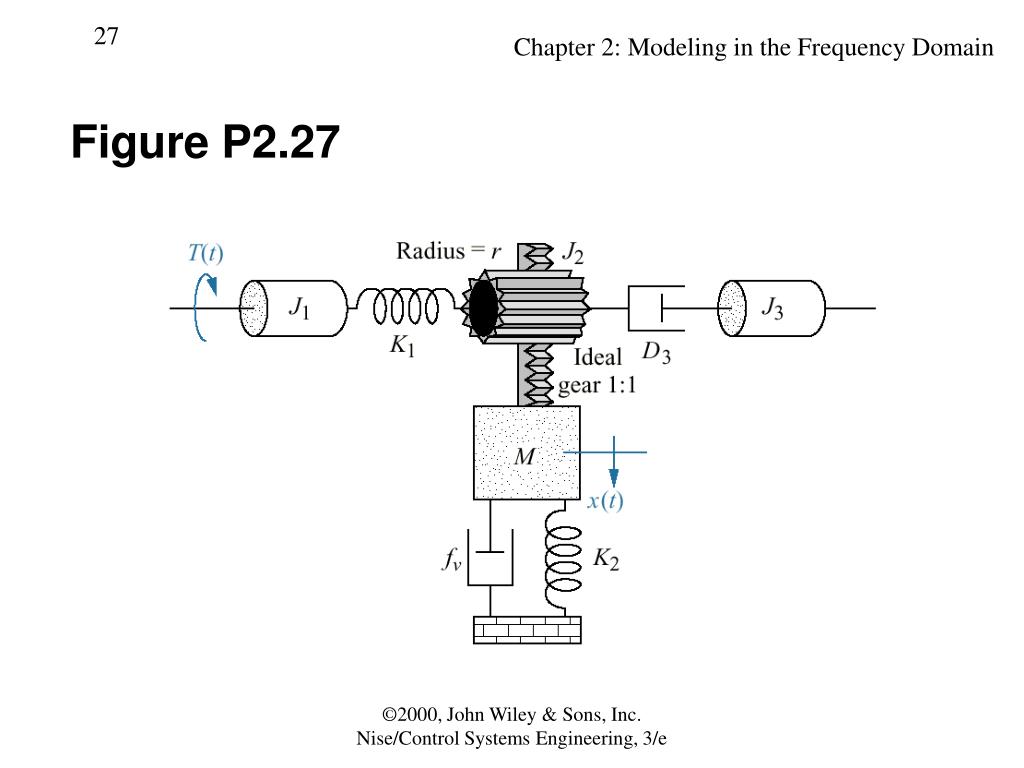

Figure P2.27 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

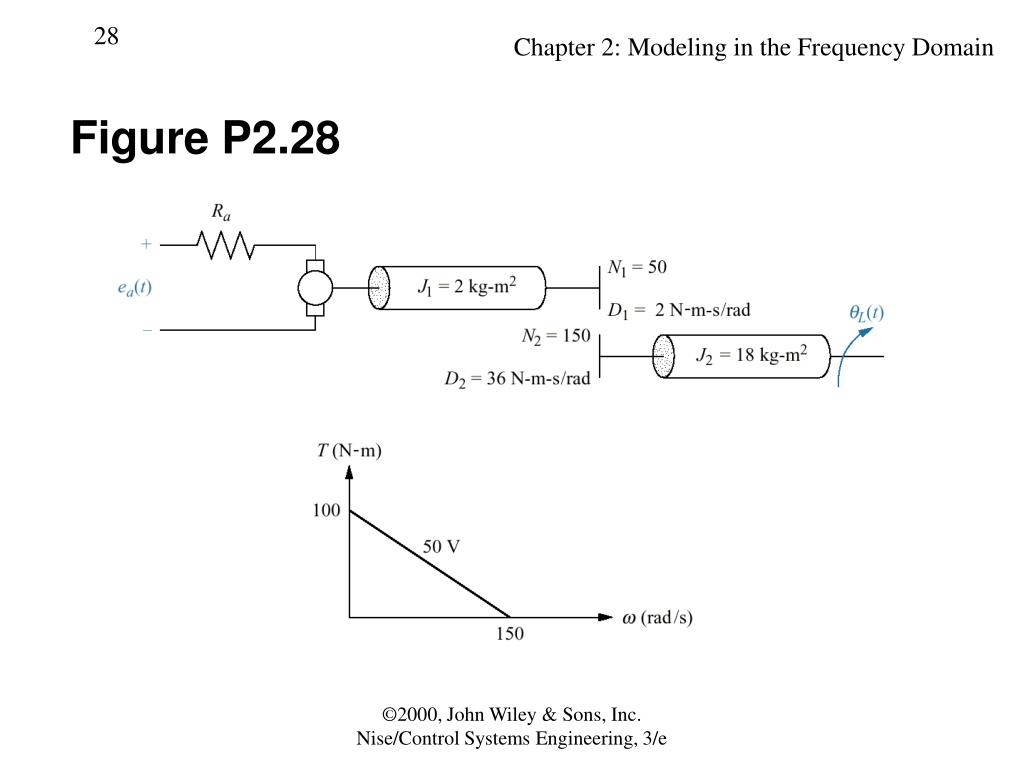

Figure P2.28 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.29 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.30 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.31 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

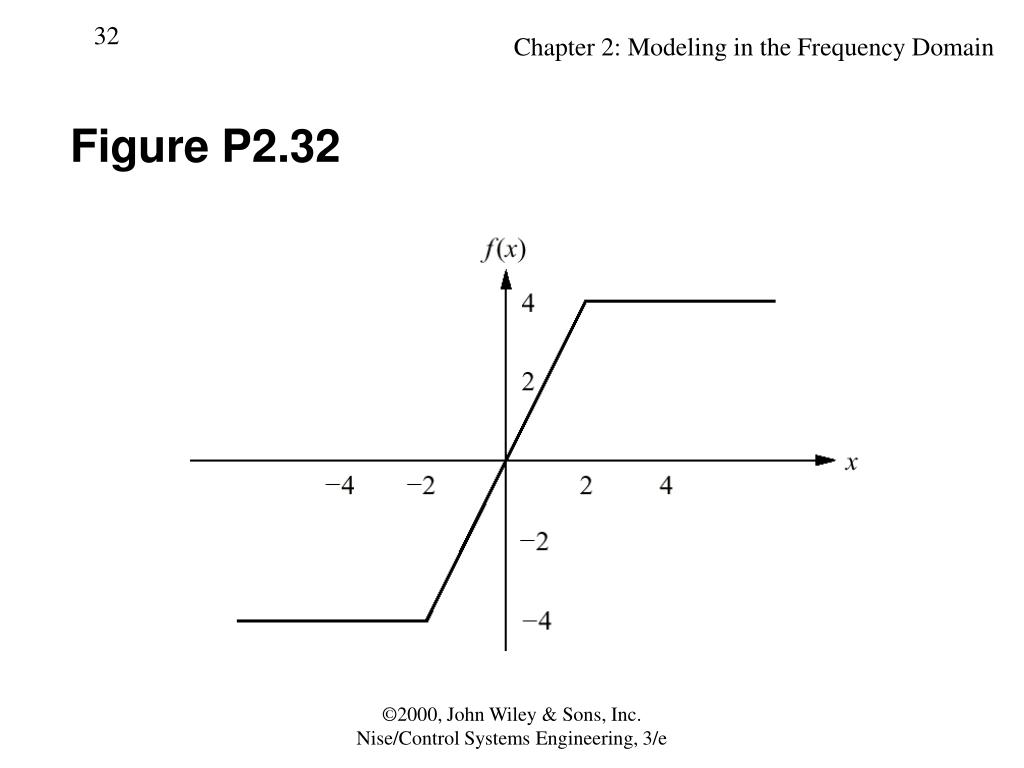

Figure P2.32 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

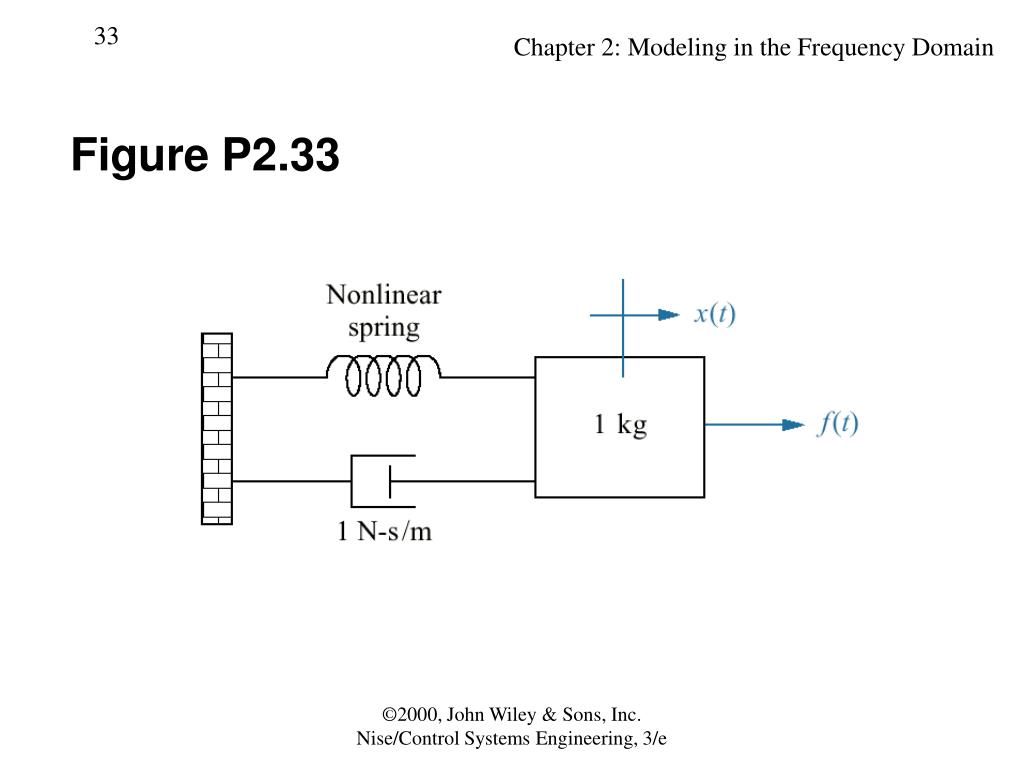

Figure P2.33 ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.34Plate dispenser ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Figure P2.35a. Coupling ofpantograph andcatenary;b. simplifiedrepresentationshowing theactive-controlforce © 1997 ASME. ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

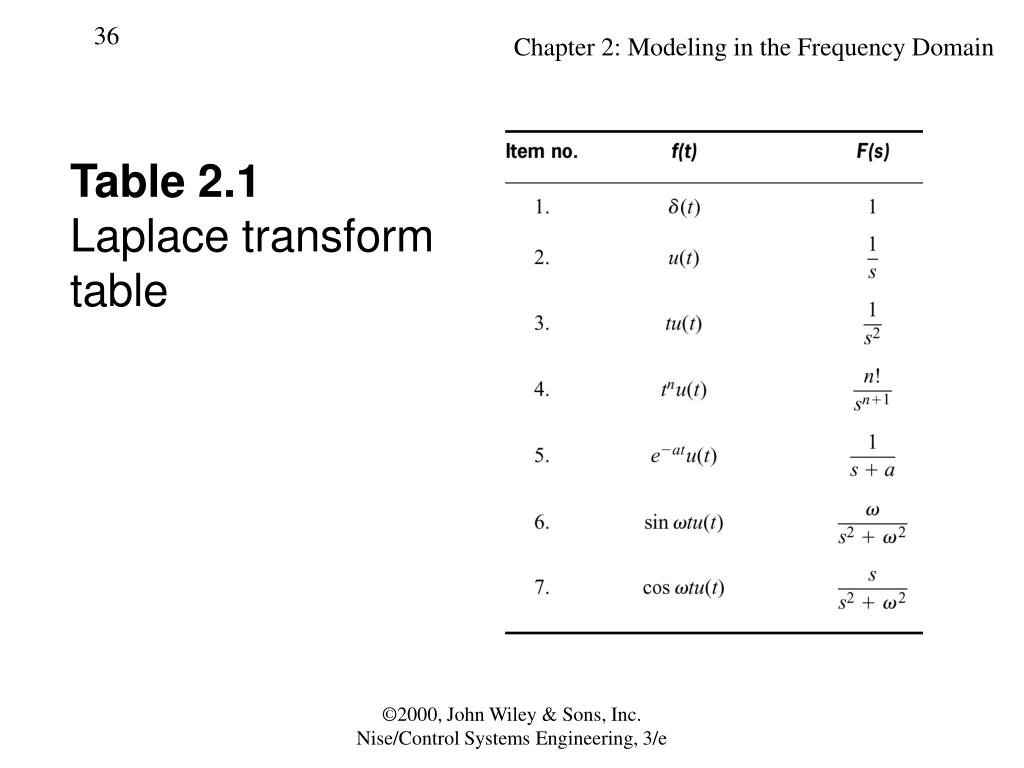

Table 2.1Laplace transform table ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Table 2.2Laplace transform theorems ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

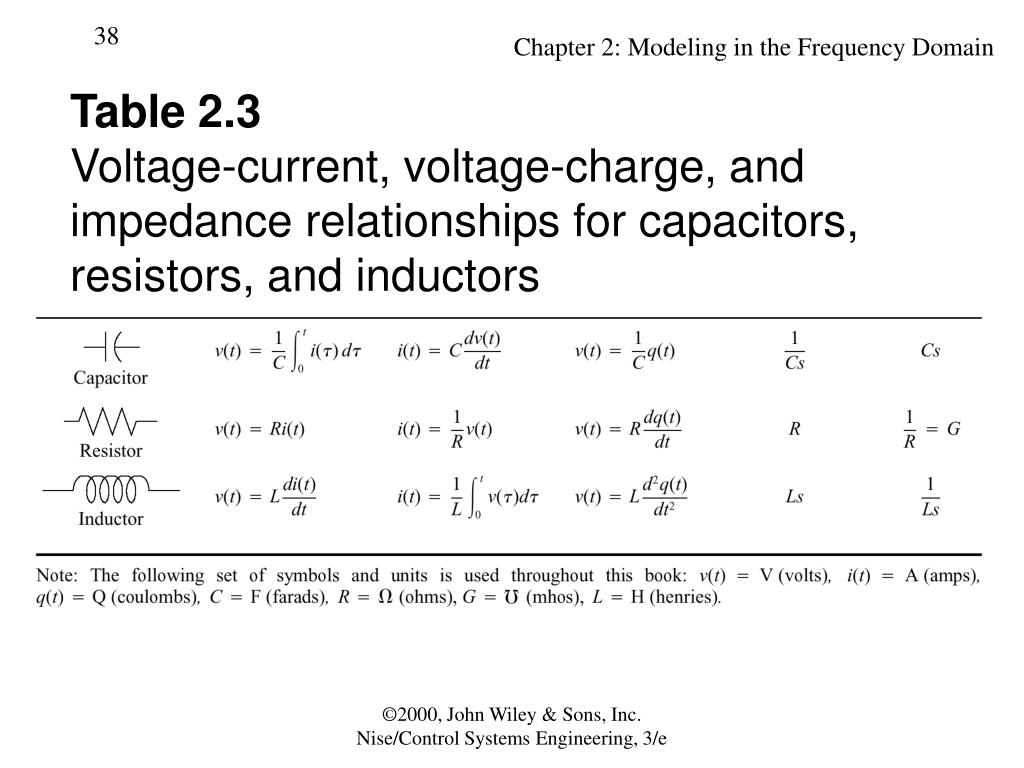

Table 2.3Voltage-current, voltage-charge, and impedance relationships for capacitors, resistors, and inductors ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Table 2.4Force-velocity, force-displacement, and impedance translational relationshipsfor springs, viscous dampers, and mass ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e

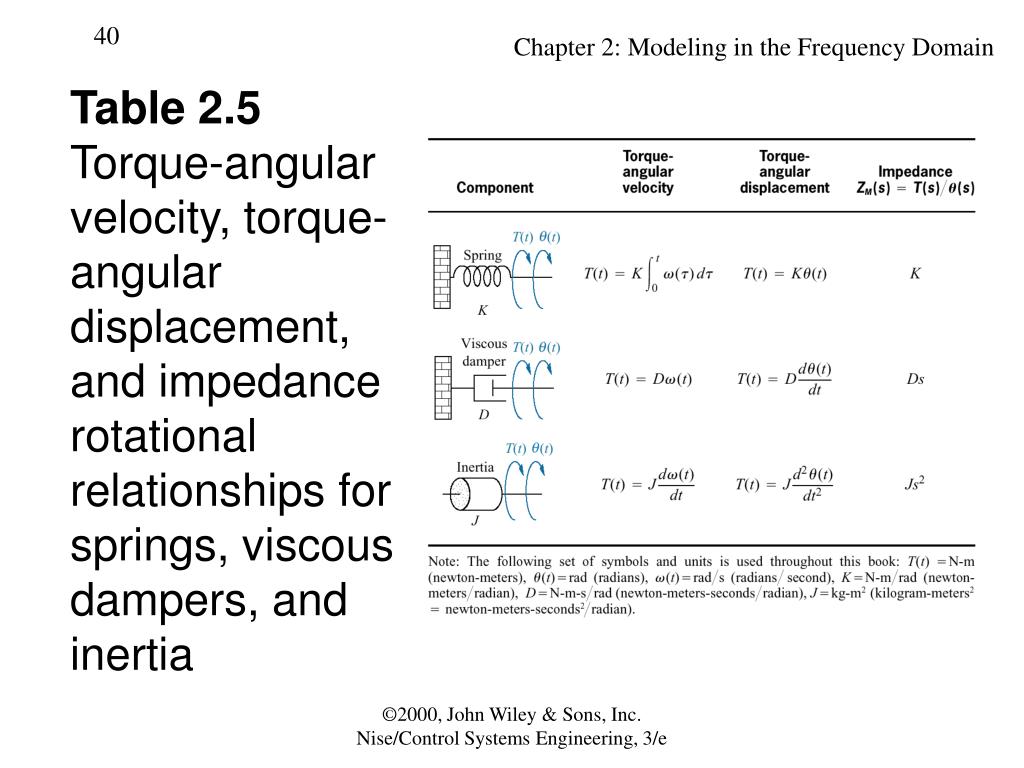

Table 2.5Torque-angular velocity, torque-angular displacement, and impedancerotational relationships for springs, viscous dampers, and inertia ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
Table 2.6Subsystems of the antenna azimuth position control system ©2000, John Wiley & Sons, Inc. Nise/Control Systems Engineering, 3/e
