building metro networks offering ethernet services

寬頻發展趨勢“Building Metro Networks”Offering Ethernet Services

中興大學九十一年度

區網中心研討會

Extreme Networks

極進網路台灣分公司

錢旭光 . 陳瑞建

agenda
Agenda
  • Extreme Way
  • Broadband Network Trends
    • Metro Area Network
  • How to build an MAN
    • MAN Technologies
  • Q & A
the extreme way

The Extreme Way

Delivering the Most Effective

Applications Infrastructure

the extreme way a networking success story
The Extreme Way: A Networking Success Story

We founded Extreme Networks in 1996

because networks were slow, expensive and complex –

and nobody was doing anything about it

We built some of the largest networks in the

world: Compaq, Microsoft and Shell

We led the silicon switching revolution by

making networks that are simpler,

faster and less expensive.

an international company from day one
An International Company From Day One

More than 50% of revenues come from outside the US

Offices in over 25 countries

24/7 customer support based on three continents

outstanding financial performance
Outstanding Financial Performance

One of the fastest growing companies in

Silicon Valley history

financial performance market share

Q1 Calendar Year 2002 – January - March 2002

Worldwide Layer 3 Total Port Share

(10/100/1000 Ethernet)

Worldwide Layer 3

Fast Ethernet

Port Share

Worldwide Layer 3

Gigabit Ethernet

Port Share

Avaya

1.7%

Alcatel

3.9%

Avaya

2.1%

Avaya

2.2%

Others

8.3%

Others

7.2%

Others

9.6%

Extreme

15.3%

3Com

3.7%

Riverstone

3.9%

Extreme

27.4%

Extreme

31.3%

Alcatel

5.2%

Alcatel

4.9%

Enterasys

5.7%

Riverstone

5.4%

Riverstone

5.3%

Foundry

7.1%

Nortel

7.9%

Nortel

8.0%

Cisco

31.5%

Nortel

9.0%

Foundry

10.0%

Foundry

9.2%

Cisco

18.4%

Enterasys

15.0%

Cisco

13.4%

3Com

15.6%

Enterasys

12.7%

Financial Performance: Market Share
financial performance market share1

Calendar Year 2001

Worldwide Layer 3 Total Port Share

(10/100/1000 Ethernet)

Worldwide Layer 3

Fast Ethernet

Port Share

Worldwide Layer 3

Gigabit Ethernet

Port Share

3Com

1.0%

Avaya

1.8%

Avaya

1.8%

Avaya

1.6%

Others

7.5%

Others

7.9%

Others

10.4%

Extreme

23.0%

Riverstone

5.2%

Extreme

27.0%

Riverstone

5.5%

Extreme

28.1%

3Com

3.9%

Alcatel

6.1%

Riverstone

5.3%

Alcatel

6.1%

Alcatel

6.5%

Cisco

8.7%

Cisco

9.8%

Nortel

15.1%

Cisco

9.1%

Foundry

10.2%

Enterasys

18.8%

Foundry

10.4%

Enterasys

20.1%

Foundry

12.1%

Nortel

11.8%

Enterasys

13.0%

Nortel

12.1%

Financial Performance: Market Share
the extreme future
The Extreme Future

We believe Extreme’s Ethernet Everywhere vision is the future of global networking

Our ultimate goal is to be an integral part of the world’s communications system

Extreme is creating a future of easily deployed, highly scalable, intelligently managed, ubiquitous applications infrastructure

broadband network trends
Broadband Network Trends
  • 80% of traffic is data and doubling every 12 months
    • Broadband networks must evolve from voice to data optimized
  • Demand for more speed, lower price, better service
    • Plenty of alternatives technologies and players
      • 10G, xDSL, Wireless and IXCs, ILECs, NAPs, CLECs
  • Metro fiber and 10G/WDM removes the bandwidth barrier
    • Glut will drive prices down, CLECs must reduce costs
  • IP and Ethernet each eclipsing rivals in Metro Network

Ethernet MAN

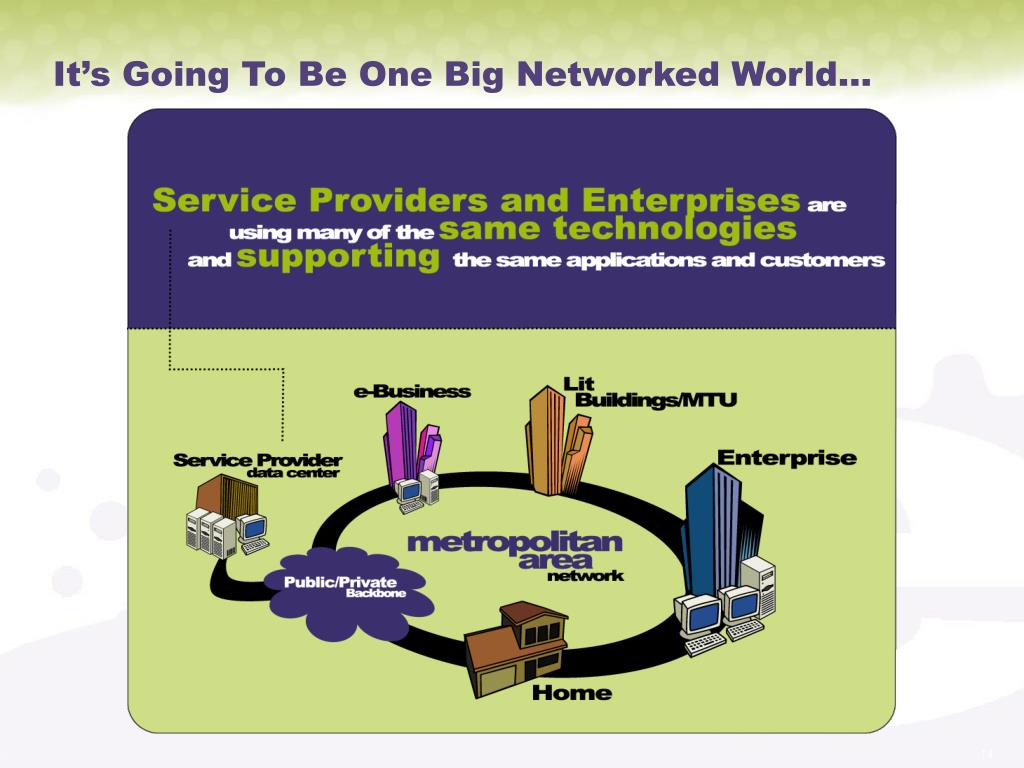

what s a metro area network man
What’s a Metro Area Network (MAN)
  • High-capacity fiber backbone covering metro area
    • Typically runs on SONET ring or dual ring
    • Usually multiple interconnected rings
    • Utilizes fiber owned or leased by Service Provider
  • Cost breakdown different from long haul networks
    • Long haul: 70% fiber, 30% equipment
    • Metro area: 30% fiber, 70% equipment *
  • Backbone equipment is very strategic investment for Metro Area Network service providers

* Source: Banc Robertson Stevens 1999

typical man architecture

Central

Office

  • SONET/SDH core
  • Multi-protocol
  • High reliability
  • Bandwidth guarantees
  • Predictable latency
  • Very expensive
  • Hard to change
  • Voice optimized
  • Inefficient for data

T1

T3

Level 3

n Gigabit

Local ring

PublicPeering

Sub Gb

Local ring

Typical MAN Architecture

Other MetroRegions

Off

Net

Qwest

Multi-Gigabit

Metro Ring

SONET

On

Net

who are the metro players
Who Are The Metro Players
  • Metro Service Providers
    • Typically Regional CLECs (Tier 2) and ILECs
    • Sell retail bandwidth and services to Enterprises
    • Sell wholesale bandwidth and services to CLECs and ISPs
  • IXCs, NAPs, Next Generation Carriers
    • Offering wholesale long haul transport between regions
  • Municipalities, Utilities
    • Offering wholesale dark fiber leasing to CLECs and ILECs
metro provider business strategy
Metro Provider Business Strategy
  • Metro bandwidth at unprecedented price points
    • Disruptive price point for high-bandwidth customers
    • Faster deployment and flexible control of bandwidth
    • Within same metro and long distance between metros
  • Large / medium Enterprises and Tier 3 CLEC/ISPs
    • Inter-connecting enterprise LANs and SP POPs
    • Providing wholesales and retail Internet access
metro provider network strategy
Metro Provider Network Strategy
  • IP centric network and product strategy
  • IP/Ethernet hand-off to customers
    • Via switch at customer premises or co-lo facility
  • Own as much of the backbone as possible
    • Purchase or long term lease of metro dark fiber
    • Own backbone equipment, customer located equipment (CLE)
    • Lease wholesale bandwidth for long haul
ethernet metro market drivers
Ethernet Metro Market Drivers
  • Enterprise Networks Outsourcing Data Services
    • IT shifting network build-out to Metro providers
    • High bandwidth applications (storage, Backup, ..) across the Metro, double traffic every 1~2 years
  • Existing Metro technologies (TDM) are NOT data optimized
    • Legacy networks are built for voice
    • Difficult to scale to support high bandwidth services
  • Better Economics for delivering high bandwidth services
    • Delivering “just in time” bandwidth
    • Faster return on investment
the metro today

L2/L3 Switches

Ethernet Aggregation

BGP, IP Services

IP Routers

Data

QoS/Traffic

Engineering

ATM Switches

TDM Pipes

SONET ADMs

Transport

More Bandwidth

WDM

Fiber

The Metro Today
the shortcomings of sonet sdh
The Shortcomings of SONET/SDH
  • SONET is TDM based - optimized for voice not data
    • Complex and expensive, designed for multi-protocol
  • Uses point to point circuits - difficult to provision
    • Meticulous management of available channels
    • Long-lead times to enable, change, or upgrade
  • No granularity - bandwidth comes in big increments
    • Burn a whole 45Mbps channel to deliver 10Mbps
  • Can multiplex customers onto full channel but costs
    • Requires ATM and adds more routing complexity
the metro is evolving

Ethernet Aggregation,

BGP, IP Services,

QoS, MPLS,

IP TDM

More Bandwidth

Data

+

Transport

SONET Lite/WDM

Packet Pipes,

Some Data Handling,

More Bandwidth

Transport

+

Data

Ethernet IP Switch Routers

WDM/Optical Bypass

Fiber

The Metro Is Evolving
ip ethernet technical advantage
IP/Ethernet Technical Advantage
  • Ethernet now extends from MAN to building
    • Over any MAN/WAN and in-building media (fiber, copper, air)
    • Ethernet or IP from Gigabit MAN to customer point
    • No longer necessary to have a multi-protocol backbone
  • IP/Ethernet service model is easy to configure
    • VLANs enable point and multi-point connections
      • Ideal for interconnecting COs, POPs, branch offices (TLS)
    • IP routing enables efficient Internet traffic hand-off
      • Ideal for VPNs, content distribution, hosting services

Bandwidth by the slice and policy-based QoS

ip ethernet business advantage
IP/Ethernet Business Advantage
  • IP / Ethernet economics means faster profitability
    • 80-90% saving over SONET total cost of ownership *
  • IP / Ethernet gives Carrier the competitive edge
    • Better pricing and faster deployment
    • More responsive with less expertise
    • Simpler for you and customer to manage
  • Allows rapid, cost-effective service provisioning

* Sources: Dataquest 12/99, Yankee 12./00

ethernet scalability advantage

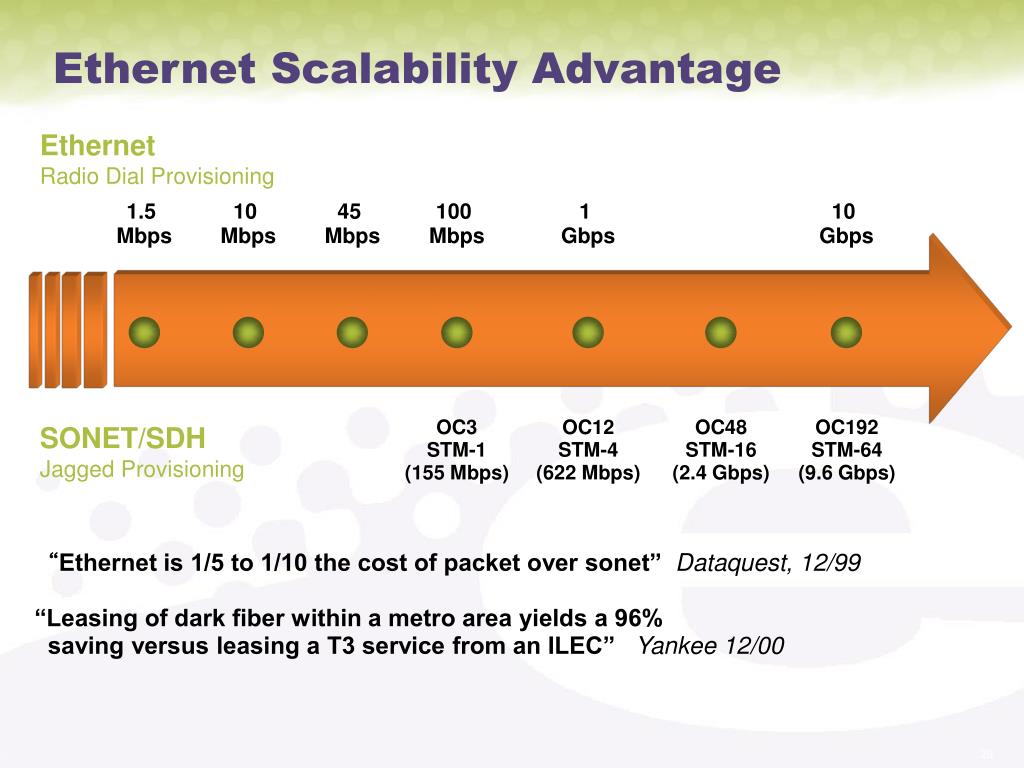

Ethernet Scalability Advantage

Ethernet

Radio Dial Provisioning

1.5

Mbps

10

Mbps

45

Mbps

100

Mbps

1

Gbps

10

Gbps

OC3

STM-1(155 Mbps)

OC12

STM-4

(622 Mbps)

OC48

STM-16

(2.4 Gbps)

OC192

STM-64

(9.6 Gbps)

SONET/SDH

Jagged Provisioning

“Ethernet is 1/5 to 1/10 the cost of packet over sonet” Dataquest, 12/99

“Leasing of dark fiber within a metro area yields a 96%

saving versus leasing a T3 service from an ILEC” Yankee 12/00

ethernet economic advantage

Cost of T3 equivalent bandwidth

Architecture Options

Ethernet Economic Advantage

Source: MCI Worldcom, Yipes, Dell ‘Oro, Yankee Group, Extreme Networks, Juniper Networks

ethernet economic advantage1
Ethernet Economic Advantage

Source: Yipes, Dell ‘Oro, Yankee Group, Extreme Networks, Juniper NetworksAssumes a regional network with five hubs and 10 rings

comparative bandwidth pricing

$45,000

$40,000

$35,000

OC-3

$30,000

OC-12

$25,000

OC-48

ASP Per Gigabit of Bandwidth

$20,000

OC-192

10 GE

$15,000

$10,000

$5,000

$0

2000

2001

2002

2003

2004

Comparative Bandwidth Pricing

Source: Dell’Oro, 2000

disruptive pricing example

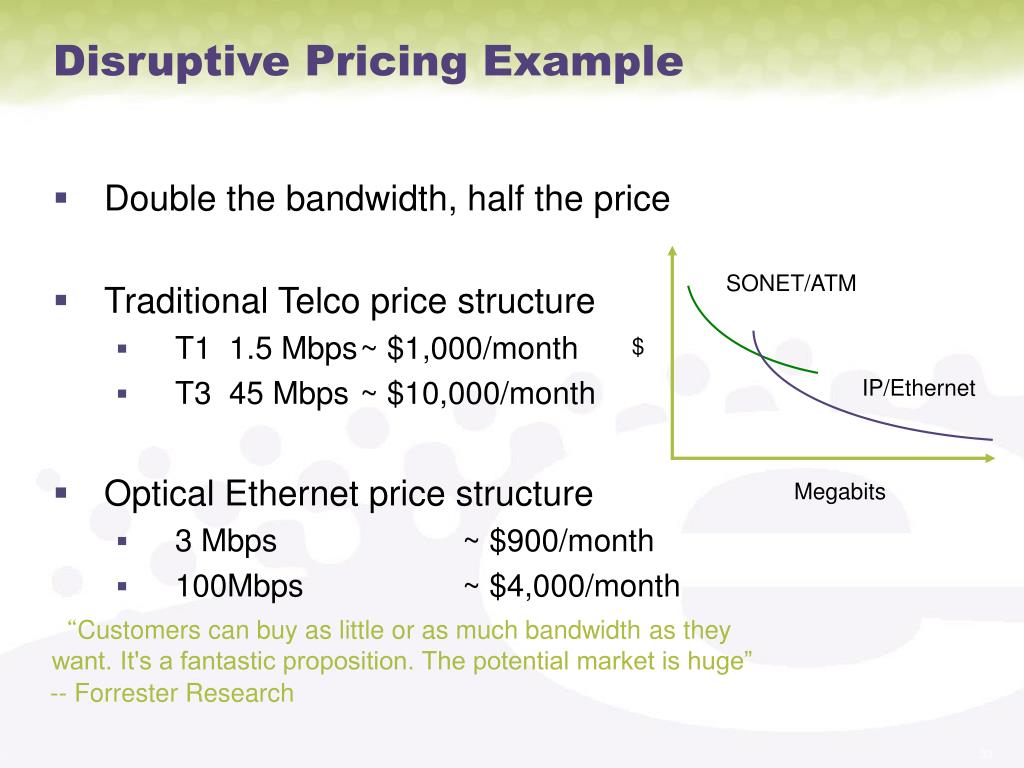

Disruptive Pricing Example
  • Double the bandwidth, half the price
  • Traditional Telco price structure
    • T1 1.5 Mbps ~ $1,000/month
    • T3 45 Mbps ~ $10,000/month
  • Optical Ethernet price structure
    • 3 Mbps ~ $900/month
    • 100Mbps ~ $4,000/month

SONET/ATM

$

IP/Ethernet

Megabits

“Customers can buy as little or as much bandwidth as they want. It's a fantastic proposition. The potential market is huge”

-- Forrester Research

market size for gbe man
Market Size for GbE MAN
  • GbE is a new, price-disruptive technology
  • With enhanced Carrier-grade features (APS, QoS, Billing), GbE can have a huge upside in the market!

Total Market: $25.7B

Source: U.S. Bancorp Piper Jaffray and RHK, Inc.

ethernet man market segments
Retail Services

Large/Medium Enterprises

Transparent LAN services (TLS)

ATM/FR/IP managed services

High speed Internet access

Voice trunks between offices

Communities of interest (Extranet)

Differentiated IP Services

Ethernet MAN Market Segments

Wholesale Services

Regional ISPs, Tier 3 CLECs

  • Trunks between COs and POPs
  • POP/Data Center co-location
  • Aggregation of MTUs for BLECs
  • Content distribution services
  • Upstream Internet access
  • Region to region Interconnect

Revenue split between Retail and Wholesale varies, depending on Metro provider’s main business focus

retail man services
Retail MAN Services
  • Business Internet Access
    • Still the largest revenue generating service
  • Transparent LAN Services
    • ‘Point to Point’ and ‘Point to Multipoint’ Connectivity
    • Within the Metro
    • Across long-haul networks
  • Multimedia Services
    • VPN - Managed Firewall
    • Voice - Tie-line replacement via TDMoIP
    • Storage - Disaster Recovery
    • Video - Residential and Commercial
when to use ethernet man services
When to Use Ethernet MAN Services
  • Today (2001)
    • Bandwidth, Bandwidth, Bandwidth
      • LAN to LAN Connectivity, Internet Access
      • Where there is coverage
    • Tomorrow (2004)
      • High bandwidth WAN access
      • Converged multiple voice/video services

Source: Mark Fabbi @ Gartner

new ethernet man service timeline
New Ethernet MAN Service Timeline

Voice

Transportation

BW on

Demand

Comprehensive

NSP

Tiered

Services

Storage

Services

LAN-LAN

2001

2002

2003

2004

2005

Internet

Access

ASP

Bundling

VPN

Aggregation

Voice

Gateways

Source: Mark Fabbi @ Gartner

service deployment details
Service/Deployment Details
  • VLANs
    • One vMAN per TLS service
      • Customer’s traffic is Tagged or Un-Tagged and then vMANs
    • One physical port per service
  • Topology
    • L2 for TLS
    • L3 for internet Access
  • Fixed Bandwidth
    • Min./max. bandwidth with Ingress Rate Shaping
    • Fixed rate billing
    • Starts at a min. of 10 Mbps
  • Other
    • Lin Aggregation for additional bandwidth
    • Support for .1p exists but not yet used
    • Scripted CLI for management and SNMP/Syslog monitored with Micromuse Netcool

SLAs

  • Availability 99.95%
  • Packet Latency < 50ms (within Metro)
  • Packet Loss 0.01%
  • MTTR 1- 4 Hours
man provider example yipes
MAN provider example - Yipes
  • Yipes Service offering
    • Providing service to 300 business customers
    • High speed Internet access
    • Regional Virtual Campus
      • Provide Yipes MAN, Yipes WAN, Yipes Wall services
    • Connects across the MAN at LAN speeds
      • Uses Extreme vMAN function
  • What Extreme Sold
    • 21 MANs around the US
    • 80 BlackDiamonds, 300 Alpines, 350 Summit 48i’s
greater china extreme man
Greater China Extreme MAN
  • Shanxi Telecom MAN
  • China Mobile deals
    • XinJiang Mobile MAN
    • Sichuan Mobile MAN
    • China Mobile Hunan
  • Shandong Weifang TV & Broadcasting CATV
  • Chung Hwa Telecom 中華電信
    • FTTB - Fiber to the building
    • Around the island, total more than 50 COs in CHT
  • Koo‘s Broadband Telecom 和網寬頻
    • First MAN customer in Taiwan, started operation Aug. 01'
slide43

網管工作站

Chung Hwa Telecom FTTB North Region

東四

北四

石牌一

1G ring

汐止

1G ring

1G

1G ring

東五

東二

1G

1G ring

1G ring

劍潭

內一

1G ring

Hinet Backbone

石牌二

GESWc

江翠

1G ring

南一

BB-RAS

1G ring

GESWr

1G ring

積穗

板一

南二

Hinet GigaPOP設備

1G ring

extreme s value proposition
Extreme’s Value Proposition

Extending Ethernet Everywhere to the first mile

  • Simplified IP/Ethernet service model over metro fiber, and Telco access network over T1/E1, T3 WAN links
  • Subscriber-level provisioning and management end-to-end across a common system architecture
  • Simpler, quicker, more cost-effective service deployment
extreme uniqueness for man networks
Extreme Uniqueness for MAN Networks
  • Wire-speed Switching and Routing
    • Layer1 thru’ Layer4 packet classification
  • Service Level Agreements (SLA)
    • Bidirectional rate shaping
  • vMAN
    • Transparent LAN Services
  • Billing and Provisioning
    • $
  • EAPS
    • Resilient Rings
  • Network Login
    • Authenticating Users
bandwidth by the slice
Bandwidth by the Slice
  • Committed Information Rate (CIR) like services
  • Bi-directional rate shaping enables bandwidth slicing
    • Control traffic on egress, police traffic on ingress

B I D I R E C T I O N A L

Min 15Mb/s Subnet X

GUARANTEED!

Max 30Mb/s DiffServ

Min 5Mb/s VoIP

layer independent qos

Packets

Out

Packets

IN

Packet

Layer 4

Layer 3

Layer 2

Layer 1

Layer 4

Layer 3

Layer 2

Layer 1

Packet

Layer Independent QoS
  • End-to-End Policy-Based QoS
    • Mapping from PB QoS and/or 802.1p to IETF Diff Serv and/or MPLS Labels

=Policy

QoS Profile (configured queue)

Classification

Qp1 - Best Effort Traffic

  • Ordered Hierarchy
  • Layer 1,2,3,4, .1p, IP DiffServ packet info

0% Min/100% Max

Low Priority

QpX - Essential Traffic

5% Min/100% Max

Higher Priority

choice of l2 and l3 service models

Ethernet Switching

Ethernet Everywhere

IP Routing

Choice of L2 and L3 Service Models
  • Ethernet switching in the WAN
    • Layer 2 model (Virtual Campus)
    • Ethernet encapsulation over WAN
      • BCP/MLPPP
    • VLAN aggregation
  • Traditional IP routing in the WAN
    • Layer 3 model (Internet Access)
    • IP encapsulation over WAN
      • IPCP/MLPPP
    • IP routed subnets
    • For mixed vendor environments
      • e.g. Interoperable with Cisco IOS
the need for rate shaping
The need for ‘Rate Shaping’
  • Multiple customers per building/location
  • Bandwidth requirement differs per customer
  • Need to offer unique ‘tiered services’
    • Bi-directional rate shaping at the edge
    • Application/flow based bandwidth allocation

Customer #1

50 Mbps

Customer #2

30 Mbps

Customer #3

45 Mbps

Customer #4

50 Mbps

EthernetAccess/MAN

Ring

Customer #5

100 Mbps

l2 ethernet vpns

C2

C2

C2

L2 Ethernet VPNs

C1

Internet

ISP B

ISP A

Transparent LAN Services

L2 leased lines

Point-to-multipoint VPNs

VMAN

ISP Metro-POP

C1

vmans virtual private metropolitan area networks

Data Link

Header

.1Q Tag

VLAN ID = 10

Customer Date

(48-1500 Bytes)

Data Link

Header

.1Q Tag

VLAN ID = 10

Customer Date

(48-1500 Bytes)

Data Link

Header

vMAN Tag

Domain = 50

.1Q Tag

VLAN ID = 10

Customer Date

(48-1500 Bytes)

Data Link

Header

vMAN Tag

Domain = 60

.1Q Tag

VLAN ID = 30

Customer Date

(48-1500 Bytes)

Data Link

Header

.1Q Tag

VLAN ID = 30

Customer Date

(48-1500 Bytes)

Data Link

Header

.1Q Tag

VLAN ID = 30

Customer Date

(48-1500 Bytes)

vMANs: Virtual Private Metropolitan Area Networks
eaps across multiple rings
EAPS across Multiple Rings
  • EAPS is transparent to the number of rings deployed
  • Each ring has its own EAPS domain(s)
    • An EAPS domain is applied only on a single ring
    • A node can oversee multiple domains on different rings
  • In the figure
    • Node P is Master for Ring 2
    • Node Q is Master for Ring 3
    • Nodes R and T are both Masters (of different domains) on Ring 0
    • Node T is also Master of domain on Ring 1

500 VLANs & 40 ms failover

network login
Network Login
  • Network Login
    • Admits user to network based on username and password
    • Prevents pre-authentication DOS attacks
network login in action

Network

Network Login in action
  • Switch detects connection on the switch port
  • Client issues DHCP request, switch responds
  • Switch responds with Login web page
  • Switch performs a request to RADIUS server
  • If user is validated, switch unblocks port and assigns VLAN

DHCP

  • DHCP lease timer was set very low initially by Network Login switch. Client will re-request DHCP and because client is on appropriate VLAN, client gets the “real” information
network login in action1

Network

Network Login in action
  • Switch detects connection on the switch port
  • Client issues DHCP request, switch responds
  • Switch responds with Login web page
  • Switch performs a request to RADIUS server
  • If user is validated, switch unblocks port and assigns VLAN
  • Otherwise, Access is denied

RADIUS

end to end ethernet in the metro

WAN POP

WAN Core

OC-12c or OC-48c

PoS with PPP/BCP

OC-3c or OC-12c

ATM with RFC 1483/2684

GbE

WAN DWDM

WAN Edge

OC-3c or OC-12c

PoS with PPP/BCP

Summit Switch

Existing

WAN router

Ethernet over

Fiber

GbE

Ethernet Metro

Core Ring

Ethernet Metro

Access Ring

Metro POP

T1, DS3/T3,

E1 or E3

Point-to-Point GbE

10G/ cWDM

Point-to-Point GbE

4 Channel cWDM

Summit Switch

Ethernet over

CAT3 or 5

Ethernet Metro

Access Ring

GbE Ring

Ring-in/Ring-out

End-to-End Ethernet in the Metro
scalable wan connectivity to pop
Scalable WAN Connectivity to POP
  • All MAN and WAN connections treated as Ethernet or IP
  • Consistent QoS and bandwidth provisioning on-Net and off-Net

GbE

Metro POP

Central

Office

Fast Ethernet

T3s, Fast Ethernet or GbE

T3

N x T1

T1

wan aggregation to gbe man

Metro POP

Local ISP

Multi-Tenant

Commercial Building

Office

LAN

LAN

Fiber

CPE

Phone Cable

LAN

Alpine 3804 with

T3 configuration

GbE

Cat 5

Fast

Ethernet

Central

Office

N x T1

T3

Alpine 3804 with

T1 and VDSL

configuration

Business Park

Central

Office

Gigabit Ethernet MAN

T1

N x T3

Router

Alpine 3808 with

GbE and T3

configuration

WAN Aggregation to GbE MAN
  • Groom up hundreds of T1/E1 lines through T3s at POP
  • Support any mix of T1/E1, T3, and Gigabit Ethernet
ethernet access ftth fttc fttb
Ethernet Access: FTTH/FTTC/FTTB
  • Ethernet Everywhere
  • Performance Everywhere
  • Riser-independence:
    • CAT 3, 2, 1 800m VDSL
    • CAT 3,5 100m 100TX
    • Fiber 2,200m 100FX

IAD

CPE

Fiber

Phone Cable

L3 Ethernet Switch

CAT5

MAN / WAN

L3 Ethernet Switch

converged ip telephony in the wan

E1/

T1

E1/

T1

VoIP GW

VoIP GW

10/100

10/100

Converged IP Telephony in the WAN
  • TDMoIP: A quick way to show ROI
    • Devices that convert ALL voice and SS7 signaling into Ethernet packets
      • Unique UDP socket numbers
    • Two ports but two applications on the same VLAN
      • Get dedicated b/w via Policy based QoS
  • VoIP: Slowly but surely
    • Uses protocols like H.323 and/or SIP (Session Initiation Protocol)
    • Once again need L3/L4 packet classification capability for toll quality experience

PSTN

local

PSTN

local

Branch Office

Head Office

E1/T1

E1/T1

PSTN

Long

Distance

PBX

PBX

WAN

LAN

LAN

E1/T1, n*E1/T1, E3/T3, GbE

sonet and wdm where needed
10 Gig Ethernet using WDMi

A cool way of doing WDM

Black Diamond – available

5 Gig Ethernet using WDMi

4 channels over one fiber

Mates with Black Diamond

SONET – OC3, OC12

For Black Diamond

Ethernet or IP over SONET

OC3 available now

OC12, OC-48, OC-192

SONET and WDM Where Needed

1 fiber

8 full-duplex

Gigabit channels

WDMi Module in the BlackDiamond 6808 or 6818 switch

1 fiber

Single-mode

fiber pair

Gigabit

Ethernet

SONET/

SDH

Metro POPs

metro access ethernet wdm

Metro

DWDM

Metro

DWDM

Metro

DWDM

Metro

DWDM

‘Net

Metro Access: Ethernet/WDM

Tall Building

(Fiber + CAT5)

ISP Metro-POP

WDM/Ethernet MAN Ring

CPE

GbE

GbE

Backhaul

32, 64 , 128….

Lambdas

Office Park

(VDSL, CAT5)

SONET

ADM

SONET

ADM

PoS

OC-3 or OC-12

PoS

OC-3 or OC-12

OC-48 (Future)

CPE

CPE

service provider pops

WAN DWDM

WAN Core

OC-12c PoS

with PPP/BCP

Peering/Border Layer

OC-3c

ATM with RFC 1483/2684

Aggregation Layer

GbE

Distribution Layer

Service Provider PoPs
idc design with revenue on mind
IDC Design With Revenue On Mind

Internet

Metro/Transit Network

Peering/Border Layer

Co

l

o

c

a

t

I

o

n

Load Balancing

Firewalls

Caching

Aggregation Layer

Distribution Layer

Load Balancing

Single Co-Lo Cage

Firewalls

SSL Acceleration

M

S

P

Load Balancing

Caches

‘NEW’ Way

Switch

Servers

‘OLD’ Way

summit px1 specifications
Summit-Px1 Specifications
  • Performance
    • No CPU processing in any data path
    • Gigabit line rate
    • 250K Connections/sec
    • Layer 7 can be enabled without performance penalty
  • Capacity
    • 64K Virtual IP Addresses (VIPs)
    • 64K Real Servers
    • 1.9 Million Active Sessions
    • 1 Million “URL Switching” pattern rules
mpls metro l2 l3 transparent lan services delivery architecture

Access Ring

Access Ring

MPLS TLS Tunnel

“martini-draft”

MPoP

Highly-scalable Metro Core

(MPLS Switched / IP Routed)

GigaPoP

MPLS TLS Tunnel

(Differentiated Service Classes

& Restoration via RSVP-TE)

IP Networks

(Internet) &

Content Providers

MPLS Metro L2/L3 Transparent LAN Services Delivery Architecture
mpls metro network services model
MPLS Metro Network Services Model

Software

Redundant

Port

EAPS

CE

CE

Metro Access

CE

CE

PE

PE

Metro

Core

Metro

Core

P

PE

PE

P

MPLS Domain

IP Networks

WAN

P

P

Link

Aggregation

Metro

Core

PE

PE

Metro

Core

PE

PE

CE

CE

CE

CE

CE: Customer Edge

PE: Provider Edge

P: Provider

Enterprise

Network

Enterprise

Network

key benefits of extreme mpls
Key Benefits of Extreme MPLS
  • Provides point-to-point and multipoint VPN capability, improving scalability in Metro networks – and simplifying configuration.
  • Centralized Network Processor based implementation provides MPLS capability on all blades, and the flexibility to implement GRE and other protocols.
  • Traffic Engineering and fast failover capabilities provide a more robust network than possible at Layer 2.
  • Avoids use of Spanning Tree and other Layer 2 loop prevention protocols – which can be difficult to manage in large networks.
  • Support for Jumbo packets
integrated ethernet metro access n w

MTU / MDU

Fiber

ISP POP

Business

Park

LAN

LAN

LAN

LAN

LAN

CPE

Phone

wire

Phone

wire

Bldg

POP

Cat 5

SONET/SDH Ring

Metro

POP

N x

T1/E1

10GbE Ring

GbE or

POS

POS

OC-3

OC-12

OC-48

GbE Metro Ring

(WDMi - 4/8ch cWDM)

CLEC

POP

MPLS

MPLS

POS

OC-12

OC-48

T3

GbE Metro Ring

(EAPS - Ring Protection)

Ethernet Everywhere

Extended into the Metro

Internet

Exchange

GbE

10

GbE

Enterprise

Internet

Data Center

Enterprise

Switched Ethernet / IP Services

Integrated Ethernet Metro/Access N/W
summit series
Summit Series
  • L2 Switch
    • Summit 24e2
    • Summit GbX(Repeater)
  • L3 Switch
    • Summit Chipset
      • Summit 24/48
    • iChipset
      • Summit 48si, 48i, 1i, 5i, 7i, Alpine, BlackDiamond
    • Others
      • Summit 24e3
  • Proxy Switch
    • Summit Px1, PxM
alpine 3808 3804 3802 platforms
Alpine 3808, 3804, 3802 Platforms
  • Alpine 3808
    • 1 slot for SMMi
    • 8 slots for I/O modules
    • 12 RU height, only 12” deep
    • 64 Gbps non-blocking fabric
  • Alpine 3804
    • 1 slot for SMMi
    • 4 slots for I/O modules
    • 6 RU height, only 12” deep
    • 32 Gbps non-blocking fabric
  • Alpine 3802
    • Integrated SMMi
    • 2 slots for I/O modules
    • 3 slots in extended mode
    • 4 RU height, only 12” deep
    • 16 Gbps non-blocking fabric
alpine 3808 3804 3802 features
Alpine 3808, 3804, 3802 Features
  • High redundancy and reliability
    • Dual load sharing power supplies
    • Hot swappable I/O modules and fan tray
    • Dual ExtremeWare images & configurations
  • Specialized interface modules
    • GBICs - 70 Km, WDMi - 35 Km
    • Ethernet over VDSL
    • Legacy WAN interfaces
  • High density, low profile
    • 12U (3808), 6U (3804) or 4U (3802); 12” deep
    • 32-port 10/100BASE-TX, 24-port 100BASE-FX
    • 4-port 1000BASE-SX or LX, 1000BASE-T
    • 4-port T1 WAN, 4 port E1 WAN, 1-port T3 WAN
    • 8-port Ethernet over VDSL
  • Performance – 16-64 Gbps
    • 12-48 Million pps
the industry leading blackdiamond 6800 series switches
The Industry-leading BlackDiamond 6800 Series Switches

BlackDiamond 6804

  • 64 Gbps switching and routing capacity
  • 4 10GbE ports
  • 32 1000BASE-X ports
  • 336 10/100BASE-TX ports
  • 16 OC3/STM-1 PoS or ATM ports
  • 8 OC12/STM-4 PoS ports

BlackDiamond 6808

  • 128 Gbps switching and routing capacity
  • 8 10GbE ports
  • 64 1000BASE-X ports
  • 672 10/100BASE-TX ports
  • 32 OC3/STM-1 PoS or ATM ports
  • 16 OC12/STM-4 PoS ports

BlackDiamond 6816

  • 256 Gbps switching and routing capacity
  • 16 10GbE ports
  • 128 1000BASE-X ports
  • 1,440 10/100BASE-TX ports
  • 64 OC3/STM-1 PoS or ATM ports
  • 32 OC12/STM-4 PoS ports
factors across the blackdiamond 6800 series

BlackDiamond 6804 BlackDiamond 6808 BlackDiamond 6816

Switch Fabric 64 Gbps 128 Gbps 256 Gbps

I/O Slots 4 8 16

MSM Slots 2 2 4

Redundant PS Yes, hot-swappable Yes, hot-swappable Yes, hot swappable

ExtremeWare Yes Yes Yes

10/100 port density 384 768 1536

GbE port density 32 64 128

Dimensions (H) 19.25” (11 RU) (H) 26.25” (15 RU) (H) 61.25” (35 RU)

(W) 17.32” (W) 17.32” (W) 19”

(D) 19” (D) 18” (D) 18”

Factors across the BlackDiamond 6800 Series
modules for the blackdiamond 6800 series
Modules for theBlackDiamond 6800 Series
  • Management Switch Fabric Modules
  • Fast Ethernet Modules
  • Gigabit Ethernet Modules
  • 10 Gigabit Ethernet Module – LR now, Xenpak future
  • Wavelength Division Multiplexing Module
  • Accounting and Routing Module
  • MPLS Module
  • ATM Module
  • Packet-over-SONET Module
