methanol an alternative fuel for shipping

Methanol, an Alternative Fuel for Shipping

Bengt Ramne ScandiNAOS AB

MARKIS 2011-11-30

slide2

Natural Gas will be a veryimportantenergysource for marine propulsion

H

H

C

H

H

  • Methanolwill be an efficient, universal, future-proof, energy carrier

O

H

H

C

H

H

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

effship

EffShip

Efficient Shipping with Low Emissions

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

effship efficient shipping with low emissions

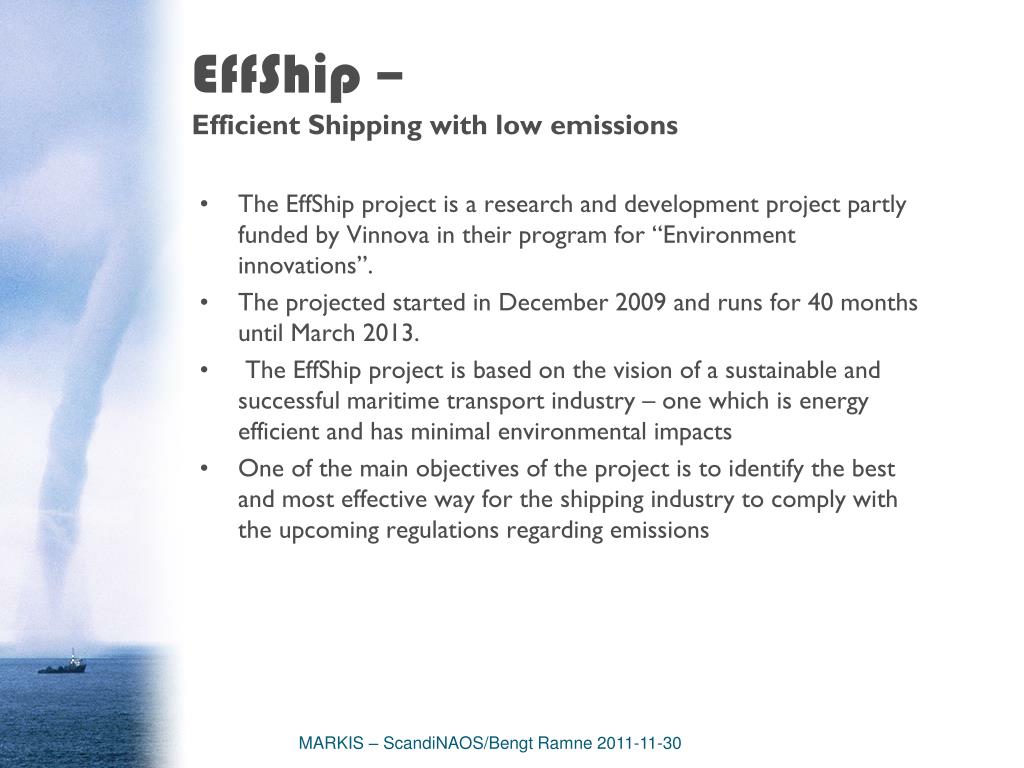

EffShip –Efficient Shipping with low emissions
  • The EffShip project is a research and development project partly funded by Vinnova in their program for “Environment innovations”.
  • The projected started in December 2009 and runs for 40 months until March 2013.
  •  The EffShip project is based on the vision of a sustainable and successful maritime transport industry – one which is energy efficient and has minimal environmental impacts
  • One of the main objectives of the project is to identify the best and most effective way for the shipping industry to comply with the upcoming regulations regarding emissions

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

effship work packages
EffShip – Work packages
  • WP1 Project Management
  • WP2 Present and Future Maritime Fuels
  • WP3 Exhaust Gas Cleaning
  • WP4 Energy Efficiency and Heat Recovery
  • WP5 Energy Transformers
  • WP6 System Impact when Using Wind, Wave and Solar Energy
  • WP7 Logistic system analysis
  • WP8 Demonstration of Findings
  • WP9 Final Reporting, Dissemination and Future Projects

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

upcoming regulations
Upcoming regulations

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

effship wp2 present and future maritime fuels
EffShip – WP2 Present and Future Maritime Fuels
  • HFO
  • LSHFO
  • ULSHFO
  • MDO
  • MGO
  • LNG
  • Biofuel
  • DME
  • Methanol
  • Synthetic diesel

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

slide8

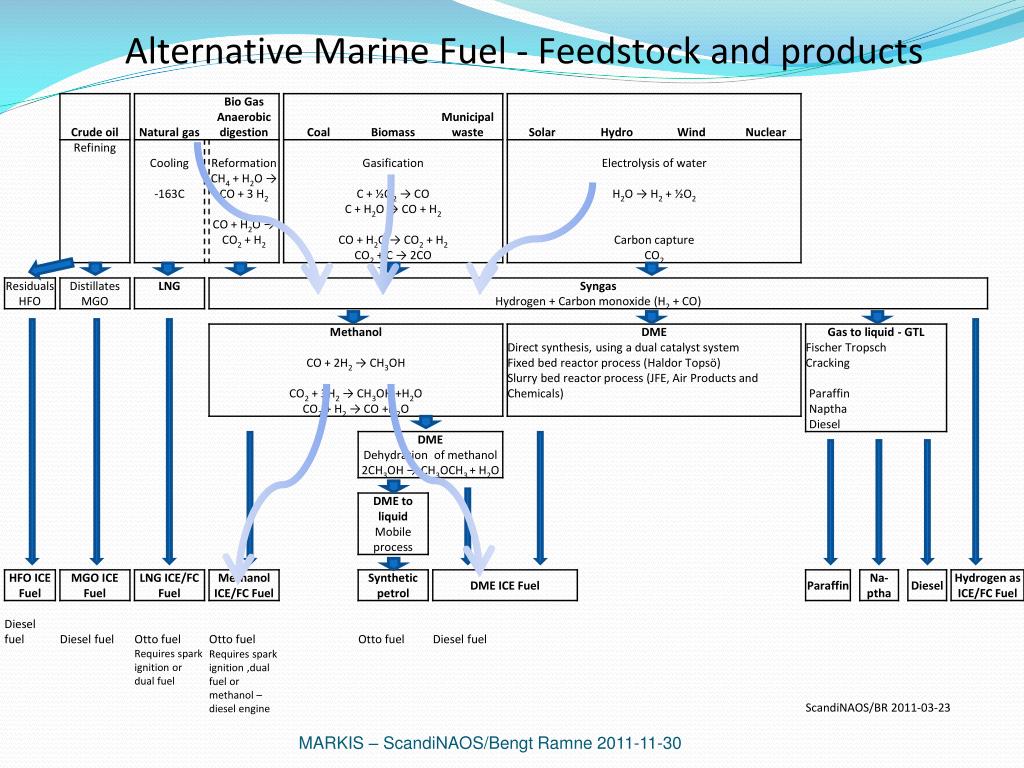

Alternative Marine Fuel - Feedstock and products

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

north europe seca baltic sea north sea and english channel
North Europe SECA(Baltic Sea, North Sea and English Channel)

Estimated Marine Fuel Market 2015

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

north europe seca baltic sea north sea and english channel1
North Europe SECA(Baltic Sea, North Sea and English Channel)

Estimated Marine Fuel Market 2015

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

spireth alcohol spirit and ether as marine fuel

SPIRETHAlcohol (Spirit) and Ether as Marine fuel

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

spireth
SPIRETH
  • The concept
    • Bunker methanol
    • Upgrade methanol to DME onboard
      • Use the DME in the existing diesel engines (only minor modifications required)
    • Use methanol direct in a “methanol-diesel” engine

Presentation for MAN Diesel & Turbo, 2011-09-01 Per Fagerlund, Bengt Ramne ScandiNAOS AB

stena scanrail

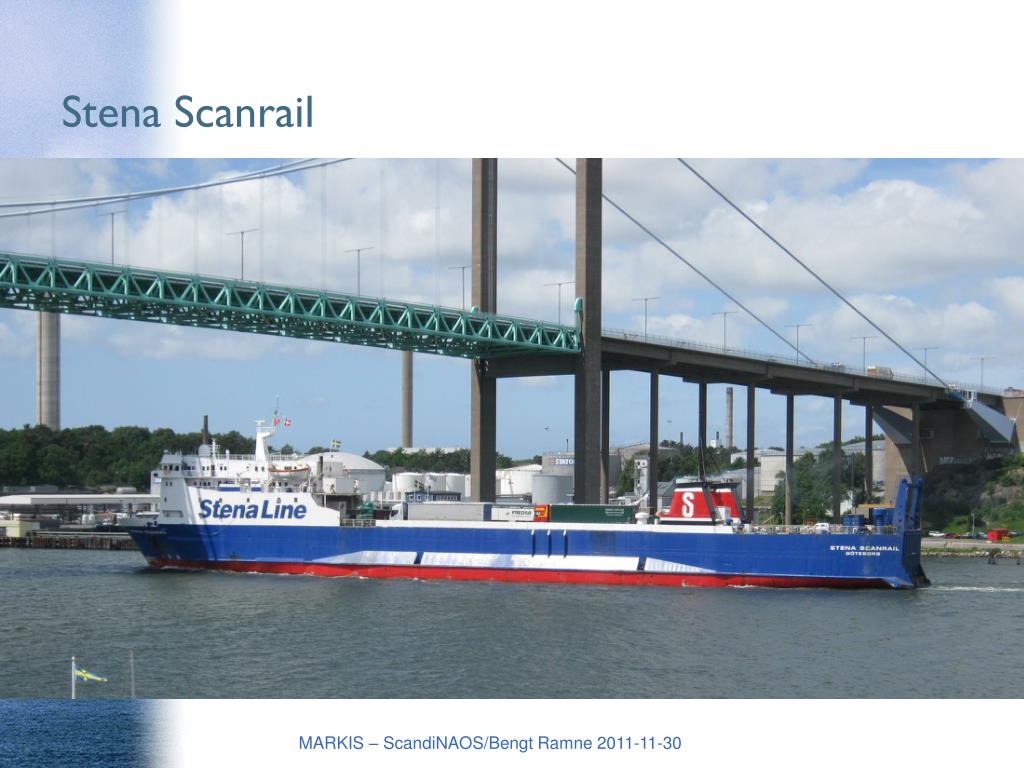

StenaScanrail

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

slide15

SPIRETH - The pilot project

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

spireth1
SPIRETH
  • The benefits
    • Methanol can be made available in principle everywhere
    • The Methanol market works much better than the LNG market
    • Methanol can be stored in hull tanks
    • Methanol energy cost lower than for MGO
    • Methanol-DME operation will fulfil tier 3 NOx requirements without after treatment
    • The cost for conversion and/or adaption to methanol is a fraction of the comparable cost for LNG

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

fuel comparison based on c onversion with 5 years pay back and 6 interest
Fuel comparison(Based on conversion with 5 years pay-back and 6% interest)

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30

effship spireth
EffShip&SPIRETH

There are a lot of opportunities in methanol!

MARKIS – ScandiNAOS/Bengt Ramne 2011-11-30
