F5 Acopia ARX Product Demonstration

1. F5 Acopia ARXProduct Demonstration Troy Alexander Field Systems Engineer

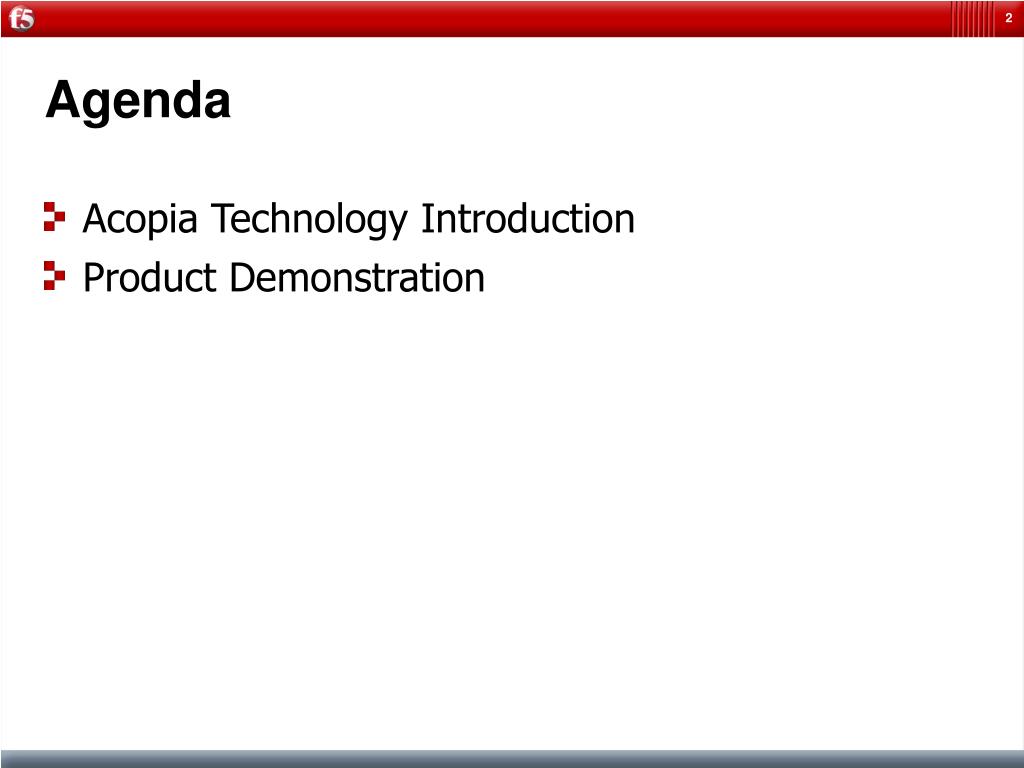

2. Agenda • Acopia Technology Introduction • Product Demonstration

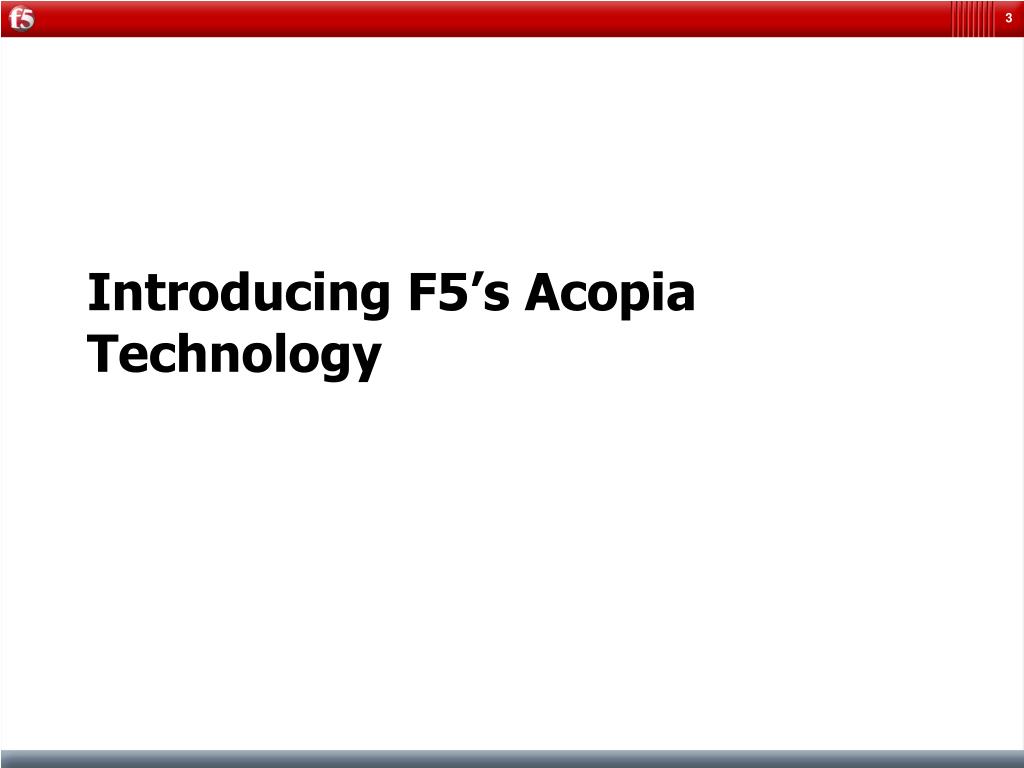

3. Introducing F5’s Acopia Technology

4. The Constraints of Today’s Infrastructure • Complex • Mixed vendors, platforms, file systems • Inflexible • Access is tightly coupled to file location • Disruptive to move data • Inefficient • Resources are under and over utilized • Growing rapidly • 70% annually (80% are files) The cost of managing storage is five to ten times the acquisition cost

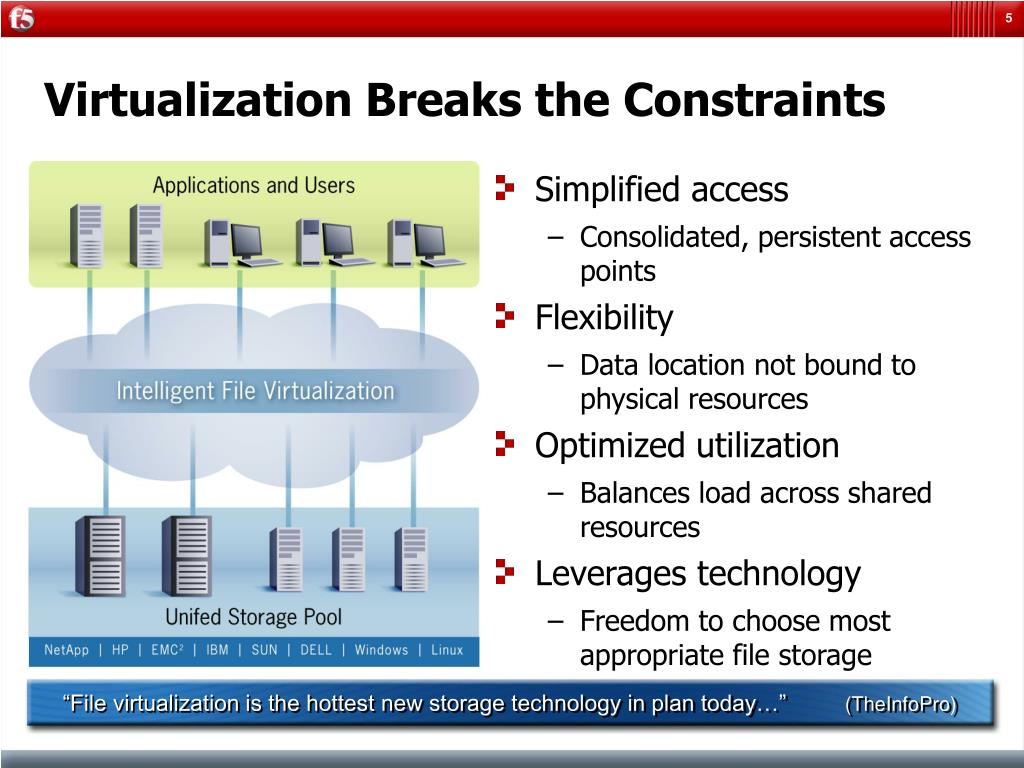

5. Virtualization Breaks the Constraints • Simplified access • Consolidated, persistent access points • Flexibility • Data location not bound to physical resources • Optimized utilization • Balances load across shared resources • Leverages technology • Freedom to choose most appropriate file storage “File virtualization is the hottest new storage technology in plan today…” (TheInfoPro)

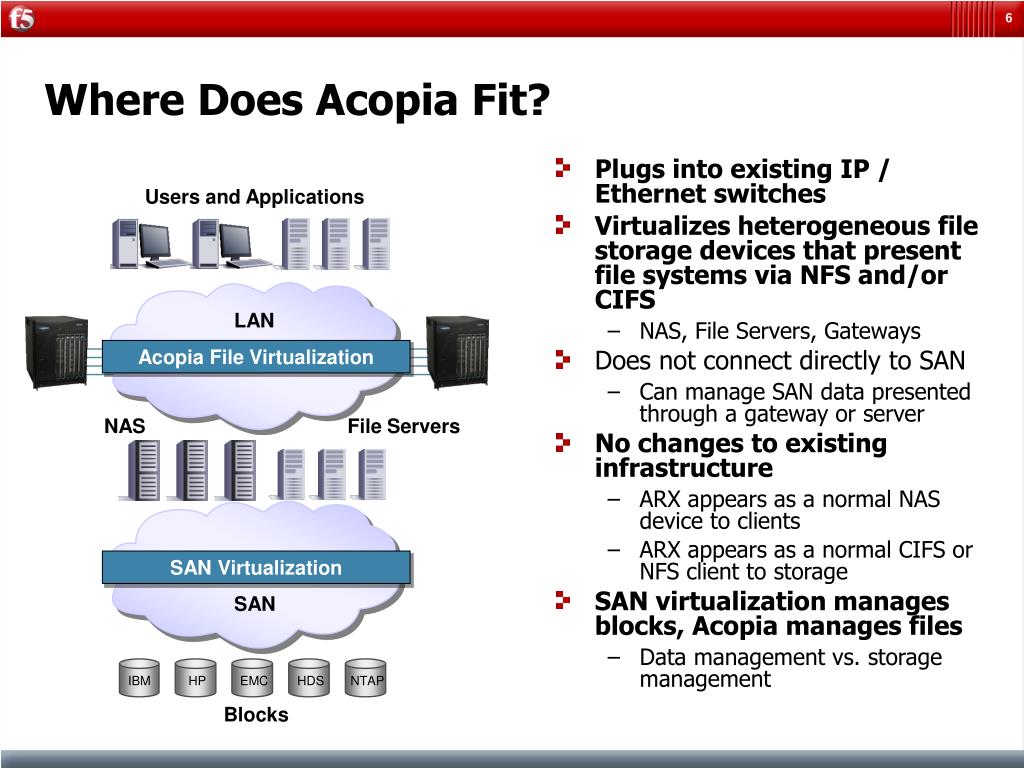

6. Where Does Acopia Fit? Users and Applications • Plugs into existing IP / Ethernet switches • Virtualizes heterogeneous file storage devices that present file systems via NFS and/or CIFS • NAS, File Servers, Gateways • Does not connect directly to SAN • Can manage SAN data presented through a gateway or server • No changes to existing infrastructure • ARX appears as a normal NAS device to clients • ARX appears as a normal CIFS or NFS client to storage • SAN virtualization manages blocks, Acopia manages files • Data management vs. storage management LAN Acopia File Virtualization NAS File Servers SAN Virtualization SAN SAN IBM HP EMC HDS NTAP Blocks

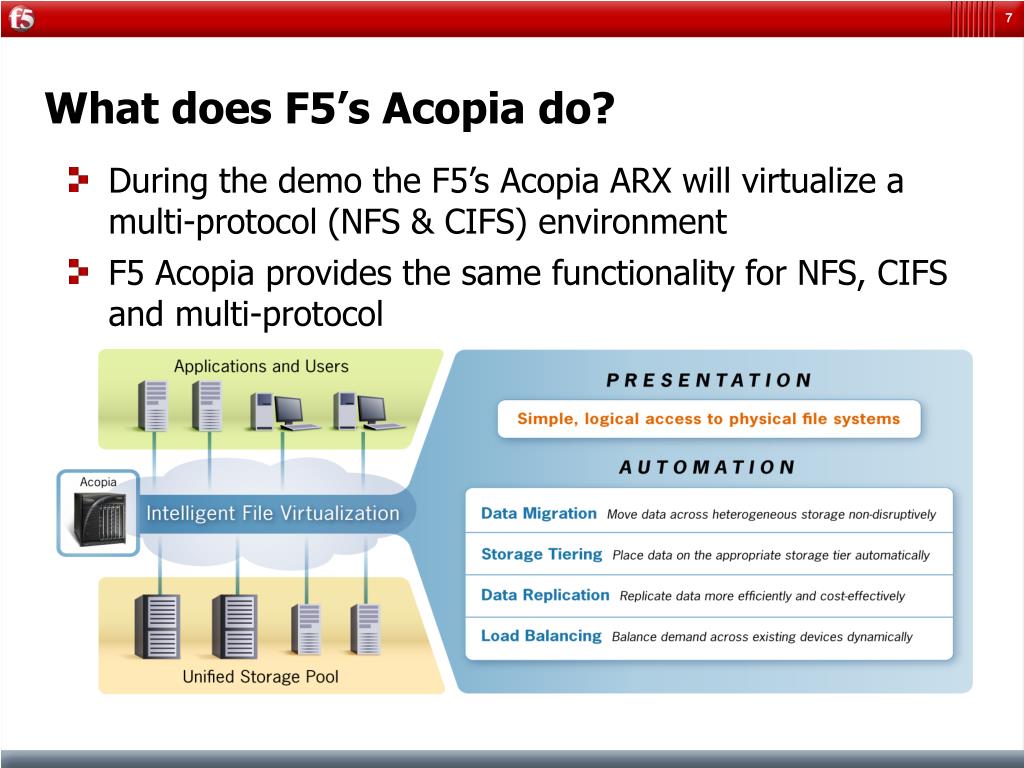

7. What does F5’s Acopia do? • During the demo the F5’s Acopia ARX will virtualize a multi-protocol (NFS & CIFS) environment • F5 Acopia provides the same functionality for NFS, CIFS and multi-protocol • Automates common storage management tasks • – Migration • – Storage Tiering • – Load Balancing • These tasks now take place without affecting access to the file data or requiring client re-configuration

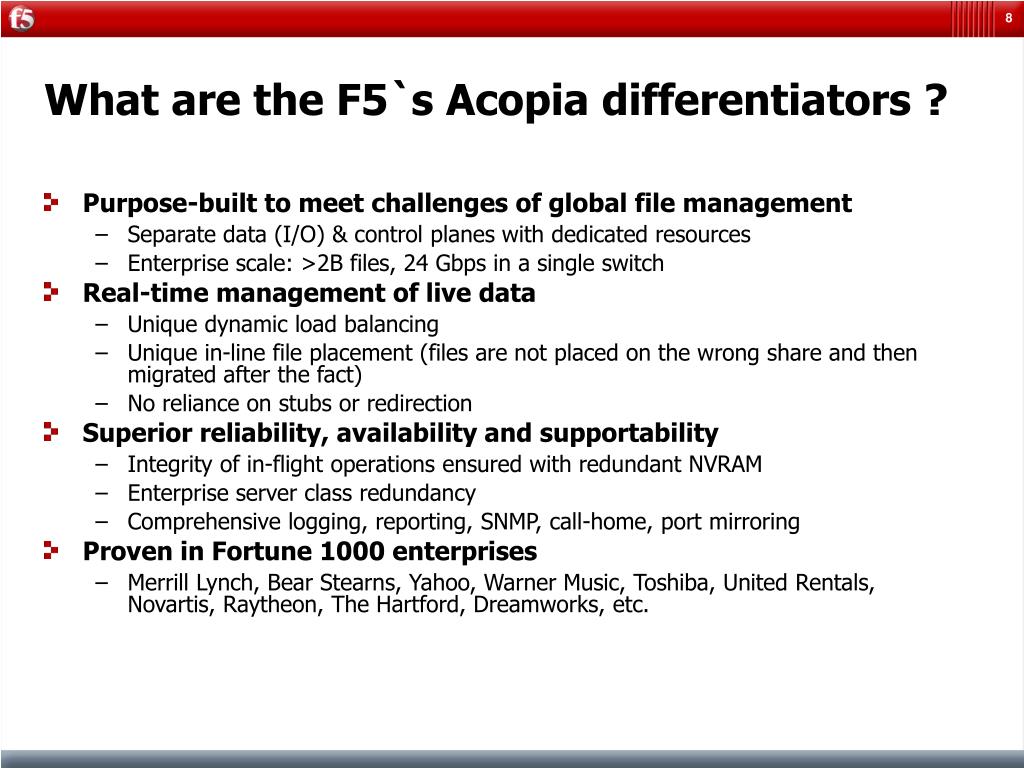

8. What are the F5`s Acopia differentiators ? • Purpose-built to meet challenges of global file management • Separate data (I/O) & control planes with dedicated resources • Enterprise scale: >2B files, 24 Gbps in a single switch • Real-time management of live data • Unique dynamic load balancing • Unique in-line file placement (files are not placed on the wrong share and then migrated after the fact) • No reliance on stubs or redirection • Superior reliability, availability and supportability • Integrity of in-flight operations ensured with redundant NVRAM • Enterprise server class redundancy • Comprehensive logging, reporting, SNMP, call-home, port mirroring • Proven in Fortune 1000 enterprises • Merrill Lynch, Bear Stearns, Yahoo, Warner Music, Toshiba, United Rentals, Novartis, Raytheon, The Hartford, Dreamworks, etc.

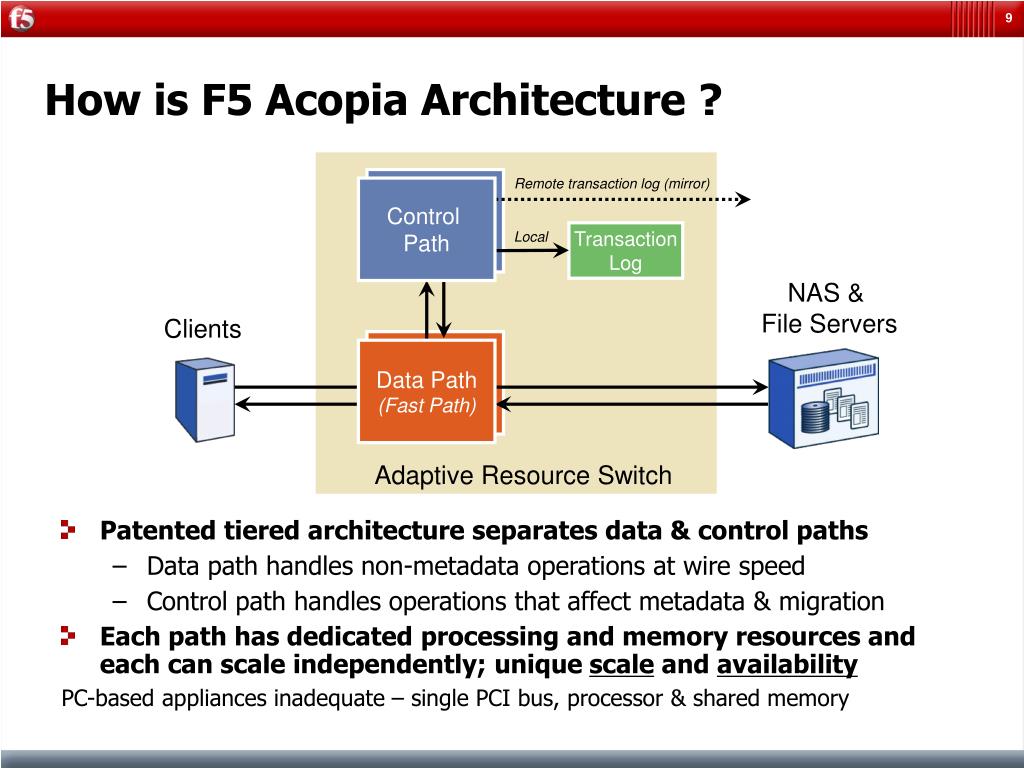

9. How is F5 Acopia Architecture ? Remote transaction log (mirror) Control Path • Patented tiered architecture separates data & control paths • Data path handles non-metadata operations at wire speed • Control path handles operations that affect metadata & migration • Each path has dedicated processing and memory resources and each can scale independently; unique scale and availability PC-based appliances inadequate – single PCI bus, processor & shared memory Local Transaction Log NAS & File Servers Clients Data Path (Fast Path) Adaptive Resource Switch

10. How will F5 Acopia Virtualization work ? Applications, Users Virtual Path Virtual IP arx:/eng/project1/spec.doc “Virtual Volume Manager” Routes virtual path to physical path na:/vol/vol2/project1/spec.doc NetApp Volume EMC Volume NAS Volume ILM operation 1 Virtual Volume

11. How will F5’s Acopia virtualization work ? Applications, Users Virtual Path does not change Virtual IP arx:/eng/project1/spec.doc New Physical Path “Virtual Volume Manager” Routes virtual path to physical path emc:/vol/vol2/project1/spec.doc NetApp Volume EMC Volume NAS Volume ILM operation 1 Virtual Volume

12. How will F5’s Acopia virtualization work ? Applications, Users Virtual Path does not change Virtual IP arx:/eng/project1/spec.doc “Virtual Volume Manager” Routes virtual path to physical path nas:/vol/vol1/project1/spec.doc NetApp Volume EMC Volume NAS Volume ILM operation 2 Virtual Volume

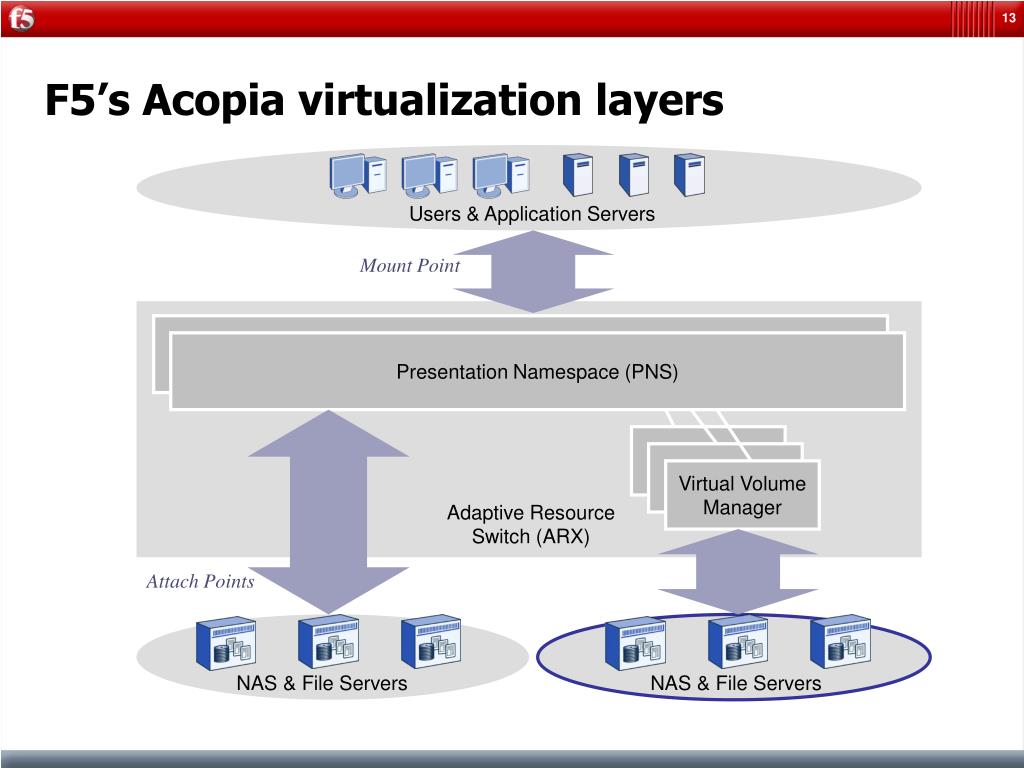

13. F5’s Acopia virtualization layers Users & Application Servers Mount Point Presentation Namespace Presentation Namespace (PNS) Virtual Volume Manager Adaptive Resource Switch (ARX) Attach Points NAS & File Servers NAS & File Servers

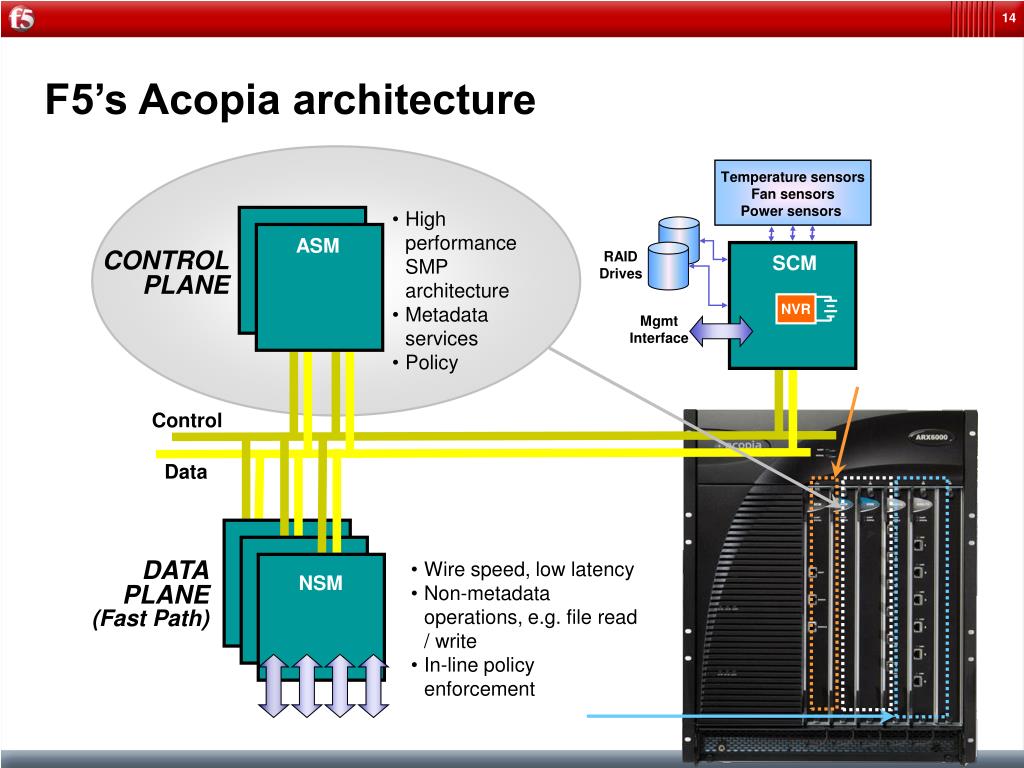

14. NVR NSM F5’s Acopia architecture Temperature sensors Fan sensors Power sensors • High performance SMP architecture • Metadata services • Policy ASM RAID Drives CONTROLPLANE SCM Mgmt Interface Control Data • Wire speed, low latency • Non-metadata operations, e.g. file read / write • In-line policy enforcement DATAPLANE (Fast Path)

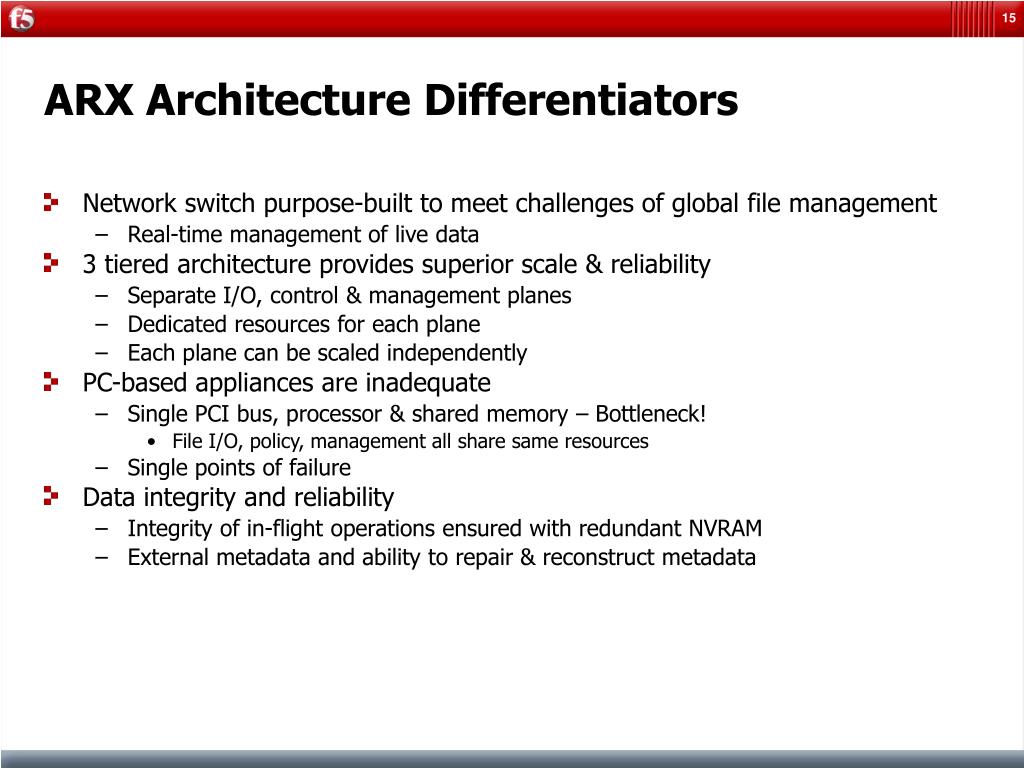

15. ARX Architecture Differentiators • Network switch purpose-built to meet challenges of global file management • Real-time management of live data • 3 tiered architecture provides superior scale & reliability • Separate I/O, control & management planes • Dedicated resources for each plane • Each plane can be scaled independently • PC-based appliances are inadequate • Single PCI bus, processor & shared memory – Bottleneck! • File I/O, policy, management all share same resources • Single points of failure • Data integrity and reliability • Integrity of in-flight operations ensured with redundant NVRAM • External metadata and ability to repair & reconstruct metadata

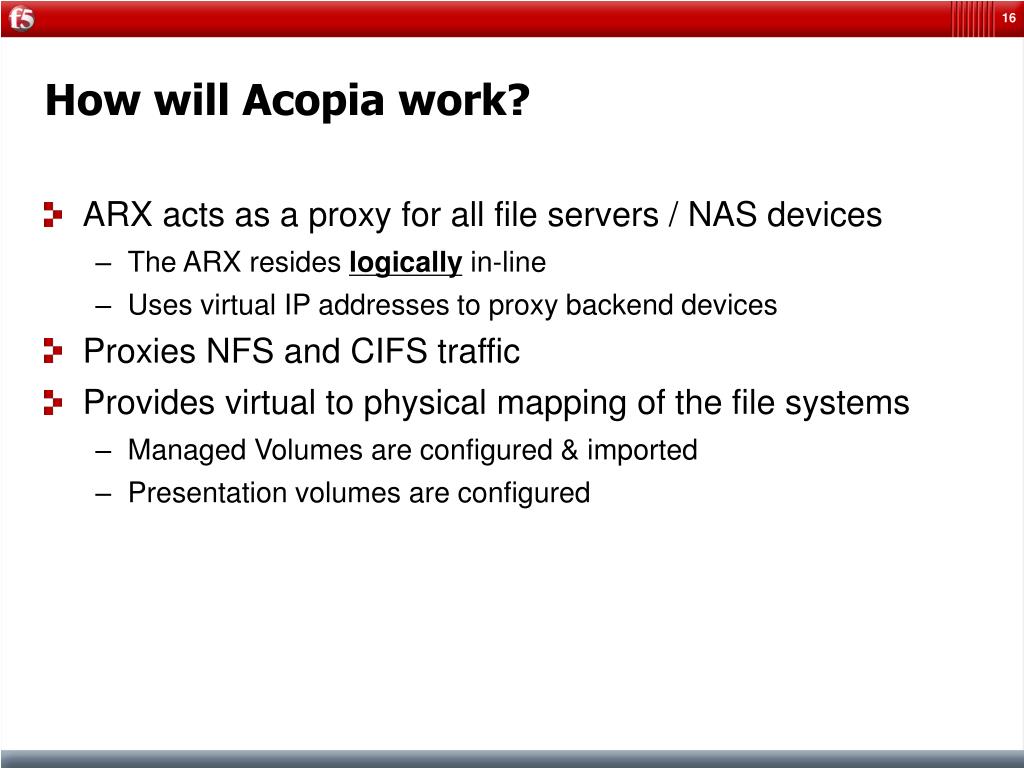

16. How will Acopia work? • ARX acts as a proxy for all file servers / NAS devices • The ARX resides logically in-line • Uses virtual IP addresses to proxy backend devices • Proxies NFS and CIFS traffic • Provides virtual to physical mapping of the file systems • Managed Volumes are configured & imported • Presentation volumes are configured

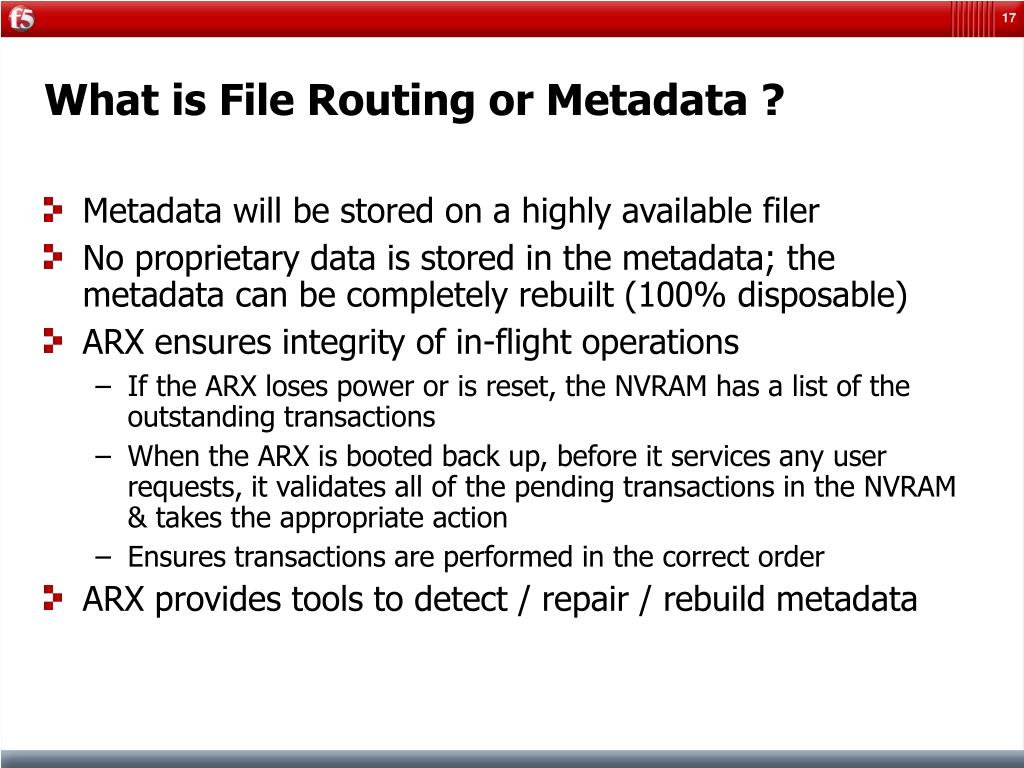

17. What is File Routing or Metadata ? • Metadata will be stored on a highly available filer • No proprietary data is stored in the metadata; the metadata can be completely rebuilt (100% disposable) • ARX ensures integrity of in-flight operations • If the ARX loses power or is reset, the NVRAM has a list of the outstanding transactions • When the ARX is booted back up, before it services any user requests, it validates all of the pending transactions in the NVRAM & takes the appropriate action • Ensures transactions are performed in the correct order • ARX provides tools to detect / repair / rebuild metadata

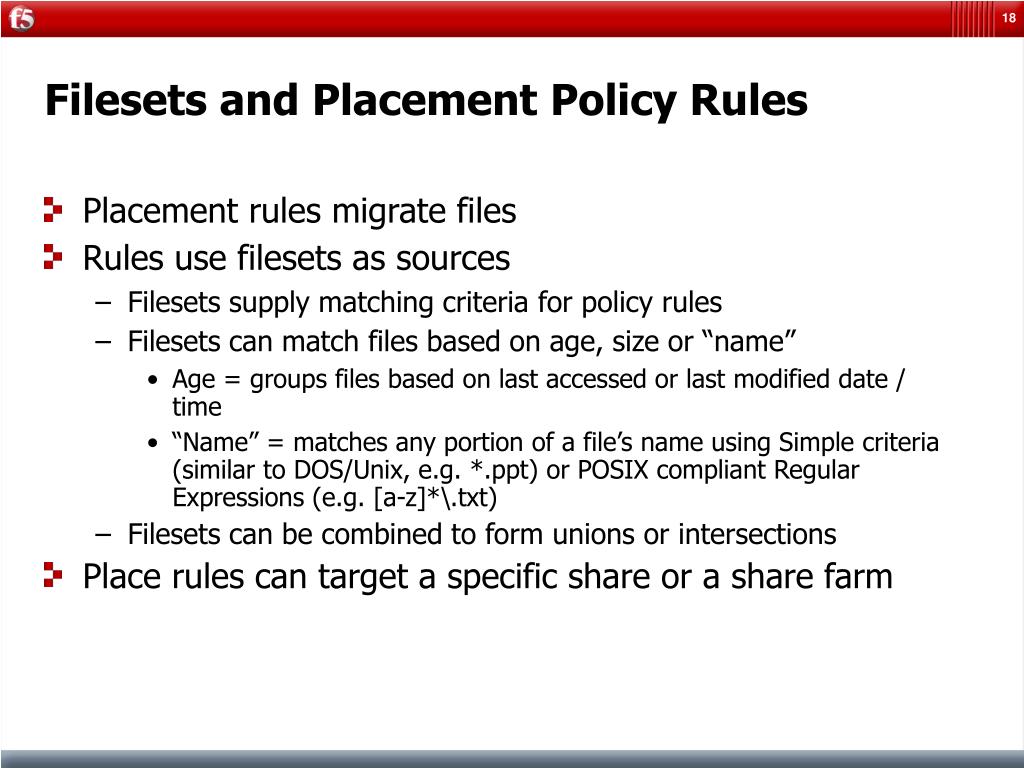

18. Filesets and Placement Policy Rules • Placement rules migrate files • Rules use filesets as sources • Filesets supply matching criteria for policy rules • Filesets can match files based on age, size or “name” • Age = groups files based on last accessed or last modified date / time • “Name” = matches any portion of a file’s name using Simple criteria (similar to DOS/Unix, e.g. *.ppt) or POSIX compliant Regular Expressions (e.g. [a-z]*\.txt) • Filesets can be combined to form unions or intersections • Place rules can target a specific share or a share farm

19. What are Acopia’s Policy Differentiators • Load balancing is unique to Acopia • No other virtualization device is able to do in-line placement and real time load balancing • Multi-protocol, multi-vendor migration is unique to Acopia • Ability to tier storage without requiring stubs is unique to Acopia • In-line policy enforcement is unique to Acopia • Competitive solutions require expensive “treewalks” to determine what to move / replicate • Flexibility and scale of migration / replication capability is unique to Acopia • From individual file / fileset to an entire virtual volumes

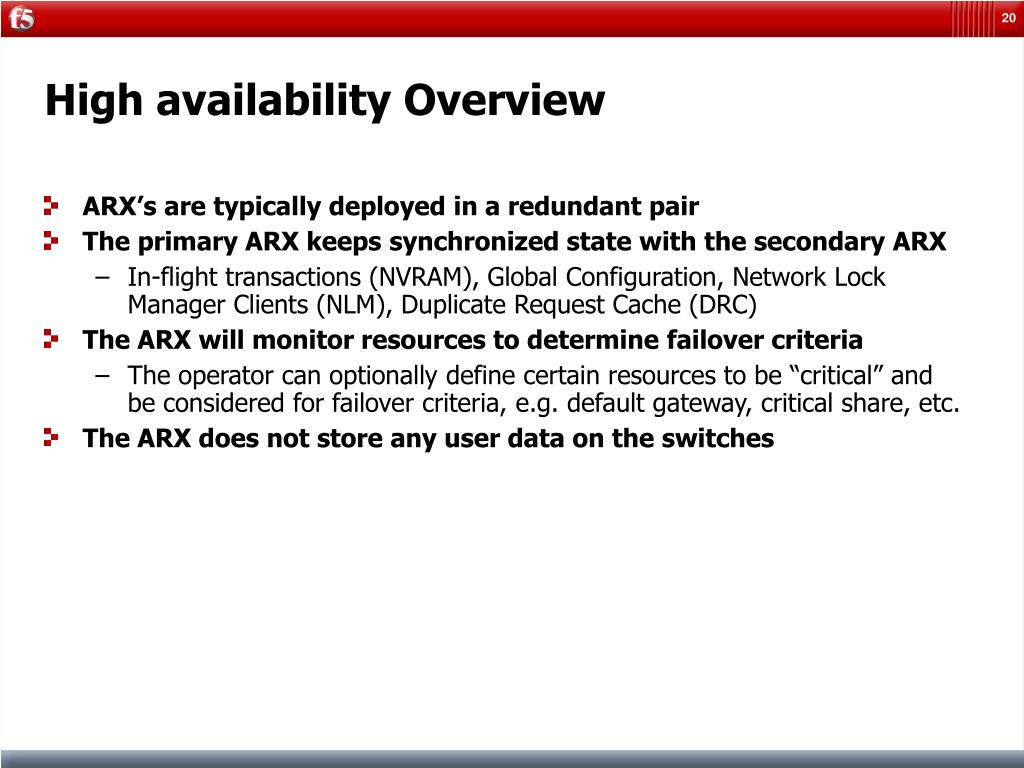

20. High availability Overview • ARX’s are typically deployed in a redundant pair • The primary ARX keeps synchronized state with the secondary ARX • In-flight transactions (NVRAM), Global Configuration, Network Lock Manager Clients (NLM), Duplicate Request Cache (DRC) • The ARX will monitor resources to determine failover criteria • The operator can optionally define certain resources to be “critical” and be considered for failover criteria, e.g. default gateway, critical share, etc. • The ARX does not store any user data on the switches

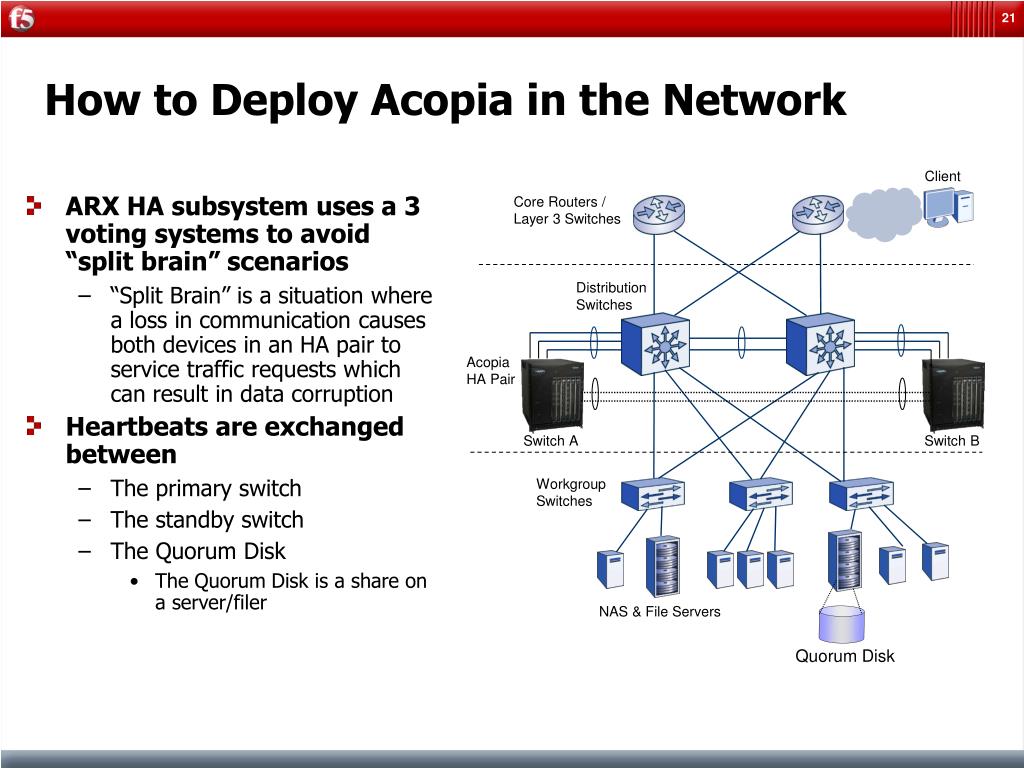

21. ARX HA subsystem uses a 3 voting systems to avoid “split brain” scenarios “Split Brain” is a situation where a loss in communication causes both devices in an HA pair to service traffic requests which can result in data corruption Heartbeats are exchanged between The primary switch The standby switch The Quorum Disk The Quorum Disk is a share on a server/filer How to Deploy Acopia in the Network Client Core Routers / Layer 3 Switches Distribution Switches Acopia HA Pair Switch A Switch B Workgroup Switches NAS & File Servers Quorum Disk

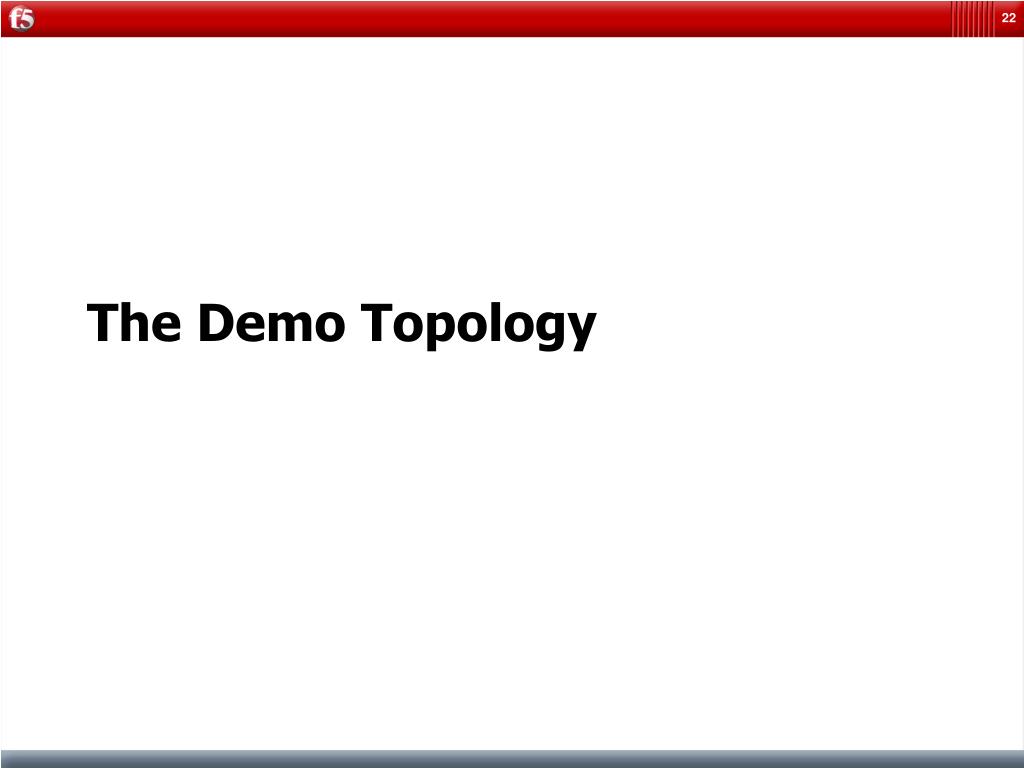

22. The Demo Topology

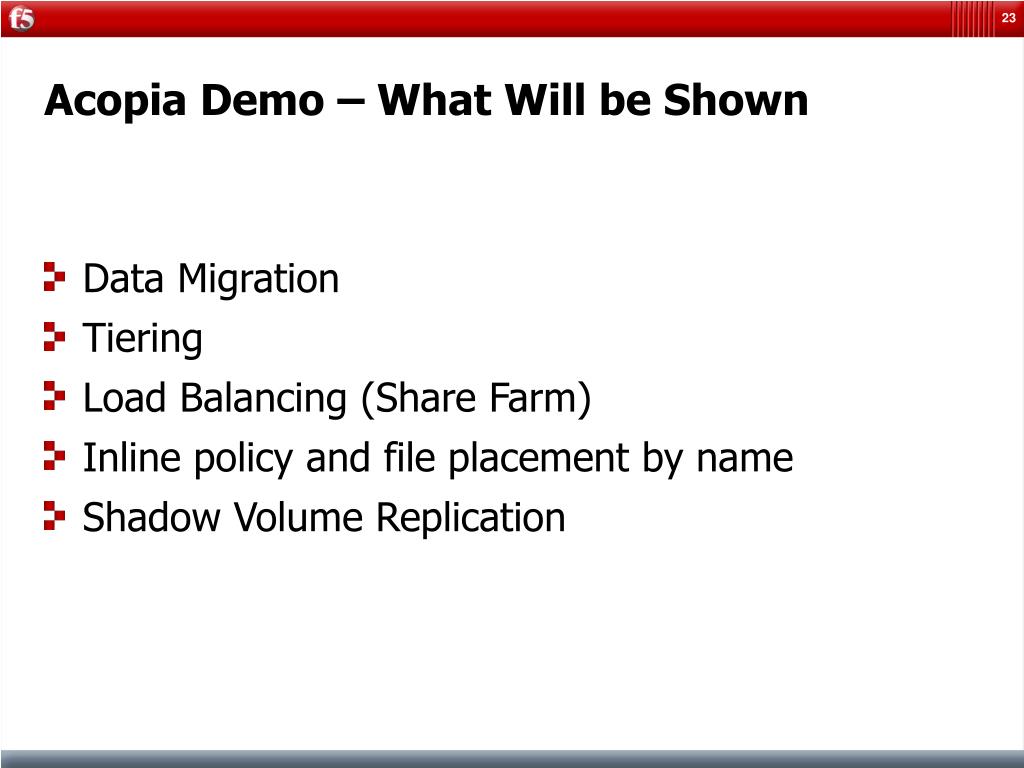

23. Acopia Demo – What Will be Shown • Data Migration • Tiering • Load Balancing (Share Farm) • Inline policy and file placement by name • Shadow Volume Replication

24. Data Migration

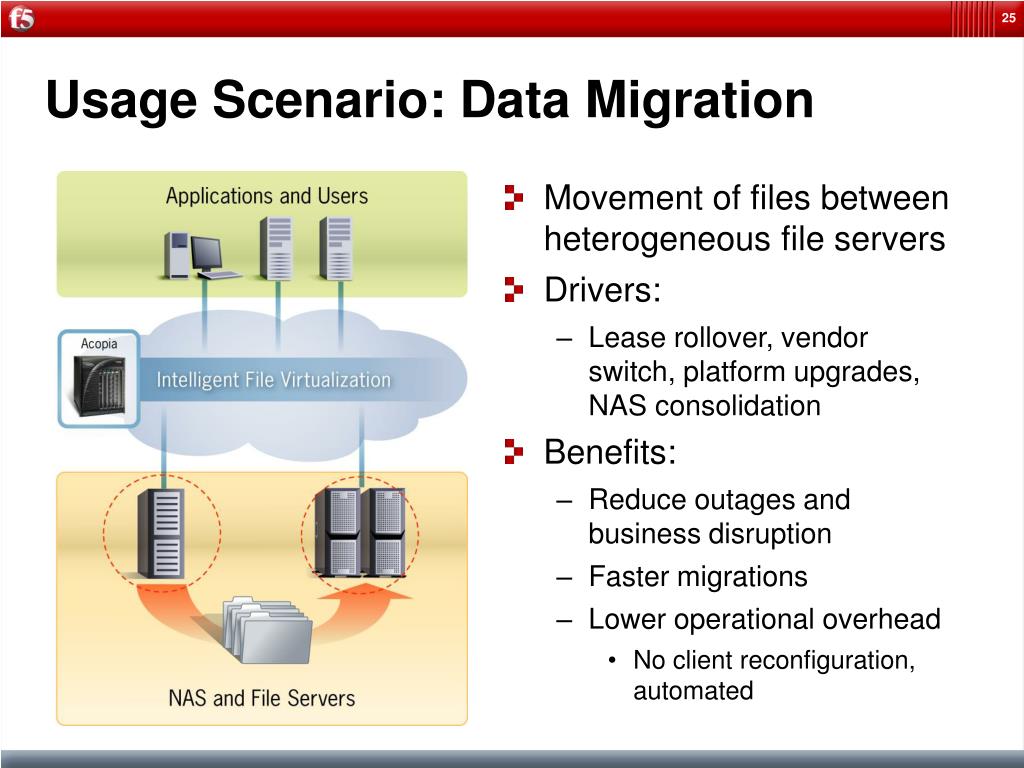

25. Usage Scenario: Data Migration • Movement of files between heterogeneous file servers • Drivers: • Lease rollover, vendor switch, platform upgrades, NAS consolidation • Benefits: • Reduce outages and business disruption • Faster migrations • Lower operational overhead • No client reconfiguration, automated

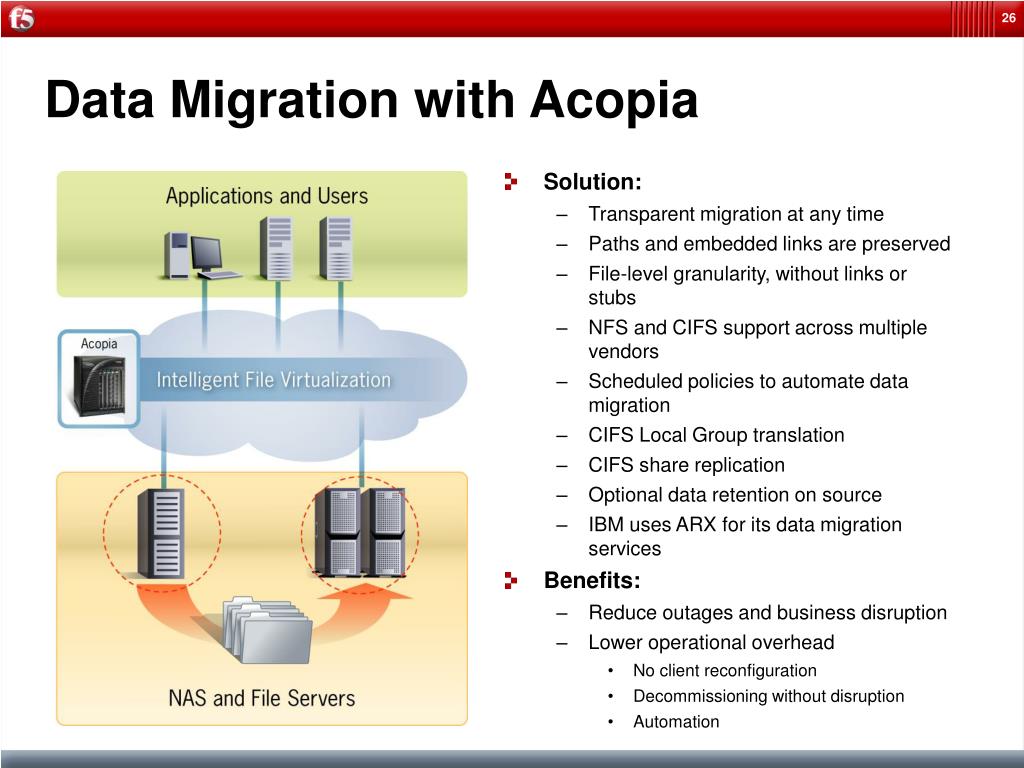

26. Data Migration with Acopia • Solution: • Transparent migration at any time • Paths and embedded links are preserved • File-level granularity, without links or stubs • NFS and CIFS support across multiple vendors • Scheduled policies to automate data migration • CIFS Local Group translation • CIFS share replication • Optional data retention on source • IBM uses ARX for its data migration services • Benefits: • Reduce outages and business disruption • Lower operational overhead • No client reconfiguration • Decommissioning without disruption • Automation

27. Data Migration (One for One) • Transparent migrations occur at the file system level via standard CIFS / NFS protocols • A file system is migrated in its entirety to a single target file system • All names, paths, and embedded links are preserved • Multiple file systems can be migrated in parallel • Inline policy steers all new file creations to target filer • No need to go back and re-scan like Robocopy or Rsync • No need to quiesce clients to pick up final changes • File systems are probed by the ARX to ensure compatibility before merging • The ARX uses no linking or stub technology so it is backed out easily F5 Acopia ARX Client View NAS-1 home on “server1” (U:) NAS-2

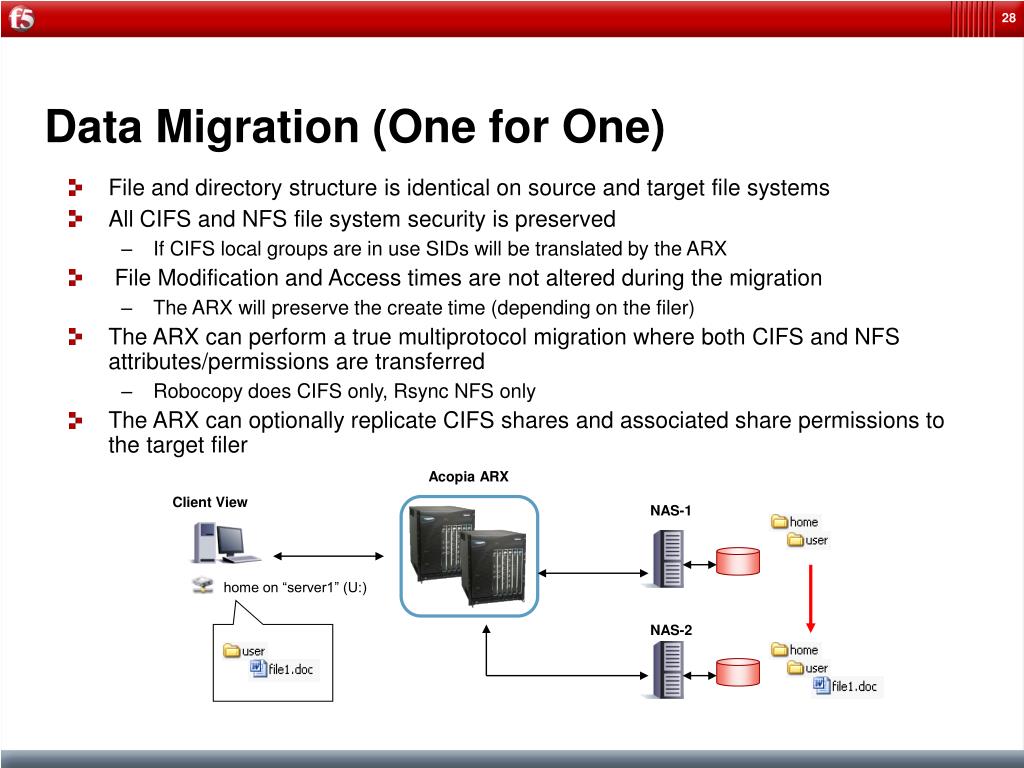

28. Data Migration (One for One) • File and directory structure is identical on source and target file systems • All CIFS and NFS file system security is preserved • If CIFS local groups are in use SIDs will be translated by the ARX • File Modification and Access times are not altered during the migration • The ARX will preserve the create time (depending on the filer) • The ARX can perform a true multiprotocol migration where both CIFS and NFS attributes/permissions are transferred • Robocopy does CIFS only, Rsync NFS only • The ARX can optionally replicate CIFS shares and associated share permissions to the target filer Acopia ARX Client View NAS-1 home on “server1” (U:) NAS-2

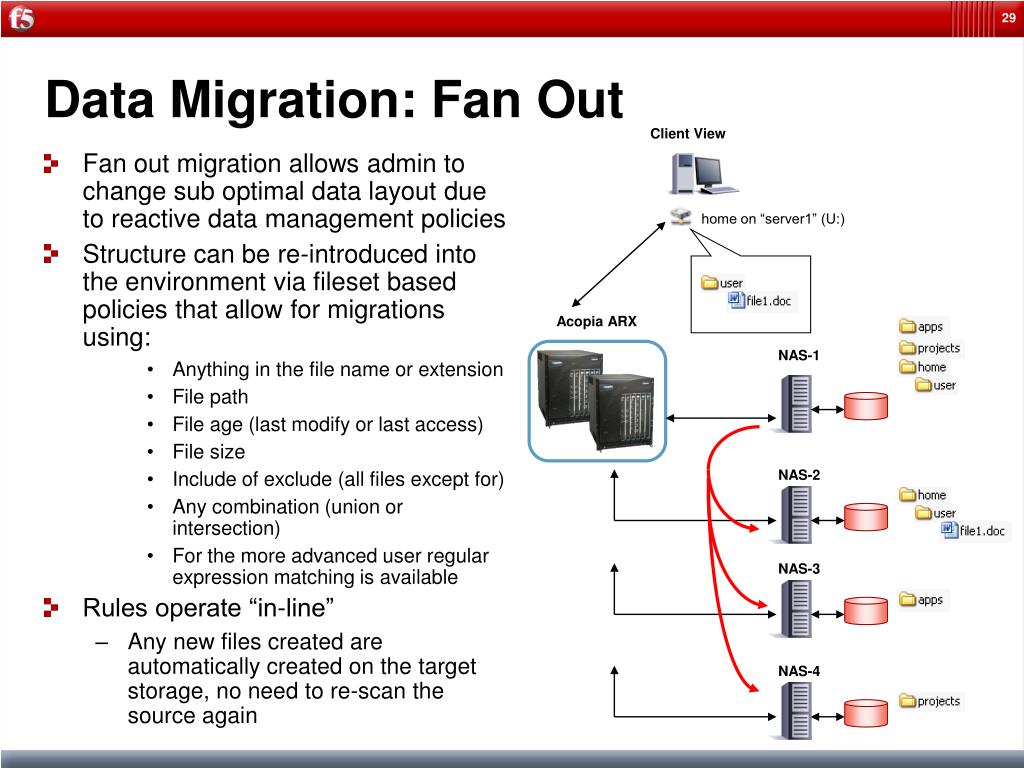

29. Data Migration: Fan Out Client View • Fan out migration allows admin to change sub optimal data layout due to reactive data management policies • Structure can be re-introduced into the environment via fileset based policies that allow for migrations using: • Anything in the file name or extension • File path • File age (last modify or last access) • File size • Include of exclude (all files except for) • Any combination (union or intersection) • For the more advanced user regular expression matching is available • Rules operate “in-line” • Any new files created are automatically created on the target storage, no need to re-scan the source again home on “server1” (U:) Acopia ARX NAS-1 NAS-2 NAS-3 NAS-4

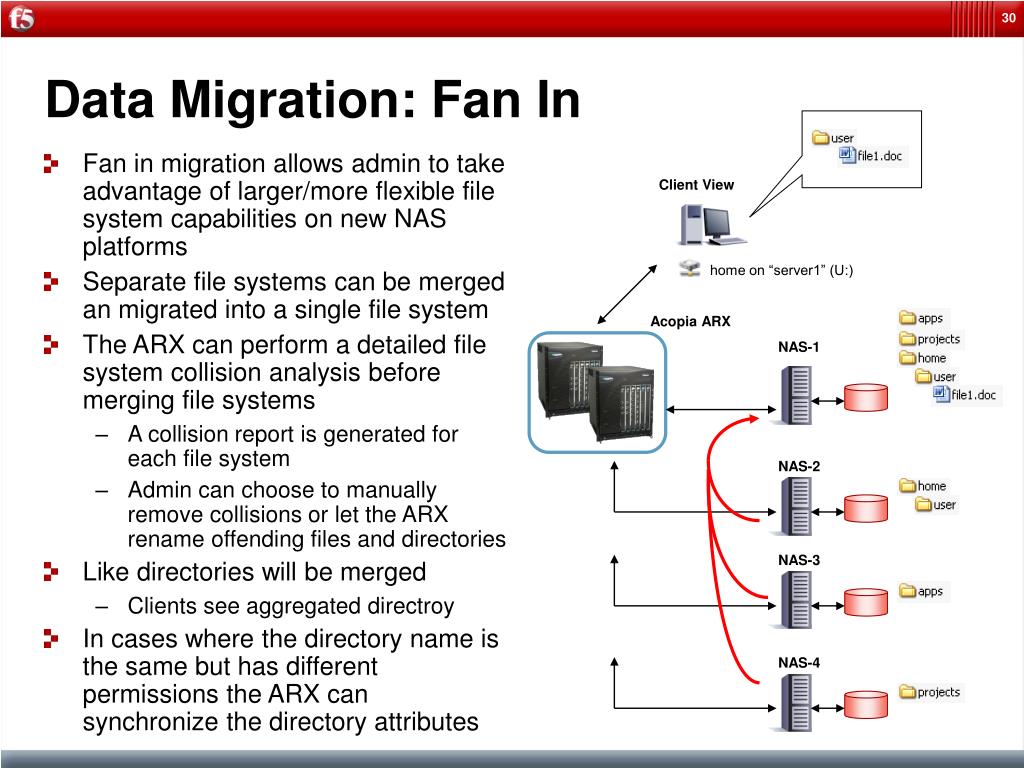

30. Data Migration: Fan In • Fan in migration allows admin to take advantage of larger/more flexible file system capabilities on new NAS platforms • Separate file systems can be merged an migrated into a single file system • The ARX can perform a detailed file system collision analysis before merging file systems • A collision report is generated for each file system • Admin can choose to manually remove collisions or let the ARX rename offending files and directories • Like directories will be merged • Clients see aggregated directroy • In cases where the directory name is the same but has different permissions the ARX can synchronize the directory attributes Client View home on “server1” (U:) Acopia ARX NAS-1 NAS-2 NAS-3 NAS-4

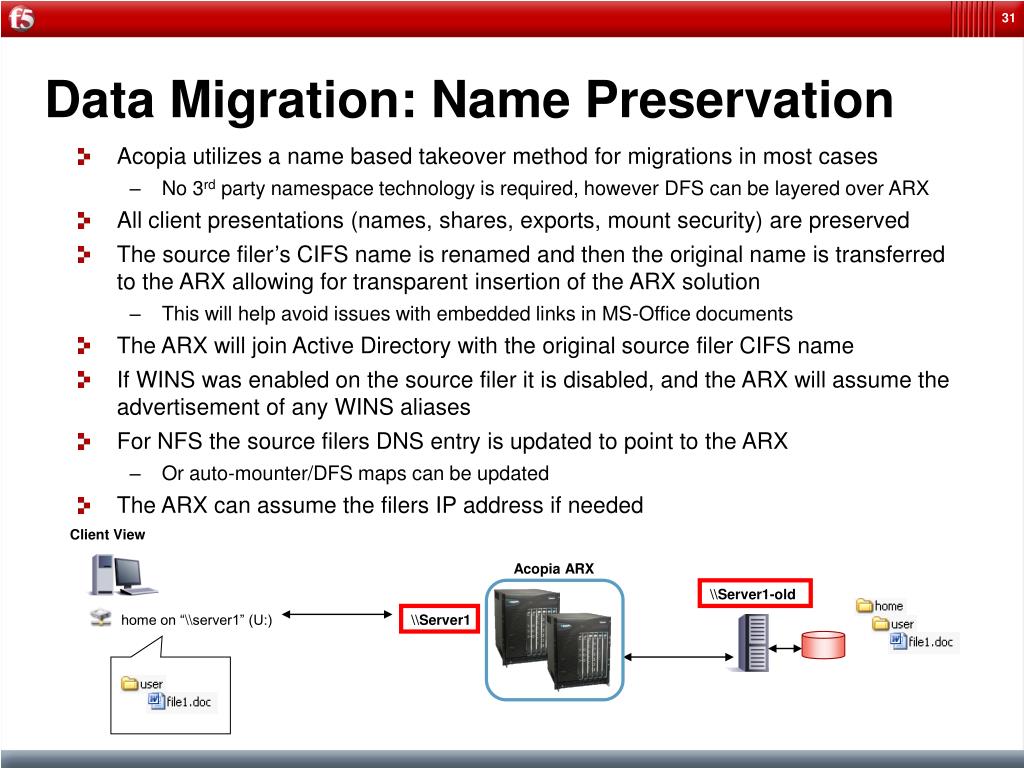

31. Data Migration: Name Preservation • Acopia utilizes a name based takeover method for migrations in most cases • No 3rd party namespace technology is required, however DFS can be layered over ARX • All client presentations (names, shares, exports, mount security) are preserved • The source filer’s CIFS name is renamed and then the original name is transferred to the ARX allowing for transparent insertion of the ARX solution • This will help avoid issues with embedded links in MS-Office documents • The ARX will join Active Directory with the original source filer CIFS name • If WINS was enabled on the source filer it is disabled, and the ARX will assume the advertisement of any WINS aliases • For NFS the source filers DNS entry is updated to point to the ARX • Or auto-mounter/DFS maps can be updated • The ARX can assume the filers IP address if needed Client View Acopia ARX \\Server1-old home on “\\server1” (U:) \\Server1

32. Case Study: NAS Consolidation “Acopia's products allow us to consolidate our back-end storage resources while providing data access to our users without disruption.” Chief Technology Architect

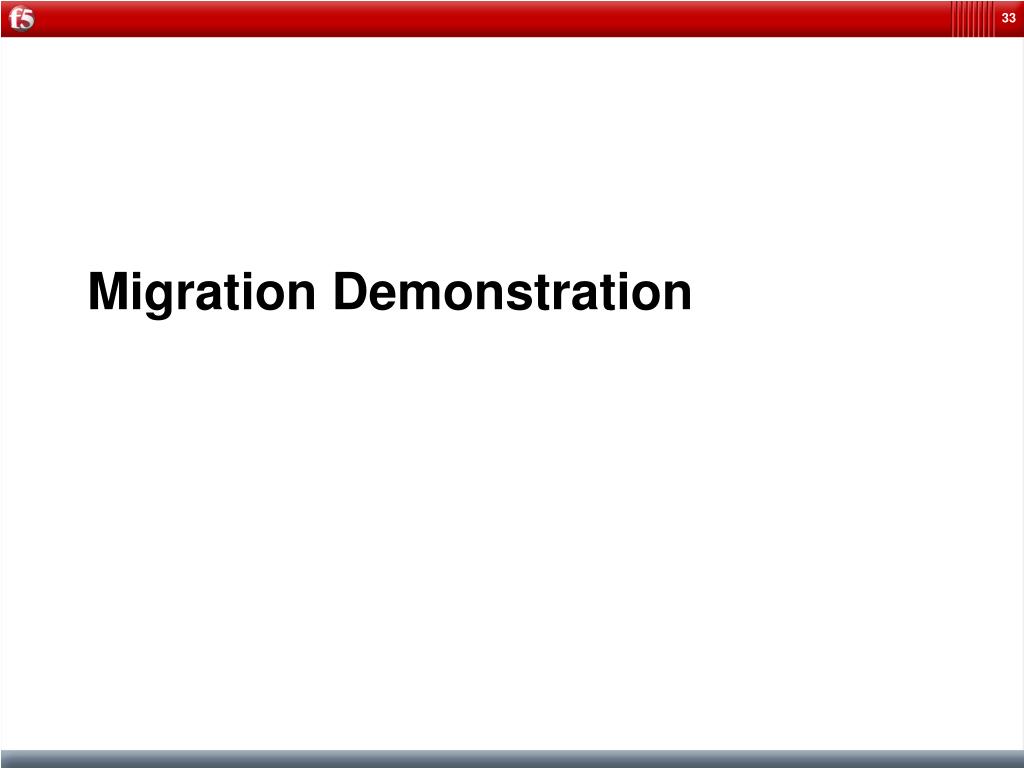

33. Migration Demonstration

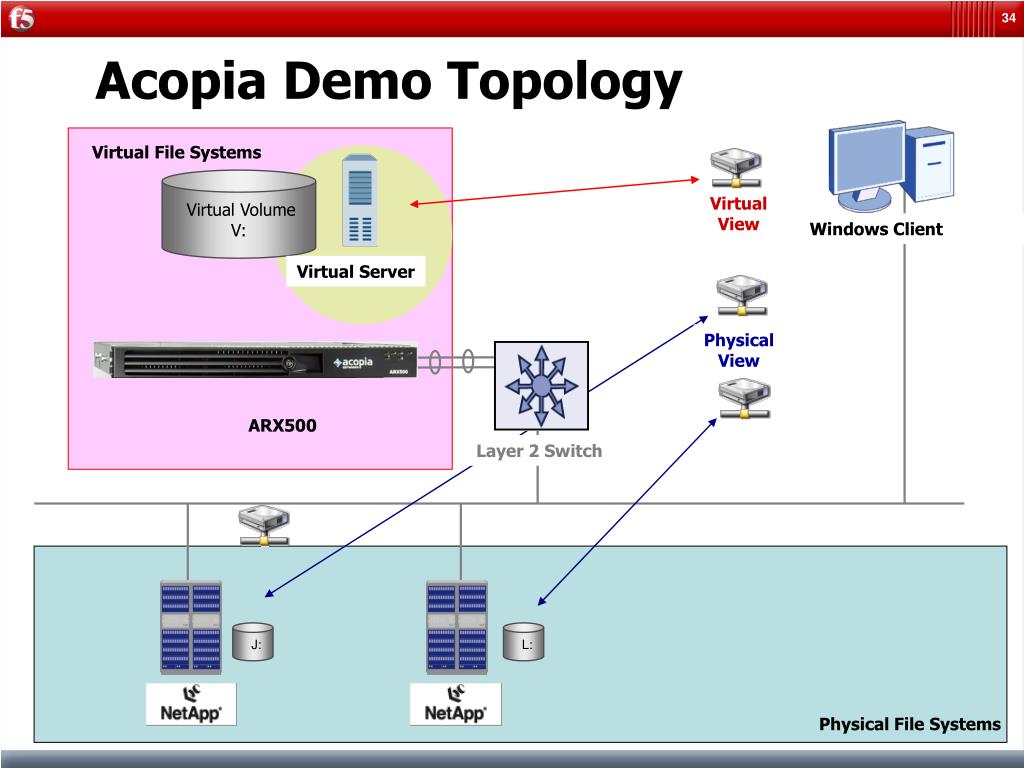

34. Acopia Demo Topology Virtual File Systems Virtual Volume V: Virtual View Windows Client Virtual Server Physical View ARX500 Layer 2 Switch J: L: Physical File Systems

35. Storage TieringInformation Lifecycle Management

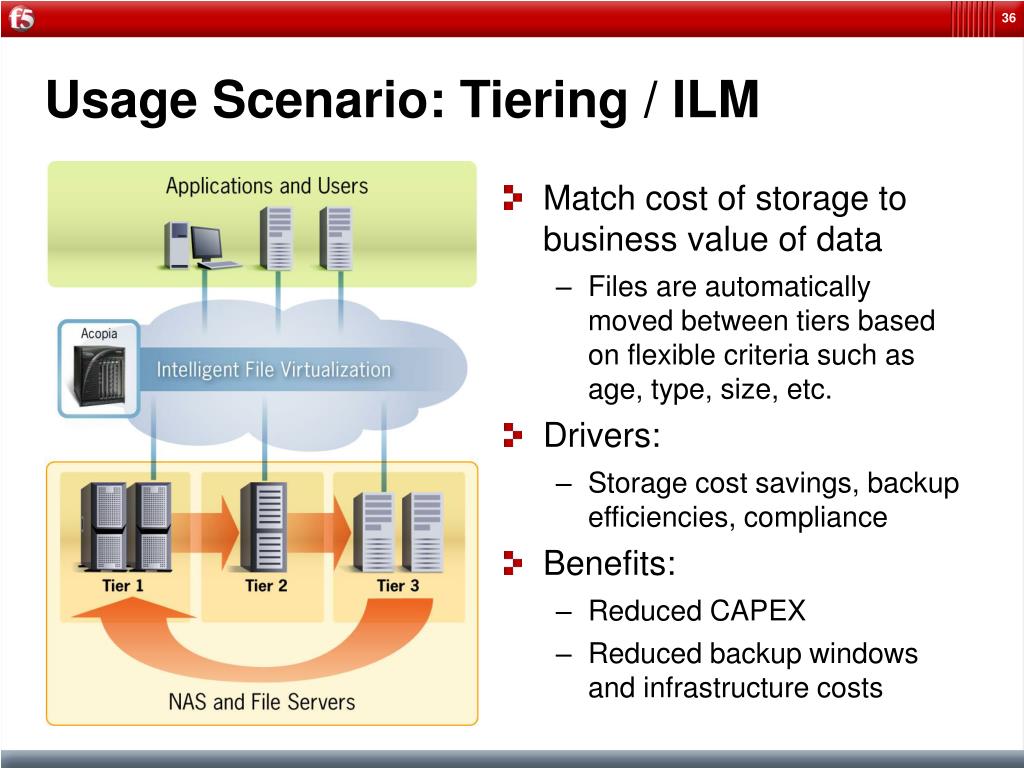

36. Usage Scenario: Tiering / ILM • Match cost of storage to business value of data • Files are automatically moved between tiers based on flexible criteria such as age, type, size, etc. • Drivers: • Storage cost savings, backup efficiencies, compliance • Benefits: • Reduced CAPEX • Reduced backup windows and infrastructure costs

37. Storage Tiering with F5 Acopia • Solution: • Automated, non-disruptive data placement of flexibly defined filesets • Multi-vendor, multi-platform • Clean (no stubs or links) • File movement can be scheduled • Benefits: • Reduced CAPEX • Leverage cost effective storage • Reduced OPEX • Reduced backup windows and infrastructure costs

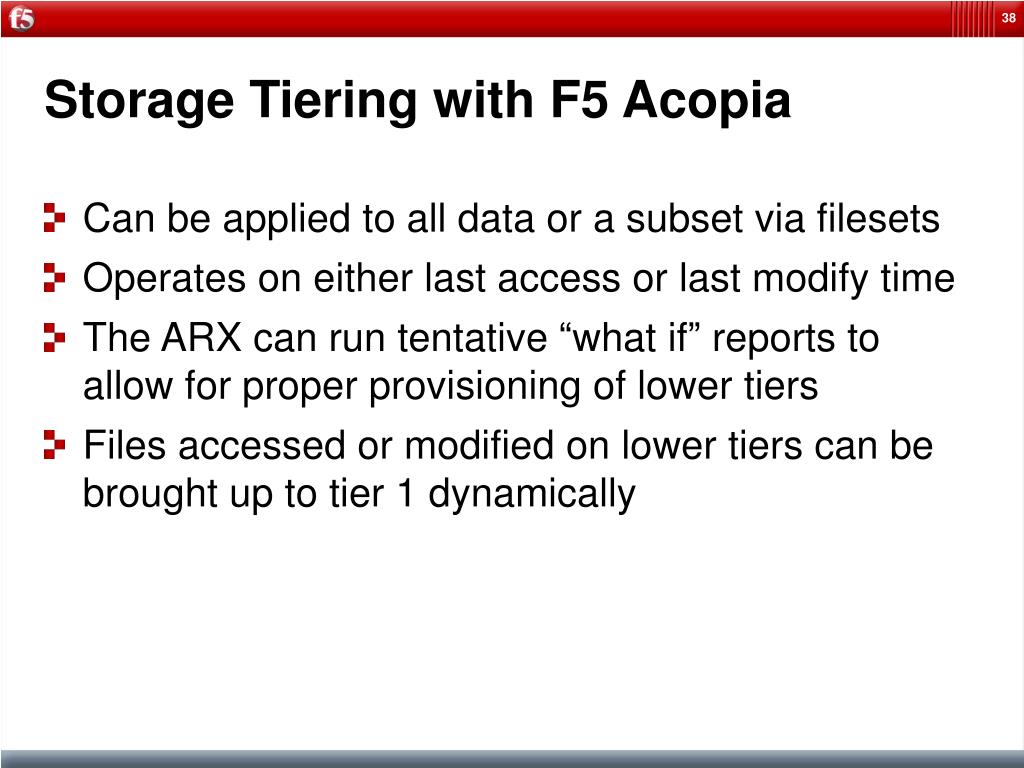

38. Storage Tiering with F5 Acopia • Can be applied to all data or a subset via filesets • Operates on either last access or last modify time • The ARX can run tentative “what if” reports to allow for proper provisioning of lower tiers • Files accessed or modified on lower tiers can be brought up to tier 1 dynamically

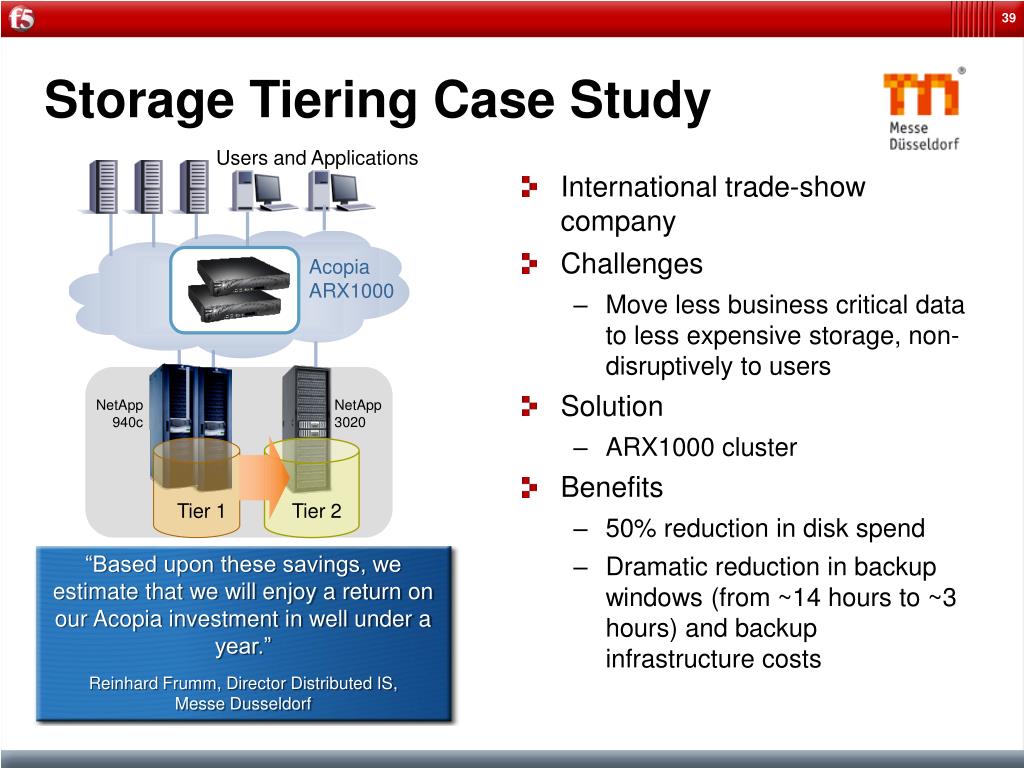

39. Storage Tiering Case Study Users and Applications • International trade-show company • Challenges • Move less business critical data to less expensive storage, non-disruptively to users • Solution • ARX1000 cluster • Benefits • 50% reduction in disk spend • Dramatic reduction in backup windows (from ~14 hours to ~3 hours) and backup infrastructure costs Acopia ARX1000 NetApp 940c NetApp 3020 Tier 1 Tier 2 “Based upon these savings, we estimate that we will enjoy a return on our Acopia investment in well under a year.” Reinhard Frumm, Director Distributed IS, Messe Dusseldorf

40. Tiering Demonstration

41. Acopia Demo Topology Virtual File Systems Virtual Volume V: Virtual View Windows Client Virtual Server Physical View ARX500 Layer 2 Switch L: Tier 1 N: Tier 2 Physical File Systems

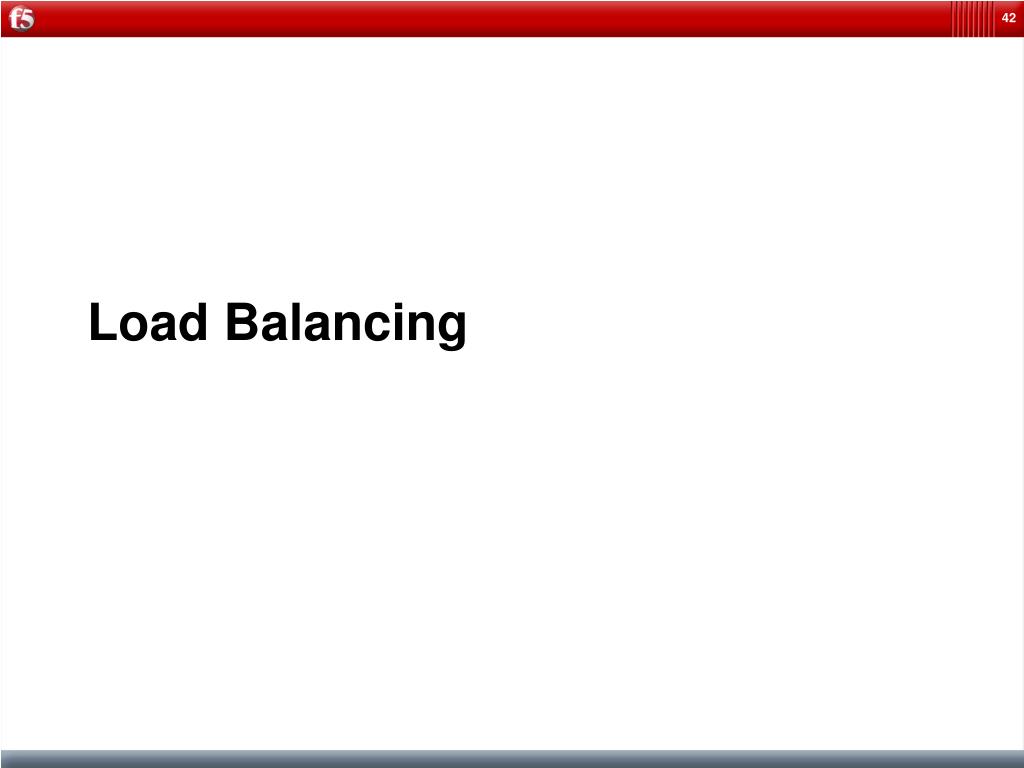

42. Load Balancing

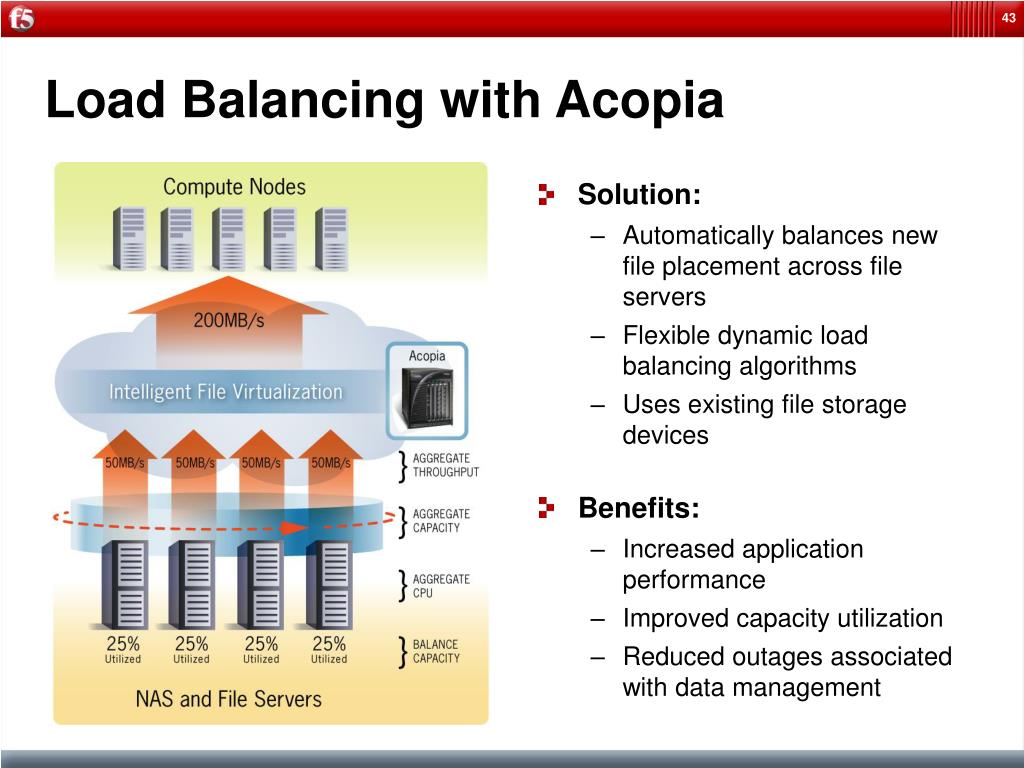

43. Load Balancing with Acopia • Solution: • Automatically balances new file placement across file servers • Flexible dynamic load balancing algorithms • Uses existing file storage devices • Benefits: • Increased application performance • Improved capacity utilization • Reduced outages associated with data management

44. 2 TB 2 TB 2 TB 2 TB Load Balancing Application • A common problem for our customers is applications that require lots of space • Administrators are reluctant to provision a large file system, because if it ever needs to be recovered it will take too long • They tend to provision smaller file systems and force the application deal with adding new storage locations • This typically requires application down time and complexity being added to the application • The ARX can decouple the application from the physical storage so that the application only needs to know a single storage location • The application will no longer need to deal with multiple storage locations • The storage administrator can now keep file systems small and dynamically add new storage without disruption • No more down time when capacity thresholds are reached 2 TB 2 TB

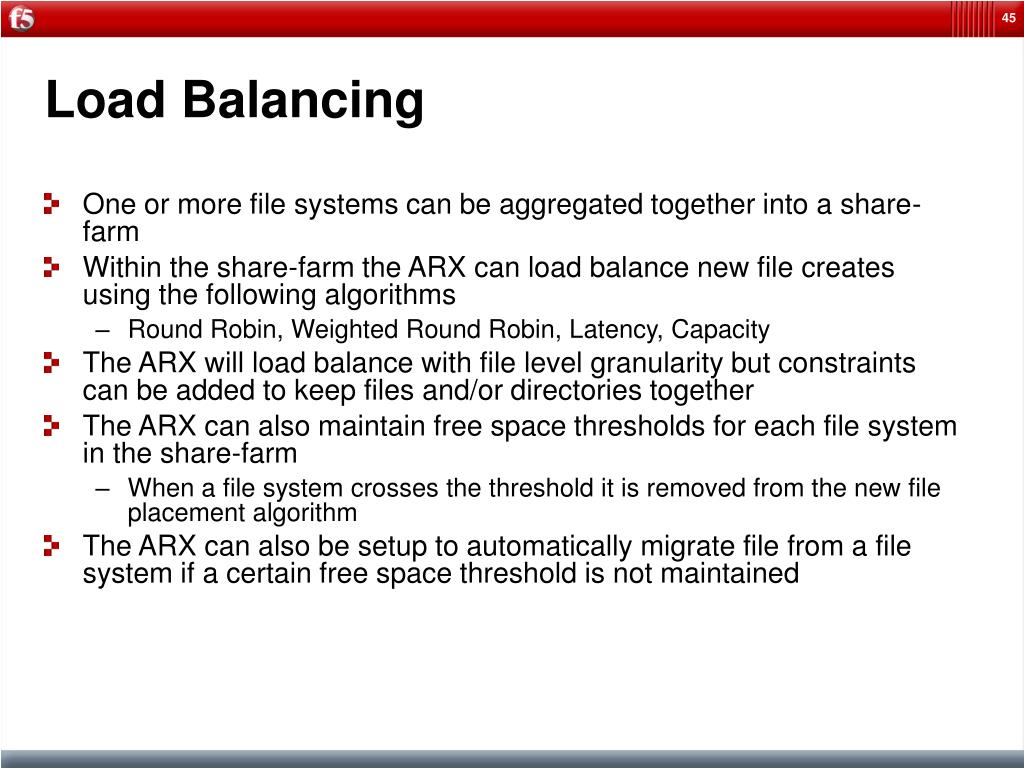

45. Load Balancing • One or more file systems can be aggregated together into a share-farm • Within the share-farm the ARX can load balance new file creates using the following algorithms • Round Robin, Weighted Round Robin, Latency, Capacity • The ARX will load balance with file level granularity but constraints can be added to keep files and/or directories together • The ARX can also maintain free space thresholds for each file system in the share-farm • When a file system crosses the threshold it is removed from the new file placement algorithm • The ARX can also be setup to automatically migrate file from a file system if a certain free space threshold is not maintained

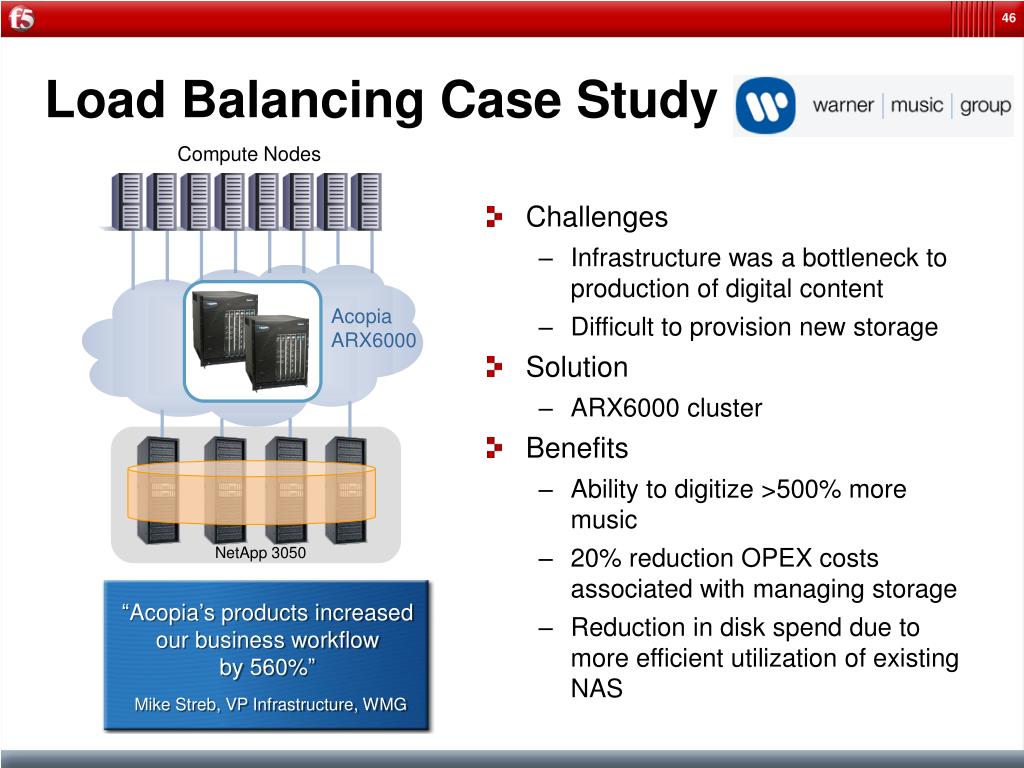

46. Load Balancing Case Study Compute Nodes • Challenges • Infrastructure was a bottleneck to production of digital content • Difficult to provision new storage • Solution • ARX6000 cluster • Benefits • Ability to digitize >500% more music • 20% reduction OPEX costs associated with managing storage • Reduction in disk spend due to more efficient utilization of existing NAS Acopia ARX6000 NetApp 3050 “Acopia’s products increased our business workflow by 560%” Mike Streb, VP Infrastructure, WMG

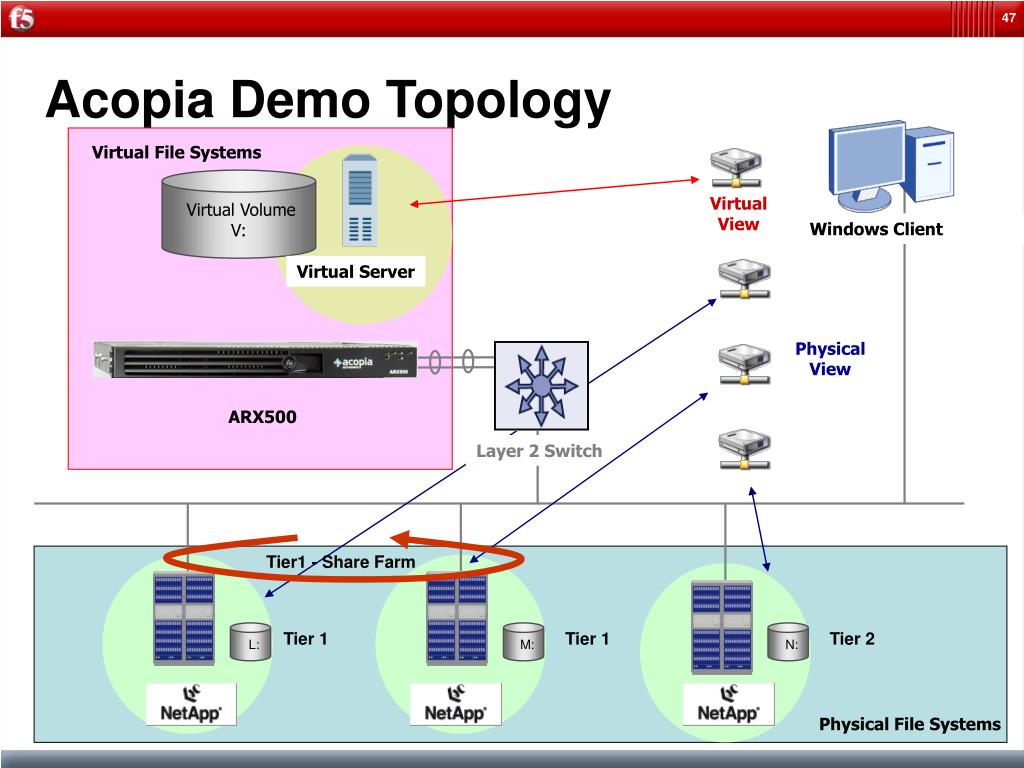

47. Acopia Demo Topology Virtual File Systems Virtual Volume V: Virtual View Windows Client Virtual Server Physical View ARX500 Layer 2 Switch Tier1 - Share Farm L: Tier 1 M: Tier 1 N: Tier 2 Physical File Systems

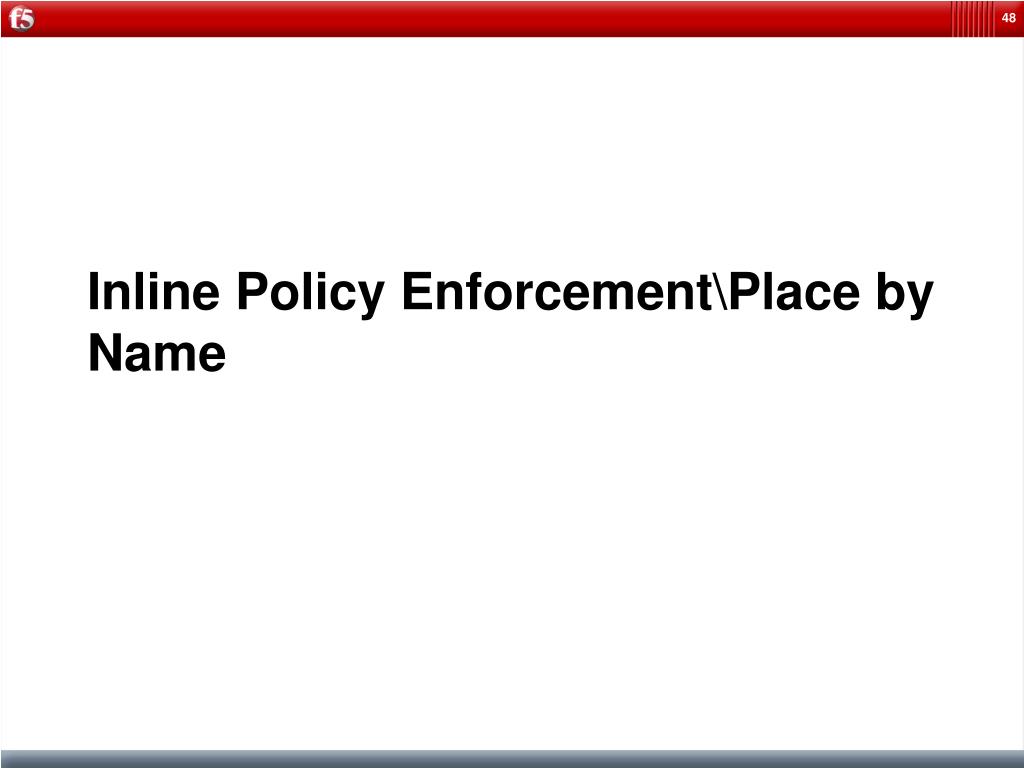

48. Inline Policy Enforcement\Place by Name

49. Inline Policy Enforcement\Place by Name • Classification and placement of data based on name or path • Drivers: • Tiered storage, business polices, SLA’s for applications or projects, migration based on file type or path • Benefits: • File level granularity • Can migrate existing file systems to comply with current policy • Operates inline for real time policy enforcement for new data creation

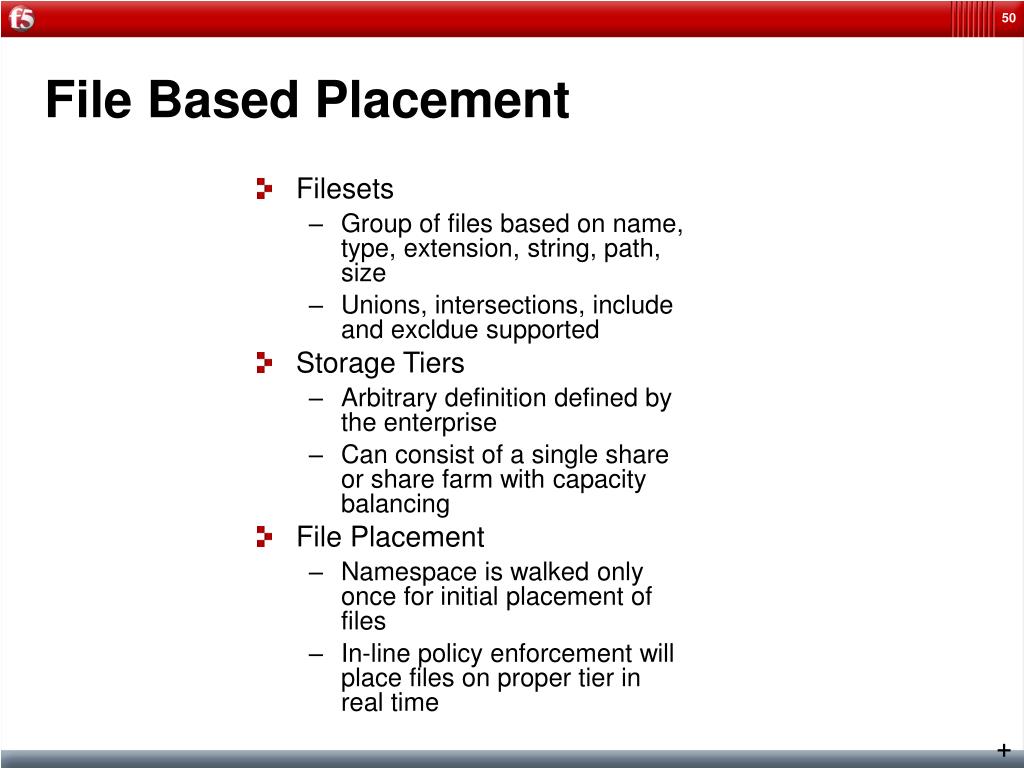

50. File Based Placement • Filesets • Group of files based on name, type, extension, string, path, size • Unions, intersections, include and excldue supported • Storage Tiers • Arbitrary definition defined by the enterprise • Can consist of a single share or share farm with capacity balancing • File Placement • Namespace is walked only once for initial placement of files • In-line policy enforcement will place files on proper tier in real time +
