  1. ANDE Status Report26APR2004 • Team Leader: Benjamin Aaron • Comms: Ernesto Villalba • Power: Crispina Weissenberg

  2. Presentation Outline • ANDE NRL Background • USNA Specific Background • Engineering Progress Review • Demonstration

  3. NRL Mission Objectives • Primary • To provide total atmospheric density for orbit determination and collision avoidance. • Secondary • To demonstrate space-to-ground optical communications through the use of Modulating Retro-Reflectors (MRRs). • To validate fundamental theories on the calculation of the drag coefficient. • To establish a method to validate Neutral Density and Composition derived from Defense Meteorological Satellite Program (DMSP) sensors.

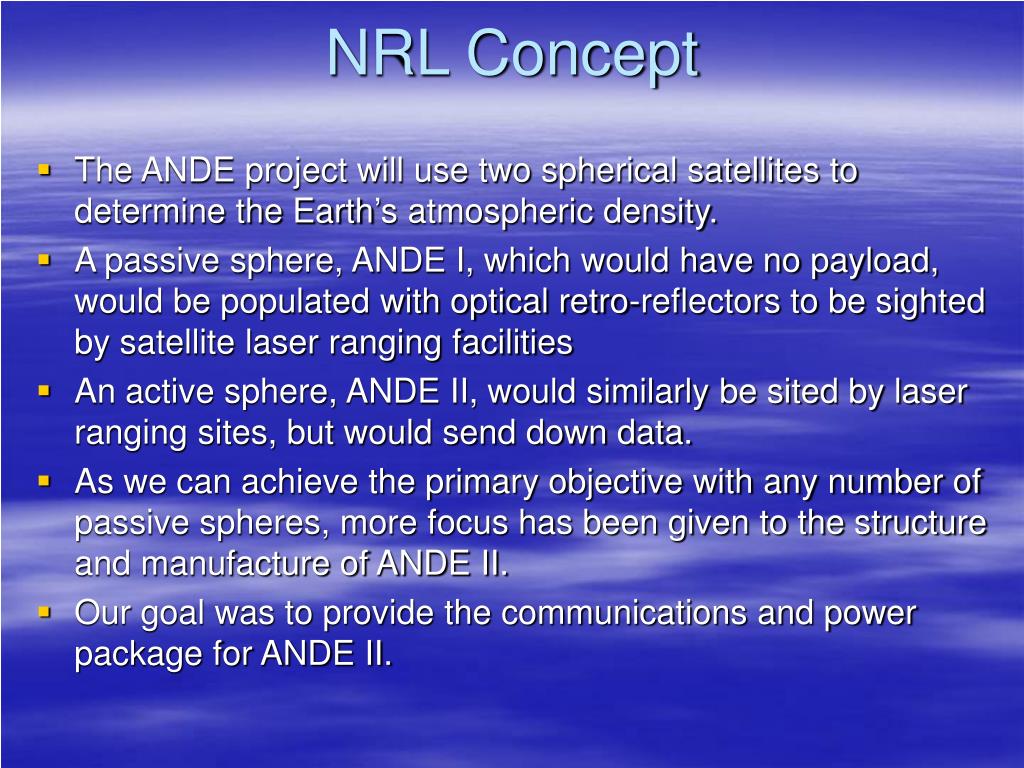

  4. NRL Concept • The ANDE project will use two spherical satellites to determine the Earth’s atmospheric density. • A passive sphere, ANDE I, which would have no payload, would be populated with optical retro-reflectors to be sighted by satellite laser ranging facilities • An active sphere, ANDE II, would similarly be sited by laser ranging sites, but would send down data. • As we can achieve the primary objective with any number of passive spheres, more focus has been given to the structure and manufacture of ANDE II. • Our goal was to provide the communications and power package for ANDE II.

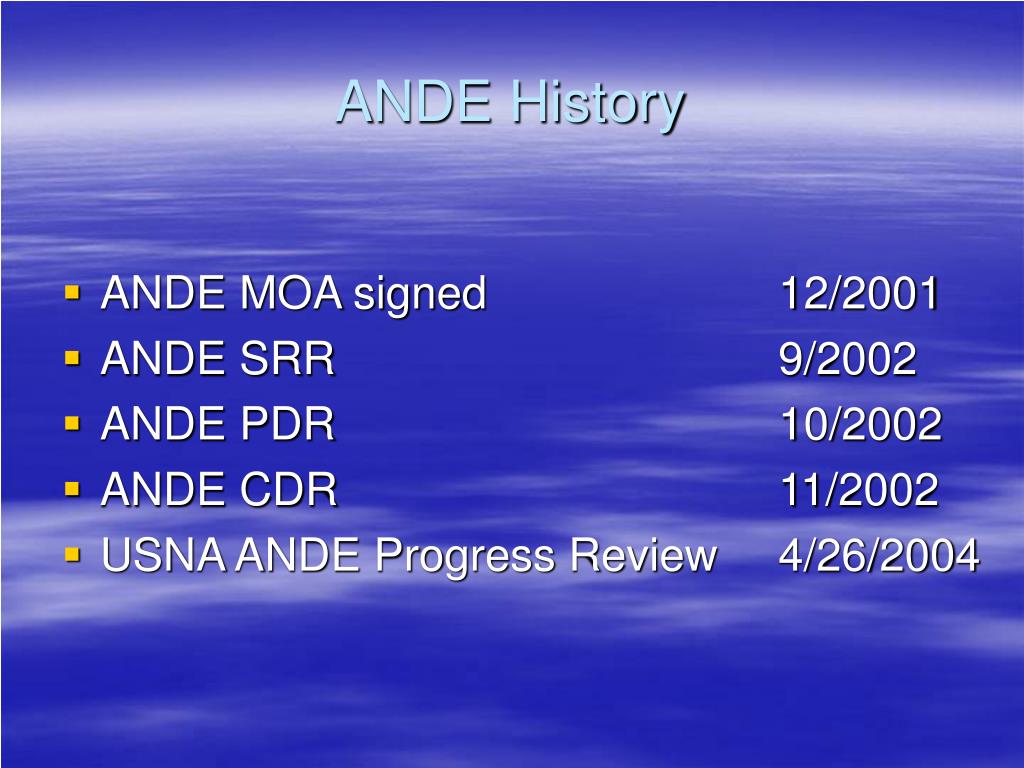

  5. ANDE History • ANDE MOA signed 12/2001 • ANDE SRR 9/2002 • ANDE PDR 10/2002 • ANDE CDR 11/2002 • USNA ANDE Progress Review 4/26/2004

  6. Mechanical Requirements • ANDE sphere must be • 19” diameter sphere • Area must be constant to within 0.1% from any orientation • Mass must be known to 0.5 % • Surface roughness maximum gap of 0.5 mm • Meet environmental specifications for Shuttle launch • Retro Locations (Quantity 30) • Accurate to ±0.5º combined azimuth, elevation tip & tilt to normal. • CG located at center of sphere • Venting requirement for change in pressure from launch to space • Provide two lift points for transport • No mechanical/electrical interface to the launcher • Battery access for replacement

  7. Instrument Requirements • Transmit (PV current and sphere temp ) every 1 minute • RF communications system from USNA • RF Inhibits (Separation Switches) • Magnetic switch (at each pole along ejection axis) • No external antenna • Photovoltaics (quantity 6) • Distributed at the end points of three nearly orthogonal axes • Monitor current • Laser Diodes (quantity 6) • Distributed at the end points of three nearly orthogonal axes • 6 unique pulse rates that can be resolved at Maui • Duty cycle, only on over when elevation to Maui >20º

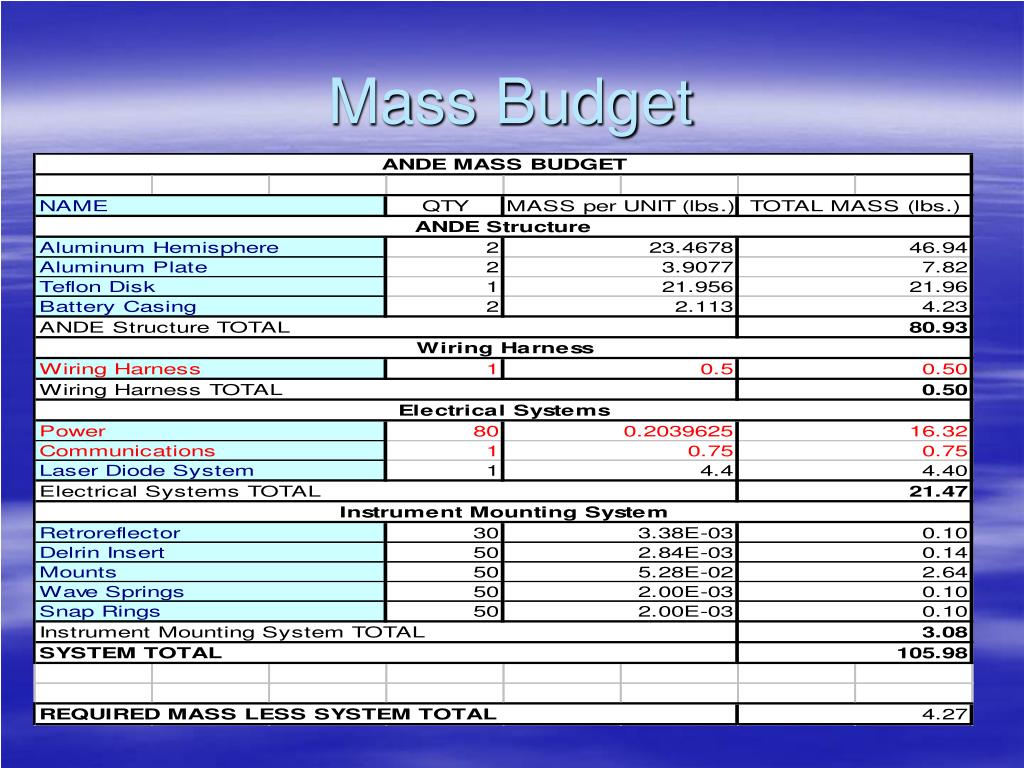

  8. Mass Budget

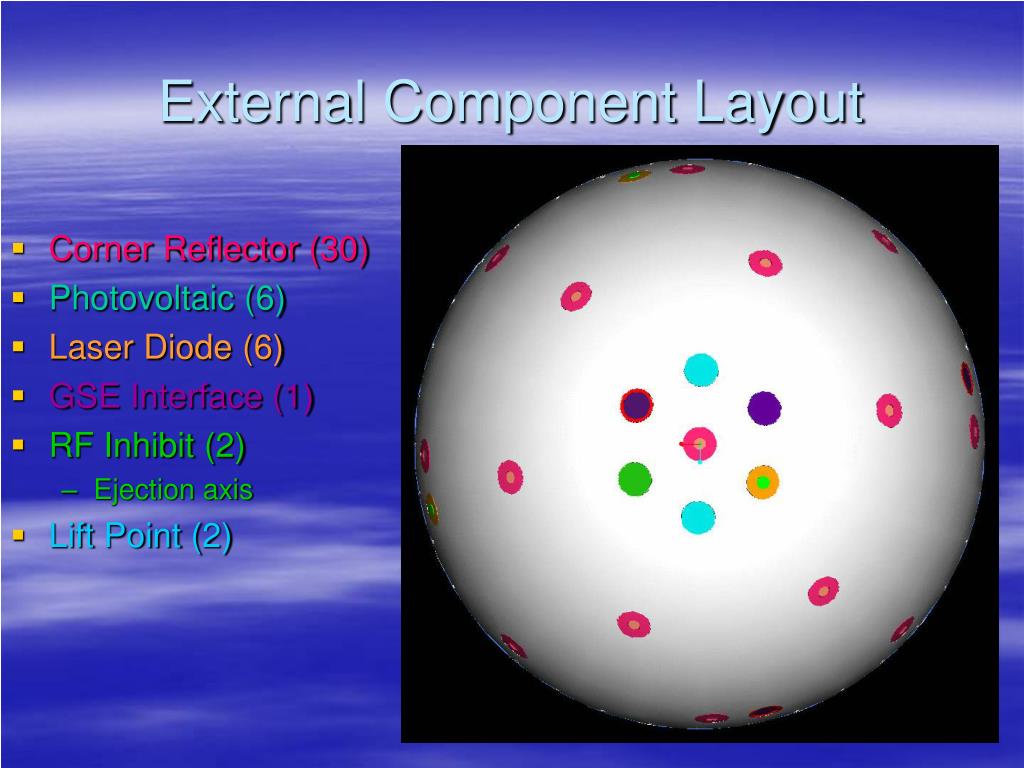

  9. External Component Layout • Corner Reflector (30) • Photovoltaic (6) • Laser Diode (6) • GSE Interface (1) • RF Inhibit (2) • Ejection axis • Lift Point (2)

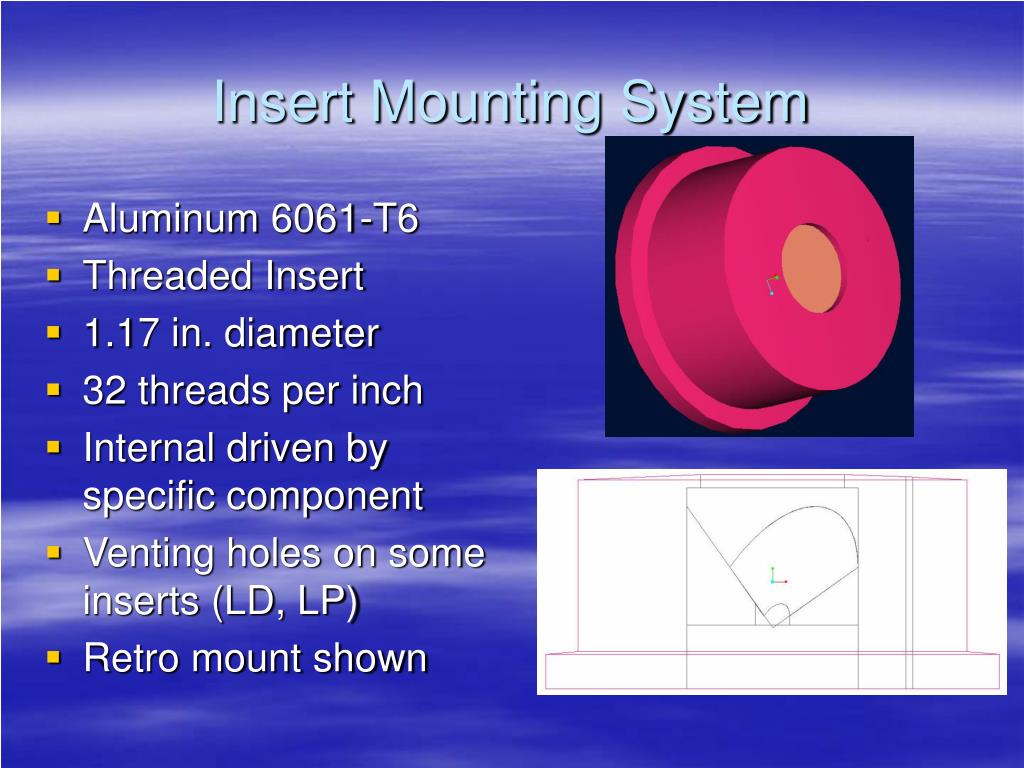

  10. Insert Mounting System • Aluminum 6061-T6 • Threaded Insert • 1.17 in. diameter • 32 threads per inch • Internal driven by specific component • Venting holes on some inserts (LD, LP) • Retro mount shown

  11. Preliminary Payload Enclosure • Aluminum 6061-T6 • 10.5” x 7.5” x 4” • One Enclosure per Hemisphere • Enclosures (2) • Battery Banks (2) • Communications (1)

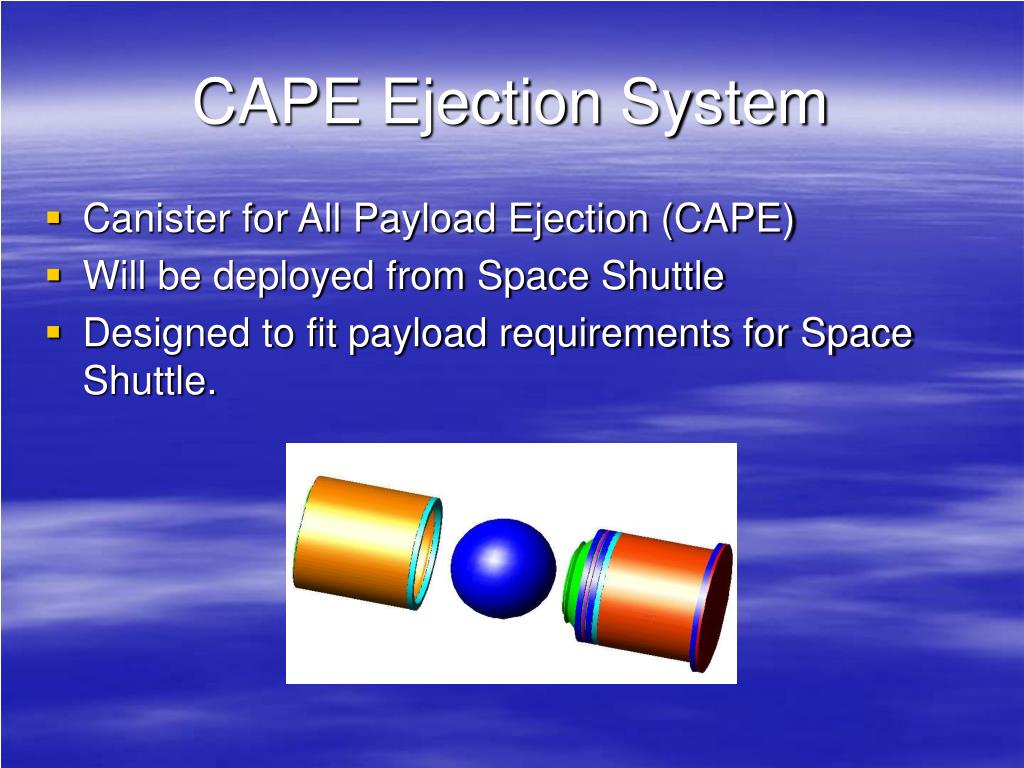

  12. CAPE Ejection System • Canister for All Payload Ejection (CAPE) • Will be deployed from Space Shuttle • Designed to fit payload requirements for Space Shuttle.

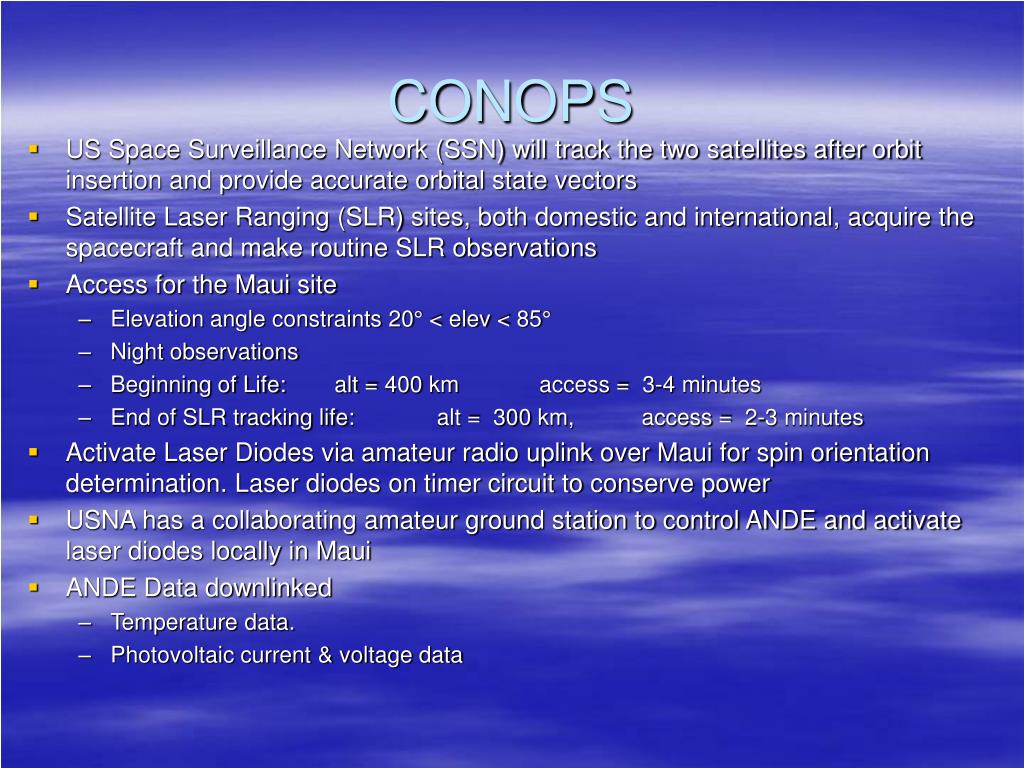

  13. CONOPS • US Space Surveillance Network (SSN) will track the two satellites after orbit insertion and provide accurate orbital state vectors • Satellite Laser Ranging (SLR) sites, both domestic and international, acquire the spacecraft and make routine SLR observations • Access for the Maui site • Elevation angle constraints 20° < elev < 85° • Night observations • Beginning of Life: alt = 400 km access = 3-4 minutes • End of SLR tracking life: alt = 300 km, access = 2-3 minutes • Activate Laser Diodes via amateur radio uplink over Maui for spin orientation determination. Laser diodes on timer circuit to conserve power • USNA has a collaborating amateur ground station to control ANDE and activate laser diodes locally in Maui • ANDE Data downlinked • Temperature data. • Photovoltaic current & voltage data

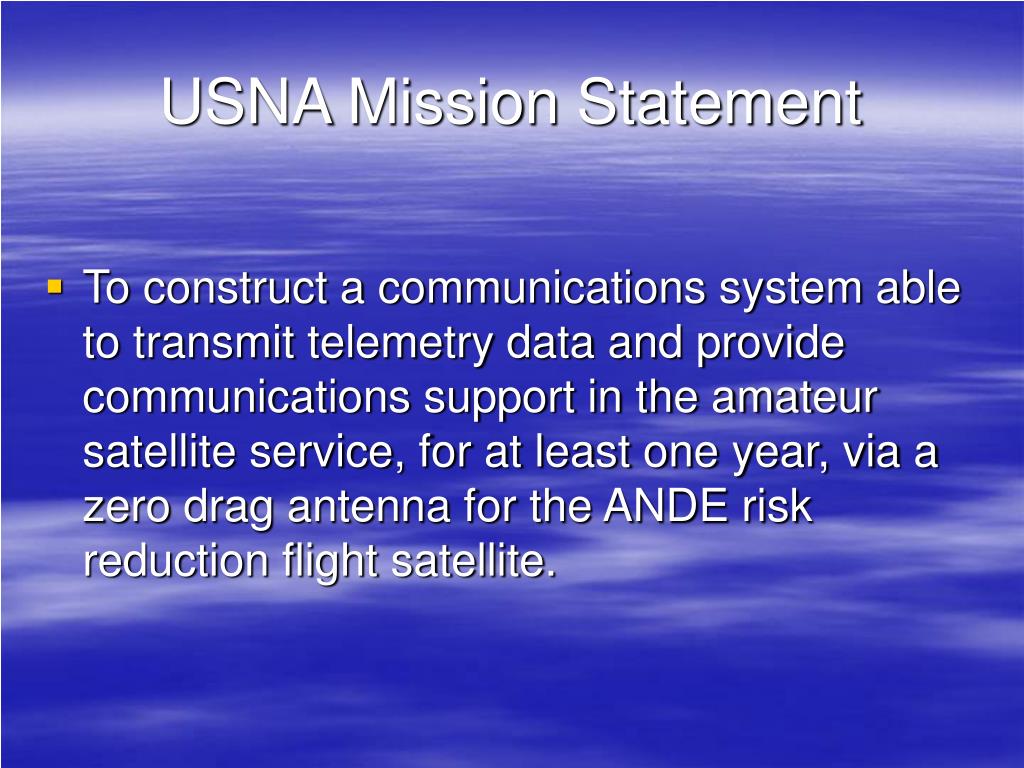

  14. USNA Mission Statement • To construct a communications system able to transmit telemetry data and provide communications support in the amateur satellite service, for at least one year, via a zero drag antenna for the ANDE risk reduction flight satellite.

  15. USNA Mission Requirements • 1. Mechanical Configuration (Spherical) • 2. Transmit Telemetry Data • 3. Command and Control • 4. Communications Transponder in Amateur Satellite Service • 5. Power System

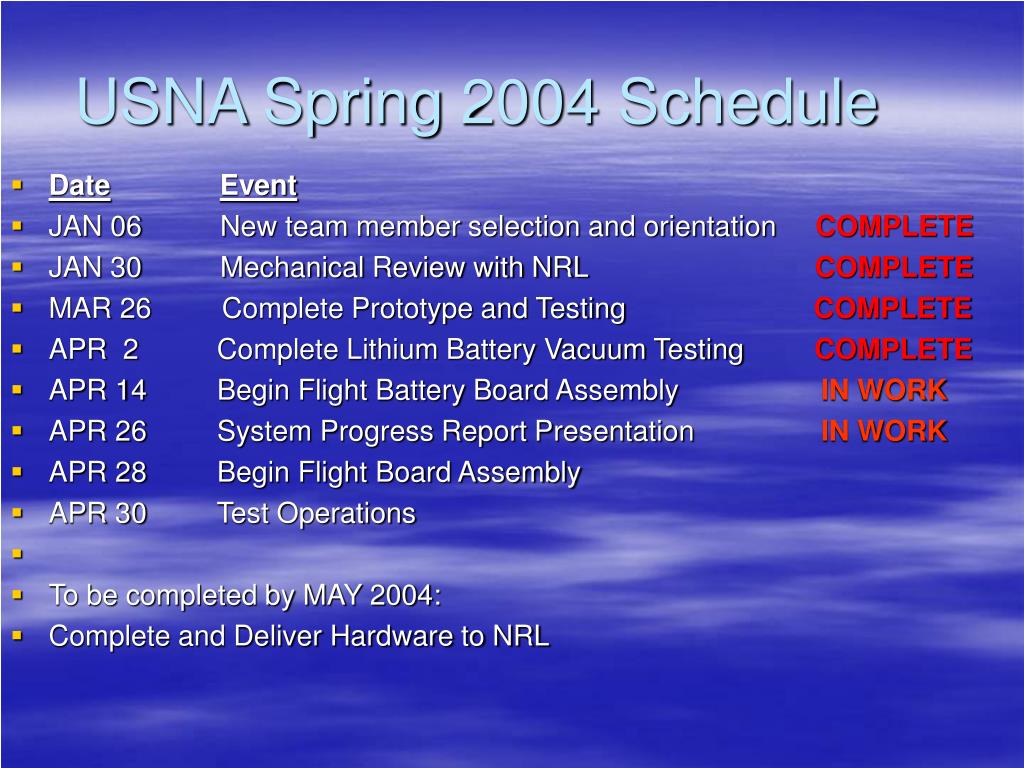

  16. USNA Spring 2004 Schedule DateEvent JAN 06          New team member selection and orientation     COMPLETE JAN 30          Mechanical Review with NRL                             COMPLETE MAR 26         Complete Prototype and Testing                        COMPLETE APR  2          Complete Lithium Battery Vacuum Testing         COMPLETE APR 14         Begin Flight Battery Board Assembly IN WORK APR 26         System Progress Report Presentation IN WORK APR 28         Begin Flight Board Assembly APR 30         Test Operations To be completed by MAY 2004: Complete and Deliver Hardware to NRL

  17. USNA PerformanceCriteria • Ideal Performance of ANDE (100%): • Temperature telemetry data transmitted by ANDE and received by ground station • Ensure that Lasers are powered for spin rate determination • User communications able to fulfill amateur radio communications status • Above criterion fully functional for expected life of ANDE (1 year)

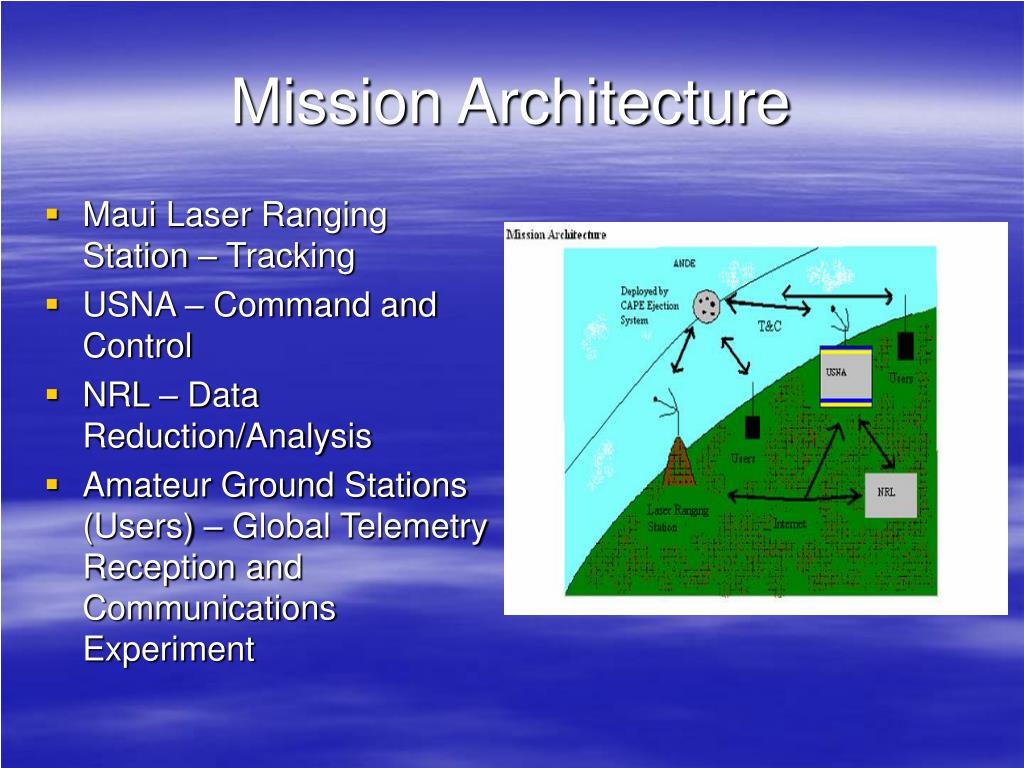

  18. Mission Architecture • Maui Laser Ranging Station – Tracking • USNA – Command and Control • NRL – Data Reduction/Analysis • Amateur Ground Stations (Users) – Global Telemetry Reception and Communications Experiment

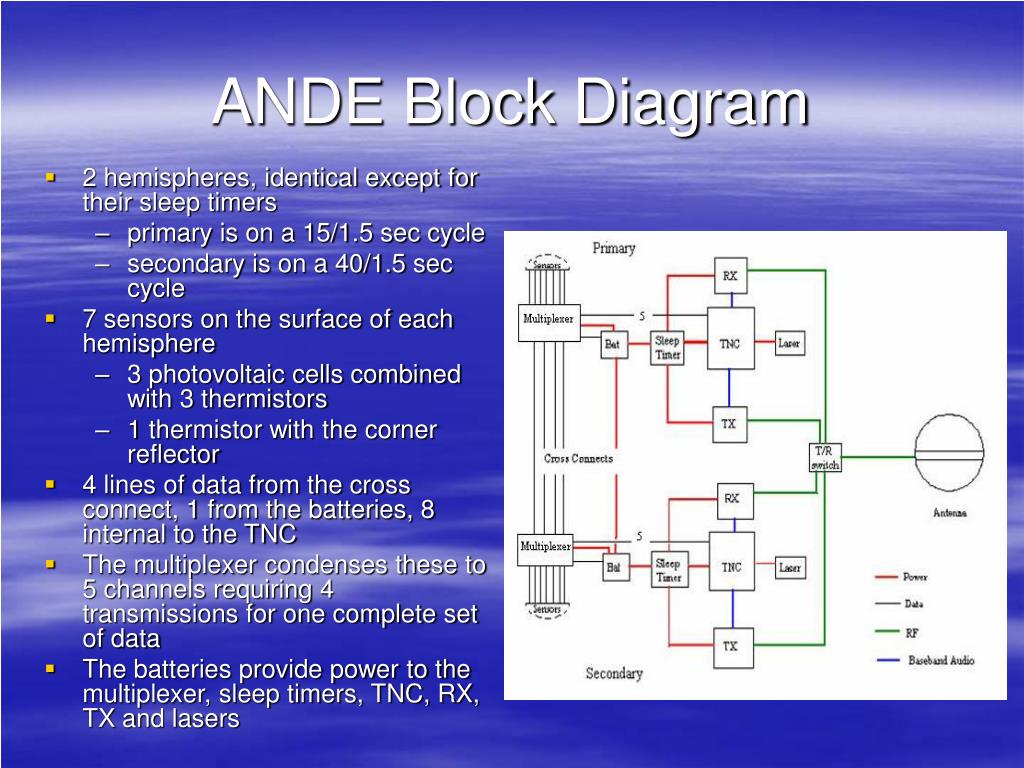

  19. ANDE Block Diagram • 2 hemispheres, identical except for their sleep timers • primary is on a 15/1.5 sec cycle • secondary is on a 40/1.5 sec cycle • 7 sensors on the surface of each hemisphere • 3 photovoltaic cells combined with 3 thermistors • 1 thermistor with the corner reflector • 4 lines of data from the cross connect, 1 from the batteries, 8 internal to the TNC • The multiplexer condenses these to 5 channels requiring 4 transmissions for one complete set of data • The batteries provide power to the multiplexer, sleep timers, TNC, RX, TX and lasers

  20. ANDE Telemetry Channels • This diagram displays what pieces of data are being displayed on all 20 telemetry channels: • Voltages from the 3 photovoltaic cells • Current from all 4 battery packs • Temperatures of the photovoltaic cells, a battery pack, one laser and one corner reflector • The other telemetry data is internal to the TNC

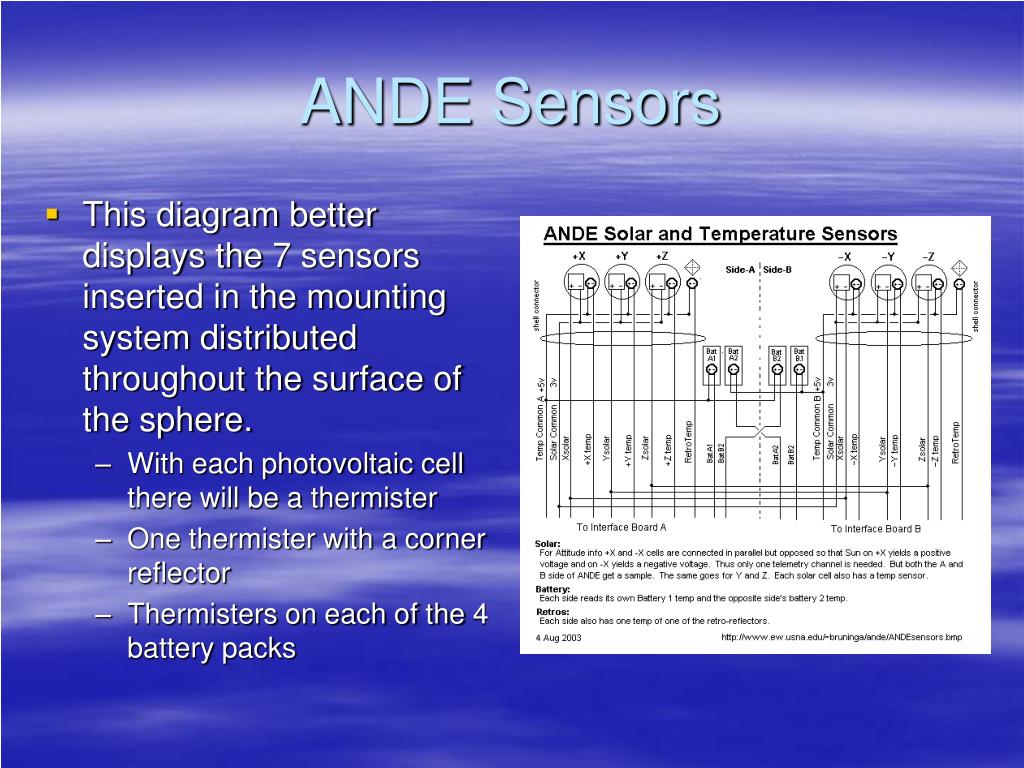

  21. ANDE Sensors • This diagram better displays the 7 sensors inserted in the mounting system distributed throughout the surface of the sphere. • With each photovoltaic cell there will be a thermister • One thermister with a corner reflector • Thermisters on each of the 4 battery packs

  22. Basic Cross Section of ANDE Laser circuitry

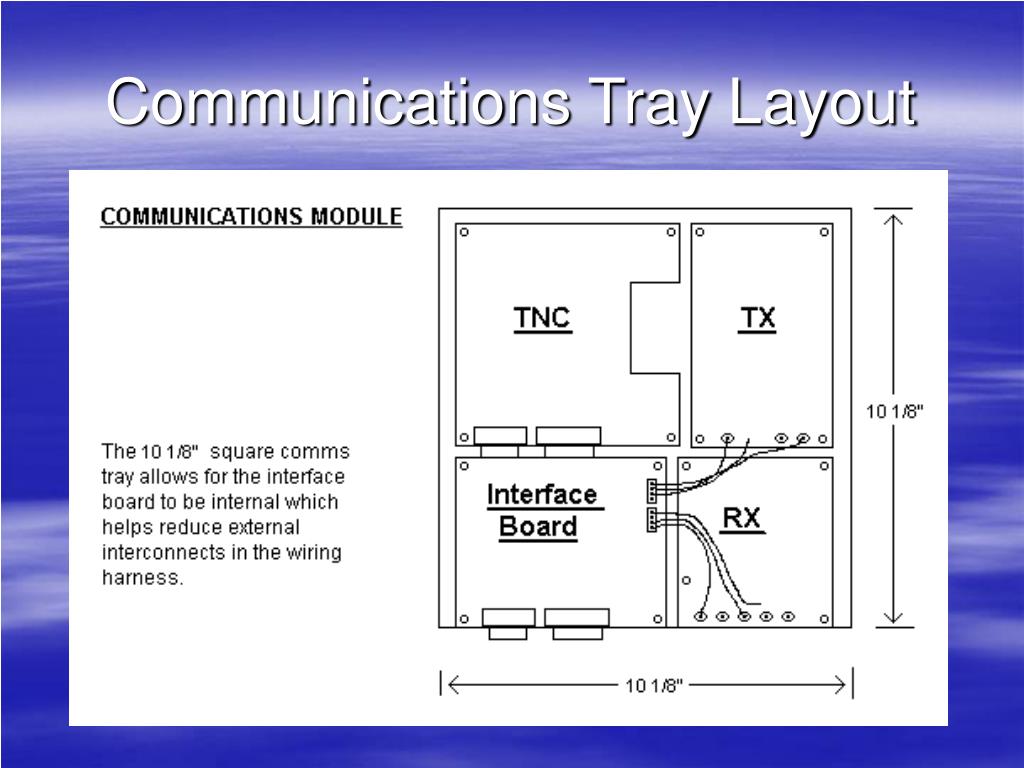

  23. Communications Tray Layout

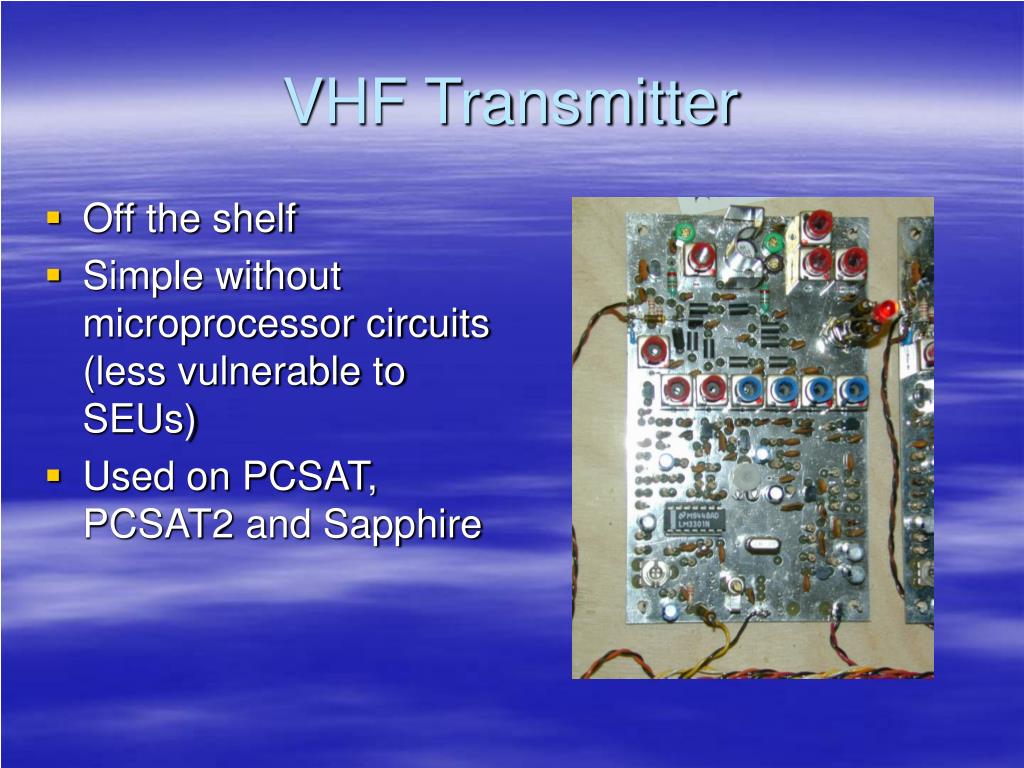

  24. VHF Transmitter • Off the shelf • Simple without microprocessor circuits (less vulnerable to SEUs) • Used on PCSAT, PCSAT2 and Sapphire

  25. VHF Receiver • Off the shelf • Simple without microprocessor circuits (less vulnerable to SEUs) • Used on PCSAT, PCSAT2 and Sapphire • The volume and squelch controls will be removed for flight

  26. Terminal Node Controller • Provides Telemetry, Command and Control • Similar to an External Modem • Off the shelf • Used on PCSAT, PCSAT2 and Sapphire

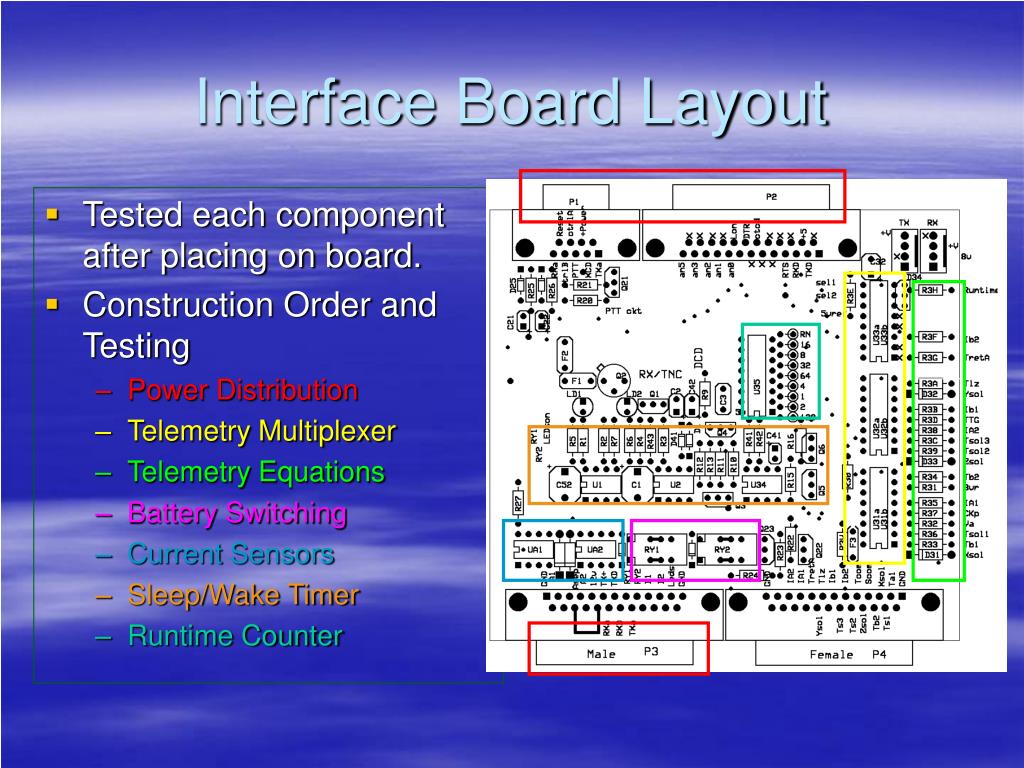

  27. Interface Board Layout • Tested each component after placing on board. • Construction Order and Testing • Power Distribution • Telemetry Multiplexer • Telemetry Equations • Battery Switching • Current Sensors • Sleep/Wake Timer • Runtime Counter

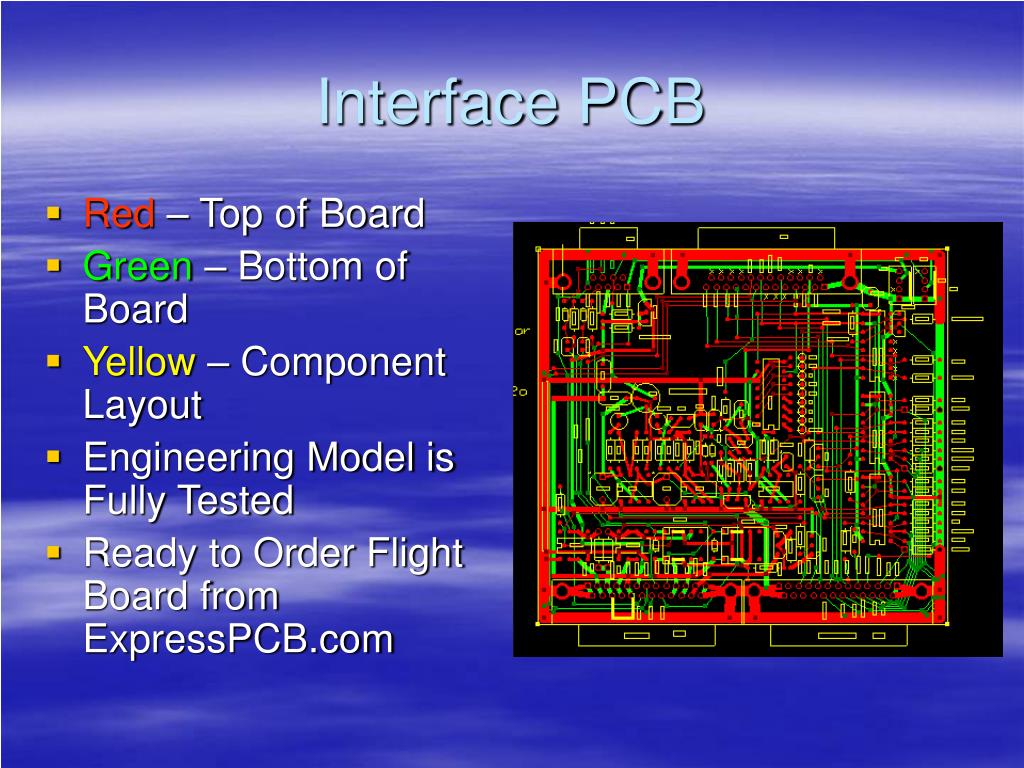

  28. Interface PCB • Red – Top of Board • Green – Bottom of Board • Yellow – Component Layout • Engineering Model is Fully Tested • Ready to Order Flight Board from ExpressPCB.com

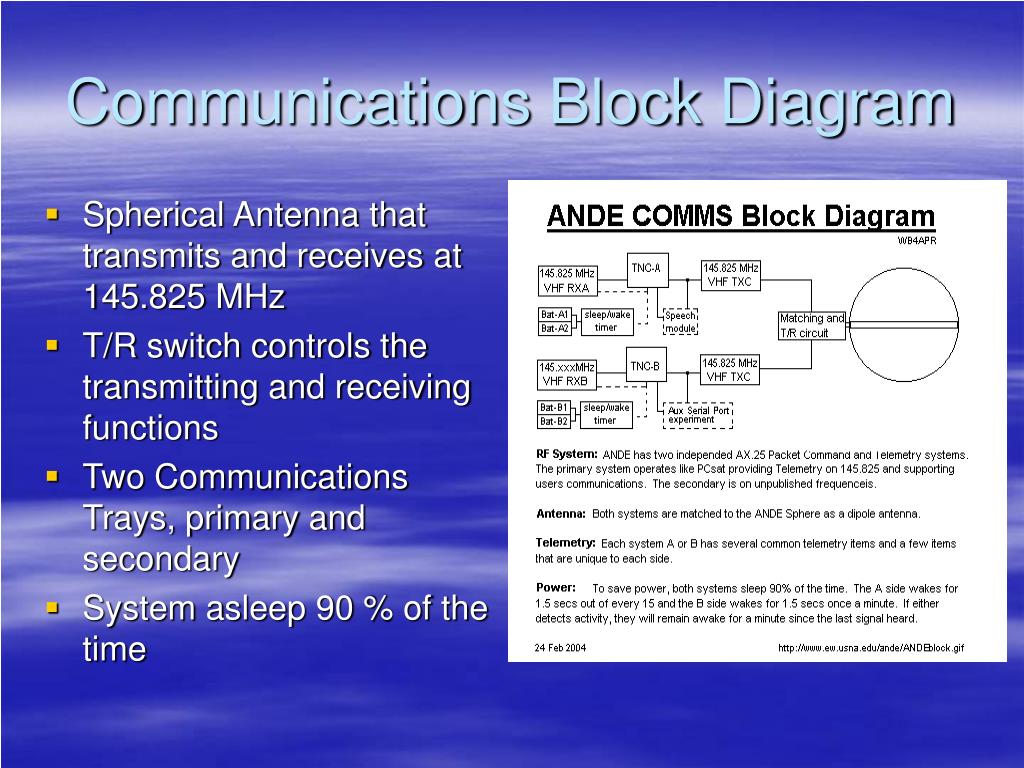

  29. Spherical Antenna that transmits and receives at 145.825 MHz T/R switch controls the transmitting and receiving functions Two Communications Trays, primary and secondary System asleep 90 % of the time Communications Block Diagram

  30. FCC Licensing and ITU Requirements • Requirements • Plain Language • General Communications Support (Transponder) • Open System for Educational Purposes • Published Protocols • Status • International Amateur Radio Union (IARU) Request Submitted • FCC 5 Month Advanced Notice is required

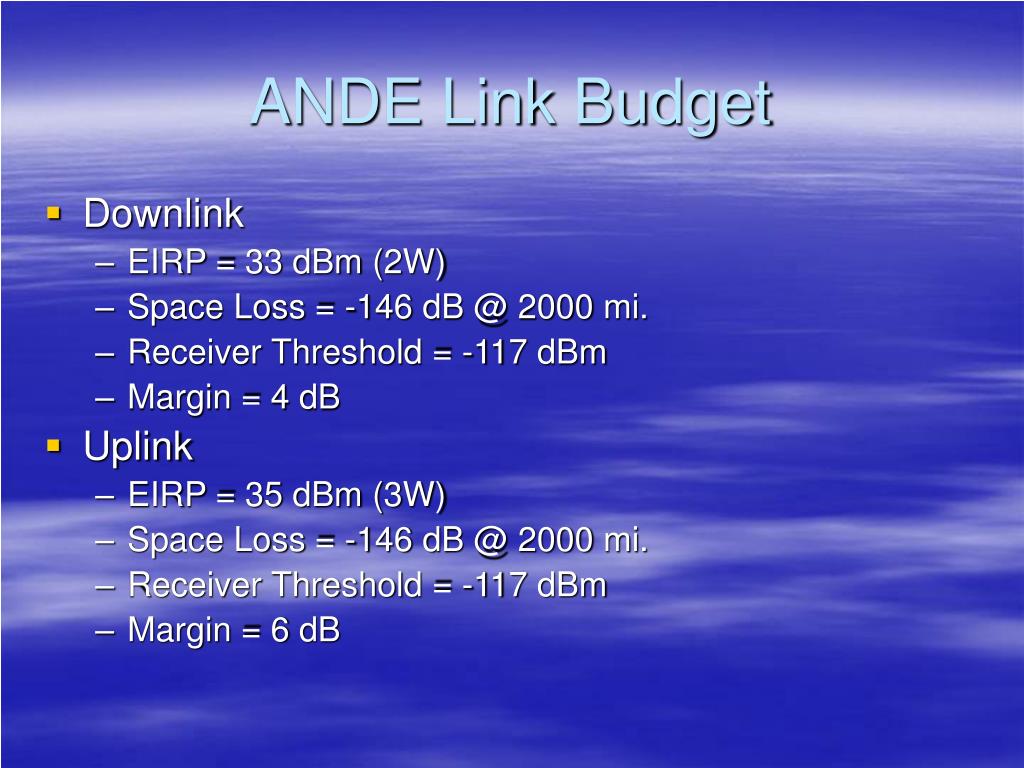

  31. ANDE Link Budget • Downlink • EIRP = 33 dBm (2W) • Space Loss = -146 dB @ 2000 mi. • Receiver Threshold = -117 dBm • Margin = 4 dB • Uplink • EIRP = 35 dBm (3W) • Space Loss = -146 dB @ 2000 mi. • Receiver Threshold = -117 dBm • Margin = 6 dB

  32. Antenna Design • Top and Side view of insulator between hemispheres. Lets us use ANDE as a folded dipole antenna. This allows one side to be shorted • A-side and B-side are “phased” together to share one antenna • Circuit provides T/R switching

  33. Telemetry • 20 Telemetry Channels • 3 Multiplexer Chips • 4 packets with 5 channels of telemetry transmitted serially • Run timer/counter keeps track of system usage • Each telemetry channel has unique voltage divider to scale into 0-5 volt range of A/D converter

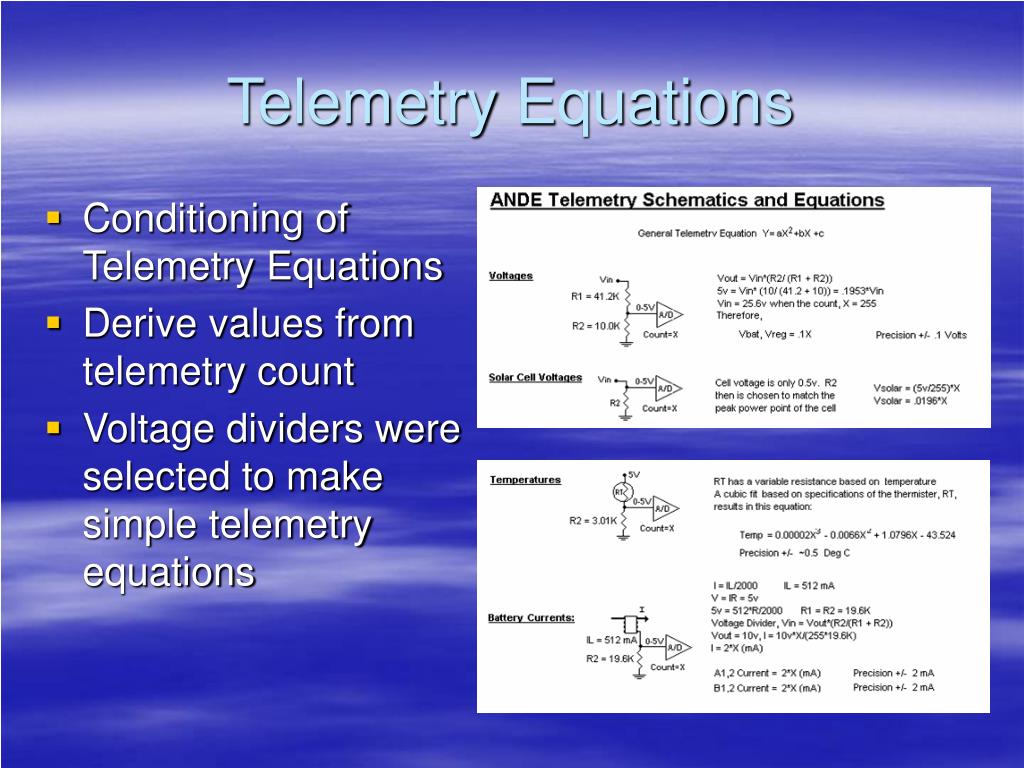

  34. Telemetry Equations • Conditioning of Telemetry Equations • Derive values from telemetry count • Voltage dividers were selected to make simple telemetry equations

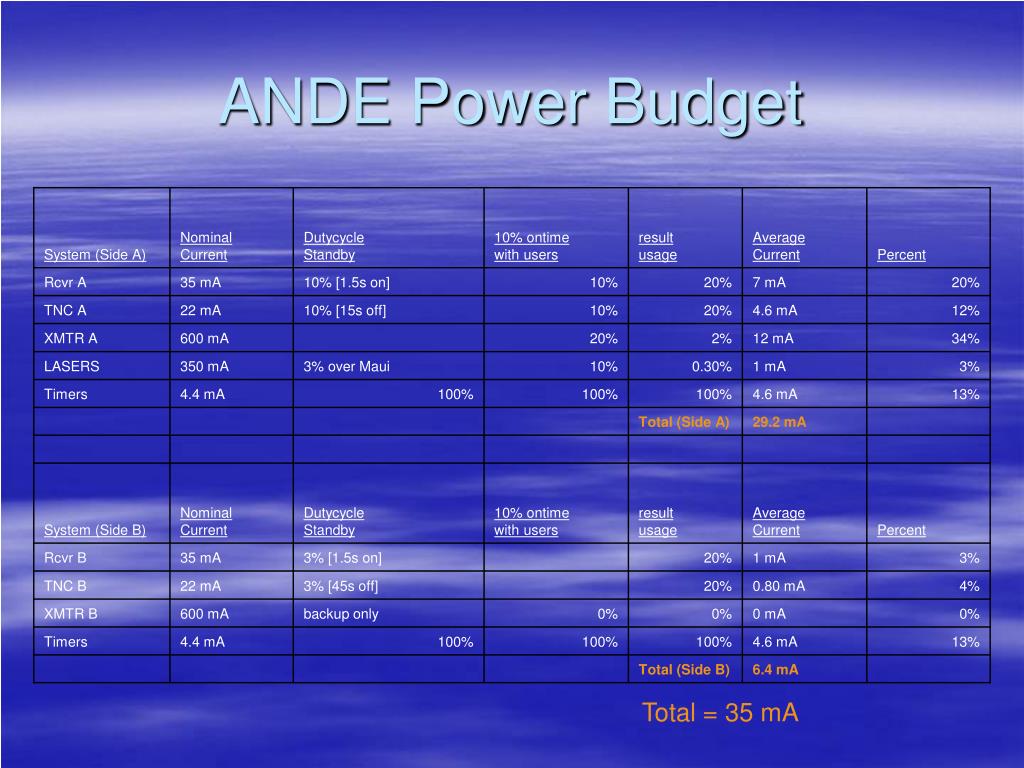

  35. ANDE Power Budget Total = 35 mA

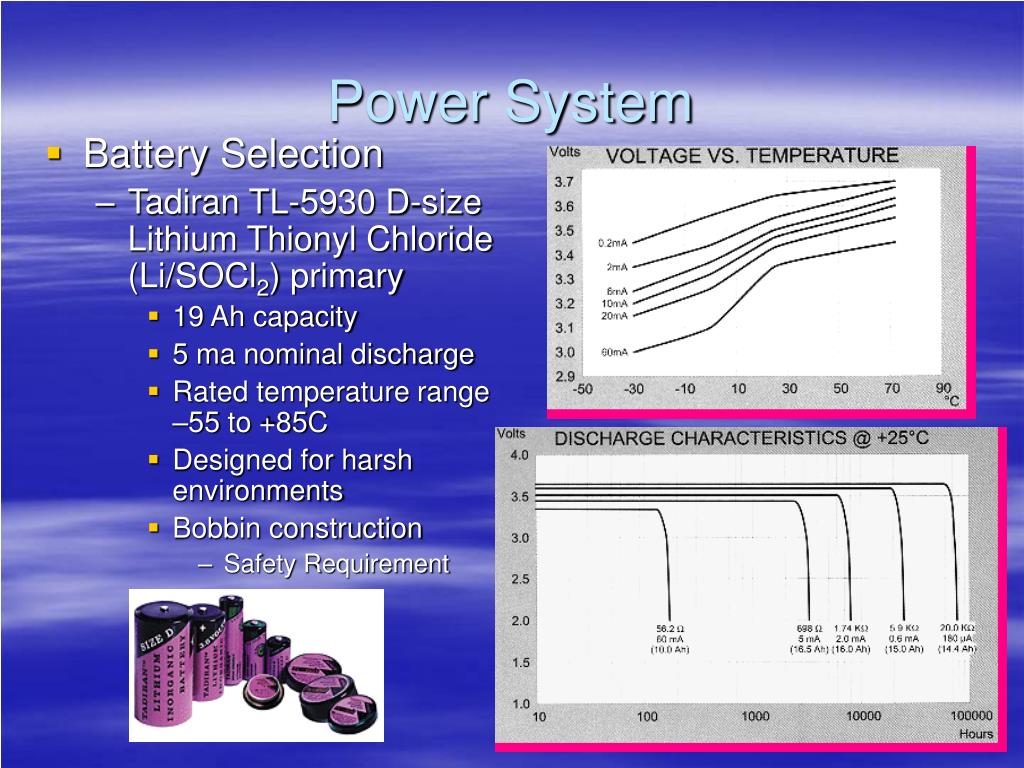

  36. Power System • Battery Selection • Tadiran TL-5930 D-size Lithium Thionyl Chloride (Li/SOCl2) primary • 19 Ah capacity • 5 ma nominal discharge • Rated temperature range –55 to +85C • Designed for harsh environments • Bobbin construction • Safety Requirement

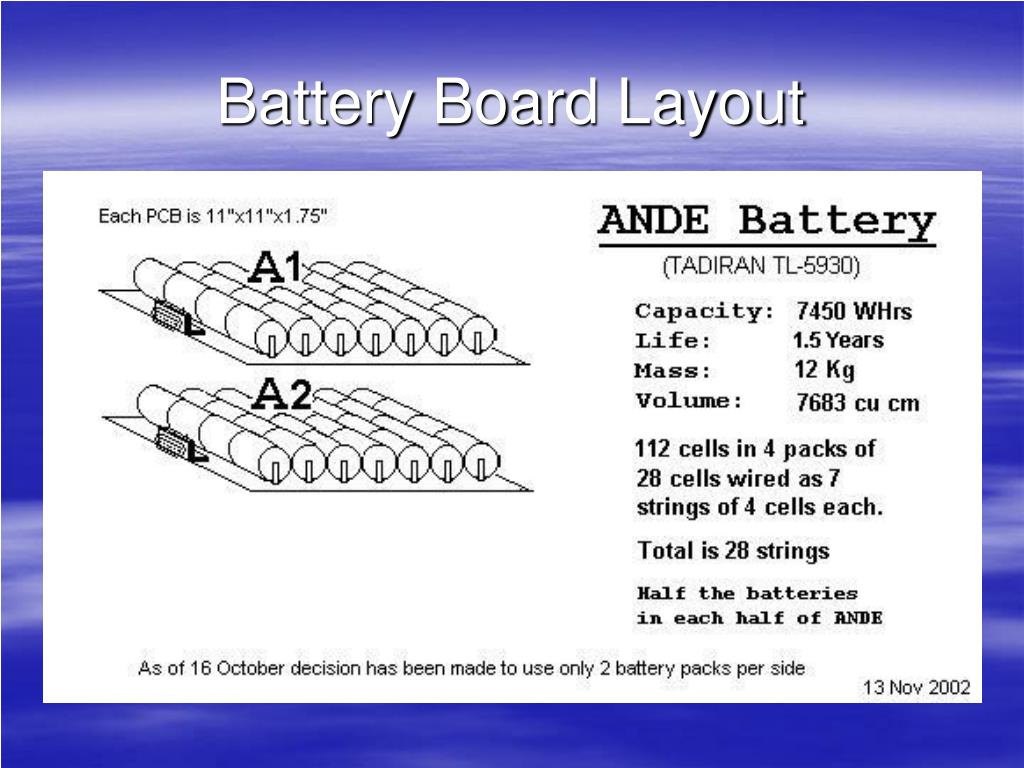

  37. Battery Board Layout

  38. Battery Life Management • Batteries have a flat discharge curve. Telemetry says nothing about remaining battery capacity • Separately use one battery pack at a time until exhaustion • Biggest loads are lasers and transmitters, switch them to each battery pack in turn • All 4 battery packs contribute in parallel to power TNC and Receiver

  39. ANDE Battery Safety Issues and Tests • Lithium primary cells are an explosive hazard when current is reversed in power system. • All Batteries were subject to up to 3A reverse current and none failed (no explosions) • Battery Leakage Tests • Batteries placed in a vacuum chamber for 24 hours at 25°C and 85°C. No leakage occurred

  40. Battery Board Schematic • 2 diodes per battery provide double fault tolerance for reverse current. • Safety fuses are in the ground leg of the circuit because current would flow in that direction if the batteries shorted to the case.

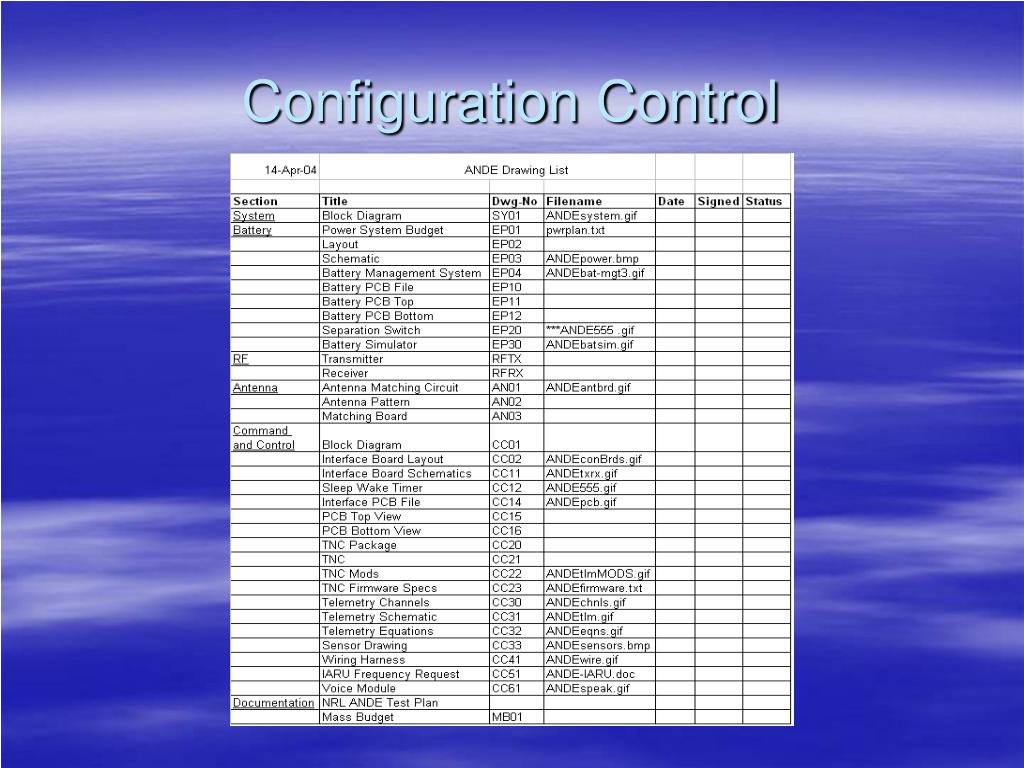

  41. Configuration Control

  42. Wiring Harness • Very Complex • Design Criteria: • Different Connector Sizes • Different Sex Connections • Batteries Connected With Female Connections • #22 Wire Site Up To 5A

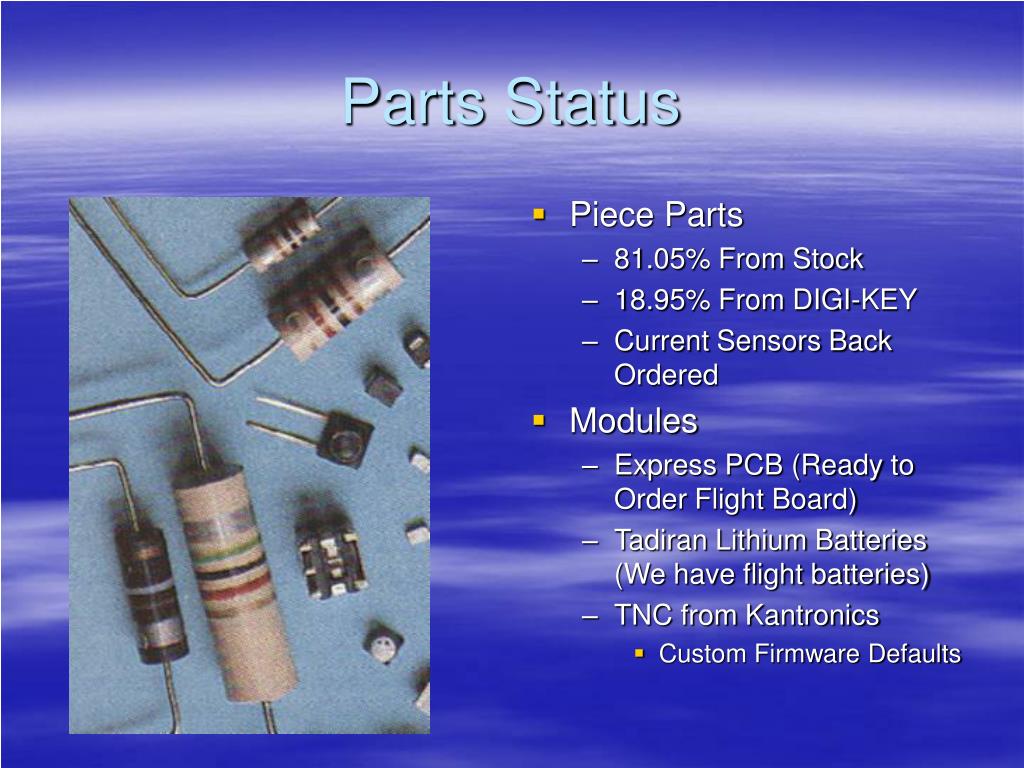

  43. Parts Status • Piece Parts • 81.05% From Stock • 18.95% From DIGI-KEY • Current Sensors Back Ordered • Modules • Express PCB (Ready to Order Flight Board) • Tadiran Lithium Batteries (We have flight batteries) • TNC from Kantronics • Custom Firmware Defaults

  44. ANDE Auxiliary Serial Port Experiment • ANDE has a similar transponder to PCSAT1 and 2 • Transponder has a general purpose serial port for auxiliary experiment • ANDE uses a voice synthesizer that can speak messages

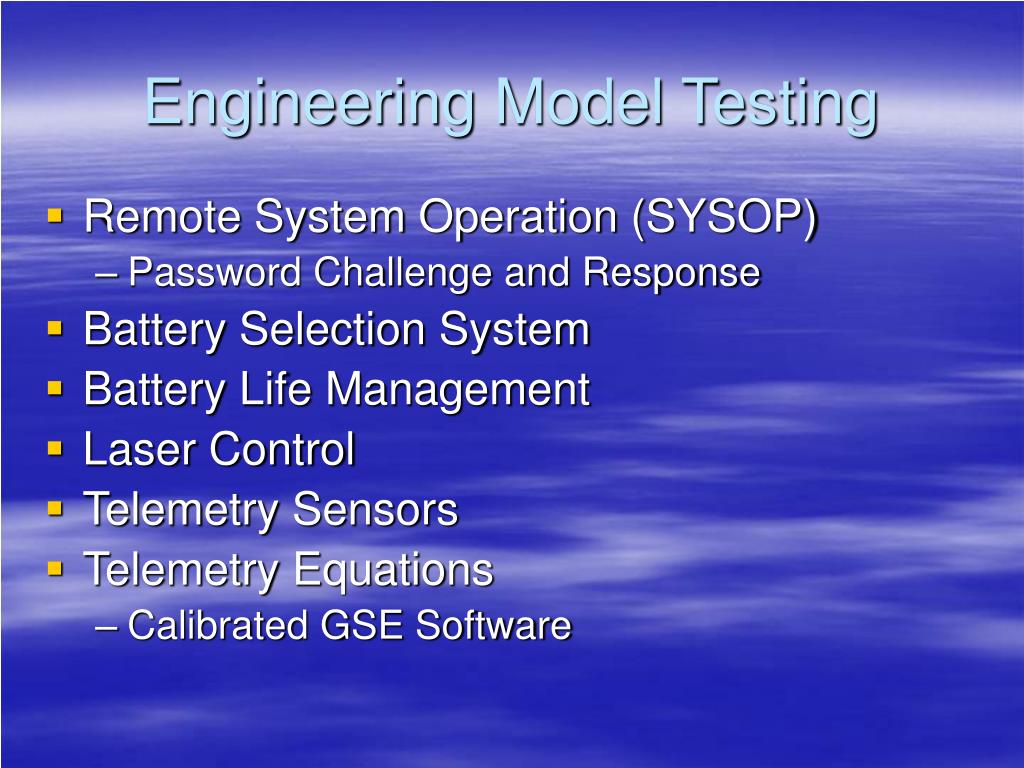

  45. Engineering Model Testing • Remote System Operation (SYSOP) • Password Challenge and Response • Battery Selection System • Battery Life Management • Laser Control • Telemetry Sensors • Telemetry Equations • Calibrated GSE Software

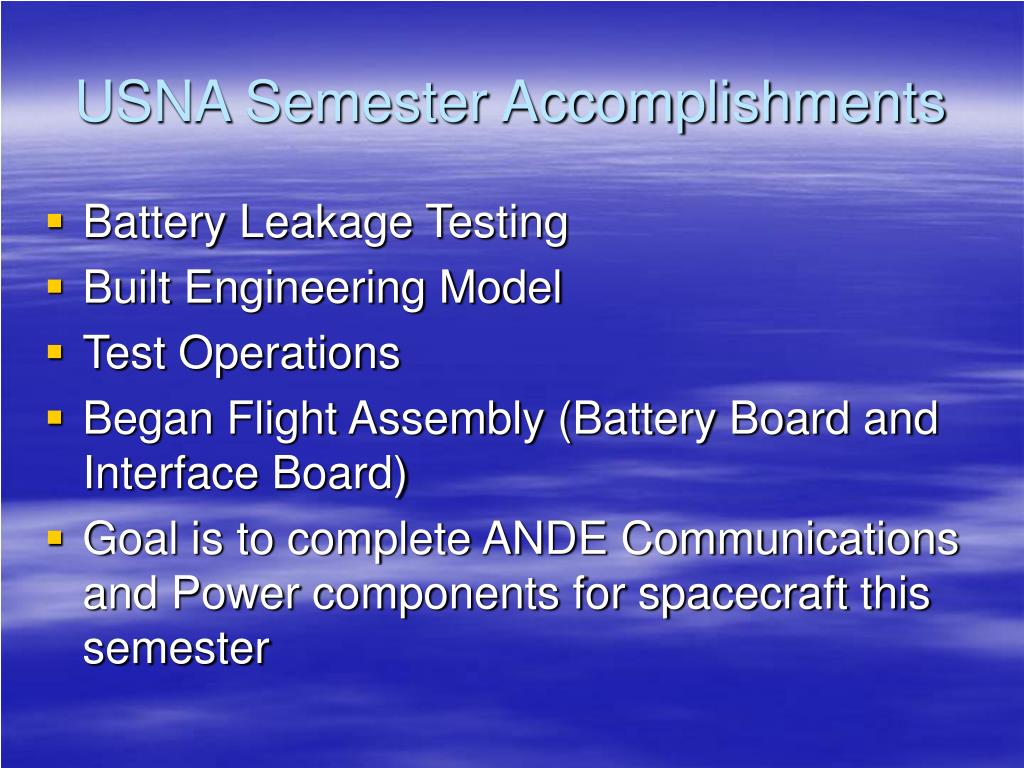

  46. USNA Semester Accomplishments • Battery Leakage Testing • Built Engineering Model • Test Operations • Began Flight Assembly (Battery Board and Interface Board) • Goal is to complete ANDE Communications and Power components for spacecraft this semester

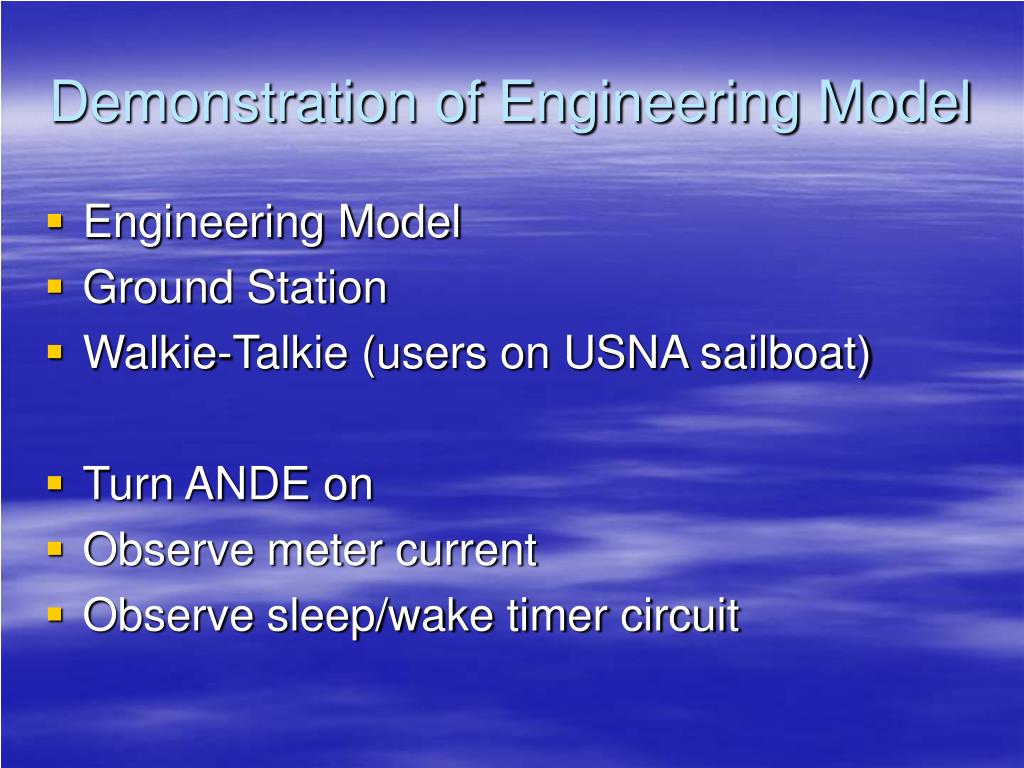

  47. Demonstration of Engineering Model • Engineering Model • Ground Station • Walkie-Talkie (users on USNA sailboat) • Turn ANDE on • Observe meter current • Observe sleep/wake timer circuit

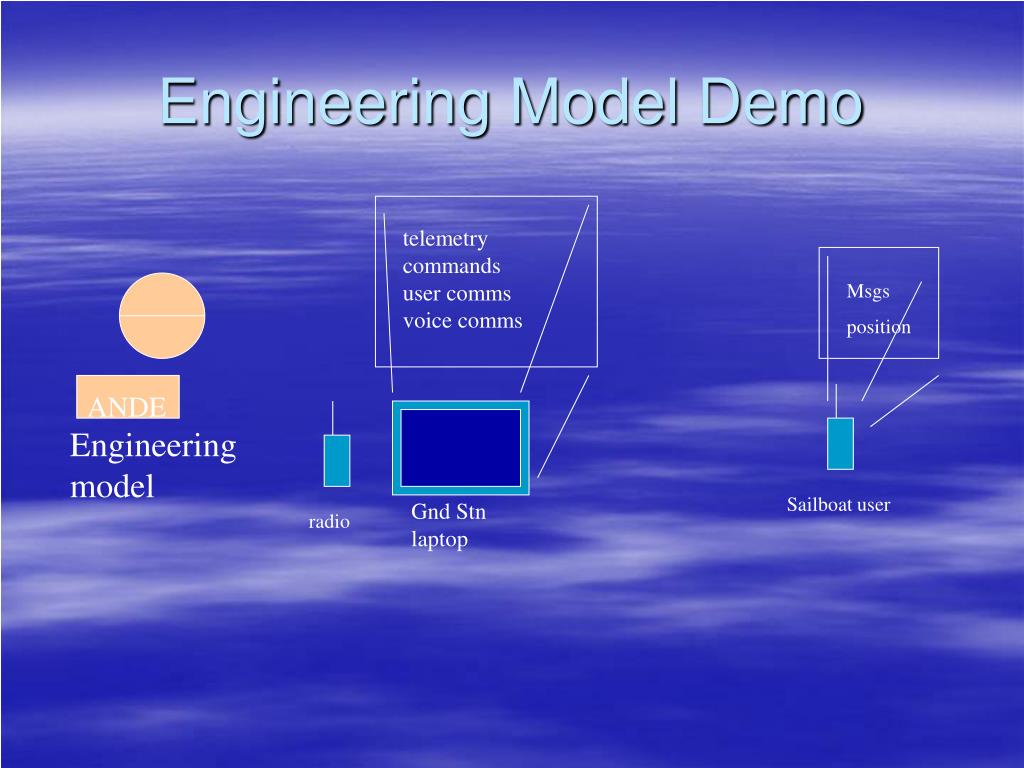

  48. Engineering Model Demo telemetry commands user comms voice comms Msgs position ANDE Engineering model Sailboat user radio Gnd Stn laptop

  49. Demonstration Sequence • Use ping commands to wake ANDE • Observe 40 seconds of telemetry • Prove sensors work • Send communications to walkie-talkie • Log on • Go through sequence of battery boards • Turn on the LEDs • Observe temperature rise on lasers • Set LEDs off and observe telemetry response • Log off • Fail each battery
