    Presentation Transcript

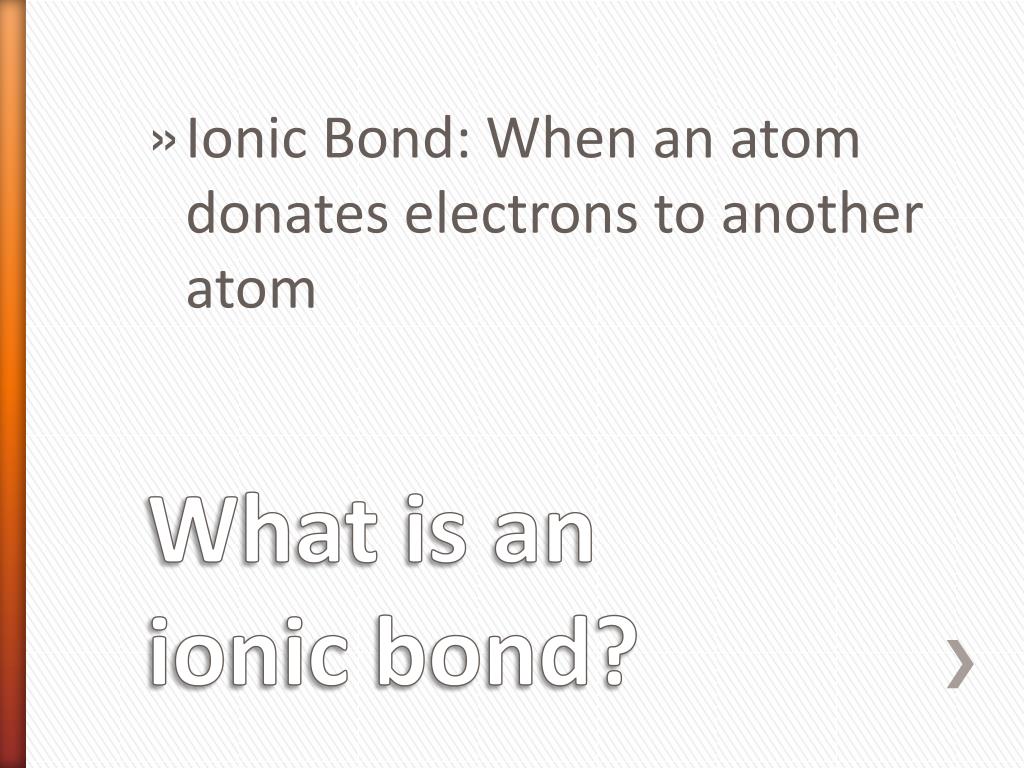

    1. Ionic Bond: When an atom donates electrons to another atom What is an ionic bond?

    2. Oxidation Numbers

    3. The charge must be neutral for these compounds Ionic Bonds

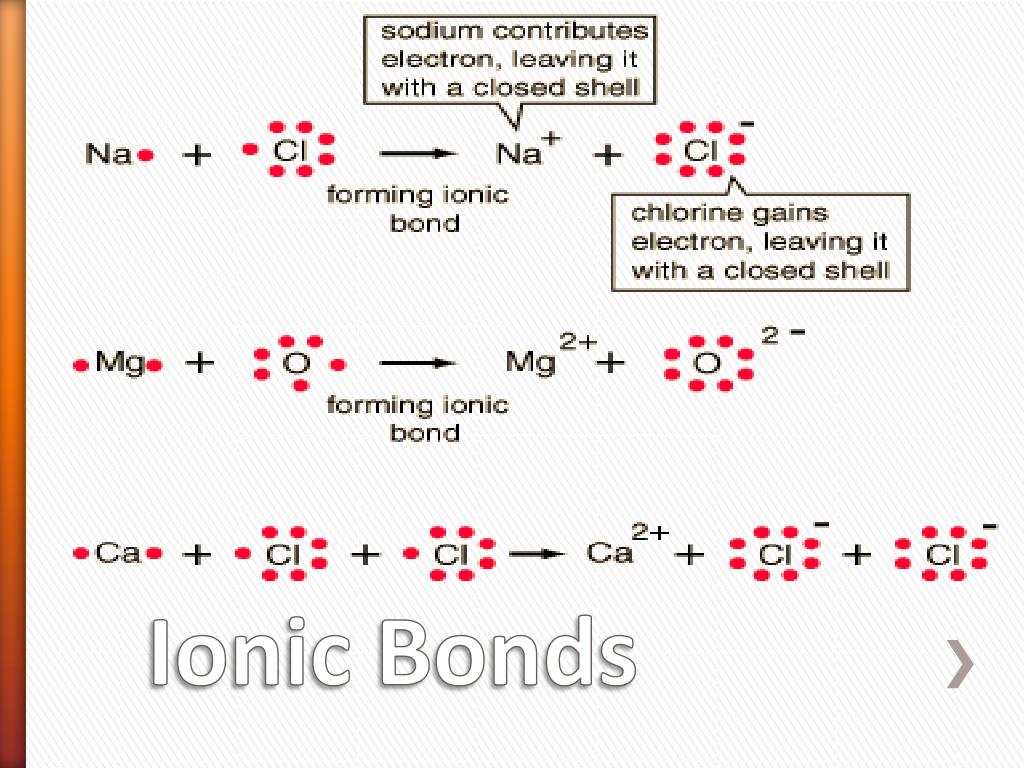

    4. Ionic Bonds

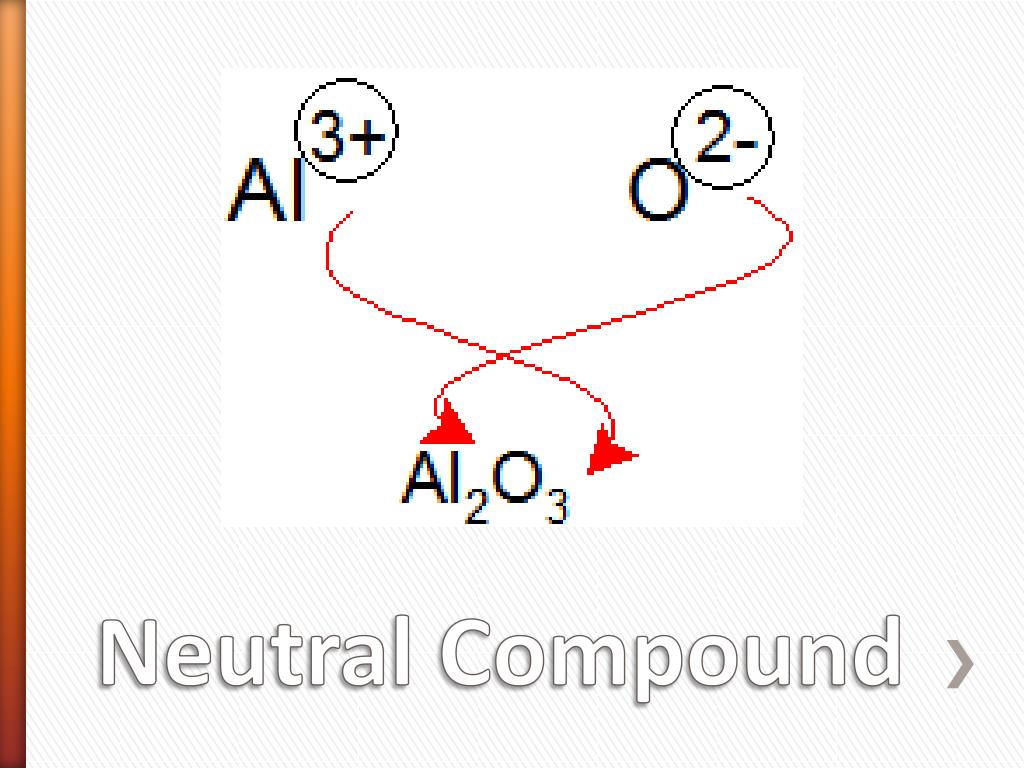

    5. Neutral Compound

    6. What is Li and O?

    7. NaBr • 1. Sodium + Bromine • 2. Magnesium + Nitrogen • 3. Calcium + Sulfur • 4. Calcium + Chlorine • 5. Aluminum + Fluorine Mg3N2 CaS CaCl2 AlF3 Practice

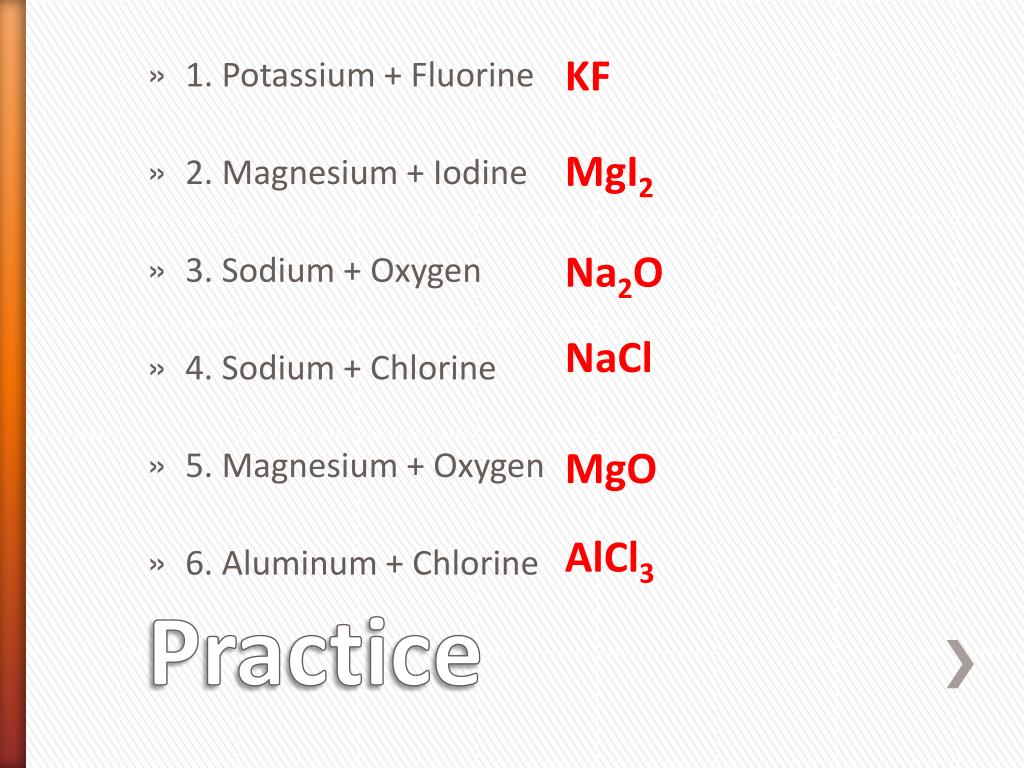

    8. KF • 1. Potassium + Fluorine • 2. Magnesium + Iodine • 3. Sodium + Oxygen • 4. Sodium + Chlorine • 5. Magnesium + Oxygen • 6. Aluminum + Chlorine MgI2 Na2O NaCl MgO AlCl3 Practice

    9. Name Metal Name Non-Metal Drop ending and add -ide Naming Ionic Compounds

    10. Sodium Chlorine NaCl Sodium Chloride Naming Example

    11. NaBr • 1. Sodium + Bromine • 2. Magnesium + Nitrogen • 3. Calcium + Sulfur • 4. Calcium + Chlorine • 5. Aluminum + Fluorine Sodium Bromide Mg3N2 Magnesium Nitride CaS Calcium Sulfide CaCl2 Calcium Chloride AlF3 Aluminum Fluoride Naming Practice

    12. KF Potassium Fluoride MgI2 Magnesium Iodide Na2O Sodium Oxide NaCl Sodium Chloride MgO Magnesium Oxide AlCl3 Aluminum Chloride Naming Practice

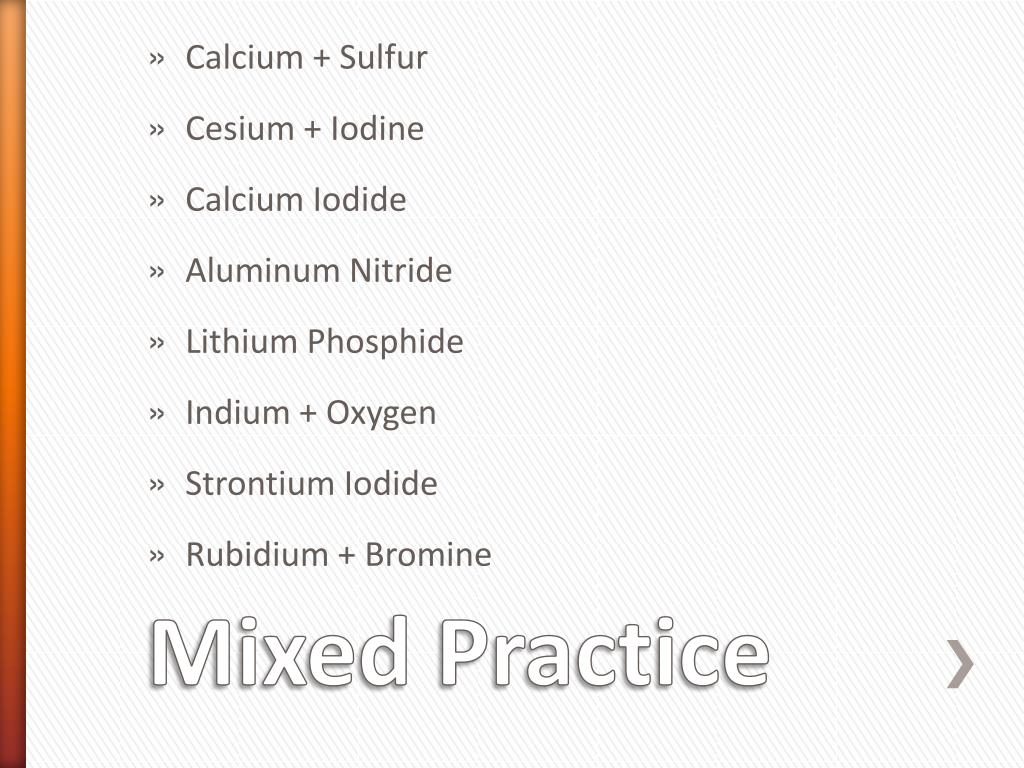

    13. Calcium + Sulfur • Cesium + Iodine • Calcium Iodide • Aluminum Nitride • Lithium Phosphide • Indium + Oxygen • Strontium Iodide • Rubidium + Bromine Mixed Practice

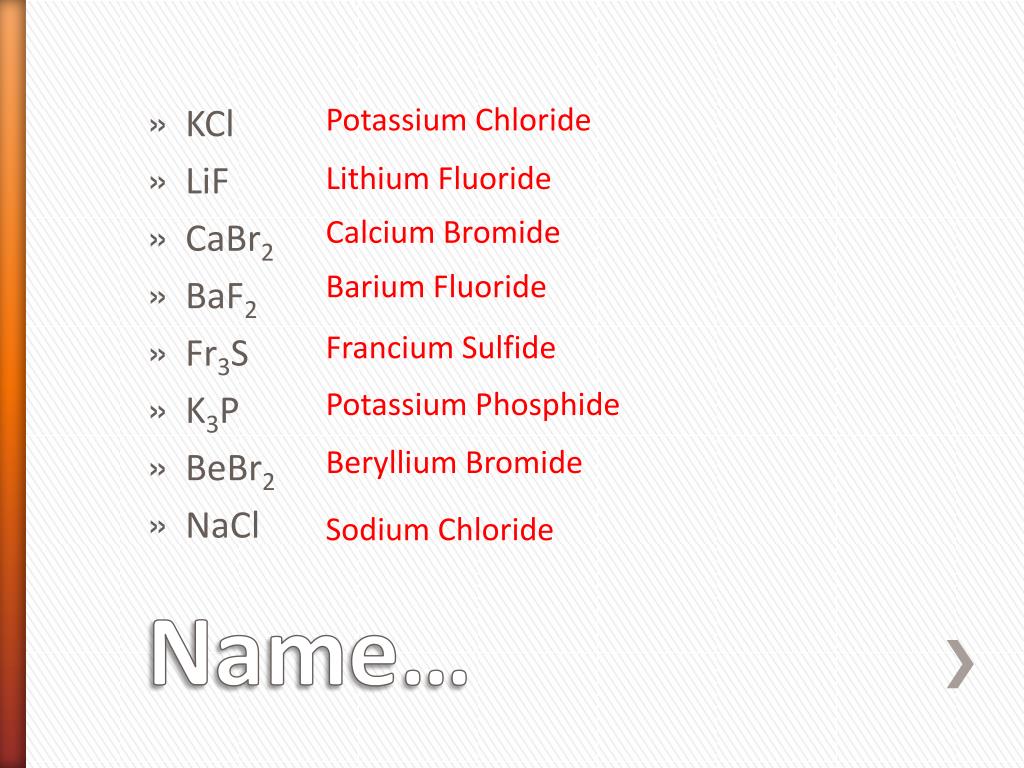

    14. Potassium Chloride • KCl • LiF • CaBr2 • BaF2 • Fr3S • K3P • BeBr2 • NaCl Lithium Fluoride Calcium Bromide Barium Fluoride Francium Sulfide Potassium Phosphide Beryllium Bromide Sodium Chloride Name…

    15. Transition Metals

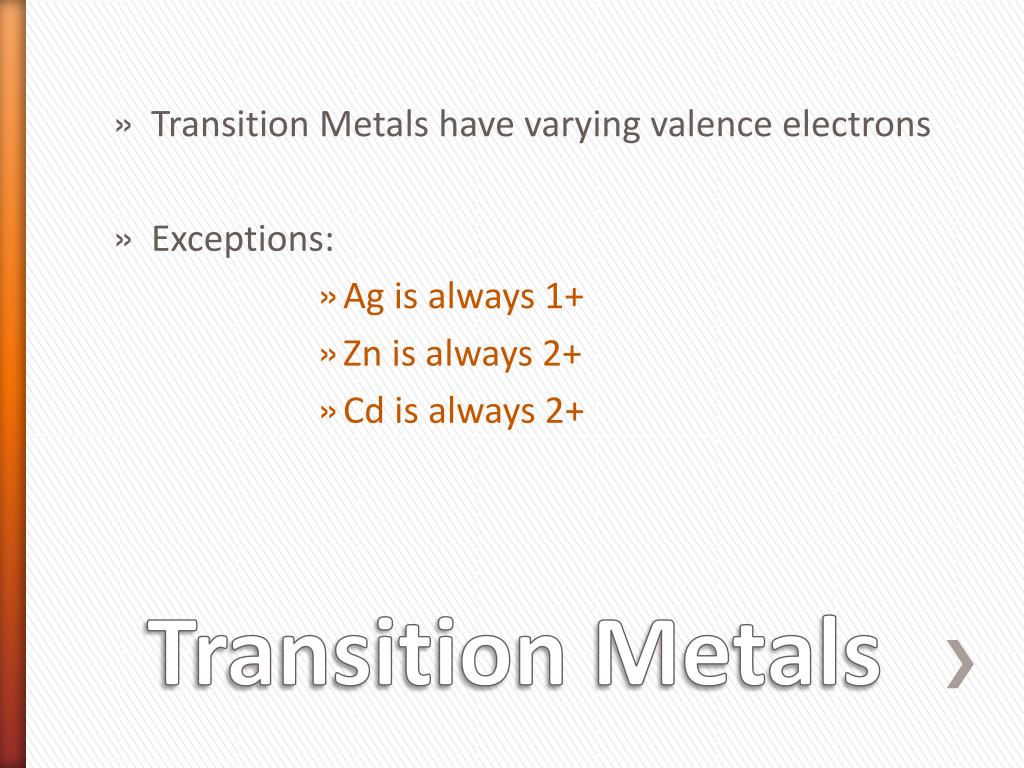

    16. Transition Metals have varying valence electrons • Exceptions: • Ag is always 1+ • Zn is always 2+ • Cd is always 2+ Transition Metals

    17. Why the different charges?

    18. 2 3 • ZnCl2 • FeP • MnBr2 • CuF2 • MnO2 • PbO • SnS2 • Fe2O 2 2 4 2 4 1 What is the charge of the metal?

    19. Label Charge Using Roman Numerals Name Metal Drop ending and add -ide Name Non-Metal Naming Transition Metals

    20. 1 2 3 4 5 6 7 8 Roman Numerals

    21. Name: ZnCl2 • Zinc (II) Chloride Naming Example

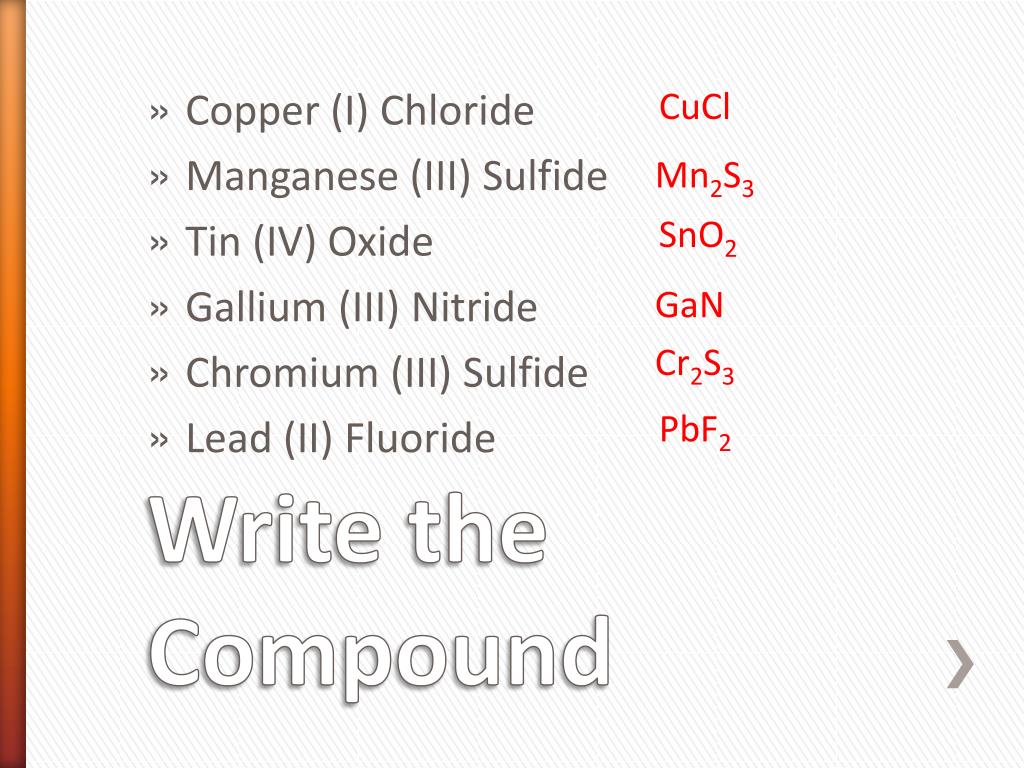

    22. CuCl • Copper (I) Chloride • Manganese (III) Sulfide • Tin (IV) Oxide • Gallium (III) Nitride • Chromium (III) Sulfide • Lead (II) Fluoride Mn2S3 SnO2 GaN Cr2S3 PbF2 Write the Compound

    23. Copper (II) Nitride • Cu3N2 • Fe2S3 • ZnCl2 • AgCl • Cd3N2 • MnO2 • NiS Iron (III) Sulfide Zinc (II) Chloride Silver (I) Chloride Cadmium (II) Nitride Manganese (IV) Oxide Nickel (II) Sulfide Name the Compound

    24. Polyatomic Ions

    25. Sulfate • Sulfite • Carbonate • Nitrate • Bicarbonate • Nitrite • Phosphate • Hydroxide • Ammonium • Acetate Look Familiar?

    26. Write the Compound

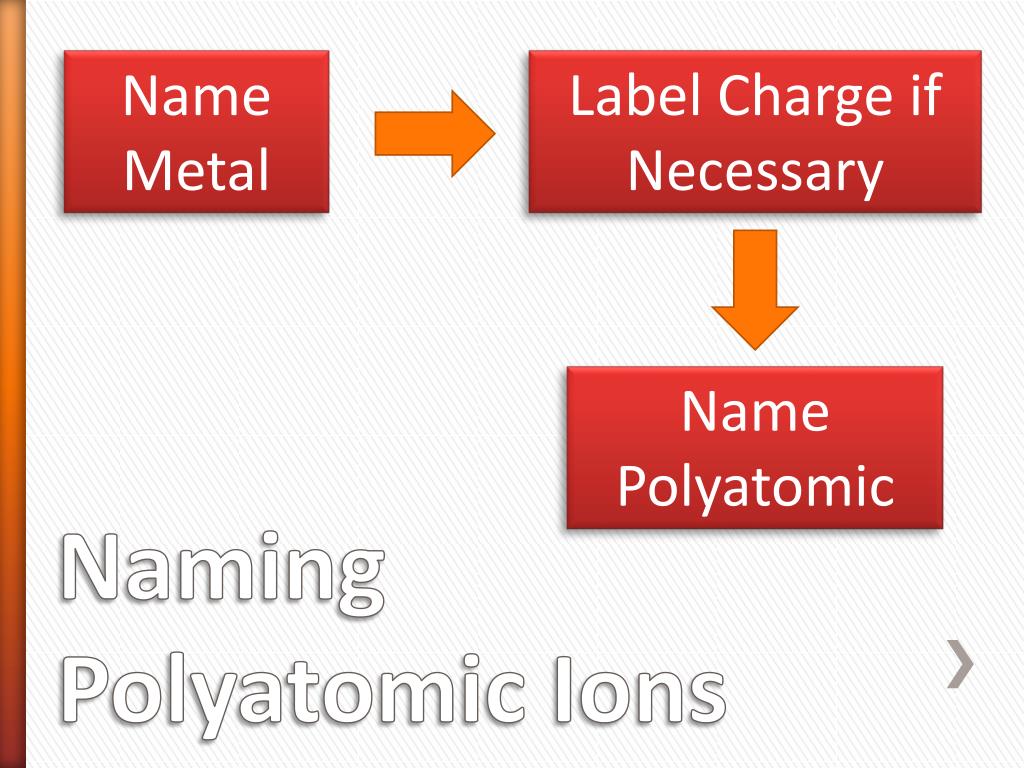

    27. Name Metal Label Charge if Necessary Name Polyatomic Naming Polyatomic Ions

    28. CuSO3 • Copper (II) Sulfite Naming Example

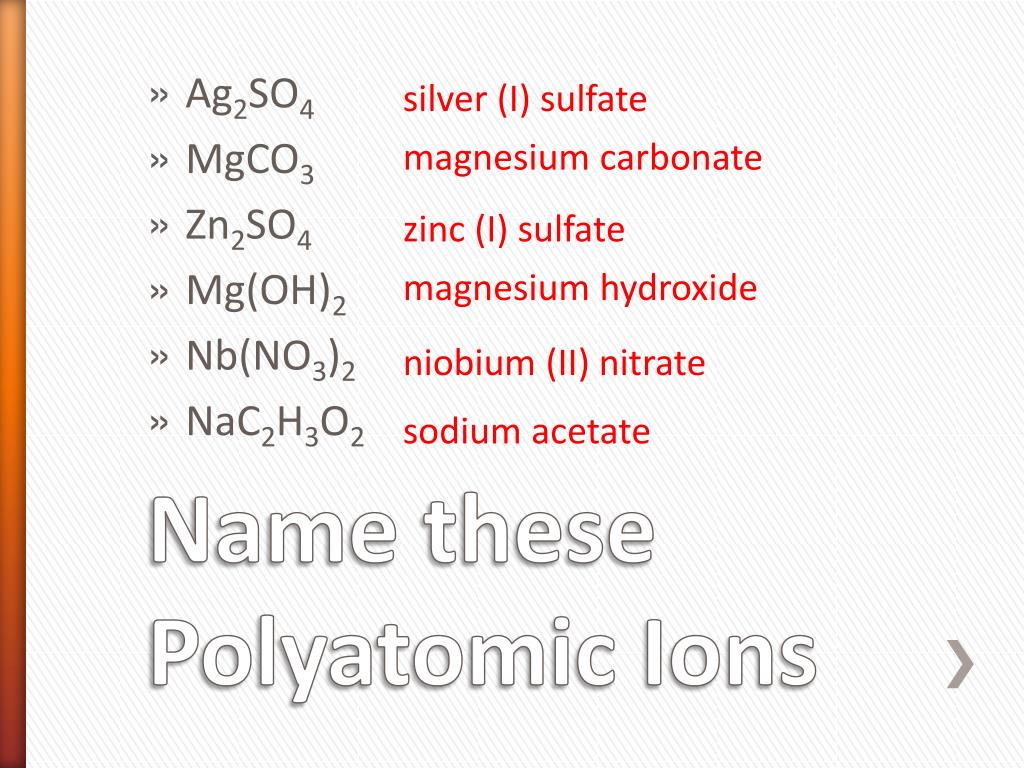

    29. silver (I) sulfate • Ag2SO4 • MgCO3 • Zn2SO4 • Mg(OH)2 • Nb(NO3)2 • NaC2H3O2 magnesium carbonate zinc (I) sulfate magnesium hydroxide niobium (II) nitrate sodium acetate Name these Polyatomic Ions

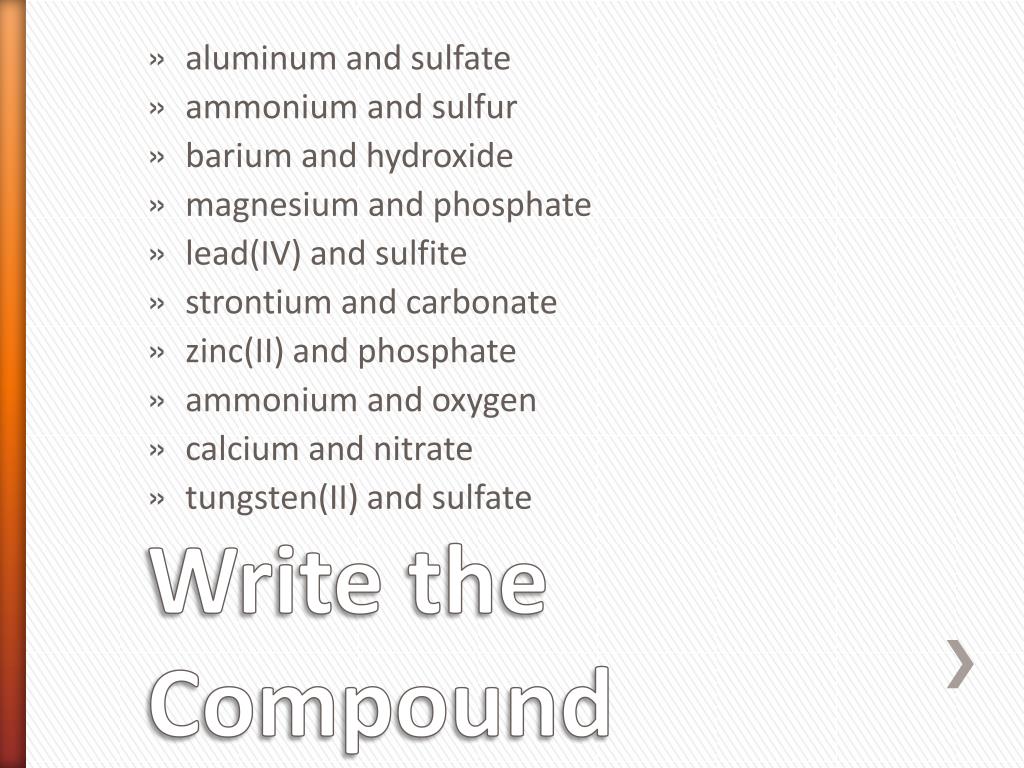

    30. aluminum and sulfate • ammonium and sulfur • barium and hydroxide • magnesium and phosphate • lead(IV) and sulfite • strontium and carbonate • zinc(II) and phosphate • ammonium and oxygen • calcium and nitrate • tungsten(II) and sulfate Write the Compound

    31. Standard Charge • Non-metal • Name Non-Metal • Drop Ending • Add -ide Metal with Multiple Charge • Polyatomic Ion • Name Ion Polyatomic Ion Naming Guide

    32. Properties of Ionic Compounds

    33. Form Crystals • High melting and boiling points • Hard and brittle • Conduct electricity when dissolved Properties of Ionic Compounds

    34. Crystal Structure

    35. Metallic Bonds

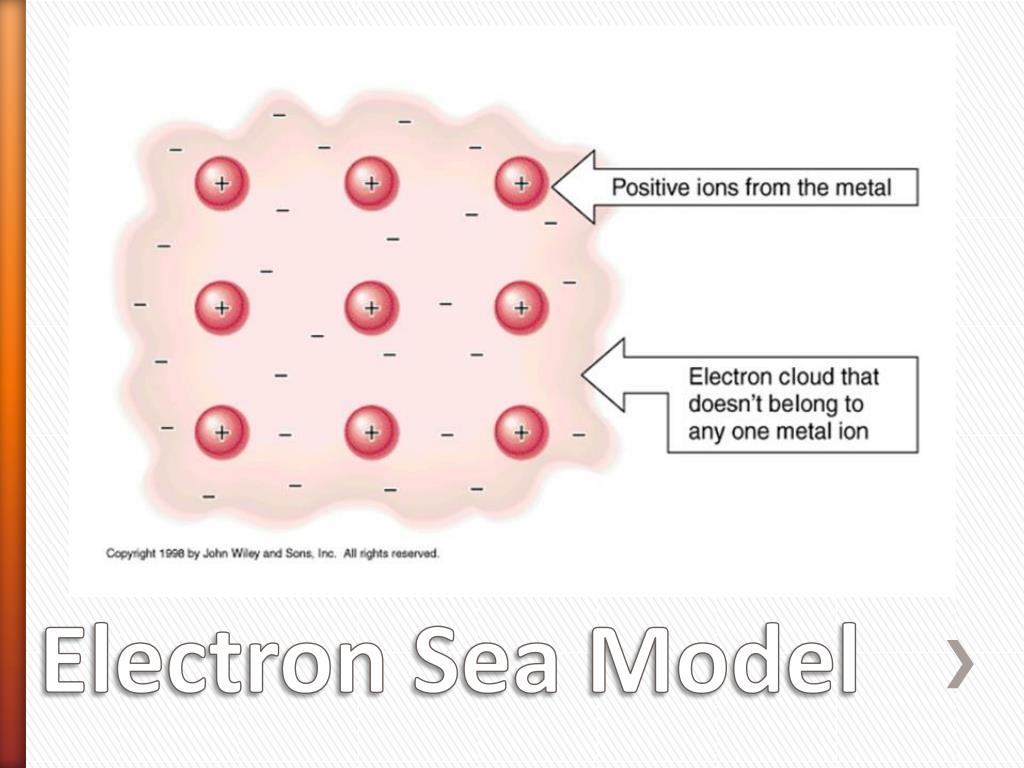

    36. Electron Sea Model

    37. Metals are not ionic but DO share many properties with ionic compounds.

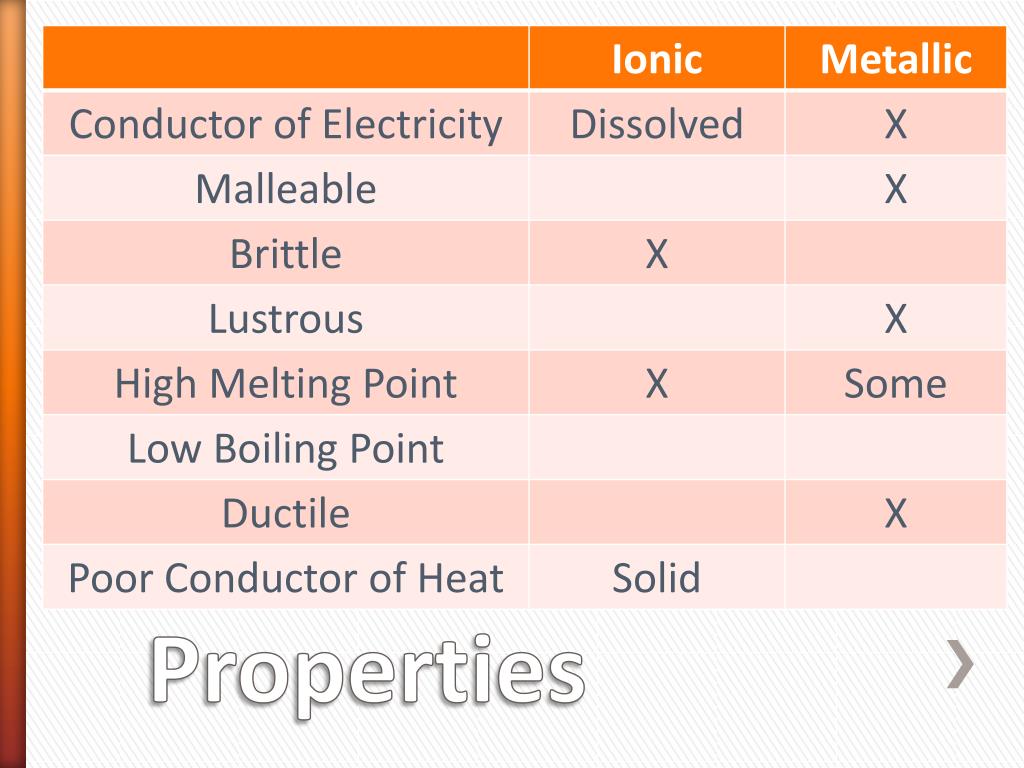

    38. Properties
