Snaga

Snaga. Srednja snaga:. Trenutačna snaga:. [W = J s -1 ]. Primjer: Kojom brzinom dizalica podiže teret mase 2 t, ako je njezina snaga 4 kW?. Rješenje:. m = 2 t. = 2000 kg. P = 4 kW. = 4000 W. v = ?. P = Fv. P = mgv . v = 0,2 m s -1. Korisnost.

treva
Download Presentation

Snaga

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

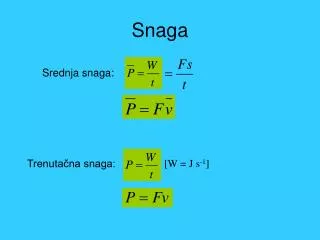

  1. Snaga Srednja snaga: Trenutačna snaga: [W = J s-1]

  2. Primjer: Kojom brzinom dizalica podiže teret mase 2 t, ako je njezina snaga 4 kW? Rješenje: m = 2 t = 2000 kg P = 4 kW = 4000 W v = ? P = Fv P = mgv  v = 0,2 m s-1

  3. Korisnost

  4. Primjer: Motor dizalice ima snagu 10 kW. Na koju visinu dizalica može podići teret mase 4 t za pola minute ako je korisnost 90 %? Rješenje: Pu = 10 kW = 10000 W m = 4 t = 4000 kg t = 0,5 min = 30 s  = 90 % = 0,90 h = ? , h = 6,88 m

  5. Zadatak: Motor koji služi za vuču vozila ima snagu 20 kW. Kojom brzinom motor vuče vozilo mase 500 kg po horizontalnoj podlozi ako je faktor trenja 0,4, a korisnost 90 %? Rješenje: = 20000 W Pu = 20 kW m = 500 kg  = 0,4  = 90 % = 0,90 v = ? v = 9,2 m s-1
