slide1

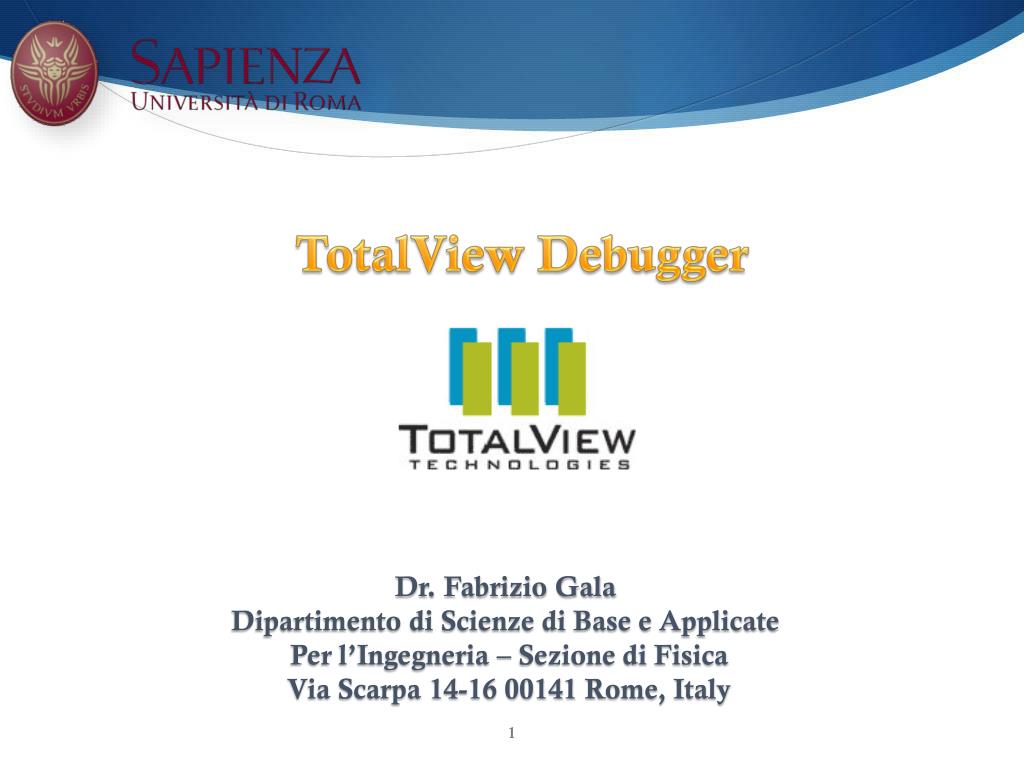

TotalViewDebugger

Dr. Fabrizio Gala

Dipartimento di Scienze di Base e Applicate

Per l’Ingegneria – Sezione di Fisica

Via Scarpa 14-16 00141 Rome, Italy

slide2

Outline

  • StartingTotalView on CRESCO
  • BasicDebugging
    • RootWindow
    • Stepping Toolbar
    • ActionPoints
    • VisualizingArrays
    • Visualizing C++ Sturctures
  • MPI Debugging
    • MessageQueueGraph
  • MemoryMenagement
    • MemoryDebugging
    • SegmentationFaults
    • MemoryLeaks
  • Online Informations
slide3

StartingTotalView on CRESCO

Open a terminal throughFARO

Compile the code todebug

Load the TotalViewmodule

Submit the job

PARALLEL

ENVIRONMENT

http://www.cresco.enea.it/nx.html

mpicc–g –O0 –omyprogram.xmyprogram.c

~/> moduleloadtotalview

bsub–n#procs-I –a tv –q#queuetotalview#exe

MPI TASK NUMBER

slide4

RootWindow

The RootWindowcontains a listofall the processes and threadsyou are currentlydebugging.

ROOT

WINDOW

  • T = sTopped
  • B = Breakpoint
  • E = Error
  • W = Watchpoint
  • R = Running
  • M = Mixed

ACTION POINT

ID NUMBER

STATUS INFO :

4

slide5

Stepping Toolbar

  • Go : run the program
  • Halt : pause the execution
  • Kill : ends the process
  • Restart : equal to Kill plus Go
  • Next : executes all code on a line (i.e. a subroutine call)
  • Step : executes the line
  • Out : run up to return of a subroutine
  • Run to : runs to a selected line

5

slide6

ActionPoints

To set anactionpoint, click on the linenumber in the source panel and thenchoosewhatkindofactionyouneed.

SOURCE

PANEL

  • The basicactionpoints are:
  • Breakpoint : stopsexecutionof the processesofthreadsthatreachit,
  • Evaluationpoint: executes a code fragmentwhenitisreached,
  • ProcessBarrier Point : holdeachprocesswhenitreaches the barrierpointuntilallprocess in the grouphavereached the barrir point

6

slide7

VisualizingArrays

STACK FRAME PANEL

Afterhaving set a breakpoint, itispossibletohave a look inside a variable, bysimplyselecting the variable in the Stack Frame Panel and thendivingby a double-click.

This can beusefulifonewantstoexplore a variableamongdifferentthreads.

THREAD INDEX

7

slide8

Visualizing C++ Structures

Tocalculate the sizeofanyobjecttype, the compiler must take into account anyaddress

alignmentthatmaybeneedtomeetefficiency or achitecturalconstraints.

The compiler accomplishesthis task byinsertingunusedpaddingbytesbetweenmembersasneededtosatisfy the alignmentrequirements. Theremayalsobepadding at the end of a structuretoensureproperalignment in case the structureiseverusedasanelementofanarray.

SelectingView > Paddinggives:

CODE

8

slide9

MessageQueueGraph (1)

Tools > MessageQueueGraphdisplays a windowthatshows a graphicrepresentation

of the state ofmessagequeue information. Thisgraphshowsyou the state ofyour

program at a particularinstant.

WARNING:

WORKS only ON CRESCO 1 or 2

MPI MESSAGE

TAG

  • GREENPendingSends
  • BLUEPendingReceives
  • REDUnespectedMsgs

STATUS INFO :

PROC ID

9

PSEUDO

CODE

slide10

MessageQueueGraph (2)

  • Pendingmessagesoften indicate that a process can'tkeep up with the amountof work itisexpectedtoperform.Thesemessages indicate placeswhereyoumaybeabletoimproveyourprogram'sefficiency.
  • Unexpectedmessages can indicate thatsomethingis wrong withyourprogrambecause the receivingprocessdoesn'tknowhowtoprocess the message.
  • Loops in the graphmay indicate deadlocks.( Cycles can behighlitedbyOptions > Cycle Detection)

PSEUDO

CODE

DEADLOCK

EXAMPLE

10

slide11

MemoryDebugging (1)

Select the Debug > EnableMemoryDebuggingcommandbeforestarting the program.

When the programmakes a memoryrequest, MemoryScaperecords the stackframes

thatexistedwhen the actionoccurred.

MemoryScapestops the programexecutionwhenoneof the followingeventsoccurs:

  • Freeingmemorythatisalreadyfreed,
  • Freeing the wrong address
  • Freeeinganinteriorpointer,
  • Misaligningblocks

WARNING:

NOT WORKING correcltywithOpenMPIcompiledwithintel

11

slide12

MemoryDebugging (2)

MemoryUsage Chart Report displays the memoryoccupiedbyeachprocess:

TEXT: The amountofmemoryusedforstoring

the program'smachine code instructions.

DATA: The amountofmemoryusedforstoring

uninitialized and initialized data.

HEAP: The amountofmemorycurrentlybeing

usedfor data created at runtime

(i.e. allocatedpointers).

STACK: The amountofmemoryusedby the

currentlyexecuting routine and all the

routines in itsbacktrace.

12

slide13

MemoryDebugging (3)

Looking at how the programisusingmemorymay help in understandingwhereparallelization can beimproved.

UNBALANCED MEMORY OCCUPANCY

AMONG PROCESSES

13

slide14

SegmentationFaults

When aSegmentation Fault occurs,MemoryScapekeepstrackof the event, you can have a look at it in Debug > MemoryEventDetails)

CODE

14

slide15

In Leak Detection Reports > Source Report

MemoryLeaks (1)

A memoryleakoccurswhen the programincorrectlymenagesmemoryallocations.

As a consequence, a memoryleak can diminish the performance byreducing the amountofavailablememory. Eventually, in the worst case, toomuchof the availablememorymaybecomeallocated and all or part of the system e stopsworkingcorrectly, the applicationfails, or the system slows down unacceptably.

POINTERS

ALLOCATION

MEMORY

PSEUDO

CODE

The instructionherefreesonly A, nottmp

MEMORY LEAK

15

slide16

MemoryLeaks (2)

In Leak Detection Reports > Source Report in facttellsus :

sizeof (double)

16

slide17

Online Information

TotalViewdocumentation can befoundhere:

http://www.roguewave.com/support/product-documentation/totalview.aspx

THANKS TO Prof. G. ZOLLO and Dr. A. SCHIAVI

&

THANK YOU TO EVERYBODY FOR THE ATTENTION
