U net a user level network interface for parallel and distributed computing

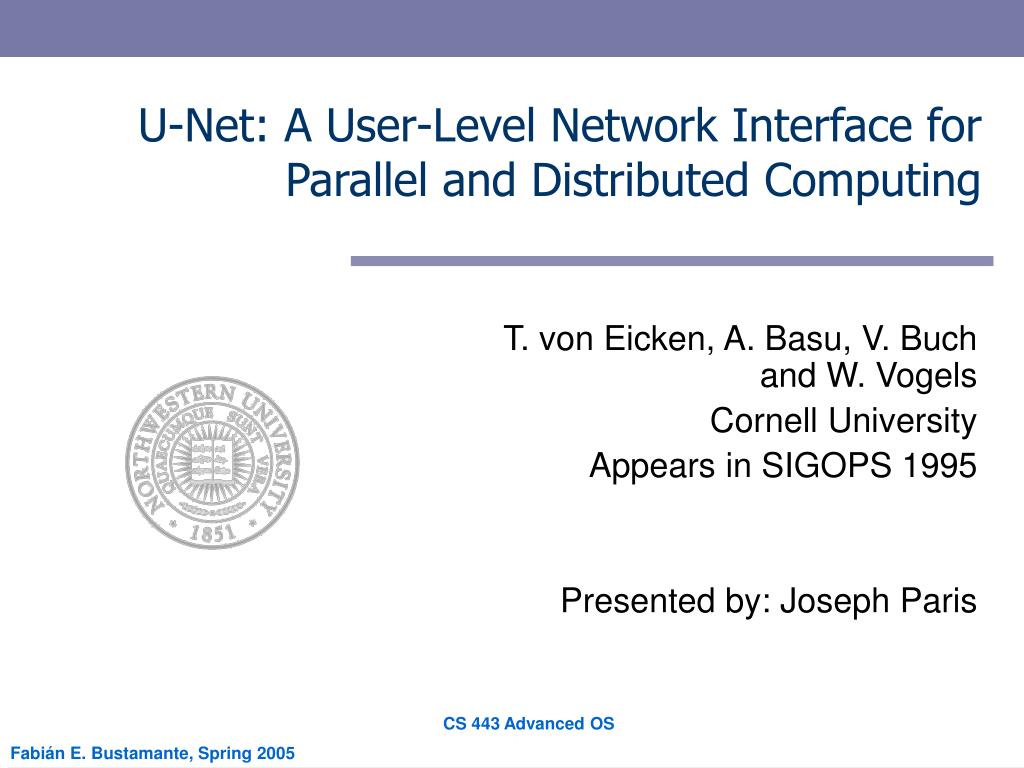

U-Net: A User-Level Network Interface for Parallel and Distributed Computing

T. von Eicken, A. Basu, V. Buch and W. Vogels

Cornell University

Appears in SIGOPS 1995

Presented by: Joseph Paris

Introduction Distributed Computing

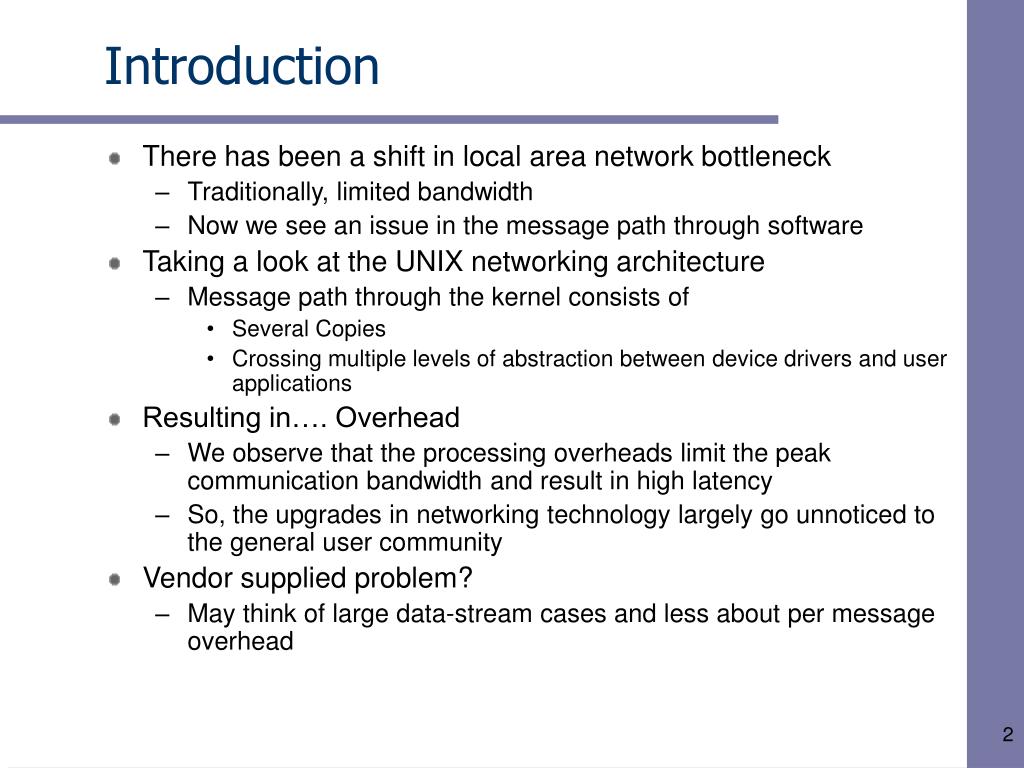

  • There has been a shift in local area network bottleneck

    • Traditionally, limited bandwidth

    • Now we see an issue in the message path through software

  • Taking a look at the UNIX networking architecture

    • Message path through the kernel consists of

      • Several Copies

      • Crossing multiple levels of abstraction between device drivers and user applications

  • Resulting in…. Overhead

    • We observe that the processing overheads limit the peak communication bandwidth and result in high latency

    • So, the upgrades in networking technology largely go unnoticed to the general user community

  • Vendor supplied problem?

    • May think of large data-stream cases and less about per message overhead

Observation Distributed Computing

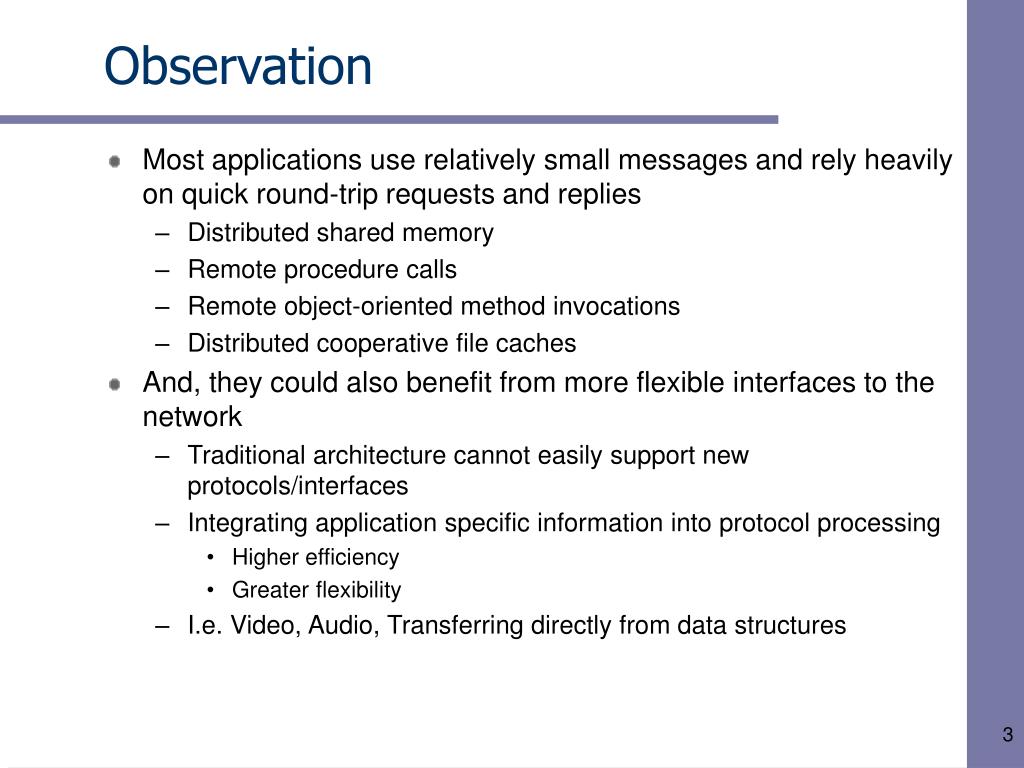

  • Most applications use relatively small messages and rely heavily on quick round-trip requests and replies

    • Distributed shared memory

    • Remote procedure calls

    • Remote object-oriented method invocations

    • Distributed cooperative file caches

  • And, they could also benefit from more flexible interfaces to the network

    • Traditional architecture cannot easily support new protocols/interfaces

    • Integrating application specific information into protocol processing

      • Higher efficiency

      • Greater flexibility

    • I.e. Video, Audio, Transferring directly from data structures

Motivation Distributed Computing

Low end-to-end communication latencies

  • Separating processing overhead from network latency

    • Distributed Systems

      • Object-oriented Technology

        • Objects are generally small (100 bytes vs. Kbytes)

      • Electronic workplace

        • Simple database servers that handle object naming, location, authentication, protection. (20-80bytes for requests, 40-200 bytes for response)

      • Cache Coherence

        • Keeping copies consistent introduces a large number of small coherence messages.

      • Fault-tolerance Algorithms/Group Communication

        • Global locks, scheduling, coherence

      • RPC’s, file systems, etc.

Motivation Distributed Computing

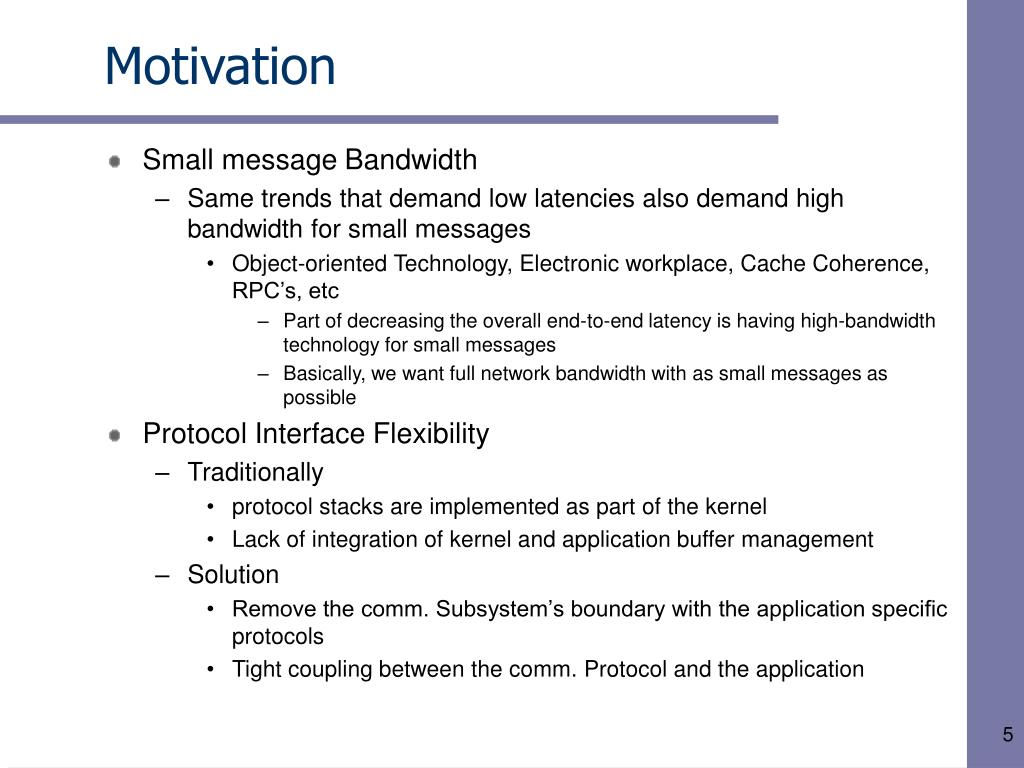

  • Small message Bandwidth

    • Same trends that demand low latencies also demand high bandwidth for small messages

      • Object-oriented Technology, Electronic workplace, Cache Coherence, RPC’s, etc

        • Part of decreasing the overall end-to-end latency is having high-bandwidth technology for small messages

        • Basically, we want full network bandwidth with as small messages as possible

  • Protocol Interface Flexibility

    • Traditionally

      • protocol stacks are implemented as part of the kernel

      • Lack of integration of kernel and application buffer management

    • Solution

      • Remove the comm. Subsystem’s boundary with the application specific protocols

      • Tight coupling between the comm. Protocol and the application

Solution unet

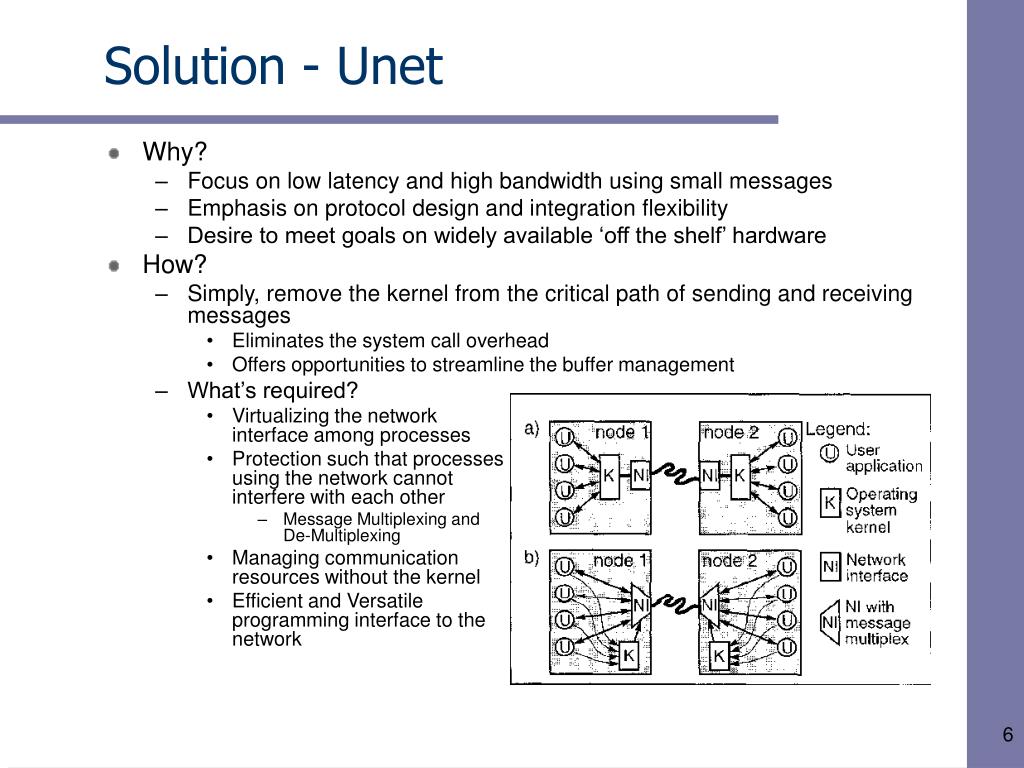

Solution - Unet Distributed Computing

  • Why?

    • Focus on low latency and high bandwidth using small messages

    • Emphasis on protocol design and integration flexibility

    • Desire to meet goals on widely available ‘off the shelf’ hardware

  • How?

    • Simply, remove the kernel from the critical path of sending and receiving messages

      • Eliminates the system call overhead

      • Offers opportunities to streamline the buffer management

    • What’s required?

      • Virtualizing the network interface among processes

      • Protection such that processes using the network cannot interfere with each other

        • Message Multiplexing and De-Multiplexing

      • Managing communication resources without the kernel

      • Efficient and Versatile programming interface to the network

Design implementation of u net
Design & Implementation of U-Net Distributed Computing

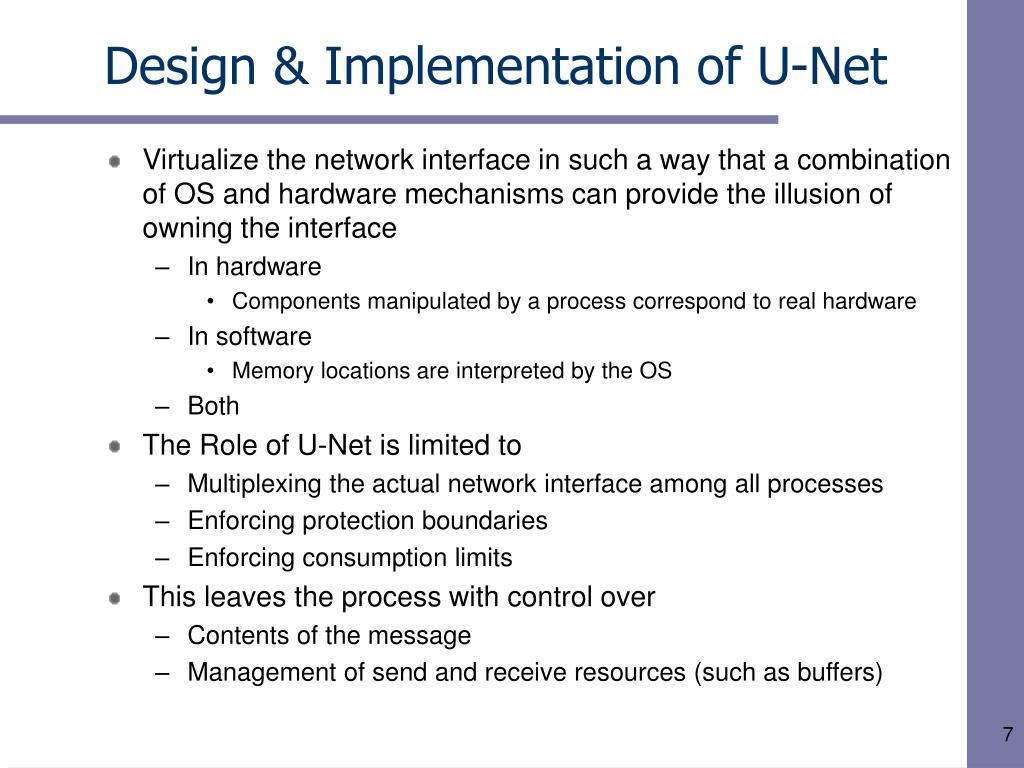

  • Virtualize the network interface in such a way that a combination of OS and hardware mechanisms can provide the illusion of owning the interface

    • In hardware

      • Components manipulated by a process correspond to real hardware

    • In software

      • Memory locations are interpreted by the OS

    • Both

  • The Role of U-Net is limited to

    • Multiplexing the actual network interface among all processes

    • Enforcing protection boundaries

    • Enforcing consumption limits

  • This leaves the process with control over

    • Contents of the message

    • Management of send and receive resources (such as buffers)

Design implementation of u net1
Design & Implementation of U-Net Distributed Computing

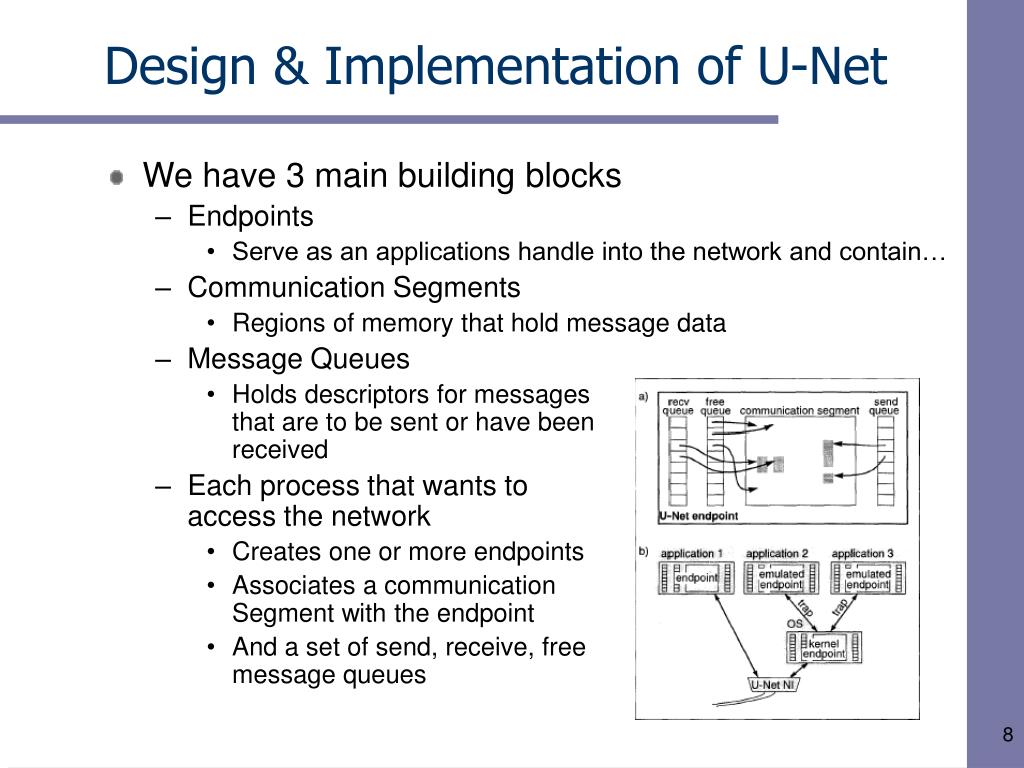

  • We have 3 main building blocks

    • Endpoints

      • Serve as an applications handle into the network and contain…

    • Communication Segments

      • Regions of memory that hold message data

    • Message Queues

      • Holds descriptors for messages that are to be sent or have been received

    • Each process that wants to access the network

      • Creates one or more endpoints

      • Associates a communication Segment with the endpoint

      • And a set of send, receive, free message queues

Design implementation of u net2
Design & Implementation of U-Net Distributed Computing

  • Sending

    • User process composes the data in the communication segment

    • Pushes a descriptor for the message onto the send queue

    • At this point the network interface is expected to pick the message up and insert it into the network

      • If there is a back-up

        • Leave the descriptor in the queue

        • Eventually exert back-pressure to the user process when the queue becomes full

  • Receiving

    • Messages are de-multiplexed based on their destination

      • Data is transferred to the appropriate comm. Segment

      • The message descriptor is pushed onto the corresponding receive queue

    • Receive model notification

      • Polling

        • Blocks waiting for the next message to arrive via the UNIX select call

      • Event Driven

        • Register an Up-Call

          • Signals the state of the receive queue that satisfies a certain condition

        • Only two conditions currently supported

          • Queue is non-empty

          • Queue is almost full

        • In order to keep performance high (and cost low) all messages can be consumed on a single up-call

Design and implementation of u net
Design and Implementation of U-Net Distributed Computing

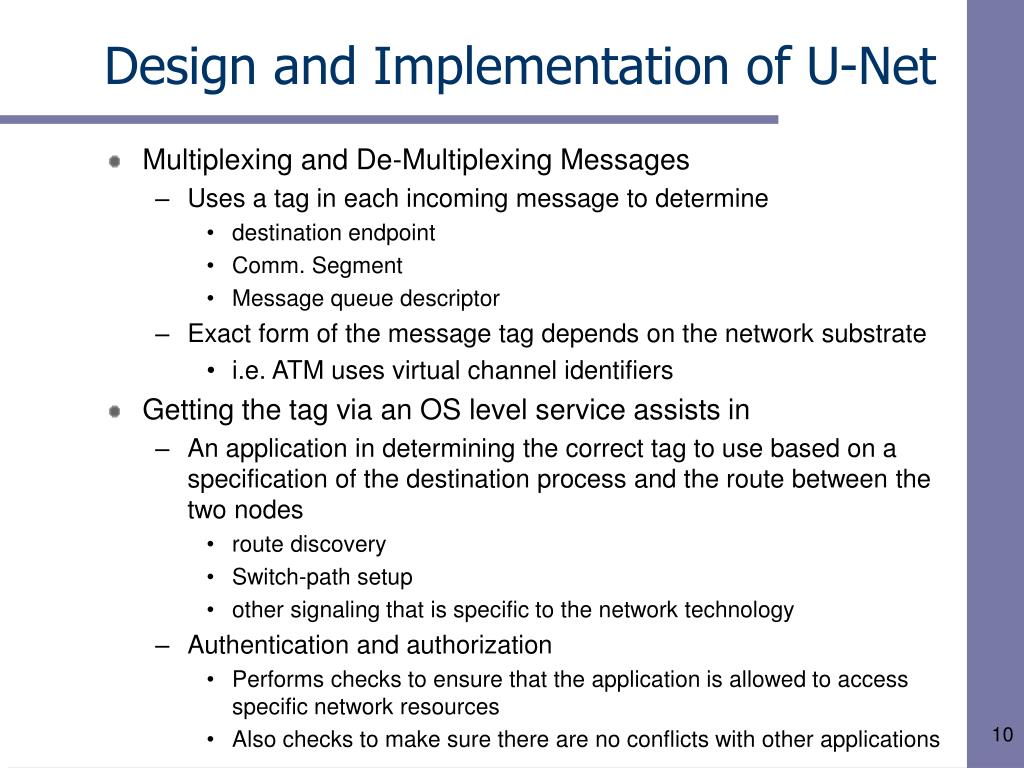

  • Multiplexing and De-Multiplexing Messages

    • Uses a tag in each incoming message to determine

      • destination endpoint

      • Comm. Segment

      • Message queue descriptor

    • Exact form of the message tag depends on the network substrate

      • i.e. ATM uses virtual channel identifiers

  • Getting the tag via an OS level service assists in

    • An application in determining the correct tag to use based on a specification of the destination process and the route between the two nodes

      • route discovery

      • Switch-path setup

      • other signaling that is specific to the network technology

    • Authentication and authorization

      • Performs checks to ensure that the application is allowed to access specific network resources

      • Also checks to make sure there are no conflicts with other applications

Design and implementation of u net1
Design and Implementation of U-Net Distributed Computing

  • Base-level Architecture

    • Hardware cannot support Direct-Access

      • “True Zero-Copy” where data can be sent directly out of the applications data structures without intermediate buffering

      • Requires special memory mapping to span the entire processes address space into the network interface

    • So we only get “Zero-Copy” support for now

      • Which in reality requires a single copy, namely between the application’s data structures and a bugger in the communication segment

    • Queue based interface to the network

      • Stages messages in a limited size comm. Segment on their way between application data structures and the network

      • Send and Receive queues hold descriptors with information about the destination, origin, endpoints, length, as well as offsets within the comm. segment

        • Management of the send buffer is entirely up to the process

          • Must be properly aligned for the requirements of the network interface

        • Cannot control order in which messages are received into the Recv Buffer

      • Free queues hold descriptors for free buggers that are made available to the network interface for storing arriving messages

    • Small Message Optimization

      • Send and recv queues may hold entire messages in descriptors (instead of pointers to data)

      • Avoids buffer management and can improve round-trip latency

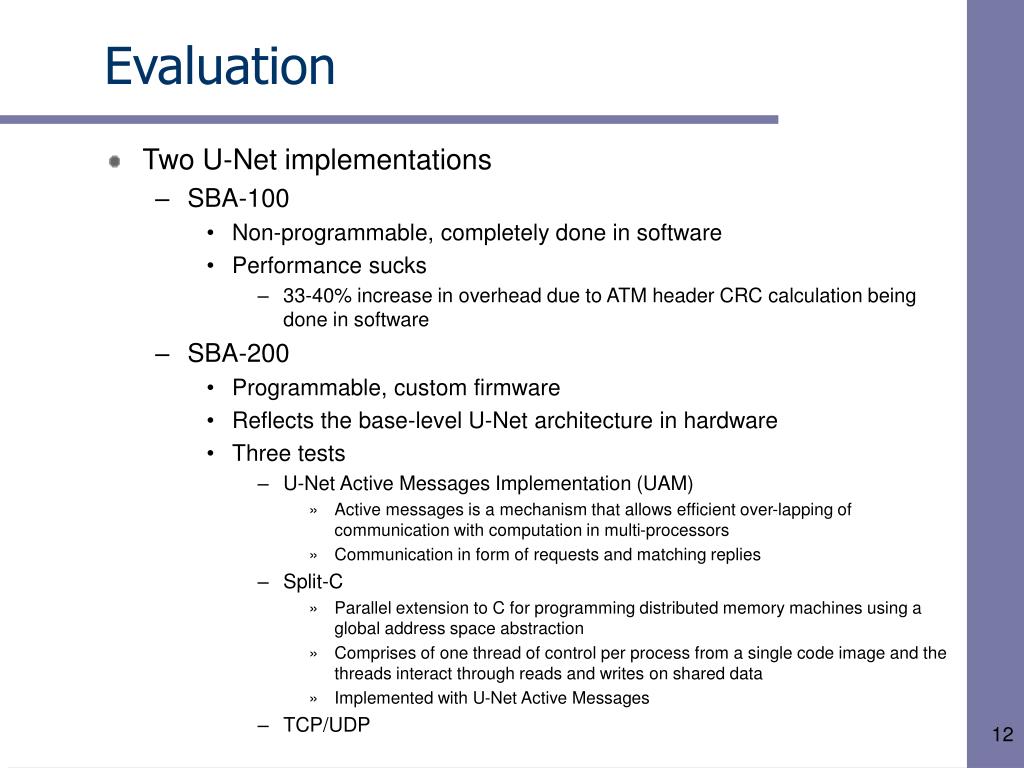

Evaluation Distributed Computing

  • Two U-Net implementations

    • SBA-100

      • Non-programmable, completely done in software

      • Performance sucks

        • 33-40% increase in overhead due to ATM header CRC calculation being done in software

    • SBA-200

      • Programmable, custom firmware

      • Reflects the base-level U-Net architecture in hardware

      • Three tests

        • U-Net Active Messages Implementation (UAM)

          • Active messages is a mechanism that allows efficient over-lapping of communication with computation in multi-processors

          • Communication in form of requests and matching replies

        • Split-C

          • Parallel extension to C for programming distributed memory machines using a global address space abstraction

          • Comprises of one thread of control per process from a single code image and the threads interact through reads and writes on shared data

          • Implemented with U-Net Active Messages

        • TCP/UDP

Evaluation Distributed Computing

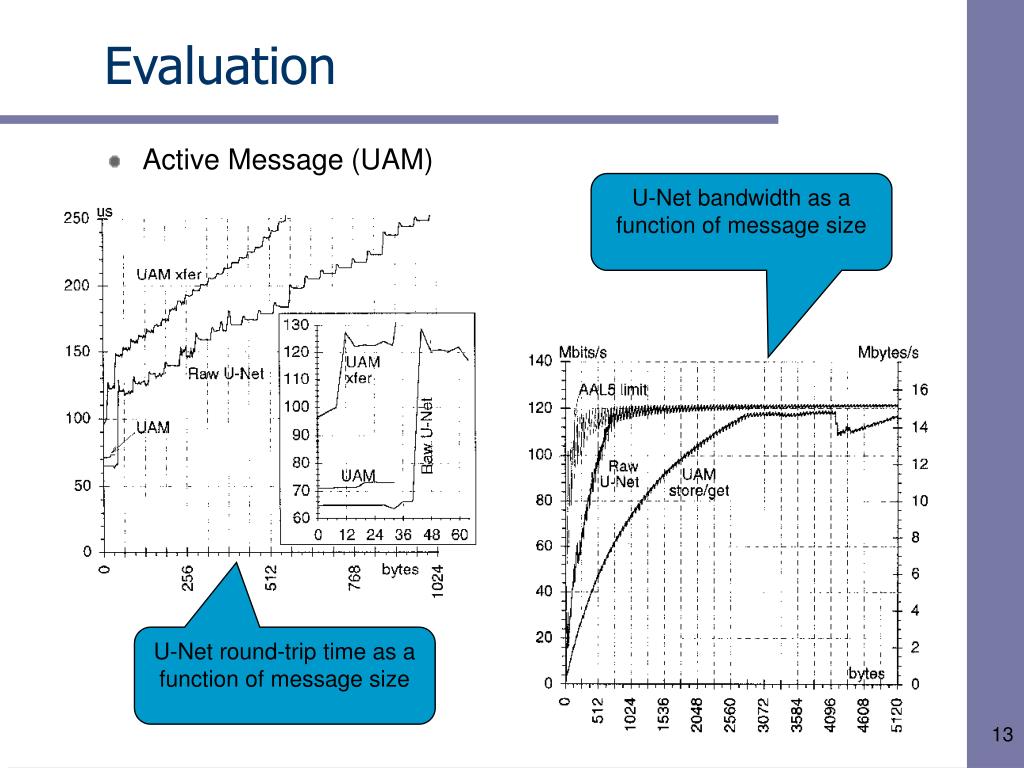

  • Active Message (UAM)

U-Net bandwidth as a function of message size

U-Net round-trip time as a function of message size

Evaluation Distributed Computing

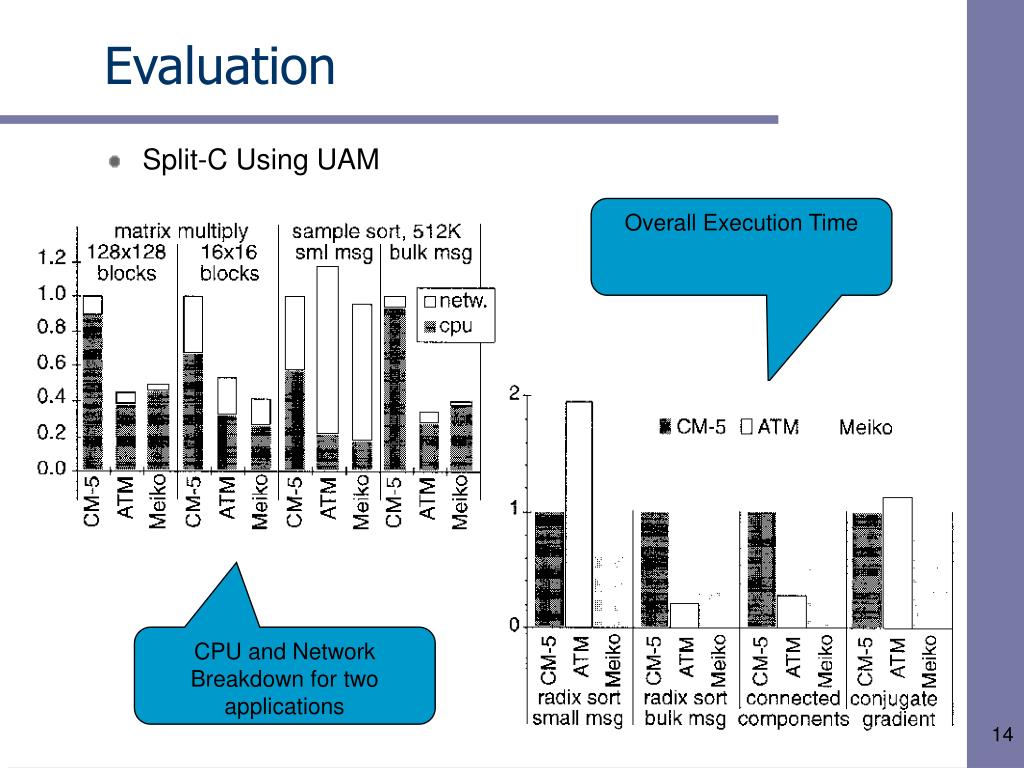

  • Split-C Using UAM

Overall Execution Time

CPU and Network Breakdown for two applications

Evaluation Distributed Computing

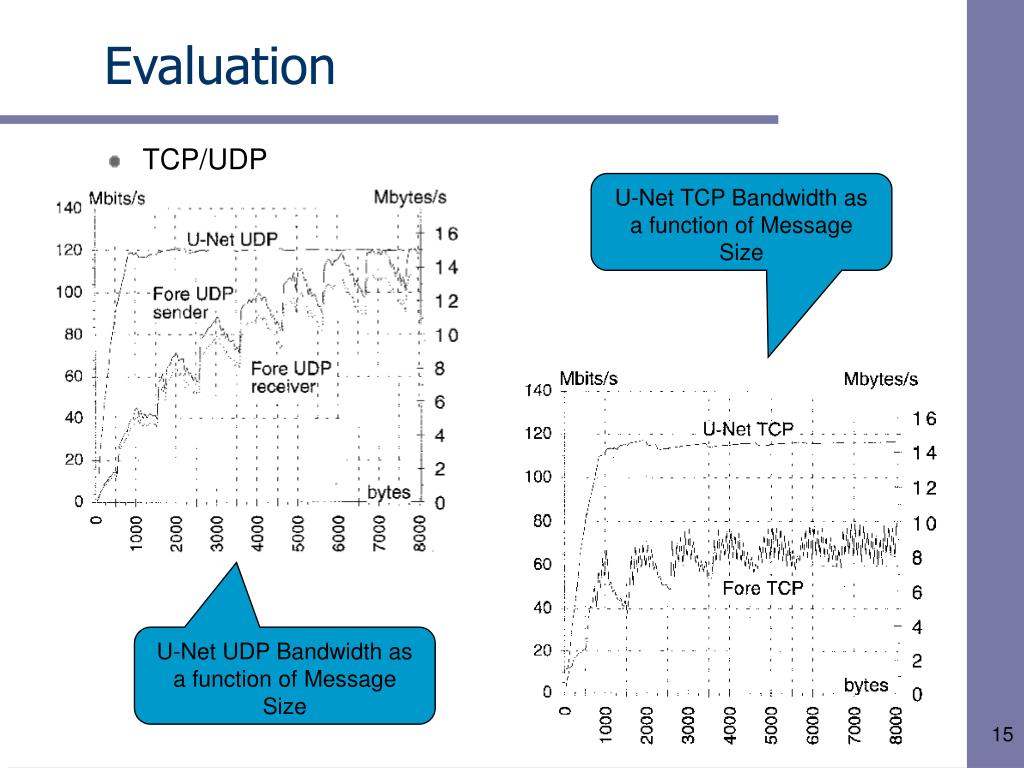

U-Net TCP Bandwidth as a function of Message Size

U-Net UDP Bandwidth as a function of Message Size

Evaluation Distributed Computing

  • TCP/UDP Latency as a function of Message Size

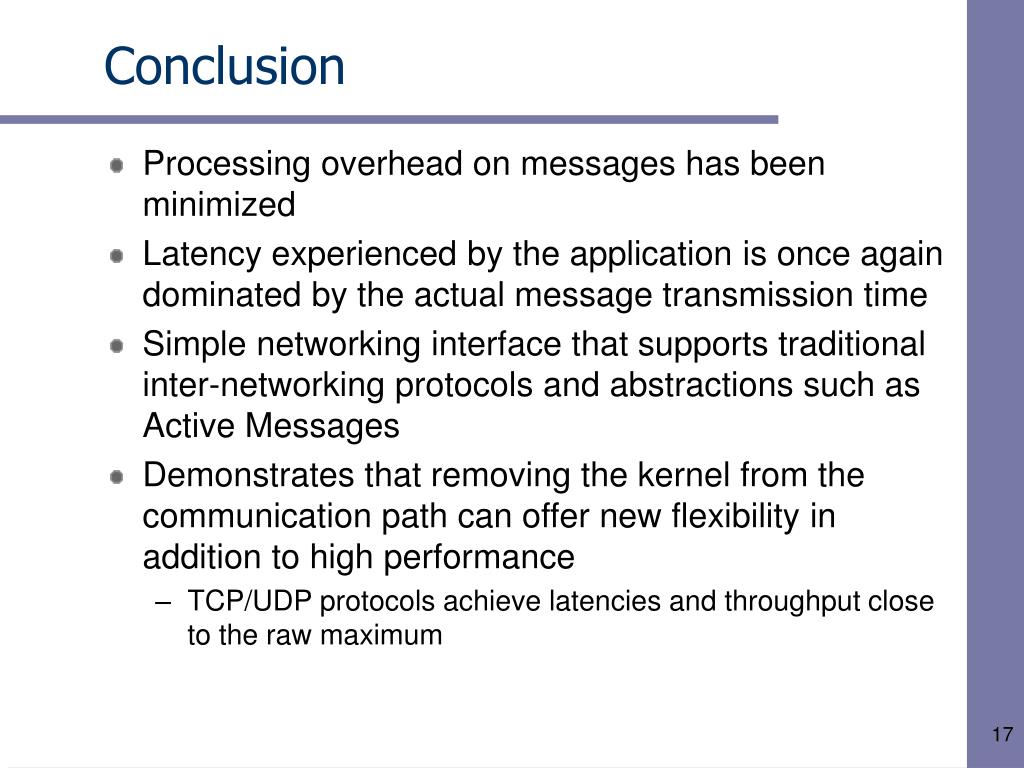

Conclusion Distributed Computing

  • Processing overhead on messages has been minimized

  • Latency experienced by the application is once again dominated by the actual message transmission time

  • Simple networking interface that supports traditional inter-networking protocols and abstractions such as Active Messages

  • Demonstrates that removing the kernel from the communication path can offer new flexibility in addition to high performance

    • TCP/UDP protocols achieve latencies and throughput close to the raw maximum
