NEESR-II: SYSTEM BEHAVIOR FACTORS FOR COMPOSITE AND MIXED STRUCTURAL SYSTEMS

NEESR-II: SYSTEM BEHAVIOR FACTORS FOR COMPOSITE AND MIXED STRUCTURAL SYSTEMS. CFT Specimens Roberto Leon Tiziano Perea Georgia Institute of Technology. MAST Laboratory. RCFT20x12x0.3125 Specimen. CCFT20x0.25 Specimen. CCFT12.75x0.25 Specimen. HSS12.75X0.25 SPECIMEN.

tom
Download Presentation

NEESR-II: SYSTEM BEHAVIOR FACTORS FOR COMPOSITE AND MIXED STRUCTURAL SYSTEMS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. NEESR-II: SYSTEM BEHAVIOR FACTORS FOR COMPOSITE AND MIXED STRUCTURAL SYSTEMS CFT Specimens Roberto Leon Tiziano Perea Georgia Institute of Technology

  2. MAST Laboratory

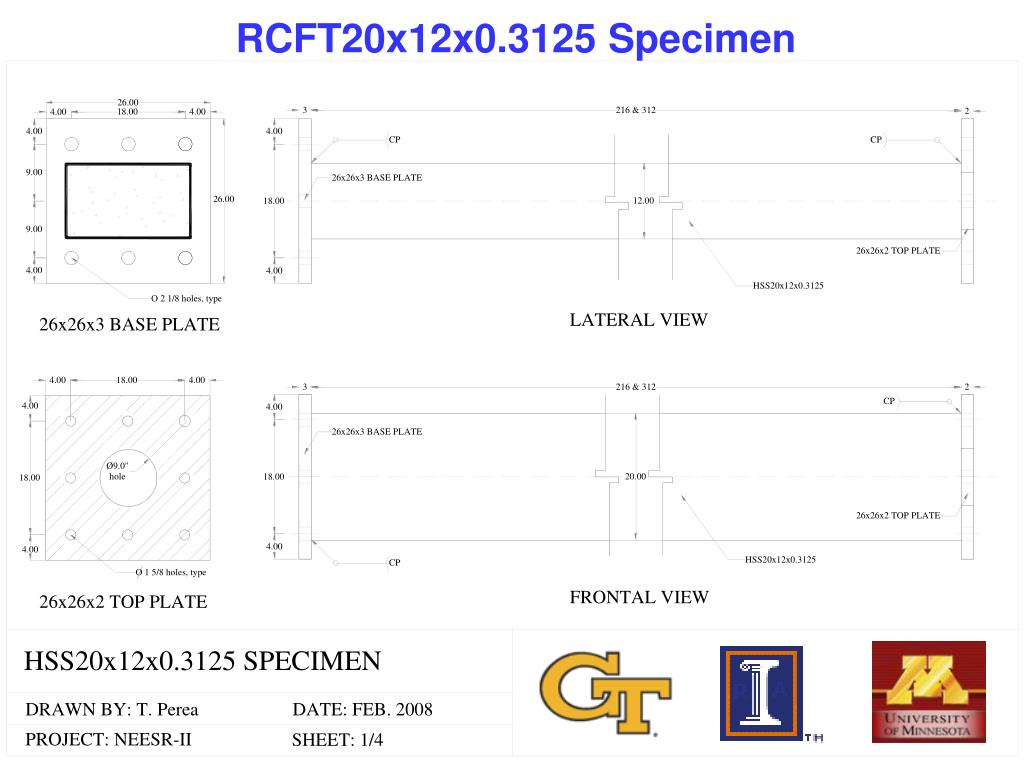

  3. RCFT20x12x0.3125 Specimen

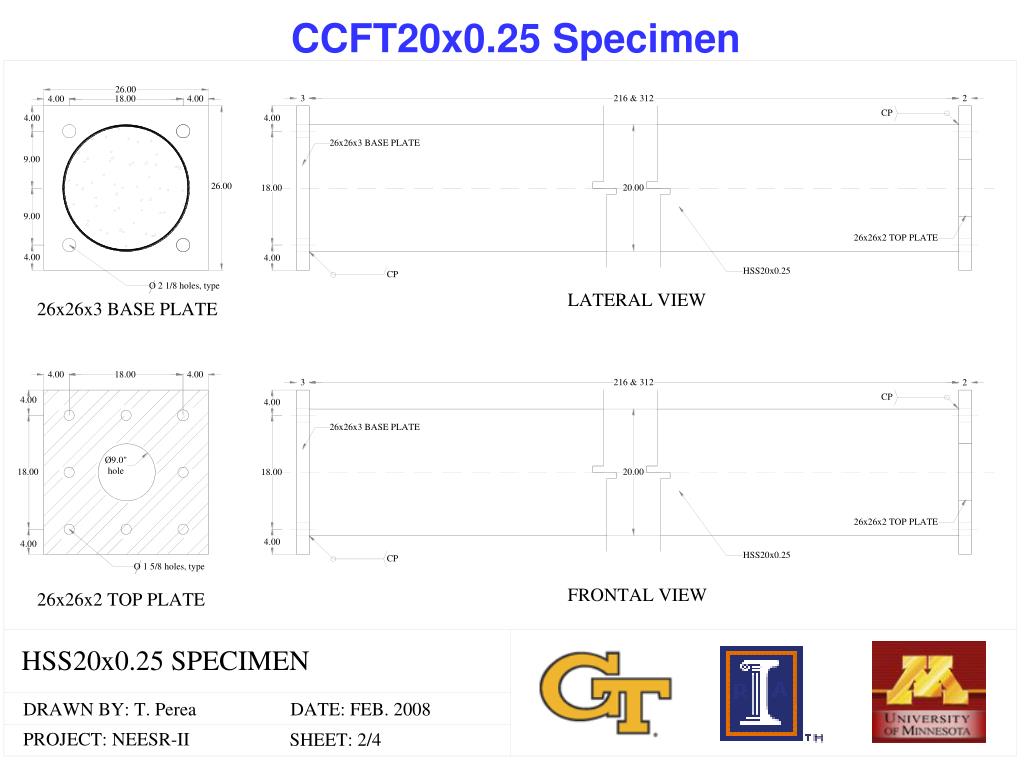

  4. CCFT20x0.25 Specimen

  5. CCFT12.75x0.25 Specimen HSS12.75X0.25 SPECIMEN

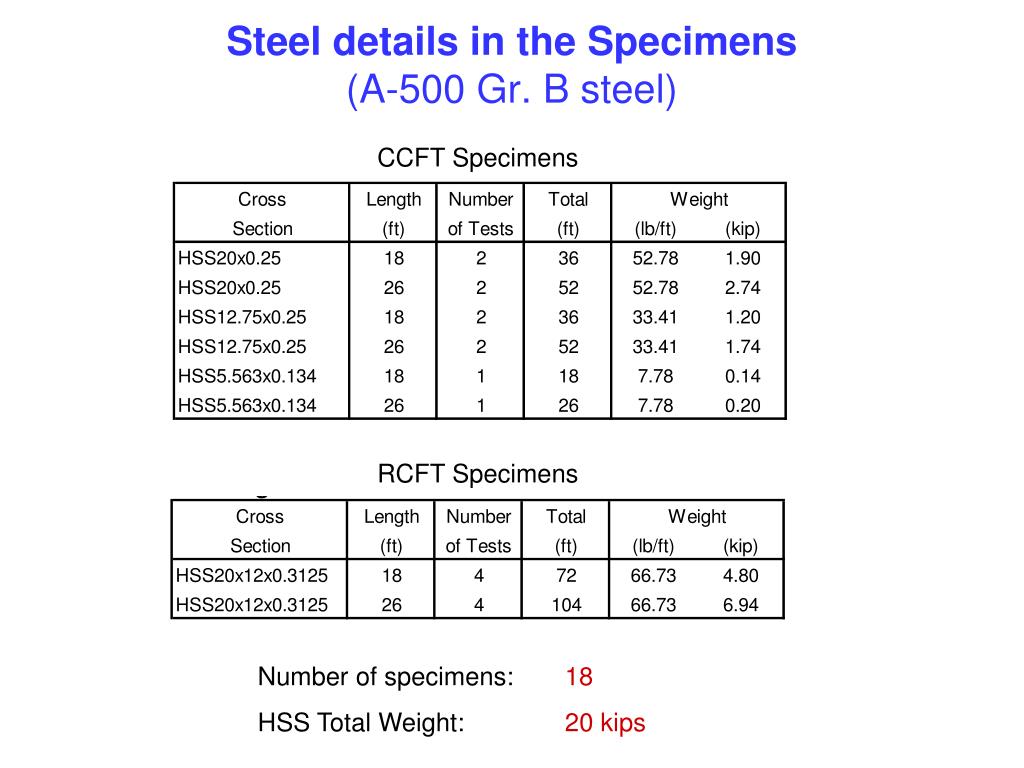

  6. Steel details in the Specimens(A-500 Gr. B steel) CCFT Specimens RCFT Specimens Number of specimens: 18 HSS Total Weight: 20 kips

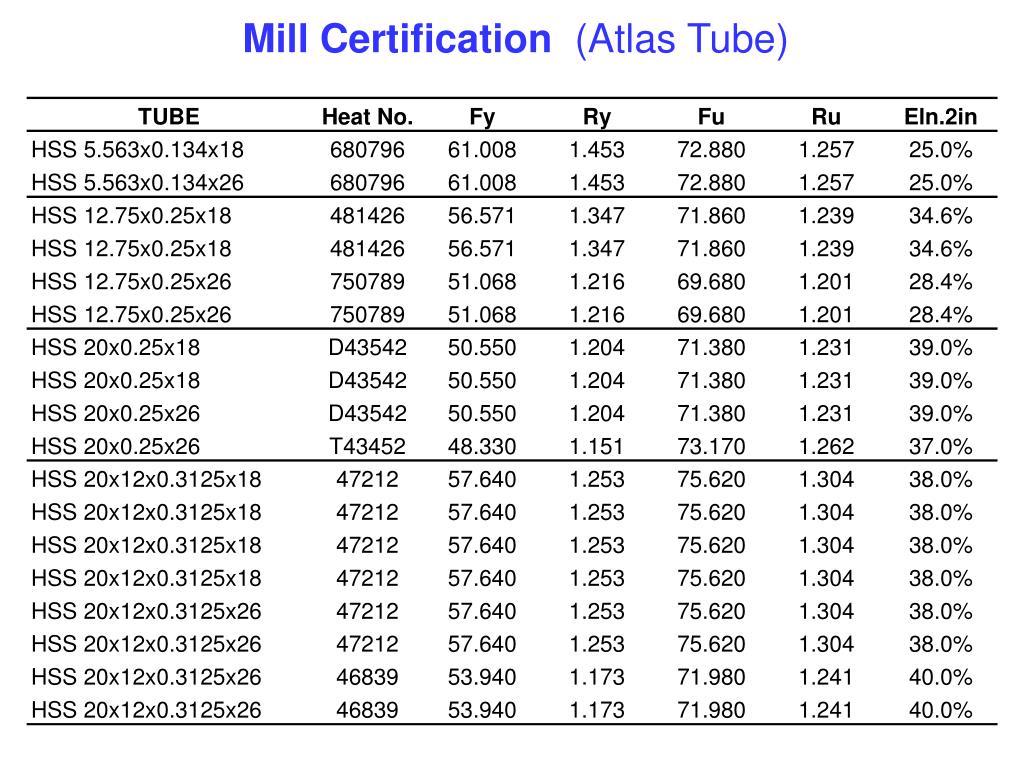

  7. Mill Certification (Atlas Tube)
