  1. Construction Industry • Top 10 Most Frequently Cited Serious Hazards in FY 2009

  2. Objectives • Reveal the Top Ten most-frequently cited serious Construction Industry Standards FY- 2009. • The Top Ten List includes data about the citations/violations issued from October 1, 2008, through September 30, 2009.

  3. N.C. Department of Labor

  4. The Big Four • Most fatalities on construction sites can be categorized into four groups by cause: • Falls • Struck by object • Crushed by object/equipment • Electrocution

  5. Occupational Fatality Investigation Review (OFIR) Fatal Events (October 1, 2008 – September 30, 2009) FY 2009 (41 Fatalities)

  6. Frequent Inspections 1926.20(b)(2) • Number 1: Accident prevention responsibilities • Provide for frequent and regular inspections of the job sites, materials, and equipment to be made by competent persons designated by the employers.

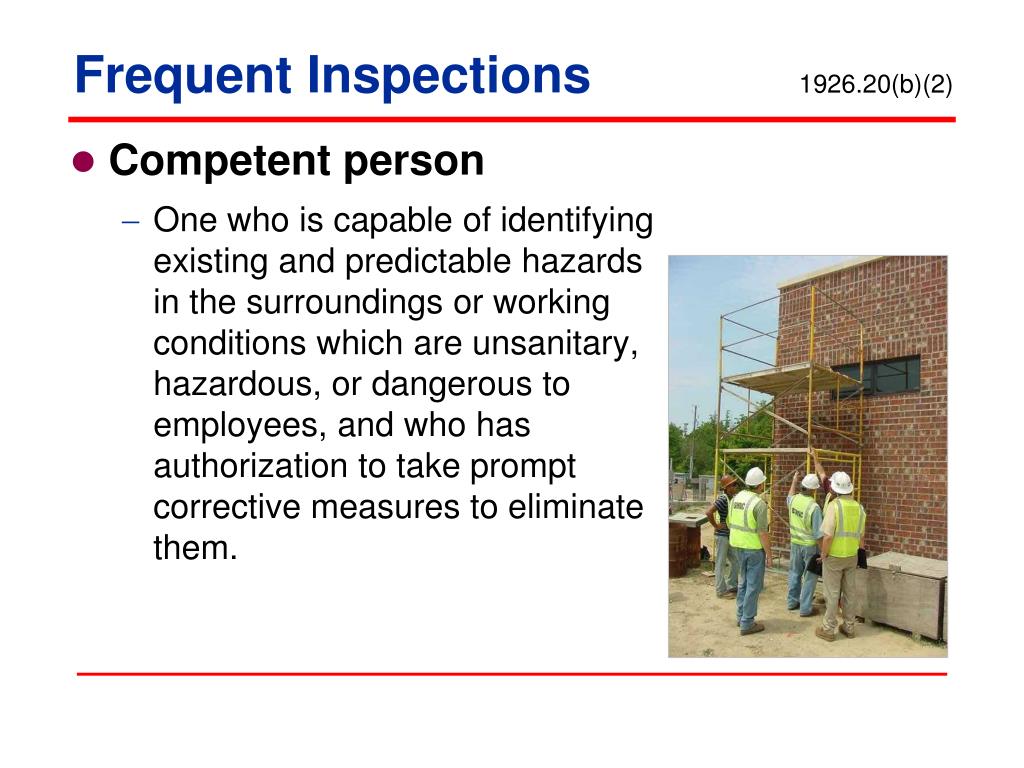

  7. Frequent Inspections 1926.20(b)(2) • Competent person • One who is capable of identifying existing and predictable hazards in the surroundings or working conditions which are unsanitary, hazardous, or dangerous to employees, and who has authorization to take prompt corrective measures to eliminate them.

  8. Frequent Inspections 1926.20(b)(2) Would you question the frequency of inspections at this location? Nails

  9. Frequent Inspections 1926.20(b)(2) Would you question the frequency of inspections at this location?

  10. Fall Protection 1926.501(b)(13) • Number 2: Residential construction • Provide employee fall protection when 6 feet or more above lower levels.

  11. Does he have fall protection? Fall Protection 1926.501(b)(13)

  12. Examples of Fall Protection 1926.501(b)(13) Guardrail System Personal Fall Arrest System (PFAS) Safety Net

  13. Personal Protective Equipment 1926.102(a)(1) • Number 3: Eye and face protection • Provide employees with eye and face protection when machines or operations present potential eye or face injury from physical, chemical, or radiation agents.

  14. Eye and Face Protection 1926.102(a)(1)

  15. Examples of Eye and Face Protection Welding Helmet Safety Glasses Face Shield

  16. Use of Portable Ladders Number 4: Portable ladders When portable ladders are used for access to an upper landing surface, they must extend 3 feet above landing or be properly secured to access upper landing surface. 1926.1053(b)(1)

  17. Use of Portable Ladders 1926.1053(b)(1) • Portable ladder not extended at least 3 feet above/secured to upper landing surface.

  18. Use of Portable Ladders Portable ladder not extended 3 feet above/secured to upper landing surface. 1926.1053(b)(1)

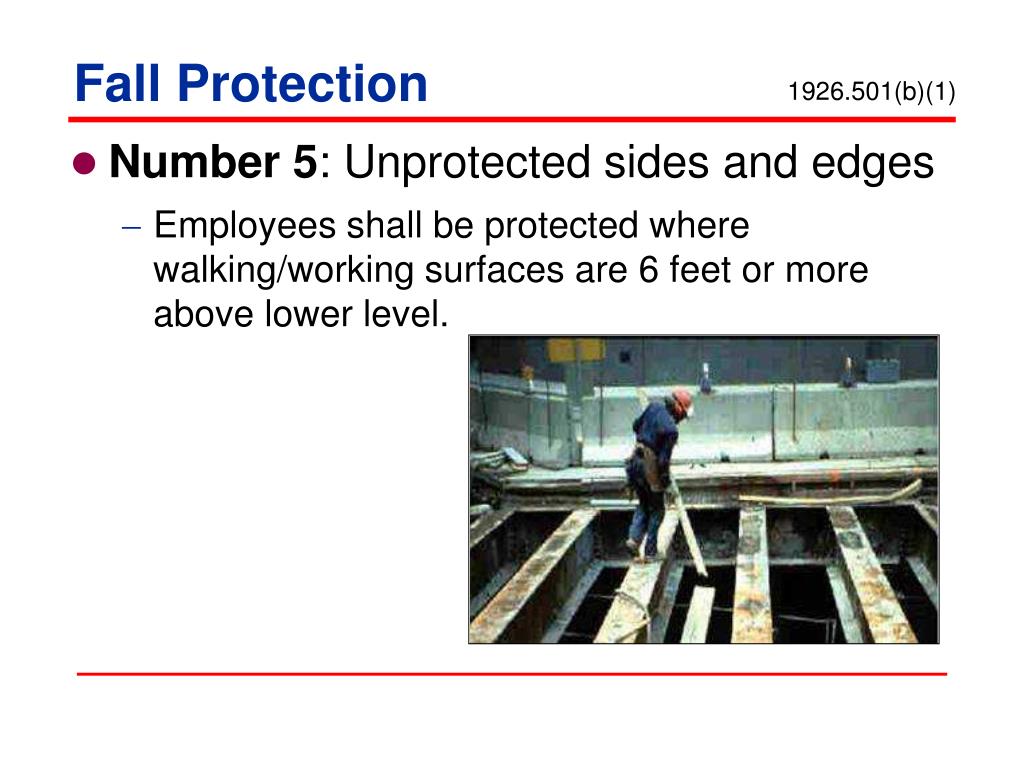

  19. Fall Protection Number 5: Unprotected sides and edges Employees shall be protected where walking/working surfaces are 6 feet or more above lower level. 1926.501(b)(1)

  20. Unprotected Sides and Edges 1926.501(b)(1) • Any side or edge (except at entrances to points of access) of a walking/working surface, e.g., floor, roof, ramp, or runway where there is no wall or guardrail system at least 39 inches high. • 1926.500(b)(2)

  21. Lack of fall protection on unprotected sides and edges Unprotected Sides and Edges 1926.501(b)(1)

  22. Fall Protection – Steep Roofs 1926.501(b)(11) • Number 6: Steep roofs • Each employee on a steep roof with unprotected sides and edges 6 feet or more above lower levels shall be protected from falling by guardrail systems with toe-boards, safety net systems, or PFAS. • Steep roof means a roof having a slope greater than 4 in 12 (vertical to horizontal).

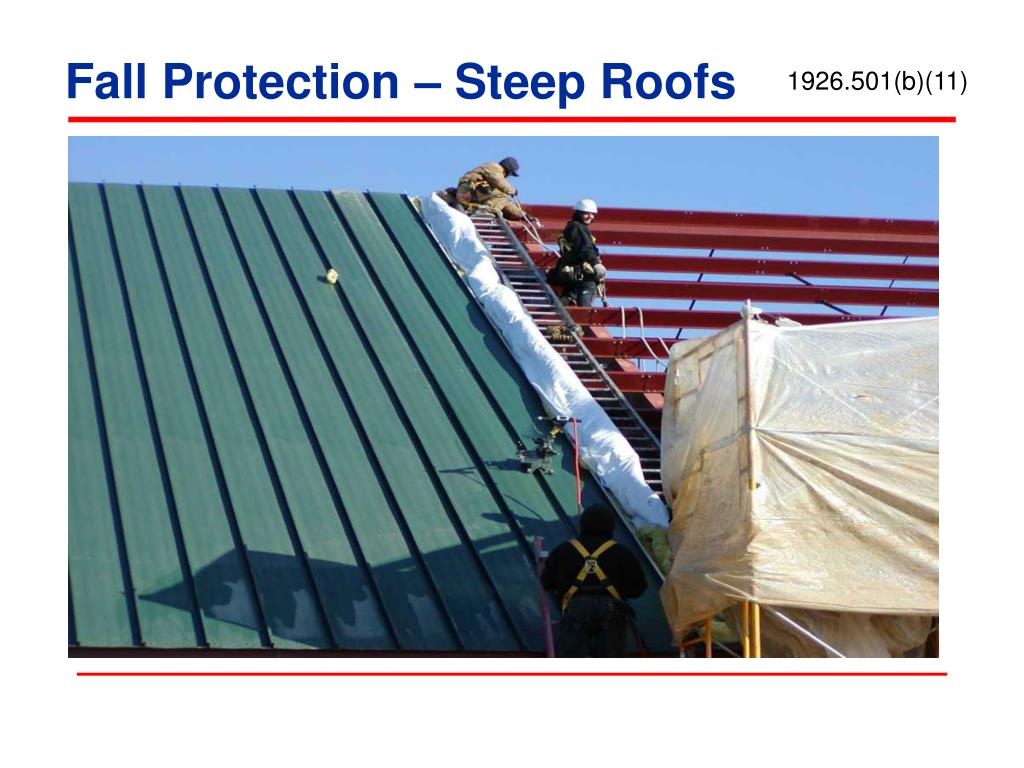

  23. Fall Protection – Steep Roofs 1926.501(b)(11) • No fall protection

  24. Fall Protection – Steep Roofs 1926.501(b)(11)

  25. Personal Protective Equipment 1926.100(a) • Number 7: Head injury protection • Employees working in areas where there is a possible danger of head injury from impact, or from falling or flying objects, or from electrical shock and burns, shall be protected by protective helmets. • Protective helmets must comply with ANSI Z89.1-1969.

  26. Head Injury Protection 1926.100(a) • Lack of head protection for workers with potential head injury hazards.

  27. Head Injury Protection 1926.100(a)

  28. Number 8: Training Employer shall provide a training program for each employee who might be exposed to fall hazards. Fall Protection - Training 1926.503(a)(1)

  29. Fall Protection - Training 1926.503(a)(1) • Workers should know how to properly wear equipment. • Workers should know where to tie off.

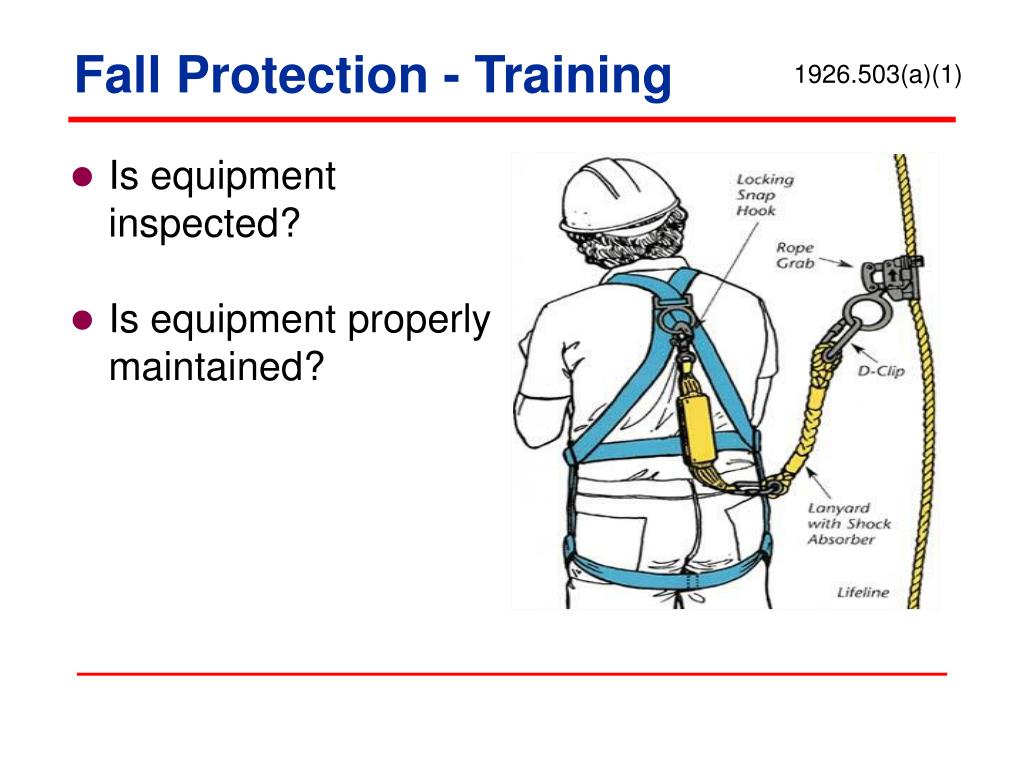

  30. Is equipment inspected? Is equipment properly maintained? Fall Protection - Training 1926.503(a)(1)

  31. Scaffolding - Platform Access 1926.451(e)(1) • Number 9: Platform access • When scaffold platforms are more than 2 feet above or below a point of access • Use portable ladders, hook-on ladders, attachable ladders, stair towers (scaffold stairways/towers), stairway-type ladders (such as ladder stands), ramps, walkways, integral prefabricated scaffold access, or direct access from another scaffold, structure, personnel hoist or similar surface for access. • Note: Cross braces shall not be used as a means of access.

  32. Improper scaffold platform access Scaffolding - Platform Access 1926.451(e)(1)

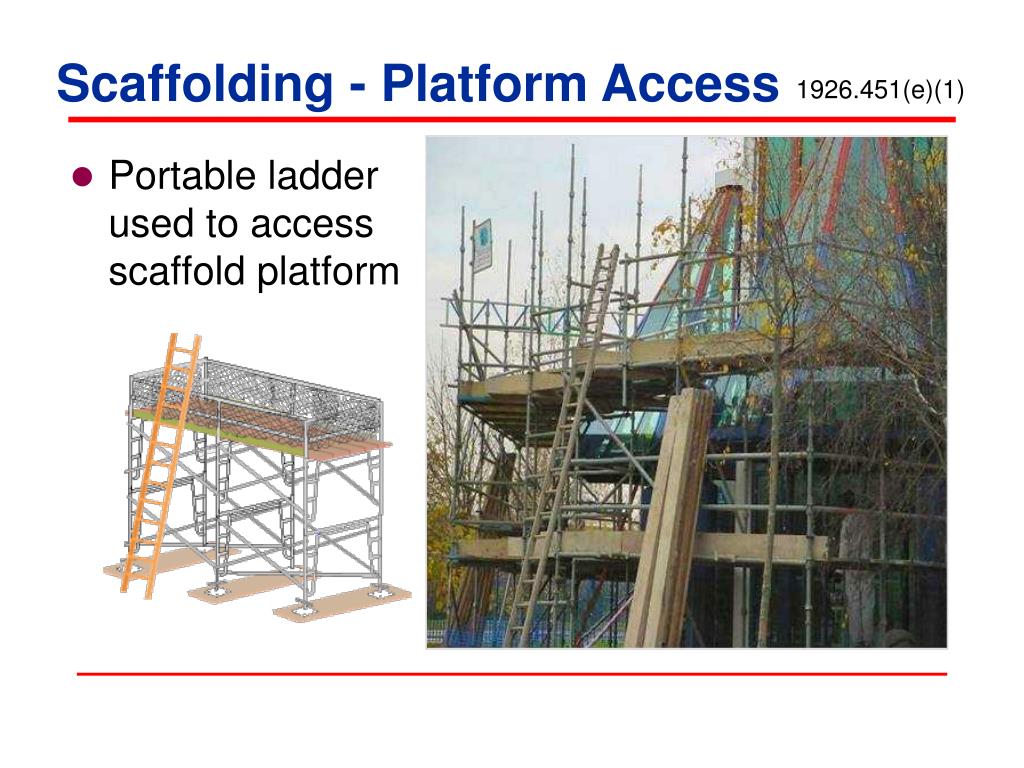

  33. Scaffolding - Platform Access 1926.451(e)(1) • Portable ladder used to access scaffold platform

  34. Scaffolding - Platform Access 1926.451(e)(1) • Scaffolding with inner stairway for climbing

  35. Scaffolding - Platform Access 1926.451(e)(1) • Scaffolding with attached ladder on side

  36. Scaffolding - Fall Protection 1926.451(g)(4)(i) • Number 10: Guardrail systems • Guardrail systems shall be installed along open sides and ends of platforms.

  37. Scaffolding - Fall Protection 1926.451(g)(4)(i) • Mobile scaffolding showing employee protected by a guardrail.

  38. Scaffolding - Fall Protection 1926.451(g)(4)(i) • Scaffolding with unprotected workers.

  39. Summary • In this course, we discussed the Top Ten most-frequently cited serious standards for the construction industry in FY 2009. • You should now understand and be able to identify hazards associated with the Top Ten most cited serious OSH violations in the construction industry.

  40. Summary Number 1: 1926.20(b)(2) - Frequent inspections; provide frequent and regular inspections of the job sites, materials, and equipment by competent persons designated by the employers. Number 2: 1926.501(b)(13) - Fall protection; employee protected 6 feet or more above lower level in residential construction. Number 3: 1926.102(a)(1) - Eye and face protection; general requirement for eye and face protection when machines or operations present eye or face injury.

  41. Summary • Number 4: 1926.1053(b)(1) - Use of portable ladders; must extend 3 feet above landing or be property secured to access upper landing surface. • Number 5: 1926.501(b)(1) - Fall protection; employees on a walking/working surface (horizontal and vertical surface) with unprotected sides and edges 6 feet or more above lower levels shall have fall protection. • Number 6: 1926.501(b)(11) - Fall protection; employees on a steep roof with unprotected sides and edges 6 feet or more above lower levels shall have fall protection.

  42. Summary • Number 7: 1926.100(a) - PPE; employees working in areas where there is a possible danger of head injury shall be protected by protective helmets. • Number 8: 1926.503(a)(1) - Fall protection training; employer shall provide a training program for each employee who might be exposed to fall hazards. • Number 9: 1926.451(e)(1) - Scaffolding; proper access provided to scaffold platforms that are more than 2 feet above or below access point.

  43. Summary Number 10: 1926.451(g)(4)(i) - Guardrail systems shall be installed along all open sides and ends of platforms. Construction Industry Injuries Fatalities

  44. Thank You For Attending! Final Questions?
