slide1

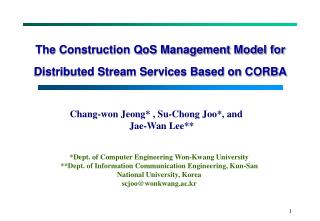

The Construction QoS Management Model for Distributed Stream Services Based on CORBA

Chang-won Jeong* , Su-Chong Joo*, and Jae-Wan Lee**

*Dept. of Computer Engineering Won-Kwang University

**Dept. of Information Communication Engineering, Kun-San National University, Korea

scjoo@wonkwang.ac.kr

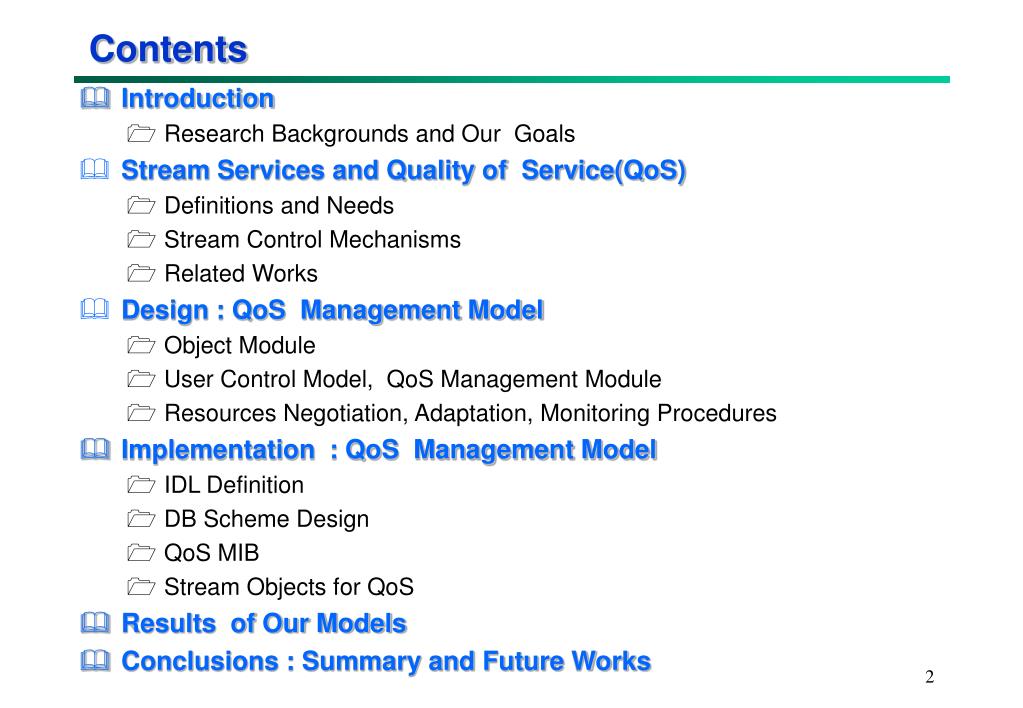

contents
Contents
  • Introduction
    • Research Backgrounds and Our Goals
  • Stream Services and Quality of Service(QoS)
    • Definitions and Needs
    • Stream Control Mechanisms
    • Related Works
  • Design : QoS Management Model
    • Object Module
    • User Control Model, QoS Management Module
    • Resources Negotiation, Adaptation, Monitoring Procedures
  • Implementation : QoS Management Model
    • IDL Definition
    • DB Scheme Design
    • QoS MIB
    • Stream Objects for QoS
  • Results of Our Models
  • Conclusions : Summary and Future Works
introduction

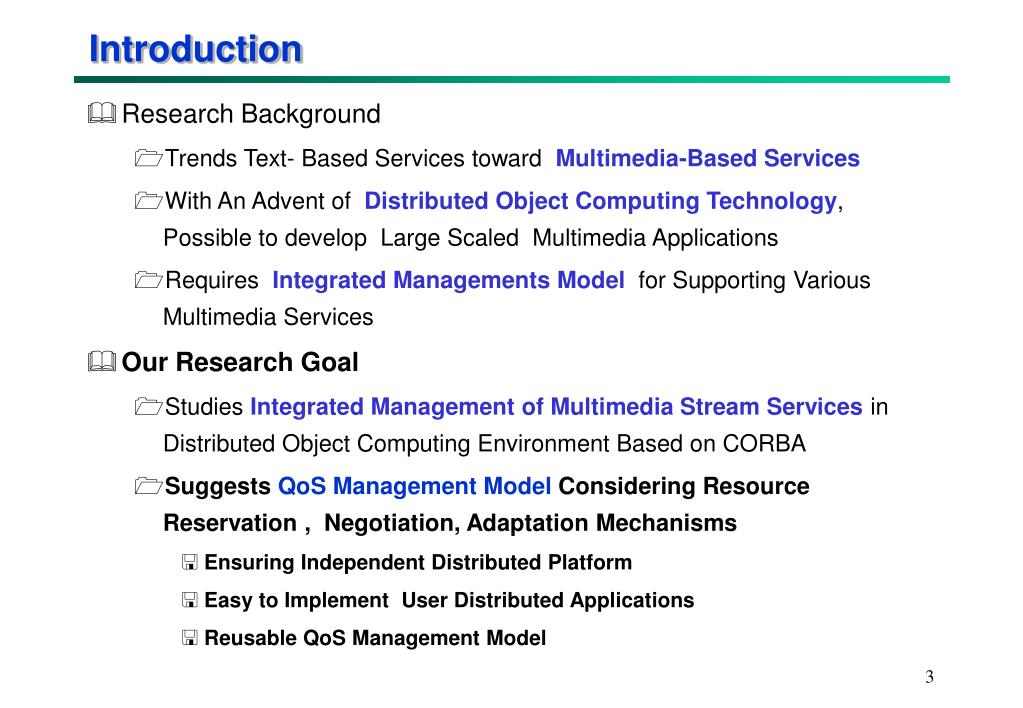

Introduction
  • Research Background
    • Trends Text- Based Services toward Multimedia-Based Services
    • With An Advent of Distributed Object Computing Technology, Possible to develop Large Scaled Multimedia Applications
    • Requires Integrated Managements Model for Supporting Various Multimedia Services
  • Our Research Goal
    • Studies Integrated Management of Multimedia Stream Services in Distributed Object Computing Environment Based on CORBA
    • Suggests QoS Management Model Considering Resource Reservation , Negotiation, Adaptation Mechanisms
      • Ensuring Independent Distributed Platform
      • Easy to Implement User Distributed Applications
      • Reusable QoS Management Model
stream services
Stream Services
  • Definition
    • Behaviors of Real-Time Services sending and receiving multimedia stream data such as Audio/Video on Peer-to-Peer, or Client/Server Environment Based on Internet or Intranet
  • Properties
    • Continuous Traffics
    • Real-Time Services
    • Sensitive Transfer Delay and Propagation
    • Interactions Between End-Systems
  • Requirements for Considering Stream Service
    • Supporting Control Mechanism for QoS
    • Supporting Synchronization Mechanism for Sending and Receiving Stream Data
    • Requiring Replay And Reproduction Methods
    • Providing Distributed Services among Heterogeneous Systems over Networks
    • Providing Data Compression Method for Saving Network Bandwidth
qos quality of service
QoS : Quality of Service
  • Definition
    • Says All Jobs Controlling for Maintaining Previous Promised Service of Quality in Accordance with SLA(Service Level Agreement) Between Requester And Provider, While Servicing Procedures are Executing.
    • Network ServiceEnd-to-End System
  • Needs
    • Multimedia And Level Services
    • Using Limited Resources
    • Services Among Multi-Users
    • Appropriate Control Mechanisms
  • Classification
    • User-Level QoS
    • Application-Level QoS
    • System and Network –Level QoS

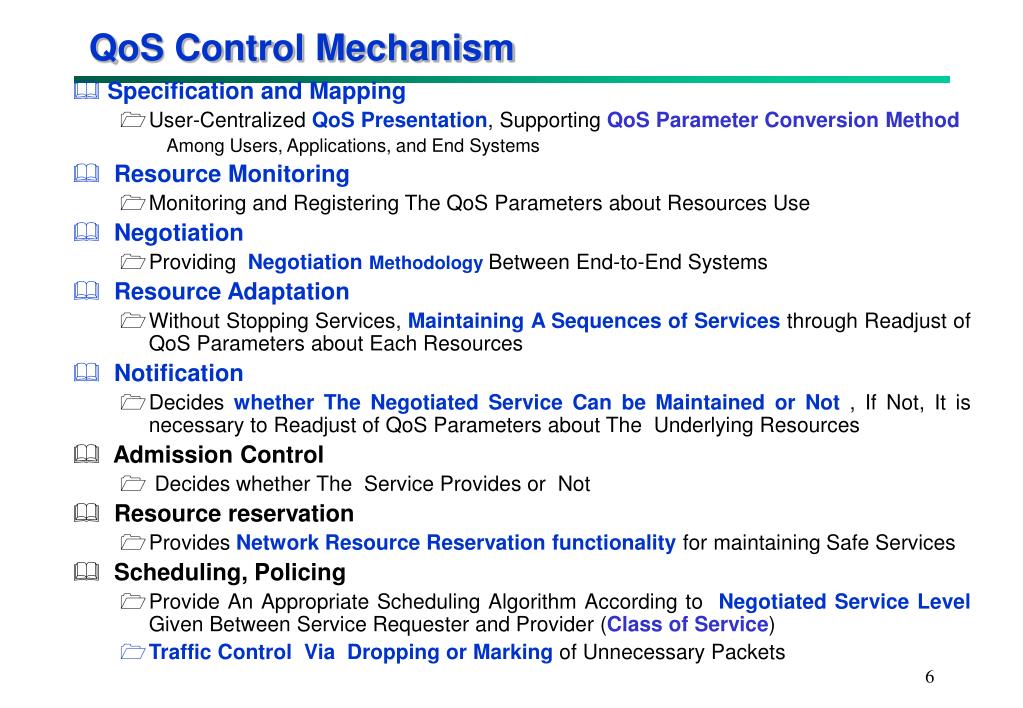

qos control mechanism
QoS Control Mechanism
  • Specification and Mapping
    • User-Centralized QoS Presentation, Supporting QoS Parameter Conversion Method

Among Users, Applications, and End Systems

  • Resource Monitoring
    • Monitoring and Registering The QoS Parameters about Resources Use
  • Negotiation
    • Providing Negotiation MethodologyBetween End-to-End Systems
  • Resource Adaptation
    • Without Stopping Services, Maintaining A Sequences of Services through Readjust of QoS Parameters about Each Resources
  • Notification
    • Decides whether The Negotiated Service Can be Maintained or Not , If Not, It is necessary to Readjust of QoS Parameters about The Underlying Resources
  • Admission Control
    • Decides whether The Service Provides or Not
  • Resource reservation
    • Provides Network Resource Reservation functionality for maintaining Safe Services
  • Scheduling, Policing
    • Provide An Appropriate Scheduling Algorithm According to Negotiated Service Level Given Between Service Requester and Provider (Class of Service)
    • Traffic Control Via Dropping or Marking of Unnecessary Packets

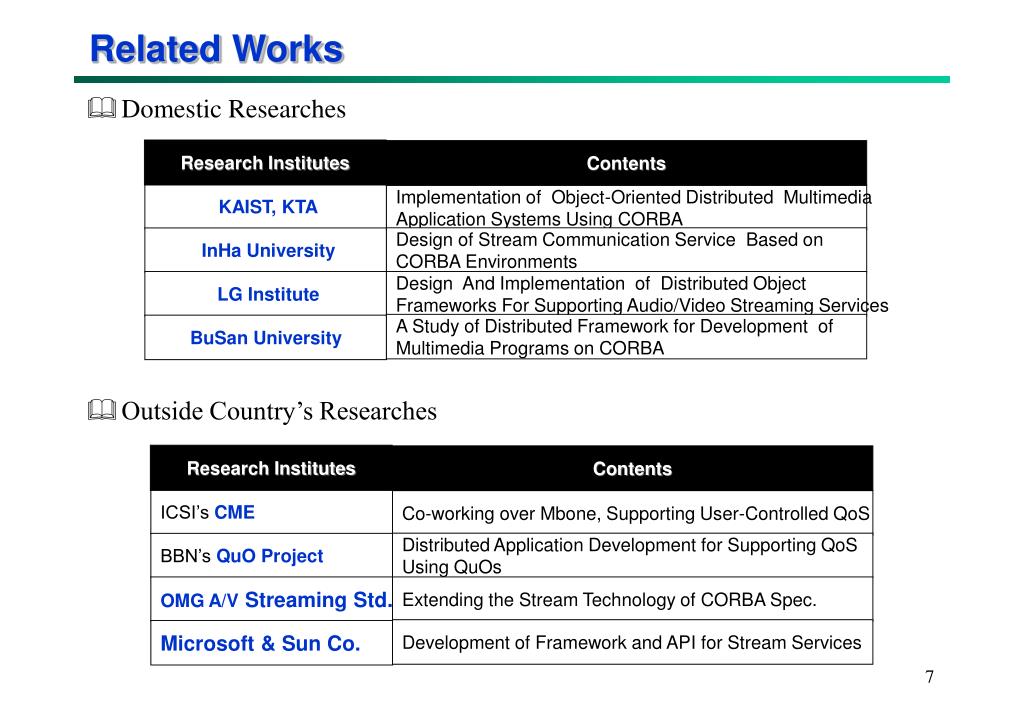

related works

Research Institutes

Contents

ICSI’s CME

Co-working over Mbone, Supporting User-Controlled QoS

Distributed Application Development for Supporting QoS

Using QuOs

BBN’s QuO Project

OMG A/V Streaming Std.

Extending the Stream Technology of CORBA Spec.

Development of Framework and API for Stream Services

Microsoft & Sun Co.

Research Institutes

Contents

KAIST, KTA

Implementation of Object-Oriented Distributed Multimedia

Application Systems Using CORBA

Design of Stream Communication Service Based on

CORBA Environments

InHa University

LG Institute

Design And Implementation of Distributed Object

Frameworks For Supporting Audio/Video Streaming Services

A Study of Distributed Framework for Development of

Multimedia Programs on CORBA

BuSan University

Related Works
  • Domestic Researches
  • Outside Country’s Researches
related works case 1 cme

User

User

User

User

Host

Host

Host

Host

COMMA

COMMA

COMMA

COMMA

Network

Session Manager

Connection

Manager

User Interface

Media Service 1

QoS

Mapper/Controller

Service

Manager

Media Service 2

Resource

Monitor/Controller

Media Service n

COMMA = Cooperative

Multimedia Application

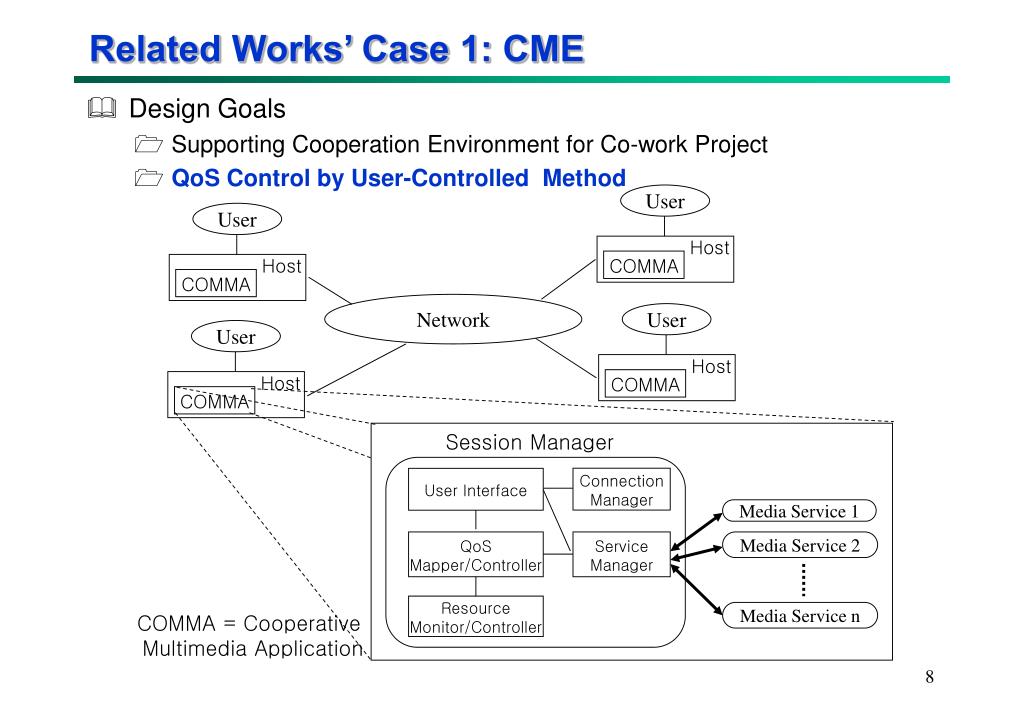

Related Works’ Case 1: CME
  • Design Goals
    • Supporting Cooperation Environment for Co-work Project
    • QoS Control by User-Controlled Method
related works case 2 quo quality object

Contract

Contract

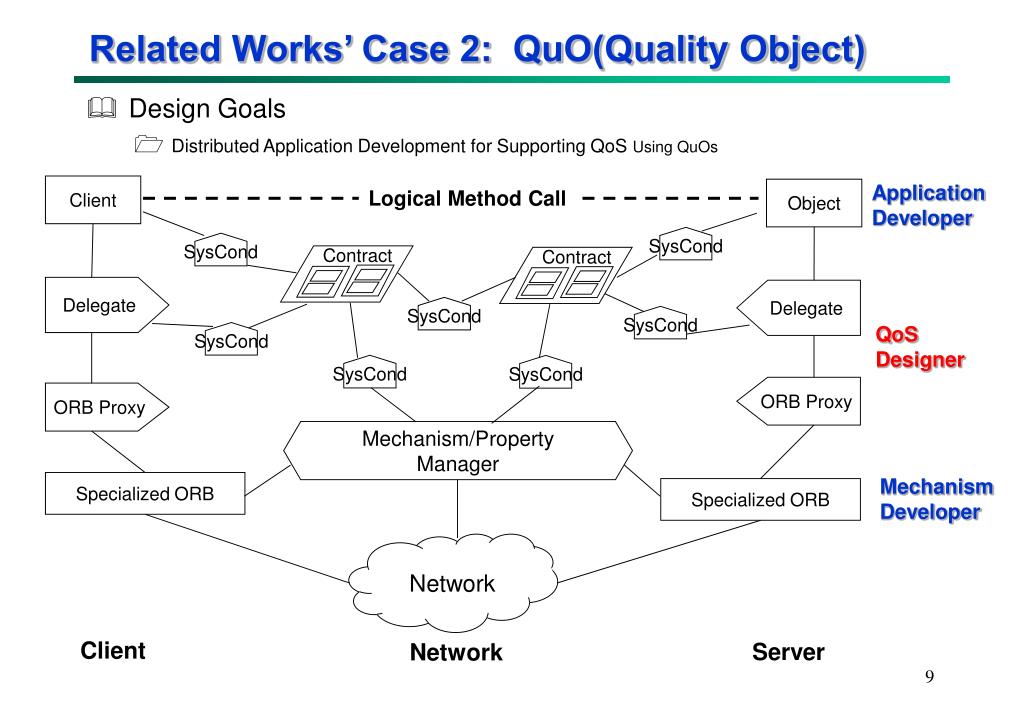

Related Works’ Case 2: QuO(Quality Object)
  • Design Goals
    • Distributed Application Development for Supporting QoS Using QuOs

Application

Developer

Client

Object

Logical Method Call

SysCond

SysCond

Delegate

Delegate

SysCond

SysCond

SysCond

QoS

Designer

SysCond

SysCond

ORB Proxy

ORB Proxy

Mechanism/Property

Manager

Mechanism

Developer

Specialized ORB

Specialized ORB

Network

Client

Server

Network

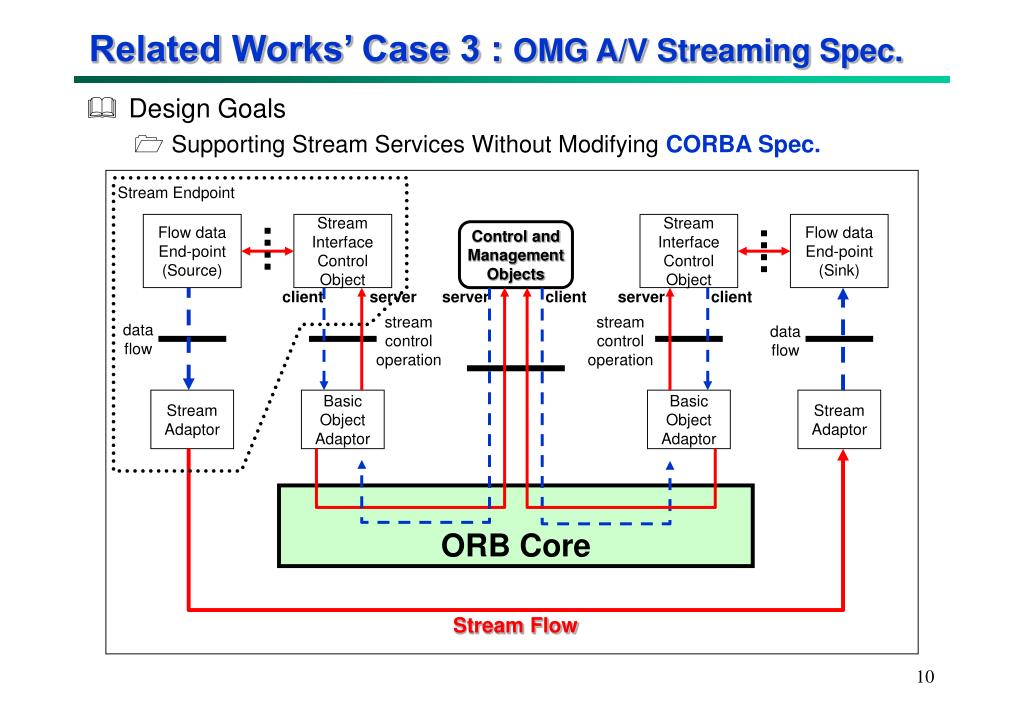

related works case 3 omg a v streaming spec
Related Works’ Case 3 : OMG A/V Streaming Spec.
  • Design Goals
    • Supporting Stream Services Without Modifying CORBA Spec.

Stream Endpoint

Flow data

End-point

(Source)

Stream

Interface

Control

Object

Stream

Interface

Control

Object

Flow data

End-point

(Sink)

Control and

Management

Objects

client

server

server

client

server

client

stream

control

operation

stream

control

operation

data

flow

data

flow

Stream

Adaptor

Basic

Object

Adaptor

Basic

Object

Adaptor

Stream

Adaptor

ORB Core

Stream Flow

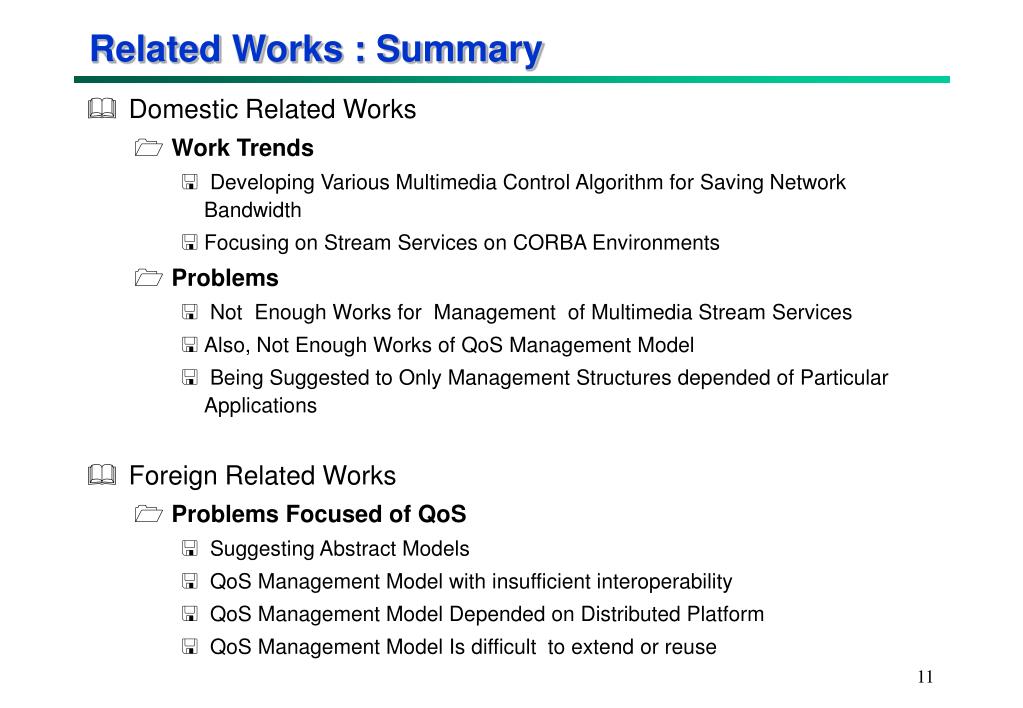

related works summary
Related Works : Summary
  • Domestic Related Works
    • Work Trends
      • Developing Various Multimedia Control Algorithm for Saving Network Bandwidth
      • Focusing on Stream Services on CORBA Environments
    • Problems
      • Not Enough Works for Management of Multimedia Stream Services
      • Also, Not Enough Works of QoS Management Model
      • Being Suggested to Only Management Structures depended of Particular Applications
  • Foreign Related Works
    • Problems Focused of QoS
      • Suggesting Abstract Models
      • QoS Management Model with insufficient interoperability
      • QoS Management Model Depended on Distributed Platform
      • QoS Management Model Is difficult to extend or reuse
design our qos management environment
Design : Our QoS Management Environment

Various Applications

VOD, Video Conferencing, Multicast Service, Remote Education Service

QoSM

MpO

CnO

MIO

UCM

UCM

CO

NO

CO

NO

UIO

SO

UIO

MO

SO

MO

CORBA-Based Environments

Application

Interface

Stream

Object

Stream

Object

Stream Flow

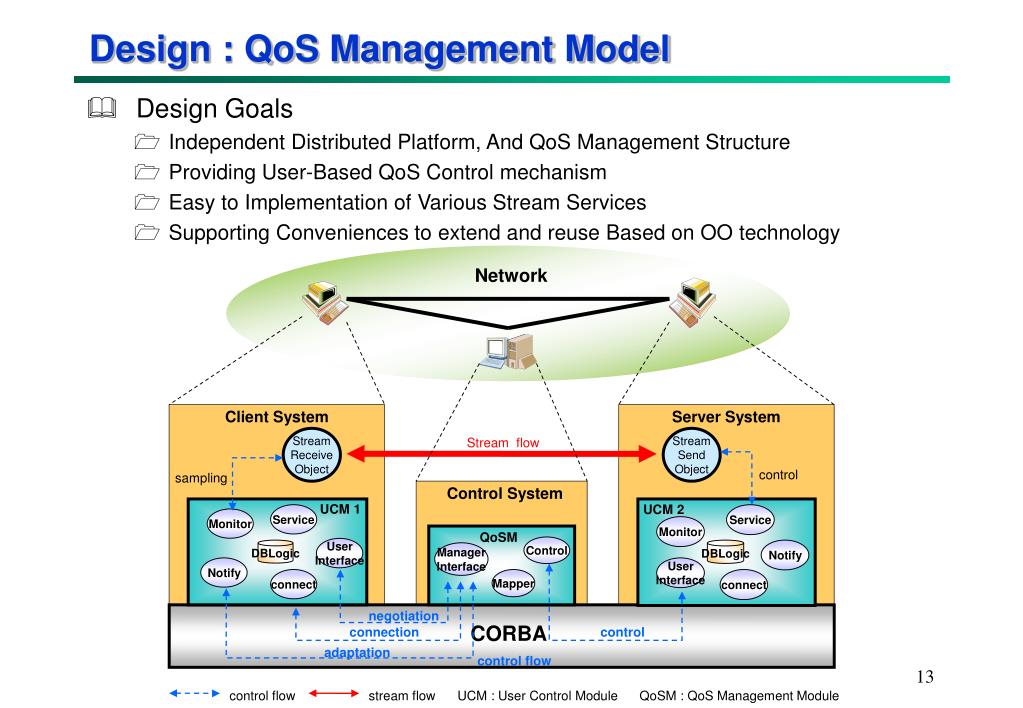

design qos management model

Network

Client System

Server System

Stream

Receive

Object

Stream

Send

Object

Stream flow

control

sampling

Control System

UCM 1

UCM 2

Service

Service

Monitor

Monitor

QoSM

Control

User

Interface

DBLogic

DBLogic

Notify

Manager

Interface

Notify

User

Interface

connect

Mapper

connect

negotiation

CORBA

connection

control

adaptation

control flow

control flow

stream flow

UCM : User Control Module QoSM : QoS Management Module

Design : QoS Management Model
  • Design Goals
    • Independent Distributed Platform, And QoS Management Structure
    • Providing User-Based QoS Control mechanism
    • Easy to Implementation of Various Stream Services
    • Supporting Conveniences to extend and reuse Based on OO technology
design components in our model
Design : Components in Our Model
  • Definition of Object Module
    • Unit, As A Package Grouped by Related Objects
    • Consisting of One or More Objects And Interface Objects Managing Them
    • In Details, Divide functionally to Two User Control Modules(UCM) and A QoS Management Module(QoSM). They Interoperates One Another So That Given Conditions of QoS Are Met
  • Functionality
    • Supporting Simplicity of Message Flows among Objects
    • Providing A Single Interface
  • UCM, QoSM
    • User Control Module(UCM)
      • User Interface Object(UIO)
        • Manages Connect, Service, Monitor, Notify Objects in UCM,
        • How to Distribute messages among Them
    • QoS Management Module(QoSM)
      • Manager Interface Object(MIO)
        • Manages references of Control and Mapper Objects in QoSM
        • How to Distribute messages
slide15

UCM

Service

Monitor

CORBA

DBLogic

User

Interface

Notify

connect

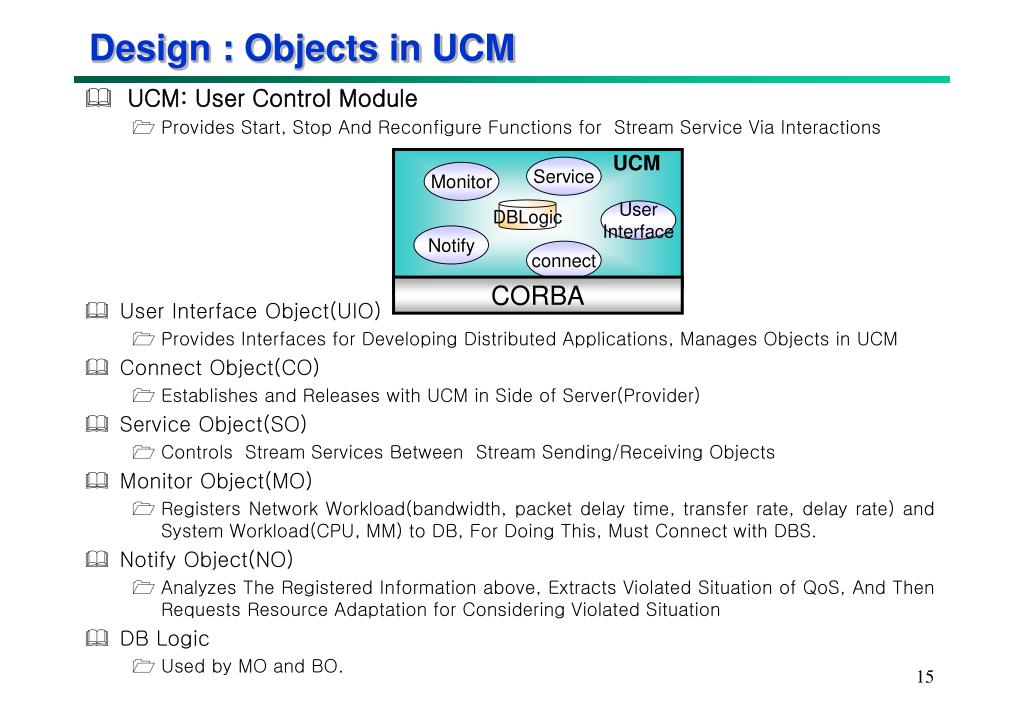

Design : Objects in UCM

  • UCM: User Control Module
    • Provides Start, Stop And Reconfigure Functions for Stream Service Via Interactions
  • User Interface Object(UIO)
    • Provides Interfaces for Developing Distributed Applications, Manages Objects in UCM
  • Connect Object(CO)
    • Establishes and Releases with UCM in Side of Server(Provider)
  • Service Object(SO)
    • Controls Stream Services Between Stream Sending/Receiving Objects
  • Monitor Object(MO)
    • Registers Network Workload(bandwidth, packet delay time, transfer rate, delay rate) and System Workload(CPU, MM) to DB, For Doing This, Must Connect with DBS.
  • Notify Object(NO)
    • Analyzes The Registered Information above, Extracts Violated Situation of QoS, And Then Requests Resource Adaptation for Considering Violated Situation
  • DB Logic
    • Used by MO and BO.
slide17

QoSM

Control

Manager

Interface

Mapper

CORBA

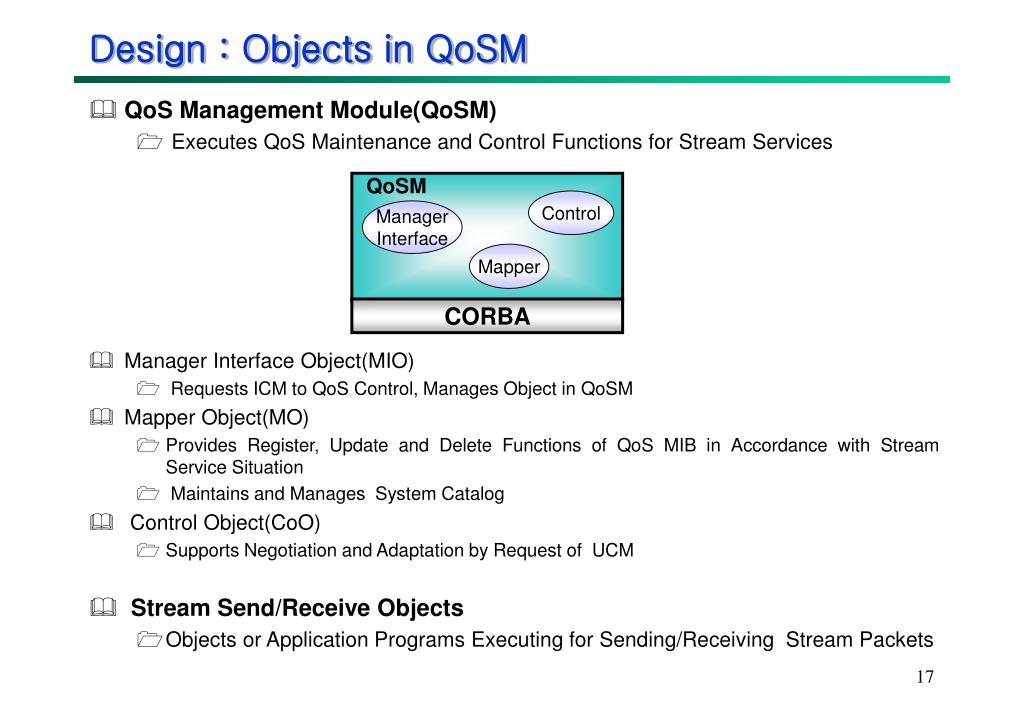

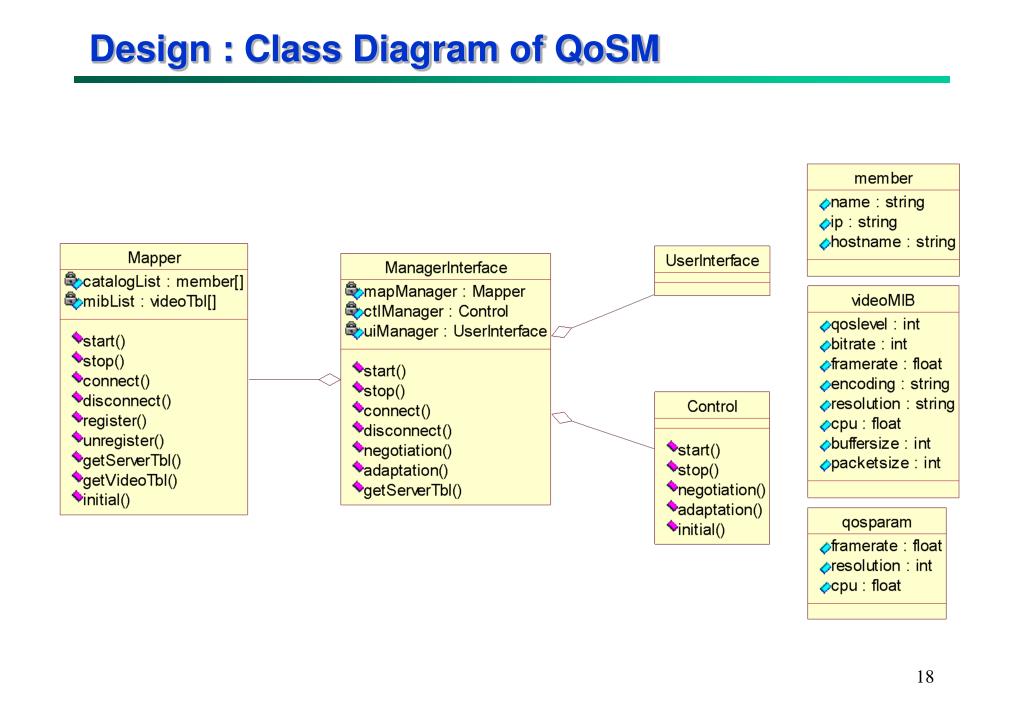

Design : Objects in QoSM

  • QoS Management Module(QoSM)
    • Executes QoS Maintenance and Control Functions for Stream Services
  • Manager Interface Object(MIO)
    • Requests ICM to QoS Control, Manages Object in QoSM
  • Mapper Object(MO)
    • Provides Register, Update and Delete Functions of QoS MIB in Accordance with Stream Service Situation
    • Maintains and Manages System Catalog
  • Control Object(CoO)
    • Supports Negotiation and Adaptation by Request of UCM
  • Stream Send/Receive Objects
    • Objects or Application Programs Executing for Sending/Receiving Stream Packets
slide19

UCM(receive)

QoSM

UCM(send)

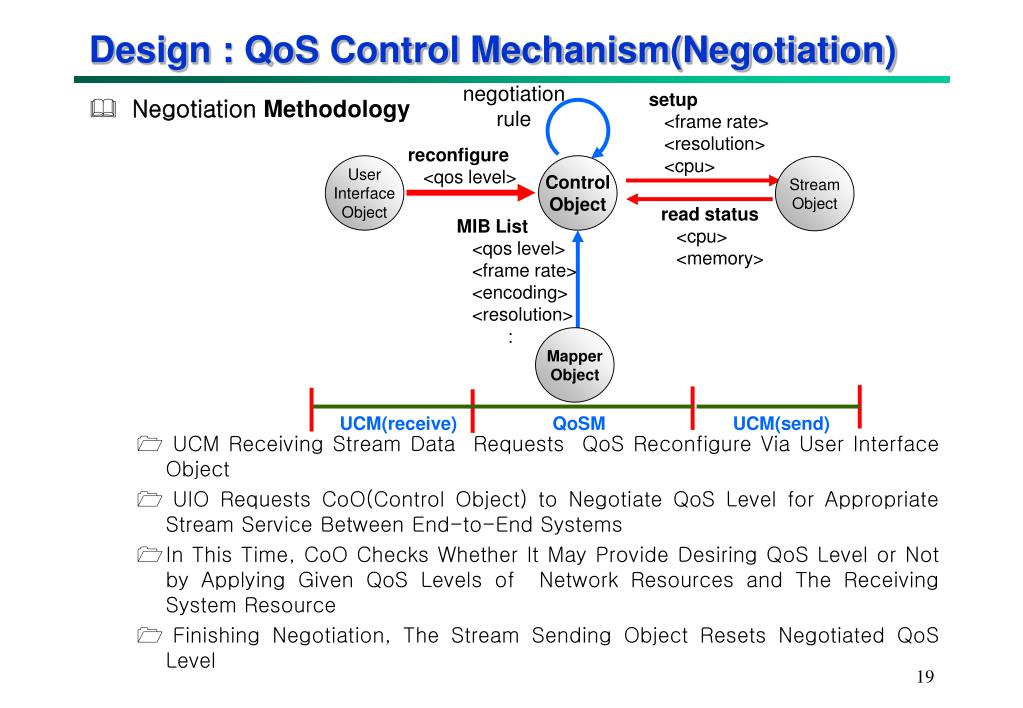

Design : QoS Control Mechanism(Negotiation)

  • Negotiation Methodology
    • UCM Receiving Stream Data Requests QoS Reconfigure Via User Interface Object
    • UIO Requests CoO(Control Object) to Negotiate QoS Level for Appropriate Stream Service Between End-to-End Systems
    • In This Time, CoO Checks Whether It May Provide Desiring QoS Level or Not by Applying Given QoS Levels of Network Resources and The Receiving System Resource
    • Finishing Negotiation, The Stream Sending Object Resets Negotiated QoS Level

negotiation

rule

setup

<frame rate>

<resolution>

<cpu>

reconfigure

<qos level>

User

Interface

Object

Control

Object

Stream

Object

read status

<cpu>

<memory>

MIB List

<qos level>

<frame rate>

<encoding>

<resolution>

:

Mapper

Object

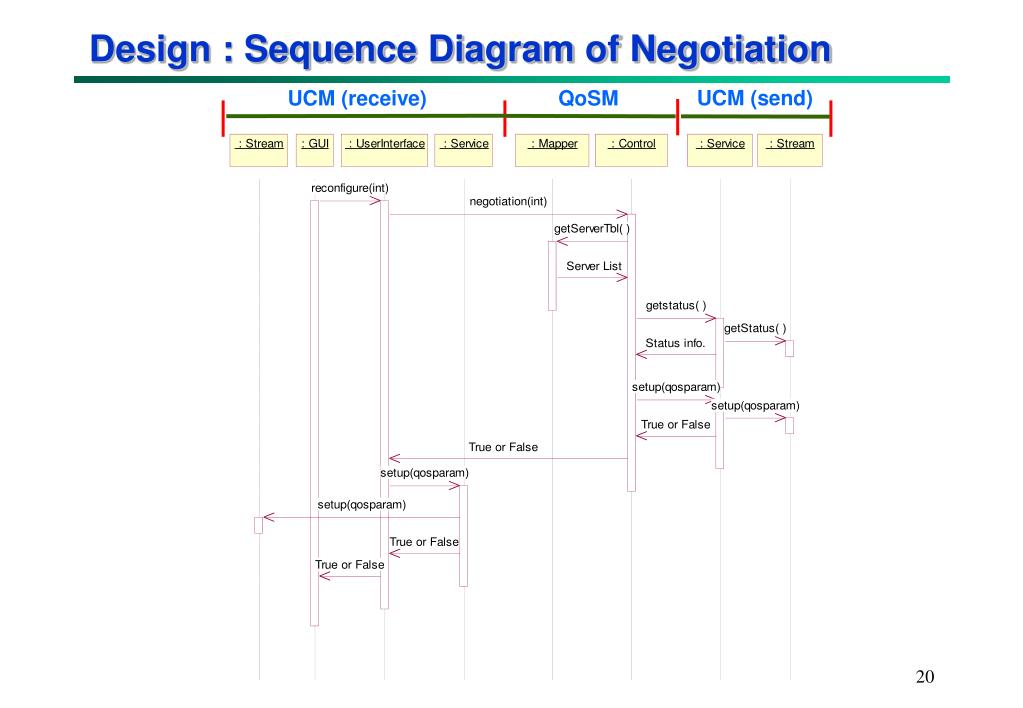

design sequence diagram of negotiation
Design : Sequence Diagram of Negotiation

UCM (send)

UCM (receive)

QoSM

slide21

DB

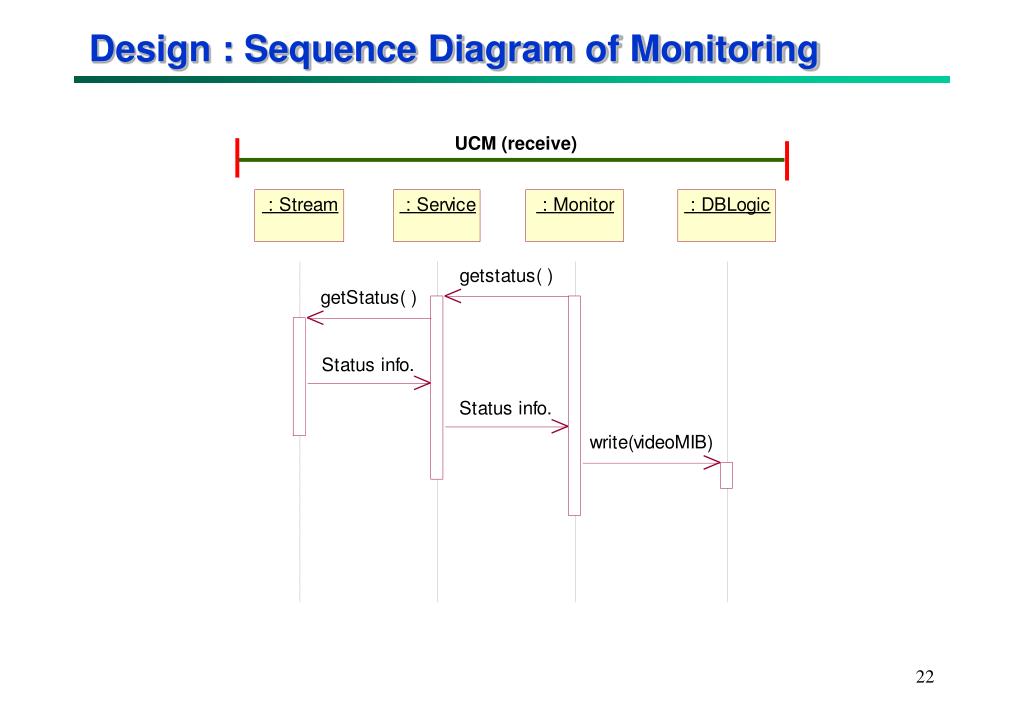

Design : QoS Control mechanism(Monitoring)

  • Monitoring Methodology
    • Monitoring Object Writes Monitoring Data Acquired by Stream Object to DB

read status

<frame rate>

<encoding>

<resolution>

:

write DB

<frame rate>

<encoding>

<resolution>

:

JDBC & API

Monitor

Object

Stream

Object

UCM(receive)

slide23

DB

adaptation

rule

violation

detect

setup

<frame rate>

<resolution>

<cpu>

adaptation

<frame rate>

<resolution>

<cpu>

read DB

<frame rate>

<resolution>

<bit rate>

JDBC & API

Notify

Object

Control

Object

Stream

Object

read MIB List

<qos level>

<frame rate>

<bit rate>

<resolution>

:

Mapper

Object

UCM(receive)

QoSM

UCM(send)

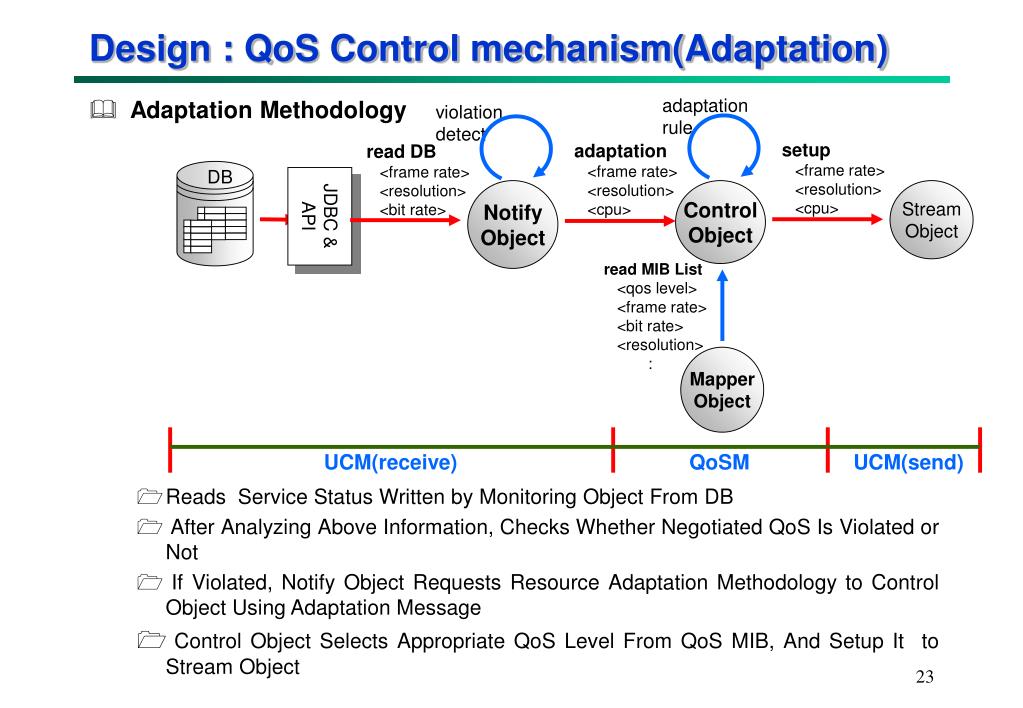

Design : QoS Control mechanism(Adaptation)

  • Adaptation Methodology
    • Reads Service Status Written by Monitoring Object From DB
    • After Analyzing Above Information, Checks Whether Negotiated QoS Is Violated or Not
    • If Violated, Notify Object Requests Resource Adaptation Methodology to Control Object Using Adaptation Message
    • Control Object Selects Appropriate QoS Level From QoS MIB, And Setup It to Stream Object
design sequence diagram of adaptation

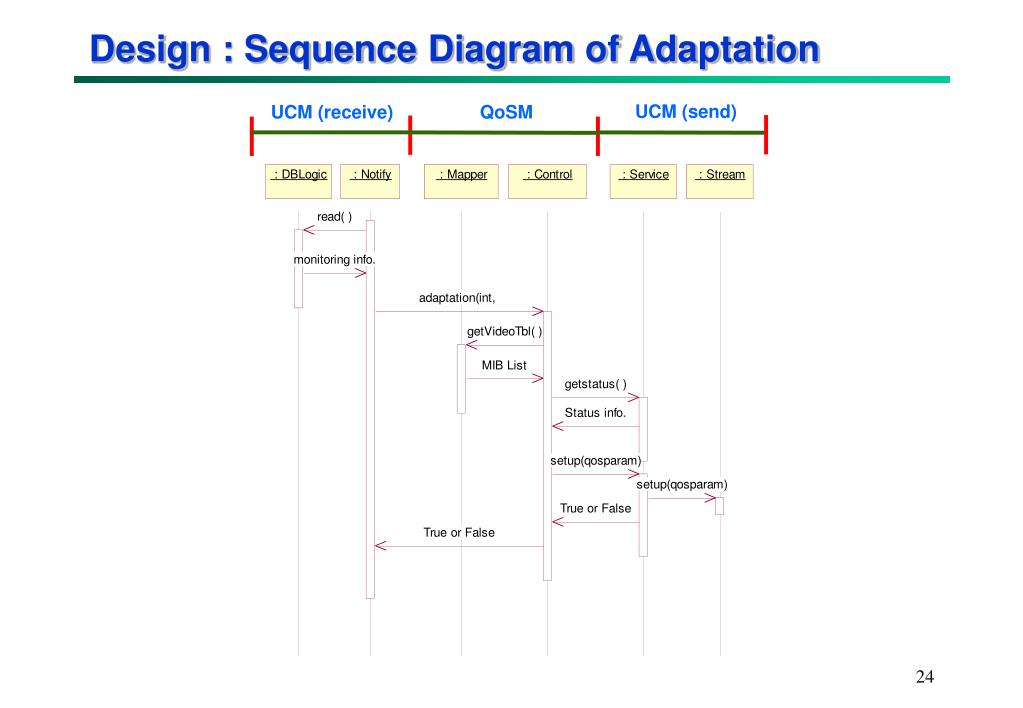

Design : Sequence Diagram of Adaptation

UCM (send)

UCM (receive)

QoSM

slide25

QoSM

Server(Sending Stream Data)

Client(Receiving Stream Data)

  • Systems : Sun UltraSparc 1s, UltraSparc 2i
  • OS : Solaris 2.5(client), Solaris 2.7(server)
  • Middleware : OrbixWeb3.1c
  • Developing Tool: Java,JDK1.2.x, JMF API 2.0
  • DB Engine : Mini SQL 1.0.16
  • Additional Devices: Sun Camera,

SunVideo/SunVideoPlus Capture Board

UCM

UCM

UCM

UltraSparc 2i

Solaris 2.7

SunVideoPlus

+ Sun Camera

UltraSparc 1s

Solaris 2.5

SunVideo

Stream flow

Control flow

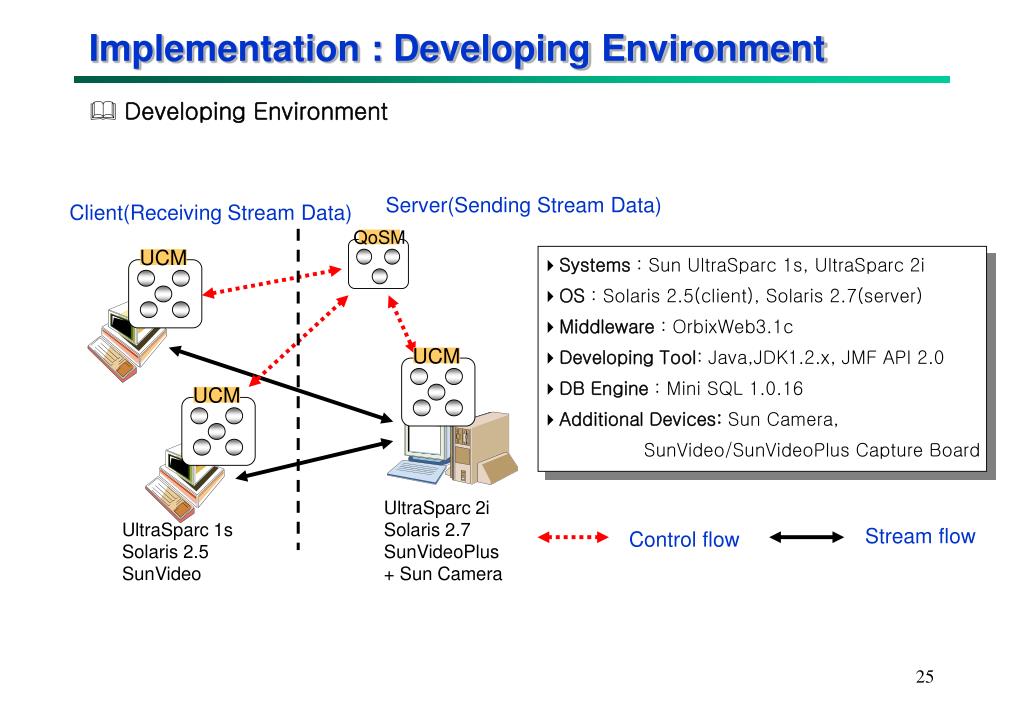

Implementation : Developing Environment

  • Developing Environment

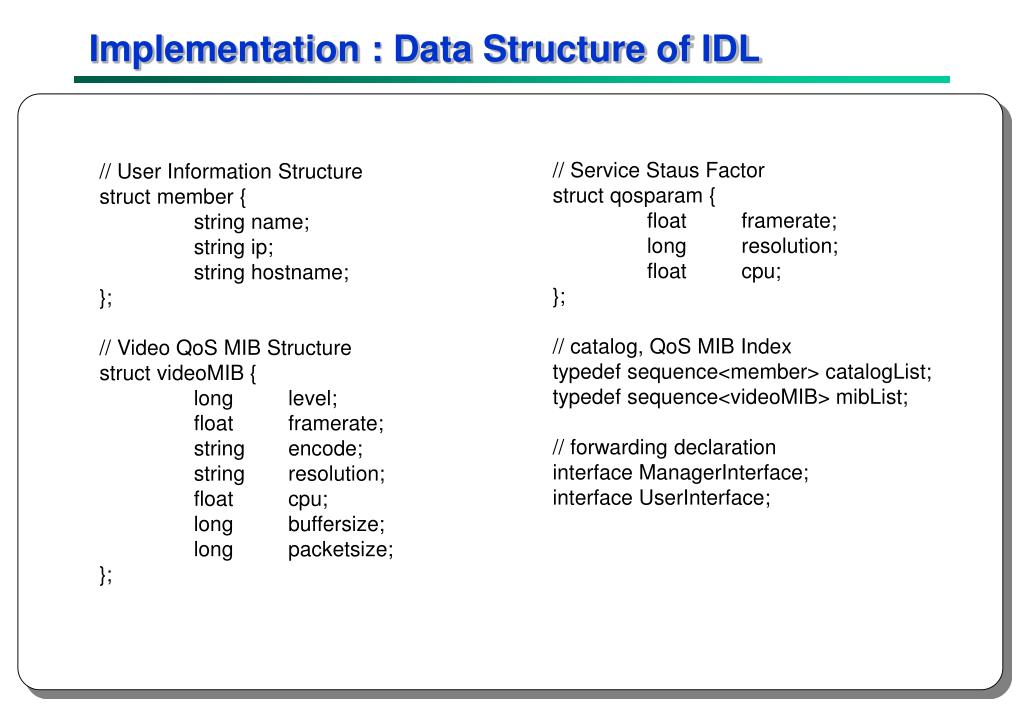

implementation data structure of idl
Implementation : Data Structure of IDL

// Service Staus Factor

struct qosparam {

float framerate;

long resolution;

float cpu;

};

// catalog, QoS MIB Index

typedef sequence<member> catalogList;

typedef sequence<videoMIB> mibList;

// forwarding declaration

interface ManagerInterface;

interface UserInterface;

// User Information Structure

struct member {

string name;

string ip;

string hostname;

};

// Video QoS MIB Structure

struct videoMIB {

long level;

float framerate;

string encode;

string resolution;

float cpu;

long buffersize;

long packetsize;

};

implementation idl of user control model

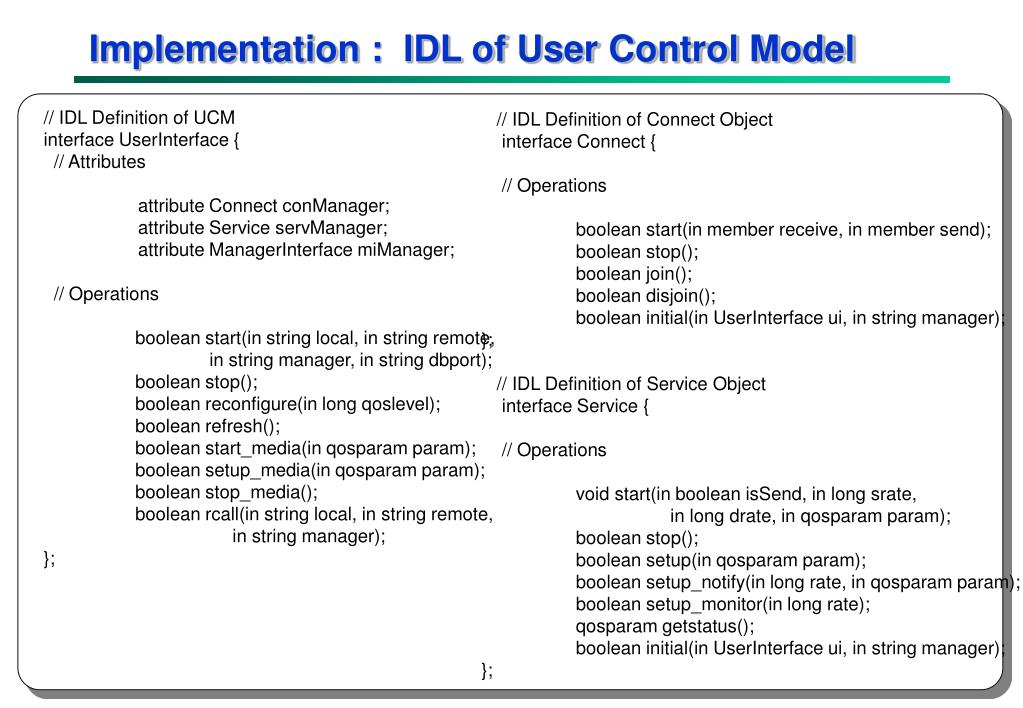

Implementation : IDL of User Control Model

// IDL Definition of UCM

interface UserInterface {

// Attributes

attribute Connect conManager;

attribute Service servManager;

attribute ManagerInterface miManager;

// Operations

boolean start(in string local, in string remote,

in string manager, in string dbport);

boolean stop();

boolean reconfigure(in long qoslevel);

boolean refresh();

boolean start_media(in qosparam param);

boolean setup_media(in qosparam param);

boolean stop_media();

boolean rcall(in string local, in string remote,

in string manager);

};

// IDL Definition of Connect Object

interface Connect {

// Operations

boolean start(in member receive, in member send);

boolean stop();

boolean join();

boolean disjoin();

boolean initial(in UserInterface ui, in string manager);

};

// IDL Definition of Service Object

interface Service {

// Operations

void start(in boolean isSend, in long srate,

in long drate, in qosparam param);

boolean stop();

boolean setup(in qosparam param);

boolean setup_notify(in long rate, in qosparam param);

boolean setup_monitor(in long rate);

qosparam getstatus();

boolean initial(in UserInterface ui, in string manager);

};

implementation idl of qosm
Implementation : IDL of QoSM

boolean start();

boolean stop();

boolean negotiation(in long qoslevel);

boolean adaptation(in long qoslevel, in qosparam param);

boolean initial(in ManagerInterface mi, in string remote);

};

// IDL Definition of Mapper Object

interface Mapper {

// Attributes

attribute catalogList serverTbl;

attribute mibList videoTbl;

// Operations

boolean start();

boolean stop();

boolean connect(in member receive, in member send);

boolean disconnect();

boolean register(in member mem);

boolean unregister(in member mem);

catalogList getServerTbl();

mibList getVideoTbl();

boolean initial(in ManagerInterface mi, in string remote);

};

// IDL Definition of QoSM

interface ManagerInterface {

// Attributes

attribute Mapper mapManager;

attribute Control ctlManager;

attribute UserInterface uiManager;

// Operations

boolean start(in string local, in string

remote, in string manager);

boolean stop();

boolean connect(in member receive,

in member send);

boolean disconnect();

boolean negotiation(in long qoslevel);

boolean adaptation(in long qoslevel,

in qosparam param);

catalogList getServerTbl();

};

// IDL Definition of Control Object

interface Control {

// Operations

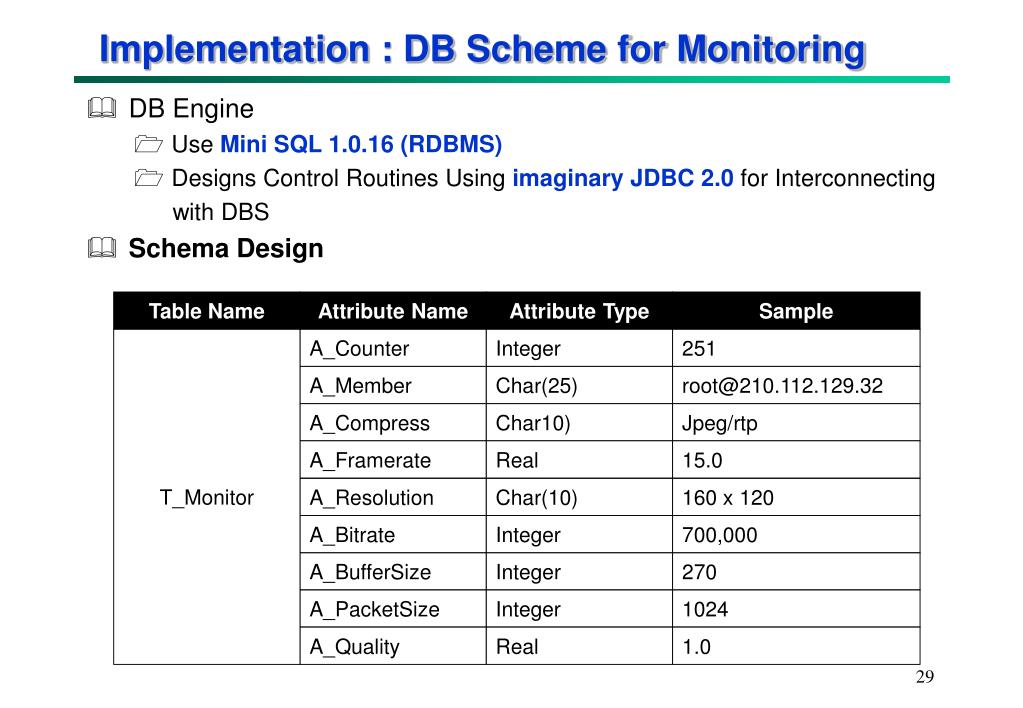

implementation db scheme for monitoring
Implementation : DB Scheme for Monitoring
  • DB Engine
    • Use Mini SQL 1.0.16 (RDBMS)
    • Designs Control Routines Using imaginary JDBC 2.0 for Interconnecting

with DBS

  • Schema Design

Table Name

Attribute Name

Attribute Type

Sample

T_Monitor

A_Counter

Integer

251

A_Member

Char(25)

root@210.112.129.32

A_Compress

Char10)

Jpeg/rtp

A_Framerate

Real

15.0

A_Resolution

Char(10)

160 x 120

A_Bitrate

Integer

700,000

A_BufferSize

Integer

270

A_PacketSize

Integer

1024

A_Quality

Real

1.0

implementation definition of qos mib

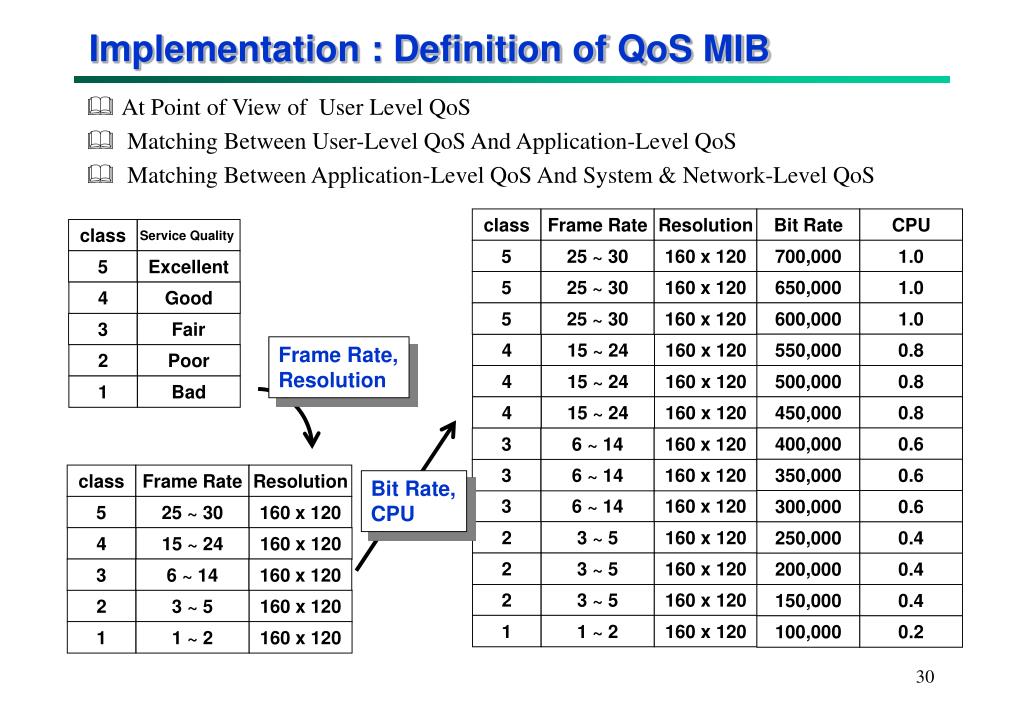

Implementation : Definition of QoS MIB
  • At Point of View of User Level QoS
  • Matching Between User-Level QoS And Application-Level QoS
  • Matching Between Application-Level QoS And System & Network-Level QoS

class

Frame Rate

Resolution

Bit Rate

CPU

class

Service Quality

5

25 ~ 30

160 x 120

700,000

1.0

5

Excellent

5

25 ~ 30

160 x 120

650,000

1.0

4

Good

5

25 ~ 30

160 x 120

600,000

1.0

3

Fair

4

15 ~ 24

160 x 120

550,000

0.8

Frame Rate,

Resolution

2

Poor

4

15 ~ 24

160 x 120

500,000

0.8

1

Bad

4

15 ~ 24

160 x 120

450,000

0.8

400,000

0.6

3

6 ~ 14

160 x 120

350,000

0.6

3

6 ~ 14

160 x 120

class

Frame Rate

Resolution

Bit Rate,

CPU

3

6 ~ 14

160 x 120

300,000

0.6

5

25 ~ 30

160 x 120

2

3 ~ 5

160 x 120

250,000

0.4

4

15 ~ 24

160 x 120

2

3 ~ 5

160 x 120

200,000

0.4

3

6 ~ 14

160 x 120

2

3 ~ 5

160 x 120

150,000

0.4

2

3 ~ 5

160 x 120

1

1 ~ 2

160 x 120

100,000

0.2

1

1 ~ 2

160 x 120

implementation stream object
Implementation : Stream Object
  • Interfaces of Stream Object
    • Interfaces : start, stop, setup, getStatus
  • Implemented Detailed Contents
    • Using JMF 2.0 API
    • JPEG : Stream Send/Receive Functions of Encoding Formats
    • H261, H263 : Receive Function of Encoding Formats
    • Supporting Resolutions of 160 X 120, 320 X 240
    • Re-producing Stream Data And Capturing f 30 frames/Second
    • Sending/Receiving Stream Data Using RTP Protocol
executing result the side of client 1
Executing Result : The Side of Client(1)
  • Users Can Adjust Service of Quality on Window of Client’s Side via Interfaces with QoSM suggested

Register IP addresses of Client’s UCM,

Server’s and QoSM on below Panel

Register Users’ Individual Information, DB Connection Port and Stream Sending/Receiving Ports to above Panel

executing result the side of client 2
Executing Result : The Side of Client(2)

Left ProgressBar -> The QoS Level Receiving

Current Service

Right SliderBar -> Select The Desiring QoS Level

The Parameters of Stream Receiving Status

Shown on Right Screen;

BitRate, FrameRate, Encoding,

CPU capacity, Buffer Size

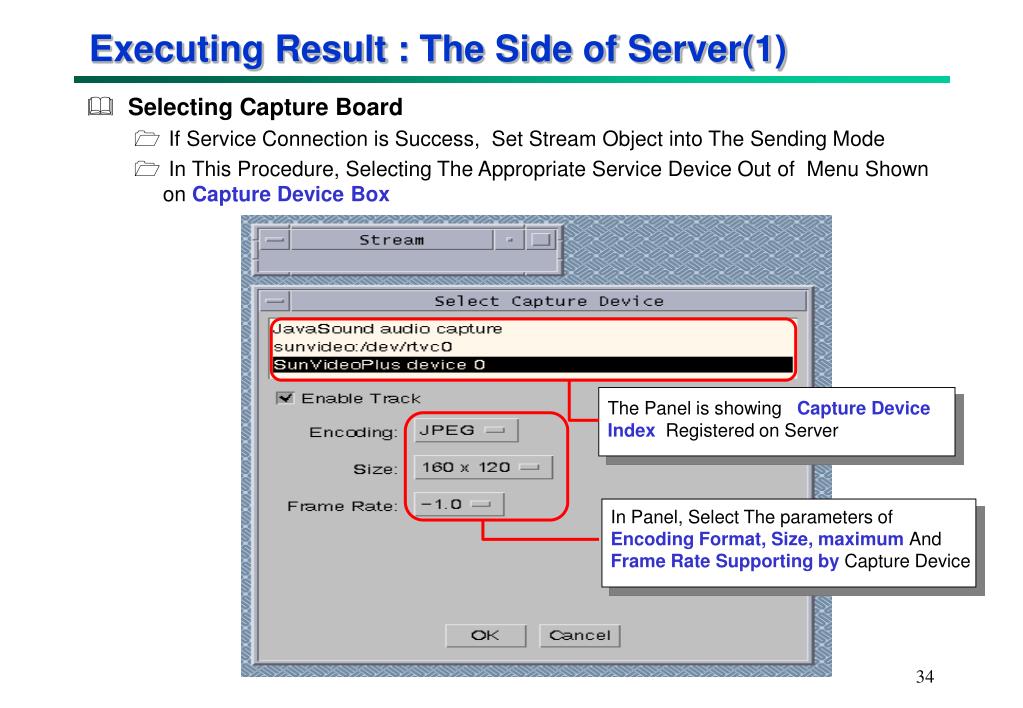

executing result the side of server 1
Executing Result : The Side of Server(1)
  • Selecting Capture Board
    • If Service Connection is Success, Set Stream Object into The Sending Mode
    • In This Procedure, Selecting The Appropriate Service Device Out of Menu Shown on Capture DeviceBox

The Panel is showing Capture Device

Index Registered on Server

In Panel, Select The parameters of

Encoding Format, Size, maximum And

Frame Rate Supporting by Capture Device

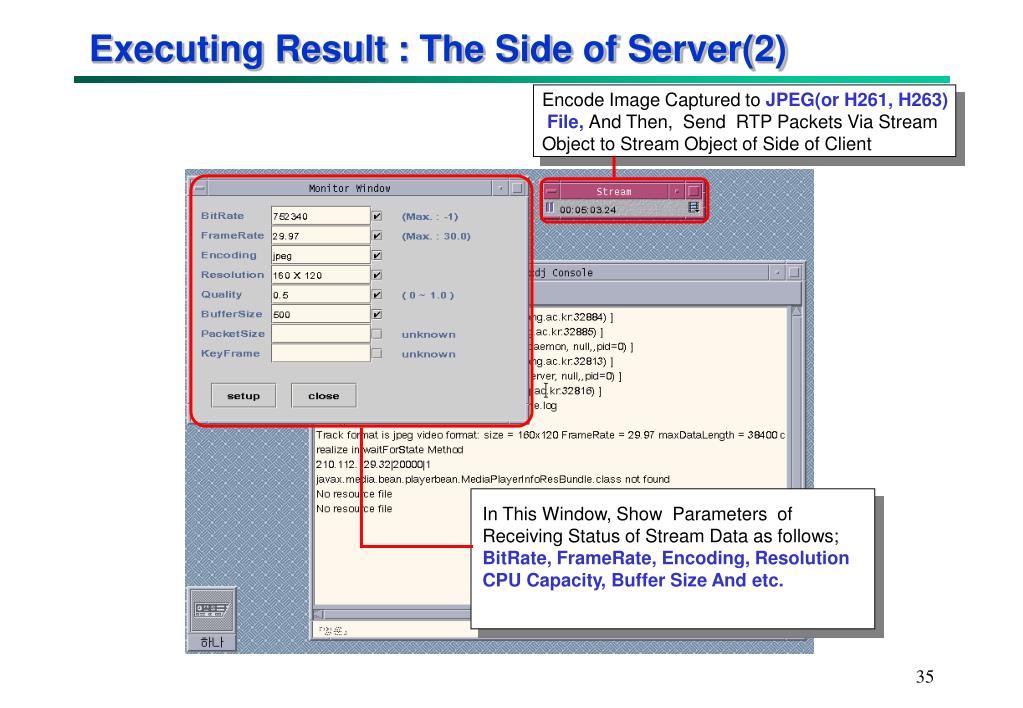

executing result the side of server 2
Executing Result : The Side of Server(2)

Encode Image Captured to JPEG(or H261, H263)

File, And Then, Send RTP Packets Via Stream

Object to Stream Object of Side of Client

In This Window, Show Parameters of

Receiving Status of Stream Data as follows;

BitRate, FrameRate, Encoding, Resolution

CPU Capacity, Buffer Size And etc.

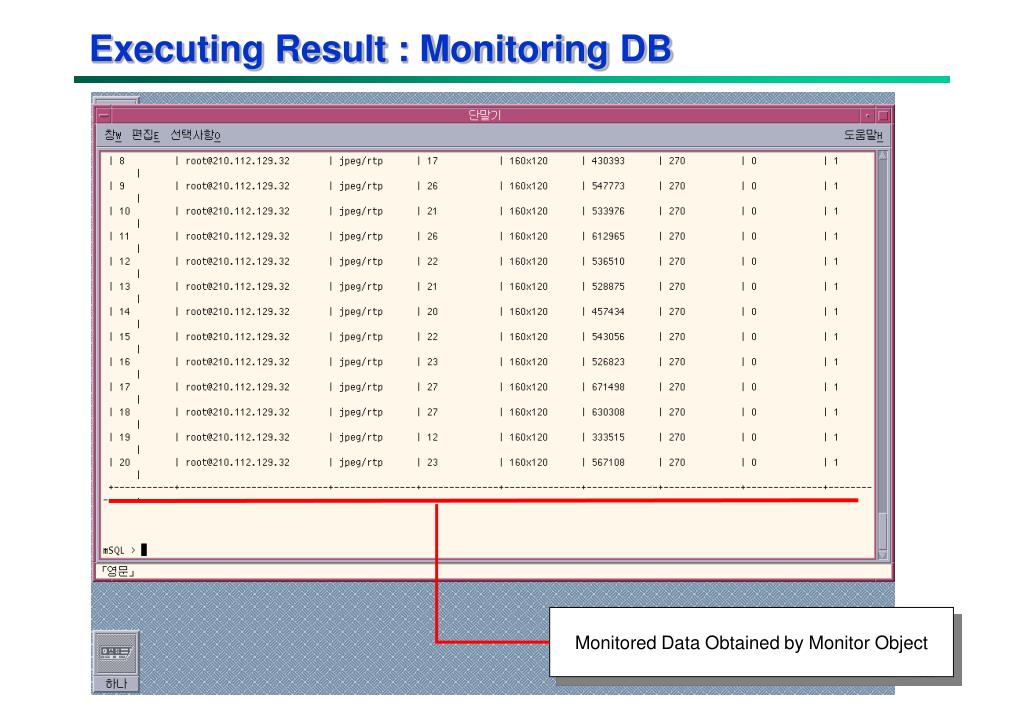

executing result monitoring db
Executing Result : Monitoring DB

Monitored Data Obtained by Monitor Object

executing result negotiation procedure
Executing Result : Negotiation Procedure

Client Side

Users Can Reset QoS

Level Using Vertical

Slide Bar

Server Side

Show A Procedure

That Is Reset Appropriate QoS Level to Meet

User Requirements

Via Stream Object

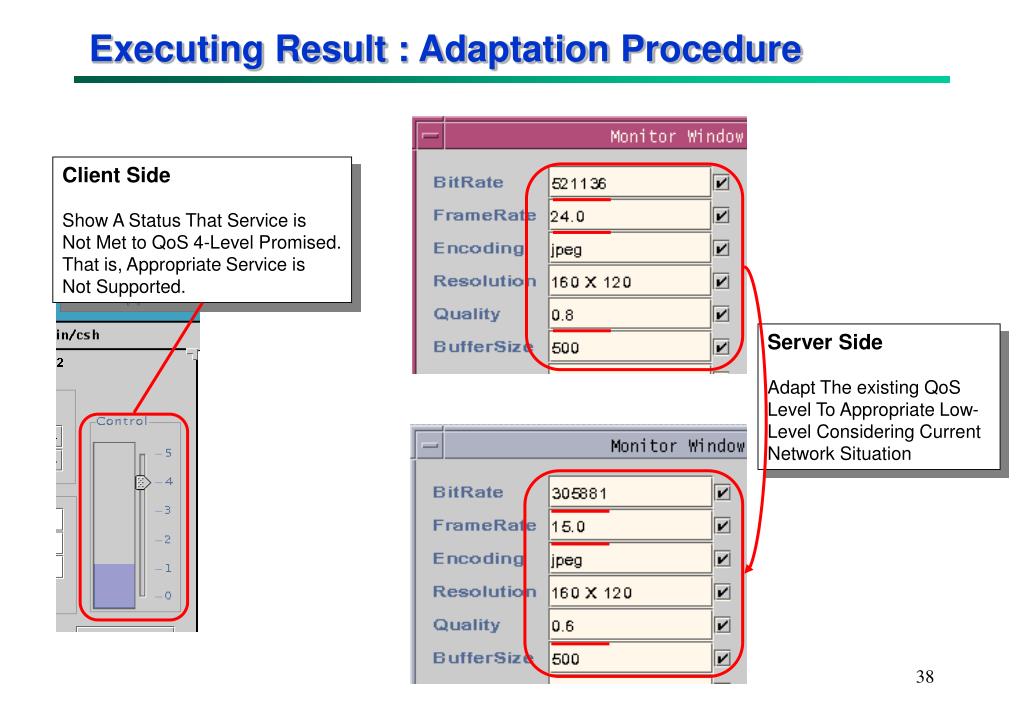

executing result adaptation procedure
Executing Result : Adaptation Procedure

Client Side

Show A Status That Service is

Not Met to QoS 4-Level Promised.

That is, Appropriate Service is

Not Supported.

Server Side

Adapt The existing QoS Level To Appropriate Low-Level Considering Current

Network Situation

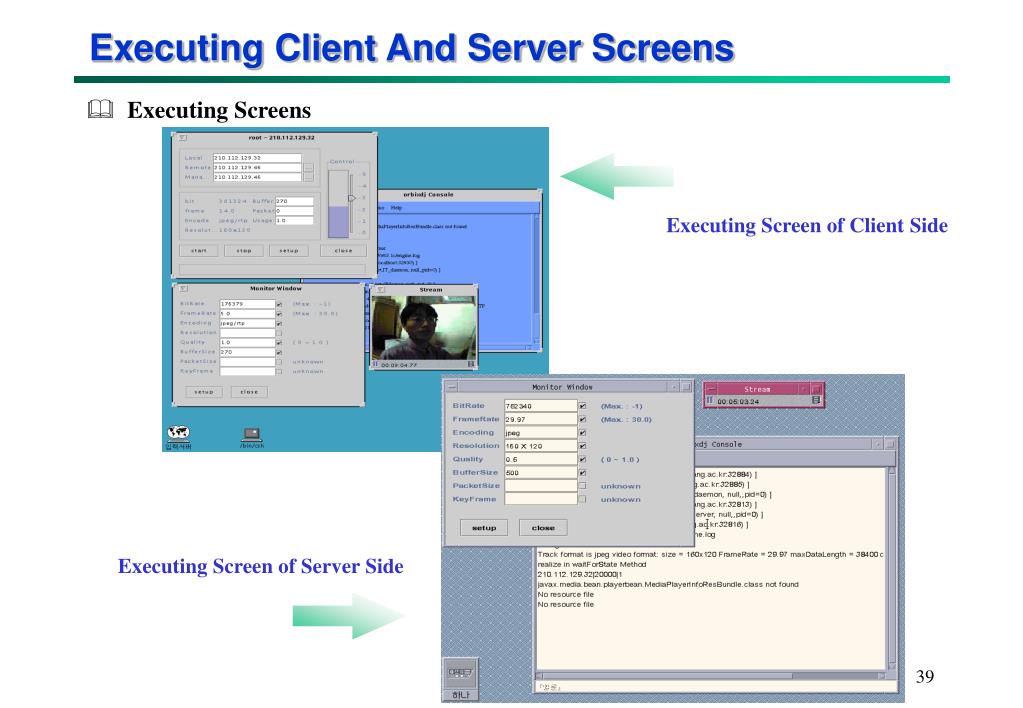

executing client and server screens
Executing Client And Server Screens
  • Executing Screens

Executing Screen of Client Side

Executing Screen of Server Side

conclusions summaries
Conclusions : Summaries
  • Trends Text- Based Services toward Multimedia-Based Services
  • Needs User-Centralized QoS
  • Specification of Analyzing QoS And Requirements
  • Supporting Independently Stream Services on Distributed
  • Suggested And Implemented QoS Management Model for Integrating Multimedia Service And QoS management
    • User Control Module(UCM)
    • QoS Management Module(QoSM)
    • Stream Object
  • Integration of Stream Technology And CORBA Technology
future works

Monitor

Stream

Service

Application

Application

Stream Object

Stream Object

QoS

Application

Application

Network

Operation

Service

Object & ObjectGroup

Object & ObjectGroup

Object & ObjectGroup

Distributed Computing Middleware

Trader

Trader Federation

Trader

Trader

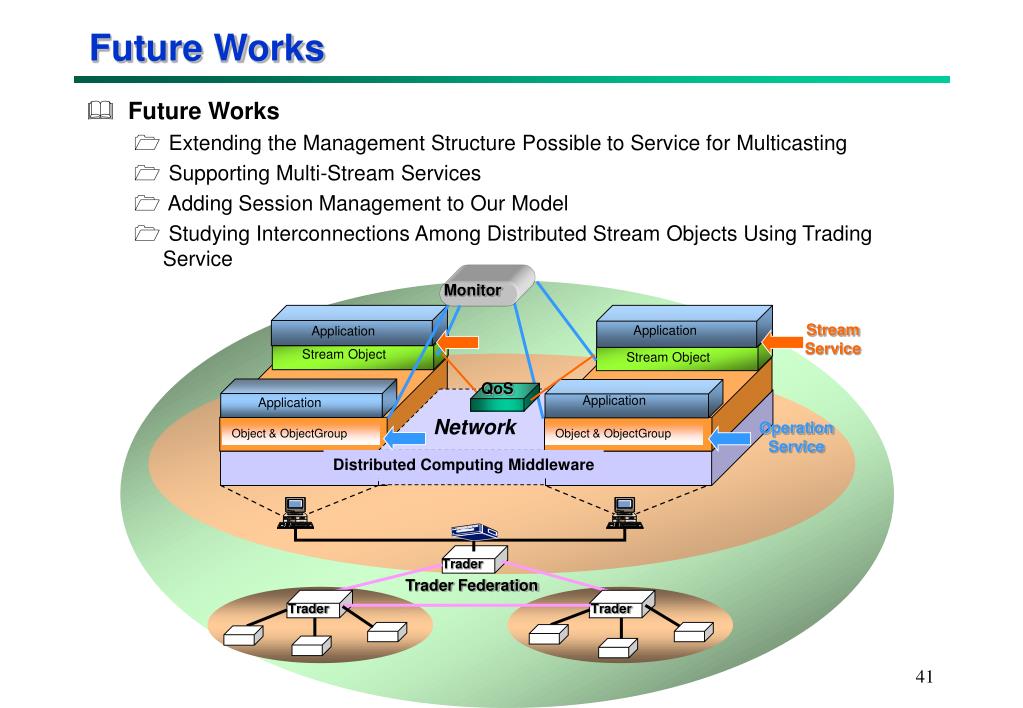

Future Works
  • Future Works
    • Extending the Management Structure Possible to Service for Multicasting
    • Supporting Multi-Stream Services
    • Adding Session Management to Our Model
    • Studying Interconnections Among Distributed Stream Objects Using Trading Service
