TMCS & Its Solutions- EOL Testing, DAQ System, ATE Testing

1. Theta Measurement and Control Solutions Pvt. Ltd (TMCS) & Its Solutions https://www.tmcs.in/

2. About TMCS • Theta Measurement and Control Solutions Pvt. Ltd (TMCS) mainly provides cost effective Industrial Automation, Test, Measurement & Control solutions. This enables customers to deliver state-of-the-art technological solutions. • We are specialized in developing customized automated test equipment to meet their distinct requirements, which include commissioning industry standard automation, measurement hardware and software, data acquisition and control systems.

3. TMCS’s Presence In Various Industries

4. TMCS SOLUTIONS 1. Data Acquisition System Services • Data Acquisition Systems (DAQ System) have its contribution in a wide range of activities of day-to-day life. Most commonly, it is used to measure the electrical signals from some sensor. It is often referred, is the process of digitizing data from the world around us so it can be displayed, analyzed, and stored in a computer. • DAQ system applications are usually controlled by software programs developed using various using general purpose programming language such as Assembly, BASIC, C, C++, C#, Fortran, Java, Lab VIEW. TMCS is NI Alliance Partner we also provide NI Labview Software offshore consultation.

5. Purposes Of Data Acquisition - The primary purpose of a data acquisition system is to acquire and store the data. Data acquisition systems are principally in the business of measuring physical phenomena such as: • Temperature • Voltage • Current Strain and Pressure • Shock, Vibration Distance and Displacement RPM • Angle and Discrete Events Weight For More Info, Visit: https://www.tmcs.in/daq-services/

6. 2. Automated Test Equipment Services - “ATE Services” • Automated Test Equipment (ATE) is a machine that is designed to conduct tests on various devices known as devices under test (DUT). • An ATE uses control systems and automated information technology to speedily perform tests that quantify and calculate a DUT. • ATE testing is usually used in Automotive tests, wireless communication and radar as well as electronic component manufacturing. • TMCS specialises in integration of offering complete system and sub-systems. We have successfully executed projects related to ATE with multipurpose, software centric interfaces & use commercial off the shelf components to customize the functionality with latest architectures the real time measurement and analysis is possible with increased performance. • Expanding requirements from customers, rigid constraints, defined critical standards and limited available time to market are serious challenges for any organization in test and measurement solutions. • To achieve the desired throughput from the designed automatic test system the system must have robust integration, flexibility in device communication with better synchronization.

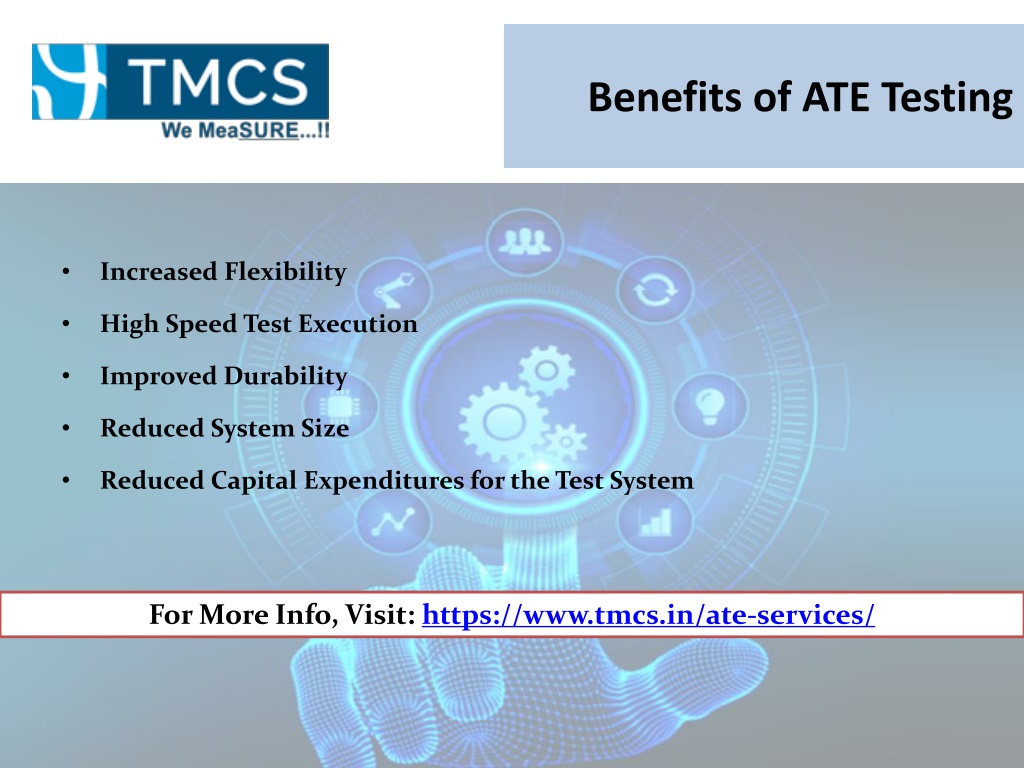

7. Benefits of ATE Testing • Increased Flexibility • High Speed Test Execution • Improved Durability • Reduced System Size • Reduced Capital Expenditures for the Test System For More Info, Visit: https://www.tmcs.in/ate-services/

8. 3. End-Of-Line Tester Services • End Of Line Testing (EOL) systems can measure and check the functionality of automotive electronic control units, mechanical parts and related systems. Key factors considered are high test quantity, test completion and low system with upgrade costs. Today it’s important to have a flexible test platform with the growing intricacy of automotive electronics. TMCS has an End of Line Testing platform which is flexible and offers complete consistency. • End of line system allows error free, faster, accurate and a thorough testing of any type of UUTs.

9. EOL Testing Services Can Be Used For • Motor Test System – - The control panels have the following functions: • EOL testers are developed to control and log data of Motor under test. • Various tests like Voltage regulation, Temperature rise test etc can be carried out automatically. • Pass and Fail result will be displayed based on configured data.

10. EOL Testing Services Can Be Used For 2. Alternator Test System – • With identifying and selecting the apt NI resources, we were able to finish the entire test 12 to 14 minutes earlier, reducing alternator’s Test Cycle Time by 10+%” The Challenge: Customer wanted us to develop a solution over the Alternator (End of line) Testing System that shall Continuously Monitor the temperature rise, during the heat-run test. 3. ECU Test Bench – • EOL testing is usually used to test vehicle ECU. Operator needs to manually connect all electrical cables, select model and start testing. Test sequence of different models of ECU can be set by manager.

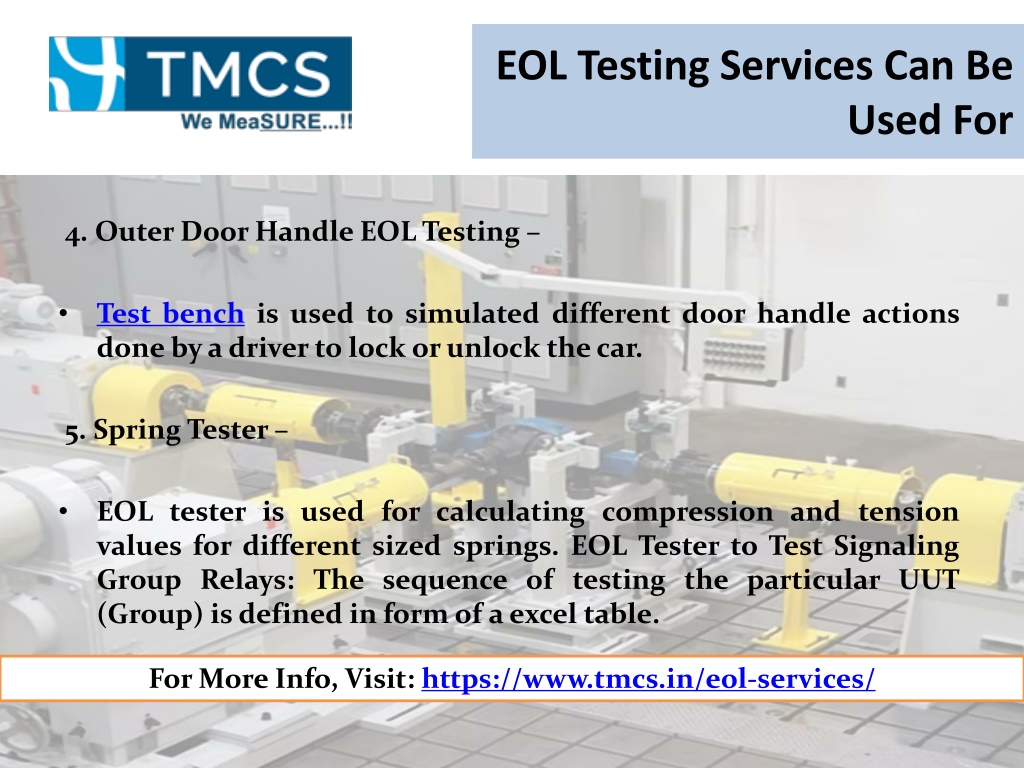

11. EOL Testing Services Can Be Used For 4. Outer Door Handle EOL Testing – • Test bench is used to simulated different door handle actions done by a driver to lock or unlock the car. 5. Spring Tester – • EOL tester is used for calculating compression and tension values for different sized springs. EOL Tester to Test Signaling Group Relays: The sequence of testing the particular UUT (Group) is defined in form of a excel table. For More Info, Visit: https://www.tmcs.in/eol-services/

12. THANK YOU https://www.tmcs.in/
