  1. Testing DAQ PY04 Mark KrasbergUniversity of Wisconsin Berkeley Collaboration Meeting 20 March, 2005

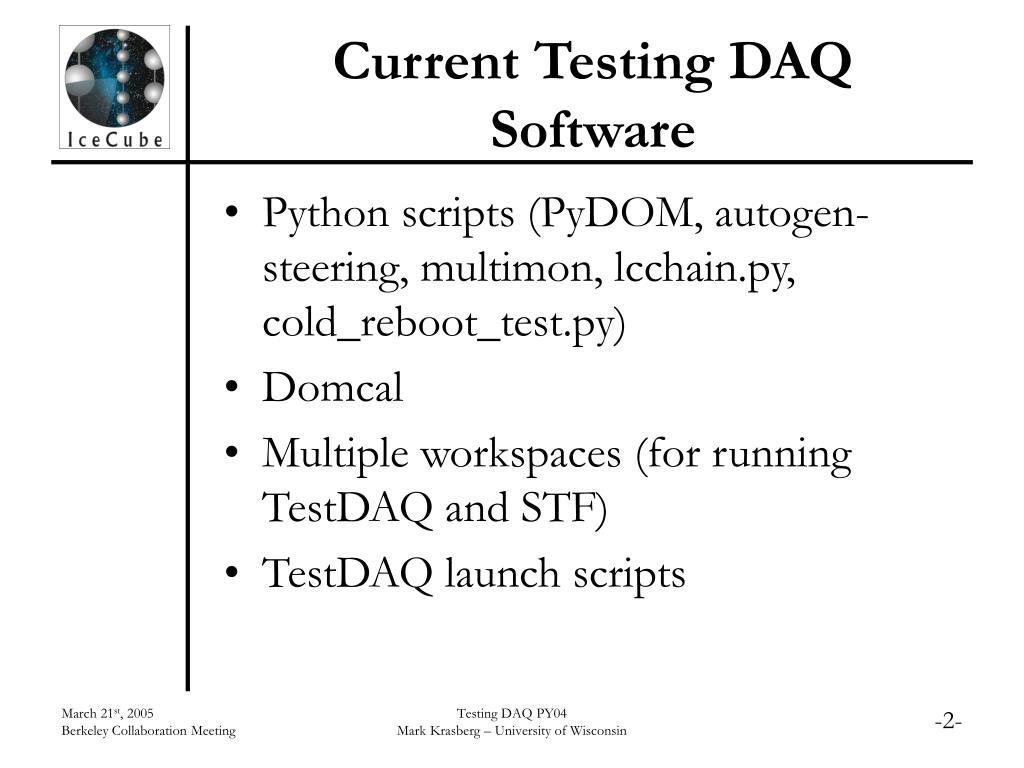

  2. Current Testing DAQ Software • Python scripts (PyDOM, autogen-steering, multimon, lcchain.py, cold_reboot_test.py) • Domcal • Multiple workspaces (for running TestDAQ and STF) • TestDAQ launch scripts Testing DAQ PY04 Mark Krasberg – University of Wisconsin

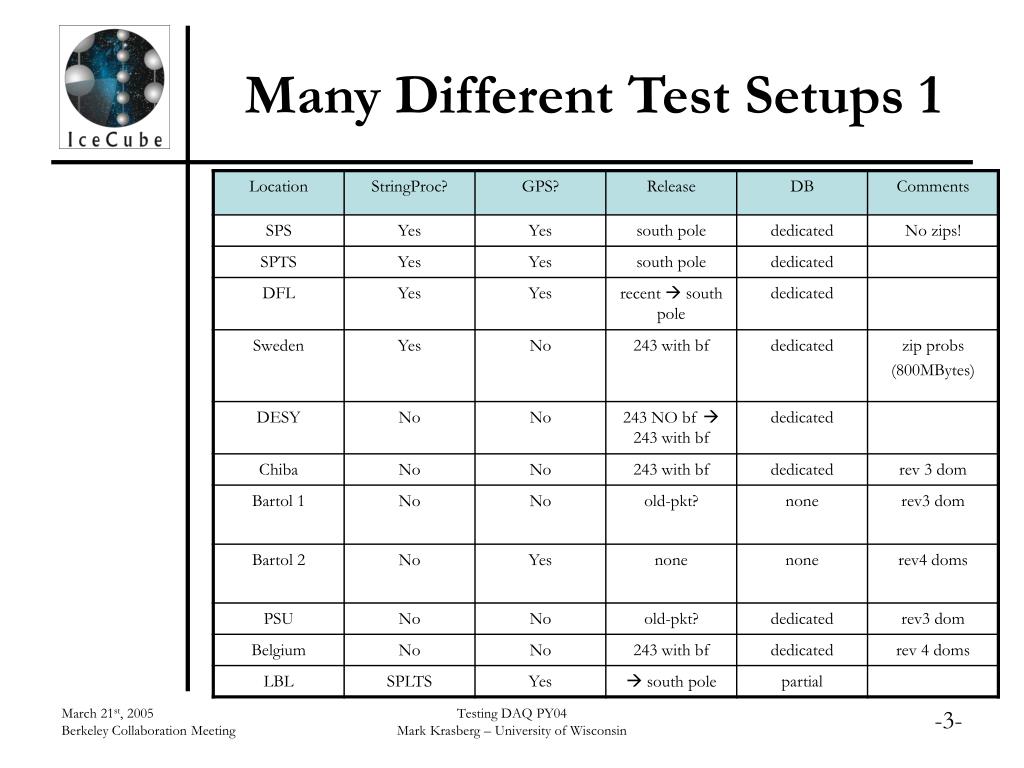

  3. Many Different Test Setups 1 Testing DAQ PY04 Mark Krasberg – University of Wisconsin

  4. The Different Setups • StringProc yes/no implies different versions of TestDAQ launch scripts, and means data-collector either runs on a dedicated machine, or else it runs on the DOMHub. • GPS yes/no means different TestDAQ software necessary • Release “243” is last year’s standard FAT release (“bf” fixes bad timing bug) • Dedicated database determines whether STF and autogen-steering and multimon can run locally • Only South Pole and SPTS have done away with ZIPs so far – this makes things run much smoother. We continue to have occasional ZIP problems in DFL testing, and Sweden encounters ZIP problems more often (their string processor machine had/has only 800 Mbytes). Testing DAQ PY04 Mark Krasberg – University of Wisconsin

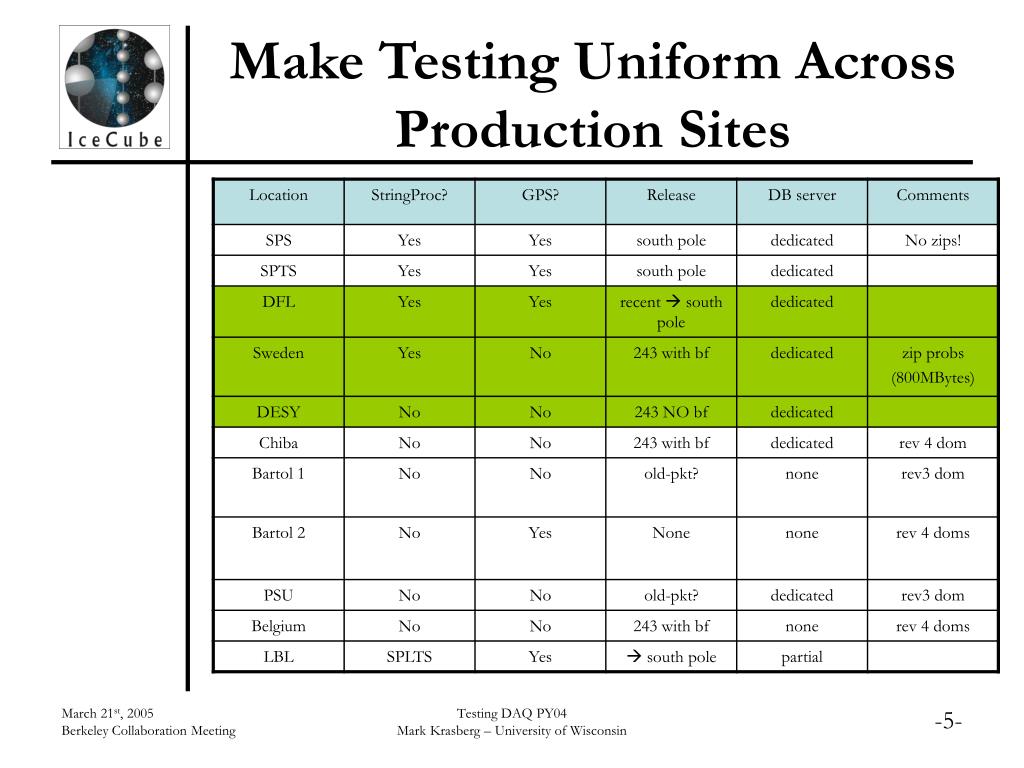

  5. Make Testing Uniform AcrossProduction Sites Testing DAQ PY04 Mark Krasberg – University of Wisconsin

  6. Testing Site Changes • Want to standardize the testing sites • Sweden • Needs a GPS unit • Needs an improved string processor • Needs a software upgrade • DESY • Needs a GPS unit • Needs to use the string processor they already have • Needs a software upgrade • Martin Kestel will integrate DOMTest Testing DAQ PY04 Mark Krasberg – University of Wisconsin

  7. Pole Improvements to Implement for next FAT • Improved launch scripts • TestDAQ can be run simultaneously from different local NFS’d accounts (eg SPTS and DFL), if need be. • Local output files go into temporary directory ~/output#######, where “#######”=run number (this means aborted run data is always saved) • Monolith was integrated into the launch scripts • we can run monolith on FAT data in the future • would be able to look at the data using icetray • An attempt was made to have as little deadtime between runs as possible • Axed zip files (finally) • this makes data taking smoother, less deadtime between runs, easier to analyze events • Added ability to create LocalCoincidence and Flasherboard TestDAQ steering files automatically (using autogen-steering) Testing DAQ PY04 Mark Krasberg – University of Wisconsin

  8. Proposed 2005 FAT TestDAQ runs • Axe Optical Sensitivity Runs (use “multimon” instead) • Continue to take GainVsHV and DarkNoise runs with Local Coincidence disabled • Would like to take Linearity Runs using new trigger mode – LocalCoincidence UP.and.DOWN • This would enable linearity data to be taken with no background • With this mode we would be able to • Take backgroundless cosmic data • Easily test Local Coincidence • This requires a firmware change • LBL thought they might be able to do this in May, after which we can integrate into FATs • Add new LocalCoincidence Runs (using LC enabled UP.or.DOWN) into normal FAT data-taking (LocalCoincidence runs require database to know where the “top” and “bottom” DOMs are • Pole improvements (eg. axing zip files) will reduce the deadtime between runs Testing DAQ PY04 Mark Krasberg – University of Wisconsin

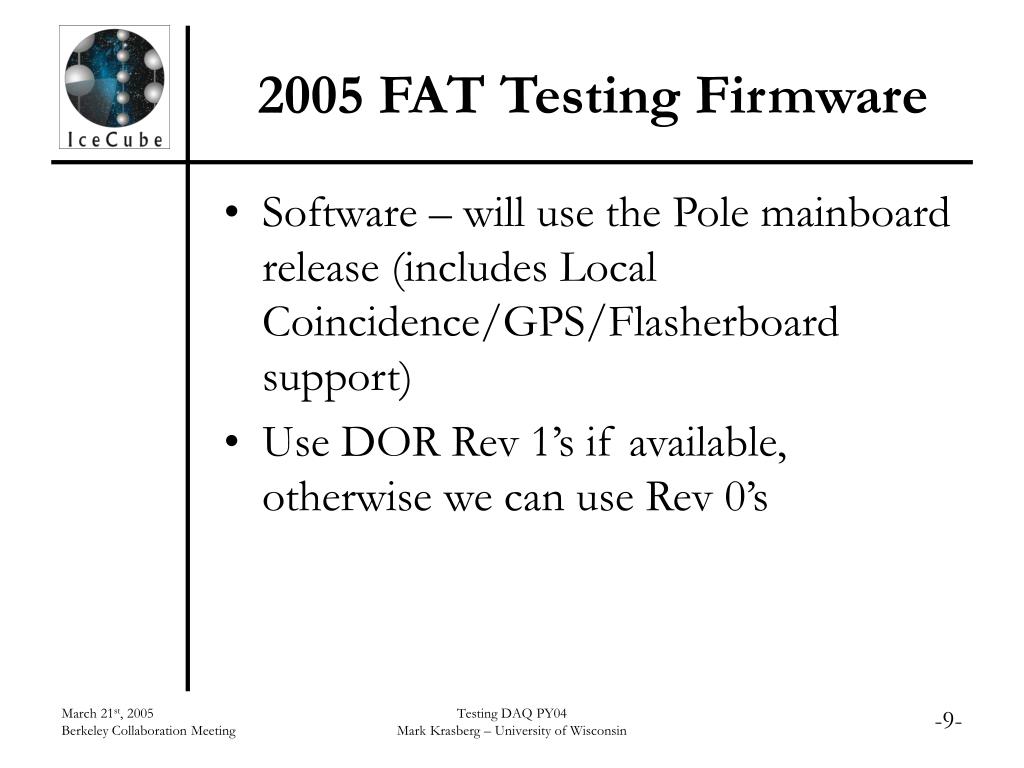

  9. 2005 FAT Testing Firmware • Software – will use the Pole mainboard release (includes Local Coincidence/GPS/Flasherboard support) • Use DOR Rev 1’s if available, otherwise we can use Rev 0’s Testing DAQ PY04 Mark Krasberg – University of Wisconsin

  10. Summary • Want to make the different FAT setups uniform – may not be possible if GPS units unavailable • Axe Optical Sensitivity runs in favor of multimon • Intend to utilize Pole improvements in this year’s FATs (improvements should reduce deadtime between runs) • Minimize deadtime (axe zip files, for example) • Include Local Coincidence Runs as part of FAT • Linearity runs and also dedicated LC runs • Want to use the same mainboard release as at South Pole Testing DAQ PY04 Mark Krasberg – University of Wisconsin
