  1. Shape Correspondence through Landmark Sliding Anup Kedia Anup Kedia

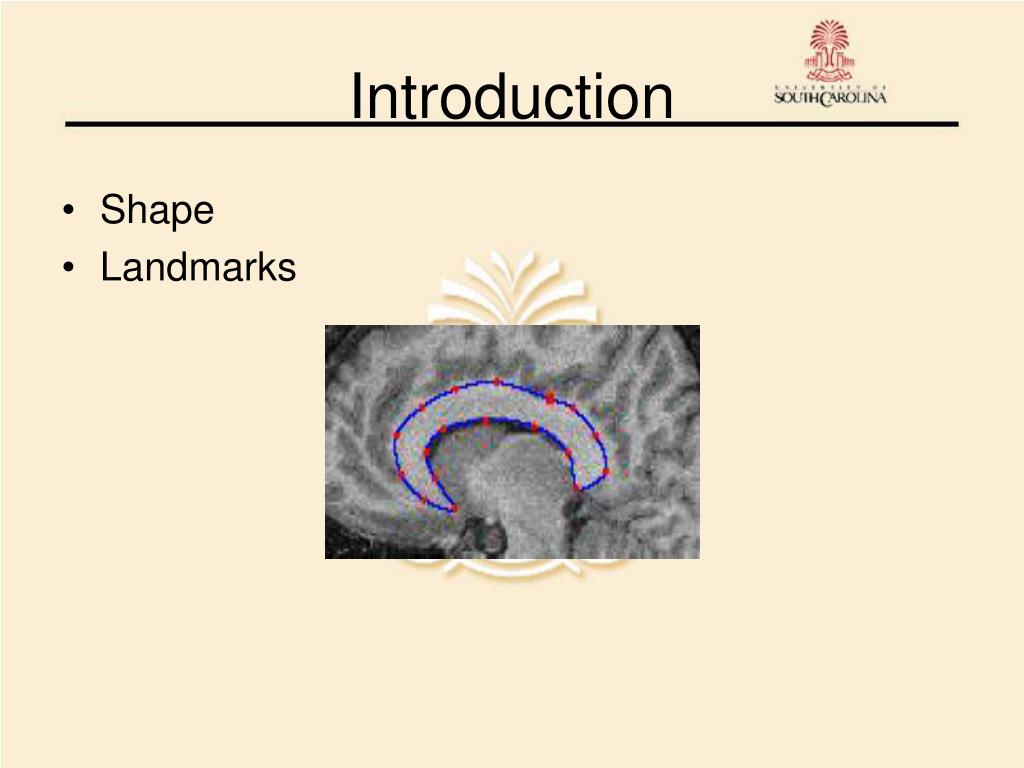

  2. Introduction • Shape • Landmarks

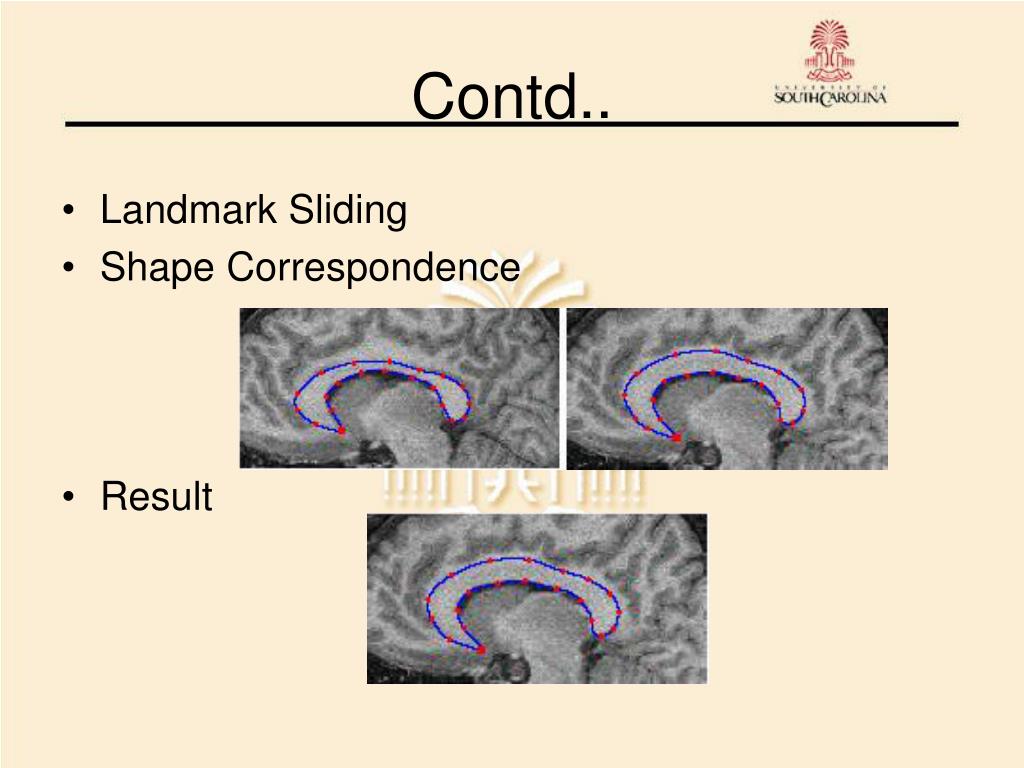

  3. Contd.. • Landmark Sliding • Shape Correspondence • Result

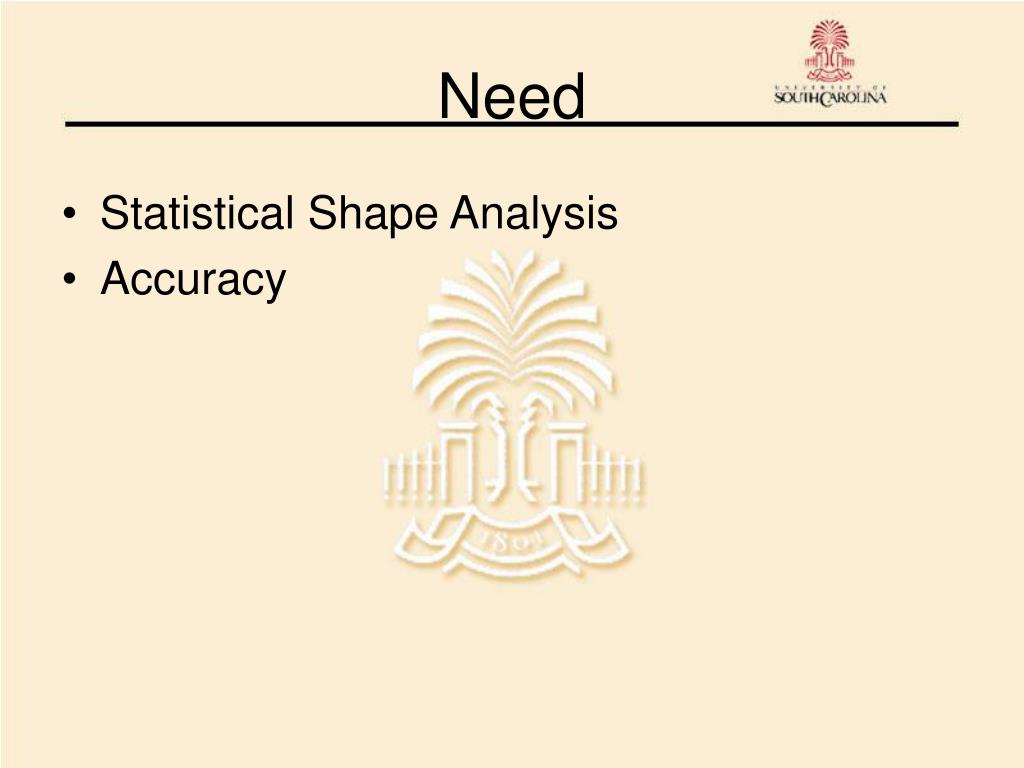

  4. Need • Statistical Shape Analysis • Accuracy

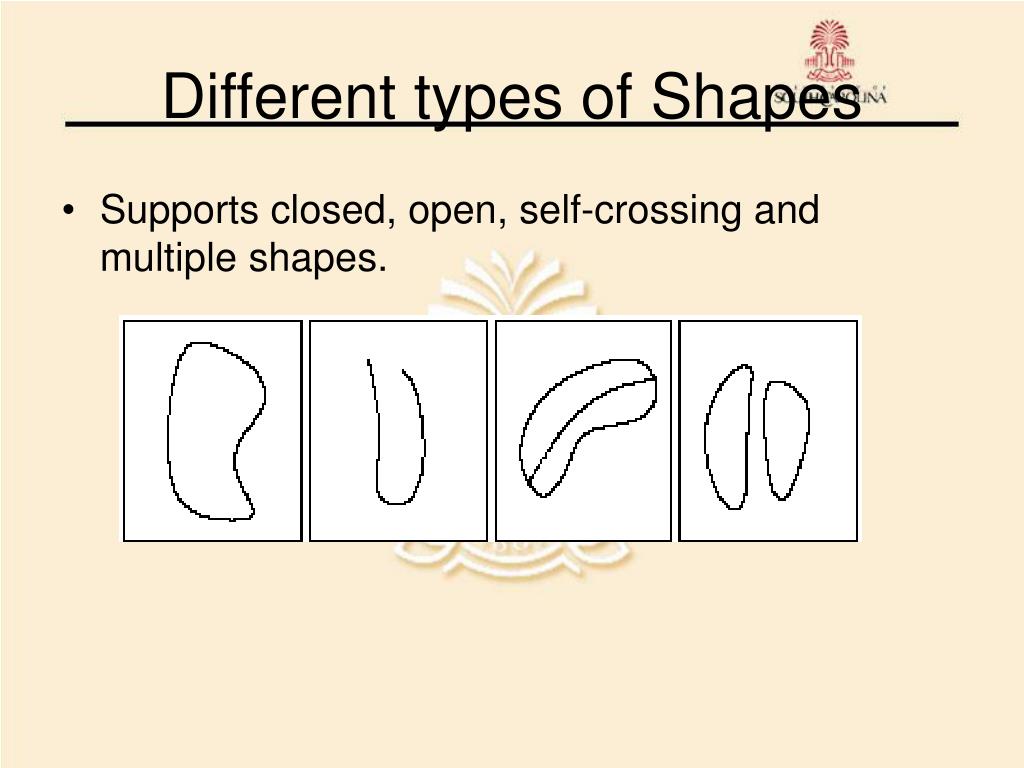

  5. Different types of Shapes • Supports closed, open, self-crossing and multiple shapes.

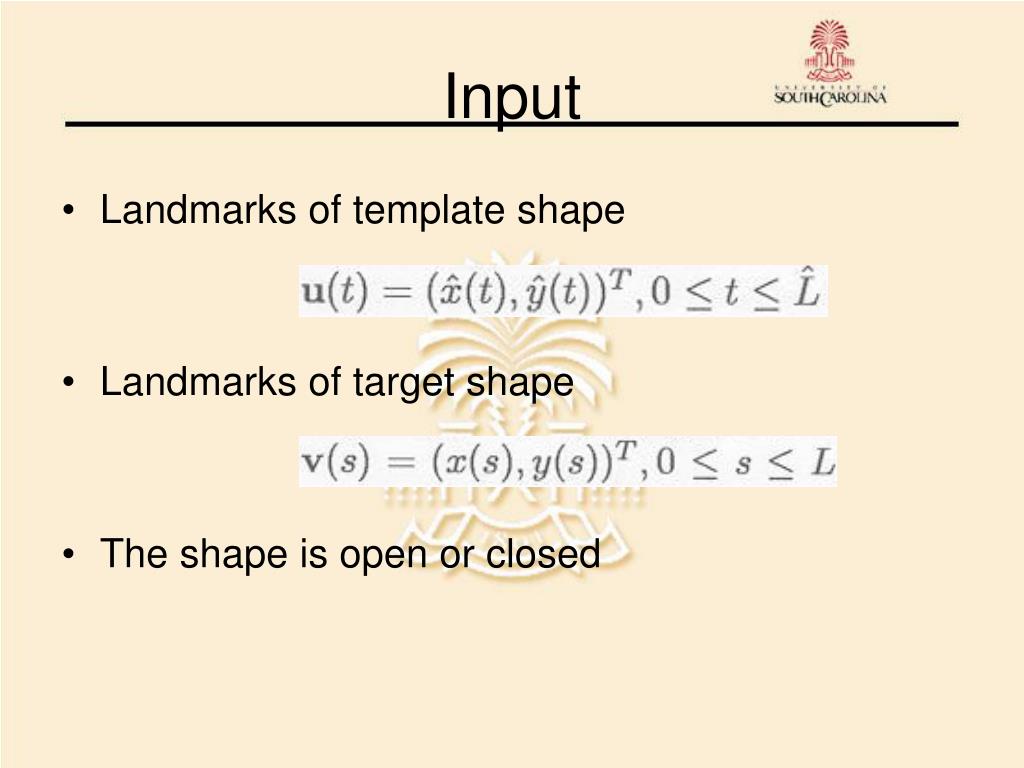

  6. Input • Landmarks of template shape • Landmarks of target shape • The shape is open or closed

  7. Contd.. • The parameters are is the curve length from u(0) to u(t) s|L is the curve length from v(0) to v(s) a|b  modulus operation GOAL : To find s = {s0 , s1 , … sn-1 } such that the shape ‘V’ (target) from it corresponds well to the template shape.

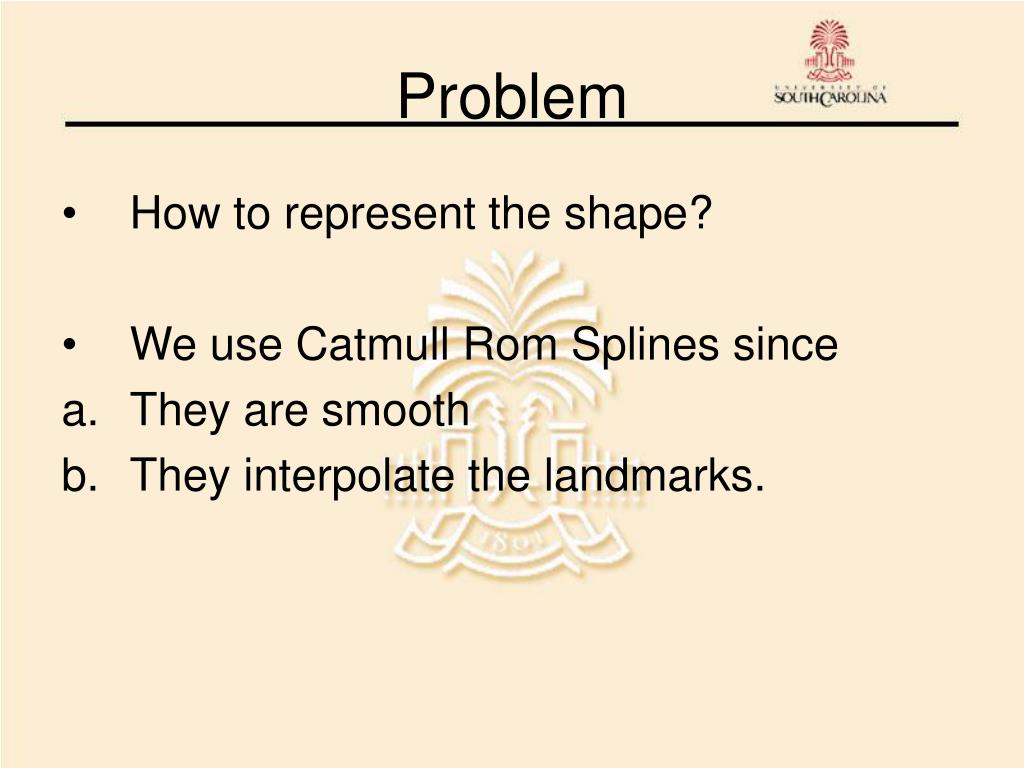

  8. Problem • How to represent the shape? • We use Catmull Rom Splines since • They are smooth • They interpolate the landmarks.

  9. Problem • How to represent and initialize the landmarks? We manually label the landmarks s.t • The no. of landmarks are same • The starting pt. is approximately the same. i.e , we roughly correspond the landmarks manually.

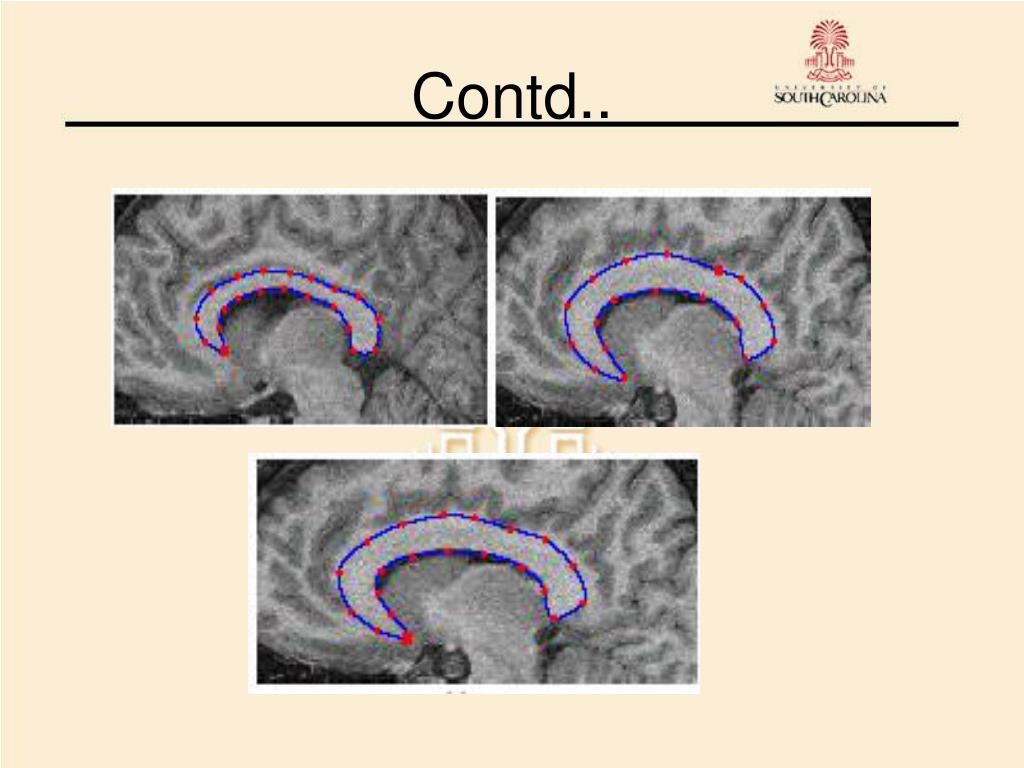

  10. Contd..

  11. Problem • If a landmark moves beyond its neighbours? We add a constraint

  12. Goal • We try to minimize the cost function, Ø(s) = d(U,V) + λR(s) d(U,V) -> landmark based shape difference R(s) -> representation Error λ -> Regularization Factor

  13. Contd.. L  Thin Plate matrix λ= 10-3 in our experiments

  14. Experiment

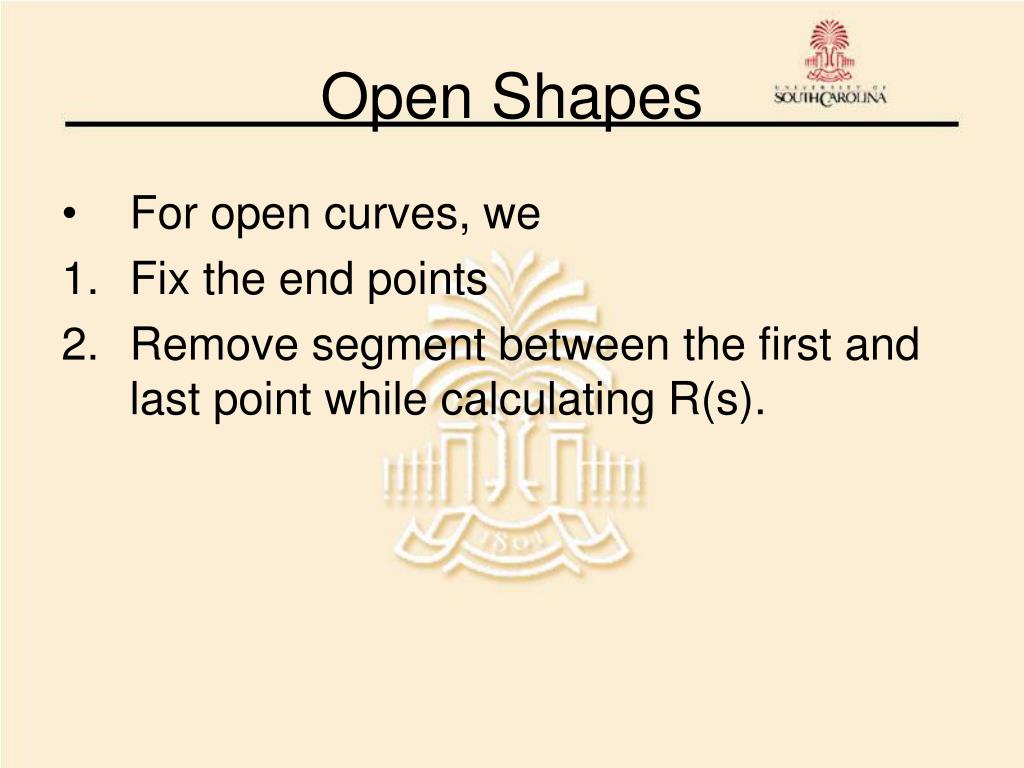

  15. Open Shapes • For open curves, we • Fix the end points • Remove segment between the first and last point while calculating R(s).

  16. Experiment for open shapes

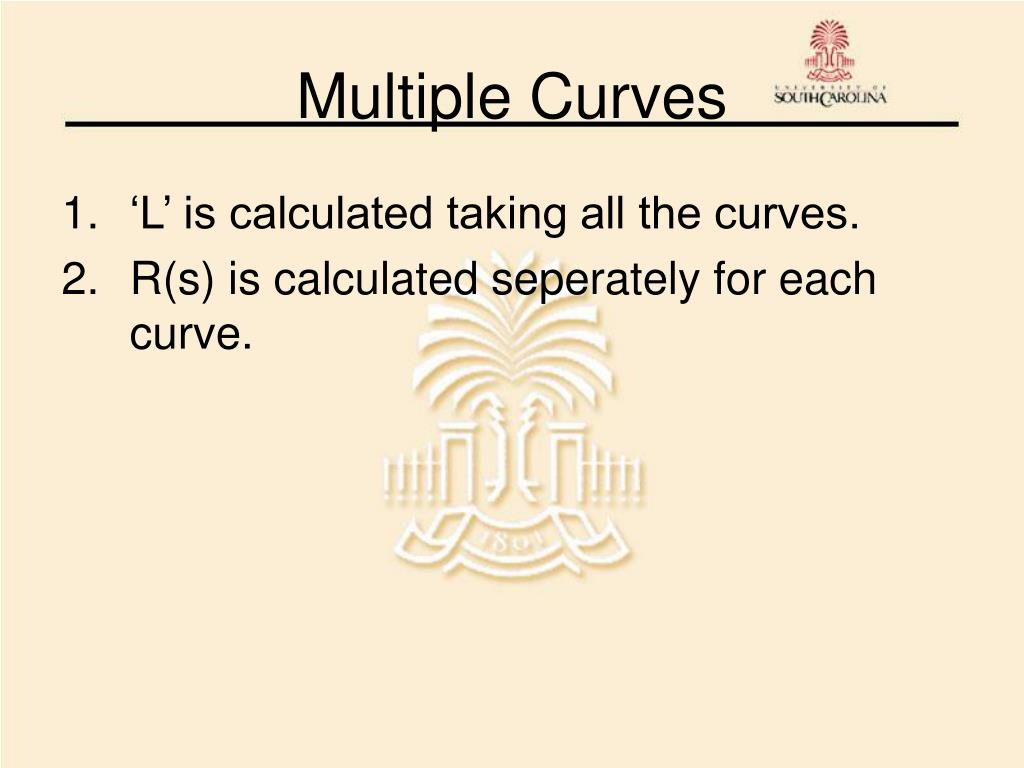

  17. Multiple Curves • ‘L’ is calculated taking all the curves. • R(s) is calculated seperately for each curve.

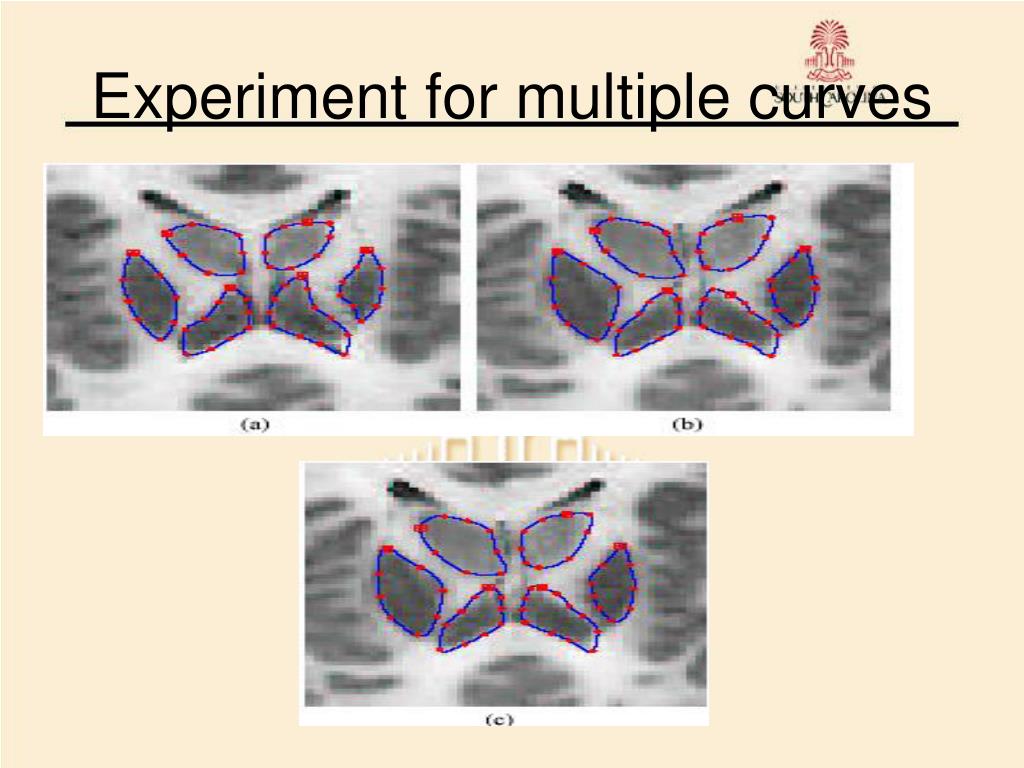

  18. Experiment for multiple curves

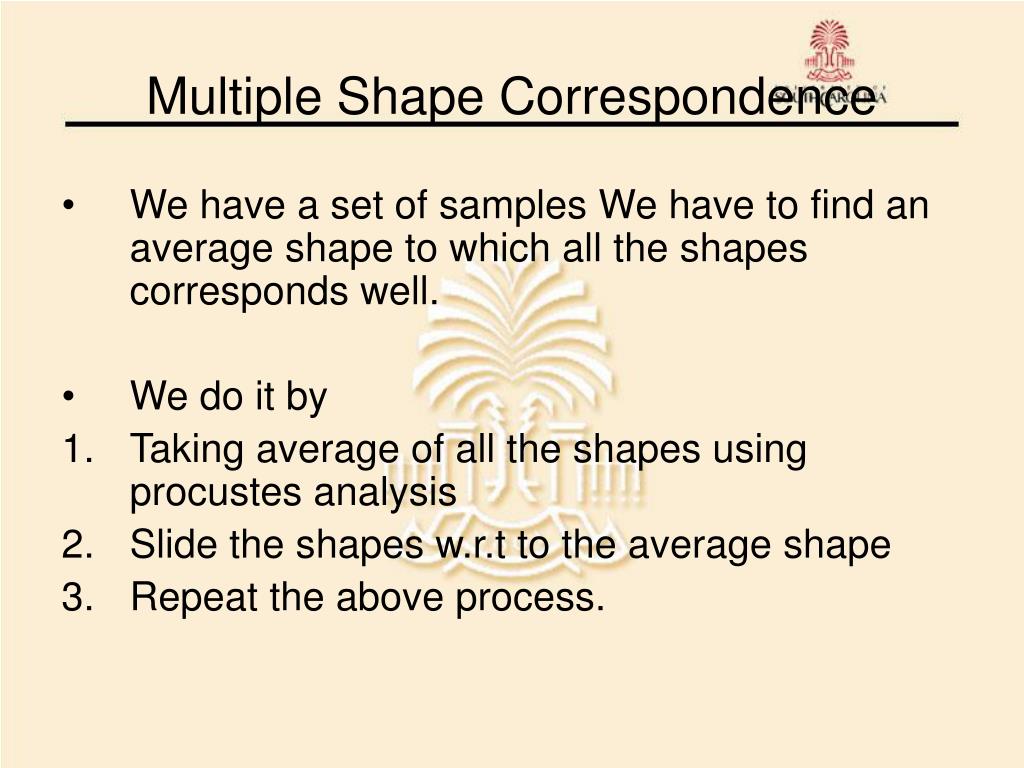

  19. Multiple Shape Correspondence • We have a set of samples We have to find an average shape to which all the shapes corresponds well. • We do it by • Taking average of all the shapes using procustes analysis • Slide the shapes w.r.t to the average shape • Repeat the above process.

  20. Experiment

  21. Conclusion • Works for all types of shapes • It considers both global shape deformation and local geometric features unlike the previous methods.
