Presentation Transcript

Joint rescue co ordination centre
Joint Rescue Co-ordination Centre

Awareness and Initial Actions




Jrcc controller duties and responsibilities
JRCC Controller Duties and Responsibilities Rescue Regions

  • Requests for assistance can come from anywhere, similar to 911

  • Investigate, evaluate and consider the facts and circumstances to determine a course of action to resolve the incident

  • Detect and dispatch, matching the tasking at hand to a suitable and available resource


Incident classification
Incident Classification Rescue Regions

  • Marine Incident

    • Original vehicle operates on water

  • Air incident

    • Involves manned aircraft regardless of where aircraft came to rest

  • Humanitarian

    • Medivacs, missing persons, civilian assistance, enforcement


Joint rescue co ordination centre1
Joint Rescue Co-ordination Centre Rescue Regions

Communications


Getting the call
Getting the Call Rescue Regions

  • Telephone, Pager, Radio

  • JRCC

    • 1-800-567-5111

  • MCTS

    • VHF 16, *16

  • 911

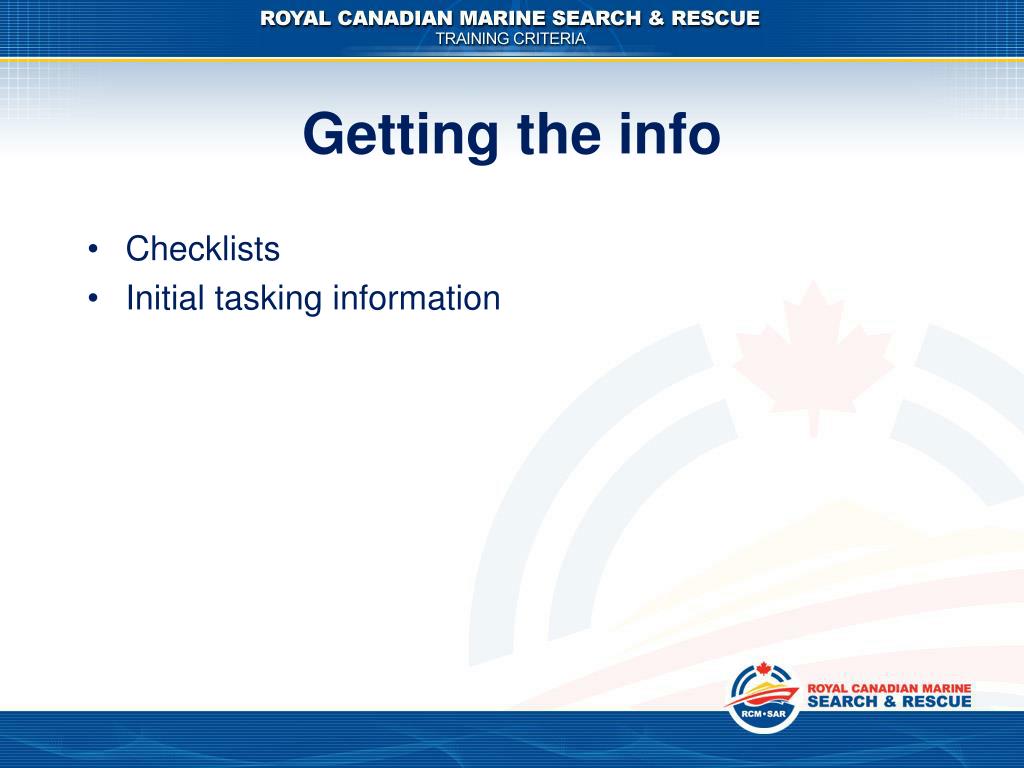

Getting the info
Getting the info Rescue Regions

  • Checklists

  • Initial tasking information


Search and rescue

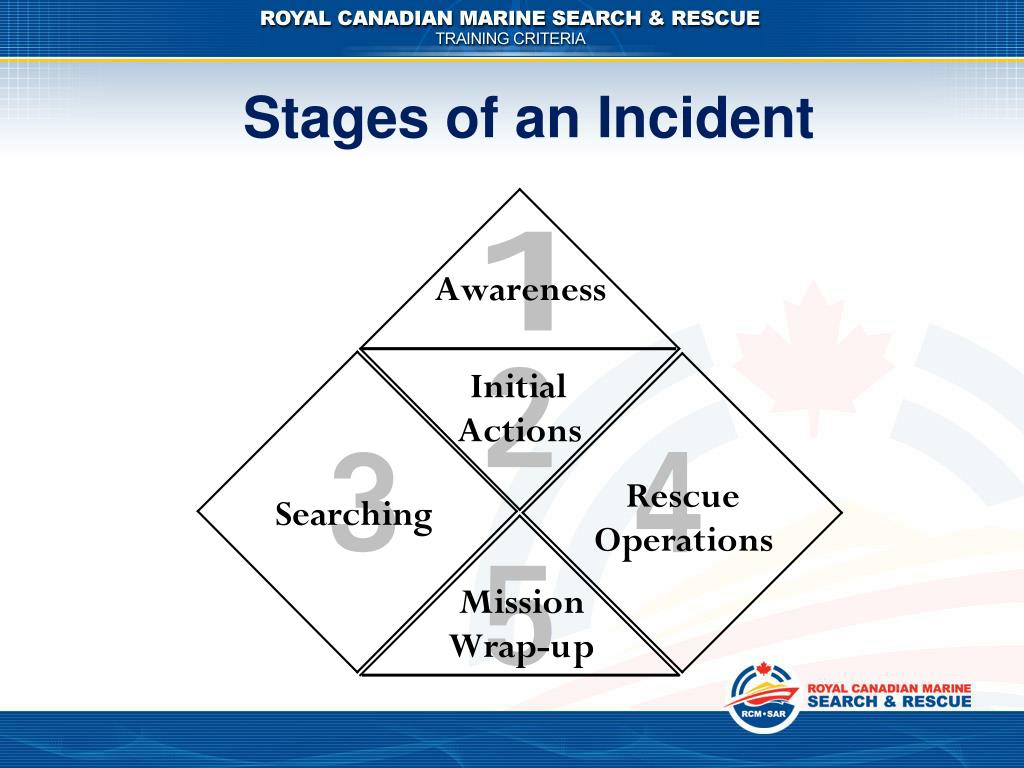

Stages of an Incident Rescue Regions


Joint rescue co ordination centre2
Joint Rescue Co-ordination Centre Rescue Regions

Resources


Search and rescue

SAR Vessel Capabilities Rescue Regions

  • All SAR marine resources must be capable of:

    • Incident detection & search capability

    • Survivor Recovery

    • Firefighting

    • Towing

    • Salvage & damage control

  • To what extent they can carry out these tasks is a function of their size and crew training.


Search and rescue

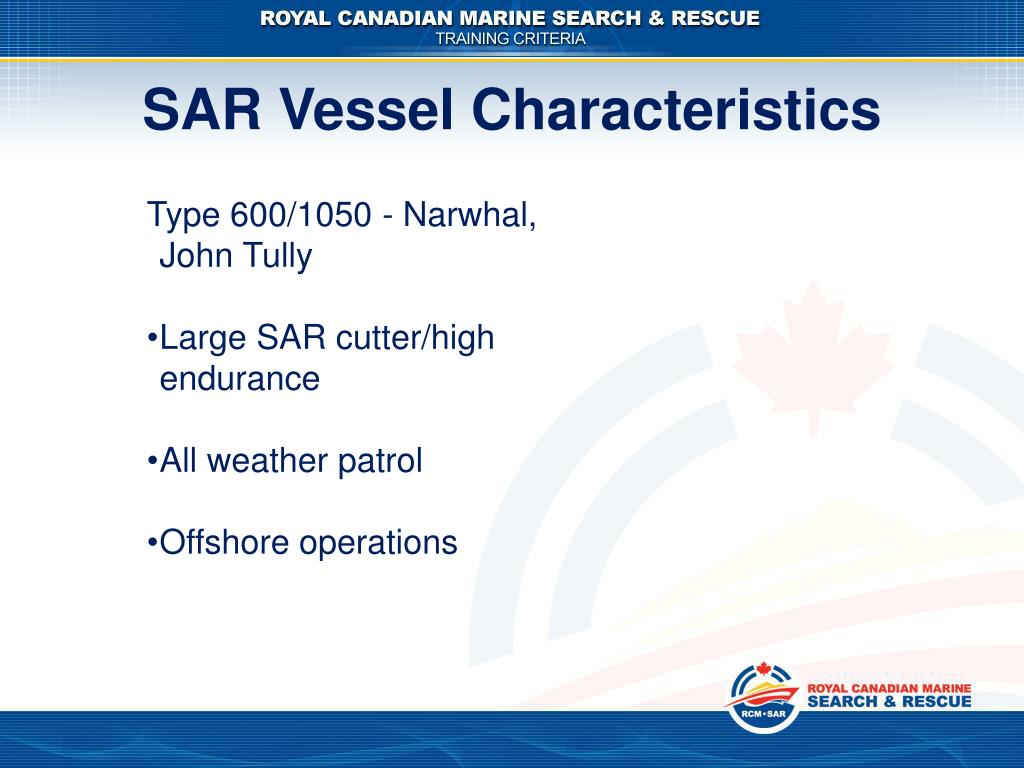

SAR Vessel Characteristics Rescue Regions

  • Type 600/1050 - Narwhal, John Tully

  • Large SAR cutter/high endurance

  • All weather patrol

  • Offshore operations


Search and rescue

SAR Vessel Characteristics Rescue Regions

  • Type 500 - Gordon Reid, Tanu

  • Intermediate SAR cutter/medium endurance

  • Moderate weather patrol

  • Close offshore operations


Cg gordon reid
CG Gordon Reid Rescue Regions


Search and rescue

SAR Vessel Characteristics Rescue Regions

  • Type 400 - Arrow Post, Pt. Henry

  • Small Cutter/station mode

  • Medium range/moderate speed

  • Semi sheltered waters operations


Cg cutter point race
CG Cutter Point Race Rescue Regions


Search and rescue

SAR Vessel Characteristics Rescue Regions

Hovercraft


Air cushion vehicle
Air Cushion Vehicle Rescue Regions


Air cushion vehicle1
Air Cushion Vehicle Rescue Regions


Search and rescue

47 foot Lifeboat Rescue Regions

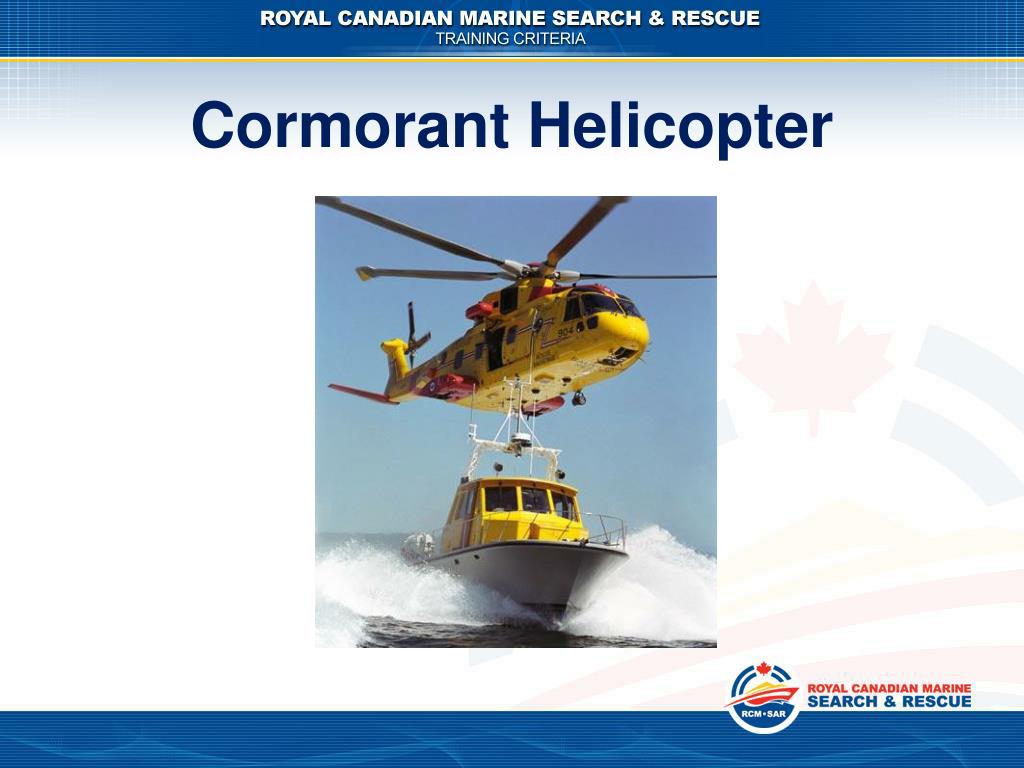

Cormorant helicopter
Cormorant Helicopter Rescue Regions


Buffalo aircraft
Buffalo Aircraft Rescue Regions




Search and rescue

Personnel Rescue Regions

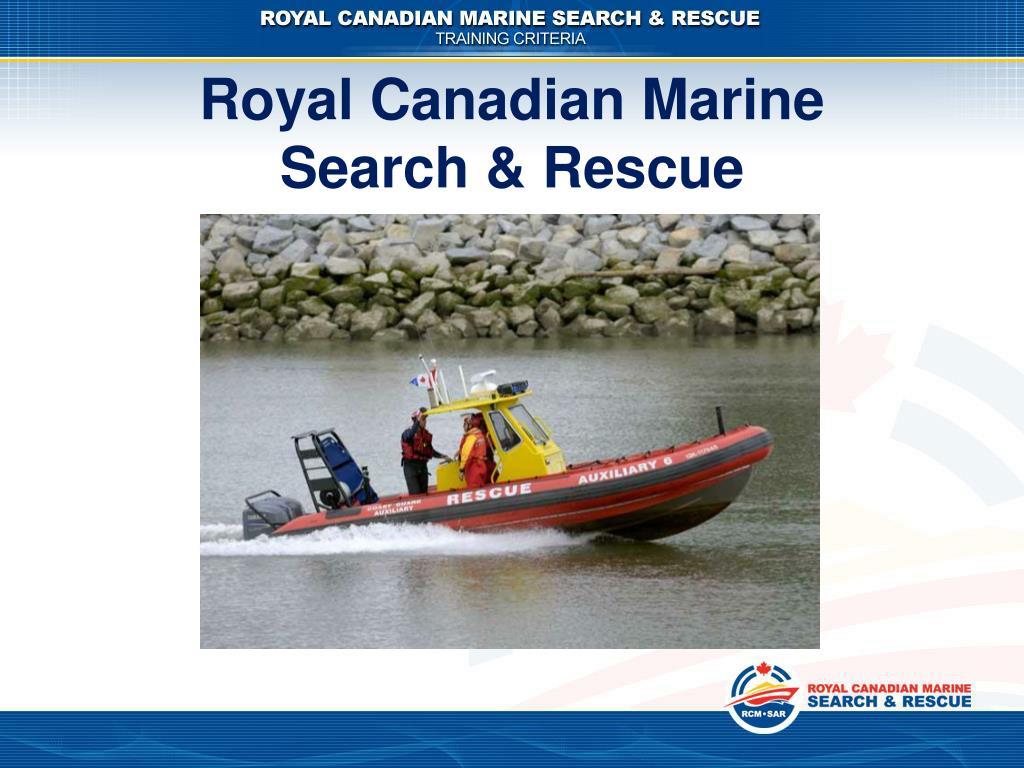

Royal canadian marine search rescue
Royal Canadian Marine Rescue RegionsSearch & Rescue


Joint rescue co ordination centre3
Joint Rescue Co-ordination Centre Rescue Regions

Search Planning and Operations


Search and rescue
Creeping Line Search Rescue RegionsUsed when search object is more likelyto be at one end of search area than the other

TS


Parallel track search used when search object could be anywhere in search area
Parallel Track Search Rescue RegionsUsed when search object could be anywhere in search area

?

TS


Sector search used when there is a high likelihood that search object is at datum
Sector Search Rescue RegionsUsed when there is a high likelihood that search objectis at datum.

each turn is 120 degrees

1TS

=Datum

2 TS

Search Unit passes repeatedly through datum.


Expanding square search used when there is a high likelihood that search object is at datum

5 TS Rescue Regions

Each turn is

90 degrees.

3 TS

1 TS

5 TS

3 TS

1 TS

2 TS

4 TS

6 TS

2 TS

4 TS

6 TS

Expanding Square SearchUsed when there is a high likelihood that search objectis at datum.

=Datum

  • Align search legs

  • with cardinal points

  • Carry two DMB’s


Barrier search used in areas of rapid current usually a river or confined space
Barrier Search Rescue RegionsUsed in areas of rapid current, usually a river or confined space.

Current

  • Pick landmarks to

  • steer on.

  • SRU must be angled to

  • stem current

  • OSC usually takes this search

  • if it’s a multi-unit search

  • Main search areas upcurrent

Search Area


Shoreline search a favourite for rhi s

Surge Channel Rescue Regions

Shoreline SearchA favourite for RHI’s

Boulder Beach

Sandy Beach

?

?

Driftwood/Log

Beach

  • SRU must stay within beam sighting

  • distance of beach.

  • All possibilities must be investigated.

  • Safety of walking Search Units

?

?

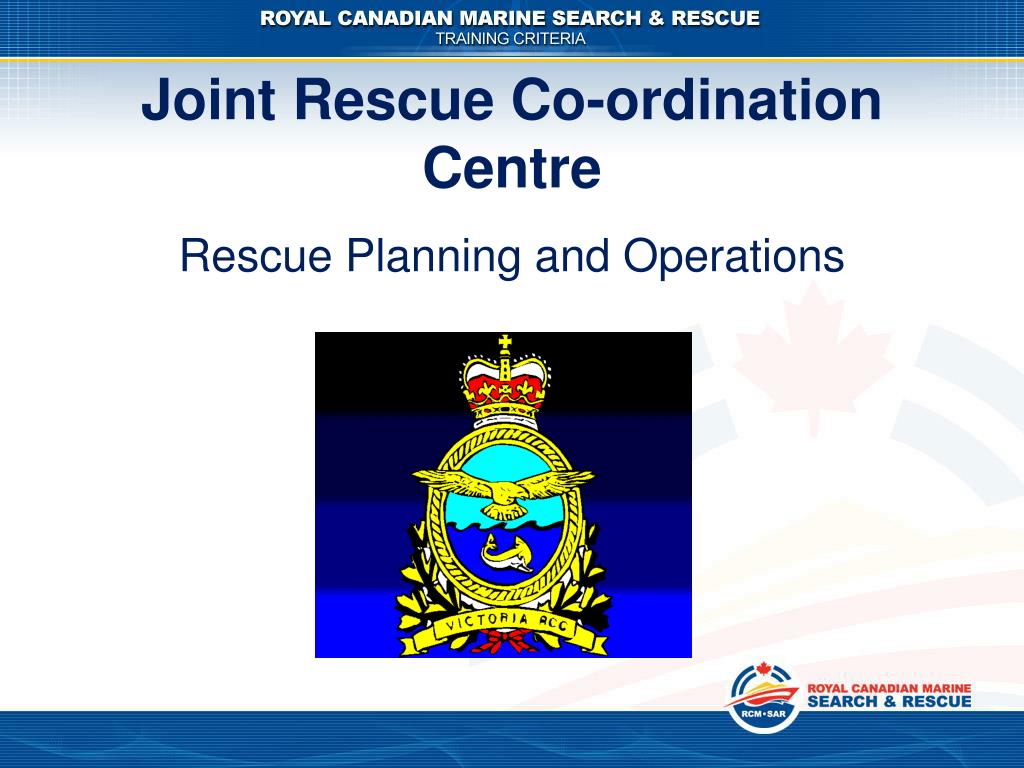

Joint rescue co ordination centre4
Joint Rescue Co-ordination Centre Rescue Regions

Rescue Planning and Operations


What is risk management
What is Risk Management? Rescue Regions

  • A process by which we can maintain an acceptable level of safety during the operation

  • Safety

    • The identification and control of risk

  • Risk Management

    • The identification and control of risk, according to a set of preconceived parameters


Search and rescue

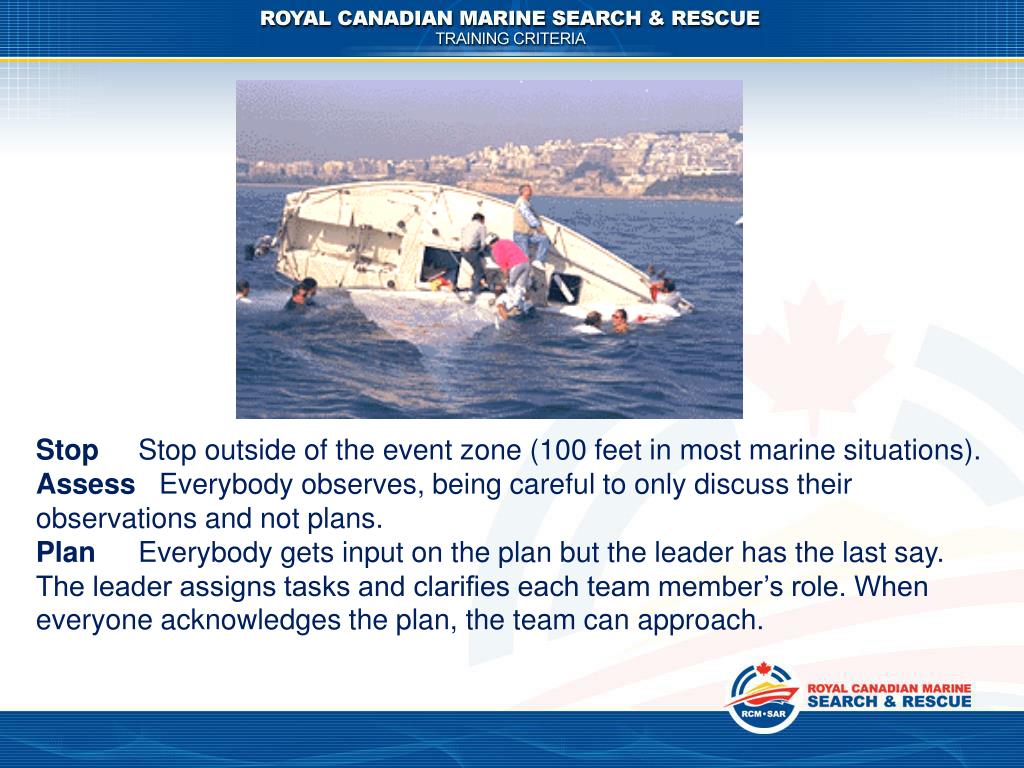

Stop Rescue Regions Stop outside of the event zone (100 feet in most marine situations).

Assess Everybody observes, being careful to only discuss their observations and not plans.

Plan Everybody gets input on the plan but the leader has the last say. The leader assigns tasks and clarifies each team member’s role. When everyone acknowledges the plan, the team can approach.


Mission analysis
Mission Analysis Rescue Regions

  • organize team to meet mission objectives

  • allocate resources to critical tasks

  • monitor teams and environment, and adjust resources as necessary


Mission analysis1
Mission Analysis Rescue Regions

  • define tasks

  • verify data

  • discuss objectives

  • assess risk: safety risks, evaluate loss potential

  • assemble plan

  • critique plan

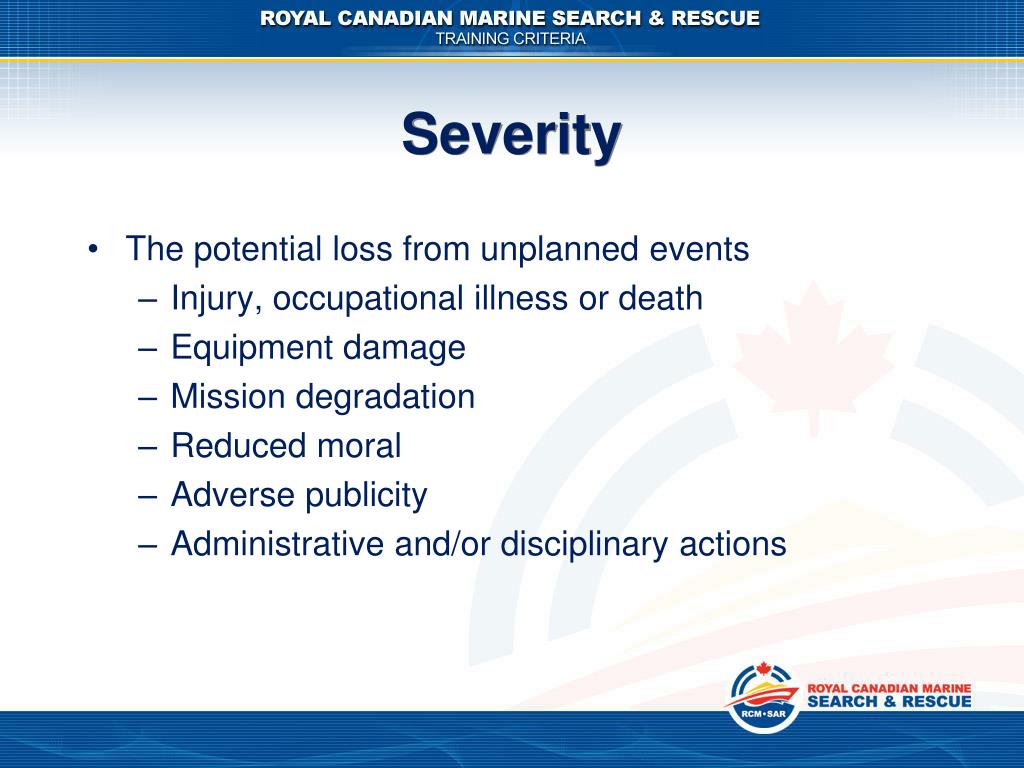

Severity
Severity Rescue Regions

  • The potential loss from unplanned events

    • Injury, occupational illness or death

    • Equipment damage

    • Mission degradation

    • Reduced moral

    • Adverse publicity

    • Administrative and/or disciplinary actions


Operational risk assessment

Deploy Rescue RegionsResources

Getting Underway

Harbour Transit

Mission Operations

Briefing

Piloting

Risk assessed for transit and mission

Reassess Risk

Reassess Risk

Reassess transit and Mission Risks

Reassess risk to resources

Operational Risk Assessment
