  1. RESPIRATORY SYSTEM dr. SOENANTO ROEWIJOKO, MS, SpA

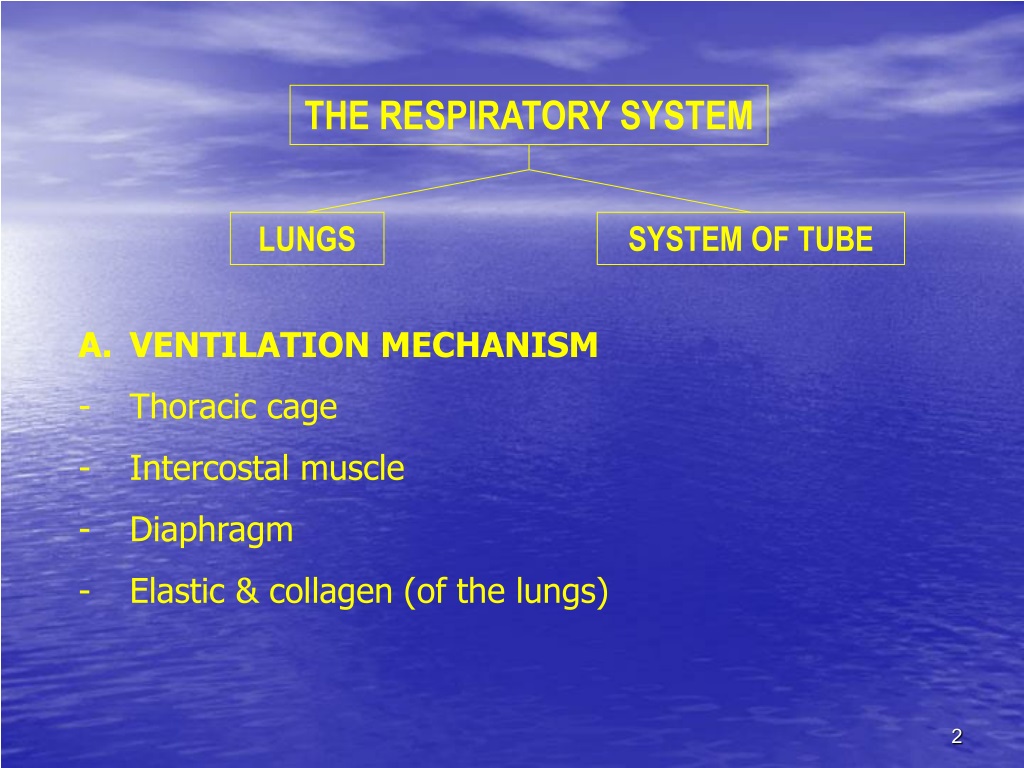

  2. THE RESPIRATORY SYSTEM LUNGS SYSTEM OF TUBE • VENTILATION MECHANISM • Thoracic cage • Intercostal muscle • Diaphragm • Elastic & collagen (of the lungs)

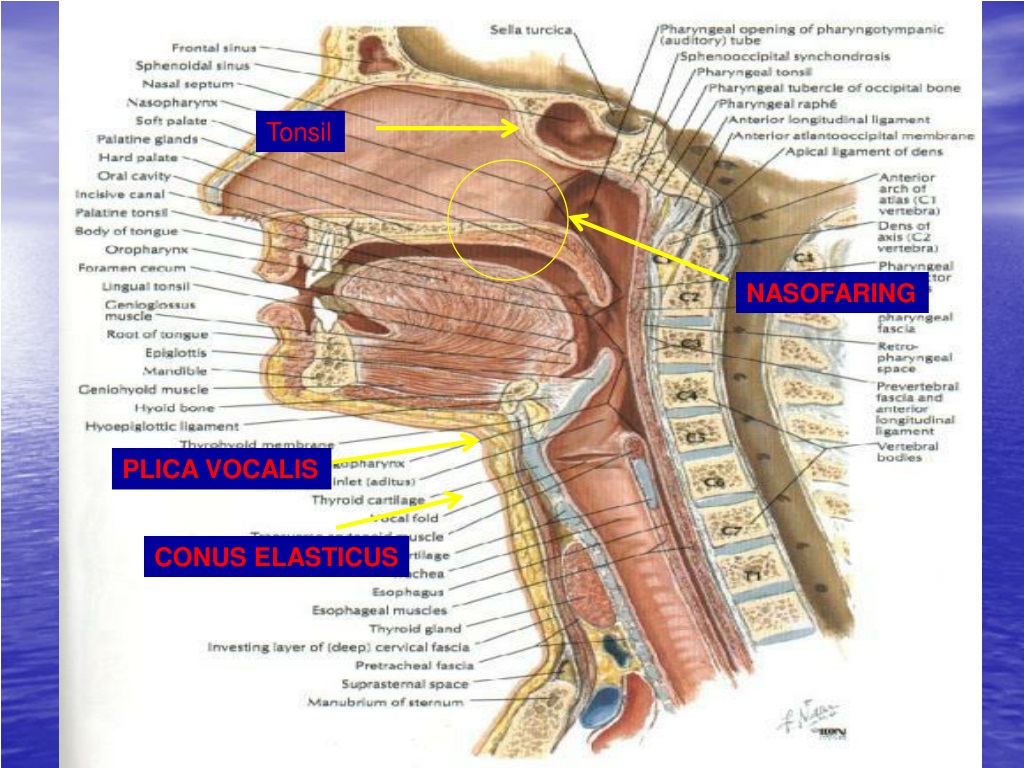

  3. Tonsil NASOFARING PLICA VOCALIS CONUS ELASTICUS

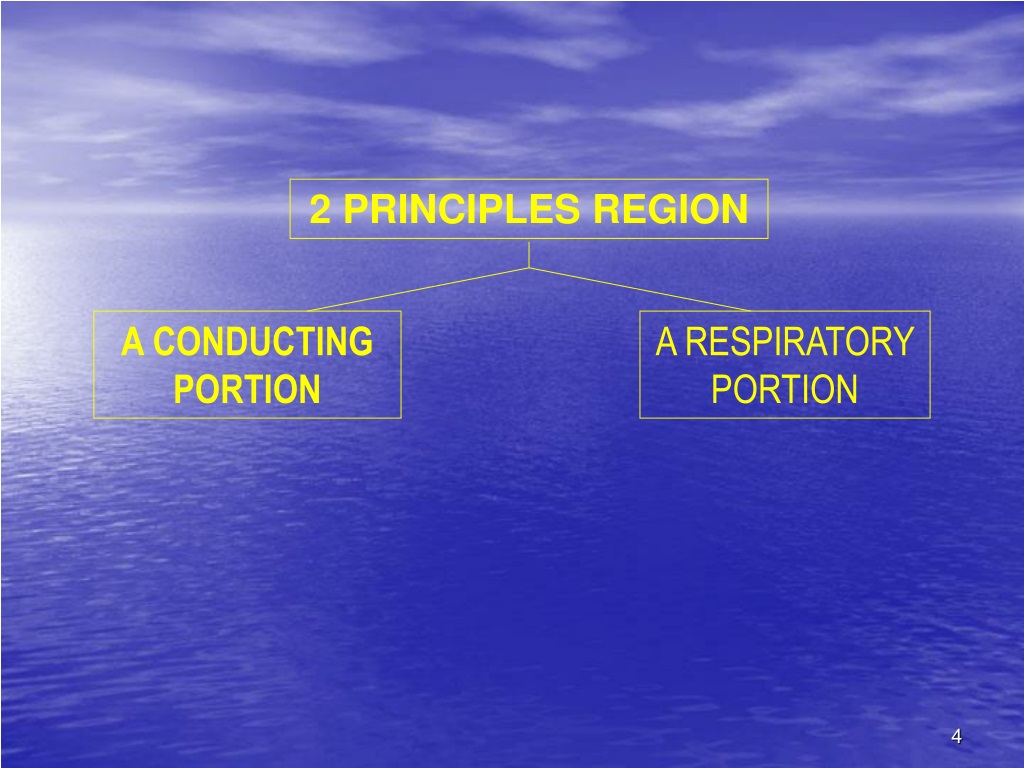

  4. 2 PRINCIPLES REGION A CONDUCTING PORTION A RESPIRATORY PORTION

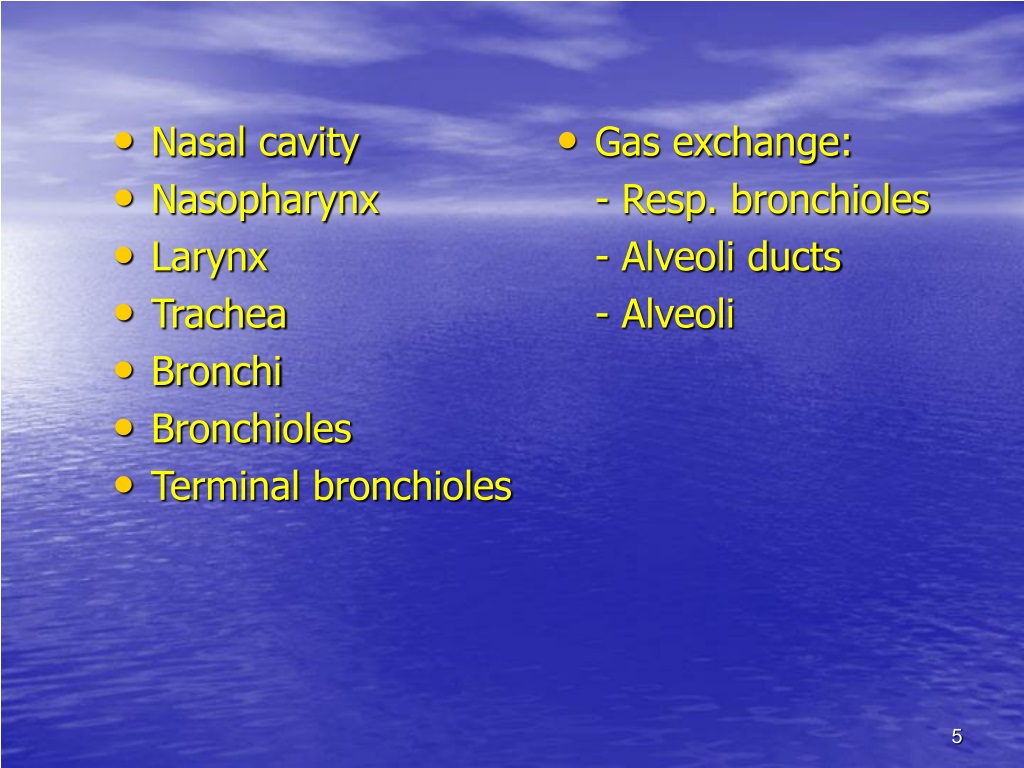

  5. Nasal cavity Nasopharynx Larynx Trachea Bronchi Bronchioles Terminal bronchioles Gas exchange: - Resp. bronchioles - Alveoli ducts - Alveoli

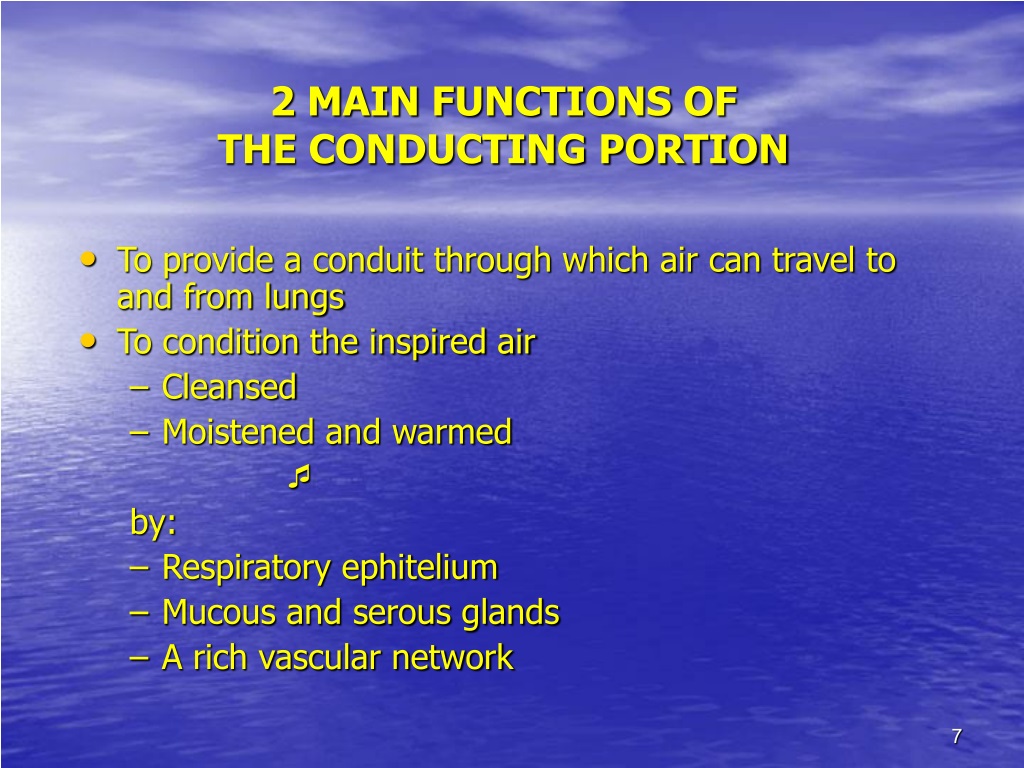

  6. 2 MAIN FUNCTIONS OF THE CONDUCTING PORTION • To provide a conduit through which air can travel to and from lungs • To condition the inspired air • Cleansed • Moistened and warmed  by: • Respiratory ephitelium • Mucous and serous glands • A rich vascular network

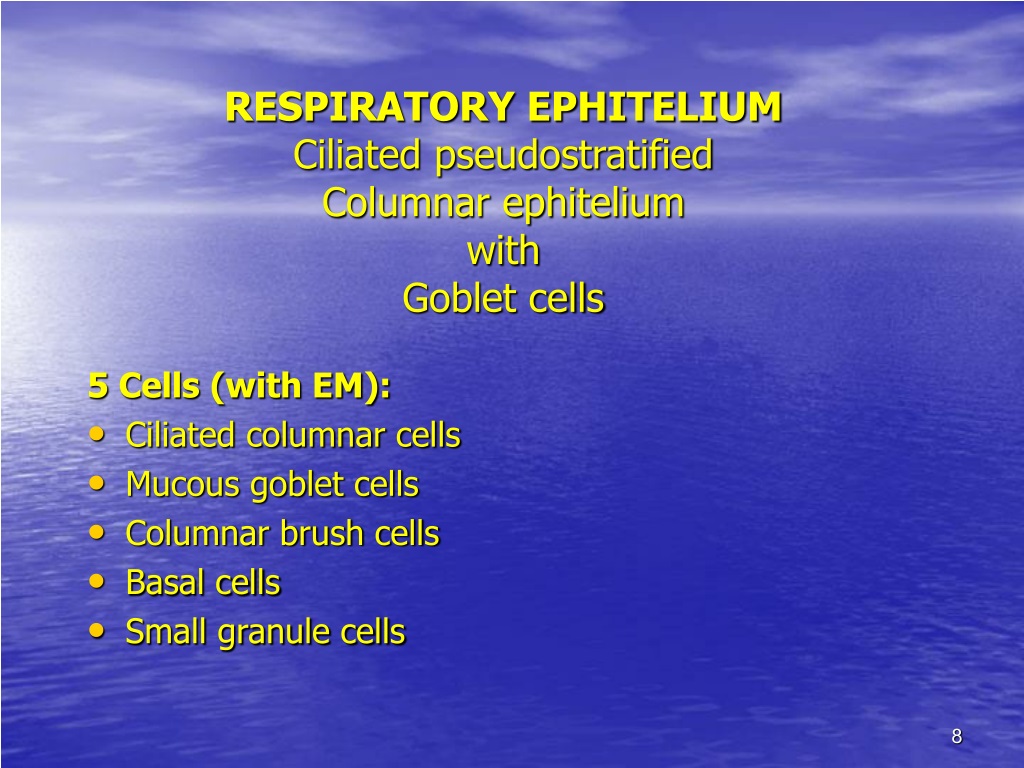

  7. RESPIRATORY EPHITELIUMCiliated pseudostratified Columnar ephiteliumwithGoblet cells 5 Cells (with EM): • Ciliated columnar cells • Mucous goblet cells • Columnar brush cells • Basal cells • Small granule cells

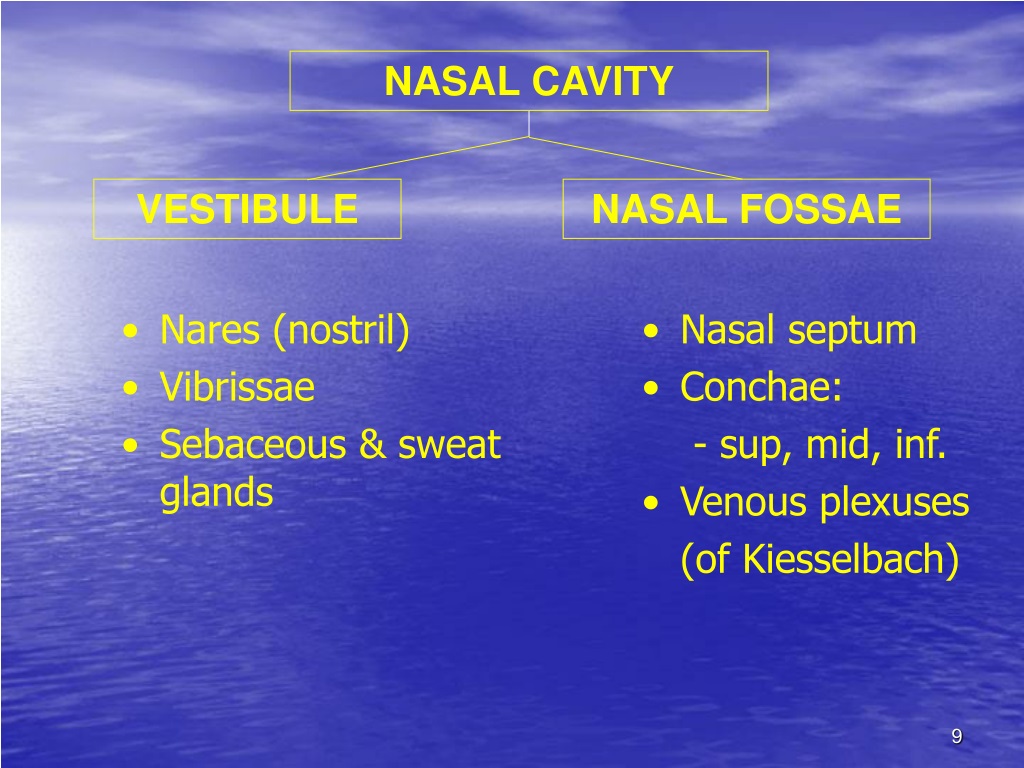

  8. NASAL CAVITY VESTIBULE NASAL FOSSAE • Nares (nostril) • Vibrissae • Sebaceous & sweat glands • Nasal septum • Conchae: • - sup, mid, inf. • Venous plexuses • (of Kiesselbach)

  9. OLFACTORY EPHITELIUM ORGANIZATION Modified pseudostratified columnar epith. • Bipolar neurons cells • Sustentacular cells • Basal cells

  10. MUCOUS SECRETION

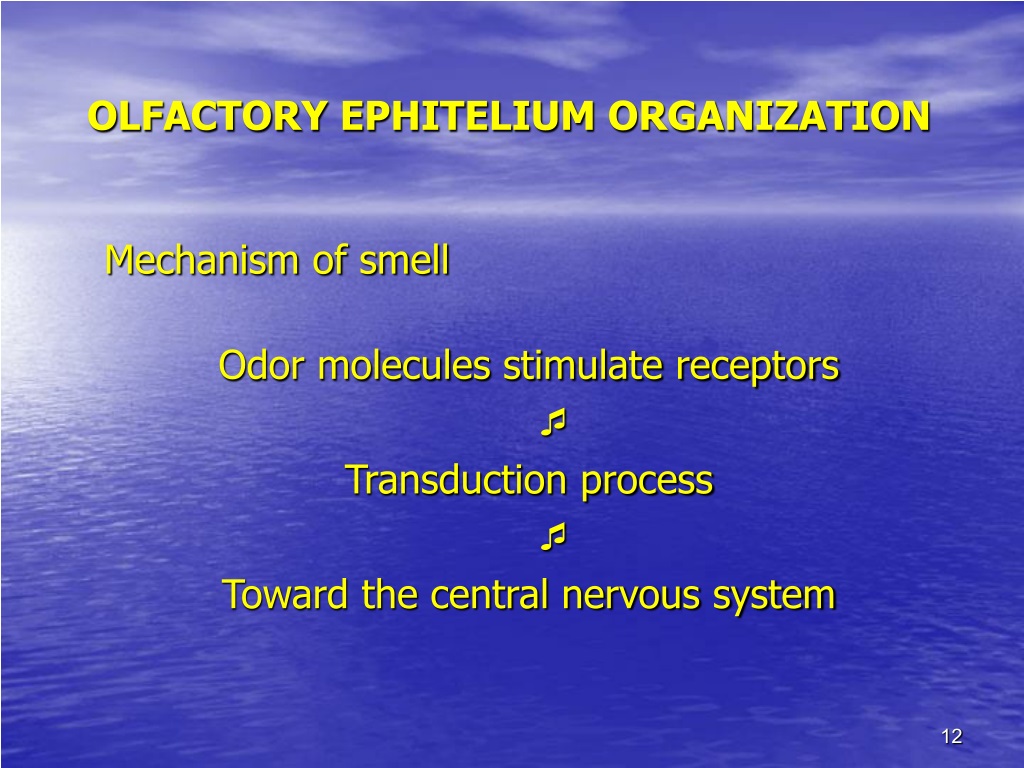

  11. OLFACTORY EPHITELIUM ORGANIZATION Mechanism of smell Odor molecules stimulate receptors  Transduction process  Toward the central nervous system

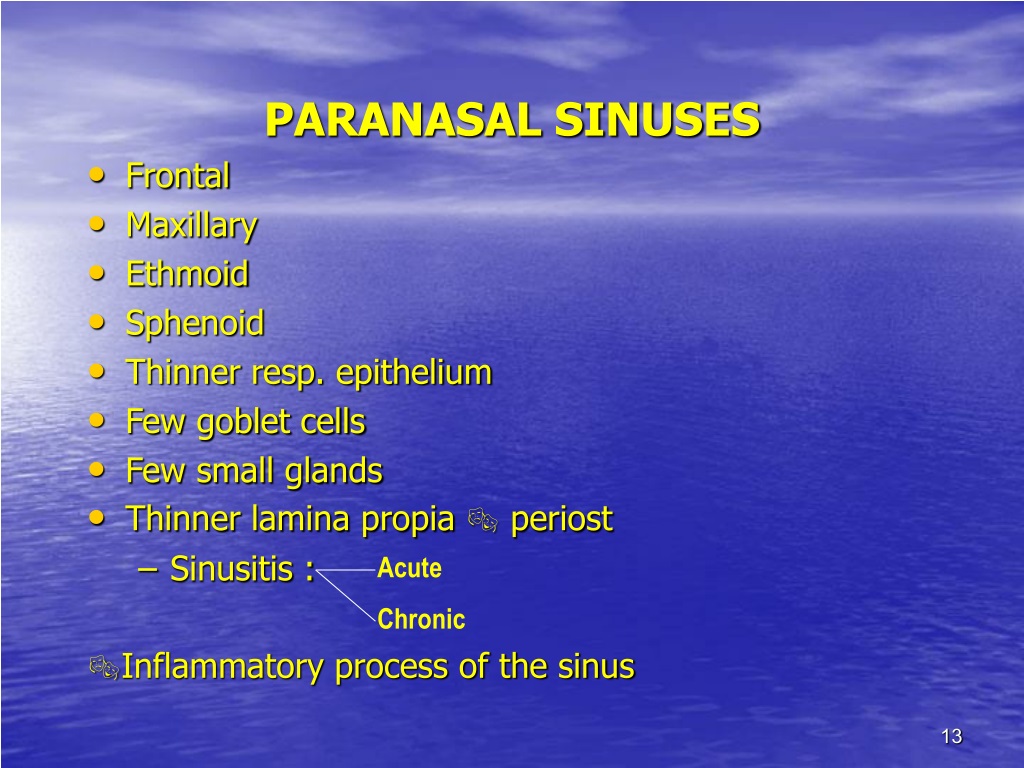

  12. Acute Chronic PARANASAL SINUSES • Frontal • Maxillary • Ethmoid • Sphenoid • Thinner resp. epithelium • Few goblet cells • Few small glands • Thinner lamina propia  periost • Sinusitis : Inflammatory process of the sinus

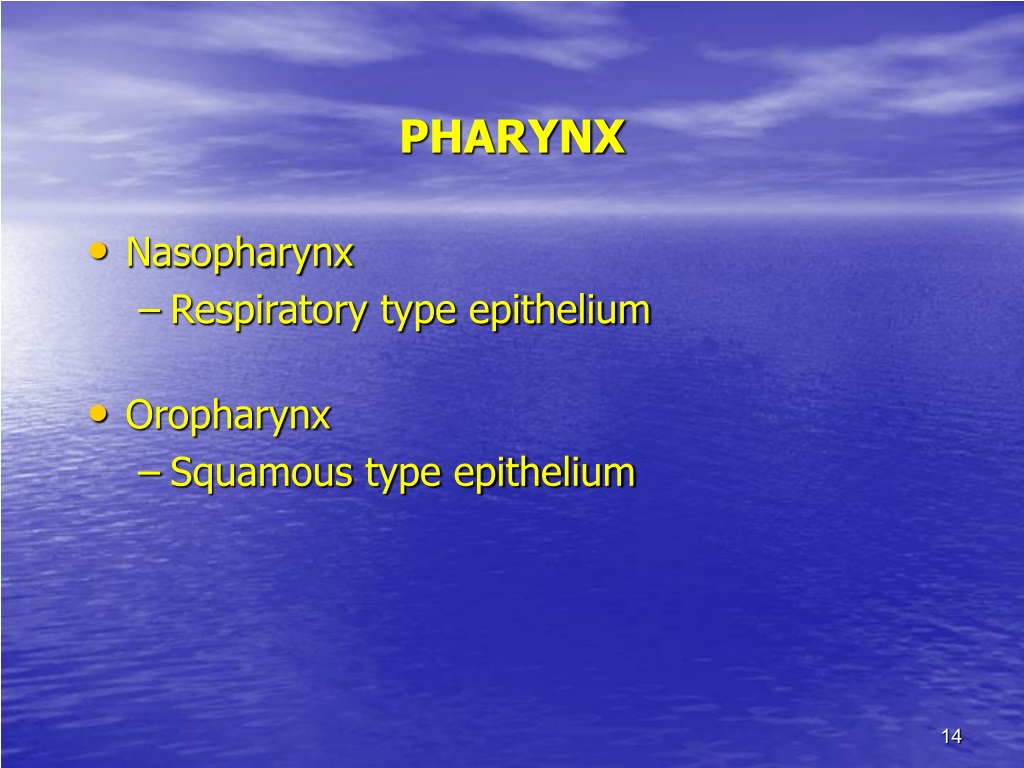

  13. PHARYNX • Nasopharynx • Respiratory type epithelium • Oropharynx • Squamous type epithelium

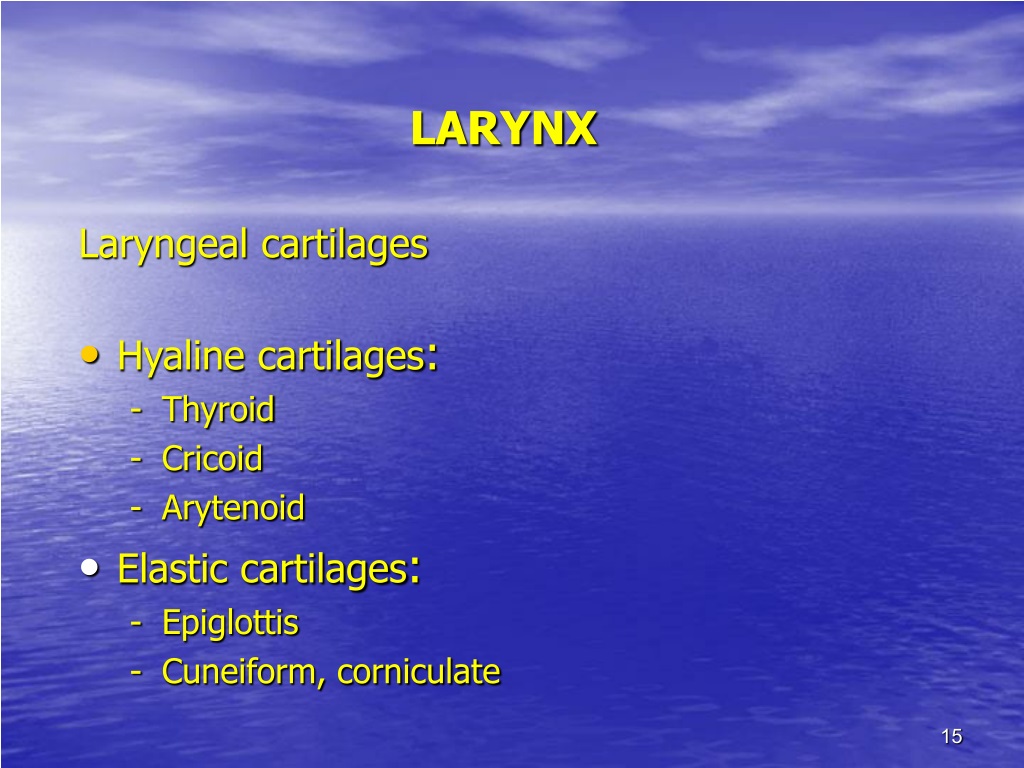

  14. LARYNX Laryngeal cartilages • Hyaline cartilages: • Thyroid • Cricoid • Arytenoid • Elastic cartilages: • Epiglottis • Cuneiform, corniculate

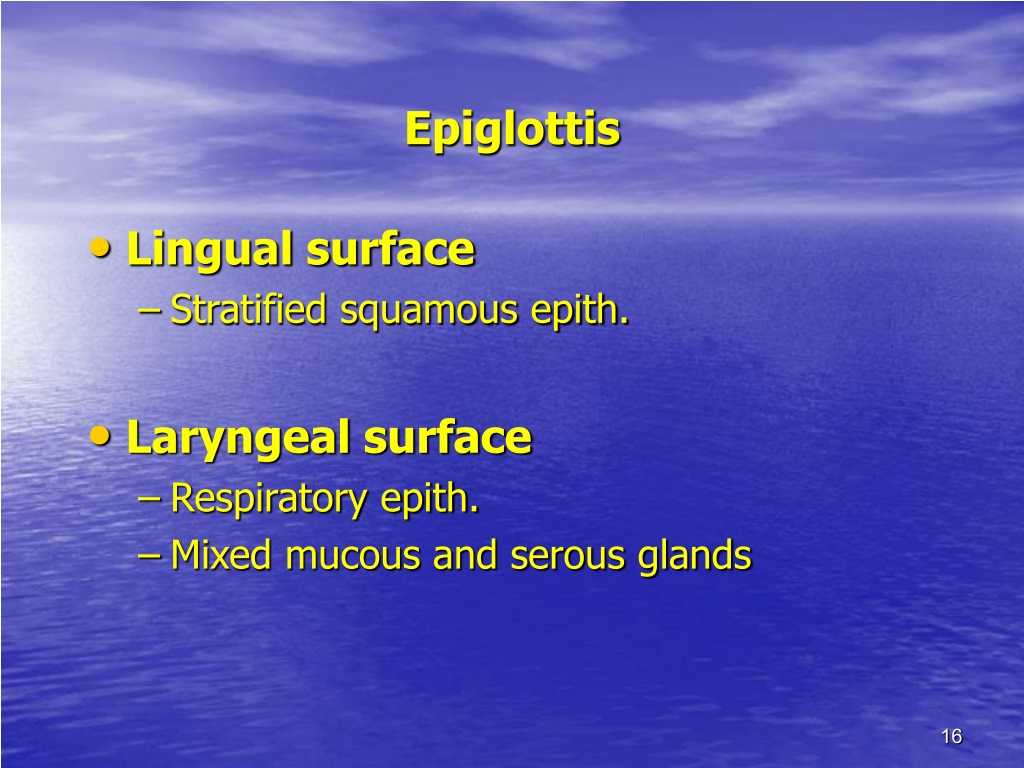

  15. Epiglottis • Lingual surface • Stratified squamous epith. • Laryngeal surface • Respiratory epith. • Mixed mucous and serous glands

  16. EPIGLOTTIS

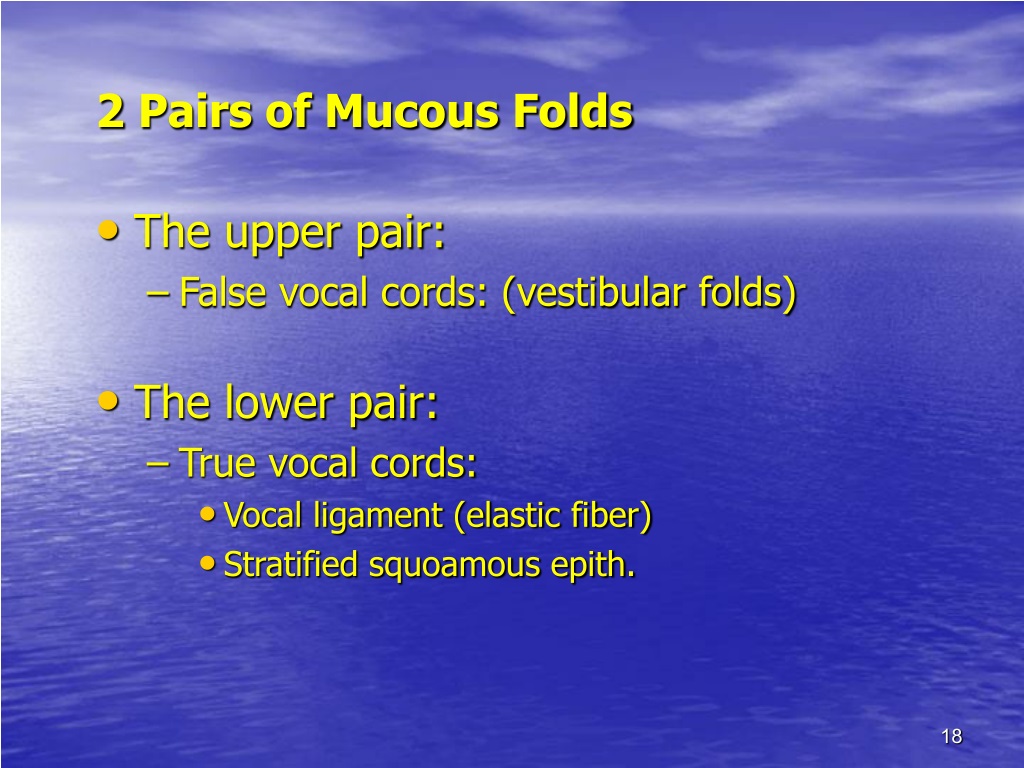

  17. 2 Pairs of Mucous Folds • The upper pair: • False vocal cords: (vestibular folds) • The lower pair: • True vocal cords: • Vocal ligament (elastic fiber) • Stratified squoamous epith.

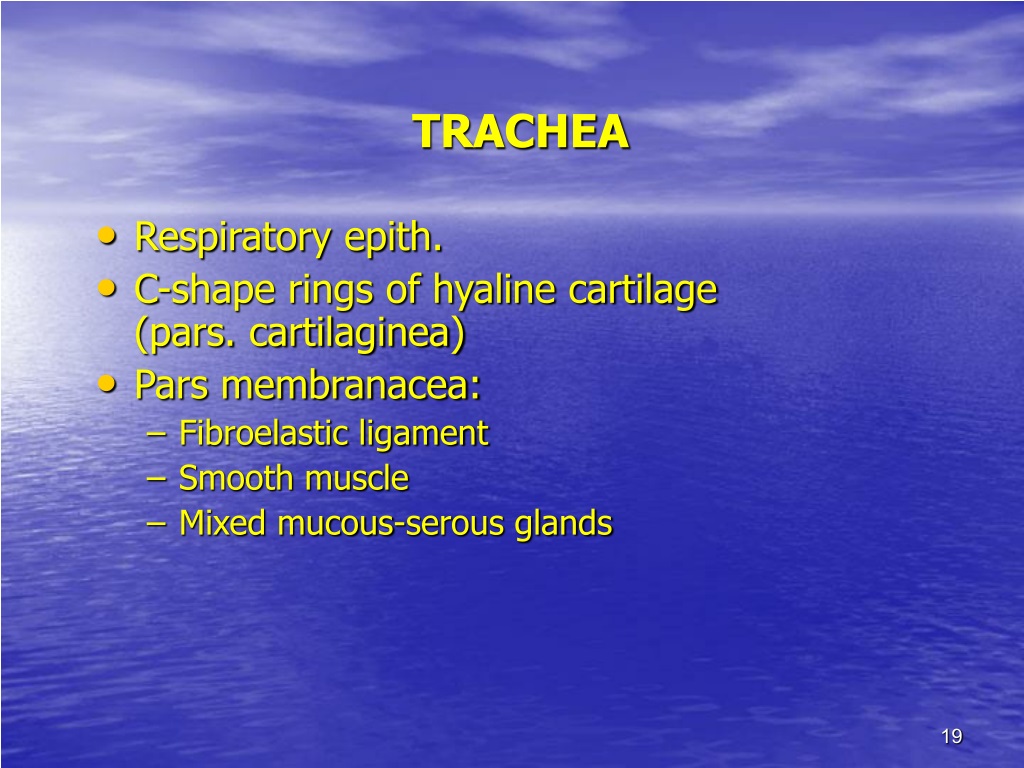

  18. TRACHEA • Respiratory epith. • C-shape rings of hyaline cartilage(pars. cartilaginea) • Pars membranacea: • Fibroelastic ligament • Smooth muscle • Mixed mucous-serous glands

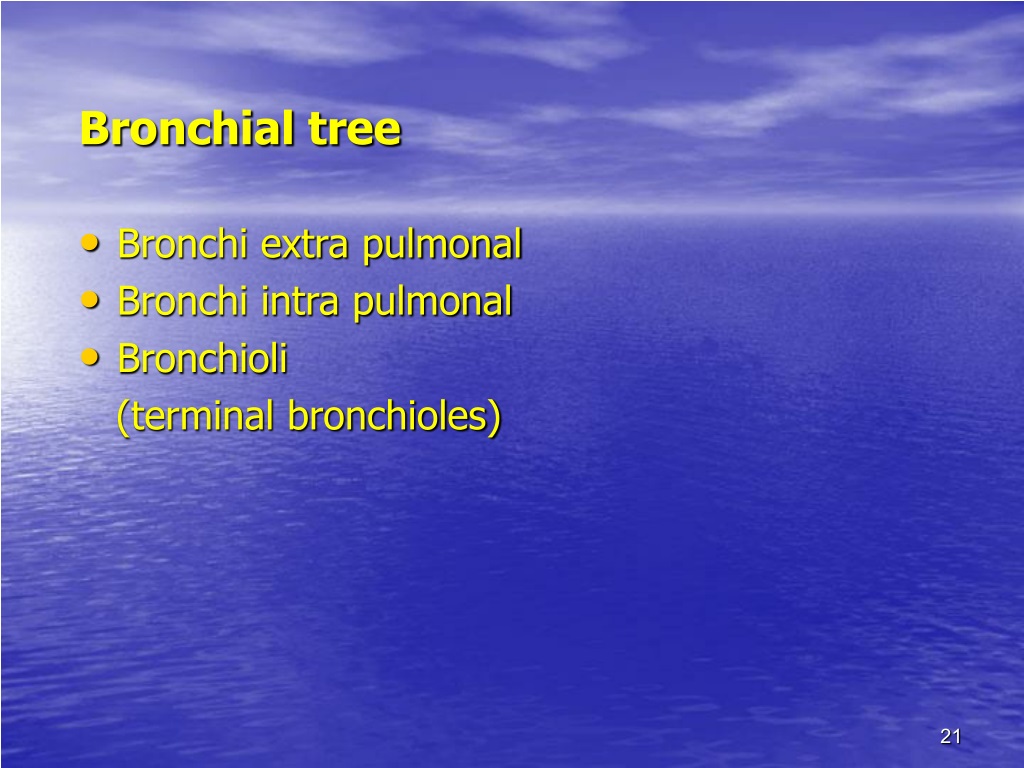

  19. Bronchial tree • Bronchi extra pulmonal • Bronchi intra pulmonal • Bronchioli (terminal bronchioles)

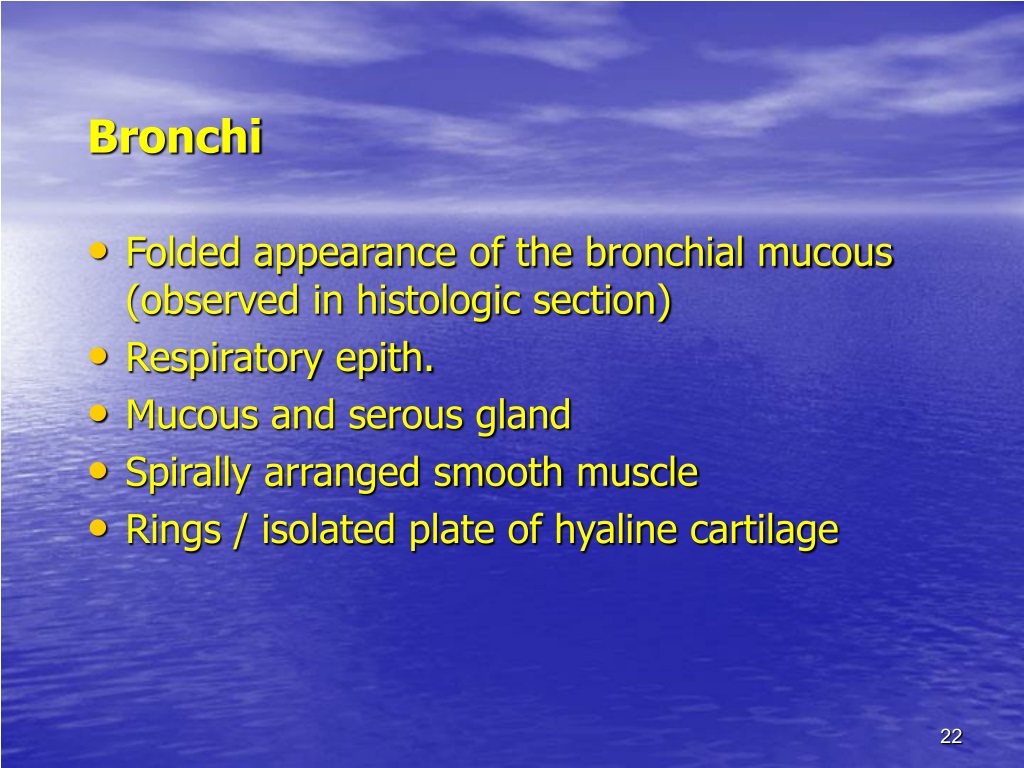

  20. Bronchi • Folded appearance of the bronchial mucous (observed in histologic section) • Respiratory epith. • Mucous and serous gland • Spirally arranged smooth muscle • Rings / isolated plate of hyaline cartilage

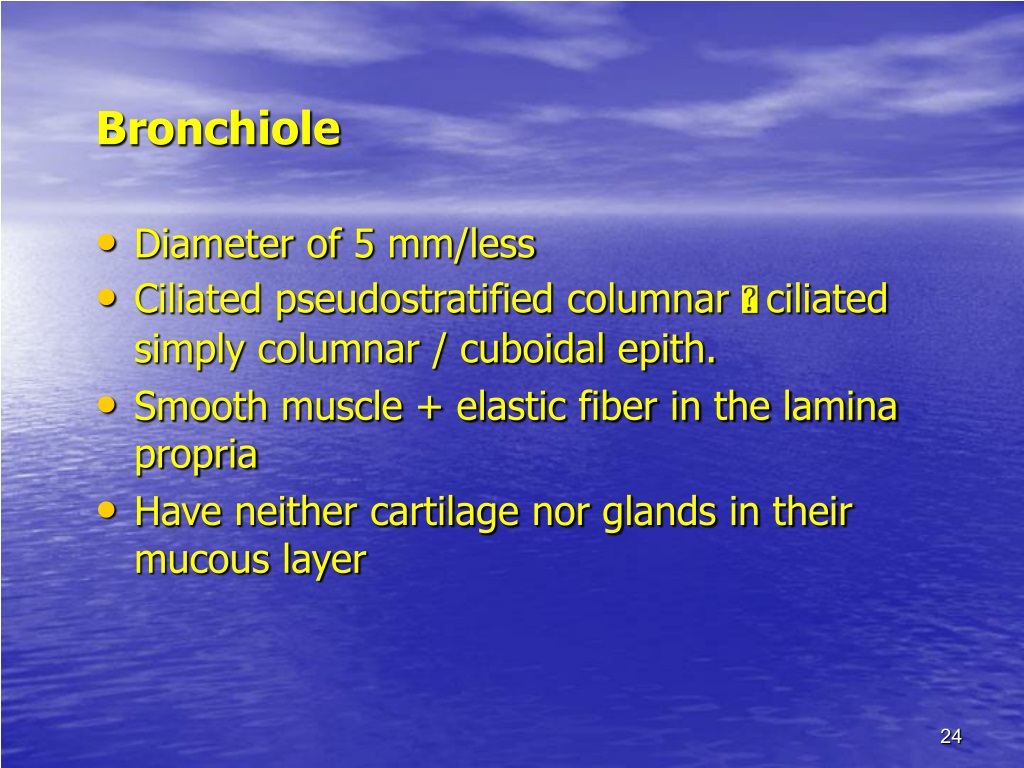

  21. Bronchiole • Diameter of 5 mm/less • Ciliated pseudostratified columnar  ciliated simply columnar / cuboidal epith. • Smooth muscle + elastic fiber in the lamina propria • Have neither cartilage nor glands in their mucous layer

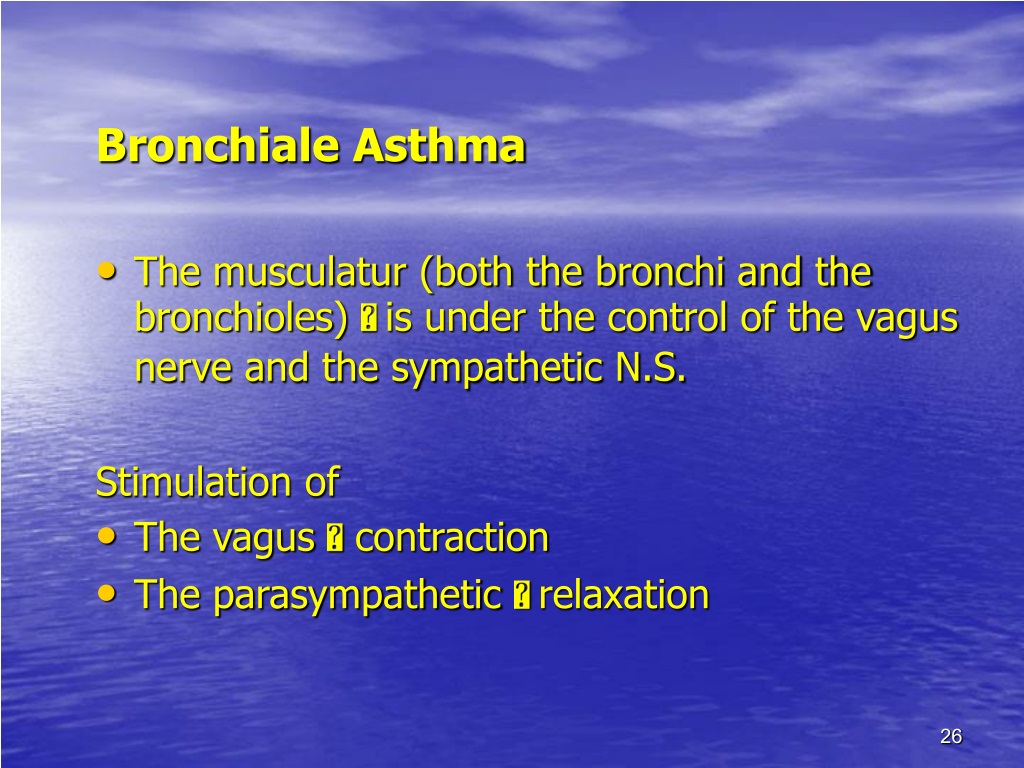

  22. BronchialeAsthma • The musculatur (both the bronchi and the bronchioles)  is under the control of the vagus nerve and the sympathetic N.S. Stimulation of • The vagus  contraction • The parasympathetic  relaxation

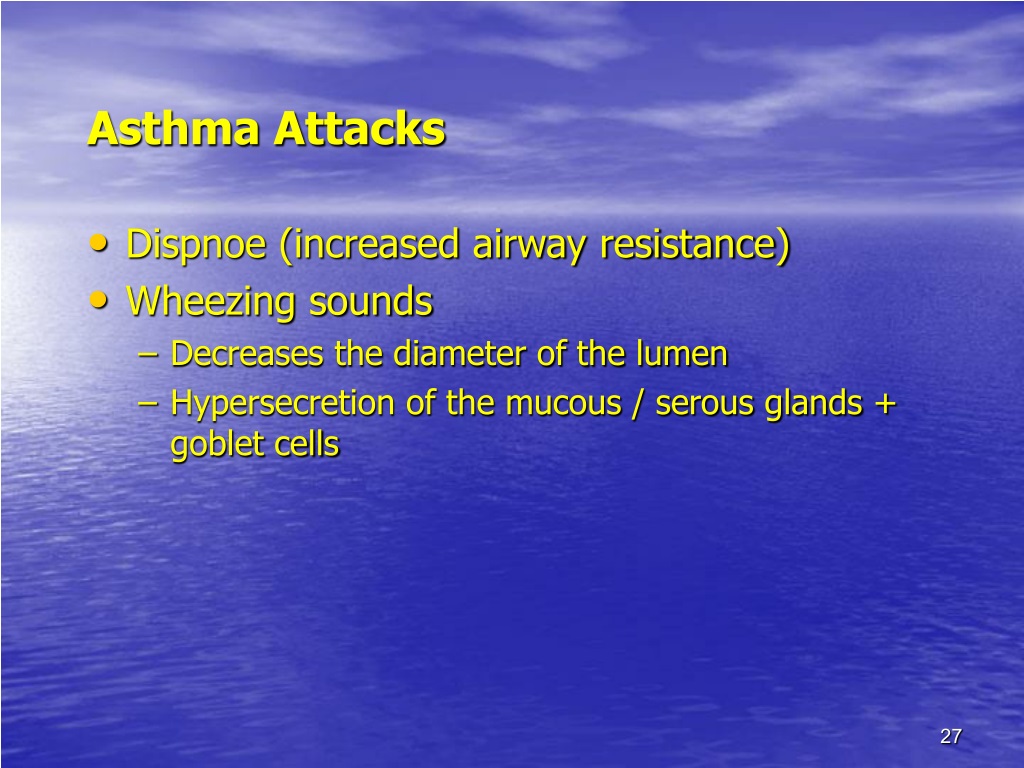

  23. Asthma Attacks • Dispnoe (increased airway resistance) • Wheezing sounds • Decreases the diameter of the lumen • Hypersecretion of the mucous / serous glands + goblet cells

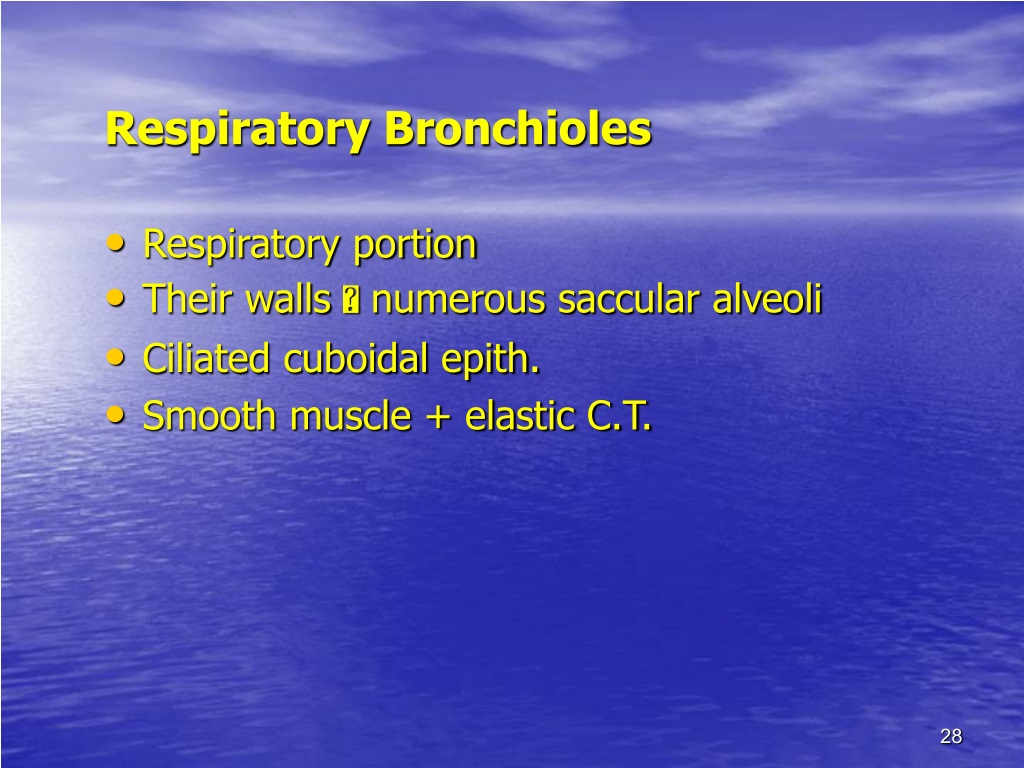

  24. Respiratory Bronchioles • Respiratory portion • Their walls  numerous saccular alveoli • Ciliated cuboidal epith. • Smooth muscle + elastic C.T.

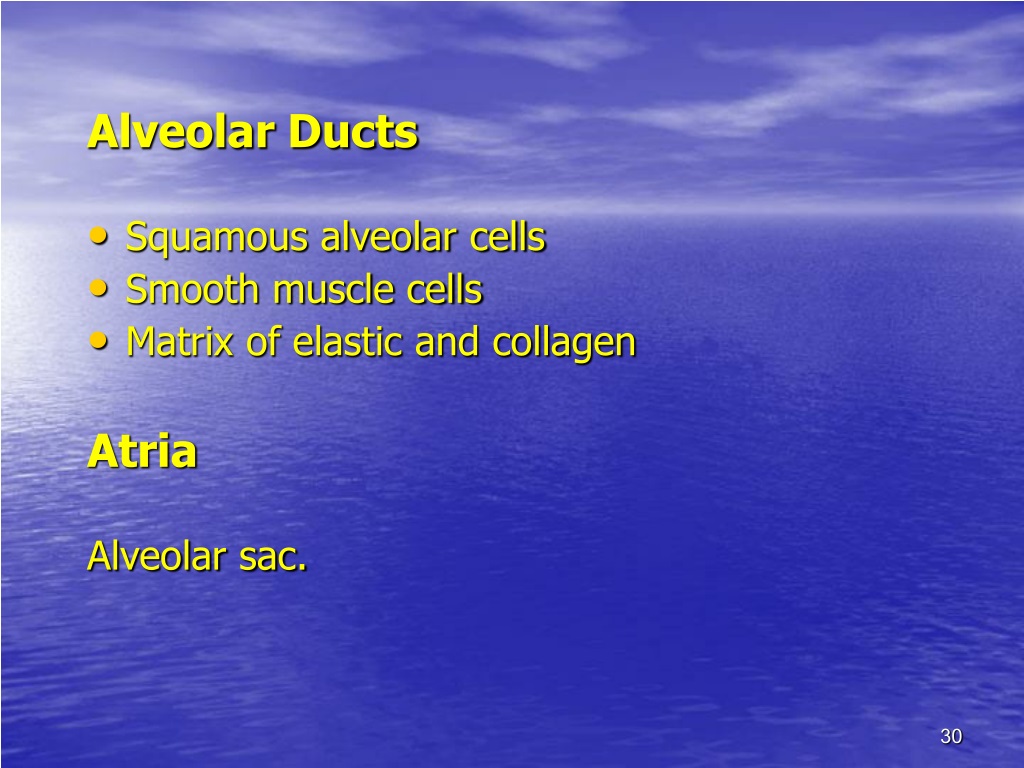

  25. Alveolar Ducts • Squamous alveolar cells • Smooth muscle cells • Matrix of elastic and collagen Atria Alveolar sac.

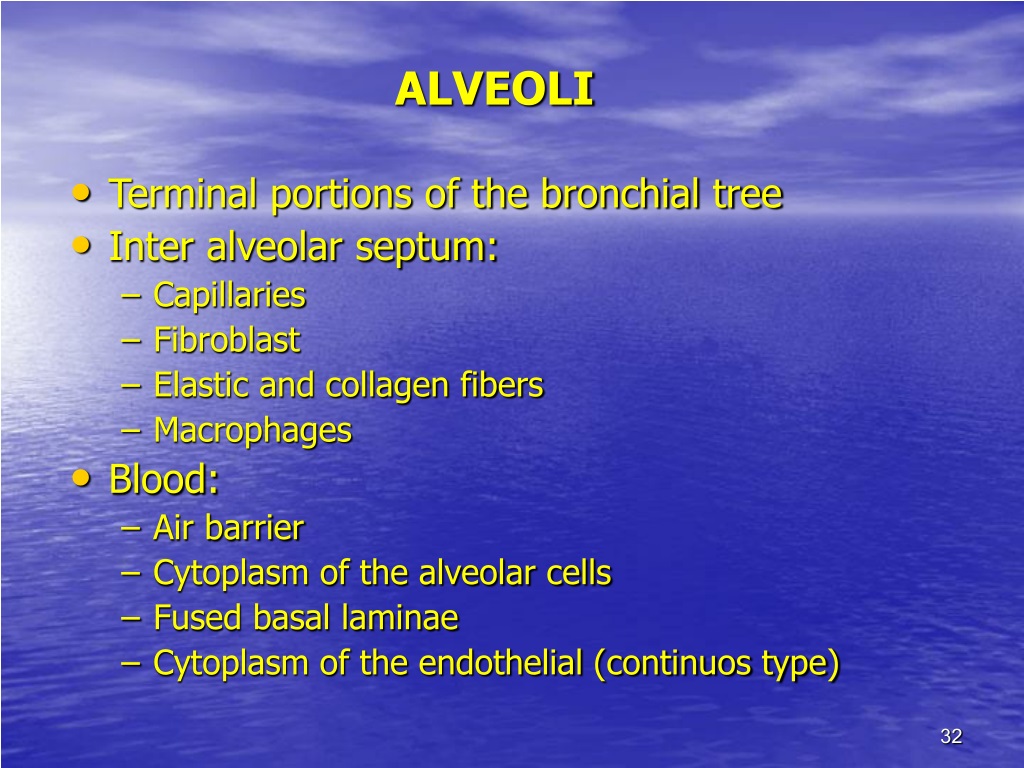

  26. ALVEOLI • Terminal portions of the bronchial tree • Inter alveolar septum: • Capillaries • Fibroblast • Elastic and collagen fibers • Macrophages • Blood: • Air barrier • Cytoplasm of the alveolar cells • Fused basal laminae • Cytoplasm of the endothelial (continuos type)

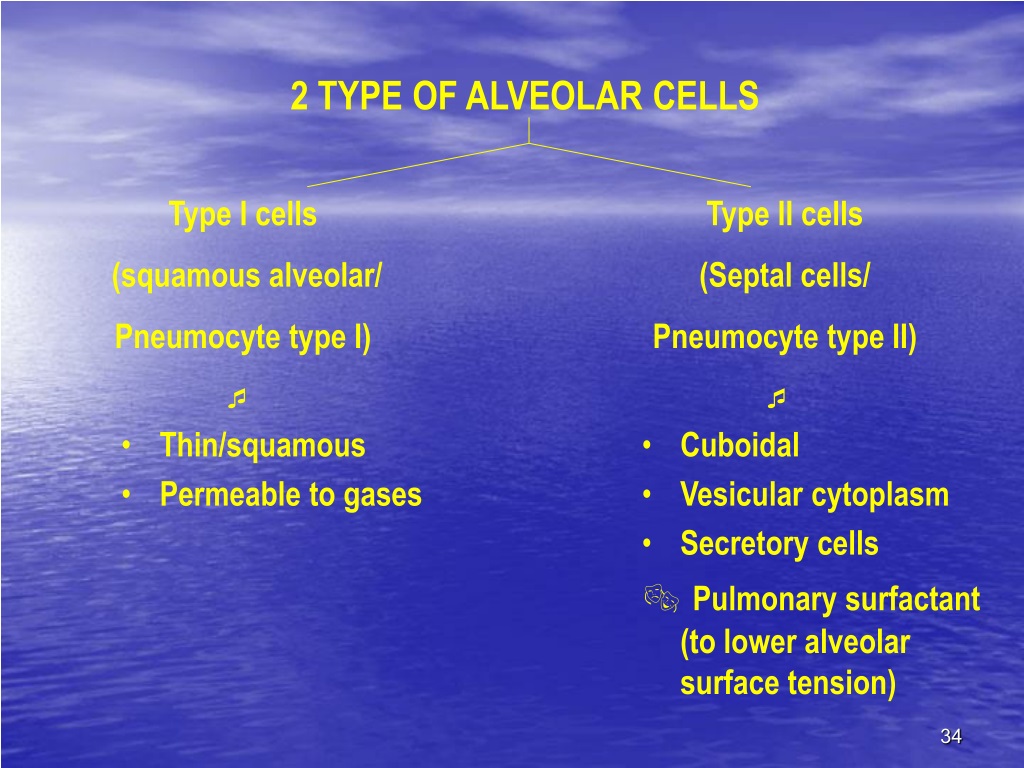

  27. 2 TYPE OF ALVEOLAR CELLS Type I cells (squamous alveolar/ Pneumocyte type I) Type II cells (Septal cells/ Pneumocyte type II) •  • Thin/squamous • Permeable to gases •  • Cuboidal • Vesicular cytoplasm • Secretory cells • Pulmonary surfactant (to lower alveolar surface tension)

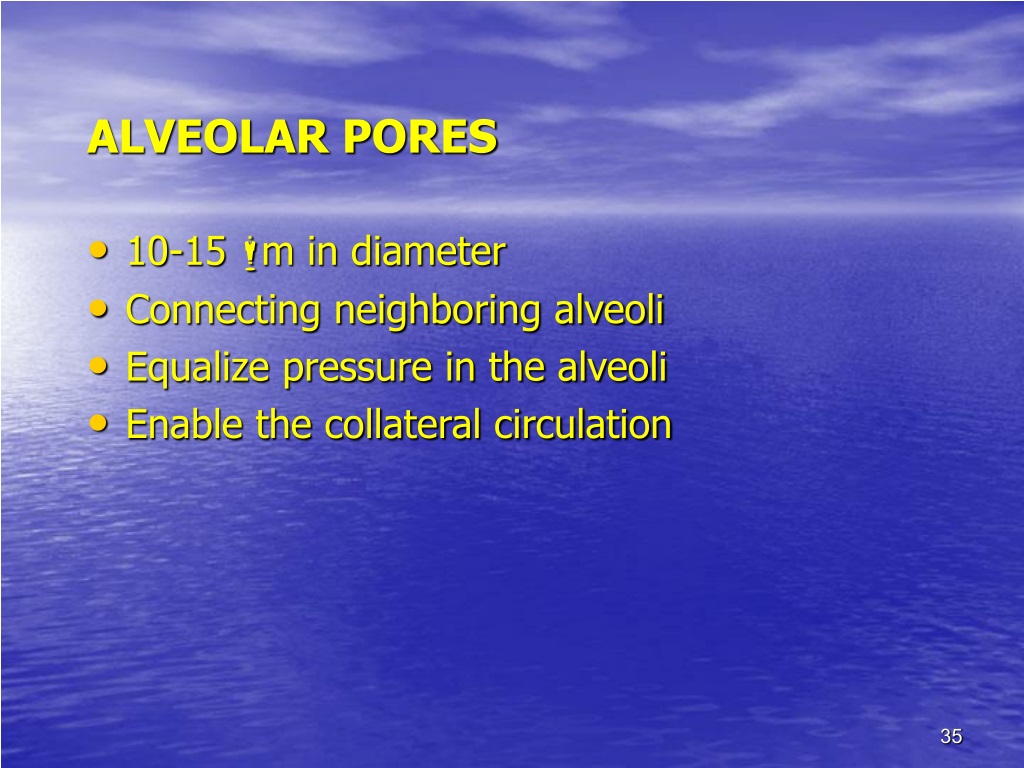

  28. ALVEOLAR PORES • 10-15 m in diameter • Connecting neighboring alveoli • Equalize pressure in the alveoli • Enable the collateral circulation

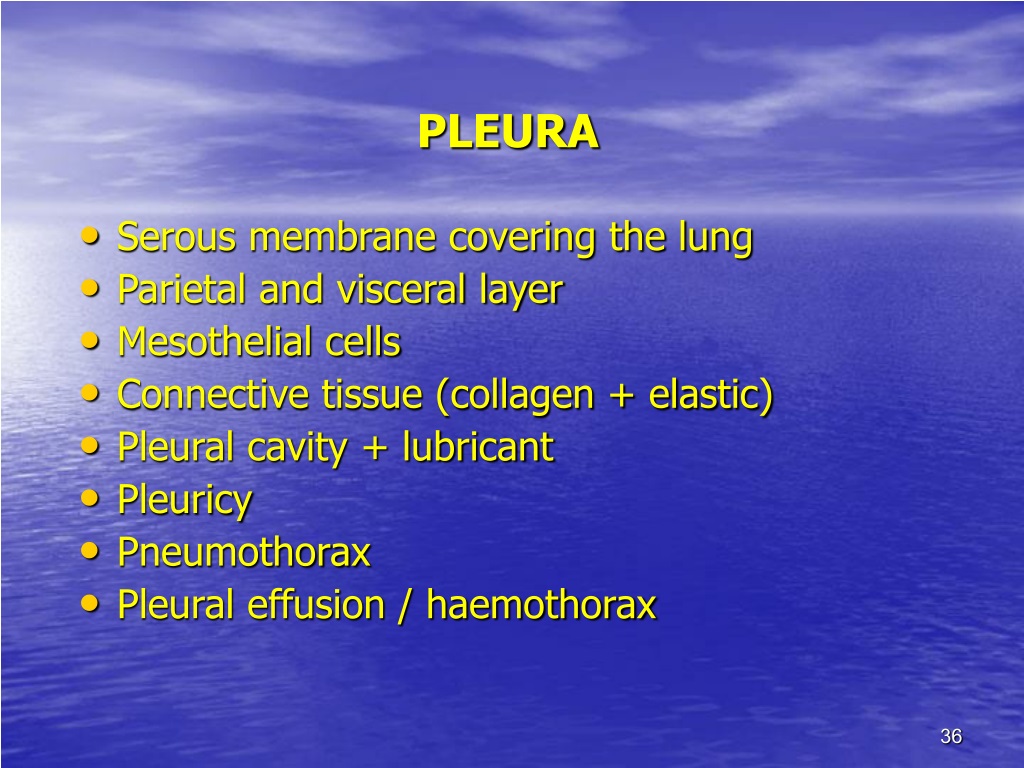

  29. PLEURA • Serous membrane covering the lung • Parietal and visceral layer • Mesothelial cells • Connective tissue (collagen + elastic) • Pleural cavity + lubricant • Pleuricy • Pneumothorax • Pleural effusion / haemothorax

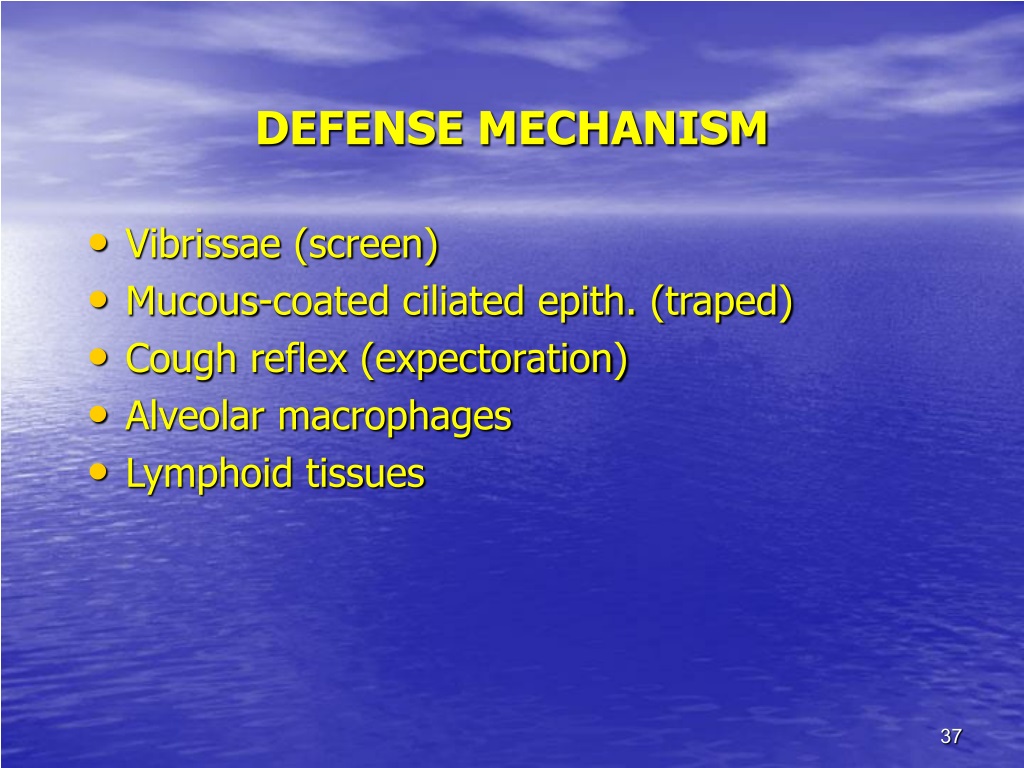

  30. DEFENSE MECHANISM • Vibrissae (screen) • Mucous-coated ciliated epith. (traped) • Cough reflex (expectoration) • Alveolar macrophages • Lymphoid tissues
