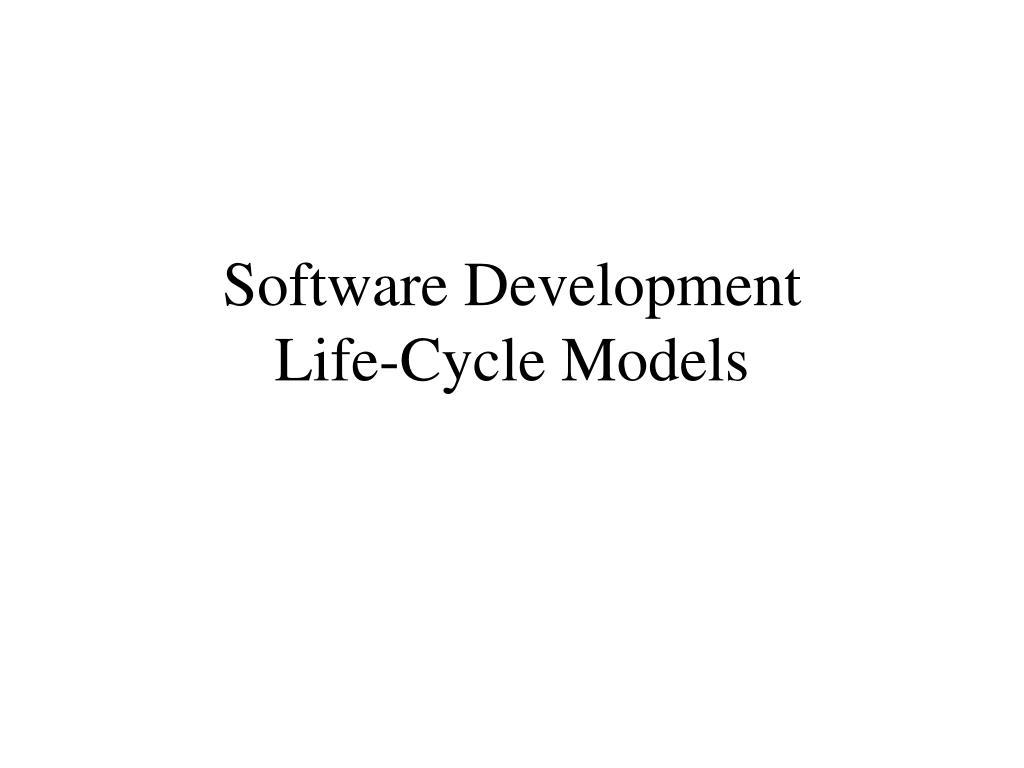

  1. Software Development Life-Cycle Models

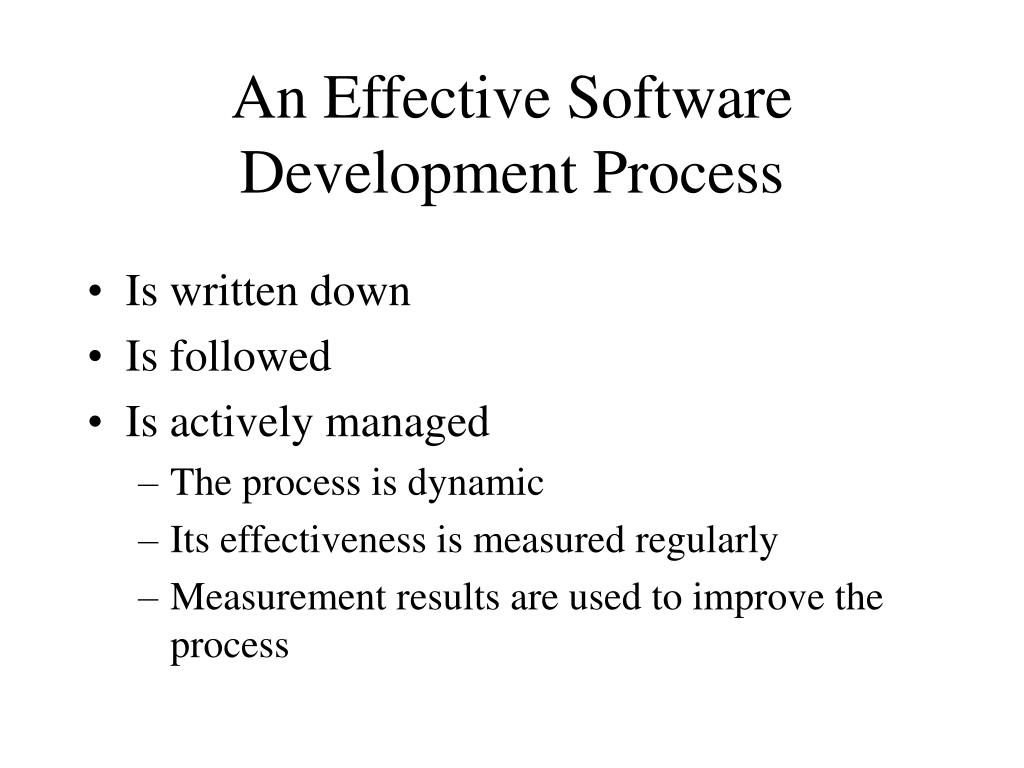

  2. An Effective Software Development Process • Is written down • Is followed • Is actively managed • The process is dynamic • Its effectiveness is measured regularly • Measurement results are used to improve the process

  3. The Waterfall Model Requirements Analysis Software Design Coding Testing Maintenance

  4. Advantages of the Waterfall Model • Easy to understand • Widely used • Reinforces notions of “define before design” and “design before code” • Establishes milestones (when deliverables are produced and when reviews take place)

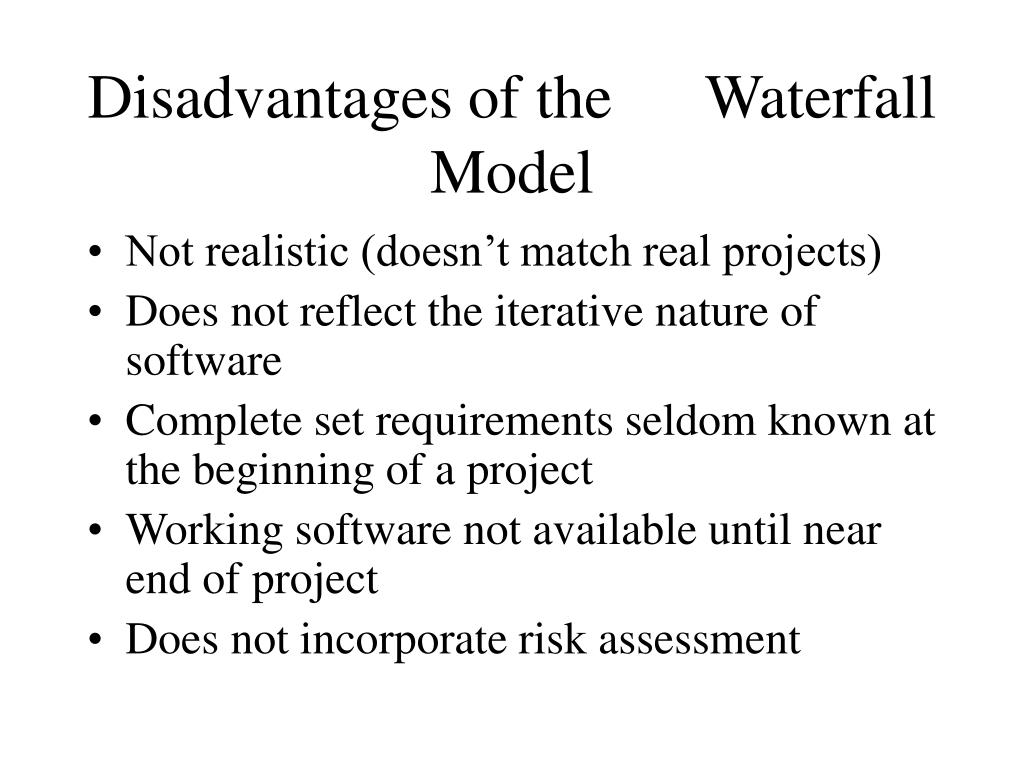

  5. Disadvantages of the Waterfall Model • Not realistic (doesn’t match real projects) • Does not reflect the iterative nature of software • Complete set requirements seldom known at the beginning of a project • Working software not available until near end of project • Does not incorporate risk assessment

  6. The Concurrent Development Model • Development and QA/Testing are performed concurrently • Similar to the Synchronize and Stabilize model used by Microsoft • Multiple baselines are included as part of the process • SRS evolves over the course of the project • Ends with a formal validation phase with defined criteria for starting and stopping

  7. Advantages of the Concurrent Development Model • It’s flexible – the number incremental releases can be determined by the project team • Immediate feedback from testing • New features can be added late in the project • No surprises during formal validation because testing has been continuous

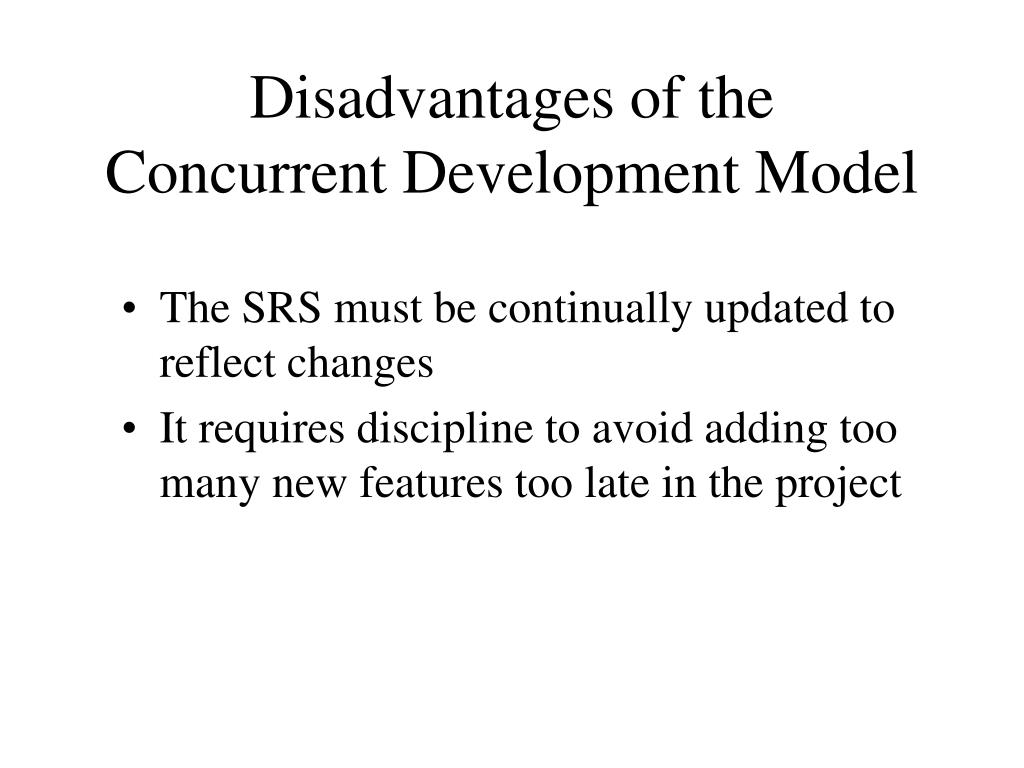

  8. Disadvantages of the Concurrent Development Model • The SRS must be continually updated to reflect changes • It requires discipline to avoid adding too many new features too late in the project

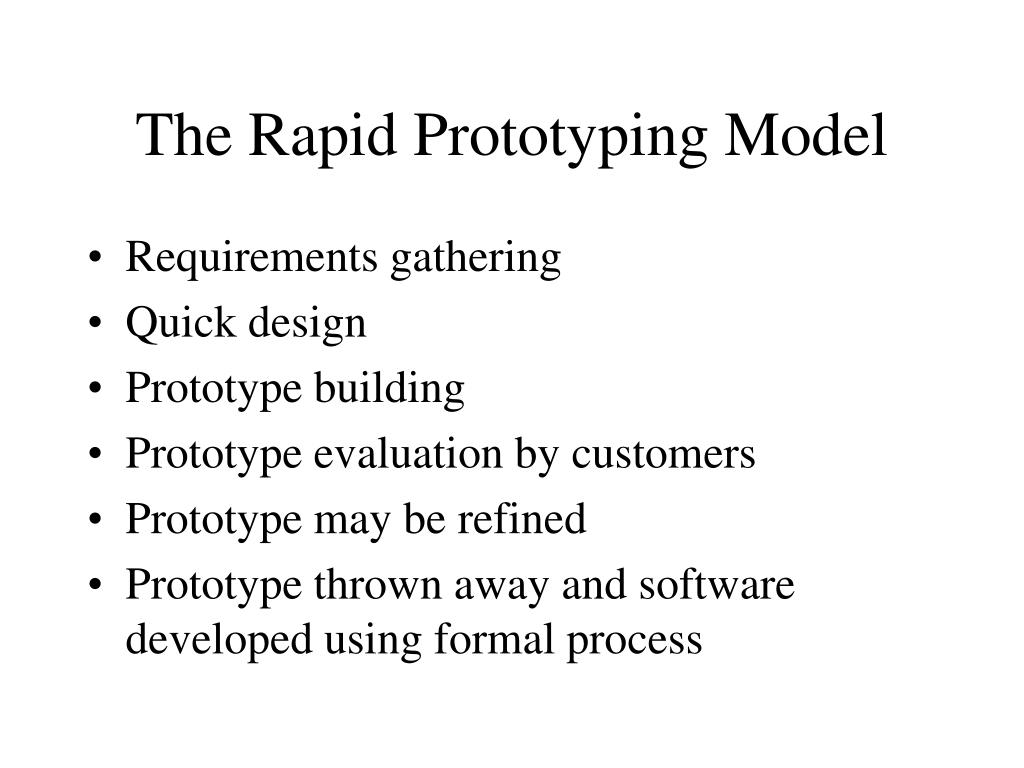

  9. The Rapid Prototyping Model • Requirements gathering • Quick design • Prototype building • Prototype evaluation by customers • Prototype may be refined • Prototype thrown away and software developed using formal process

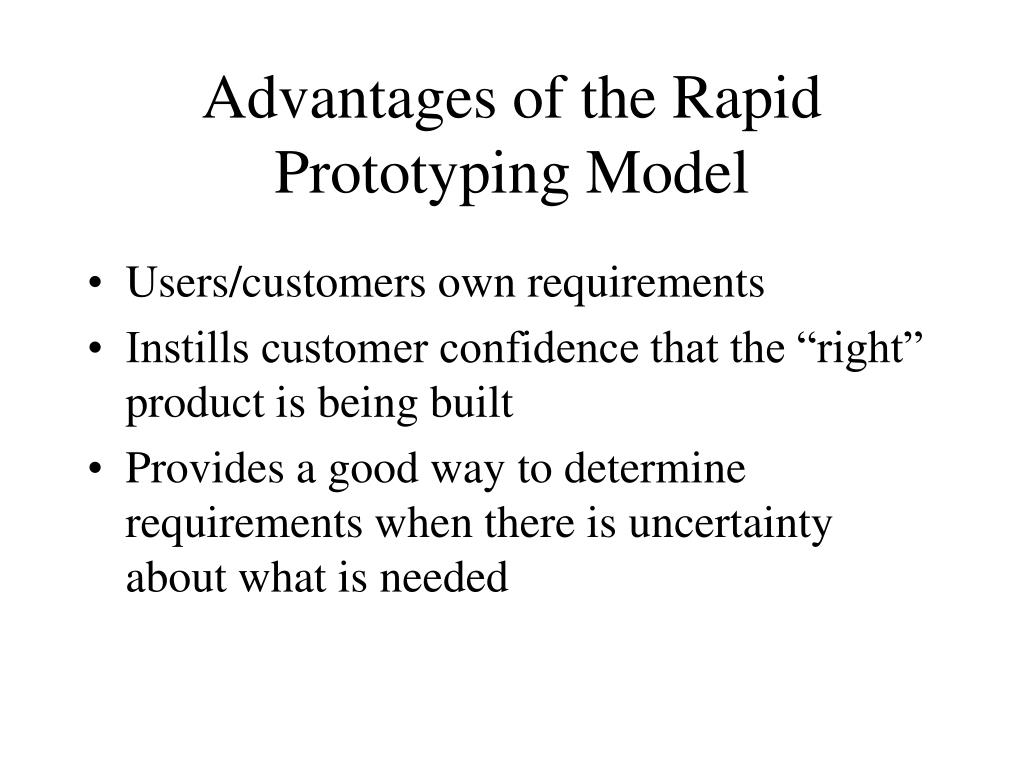

  10. Advantages of the Rapid Prototyping Model • Users/customers own requirements • Instills customer confidence that the “right” product is being built • Provides a good way to determine requirements when there is uncertainty about what is needed

  11. Disadvantages of the Rapid Prototyping Model • Prototypes are not always thrown away – they often become the products or fundamental parts of the products • Requires lots of customer involvement which isn’t always possible • Validation may be difficult because the requirements may not be well documented

  12. The Spiral Model • Planning • Risk Analysis • Development • Evaluation

  13. Advantages of the Spiral Model • Incorporates the iterative nature of software development • Incorporates all the advantages of both the waterfall model and prototyping model

  14. Disadvantages of the Spiral Model • Requires expertise in risk analysis • It is somewhat complicated and not well understood

  15. Hybrid Models • Combined aspects of two or more models • Added flexibility • Not usually well understood • Have all advantages and disadvantages of the models encompassed

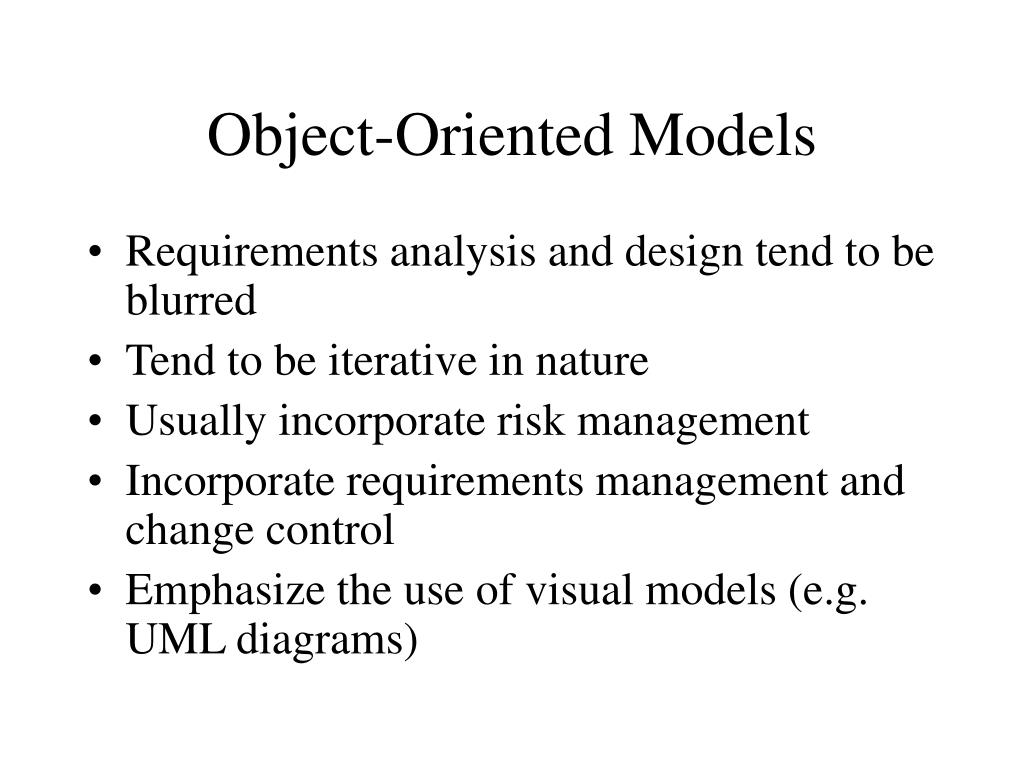

  16. Object-Oriented Models • Requirements analysis and design tend to be blurred • Tend to be iterative in nature • Usually incorporate risk management • Incorporate requirements management and change control • Emphasize the use of visual models (e.g. UML diagrams)

  17. Models Based on Agile Methods • ASD – Adaptive Software Development • Crystal • TDD –Test-Driven Development • DSDM – Dynamic Systems Development Method • Lean Software Development • Scrum • XP – eXtreme Programming

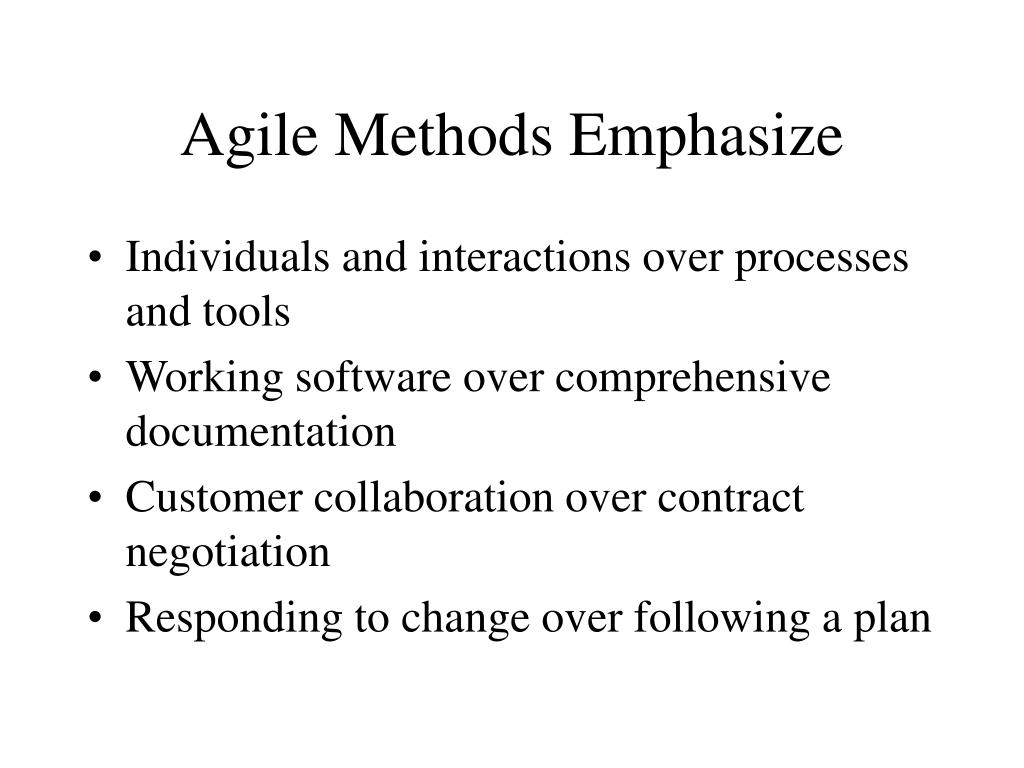

  18. Agile Methods Emphasize • Individuals and interactions over processes and tools • Working software over comprehensive documentation • Customer collaboration over contract negotiation • Responding to change over following a plan

  19. “How to Solve It” In 1945 George Polya wrote a book outlining 4 basic steps in problem solving: • Understand the problem (requirements analysis) • Devise a plan (software design and project planning) • Carry out the plan (coding) • Look back (testing the solution)

  20. Summary • Choosing the right life-cycle model can be difficult • But it is essential to have one • The life-cycle model covers more than just development – it must be appropriate for product support and maintenance
