software life cycle models processes

Software Life Cycle Models/Processes

CMSC 345 Software EngineeringFall 05 Section 0301

objectives
Objectives
  • To introduce the general phases of the software development life cycle
  • To introduce the software process model concept
  • To describe different generic process models and their pros and cons
the software process
The Software Process
  • A structured set of activities required to develop a software system. These activities include:
    • Requirements (Specification)
    • Design
    • Implementation (Coding)
    • Testing (Validation)
    • Maintenance (Evolution)
  • A software process model is an abstract representation of a process.
requirements
Requirements

The process of establishing

  • what services are required of the system
  • the constraints on the system’s operation and development

Requirements are the what part

software design
Software Design

The process of converting the system specification (requirements) into a software structure that realizes that specification

Design is the How part

implementation
Implementation
  • Translating a design into a program and removing errors from that program
  • Programming is a personal activity - there is no generic programming process.
  • Programmers carry out some program testing to discover faults in the program and remove these faults in the debugging process.
  • The activities of design and implementation are closely related and generally are interleaved.
testing
Testing
  • Verification and validation is intended to show that a system conforms to its specification and meets the requirements of the system customer.
  • Involves checking and review processes and system testing
  • System testing involves executing the system with test cases that are derived from the specification of the real data to be processed by the system.
system maintenance
System Maintenance
  • Software is inherently flexible and can change (as opposed to hardware).
  • In the past, there has been a demarcation between development and evolution (maintenance). This is increasingly irrelevant as fewer and fewer systems are completely new.
  • Software engineering should be thought of as an evolutionary process where software is continually changed over its lifetime in response to customer needs.
software process models
Software Process Models
  • The Waterfall model
    • Separate, non-overlapping phases of specification and development
  • Evolutionary development
    • Specification and development are interleaved
  • Reuse-based development
    • The system is assembled from some (most likely) or all existing components
evolutionary development
Evolutionary Development

Two general types:

  • Exploratory development
    • Objective is to work with the customers to evolve a final system from an initial outline specification. Process starts with the well-understood requirements.
  • Prototyping (throw-away?)
    • Objective is to understand the system requirements. Process starts with the poorly understood requirements.
question
Question

Should a prototype be evolved into the final system or thrown away?

reuse oriented development
Reuse-oriented Development
  • Based on systematic reuse where systems are integrated from existing components or COTS (commercial-off-the-shelf) systems
  • This approach is becoming more important, but there is still limited experience with it.
process iteration
Process Iteration
  • System requirements ALWAYS evolve in the course of a project. So, process iteration where earlier stages are reworked is always part of the process, especially for large systems.
  • Iteration can be applied to any of the generic process models.
  • Examples of two iterative approaches:
    • Incremental development
    • Spiral development
incremental development
Incremental Development
  • Rather than deliver the system as a single delivery, the development and delivery is broken down into increments with each increment delivering part of the required functionality.
  • User requirements are prioritized and the highest priority requirements are included in early increments.
  • Once the development of an increment is started, the requirements are frozen, though requirements for later increments can continue to evolve.
incremental development advantages
Incremental Development Advantages
  • Customers do not have to wait until the entire system is delivered until they can gain value from it.
  • Early increments act as a prototype to help elicit requirements for later increments.
  • Lower risk of overall project failure
  • The highest priority system services tend to receive the most testing.
spiral development
Spiral Development
  • Process is represented as a spiral rather than as a sequence of activities with backtracking
  • Each loop in the spiral represents a phase in the process.
  • No fixed phases such as specification or design - loops in the spiral are chosen depending on what is required
  • Risks are explicitly assessed and resolved throughout the process.
spiral model sectors
Spiral Model Sectors
  • Objective setting
    • Specific objectives for the phase are identified
  • Risk assessment and reduction
    • Risks are assessed and activities put in place to reduce the key risks
  • Development and validation
    • A development model for the system is chosen which can be any of the generic models
  • Planning
    • The project is reviewed and the next phase of the spiral is planned
good agile development is does isn t doesn t
Efficient

Lots of “just in time”

Adjust to circumstances

(Re)Plan regularly

Lots of person-to-person comm.

Adaptively cut fat in the process

Hacking

Giant Energy Up Front (GEUF)

Only XP (XP is one alternate)

Plan-less

People sitting in isolation

rigid adherence

Good agile developmentIs / DoesIsn’t / Doesn’t

Agility *can*

Be heavier or lighter, depending on circumstances

Use various requirements techniques

(e.g., use cases, stories, features)

In agile development we value

following the principles over following specific practices !

lighter agile vs heavier agile light is good but has limits

(Never forget this!)

Lighter-agile vs. Heavier-agile : Light is good, but has limits.

# people needed

Heavy

methodology

more people

Light methodology

fewer people

Problem Size

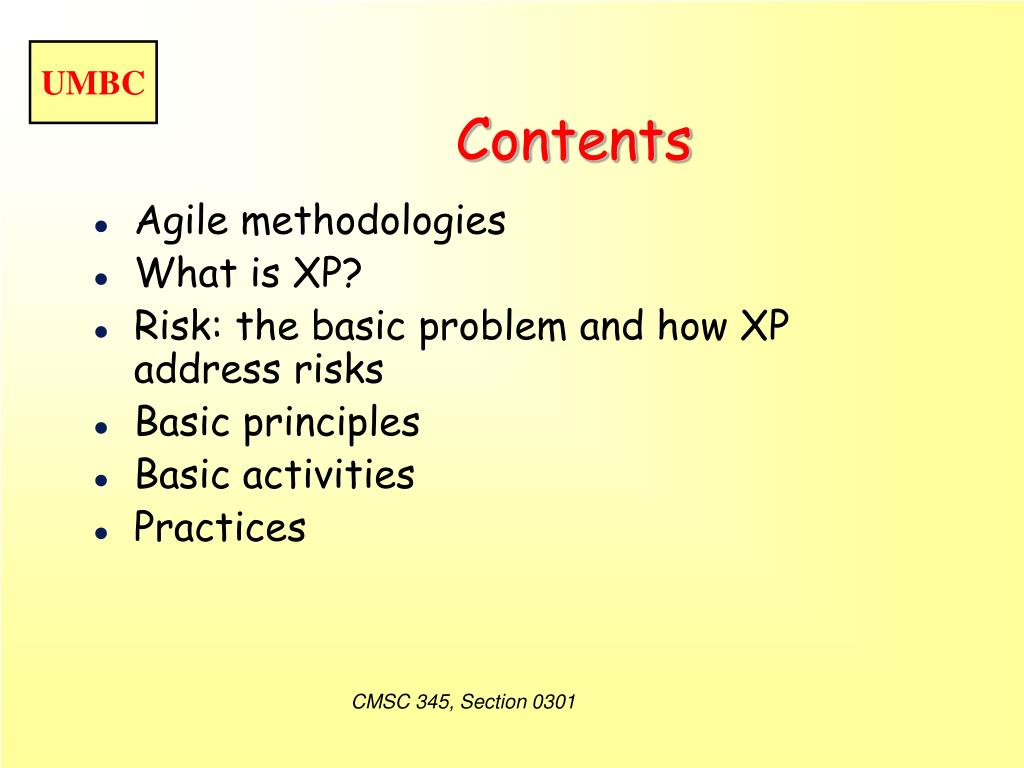

contents
Contents
  • Agile methodologies
  • What is XP?
  • Risk: the basic problem and how XP address risks
  • Basic principles
  • Basic activities
  • Practices
agile alliance
Agile alliance
  • February 2001 – group of 17 people
  • www.AgileAlliance.org
  • Agile word
  • The manifesto
  • Principles and recommendations
methodology
Methodology
  • Software development methodology – the set of conventions the team adopts
  • Methodology can be lightened
    • By getting running software out for examination sooner
    • By increasing the richness of the communication channels
  • Light delivers more quickly and with reduced cost
light methodologies
Light methodologies
  • XP
  • Adaptive Software Development
  • Scrum
  • Crystal
  • Feature Driven Development
  • DSDM (Dynamic System Development Method)
why extreme
Why “extreme”

XP takes commonsense principles and practices to extreme levels.

  • If code reviews are good, we'll review code all the time (pair programming).
  • If testing is good, everybody will test all the time (unit testing), even the customers (functional testing).
why extreme 2
Why “extreme”-2
  • If design is good, we'll make it part of everybody's daily business (refactoring).
  • If simplicity is good, we'll always leave the system with the simplest design that supports its current functionality (the simplest thing that could possibly work).
  • If architecture is important, everybody will work defining and refining the architecture all the time (metaphor).
why extreme 3
Why “extreme”-3
  • If integration testing is important, then we'll integrate and test several times a day (continuous integration).
  • If short iterations are good, we'll make the iterations really, really short—seconds and minutes and hours, not weeks and months and years (the Planning Game).
xp promises
XP promises
  • To reduce project risk,
  • To improve responsiveness to business changes,
  • To improve productivity throughout the life of a system,
  • To add fun to building software in teams

All at the same time.

what is xp
What Is XP?

XP is a

  • lightweight,
  • efficient,
  • low-risk,
  • flexible,
  • predictable,
  • scientific, and
  • fun

way to develop software.

innovation of xp
Innovation of XP
  • Putting all proven practices (for the implementation strategy and for the management strategy) under one umbrella
  • Making sure they are practiced as thoroughly as possible.
  • Making sure the practices support each other to the greatest possible degree.
risk the basic problem
Risk: The Basic Problem
  • Schedule slips
  • Project canceled
  • System goes sour
  • Defect rate
  • Business misunderstood
  • Business changes
  • False feature rich
  • Staff turnover
how does xp address risks
How does XP address risks?
  • Schedule slips
    • short Release cycles - a few months at most,
    • Iterations of customer requested features - one- to four-week.
    • Tasks - one- to three-day
    • implementing the highest priority features first
how does xp address risks 2
How does XP address risks?-2
  • Project canceled
    • XP asks the customer to choose the smallest release that makes the most business sense.
  • System goes sour
    • comprehensive suite of tests, which are run and re-run after every change.
    • XP always keeps the system in prime condition.
how does xp address risks 3
How does XP address risks?-3
  • Defect rate - XP tests from the perspective of
    • programmers - writing tests function-by function
    • customers - writing tests program-feature-by-program-feature.
  • Business misunderstood
    • customer to be an integral part of the team.
how does xp address risks 4
How does XP address risks?-4
  • Business changes
    • XP shortens the release cycle, so there is less change during the development of a single release.
  • False feature rich
    • only the highest priority tasks are addressed.
  • Staff turnover
    • programmers accept responsibility for estimating and completing their own work
    • human contact among the team
xp development cycle
XP development cycle
  • Pairs of programmers program together.
  • Development is driven by tests. You test first, then code.
  • Pairs don't just make test cases run. They also evolve the design of the system. Pairs add value to the analysis, design, implementation, and testing of the system.
  • Integration immediately follows development, including integration testing.
four variables
Four variables
  • Cost
  • Time
  • Quality
  • Scope
four values
Four Values
  • Communication
  • Simplicity
  • Feedback
  • Courage
basic principles
Basic principles
  • Rapid feedback
  • Assume simplicity
  • Incremental change
  • Embracing change
  • Quality work
less central principles
Less central principles
  • Teach learning
  • Small initial investment
  • Play to win
  • Open, honest communication
  • Accepted responsibility
  • Local adaptation
basic activities
Basic Activities
  • Coding
  • Testing
  • Listening
  • Designing
practices
Practices
  • The Planning Game— Quickly determine the scope of the next release by combining business priorities and technical estimates. As reality overtakes the plan, update the plan.
  • Small releases— Put a simple system into production quickly, then release new versions on a very short cycle.
practices 2
Practices - 2
  • Metaphor— Guide all development with a simple shared story of how the whole system works.
  • Simple design— The system should be designed as simply as possible at any given moment. Extra complexity is removed as soon as it is discovered.
practices 3
Practices - 3
  • Testing — Programmers continually write unit tests, which must run flawlessly for development to continue. Customers write tests demonstrating that features are finished.
  • Refactoring — Programmers restructure the system without changing its behavior to remove duplication, improve communication, simplify, or add flexibility.
practices 4
Practices - 4
  • Pair programming — All production code is written with two programmers at one machine.
  • Collective ownership — Anyone can change any code anywhere in the system at any time.
  • Continuous integration — Integrate and build the system many times a day, every time a task is completed.
practices 5
Practices - 5
  • 40 hour week — Work no more than 40 hours a week as a rule. Never work overtime a second week in a row.
  • On-site customer — Include a real, live user on the team, available full-time to answer questions.
  • Coding standards — Programmers write all code in accordance with rules emphasizing communication through the code.
references
References
  • Software Engineering, by Ian Sommerville, 6th edition, Chapter 3
  • Extreme Programming Principles - Sylvia Ilieva
  • Use Cases for Agile and Traditional Development - Alistair Cockburn
