region 6 seamless annotation geodatabase development

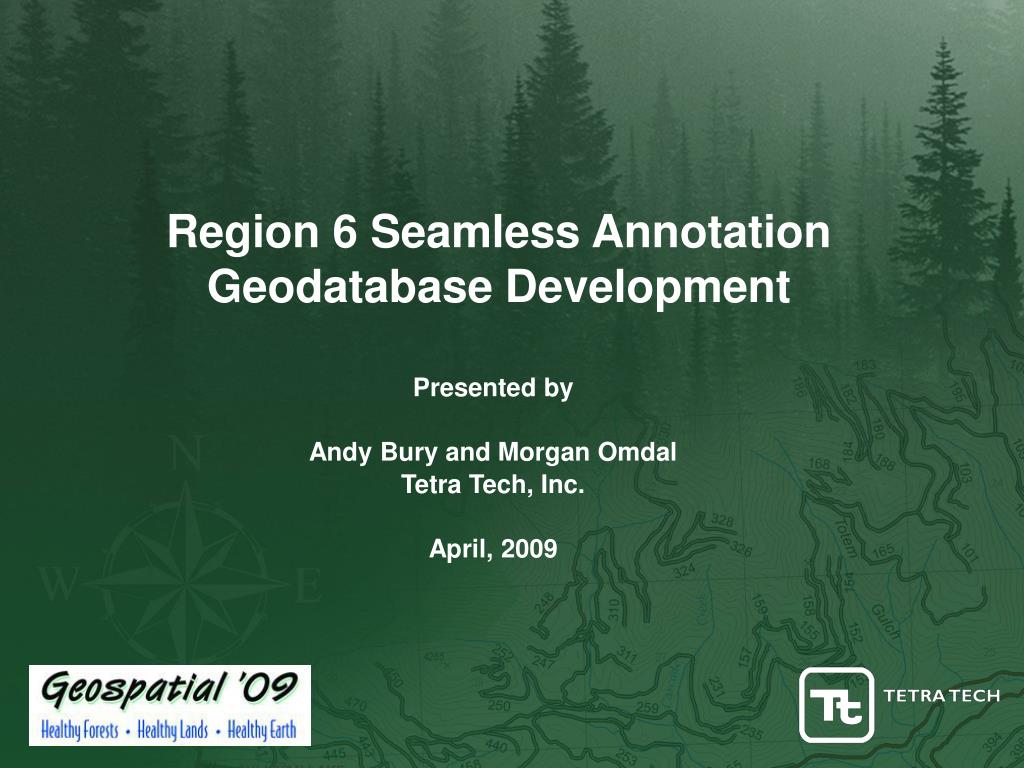

Region 6 Seamless Annotation Geodatabase Development

Presented byAndy Bury and Morgan OmdalTetra Tech, Inc.April, 2009

presentation outline
Presentation Outline
  • Project History and Objectives
  • Project Details
  • Project Results
  • Lessons Learned
historical context
Historical Context
  • Region 6 uses digital annotation files for map production
  • GSTC quad-based annotation as E00 or TXT files
  • Difficult to use and did not cover the entire Region
  • 1,279 quads out of 1366 had TXT annotation
project objectives

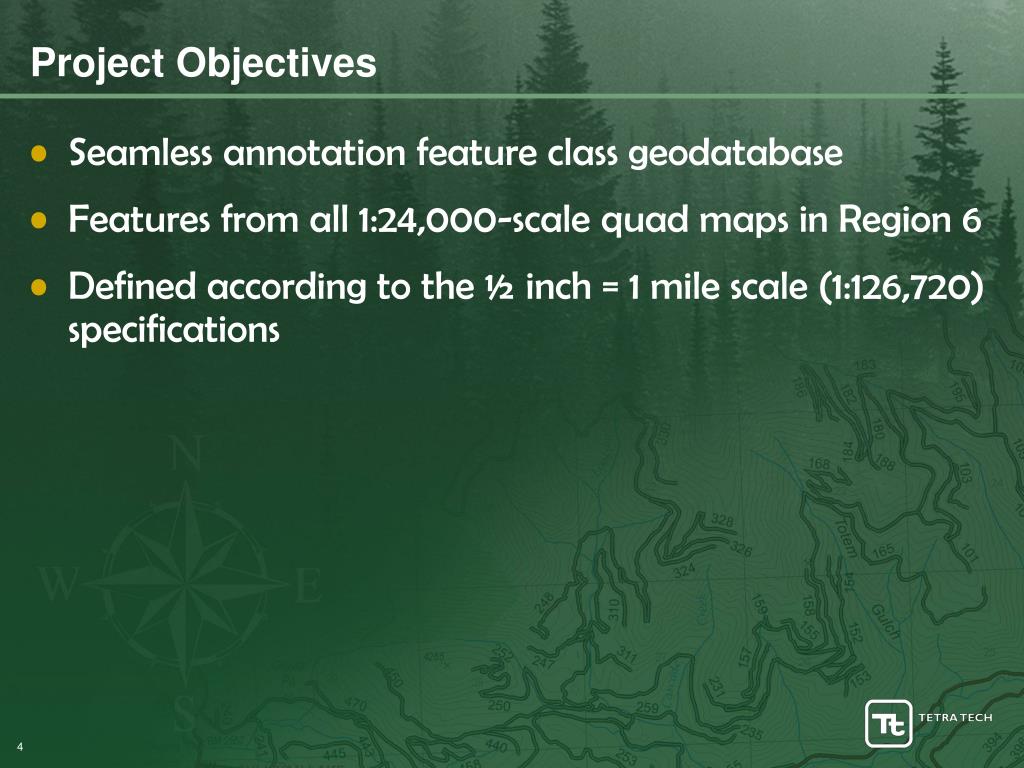

Project Objectives
  • Seamless annotation feature class geodatabase
  • Features from all 1:24,000-scale quad maps in Region 6
  • Defined according to the ½ inch = 1 mile scale (1:126,720) specifications
results
Results
  • Tetra Tech delivered a seamless annotation feature class geodatabase for all of Region 6
  • 98 annotation classes
  • Met USDA Forest Service cartographic and symbol standards
  • Appropriate for 1:126,720 scale maps, but maintained much of the information from the 1:24,000 scale maps
project development details
Project Development Details
  • Data collection
  • Base map layer compilation
  • Geodatabase design
  • Converting/Importing annotation
  • Placing annotation
  • Quality assurance
data collection
Data Collection
  • Base map data layers
    • Used to replicate features on a forest service visitor’s map
    • Point and line features symbolized to standard sizes and widths
  • TXT annotation files
    • Used to import quad based annotation where available
  • Hard/Soft copy SEQs
    • Used as a guide for positioning labels and as annotation source when TXT files are unavailable
setting up the databases

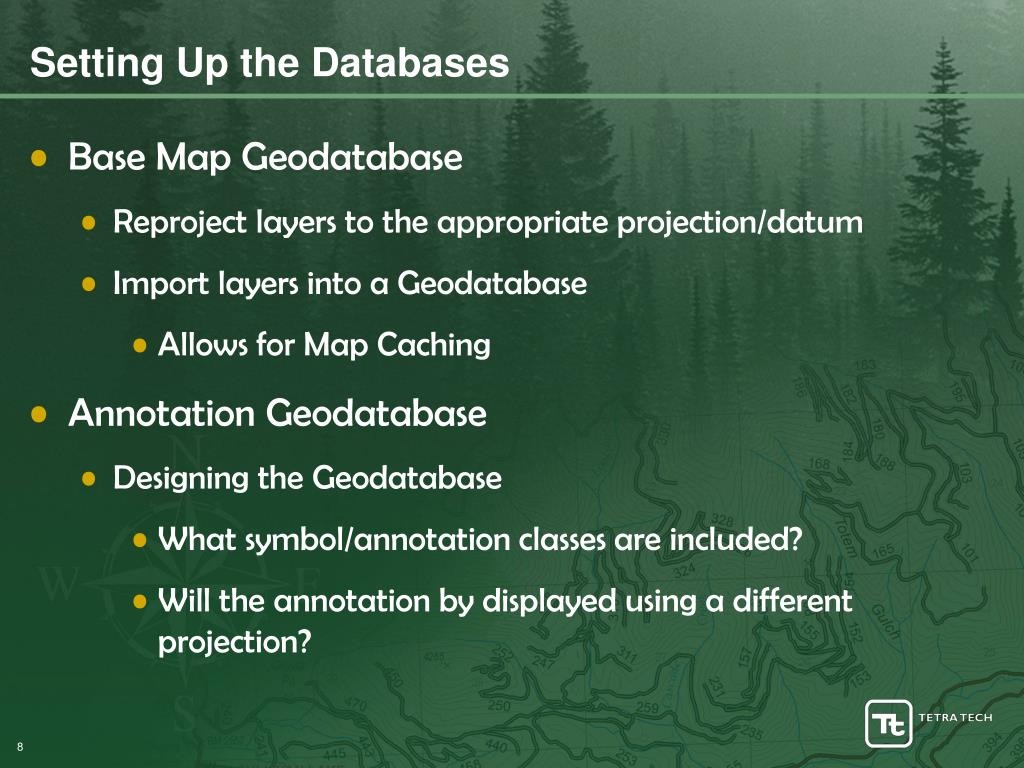

Setting Up the Databases
  • Base Map Geodatabase
    • Reproject layers to the appropriate projection/datum
    • Import layers into a Geodatabase
      • Allows for Map Caching
  • Annotation Geodatabase
    • Designing the Geodatabase
      • What symbol/annotation classes are included?
      • Will the annotation by displayed using a different projection?
geodatabase design
Geodatabase Design
  • What symbol/annotation classes are included?
    • Symbol classes allow functional groupings of similar feature labels
      • Allows for on/off toggling in map TOC
      • Region 6 had 98 total symbol classes!
    • Annotation classes allow cartographic groupings of similar symbol parameters
  • Will the annotation be displayed using a different projection?
    • Horizontal annotation will rotate
    • Isolate labels to manage separately
subtype details of an annotation gdb feature class
Subtype Details of an Annotation GDB Feature Class
  • An annotation feature class contains user-defined symbol classes (subtypes) and annotation classes
  • Annotation classes correspond to the cartographic standards developed by the agency
  • Unique symbol classes for horizontal labels
converting importing annotation
Converting/Importing Annotation

7.5 Minute Topological Maps USFS Visitor Maps

Quad Based | 1:24k Scale | *.e00 or *.txt Seamless | ½” = 1 Mile | *.gdb or *.mdb

importing from txt dgn files
Importing From TXT/DGN Files
  • Run an AML to reference quad based annotation
    • Output is a Coverage
  • Select on DGN attributes to import to specific symbol classes using “Convert Coverage Annotation to Geodatabase Annotation”
  • Calculating Symbol ID and Annotation ID codes
  • Calculate status field for “placed” or “unplaced”
automating the process
Automating the Process
  • Build a Model to automate the process of importing annotation to Geodatabase
other methods of converting importing annotation
Other Methods of Converting/Importing Annotation
  • Convert feature labels to Annotation
    • Outdated information contained in quad based TXT files or feature names that are frequently updated
      • Roads from INFRA
      • Recreation site names
  • Create annotation from scratch where TXT files are not available
placing annotation pieces to a puzzle

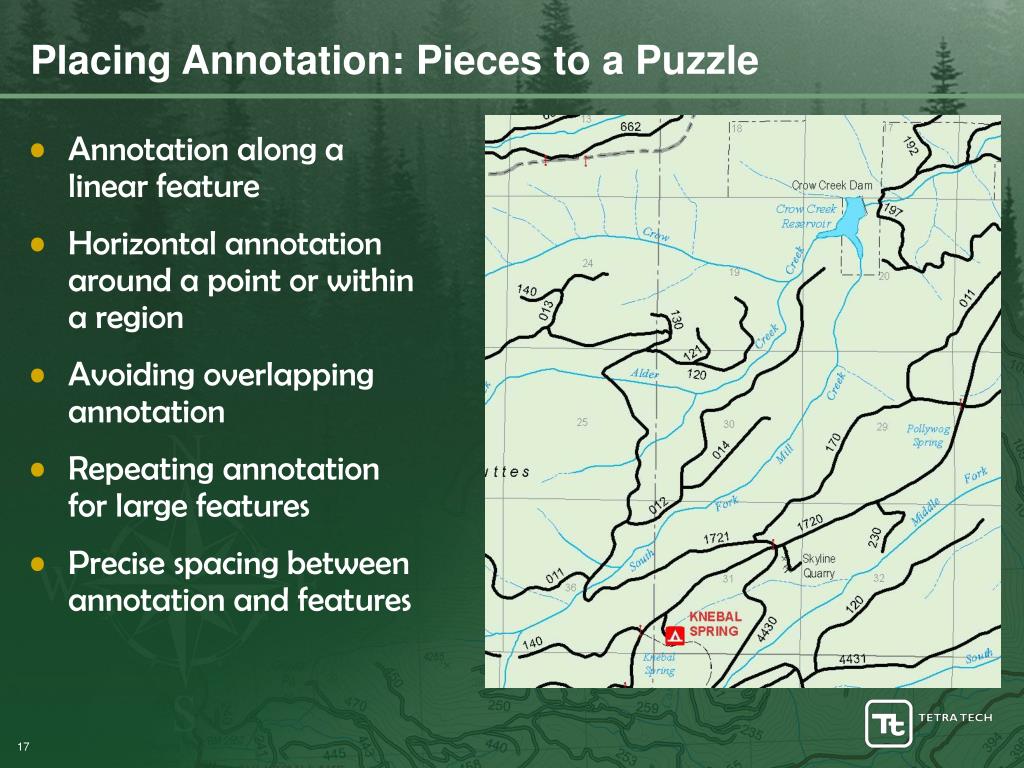

Placing Annotation: Pieces to a Puzzle
  • Variations in font size and reference scale produce jumbled and overlapping labels
  • Drag, rotate, flip, resize, explode, merge and position text into a “best fit” location as to minimize overlap with features and other annotation
  • Use specific criteria or “Rules of Thumb” to place each label appropriately
placing annotation pieces to a puzzle1
Placing Annotation: Pieces to a Puzzle
  • Annotation along a linear feature
  • Horizontal annotation around a point or within a region
  • Avoiding overlapping annotation
  • Repeating annotation for large features
  • Precise spacing between annotation and features
quality assurance
Quality Assurance
  • Compare final product with hard/soft copy SEQs
  • Edge match adjacent quads and remove duplicate labels
  • Review attribute table to ensure Symbol ID and Annotation ID codes are assigned appropriately
lessons learned
Lessons Learned
  • Map caching significantly reduced refreshing speed
  • SDE editing frequently caused computer crashes
    • Worked on local machines, then appended groups of annotation together
  • Various methods of converting/importing annotation created thousands of “default” or unnecessary annotation classes
    • Applied a script to delete unused classes
lessons learned cont
Lessons Learned Cont.
  • A single annotation feature class for an entire forest region was too big to manage easily
    • Limit annotation feature classes to a single CSA
    • Limit annotation feature classes to particular symbol types
      • E.g. hydro annotation
  • Keep the number of symbol classes minimal … don’t get too specific unless necessary
  • Annotation of different symbol classes can share an annotation class
