  1. 100% Solar Powered Organization Welcome to SINCE 1993

  2. ABOUT LINEPRO Our Facility as of now: Spread in an area of 20000 sq ft Climatically controlled dust free rooms 10000 class Clean Rooms Highly Advanced Equipment Automatic Roll-to-Roll Screen Printing Facility Dedicated R&D Centre, Engineering & Design Centre

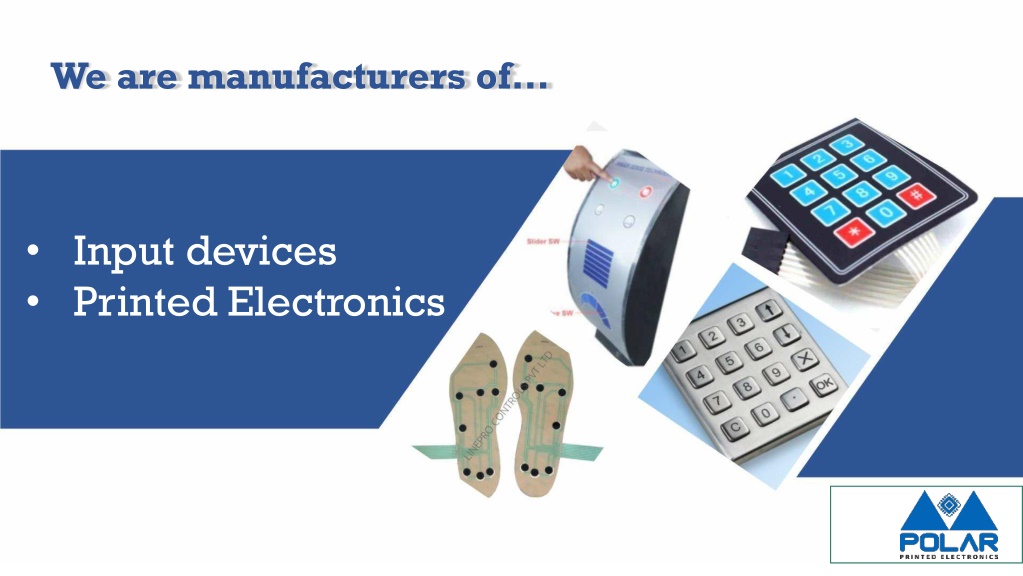

  3. We are manufacturers of… • Input devices • Printed Electronics

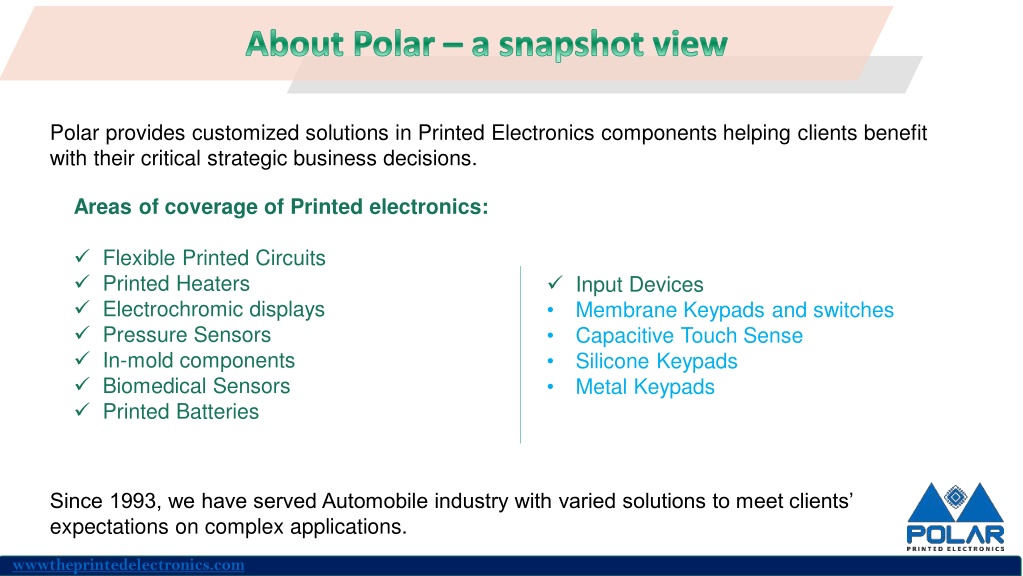

  4. Polar provides customized solutions in Printed Electronics components helping clients benefit with their critical strategic business decisions. Areas of coverage of Printed electronics:  Flexible Printed Circuits  Printed Heaters  Electrochromic displays  Pressure Sensors  In-mold components  Biomedical Sensors  Printed Batteries  Input Devices • Membrane Keypads and switches • Capacitive Touch Sense • Silicone Keypads • Metal Keypads Since 1993, we have served Automobile industry with varied solutions to meet clients’ expectations on complex applications. wwwtheprintedelectronics.com

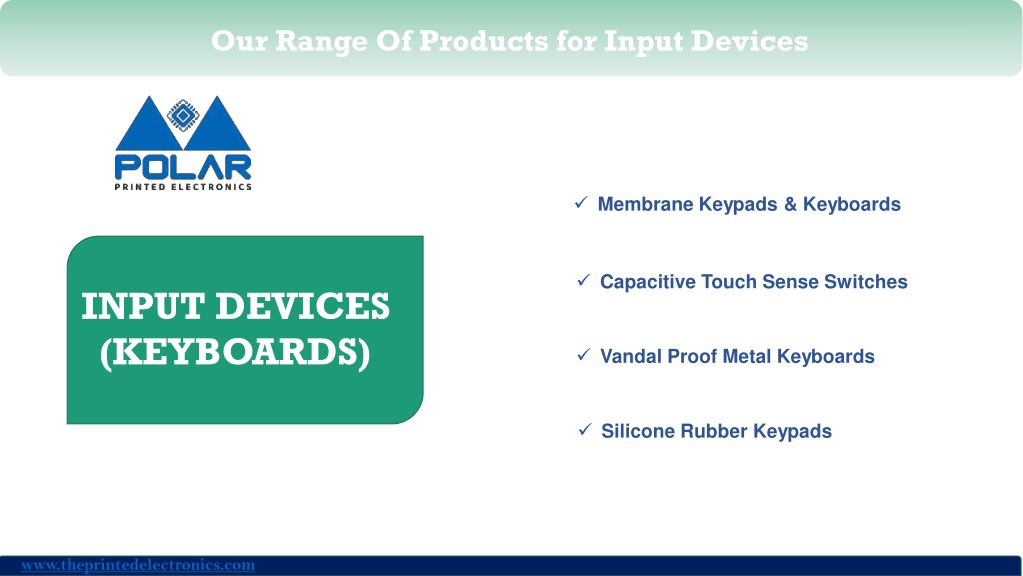

  5. PCB Based Membrane Switches, Keypads & Keyboards Molding Facility Our Range Of Products for Input Devices  Membrane Keypads & Keyboards  Capacitive Touch Sense Switches INPUT DEVICES (KEYBOARDS)  Vandal Proof Metal Keyboards  Silicone Rubber Keypads www.theprintedelectronics.com

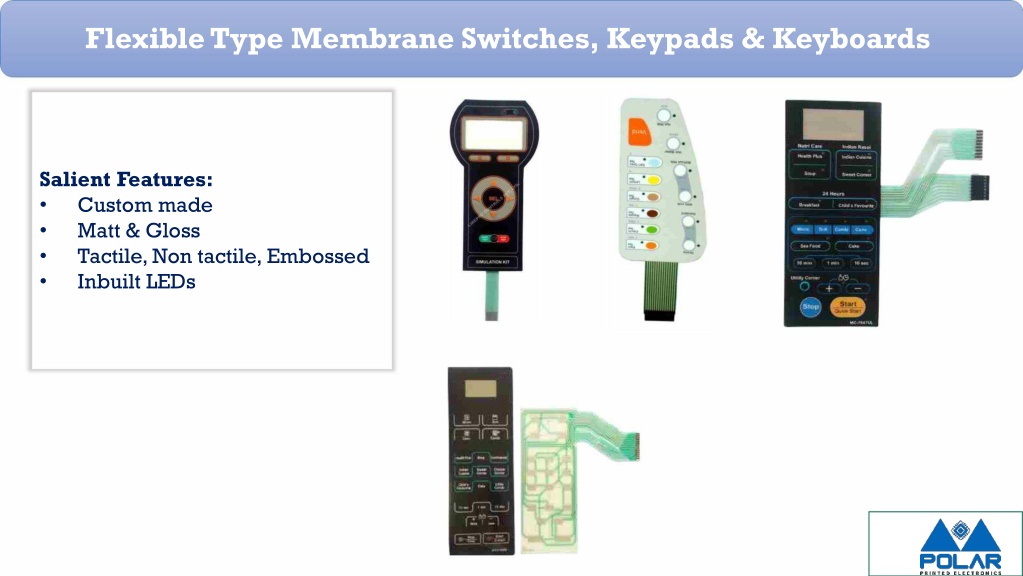

  6. Flexible Type Membrane Switches, Keypads & Keyboards Salient Features: • Custom made • Matt & Gloss • Tactile, Non tactile, Embossed • Inbuilt LEDs

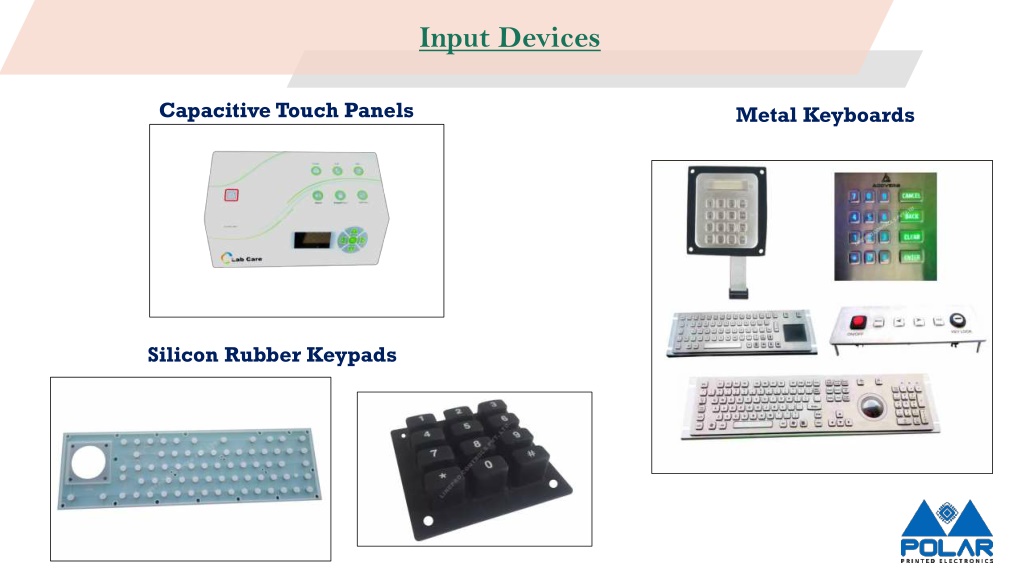

  7. Flexible Type Membrane Switches, Keypads & Keyboards Input Devices Capacitive Touch Panels Metal Keyboards Silicon Rubber Keypads

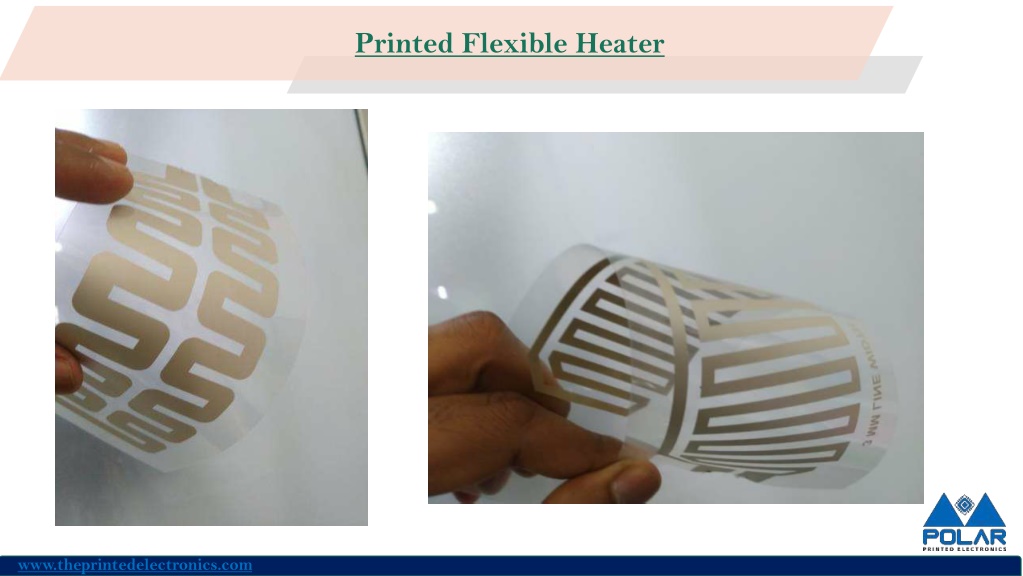

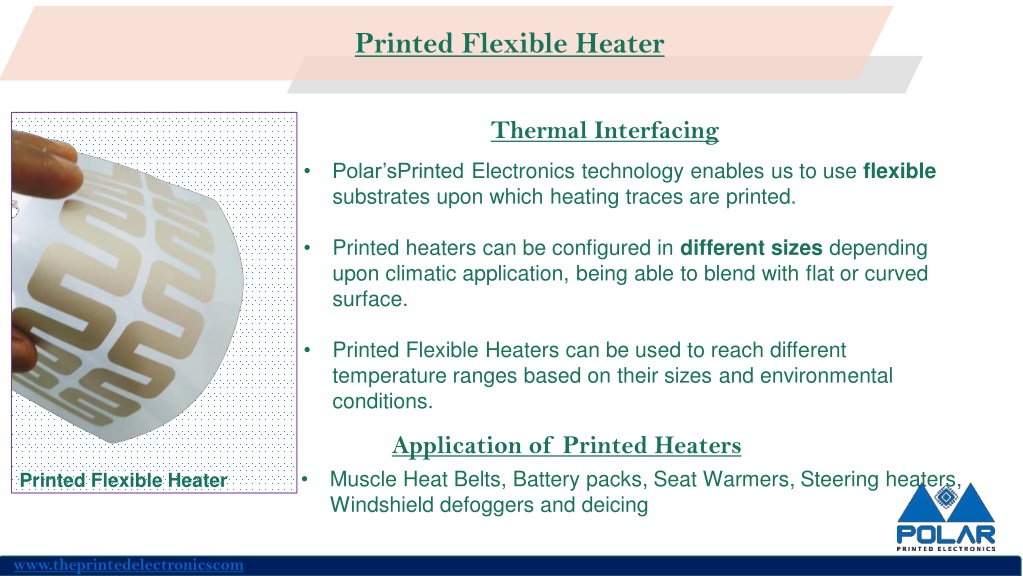

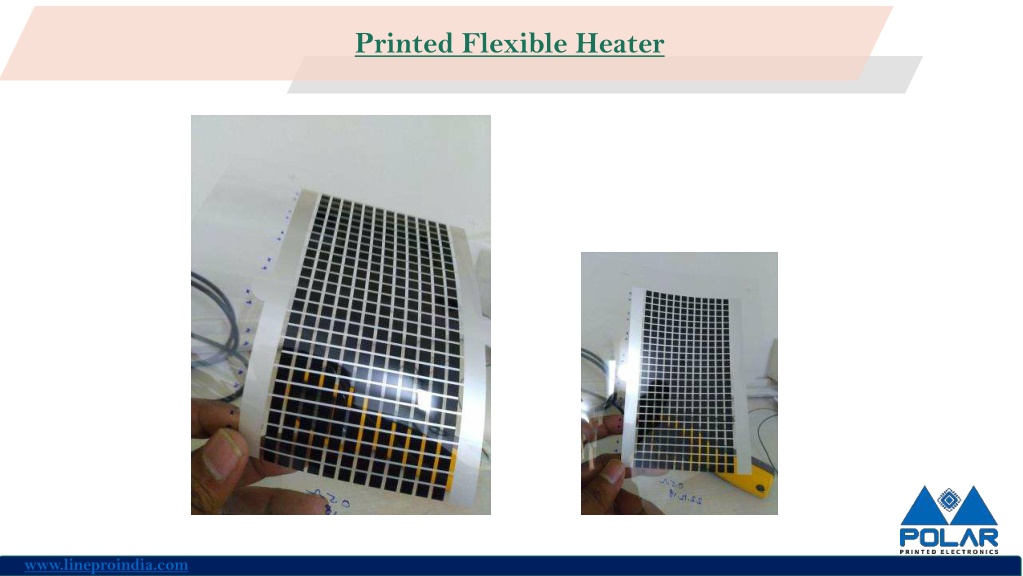

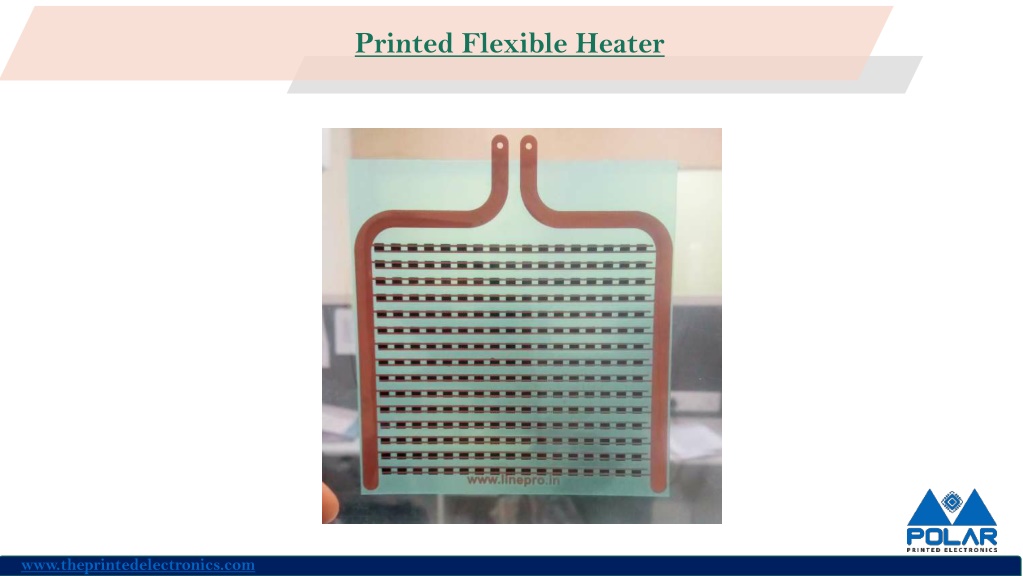

  8. Printed Flexible Heater Thermal Interfacing Polar’sPrinted Electronics technology enables us to use flexible substrates upon which heating traces are printed. • Printed heaters can be configured in different sizes depending upon climatic application, being able to blend with flat or curved surface. • Printed Flexible Heaters can be used to reach different temperature ranges based on their sizes and environmental conditions. • Application of Printed Heaters Muscle Heat Belts, Battery packs, Seat Warmers, Steering heaters, Windshield defoggers and deicing • Printed Flexible Heater www.theprintedelectronicscom

  9. Printed Flexible Heater www.lineproindia.com

  10. Printed Flexible Heater www.theprintedelectronics.com

  11. Printed Flexible Heater www.theprintedelectronics.com

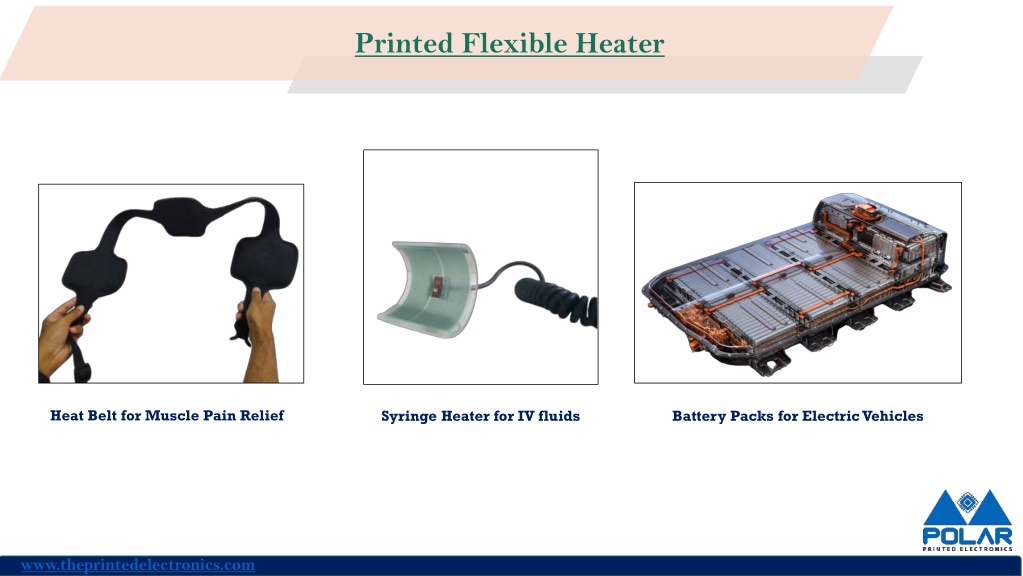

  12. Printed Flexible Heater Heat Belt for Muscle Pain Relief Syringe Heater for IV fluids Battery Packs for Electric Vehicles www.theprintedelectronics.com

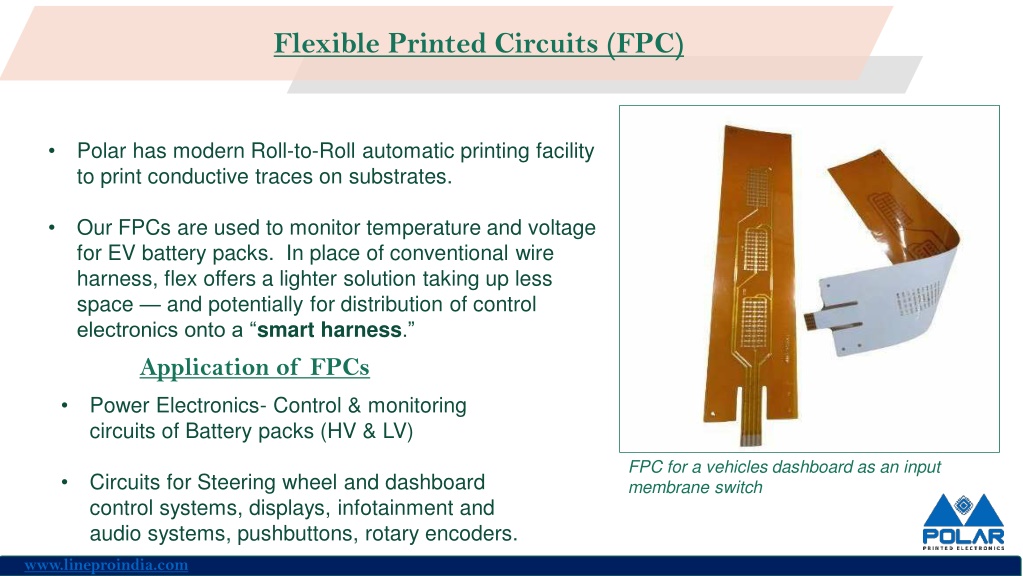

  13. Flexible Printed Circuits (FPC) Polar has modern Roll-to-Roll automatic printing facility to print conductive traces on substrates. • Our FPCs are used to monitor temperature and voltage for EV battery packs. In place of conventional wire harness, flex offers a lighter solution taking up less space — and potentially for distribution of control electronics onto a “smart harness.” Application of FPCs Power Electronics- Control & monitoring circuits of Battery packs (HV & LV) • • FPC for a vehicles dashboard as an input membrane switch Circuits for Steering wheel and dashboard control systems, displays, infotainment and audio systems, pushbuttons, rotary encoders. • www.lineproindia.com

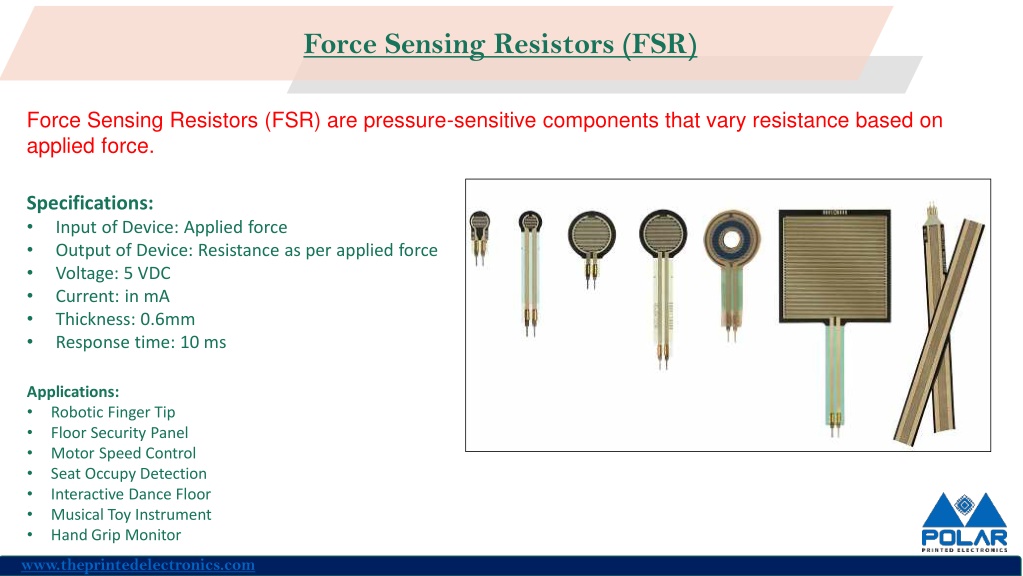

  14. Force Sensing Resistors (FSR) Force Sensing Resistors (FSR) are pressure-sensitive components that vary resistance based on applied force. Specifications: • Input of Device: Applied force • Output of Device: Resistance as per applied force • Voltage: 5 VDC • Current: in mA • Thickness: 0.6mm • Response time: 10 ms Applications: • Robotic Finger Tip • Floor Security Panel • Motor Speed Control • Seat Occupy Detection • Interactive Dance Floor • Musical Toy Instrument • Hand Grip Monitor www.theprintedelectronics.com

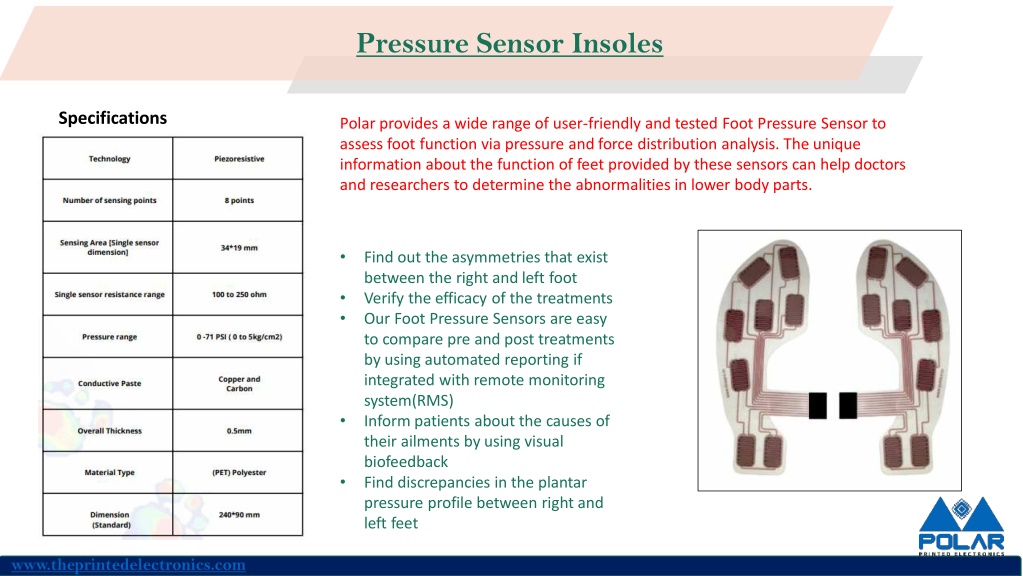

  15. Pressure Sensor Insoles Specifications Polar provides a wide range of user-friendly and tested Foot Pressure Sensor to assess foot function via pressure and force distribution analysis. The unique information about the function of feet provided by these sensors can help doctors and researchers to determine the abnormalities in lower body parts. • Find out the asymmetries that exist between the right and left foot Verify the efficacy of the treatments Our Foot Pressure Sensors are easy to compare pre and post treatments by using automated reporting if integrated with remote monitoring system(RMS) Inform patients about the causes of their ailments by using visual biofeedback Find discrepancies in the plantar pressure profile between right and left feet • • • • www.theprintedelectronics.com

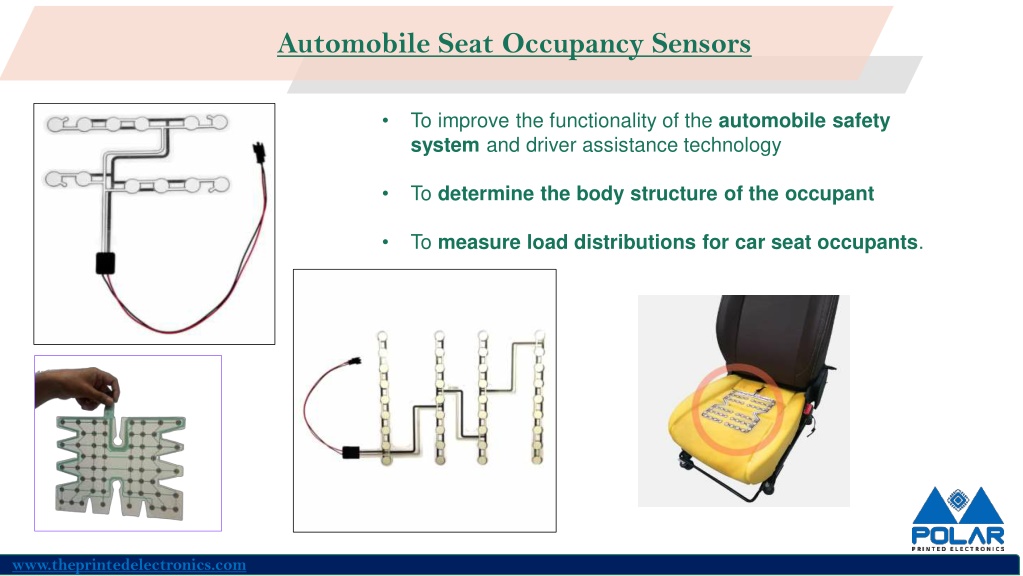

  16. Automobile Seat Occupancy Sensors To improve the functionality of the automobile safety system and driver assistance technology • To determine the body structure of the occupant • To measure load distributions for car seat occupants. • www.theprintedelectronics.com

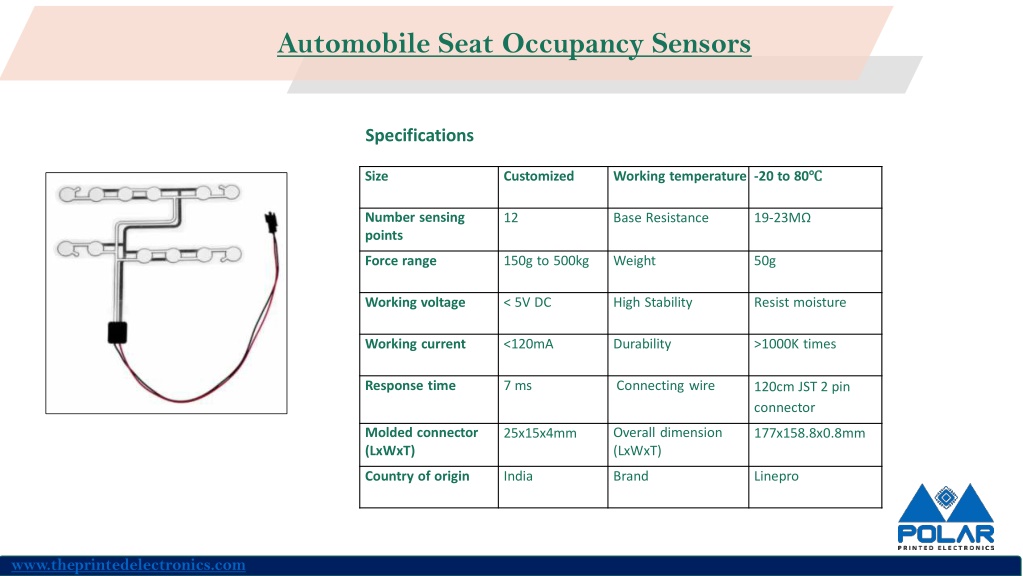

  17. Automobile Seat Occupancy Sensors Specifications Working temperature -20 to 80℃ ℃ Size Customized Number sensing points 12 Base Resistance 19-23MΩ Force range 150g to 500kg Weight 50g Working voltage < 5V DC High Stability Resist moisture Working current <120mA Durability >1000K times Response time 7 ms Connecting wire 120cm JST 2 pin connector Molded connector (LxWxT) Overall dimension (LxWxT) 25x15x4mm 177x158.8x0.8mm Country of origin India Brand Linepro www.theprintedelectronics.com

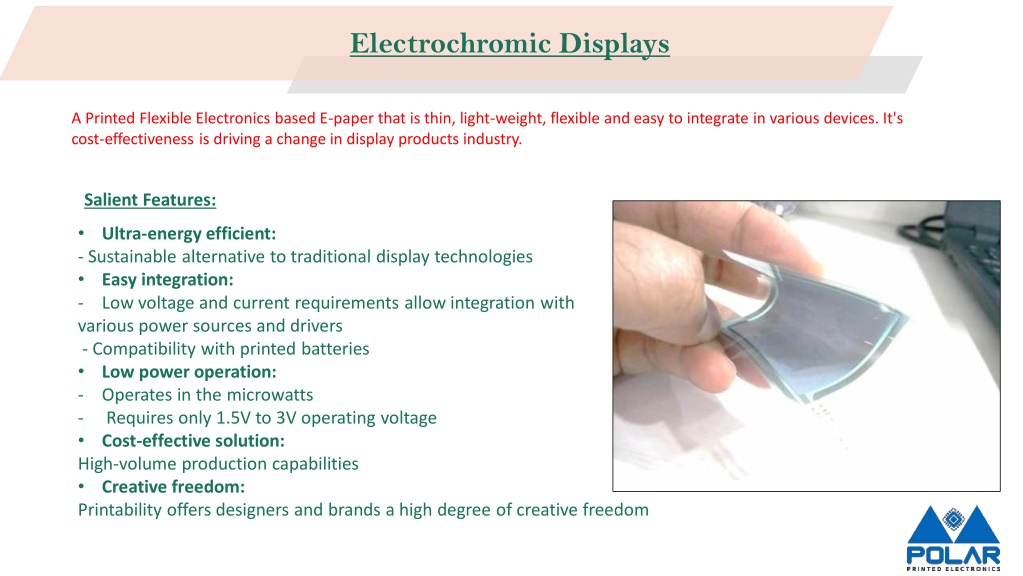

  18. Electrochromic Displays A Printed Flexible Electronics based E-paper that is thin, light-weight, flexible and easy to integrate in various devices. It's cost-effectiveness is driving a change in display products industry. Salient Features: • - Sustainable alternative to traditional display technologies • Easy integration: - Low voltage and current requirements allow integration with various power sources and drivers - Compatibility with printed batteries • Low power operation: - Operates in the microwatts - Requires only 1.5V to 3V operating voltage • Cost-effective solution: High-volume production capabilities • Creative freedom: Printability offers designers and brands a high degree of creative freedom Ultra-energy efficient:

  19. Biomedical Sensors Working Principle: • Glucometer strip electrodes are crucial components for blood glucose monitoring. They function by measuring the electrical conductivity of a blood sample. When a blood droplet is applied to the test strip, glucose reacts with an enzyme on the strip. This reaction generates an electrical current. The glucometer measures this current. The glucometer then converts the current reading into a blood glucose concentration. These electrodes ensure accurate and reliable blood glucose measurements, a critical feature of glucometer strips. • • • • • •

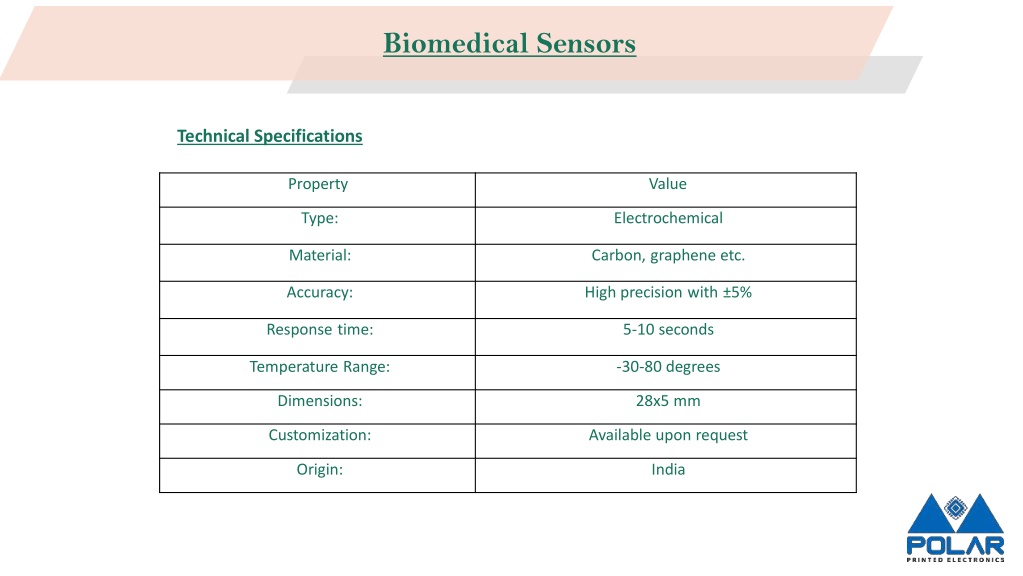

  20. Biomedical Sensors Technical Specifications Property Value Type: Electrochemical Material: Carbon, graphene etc. Accuracy: High precision with ±5% Response time: 5-10 seconds Temperature Range: -30-80 degrees Dimensions: 28x5 mm Customization: Available upon request Origin: India

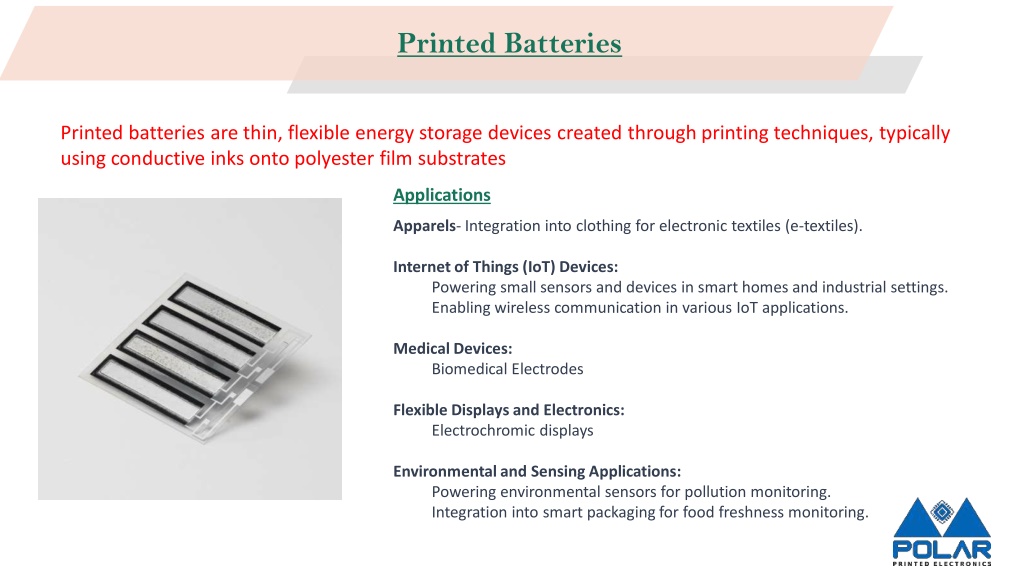

  21. Printed Batteries Printed batteries are thin, flexible energy storage devices created through printing techniques, typically using conductive inks onto polyester film substrates Applications Apparels- Integration into clothing for electronic textiles (e-textiles). Internet of Things (IoT) Devices: Powering small sensors and devices in smart homes and industrial settings. Enabling wireless communication in various IoT applications. Medical Devices: Biomedical Electrodes Flexible Displays and Electronics: Electrochromic displays Environmental and Sensing Applications: Powering environmental sensors for pollution monitoring. Integration into smart packaging for food freshness monitoring.

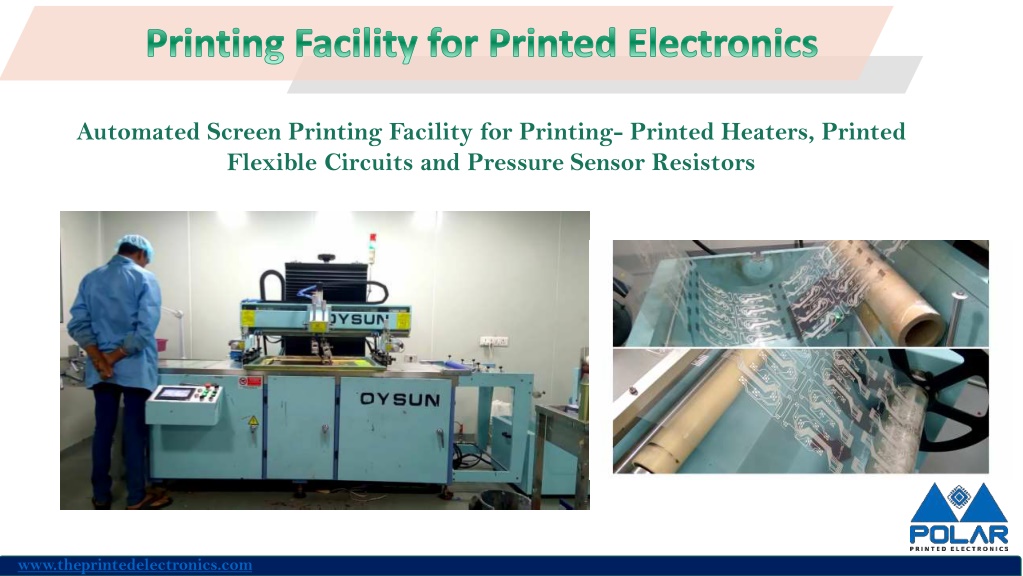

  22. Automated Screen Printing Facility for Printing- Printed Heaters, Printed Flexible Circuits and Pressure Sensor Resistors www.theprintedelectronics.com

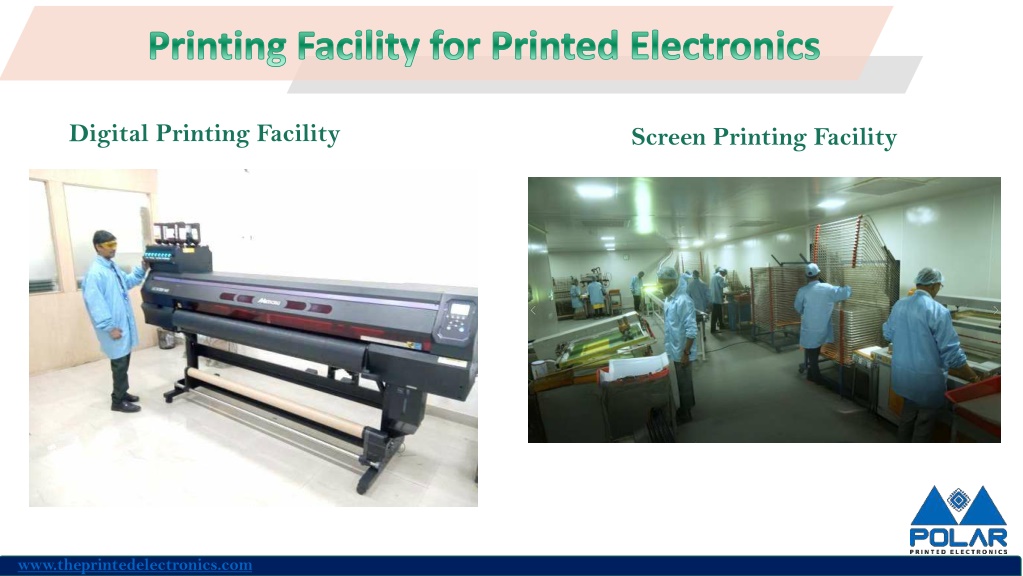

  23. Digital Printing Facility Screen Printing Facility www.theprintedelectronics.com

  24. www.theprintedelectronics.com

  25. www.theprintedelectronics.com

  26. www.theprintedelectronics.com

  27. www.theprintedelectronics.com

  28. Core Purpose To provide next generation innovative solution that make people more resourceful CoreValues • Innovative Idea & Solutions • Quest for information • Deliver Excellence • Human Respect • Teamwork An ISO Certified Organization 9001:2008

  29. Leaders in Innovations in Printed Electronics  Products  Research  Consulting Head Office & Factory: MUMBAI : Phone: +91-9320460555 / 9321086044 / 7030930699 Email: sales@lineproindia.com Add: B4, Parasnath Industrial Complex, Valpada, Bhiwandi , Mumbai -421302 , India.  New York, US  Germany www.theprintedelectronics.com
