  1. Train Scheduling Using Hardware Scheduling Methods Peter Lieber ECEn 625 2 December 2009

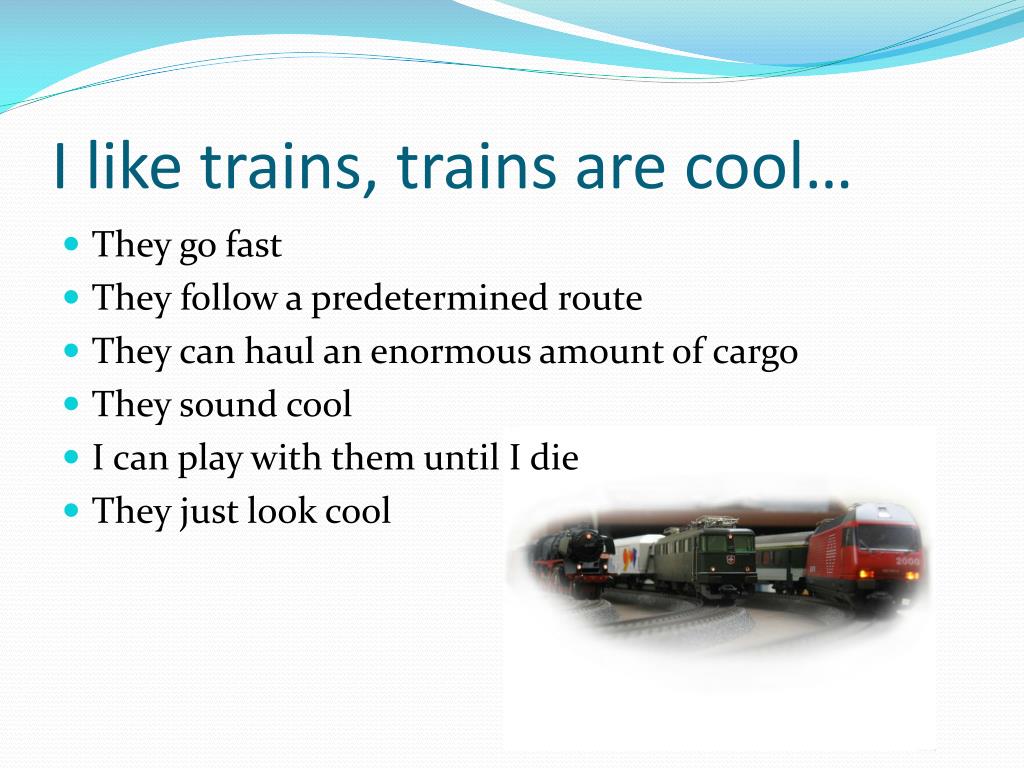

  2. I like trains, trains are cool… • They go fast • They follow a predetermined route • They can haul an enormous amount of cargo • They sound cool • I can play with them until I die • They just look cool

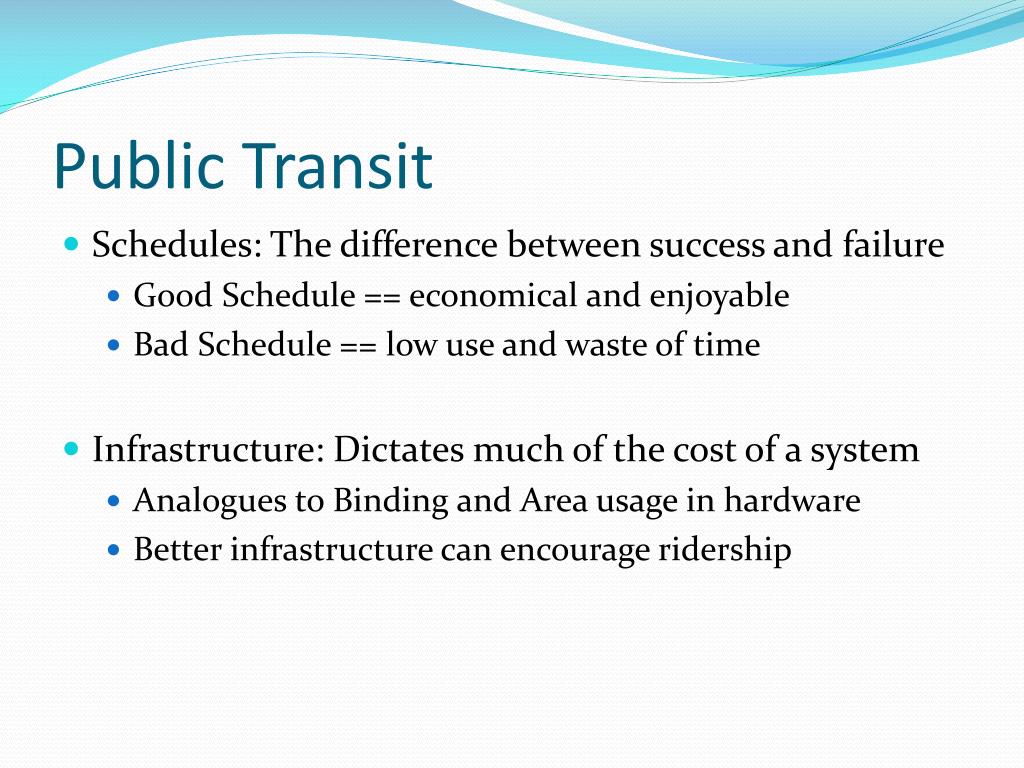

  3. Public Transit • Schedules: The difference between success and failure • Good Schedule == economical and enjoyable • Bad Schedule == low use and waste of time • Infrastructure: Dictates much of the cost of a system • Analogues to Binding and Area usage in hardware • Better infrastructure can encourage ridership

  4. Public Transit Good Bad

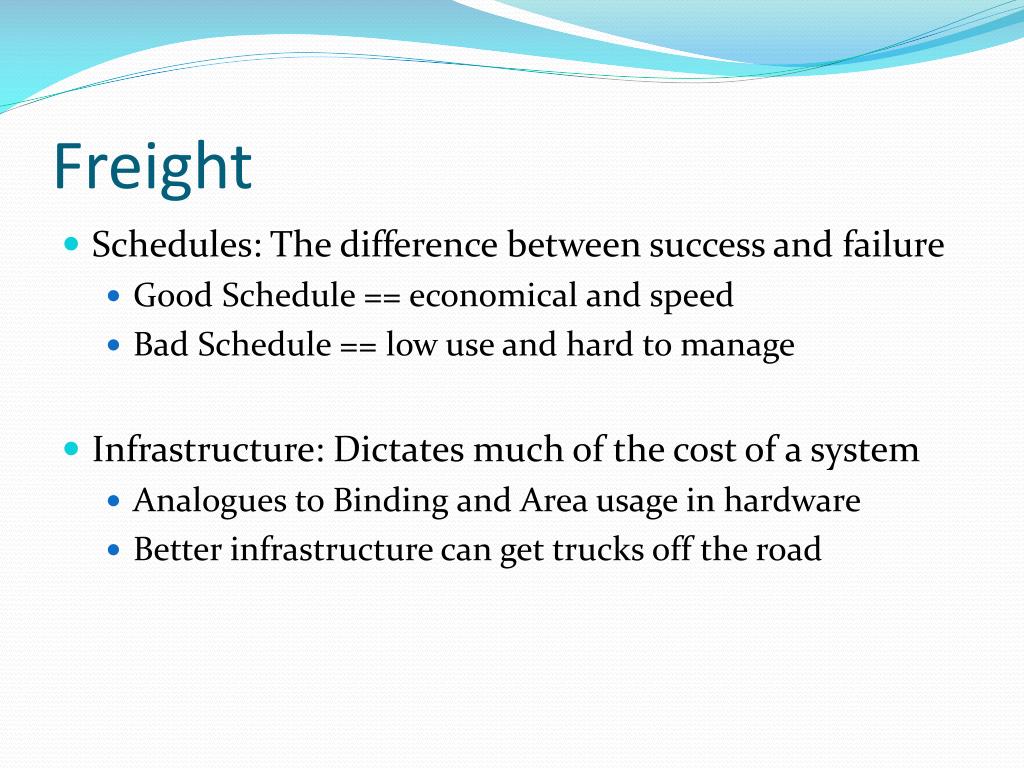

  5. Freight • Schedules: The difference between success and failure • Good Schedule == economical and speed • Bad Schedule == low use and hard to manage • Infrastructure: Dictates much of the cost of a system • Analogues to Binding and Area usage in hardware • Better infrastructure can get trucks off the road

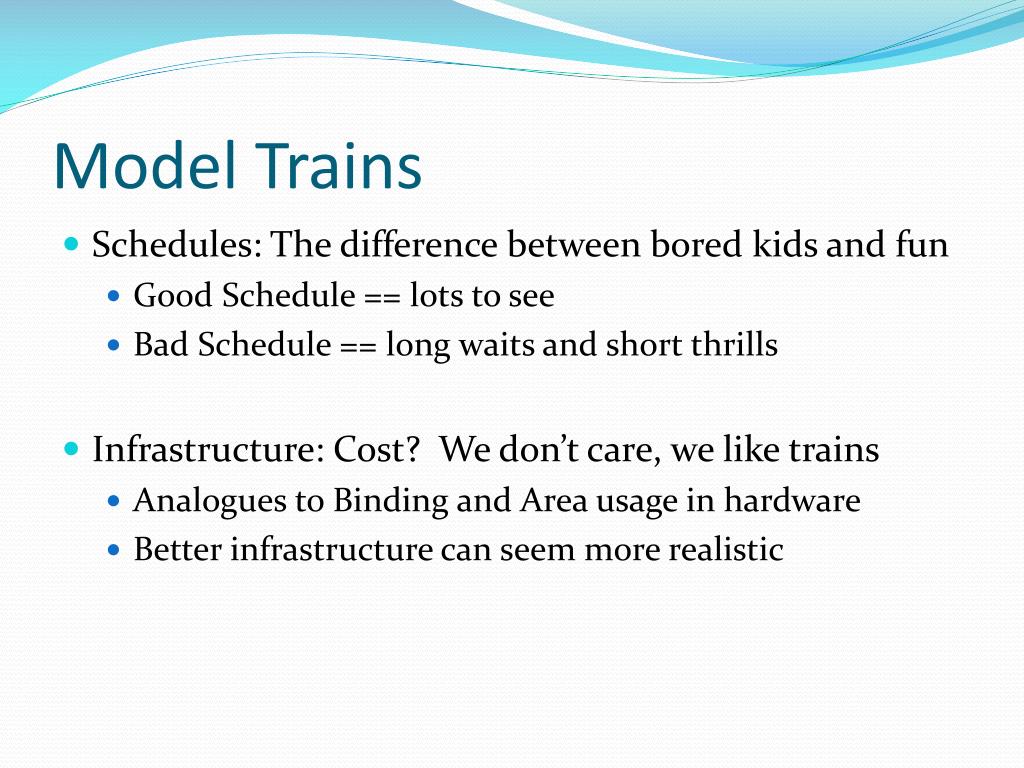

  6. Model Trains • Schedules: The difference between bored kids and fun • Good Schedule == lots to see • Bad Schedule == long waits and short thrills • Infrastructure: Cost? We don’t care, we like trains • Analogues to Binding and Area usage in hardware • Better infrastructure can seem more realistic

  7. Model Trains Good Bad

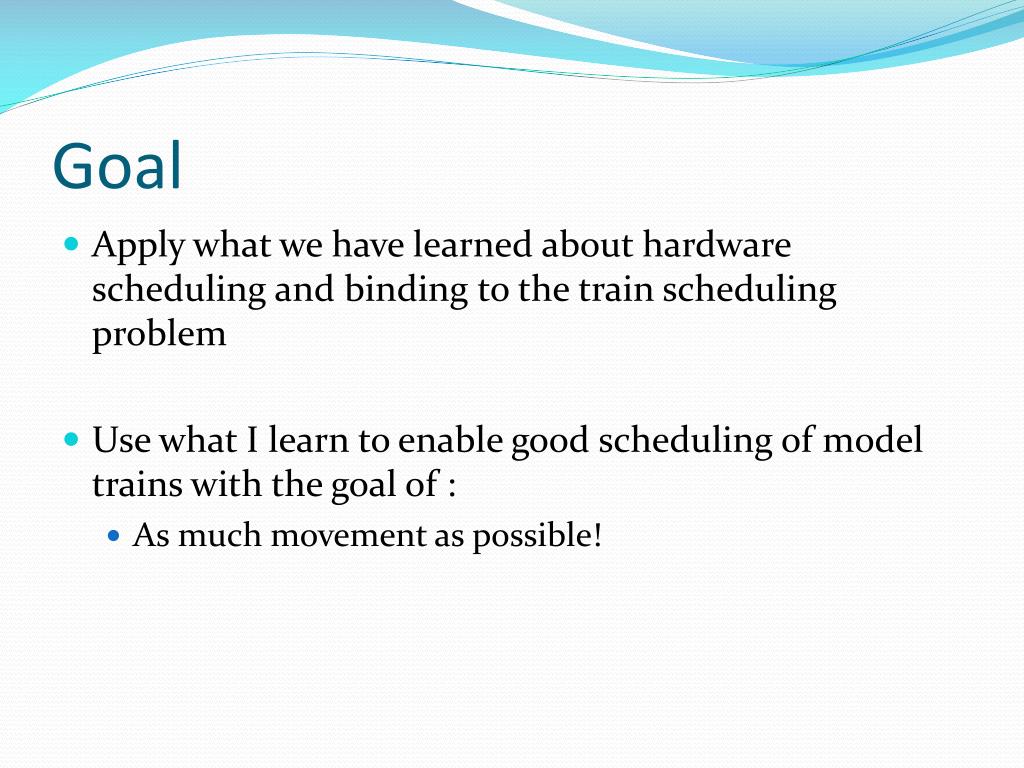

  8. Goal • Apply what we have learned about hardware scheduling and binding to the train scheduling problem • Use what I learn to enable good scheduling of model trains with the goal of : • As much movement as possible!

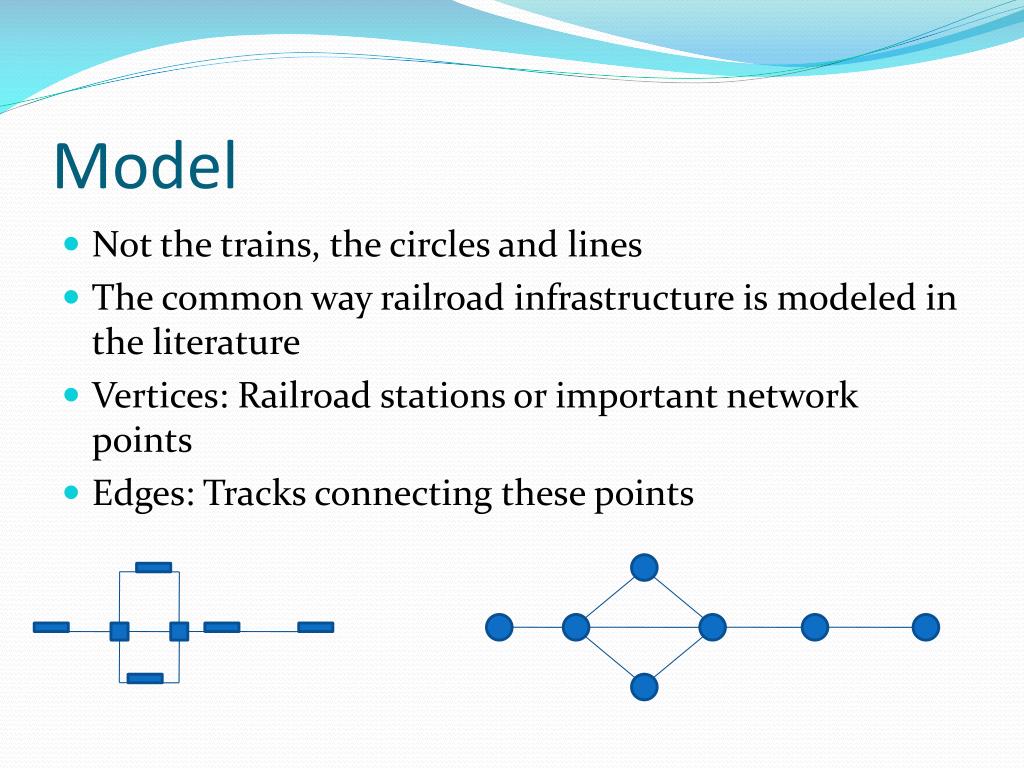

  9. Model • Not the trains, the circles and lines • The common way railroad infrastructure is modeled in the literature • Vertices: Railroad stations or important network points • Edges: Tracks connecting these points

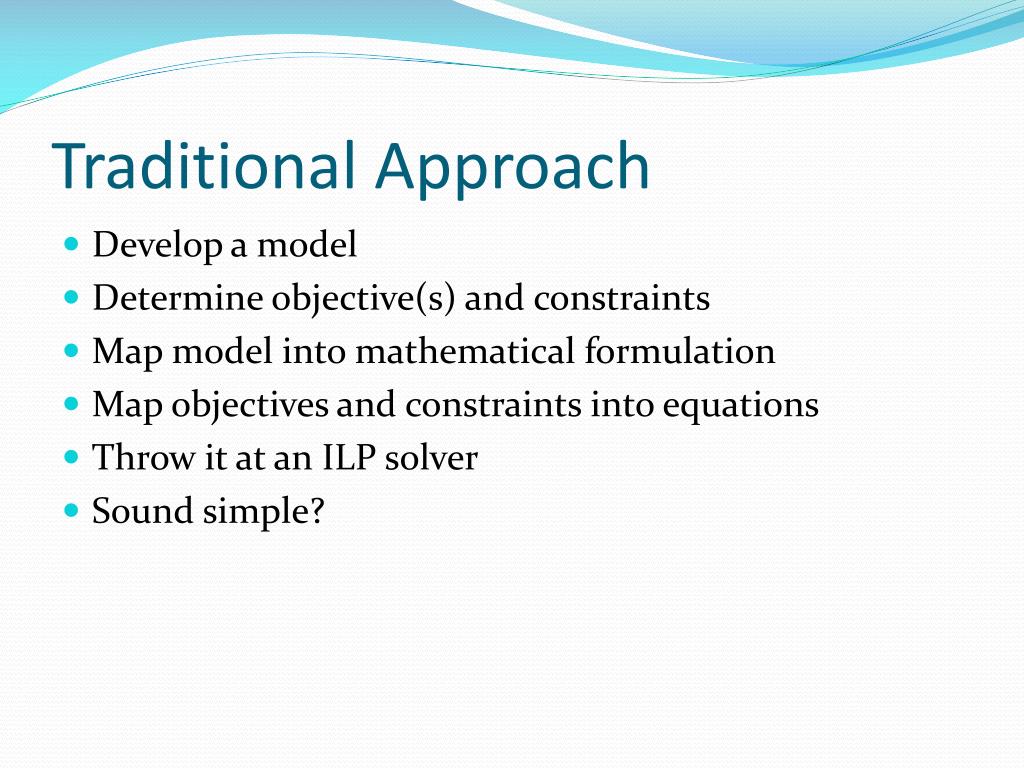

  10. Traditional Approach • Develop a model • Determine objective(s) and constraints • Map model into mathematical formulation • Map objectives and constraints into equations • Throw it at an ILP solver • Sound simple?

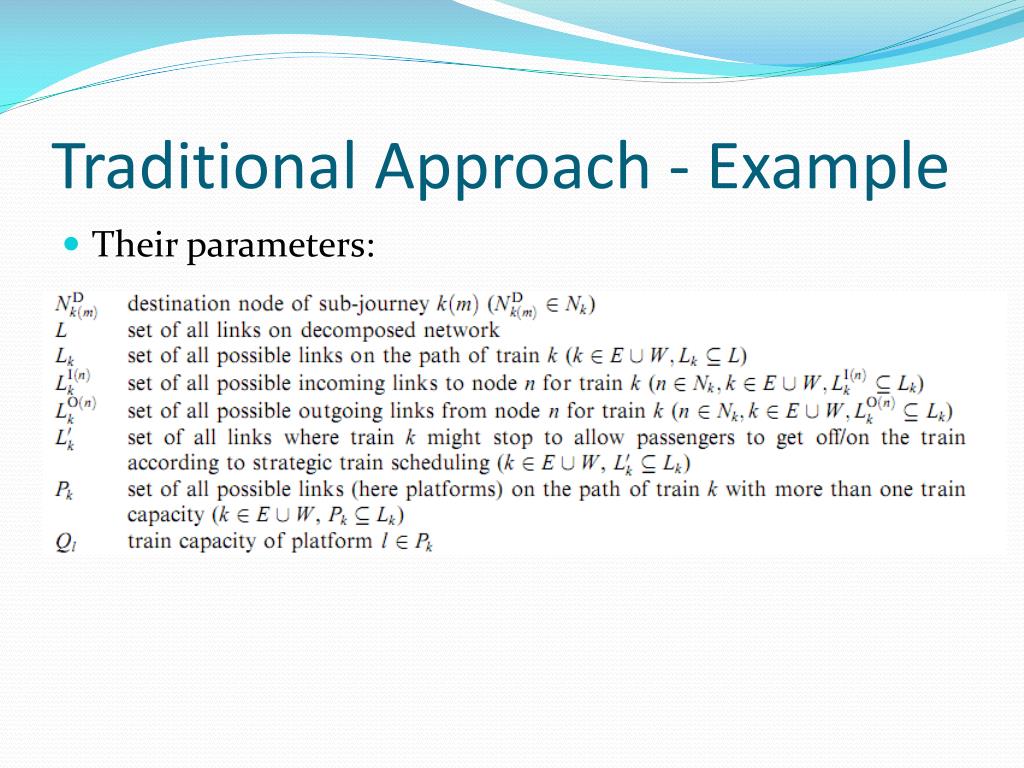

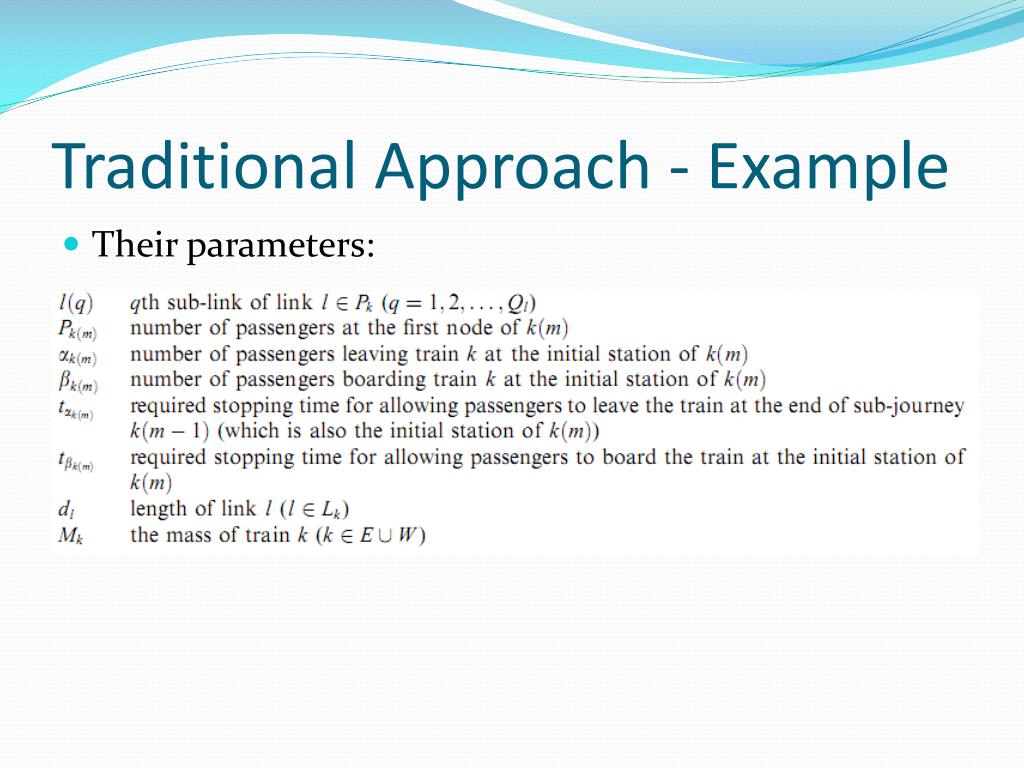

  11. Traditional Approach - Example • Their parameters:

  12. Traditional Approach - Example • Their parameters:

  13. Traditional Approach - Example • Their parameters:

  14. Traditional Approach - Example • Their parameters:

  15. Traditional Approach - Example • Their decision variables:

  16. Traditional Approach - Example • Their decision variables:

  17. Traditional Approach - Example • Their Objective Equations: • Fuel Consumption Cost

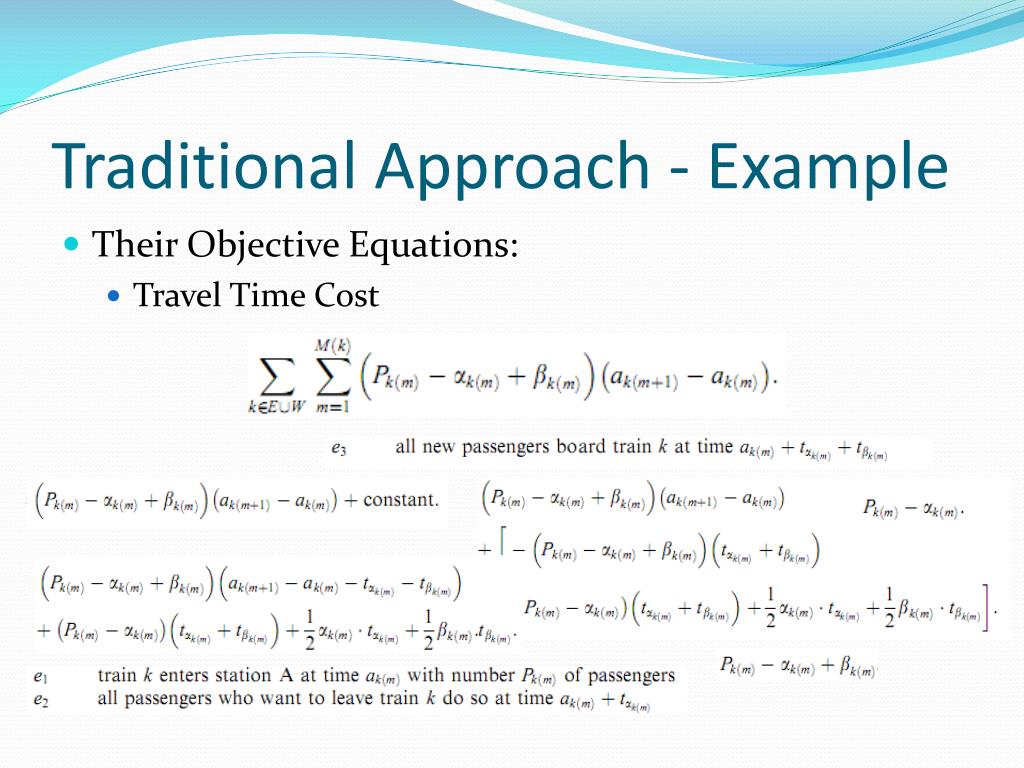

  18. Traditional Approach - Example • Their Objective Equations: • Travel Time Cost

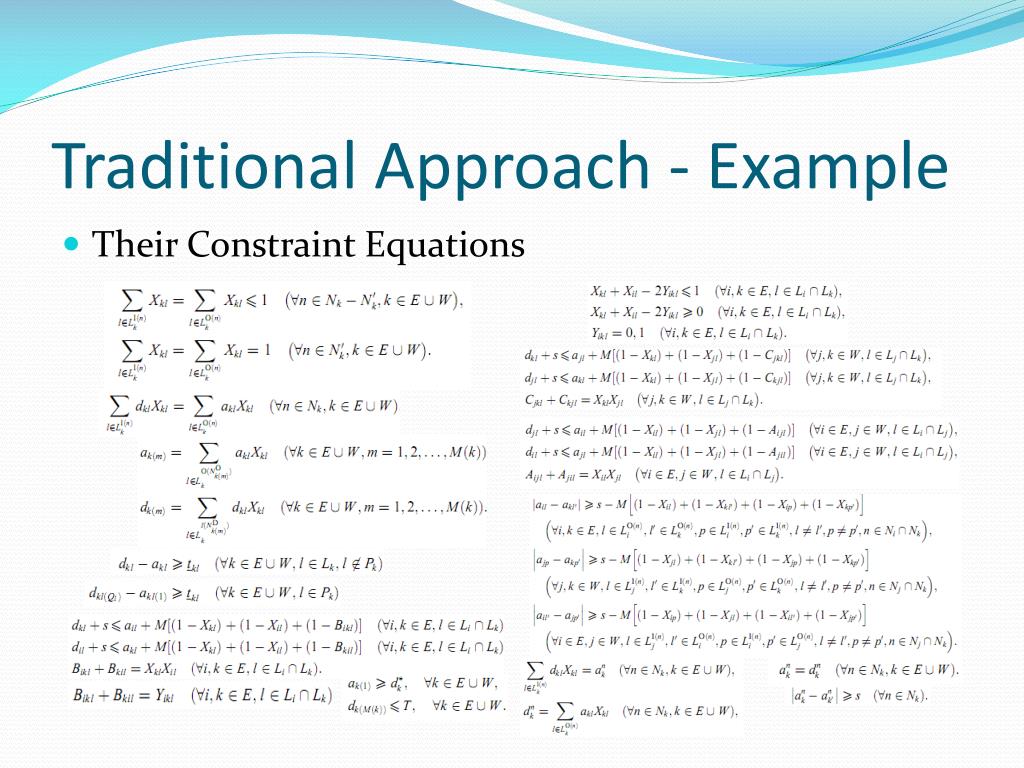

  19. Traditional Approach - Example • Their Constraint Equations

  20. Traditional Approach - Example • Their Constraint Equations

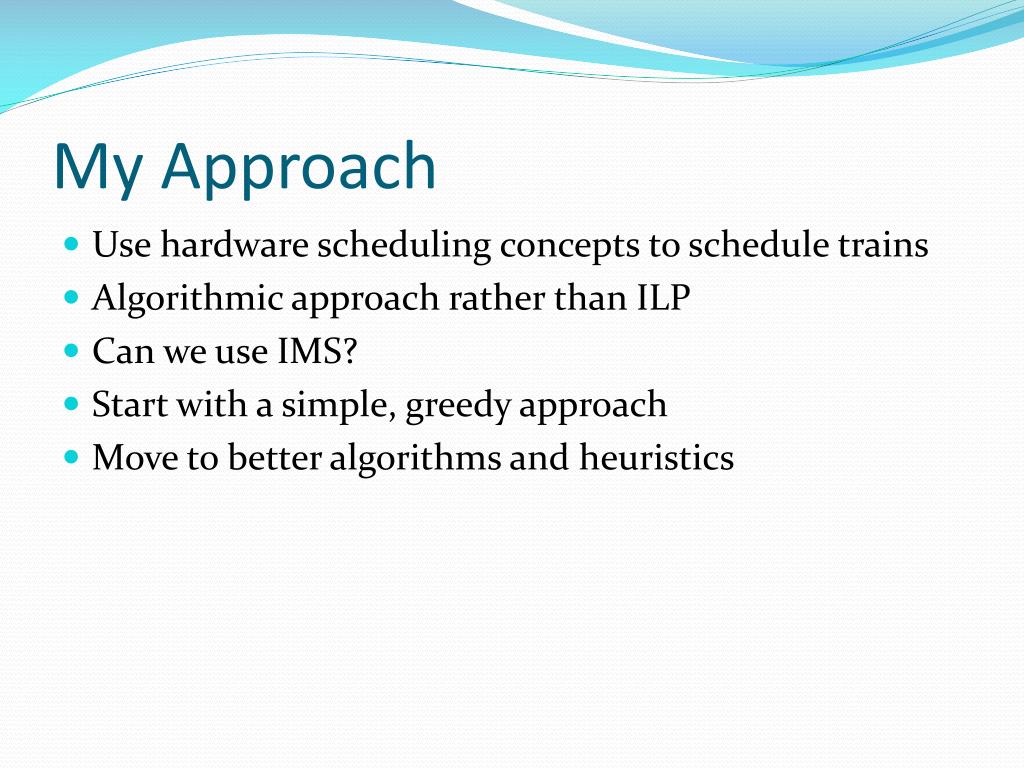

  21. My Approach • Use hardware scheduling concepts to schedule trains • Algorithmic approach rather than ILP • Can we use IMS? • Start with a simple, greedy approach • Move to better algorithms and heuristics

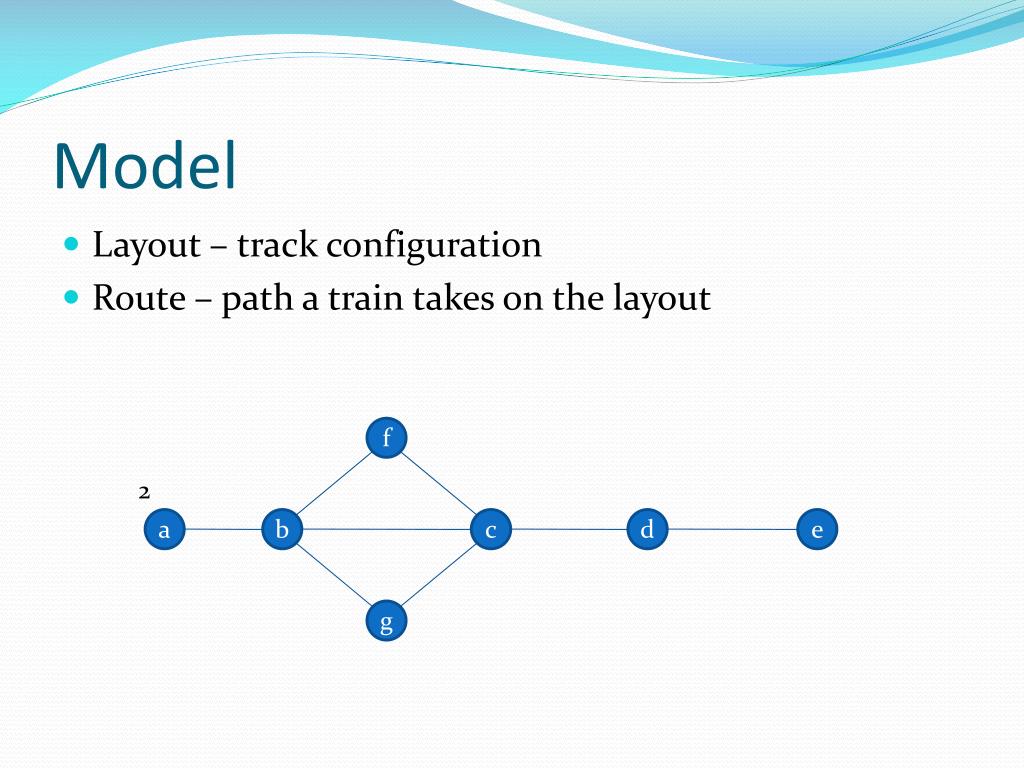

  22. Model • Layout – track configuration • Route – path a train takes on the layout 2 f a b c d e g

  23. Model Route 1: A B C D E D C B Route 2: A B F C G B Route 3: E D C F B G C D Route 4: B F C G B F C G 2 f a b c d e g

  24. Naïve Greedy Algorithm foreach route { t = 0 while route is not done { if step s of route at time t is not occupied schedule the route's next step at time t t++ else wait at time t (stall) t++ } }

  25. Naïve Greedy – Results 2 f a b c d e g

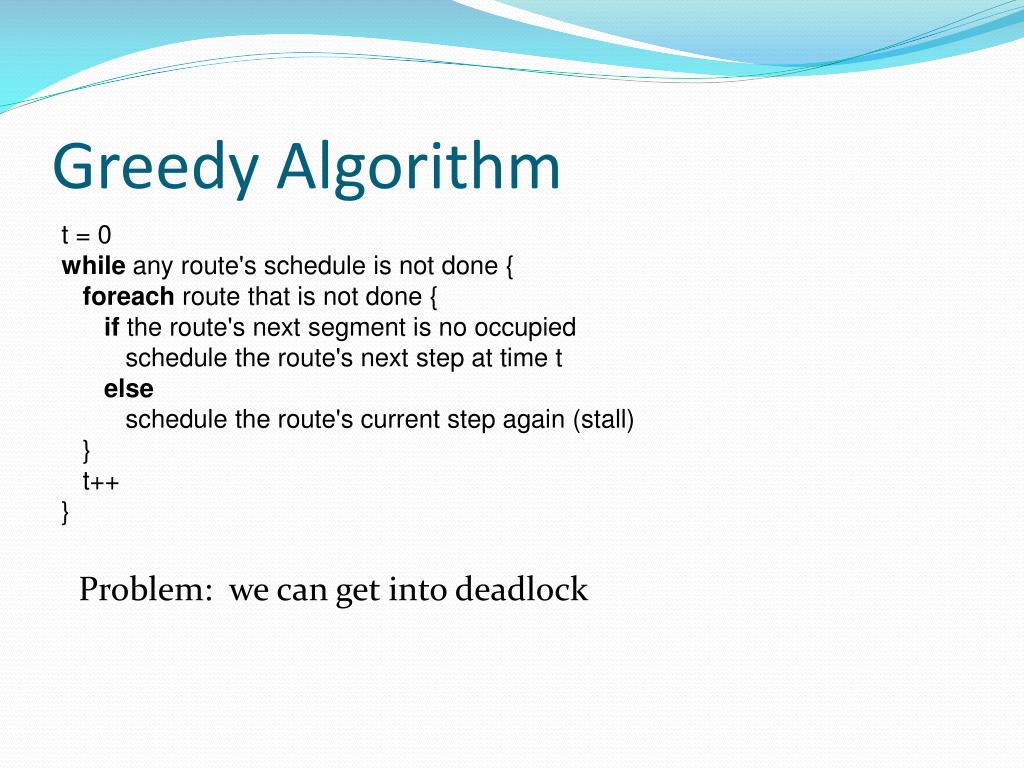

  26. Greedy Algorithm t = 0 while any route's schedule is not done { foreach route that is not done { if the route's next segment is no occupied schedule the route's next step at time t else schedule the route's current step again (stall) } t++ } Problem: we can get into deadlock

  27. Backtracking Greedy Algorithm t = 0 while any route’s schedule is not done { … if all routes stalled { unschedule stalled steps force the first route to schedule next step foreach other route { if the route's next segment is no occupied schedule the route's next step at time t else if the route's current segment is overfull increase capacity of the next segment schedule the route's next step at time t else schedule the route's current step again (stall) } } … }

  28. Backtracking Greedy Algorithm 2 f 2 2 a b c d e g

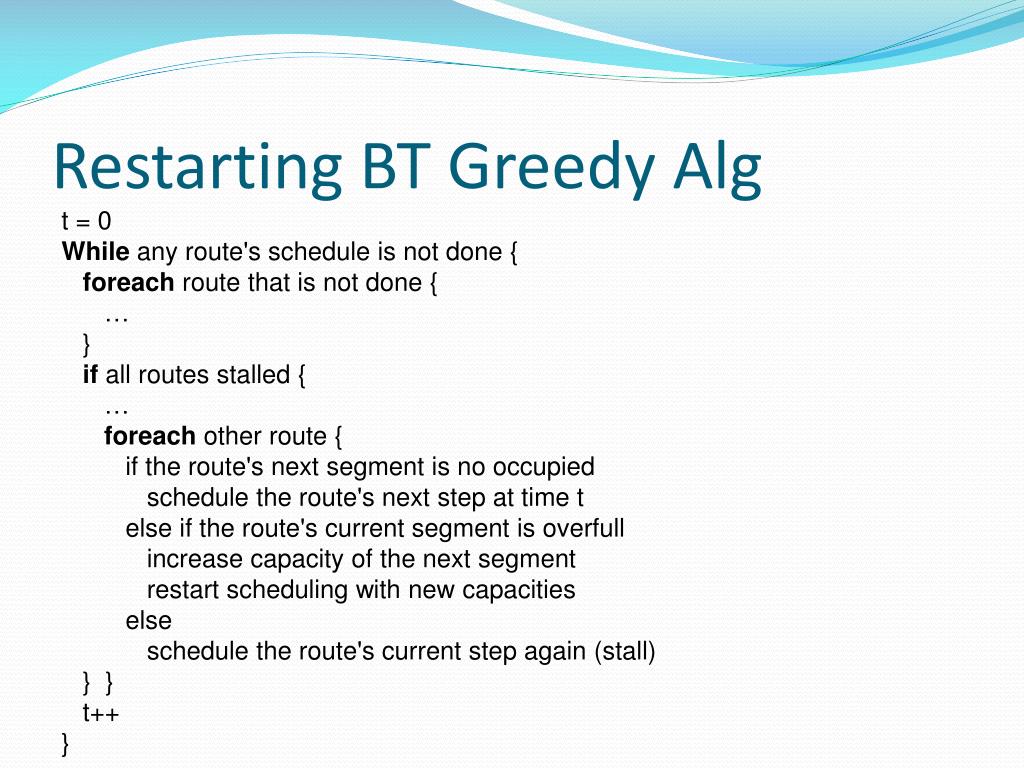

  29. Restarting BT Greedy Alg t = 0 While any route's schedule is not done { foreach route that is not done { … } if all routes stalled { … foreach other route { if the route's next segment is no occupied schedule the route's next step at time t else if the route's current segment is overfull increase capacity of the next segment restart scheduling with new capacities else schedule the route's current step again (stall) } } t++ }

  30. Restarting BT Greedy Alg 2 f 2 2 a b c d e g

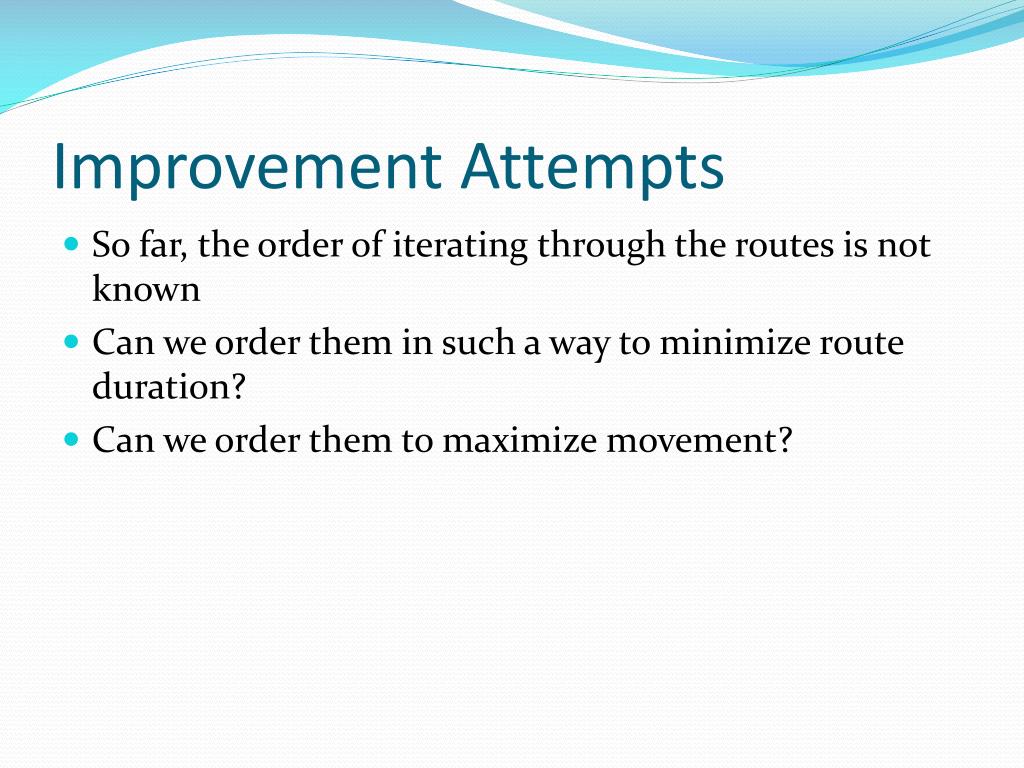

  31. Improvement Attempts • So far, the order of iterating through the routes is not known • Can we order them in such a way to minimize route duration? • Can we order them to maximize movement?

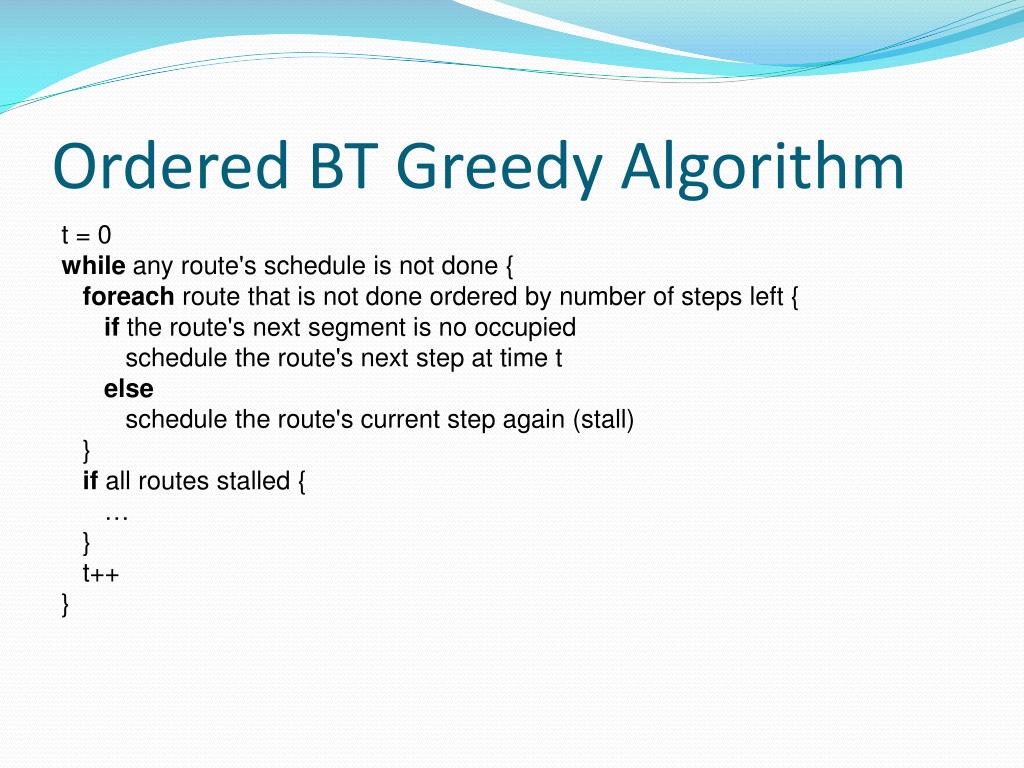

  32. Ordered BT Greedy Algorithm t = 0 while any route's schedule is not done { foreach route that is not done ordered by number of steps left { if the route's next segment is no occupied schedule the route's next step at time t else schedule the route's current step again (stall) } if all routes stalled { … } t++ }

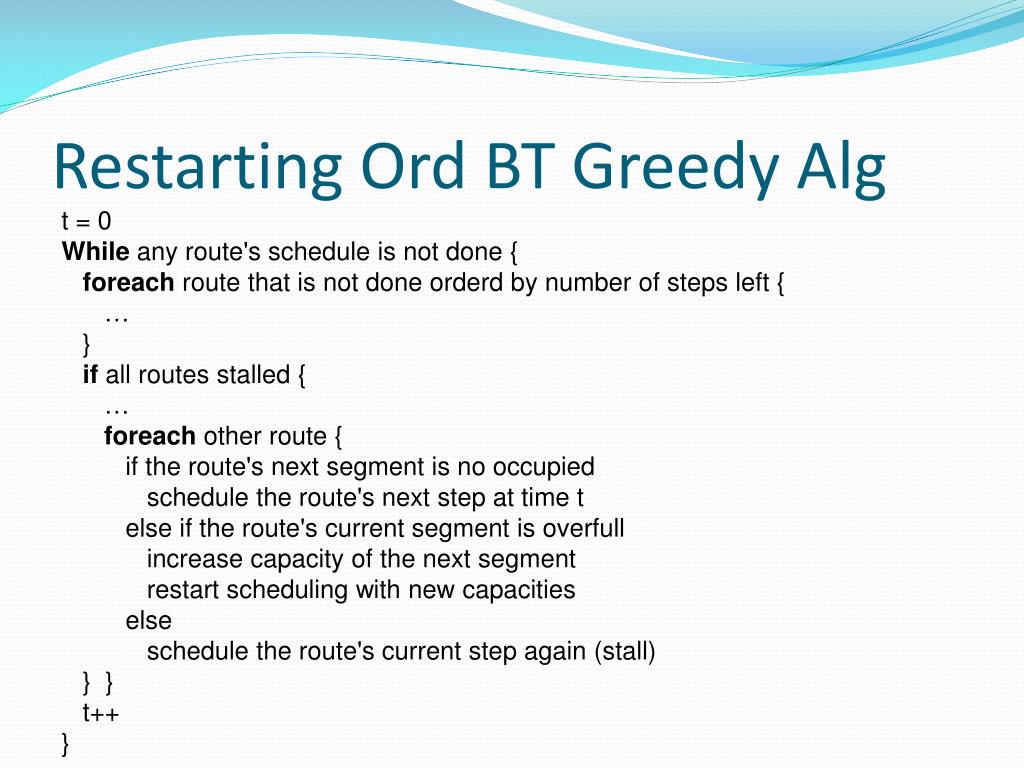

  33. Restarting Ord BT Greedy Alg t = 0 While any route's schedule is not done { foreach route that is not done orderd by number of steps left { … } if all routes stalled { … foreach other route { if the route's next segment is no occupied schedule the route's next step at time t else if the route's current segment is overfull increase capacity of the next segment restart scheduling with new capacities else schedule the route's current step again (stall) } } t++ }

  34. Challenges • Find the right heuristic for route order • Next step is to be less greedy • Big difference from what we are used to: • while an operation of a DG cannot be executed, we usually dont think of it as taking any resources. Under this model, however, the train actually is still using the previous resource. • A TRAIN CANNOT BE NOWHERE!!!

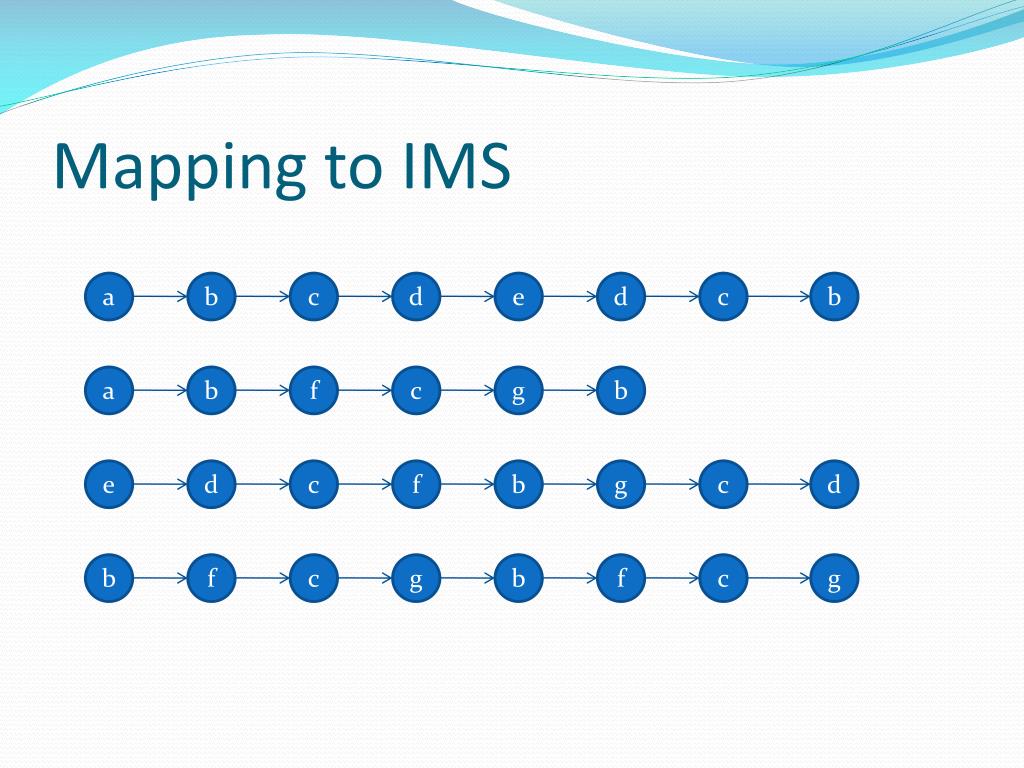

  35. Mapping to IMS • Not only are we resource-constrained, the DGs (routes) are bound already. • The DG is ALL routes combined into one, unconnected, graph • Each station in the layout is a resource type • After running IMS, the required number of each resource is the minimum capacity for that station

  36. Mapping to IMS a b c d e d c b a b f c g b e d c f b g c d b f c g b f c g
