Respiratory System

Explore the organs and processes of the respiratory system, from filtration to gas exchange. Discover how breathing works and the importance of respiratory control. Learn about common respiratory conditions and their impact on health.

thanh
Download Presentation

Respiratory System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

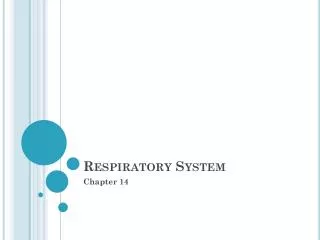

  1. Respiratory System Chapter 14

  2. Respiratory System • Filters, warms, and humidifies the air we breathe • Helps make speech and sound possible and helps with the sense of smell

  3. Structure • Organs include: nose, pharynx, larynx, trachea, bronchi, and lungs • Alveoli • thin-walled sacs in the lungs where the exchange of oxygen and carbon dioxide takes place

  4. Respiratory Tracts Upper Respiratory Lower Respiratory • Nose • Pharynx • Larynx • “head cold” • Trachea • bronchial tree • The lungs • “chest cold”

  5. Respiratory Mucosa • covered with mucus and lines the tubes of the respiratory tree • mucus serves as an air purifier • more than 125mL of mucus is produced daily • cilia only beat in one direction – up • “smokers cough”

  6. Nose

  7. Nose Nasal Cavity Cilia Mucus Nostrils

  8. The Pharynx

  9. The Trachea and The Larynx

  10. The Egpiglottis

  11. The Bronchi

  12. The Bronchioles and Alveoli

  13. Lungs and Pleura

  14. Respiration • Exchange of gases (oxygen and carbon dioxide) • Pulmonary ventilation • the process that moves air into and out of the lungs • External respiration • exchange of gases between the air in the lungs and the blood • Internal respiration • exchange of gases between the blood and cells of the body

  15. Mechanics of Breathing Inspiration • Moves air into the lungs • lungs expand and air rushes into them and down into the alveoli • The diaphragm contracts and flattens • reducing the air pressure in the lungs • drawing air into the lungs

  16. Mechanics of Breathing Expiration • Air moves out of the lungs • The diaphragm relaxes and moves back up • increasing the air pressure in the lungs • pushing air out of the lungs

  17. Volumes of Air Exchanged in Pulmonary Ventilation • Tidal volume – normal volume of air into and out of the lungs(about 500mL) • Vital capacity – the largest amount of air that we breathe out in one expiration(about 4800 mL)

  18. Volumes of Air Exchanged in Pulmonary Ventilation • Expiratory reserve volume • the amount of air that can be forcibly exhaled after expiring the tidal volume • Inspiratory reserve volume • the amount of air that can be forcibly inspired over and above normal inspiration • Residual volume • the air that remains in the lungs after the most forceful expiration

  19. Regulation of Respiration • Respiratory control centers in the medulla and pons of the brainstem • Cerebral cortex can influence respiration by modifying the rate at which neurons fire in the inspiratory and expiratory centers of the medulla – voluntarily speed up or slow down the breathing rate • Chemoreceptors and Pulmonary stretch receptors may also influence respiration

  20. Types of Breathing • Eupnea – normal breathing • Hyper or Hypoventilation • Dyspnea – labored or difficult breathing • Apnea – breathing stops for a brief period • can result in respiratory arrest
