Presentation Transcript

  1. Bell Ringer • Take out homework packet (the landscape one with 20 lewis structures) • What elements will form double or triple bonds? (5 elements)

  2. Bell Ringer

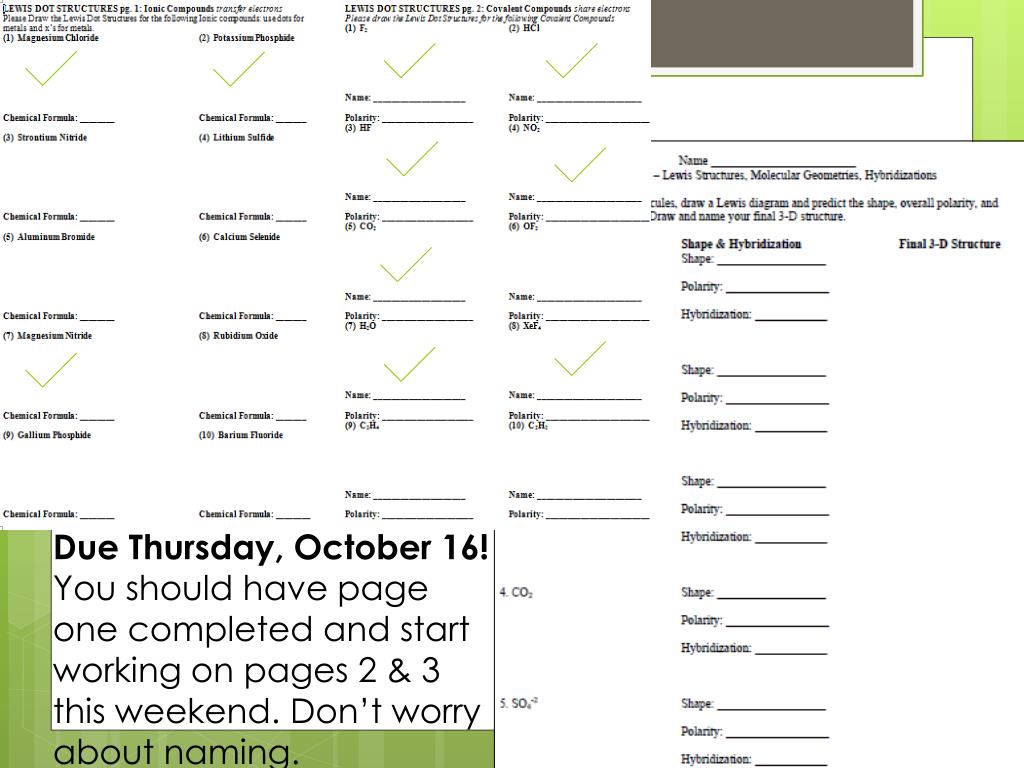

  3. Due Thursday, October 16! You should have page one completed and start working on pages 2 & 3 this weekend. Don’t worry about naming.

  4. We have textbooks!  • Modern Chemistry • My.hrw.com • How to log in: Login: Student’s g.risd.org email (initials + student ID @g.risd.org) Password: Risd-last three #’s of ID (note the capitalized letter) Example: Juan C. Ramirez Gonzales with an ID of 123456 Login: jr123456@g.risd.org Password: Risd-456

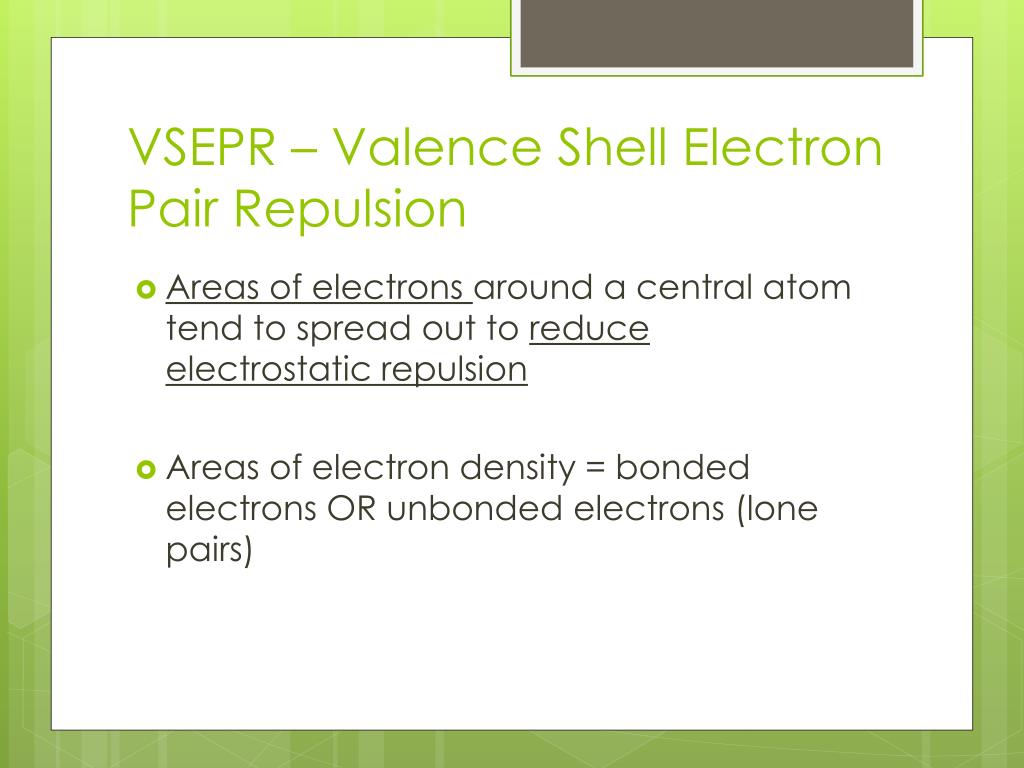

  5. VSEPR – Valence Shell Electron Pair Repulsion • Areas of electrons around a central atom tend to spread out to reduce electrostatic repulsion • Areas of electron density = bonded electrons OR unbonded electrons (lone pairs)

  6. VSEPR THEORY

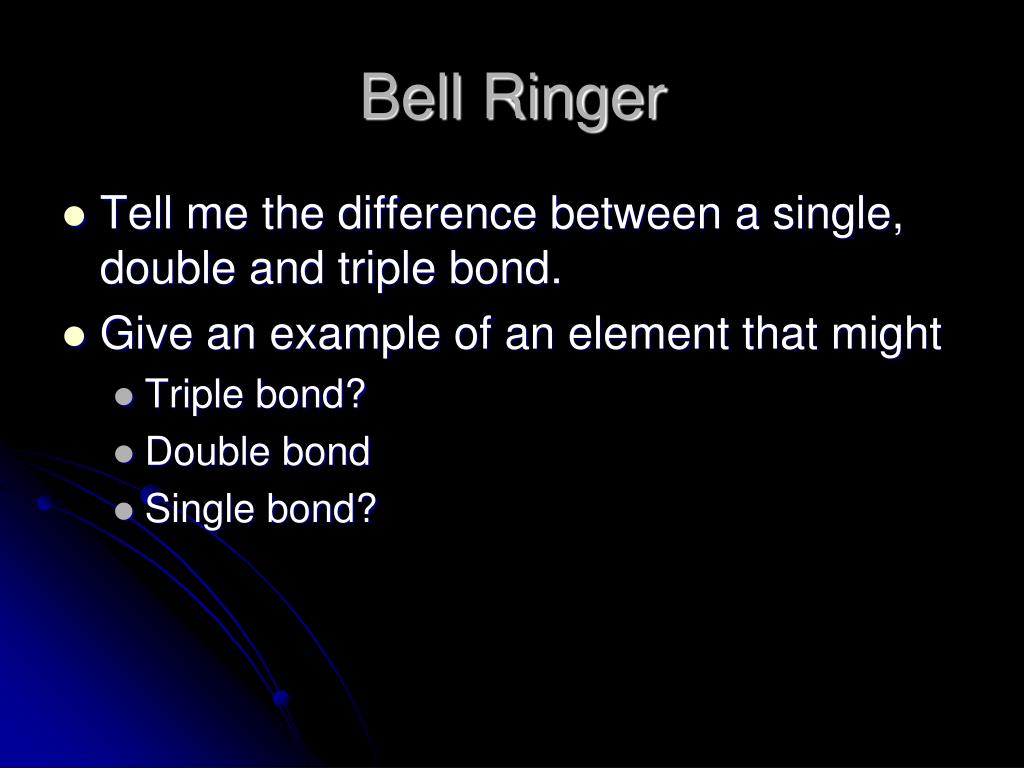

  7. Bell Ringer • Tell me the difference between a single, double and triple bond. • Give an example of an element that might • Triple bond? • Double bond • Single bond?

  8. VSEPR theory states electrons pairs shared (in bonds) or unshared (lone pair) will adopt a geometry that maximizes the distance between the bonds or lone pairs. • lone pairs and bonds will be referred to as regions of high electron density • double and triple bonds will count only as 1 region of high electron density

  9. The geometry or shape around the central atom will depend upon: • The number of bonding electron pairs or shared pairs (multiple bonds count as a single shared pair) on the central atom • The number of non-bonding pairs or unshared pairs found on the central atom (lone pair)

  10. Polar vs Nonpolar • Polar compounds are asymmetrical and end up with areas with partial charges. This can be due to: • 1. lone pairs on the central atom • 2. different terminal atoms • 3. different types of bonds (one single bond and one triple bond) • Nonpolar compounds are symmetrical with their charges evenly distributed.

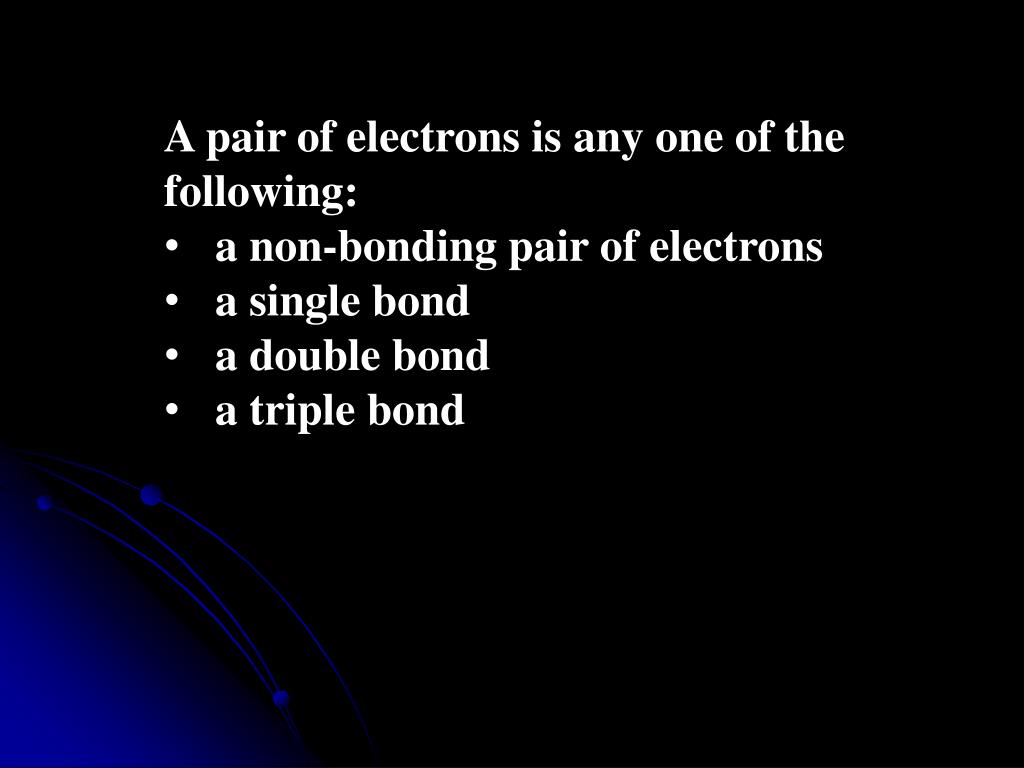

  11. A pair of electrons is any one of the following: • a non-bonding pair of electrons • a single bond • a double bond • a triple bond

  12. AX6 OCTAHEDRAL

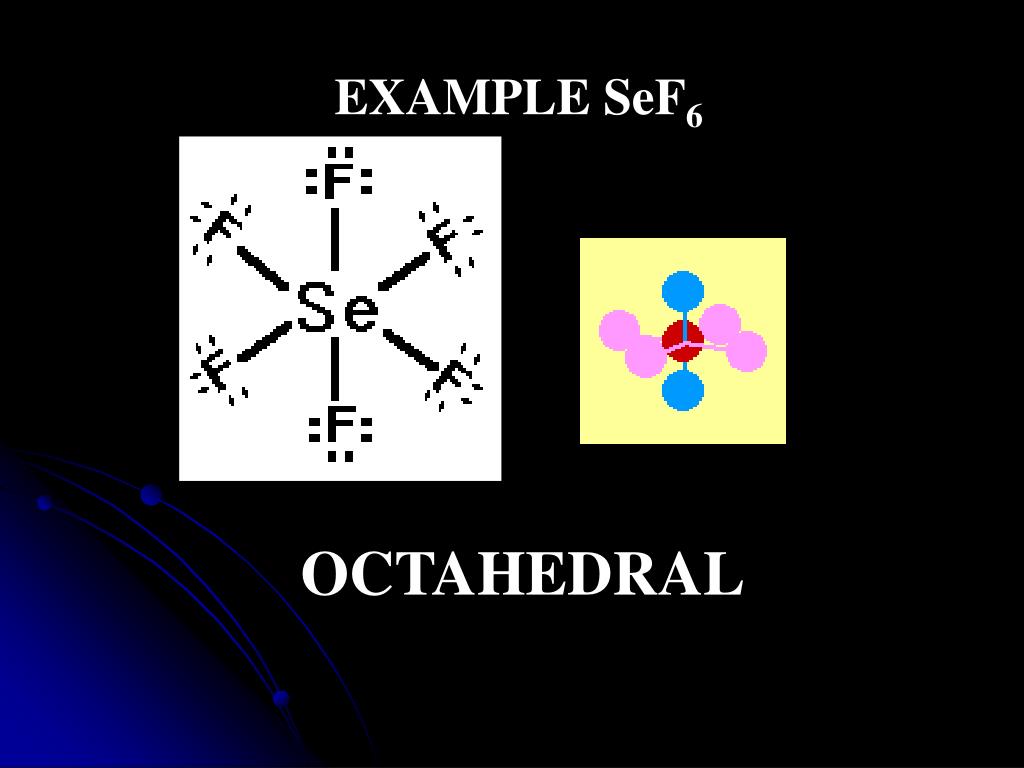

  13. EXAMPLE SeF6 OCTAHEDRAL

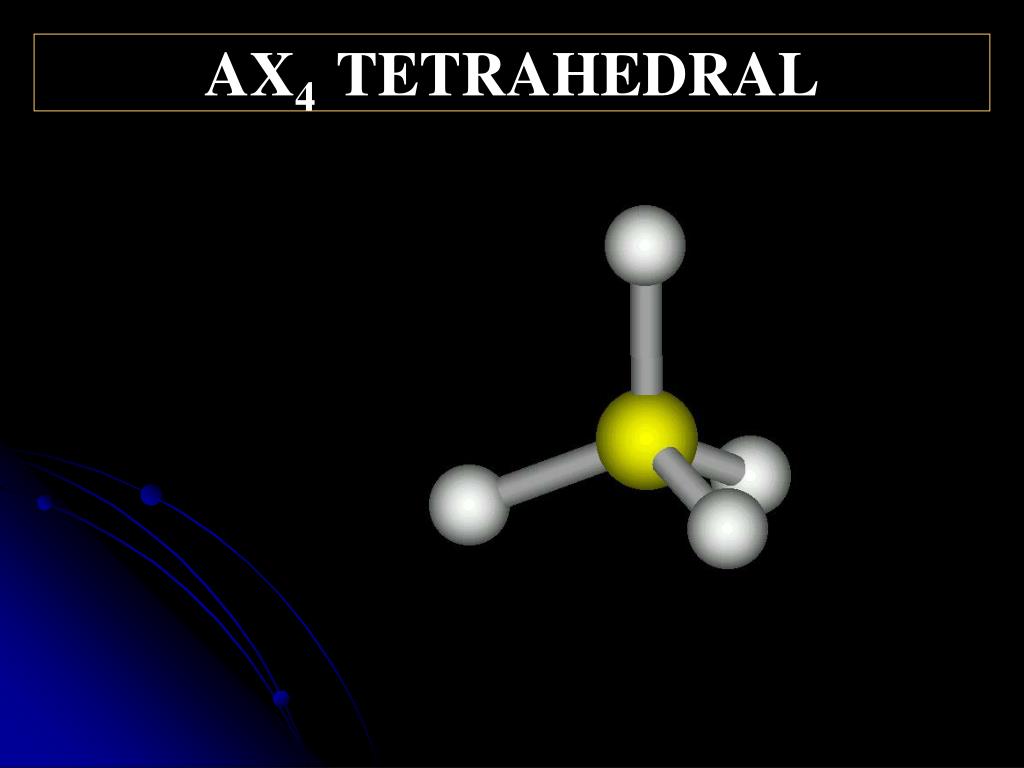

  14. AX4 TETRAHEDRAL 109.5°

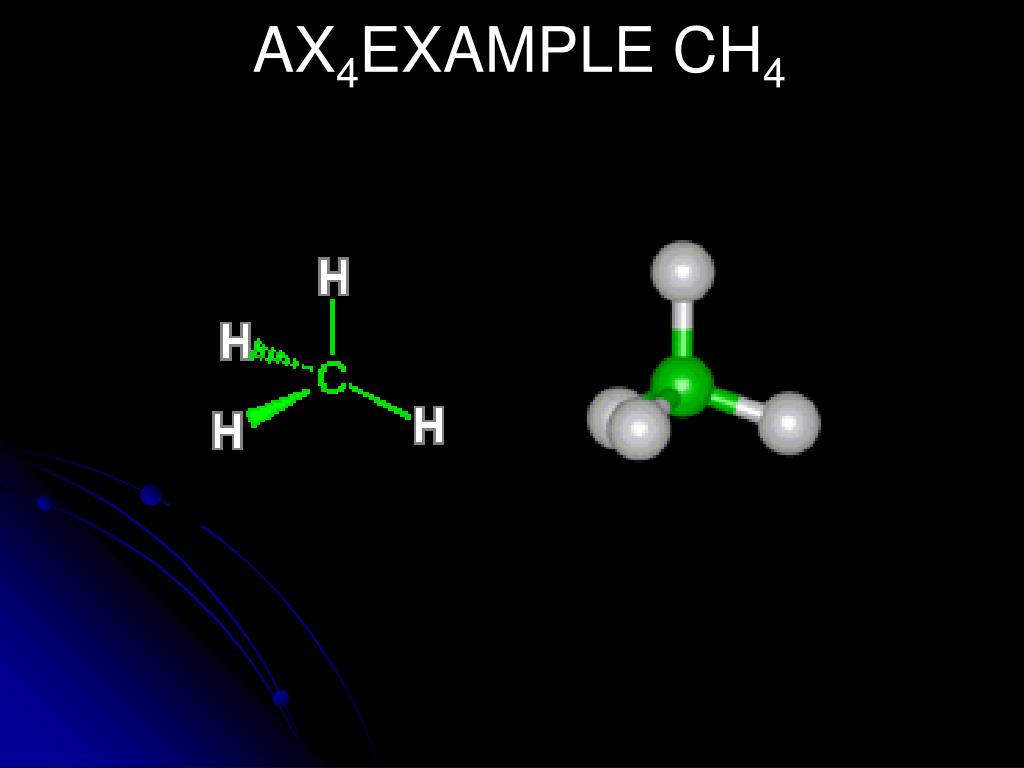

  15. AX4EXAMPLE CH4

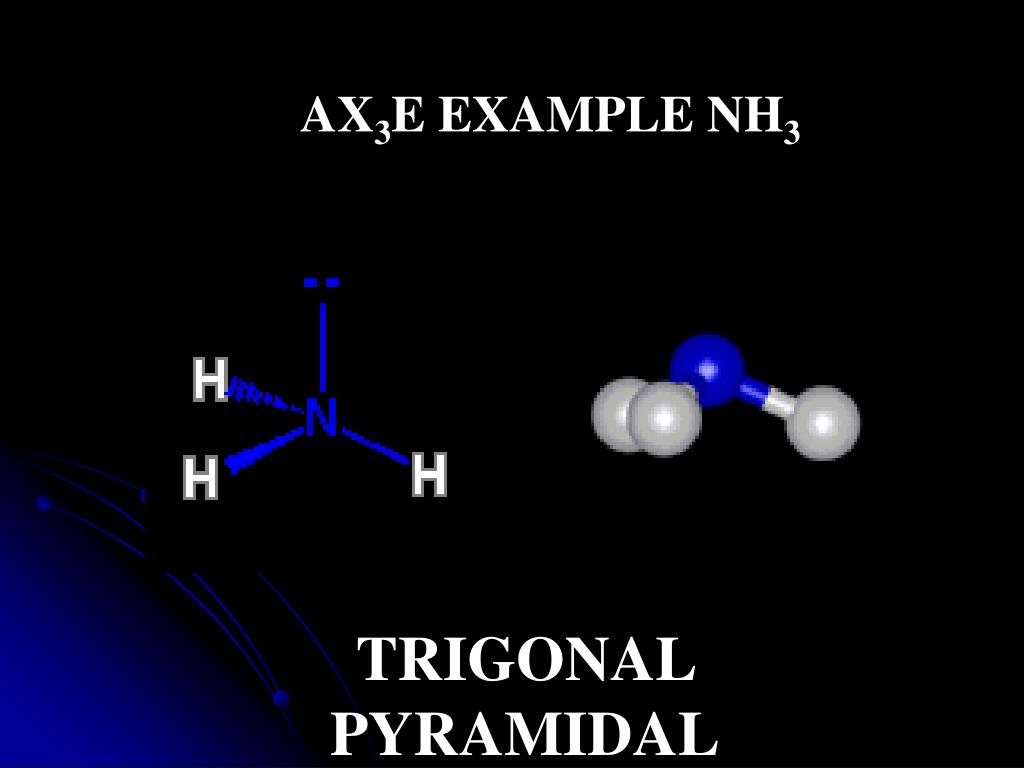

  16. AX3E EXAMPLE NH3 TRIGONAL PYRAMIDAL

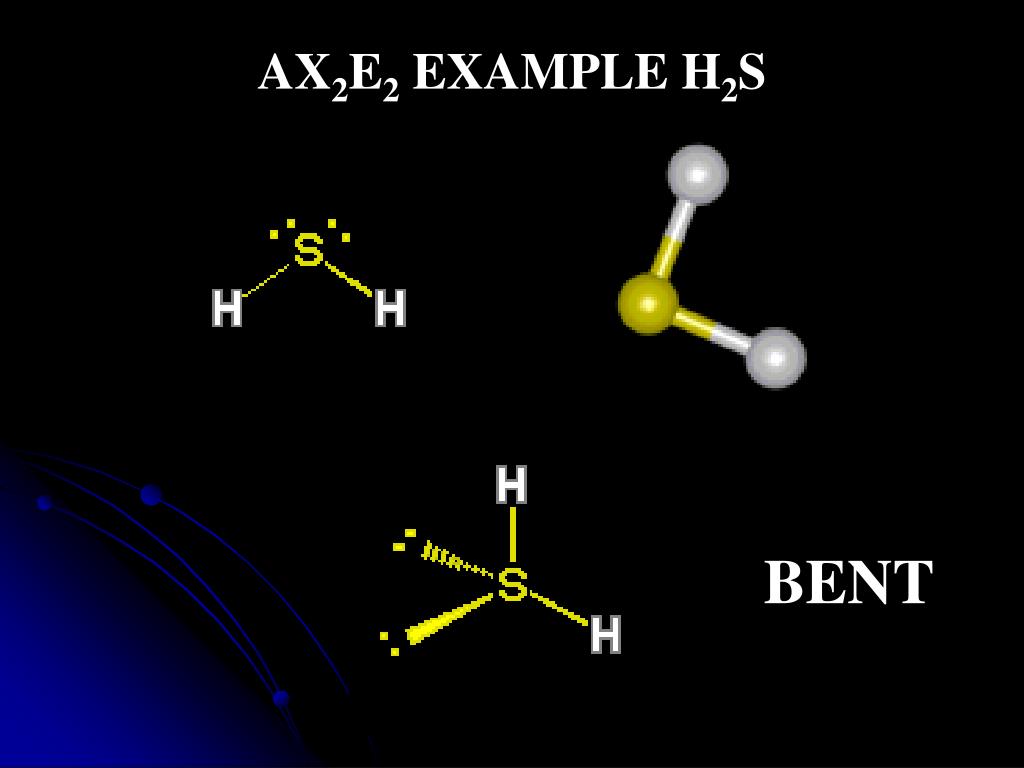

  17. AX2E2 EXAMPLE H2S BENT

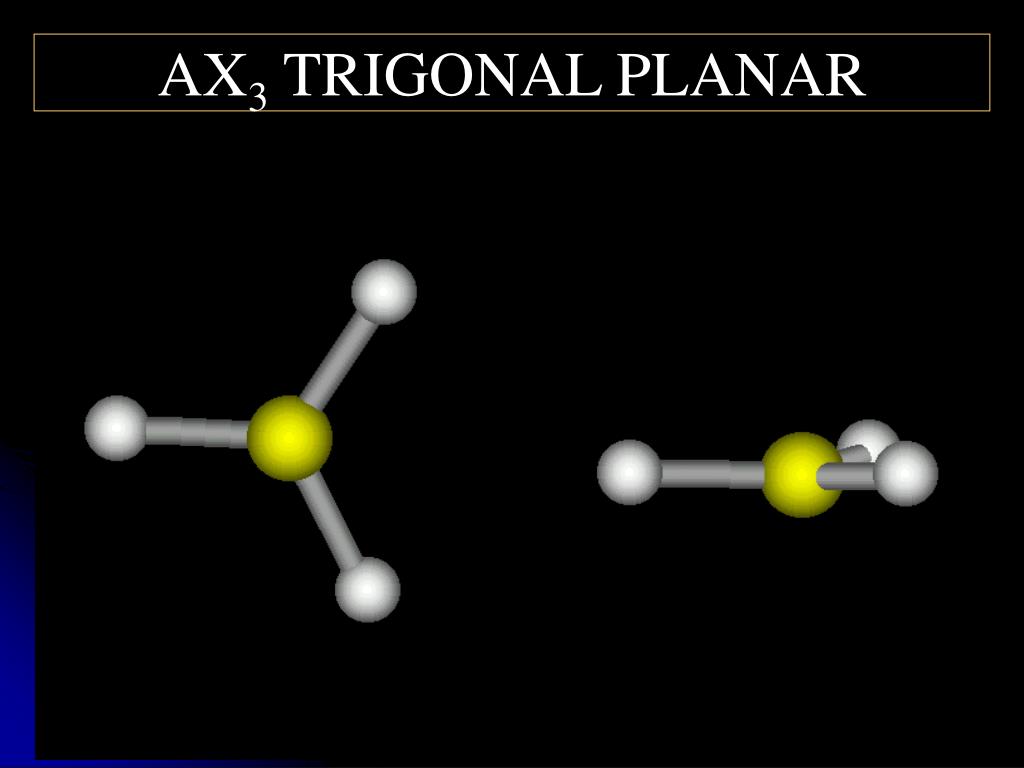

  18. AX3 TRIGONAL PLANAR 120°

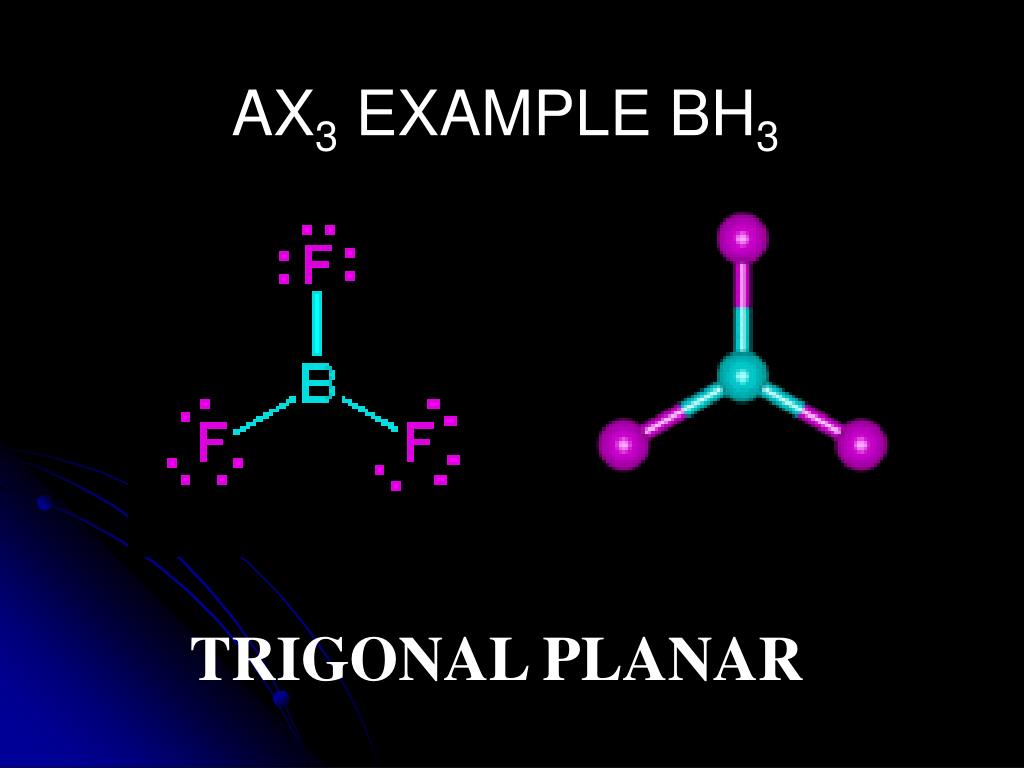

  19. AX3 EXAMPLE BH3 TRIGONAL PLANAR

  20. AX3 WITH DOUBLE BOND H2CO TRIGONAL PLANAR

  21. AX2E EXAMPLE SO2 BENT

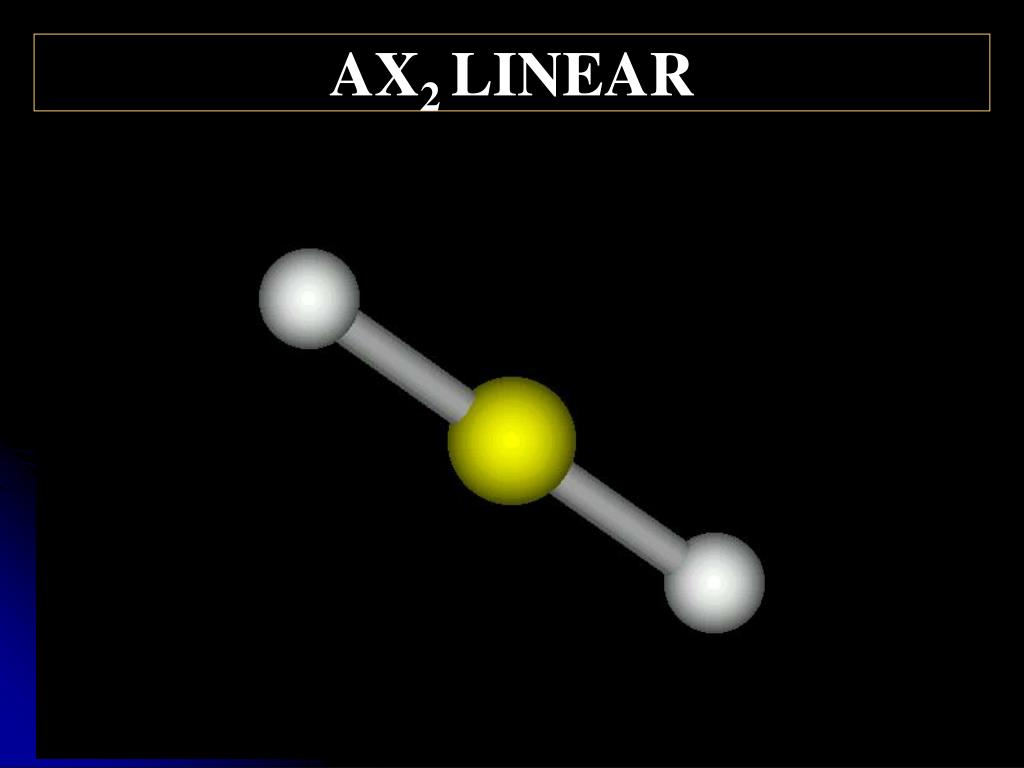

  22. AX2 LINEAR 180°

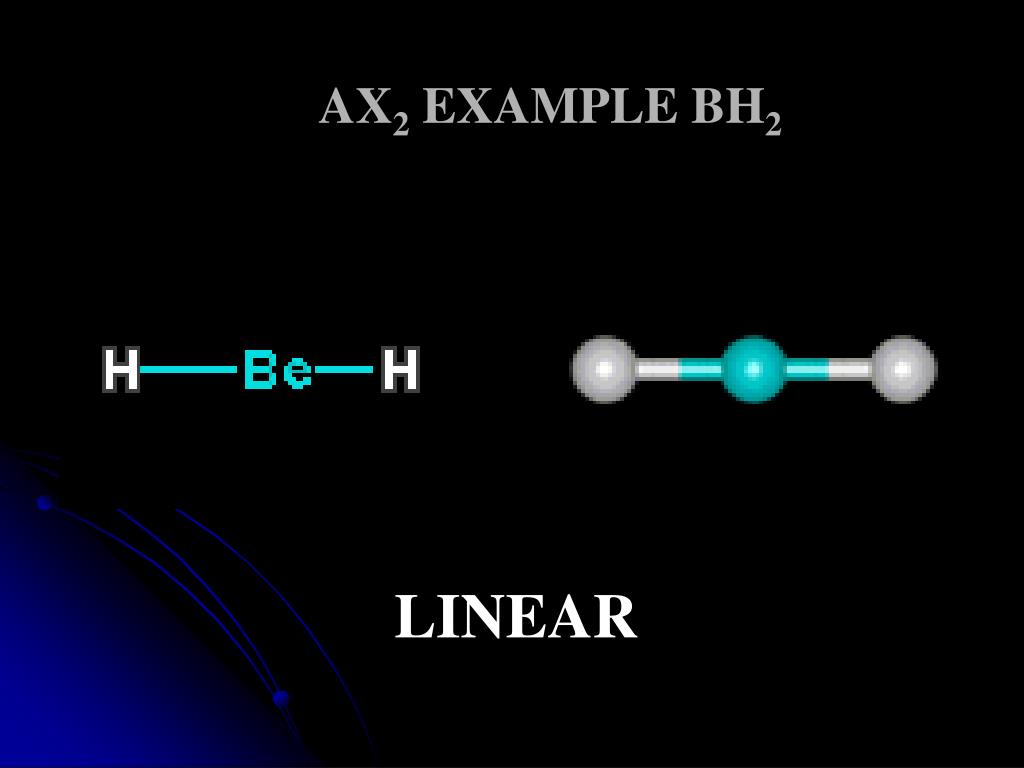

  23. AX2 EXAMPLE BH2 LINEAR

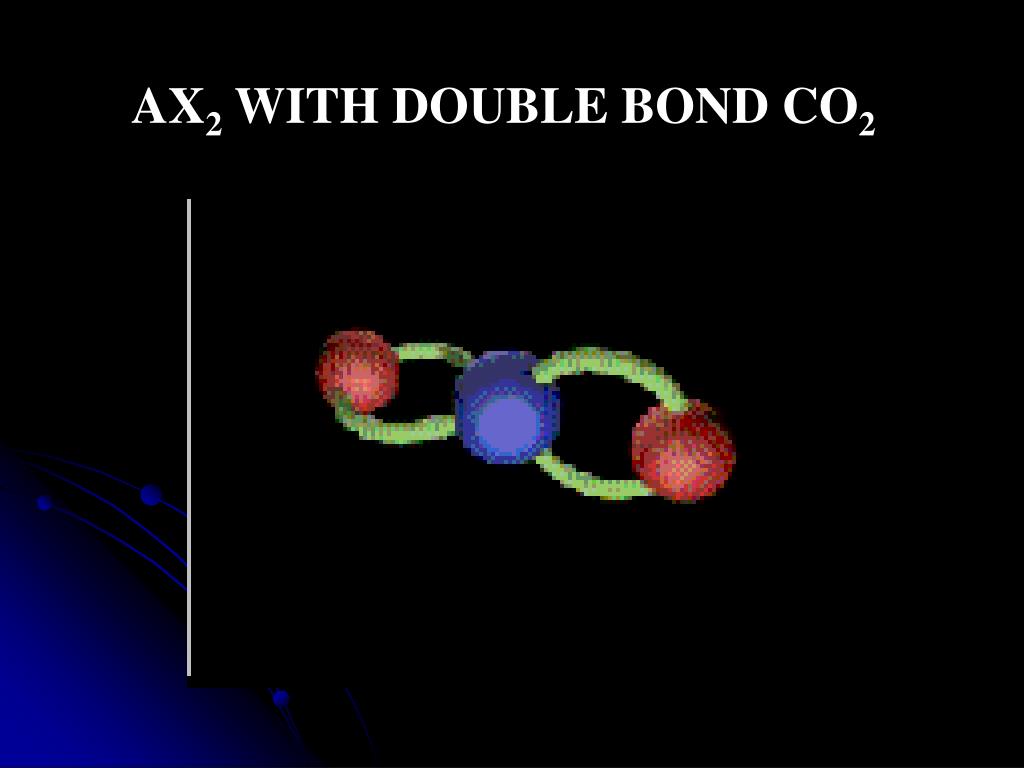

  24. AX2 WITH DOUBLE BOND CO2

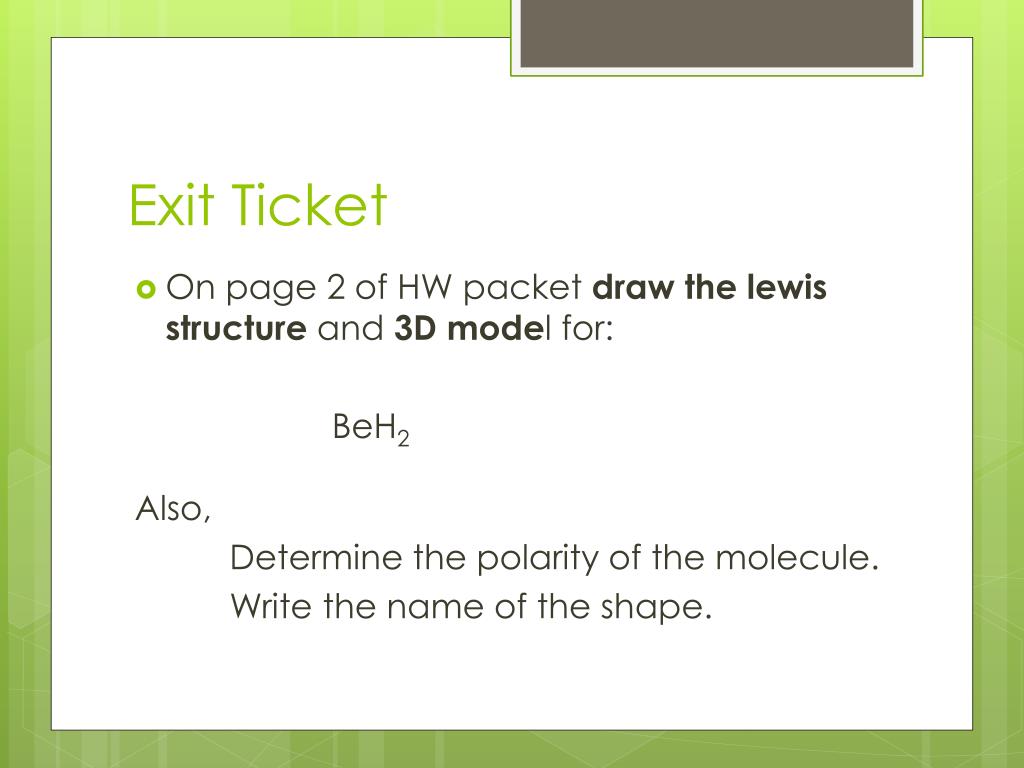

  25. Exit Ticket • On page 2 of HW packet draw the lewis structure and 3D model for: BeH2 Also, Determine the polarity of the molecule. Write the name of the shape.
