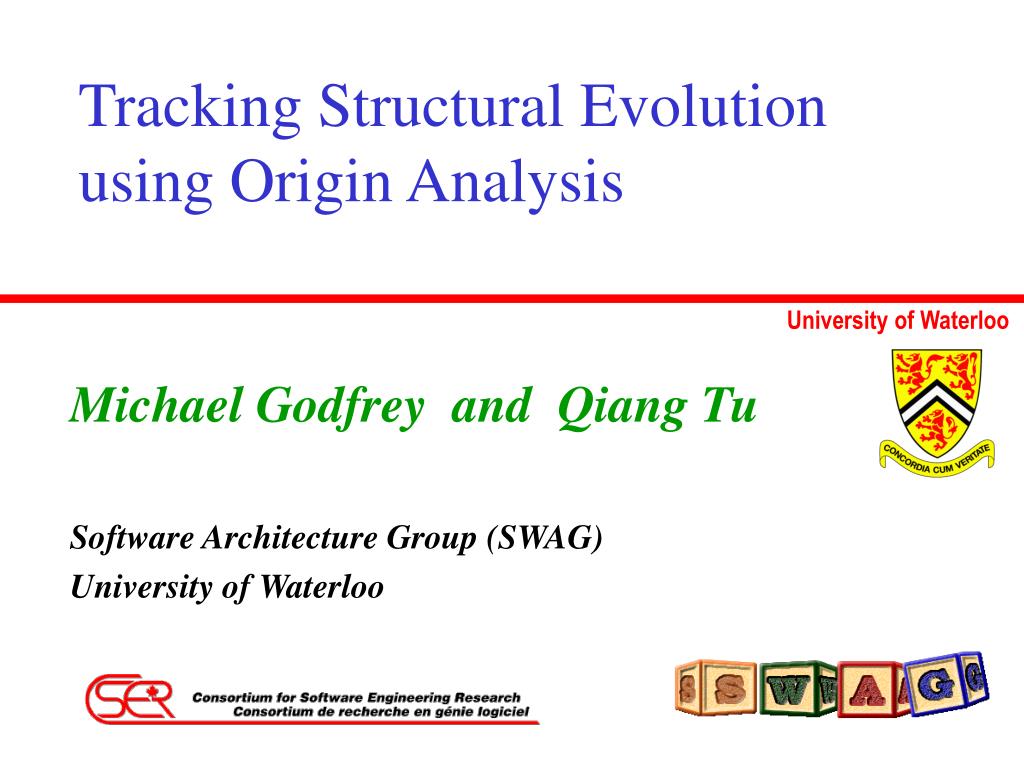

  1. Tracking Structural Evolution using Origin Analysis Michael Godfrey and Qiang Tu Software Architecture Group (SWAG) University of Waterloo

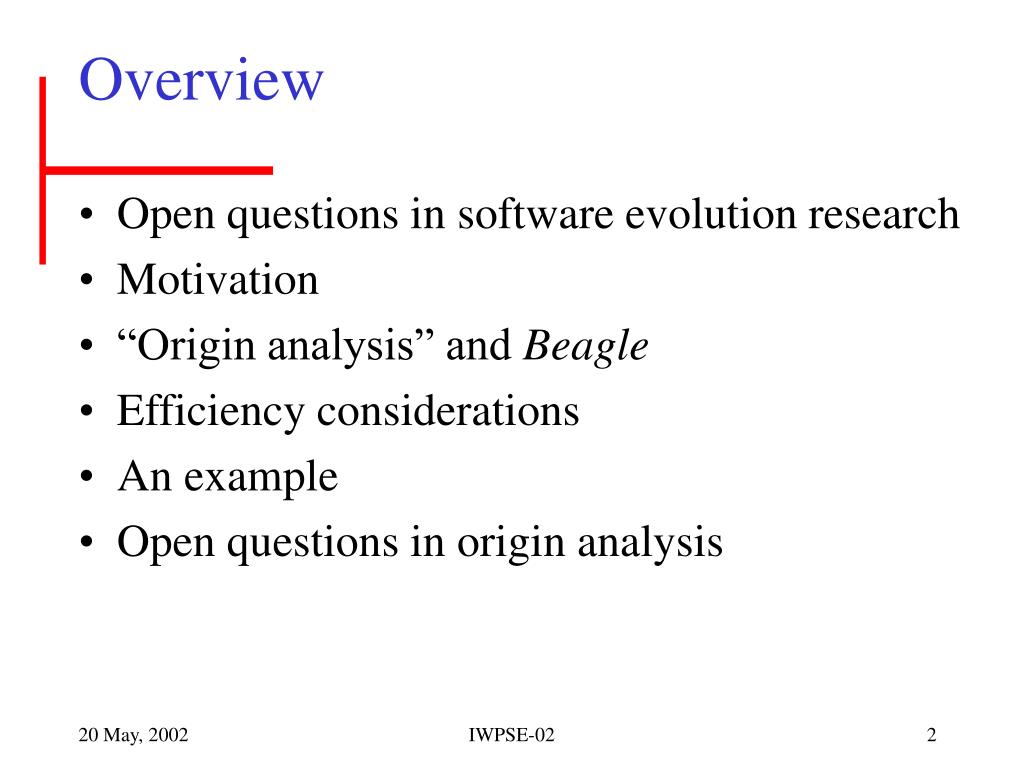

  2. Overview • Open questions in software evolution research • Motivation • “Origin analysis” and Beagle • Efficiency considerations • An example • Open questions in origin analysis IWPSE-02

  3. Some open questions • Philosophical: • Does software evolve in the same way as frogs and social structures? • The Nature of Economies, by Jane Jacobs • What are the recurring patterns and compelling metaphors of software evolution? • Methodological: • How to measure size? • How to correlate size and quality? • How to measure change? • How to model architectural change? • What is the predictive power of such models? • Do the “other phenomena” dominate? IWPSE-02

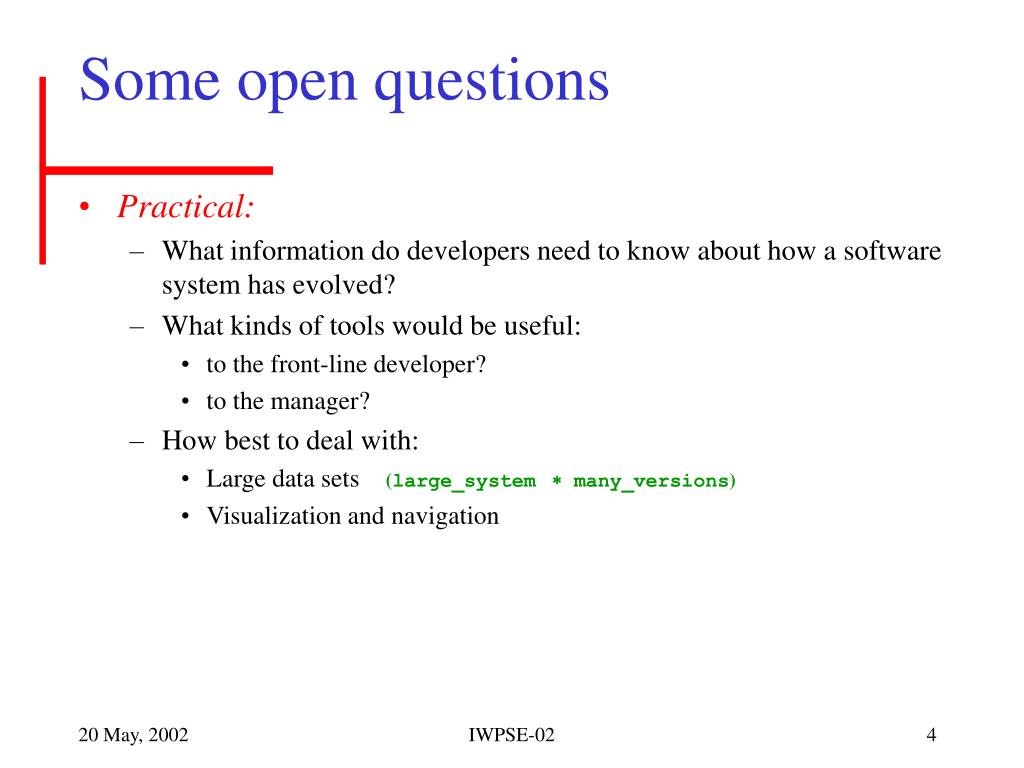

  4. Some open questions • Practical: • What information do developers need to know about how a software system has evolved? • What kinds of tools would be useful: • to the front-line developer? • to the manager? • How best to deal with: • Large data sets (large_system  many_versions) • Visualization and navigation IWPSE-02

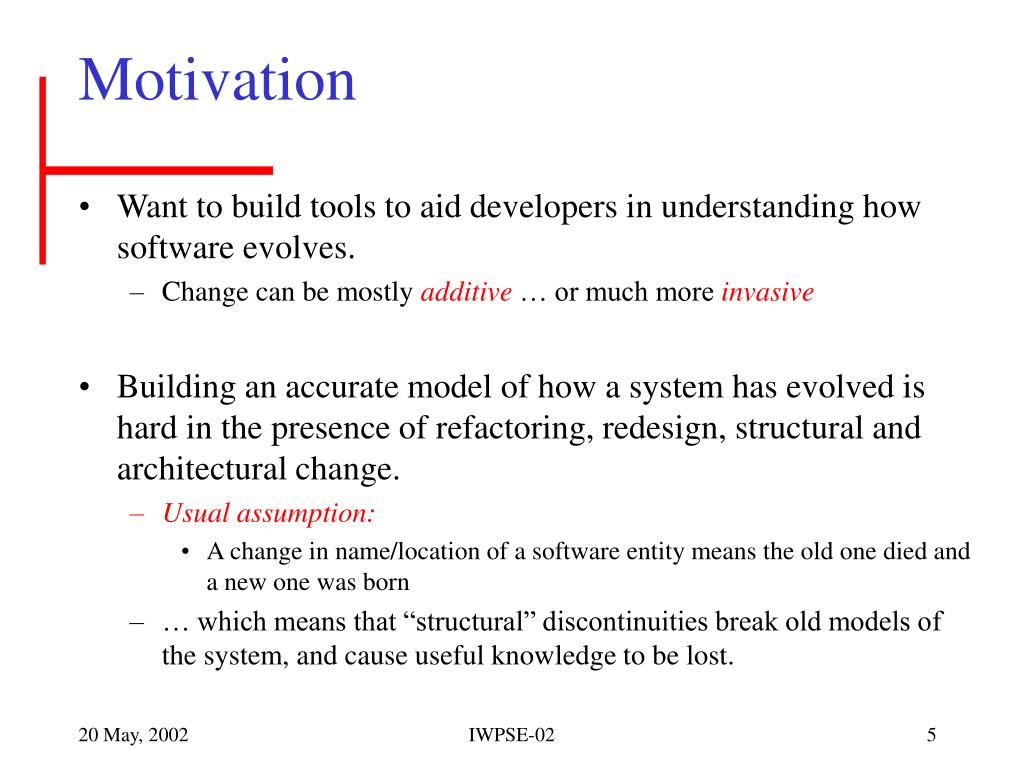

  5. Motivation • Want to build tools to aid developers in understanding how software evolves. • Change can be mostly additive … or much more invasive • Building an accurate model of how a system has evolved is hard in the presence of refactoring, redesign, structural and architectural change. • Usual assumption: • A change in name/location of a software entity means the old one died and a new one was born • … which means that “structural” discontinuities break old models of the system, and cause useful knowledge to be lost. IWPSE-02

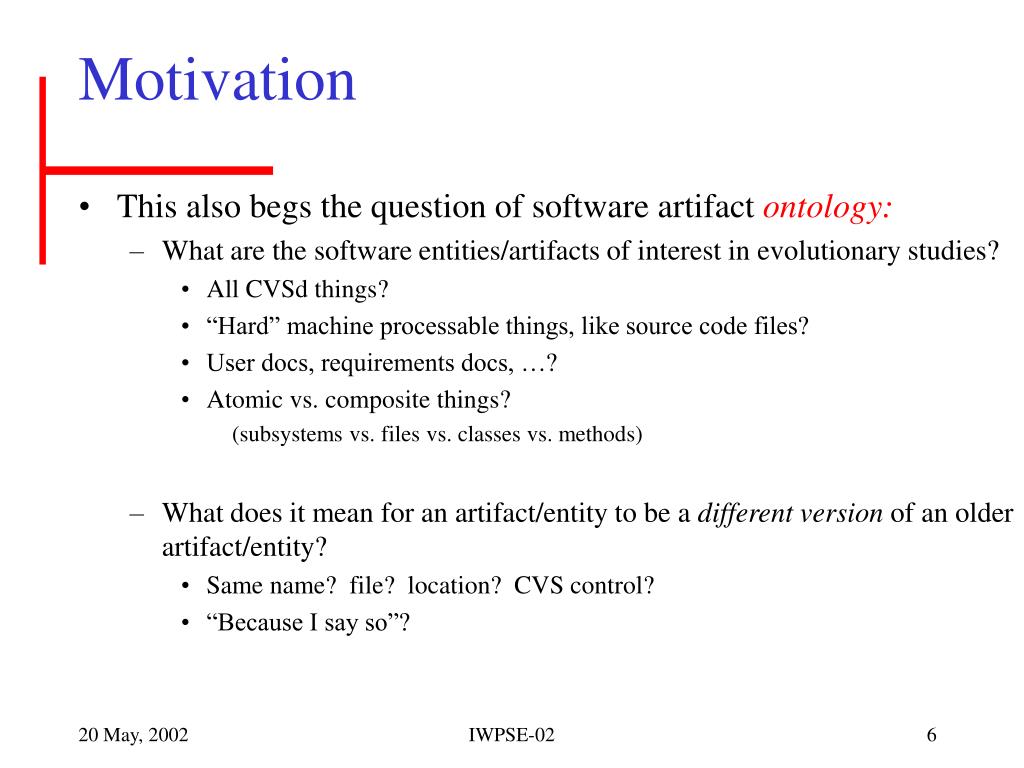

  6. Motivation • This also begs the question of software artifact ontology: • What are the software entities/artifacts of interest in evolutionary studies? • All CVSd things? • “Hard” machine processable things, like source code files? • User docs, requirements docs, …? • Atomic vs. composite things? (subsystems vs. files vs. classes vs. methods) • What does it mean for an artifact/entity to be a different version of an older artifact/entity? • Same name? file? location? CVS control? • “Because I say so”? IWPSE-02

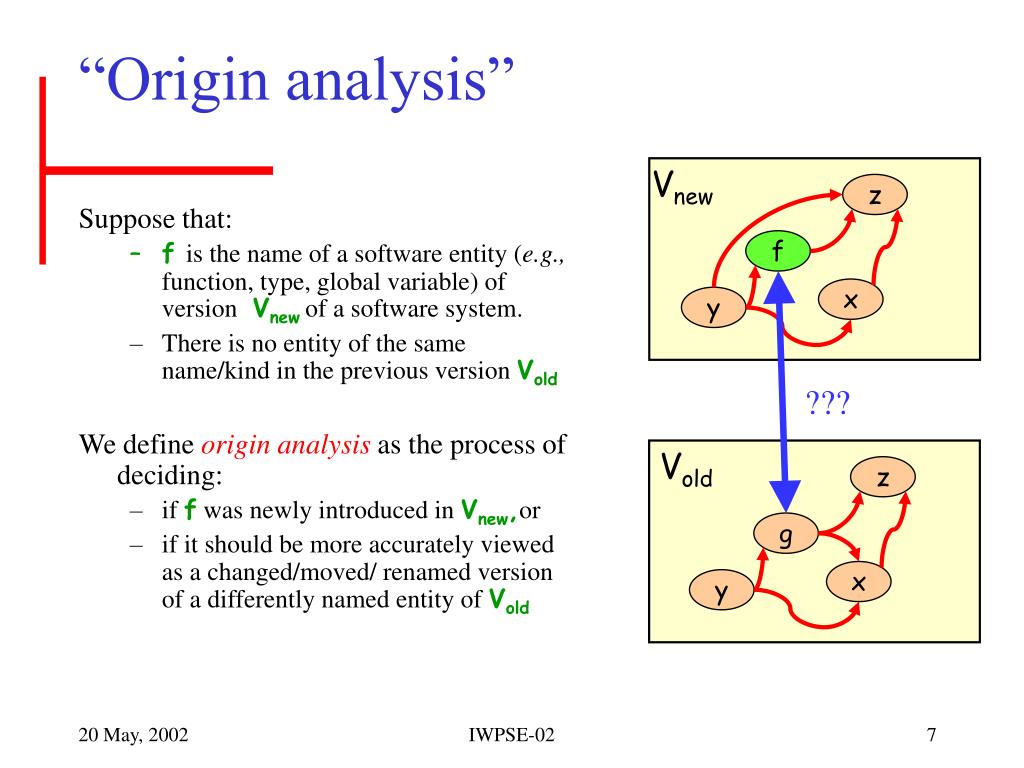

  7. “Origin analysis” Vold z g x y ??? Vnew z f x y Suppose that: • f is the name of a software entity (e.g., function, type, global variable) of versionVnewof a software system. • There is no entity of the same name/kind in the previous version Vold We define origin analysis as the process of deciding: • if f was newly introduced in Vnew,or • if it should be more accurately viewed as a changed/moved/ renamed version of a differently named entity of Vold IWPSE-02

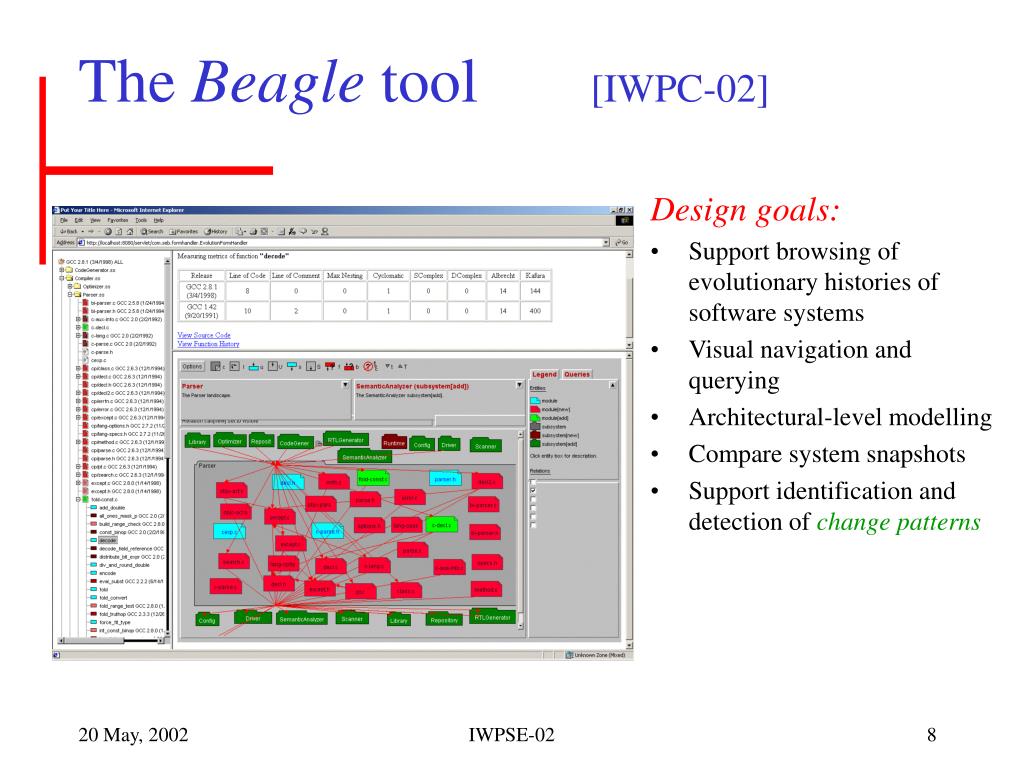

  8. The Beagle tool[IWPC-02] Design goals: • Support browsing of evolutionary histories of software systems • Visual navigation and querying • Architectural-level modelling • Compare system snapshots • Support identification and detection of change patterns IWPSE-02

  9. The Beagle tool[IWPC-02] At system check-in: • Populate database with “facts” and metrics info from various tools. • grok scripts “lift” facts to file/ subsystem /architectural level. At runtime: • SWAGkit (PBS) engine for visualization/navigation. • Java-based infrastructure using DB/2, VA-Java, IBM-Websphere. IWPSE-02

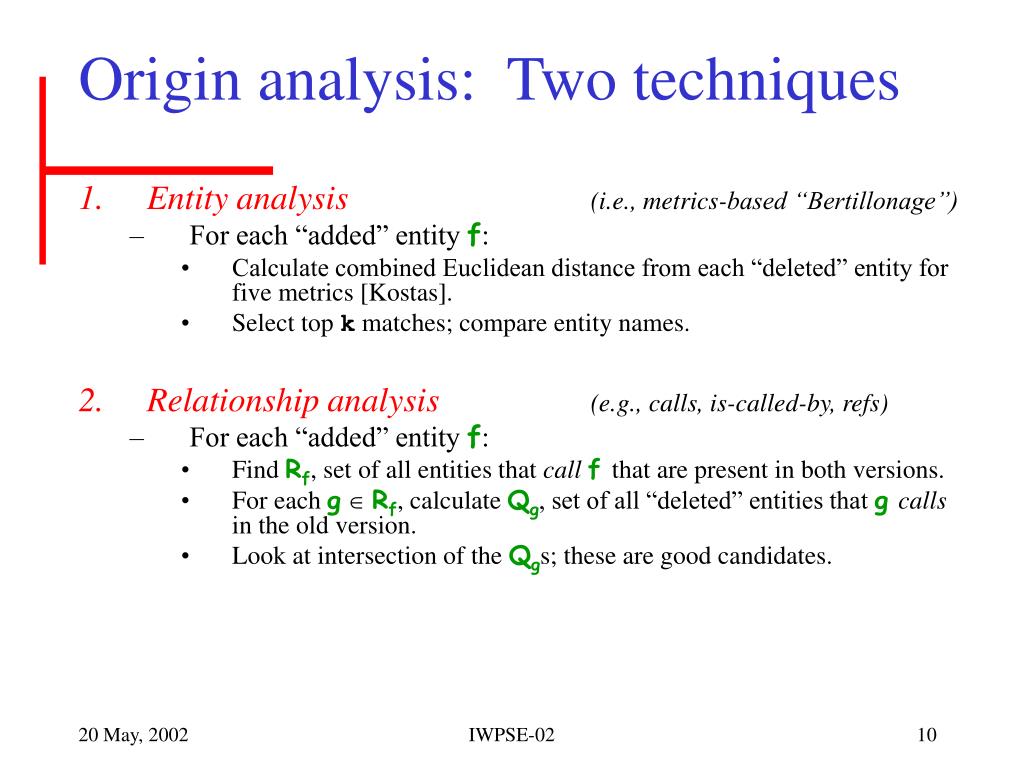

  10. Origin analysis: Two techniques • Entity analysis(i.e., metrics-based “Bertillonage”) • For each “added” entity f: • Calculate combined Euclidean distance from each “deleted” entity for five metrics [Kostas]. • Select top k matches; compare entity names. • Relationship analysis(e.g., calls, is-called-by, refs) • For each “added” entity f: • Find Rf, set of all entities that callf that are present in both versions. • For each gRf, calculate Qg, set of all “deleted” entities that gcalls in the old version. • Look at intersection of the Qgs; these are good candidates. IWPSE-02

  11. Efficiency considerations • When comparing Vnew to Vold, need to find the entities that seem to have been added and deleted. • These sets are fast to determine. • Most subsequent calculations involve only these small subsets of the entire entity space (plus the other entities they have “relationships” with). • Computationally expensive approaches for clone detection (e.g., graph matching) were not considered. • Can’t pre-compute easily. • Precise matching not worth the effort, as it doesn’t seem to help much for this task. IWPSE-02

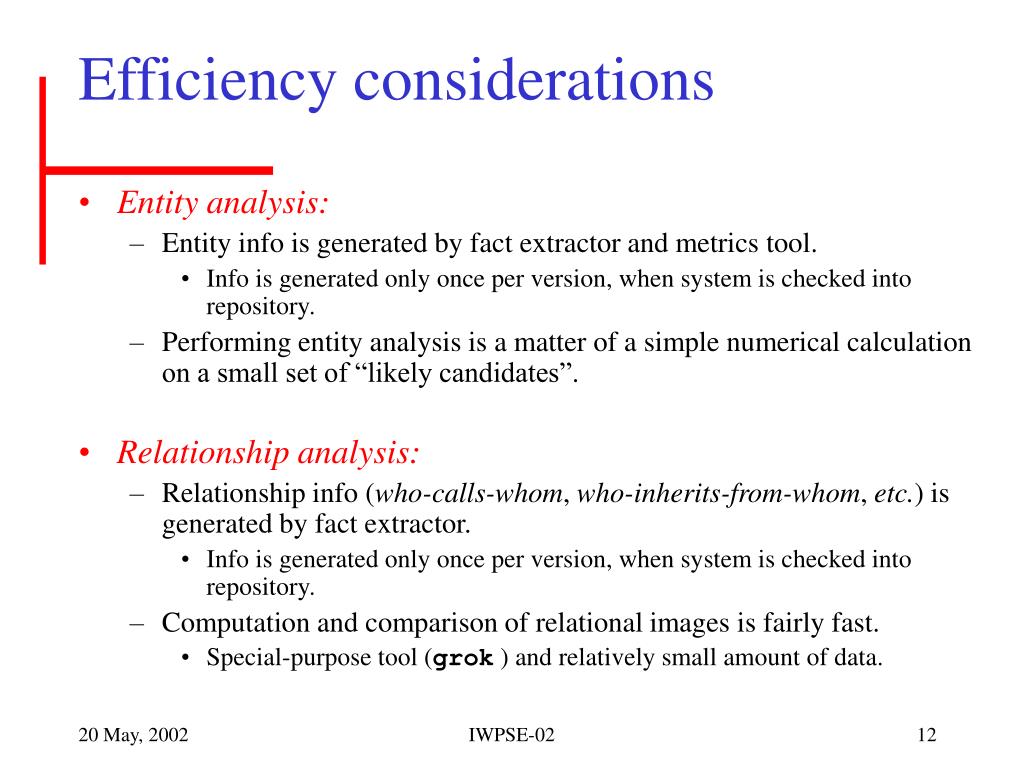

  12. Efficiency considerations • Entity analysis: • Entity info is generated by fact extractor and metrics tool. • Info is generated only once per version, when system is checked into repository. • Performing entity analysis is a matter of a simple numerical calculation on a small set of “likely candidates”. • Relationship analysis: • Relationship info (who-calls-whom, who-inherits-from-whom, etc.) is generated by fact extractor. • Info is generated only once per version, when system is checked into repository. • Computation and comparison of relational images is fairly fast. • Special-purpose tool (grok ) and relatively small amount of data. IWPSE-02

  13. Case study: gcc/g++/egcs • Have extracted full info for 29 versions of gcc/g++/egcs • Want to examine major breaks in development to see how well origin analysis works. • EGCS v1.0 was forked from the GCC v2.7.2.3 codebase • EGCS project goals: • C++ compiler more ANSI compliant, • new FORTRAN front-end, • new optimizations and code-generation algorithms, … • … and EGCS introduced a new directory structure and a new file naming scheme, in addition to all of the other redesign and restructuring. • Naïve analysis indicated “everything old is new again”  IWPSE-02

  14. Case study: gcc/g++/egcs • Example: • The EGCS 1.0 Parser subsystem contains 15 (non-trivial) implementation files, comprising 848 functions. • Using origin analysis and common sense, Qiang decided that about half of the “new” functions weren’t new. • That’s still a massive amount of change for a new release of a compiler! IWPSE-02

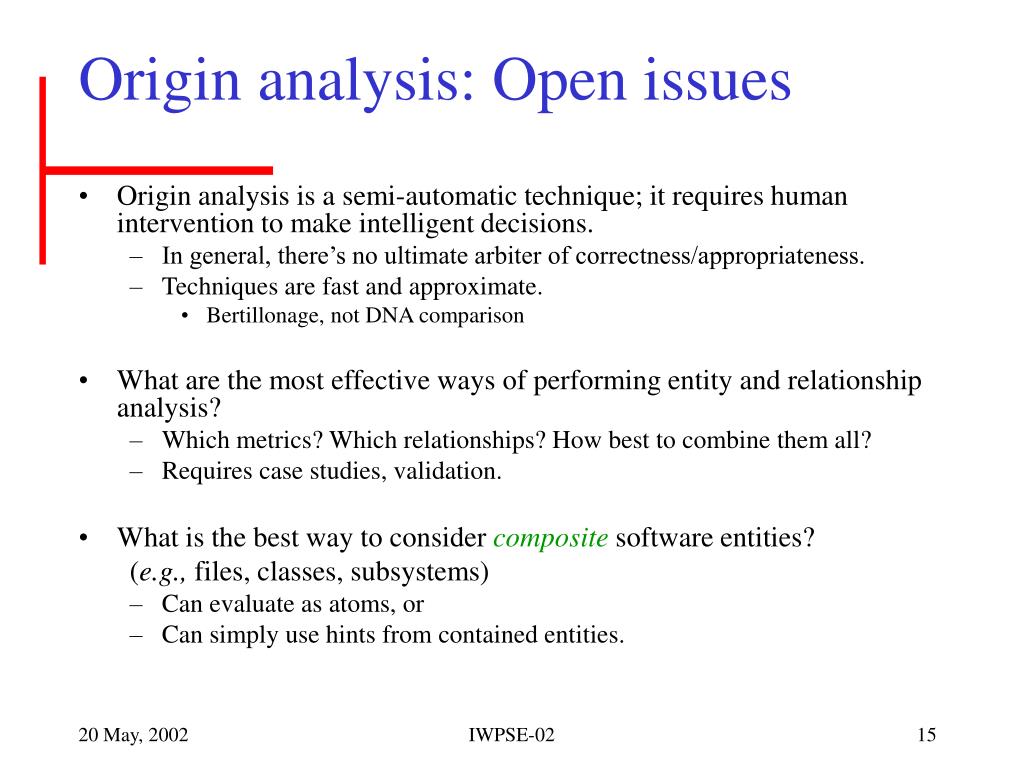

  15. Origin analysis: Open issues • Origin analysis is a semi-automatic technique; it requires human intervention to make intelligent decisions. • In general, there’s no ultimate arbiter of correctness/appropriateness. • Techniques are fast and approximate. • Bertillonage, not DNA comparison • What are the most effective ways of performing entity and relationship analysis? • Which metrics? Which relationships? How best to combine them all? • Requires case studies, validation. • What is the best way to consider composite software entities? (e.g., files, classes, subsystems) • Can evaluate as atoms, or • Can simply use hints from contained entities. IWPSE-02
