ENGR 2213 Thermodynamics F. C. Lai School of Aerospace and Mechanical Engineering University of Oklahoma

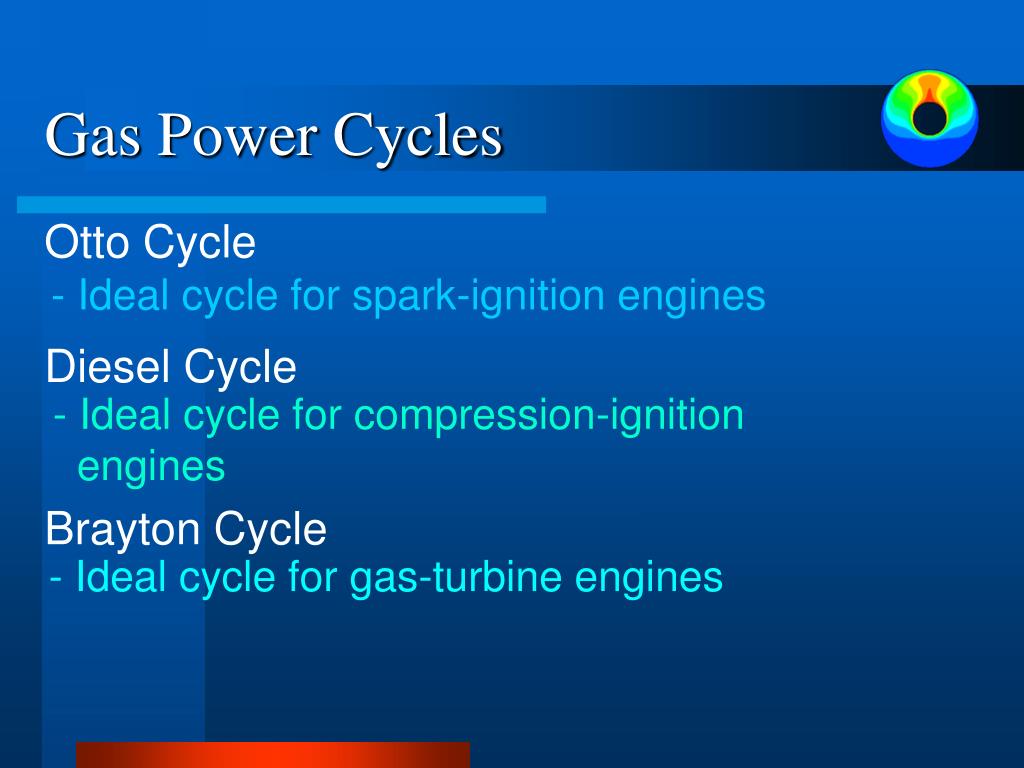

Gas Power Cycles Otto Cycle - Ideal cycle for spark-ignition engines Diesel Cycle - Ideal cycle for compression-ignition engines Brayton Cycle - Ideal cycle for gas-turbine engines
Gas Power Cycles Cold Air-Standard Assumptions 1. The working fluid is air which continuously circulates in a closed loop and always behaves as an ideal gas. 2. All the processes which make up the cycle are internally reversible. 3. The combustion process is replaced by a heat addition process from an external source. 4. The exhaust process is replaced by a heat rejection process which restores the air to its initial state. ► Air has constant specific heats which are evaluated at room temperature (25 ºC or 77 ºF).
Stroke Bore Gas Power Cycles Vmin TDC Vmax Displacement volume BDC
Gas Power Cycles Compression Ratio Compression ratio is a volume ratio and should not be confused with the pressure ratio. Mean Effective Pressure (MEP) W = MEP • AP • Stroke = MEP • Displacement volume
Otto Cycles Nikolaus A. Otto (1876) – four-stroke engine Beau de Rochas (1862)

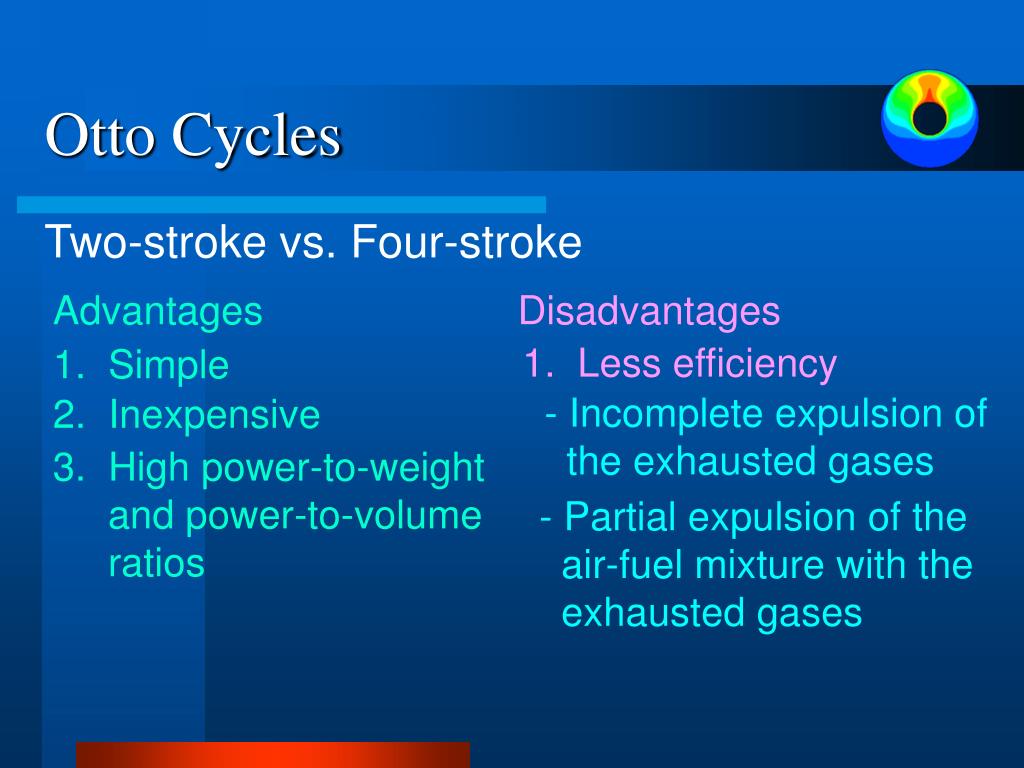

Otto Cycles Two-stroke vs. Four-stroke AdvantagesDisadvantages 1. Less efficiency 1.Simple - Incomplete expulsion of the exhausted gases 2.Inexpensive 3.High power-to-weight and power-to-volume ratios - Partial expulsion of the air-fuel mixture with the exhausted gases

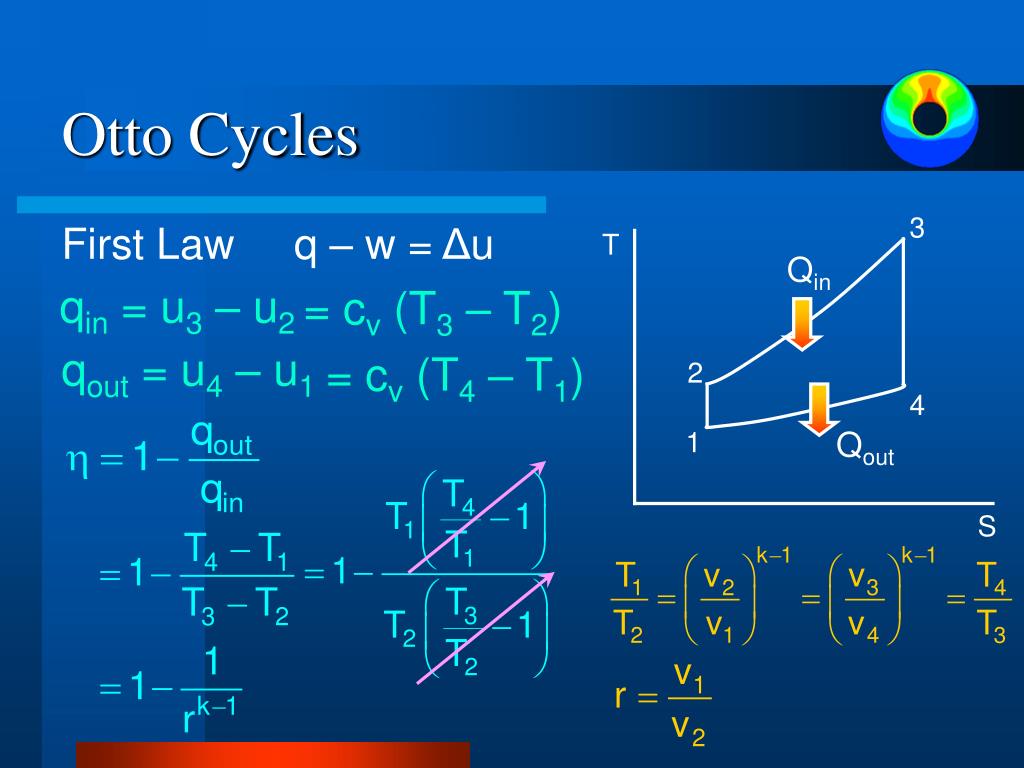

3 T 2 4 1 S Otto Cycles First Law q – w = Δu Qin qin = u3 – u2 = cv (T3 – T2) qout = u4 – u1 = cv (T4 – T1) Qout
Otto Cycles • The increase in thermal efficiency is not as pronounced at high compression ratios. • At high compression ratios, autoignition may occur. • Autoignition in gasoline engines hurts performance and cause engine damage.
Example 1 • An ideal Otto cycle has a compression ratio of 8. At • the beginning of the compression process, air is at • 100 kPa and 17 ºC, and 800 kJ/kg of heat is transferred • to air during the constant-volume heat addition process. • Accounting for the variation of specific heats of air with • temperature, determine • the maximum temperature and pressure which • occur during the cycle, • (b) the net work output, • the thermal efficiency of this cycle, and • (d) the mean effective pressure for the cycle.
Example 1 (continued) (a) State 1: air at p1 = 100 kPa and T1 = 290 K Table A-17 u1 = 206.91 kJ/kg vr1 = 676.1 Process 1-2: Isentropic compression Table A-17 T2 = 652.4 K u2 = 475.11 kJ/kg

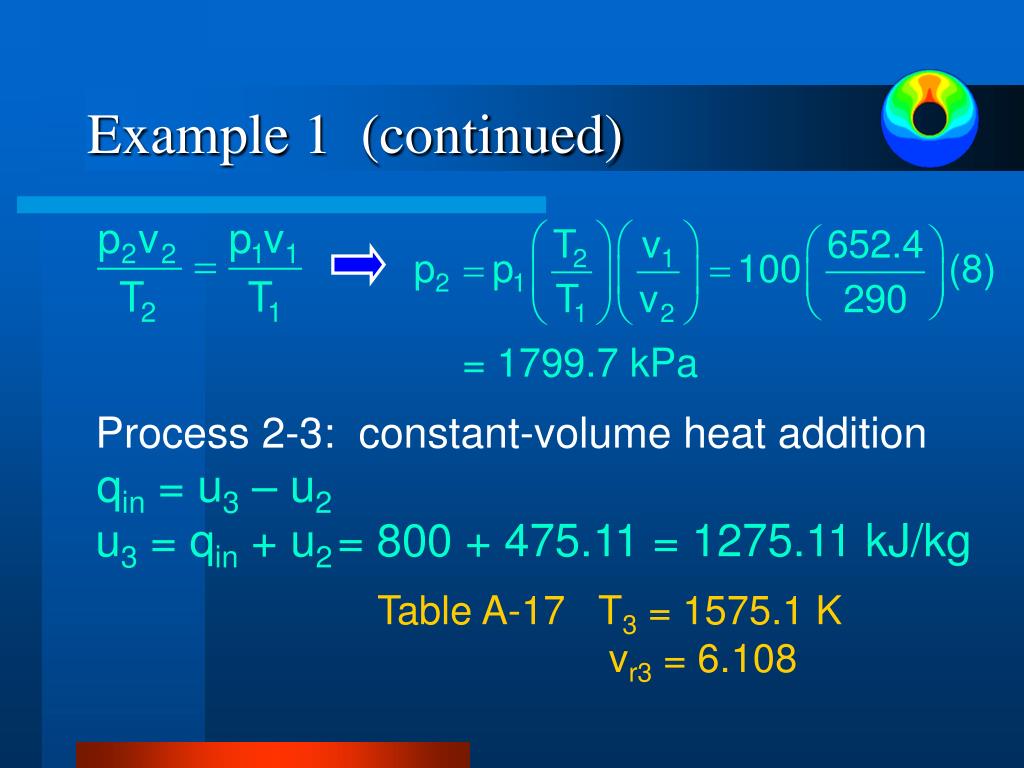

Example 1 (continued) = 1799.7 kPa Process 2-3: constant-volume heat addition qin = u3 – u2 u3 = qin + u2 = 800 + 475.11 = 1275.11 kJ/kg Table A-17 T3 = 1575.1 K vr3 = 6.108
Example 1 (continued) = 4347 kPa (b) Process 3-4: Isentropic expansion Table A-17 T4 = 795.6 K u4 = 588.74 kJ/kg qout = u4 – u1 = 588.74 – 206.91 = 381.83 kJ/kg
Example 1 (continued) wnet = qnet = qin – qout = 800 – 381.83 = 418.17 kJ/kg (c) = 1 – r1-k = 1 – (8)1-1.4 = 0.565 (d) = 574.4 kPa
Diesel Cycles Rudolph Diesel (1890)
Diesel Cycles Gasoline Engines Diesel Engines 1. Spark ignition (SI) Compression ignition (CI) 2. Constant-volume Constant-pressure heat heat addition addition 3. Low compression-ratio High compression-ratio 4. High fuel cost Low fuel cost 5. Low efficiency High Efficiency
3 T 2 p = const 4 v = const 1 S Diesel Cycles First Law q – w = Δu Qin qin = w + Δu = pΔv + Δu = h3 – h2 = cp(T3 – T2) Qout qout = u4 – u1 = cv (T4 – T1)
Diesel Cycles Cutoff Ratio
Diesel Cycles ►ηD > ηO ►ηD increases as rcdecreases ►ηD → ηO as rc → 1
Example 2 • An ideal Diesel cycle has a compression ratio of 18 • and a cutoff ratio of 2. At the beginning of the • compression process, air is at 100 kPa, 27 ºC and • 0.0018 m3. Utilizing the cold-air-standard assumptions, • determine • the temperature and pressure of air at the end of • each process, • (b) the net work output, • the thermal efficiency of this cycle, and • (d) the mean effective pressure for the cycle.
Example 2 (continued) (a) State 1: air at p1 = 100 kPa, T1 = 300 K and V1 = 0.0018 m3 V3 = rc V2 = 2 (0.0001) = 0.0002 m3 V4 = V1 = 0.0018 m3 Process 1-2: Isentropic compression
Example 2 (continued) Process 2-3: Constant-pressure heat addition p3 = p2 = 5719.8 kPa = 1906.6 K Process 3-4: Isentropic expansion = 791.7 K
Example 2 (continued) (b) Table A-2 cp = 1.005 kJ/kg·K cv = 0.718 kJ/kg·K Qin = m(h3 – h2) = mcp(T3 – T2) = 0.0021(1.005)(1906.6 – 593.3) = 2.77 kJ Qout = m(u4 – u1) = mcv(T4 – T1) = 0.0021(0.718)(791.7 – 300) = 0.74 kJ
Example 2 (continued) Wnet = Qnet = Qin – Qout = 2.77 – 0.74 = 2.03 kJ (c) = 1194.1 kPa (d)
