  1. Making a Smile Face Pepper

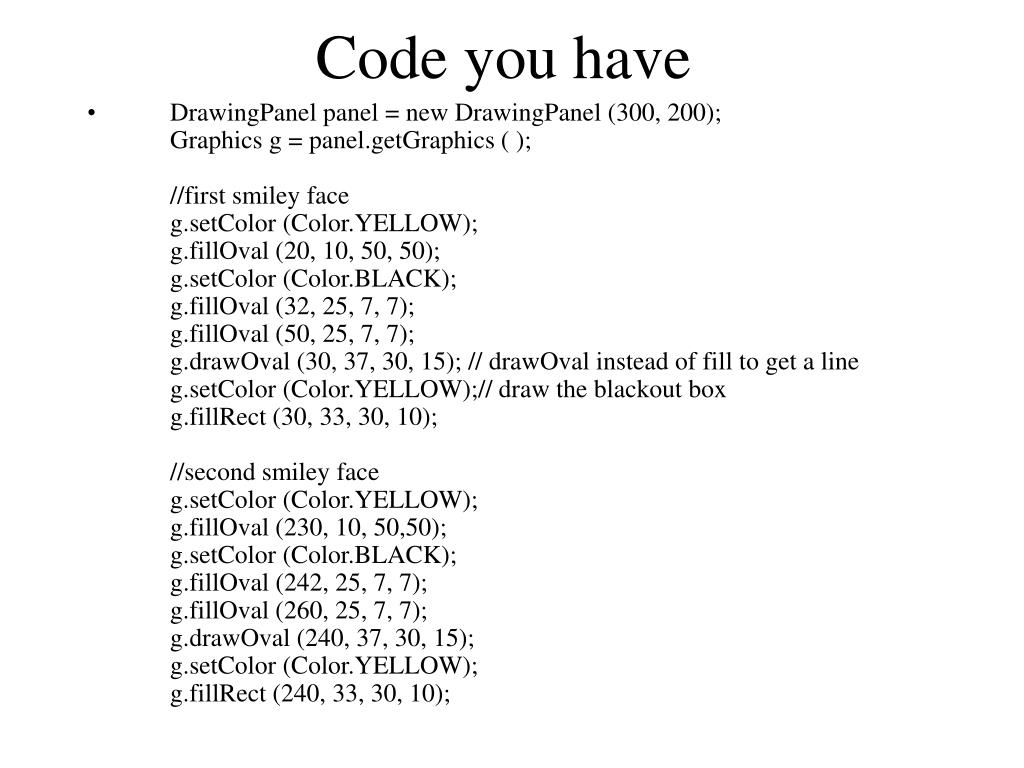

  2. Code you have •        DrawingPanel panel = new DrawingPanel (300, 200);       Graphics g = panel.getGraphics ( );       //first smiley face       g.setColor (Color.YELLOW);       g.fillOval (20, 10, 50, 50);       g.setColor (Color.BLACK);       g.fillOval (32, 25, 7, 7);       g.fillOval (50, 25, 7, 7);             g.drawOval (30, 37, 30, 15); // drawOval instead of fill to get a line       g.setColor (Color.YELLOW);// draw the blackout box       g.fillRect (30, 33, 30, 10);       //second smiley face       g.setColor (Color.YELLOW);       g.fillOval (230, 10, 50,50);       g.setColor (Color.BLACK);       g.fillOval (242, 25, 7, 7);       g.fillOval (260, 25, 7, 7);       g.drawOval (240, 37, 30, 15);       g.setColor (Color.YELLOW);       g.fillRect (240, 33, 30, 10);

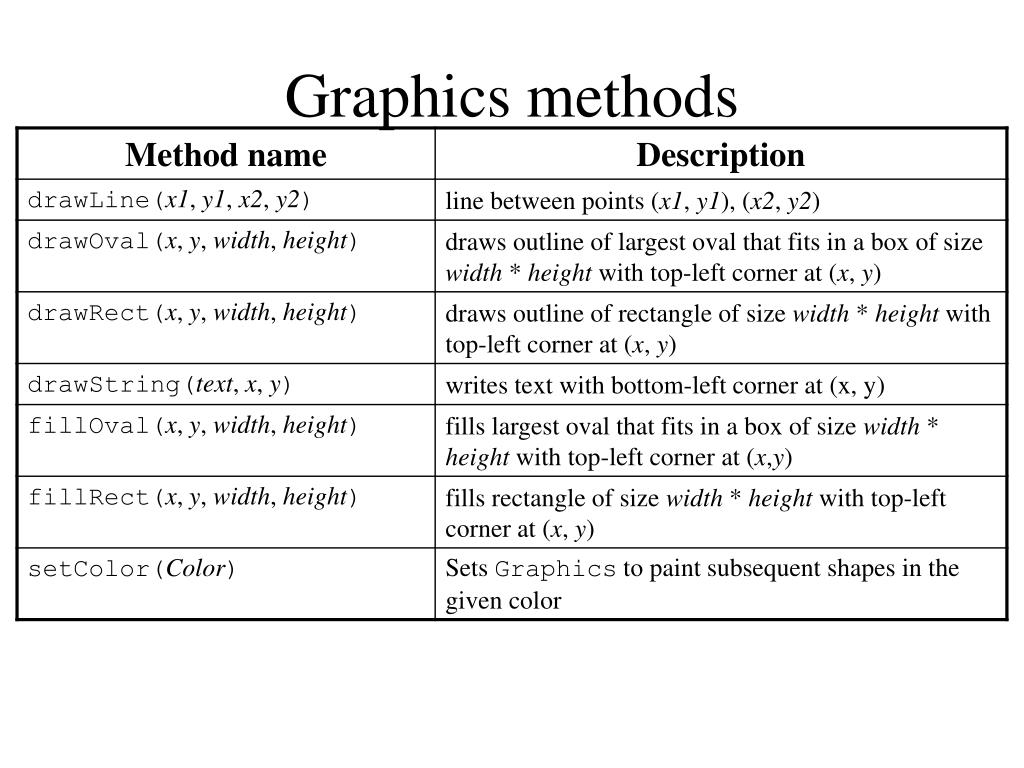

  3. Graphics methods

  4. Finding relationships What is the relationship between the 20,10 Big Circle start and the 32,25 eyes? •        DrawingPanel panel = new DrawingPanel (300, 200);       Graphics g = panel.getGraphics ( );       //first smiley face       g.setColor (Color.YELLOW);       g.fillOval (20, 10, 50, 50);       g.setColor (Color.BLACK);       g.fillOval (32, 25, 7, 7);       g.fillOval (50, 25, 7, 7);             g.drawOval (30, 37, 30, 15); // drawOval instead of fill to get a line       g.setColor (Color.YELLOW);// draw the blackout box       g.fillRect (30, 33, 30, 10);       //second smiley face       g.setColor (Color.YELLOW);       g.fillOval (230, 10, 50,50);       g.setColor (Color.BLACK);       g.fillOval (242, 25, 7, 7);       g.fillOval (260, 25, 7, 7);       g.drawOval (240, 37, 30, 15);       g.setColor (Color.YELLOW);       g.fillRect (240, 33, 30, 10); 32 is 12 over and 15 down, so You can set x = 20 and y = 10 And make the big circle with g.fillOval(x,y,50,50) And make the eye with g.fillOval(x+12,y+15,7,7)

  5. Coded with relationships •        DrawingPanel panel = new DrawingPanel (300, 200);       Graphics g = panel.getGraphics ( );      int x = 20; int y = 10;  //first smiley face       g.setColor (Color.YELLOW);       g.fillOval (x, y, 50, 50);       g.setColor (Color.BLACK);       g.fillOval (x+12, y+15, 7, 7);       g.fillOval (x+30, y+15, 7, 7);             g.drawOval (x+10, y+17, 30, 15); // drawOval instead of fill to get a line       g.setColor (Color.YELLOW);// draw the blackout box       g.fillRect (x+10, y+23, 30, 10);      x = 230; y = 10;        //second smiley face       g.setColor (Color.YELLOW);       g.fillOval (x, y, 50, 50);       g.setColor (Color.BLACK);       g.fillOval (x+12, y+15, 7, 7);       g.fillOval (x+30, y+15, 7, 7);             g.drawOval (x+10, y+17, 30, 15); // drawOval instead of fill to get a line       g.setColor (Color.YELLOW);// draw the blackout box       g.fillRect (x+10, y+23, 30, 10);

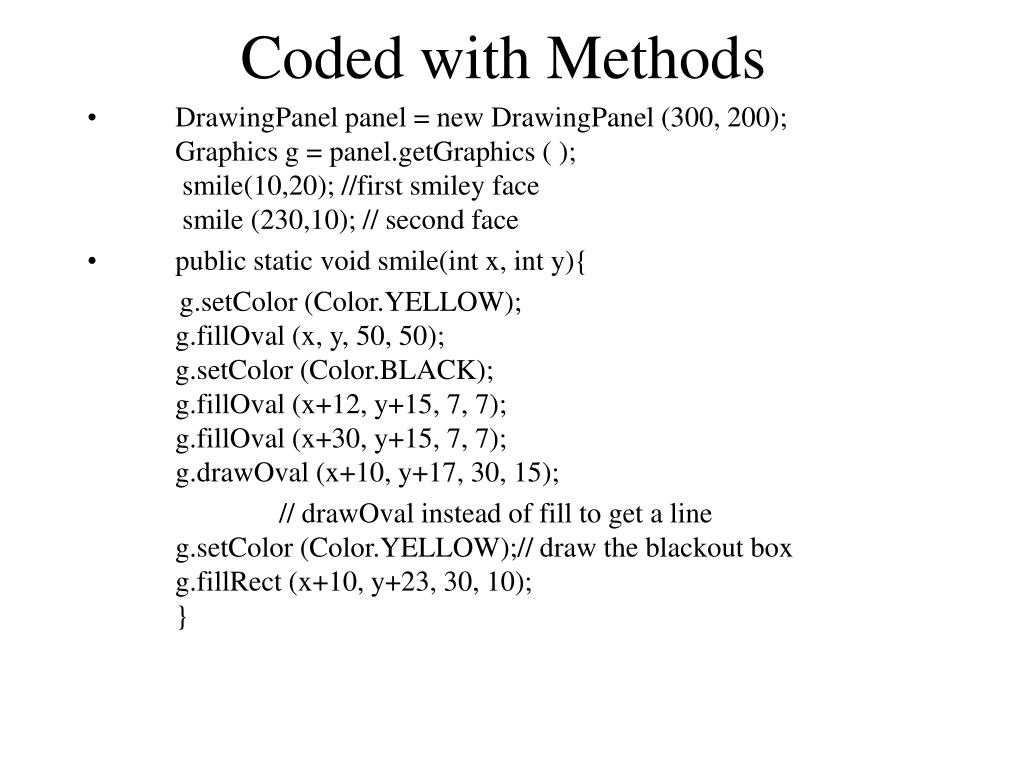

  6. Coded with Methods •        DrawingPanel panel = new DrawingPanel (300, 200);       Graphics g = panel.getGraphics ( );   smile(10,20); //first smiley face smile (230,10); // second face • public static void smile(int x, int y){ g.setColor (Color.YELLOW);       g.fillOval (x, y, 50, 50);       g.setColor (Color.BLACK);       g.fillOval (x+12, y+15, 7, 7);       g.fillOval (x+30, y+15, 7, 7);             g.drawOval (x+10, y+17, 30, 15); // drawOval instead of fill to get a line       g.setColor (Color.YELLOW);// draw the blackout box       g.fillRect (x+10, y+23, 30, 10);      }
