Signals of Quark-Gluon Plasma production

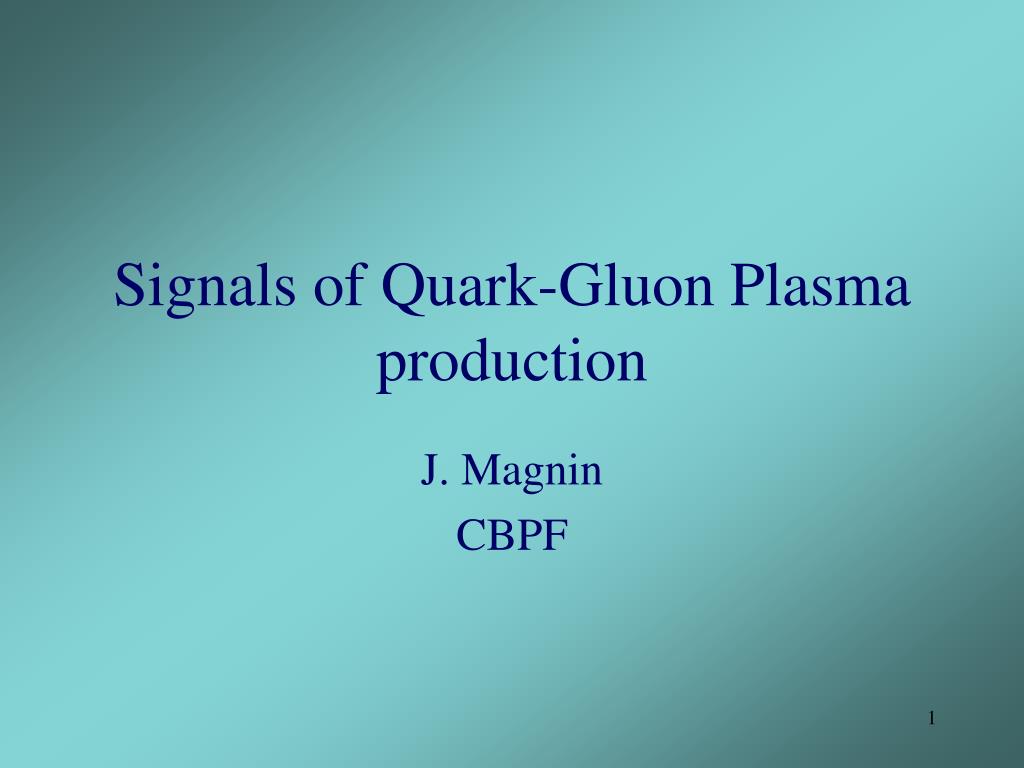

1. Signals of Quark-Gluon Plasma production J. Magnin CBPF

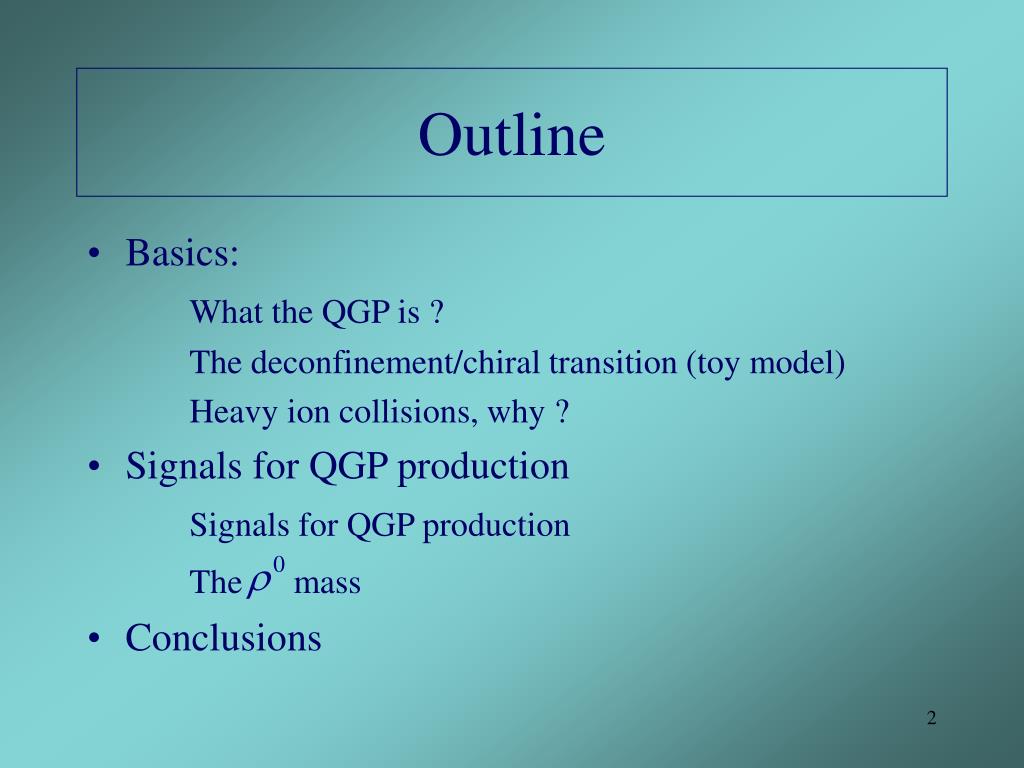

2. Outline • Basics: What the QGP is ? The deconfinement/chiral transition (toy model) Heavy ion collisions, why ? • Signals for QGP production Signals for QGP production The mass • Conclusions

3. Asymptotic freedom What QGP is ? • QCD has the property that the coupling constant tends to zero as the inverse of the logarithm of the energy scale:

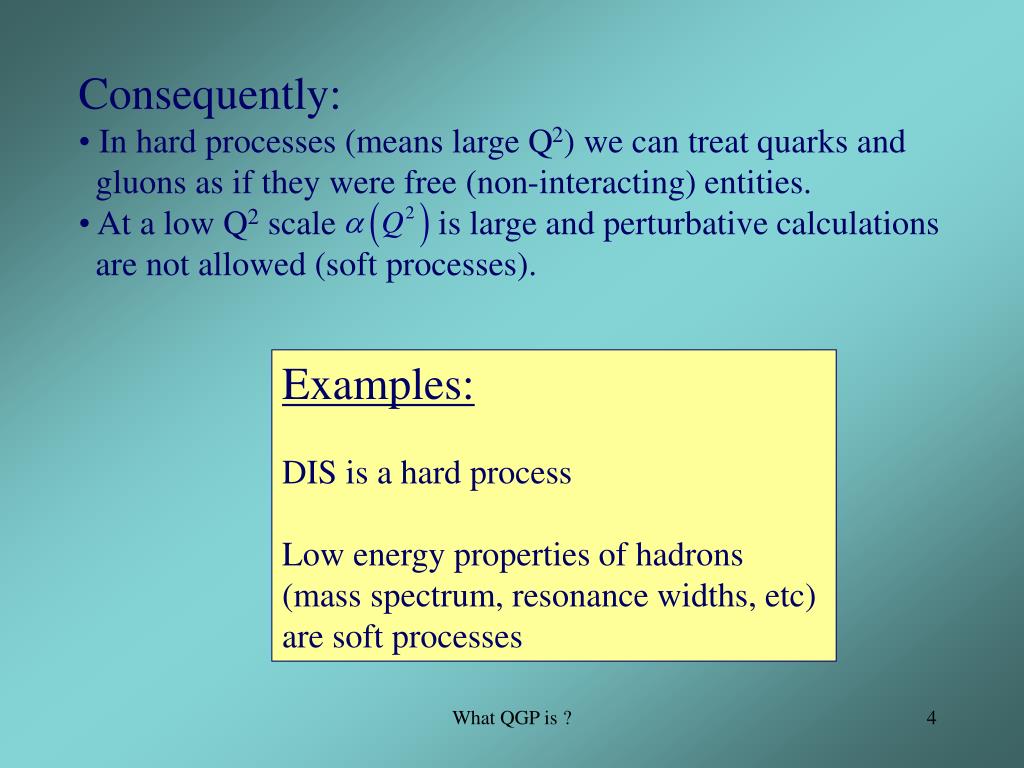

4. Consequently: • In hard processes (means large Q2) we can treat quarks and • gluons as if they were free (non-interacting) entities. • At a low Q2 scale is large and perturbative calculations • are not allowed (soft processes). Examples: DIS is a hard process Low energy properties of hadrons (mass spectrum, resonance widths, etc) are soft processes What QGP is ?

5. But… The situation may change if the temperature if high enough ! In this case the scale parameter is T and Above some critical temperature Tc (~ 150 MeV) it is possible to have a gas of almost free quarks and gluons: Quark-Gluon Plasma The same situation may occur at zero temperature for sufficiently large chemical potentials, or increasing both, the temperature and the chemical potential (or, equivalently, the pressure) What QGP is ?

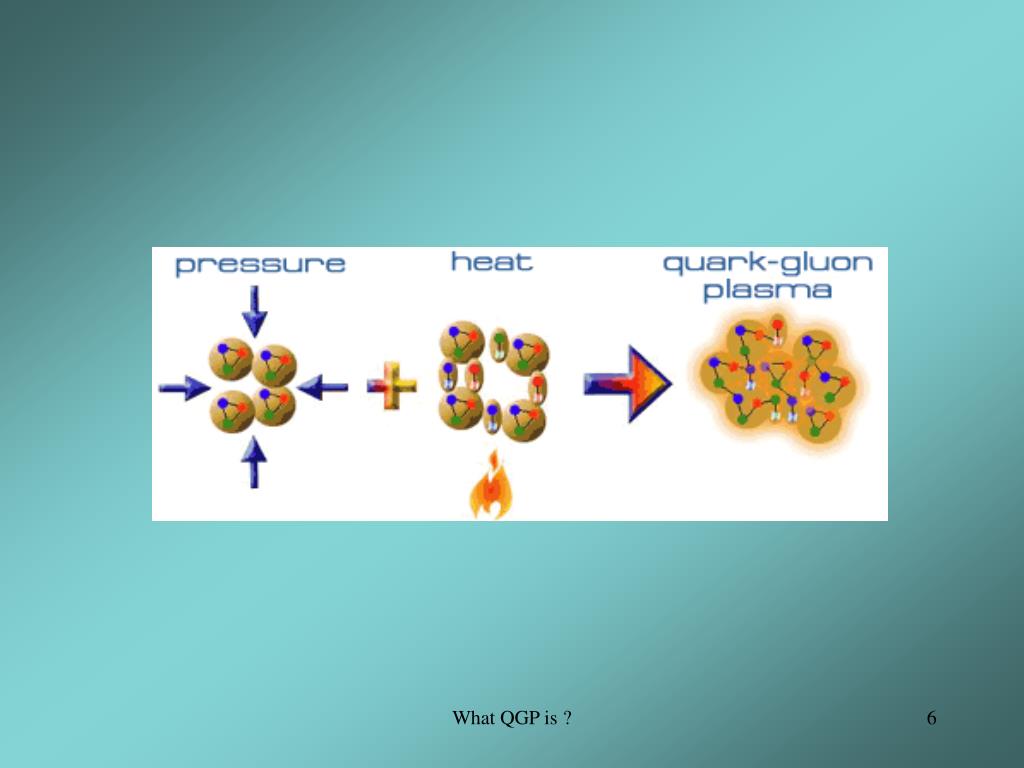

6. What QGP is ?

7. The deconfinement/chiral transition The bag model: • The bag model has two main features of QCD: asymptotic • freedom and confinement • Hadrons are bubbles of (perturbative) vacuum in a • confining medium • Inside the bag quarks are free • Outside the bag quarks cannot appear as free particles

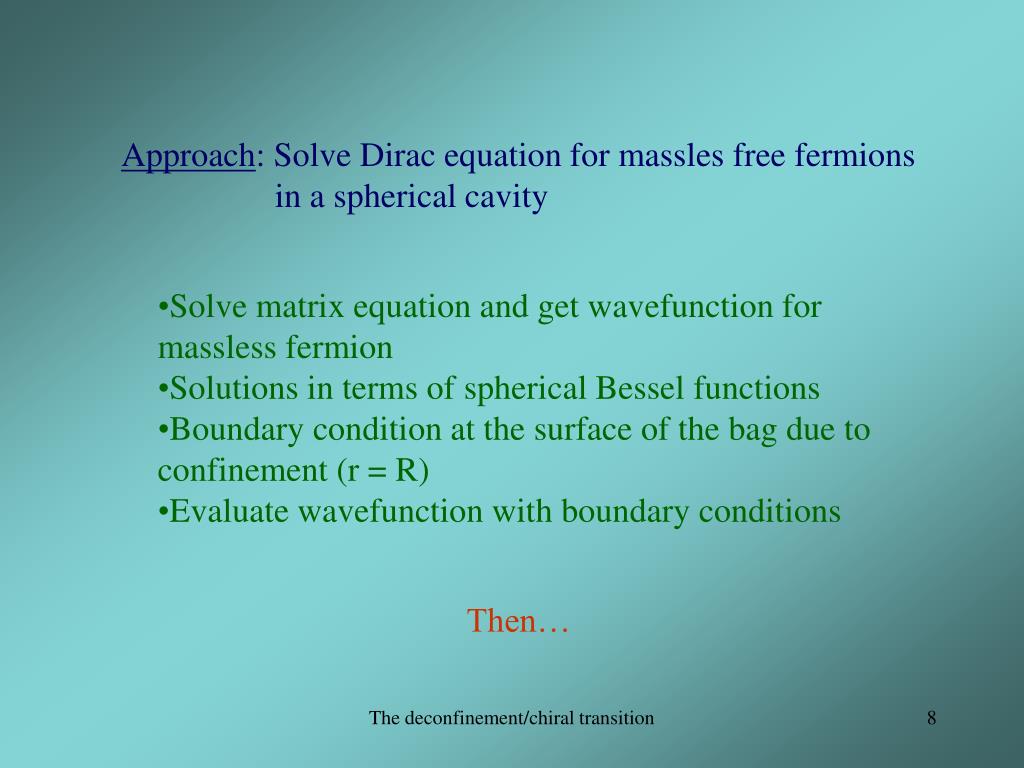

8. Approach: Solve Dirac equation for massles free fermions in a spherical cavity • Solve matrix equation and get wavefunction for massless fermion • Solutions in terms of spherical Bessel functions • Boundary condition at the surface of the bag due to confinement (r = R) • Evaluate wavefunction with boundary conditions Then… The deconfinement/chiral transition

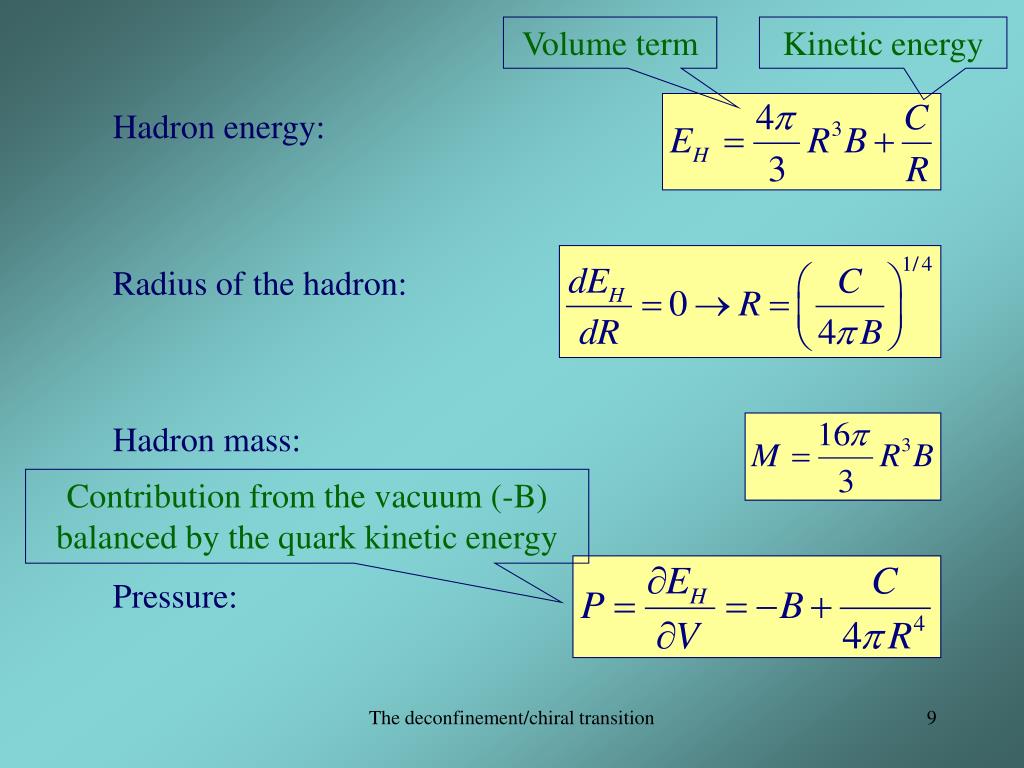

9. Hadron energy: Radius of the hadron: Hadron mass: Pressure: Volume term Kinetic energy Contribution from the vacuum (-B) balanced by the quark kinetic energy The deconfinement/chiral transition

10. Look at the grand potential For a boson gas: for a fermion gas: and for a gas of quarks and gluons: vacuum gluons quarks The deconfinement/chiral transition

11. For a pion gas: with Equality of the pressure in the plasma and hadron phases gives the critical temperature Tc The deconfinement/chiral transition

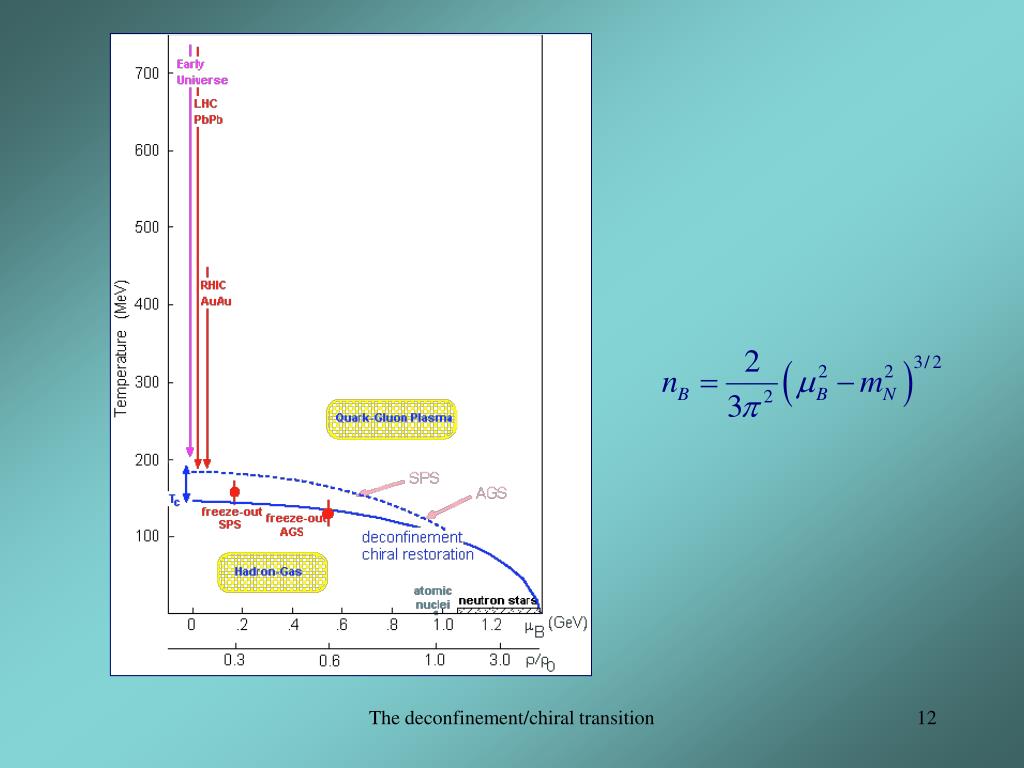

12. The deconfinement/chiral transition

13. The doconfinement/chiral transition

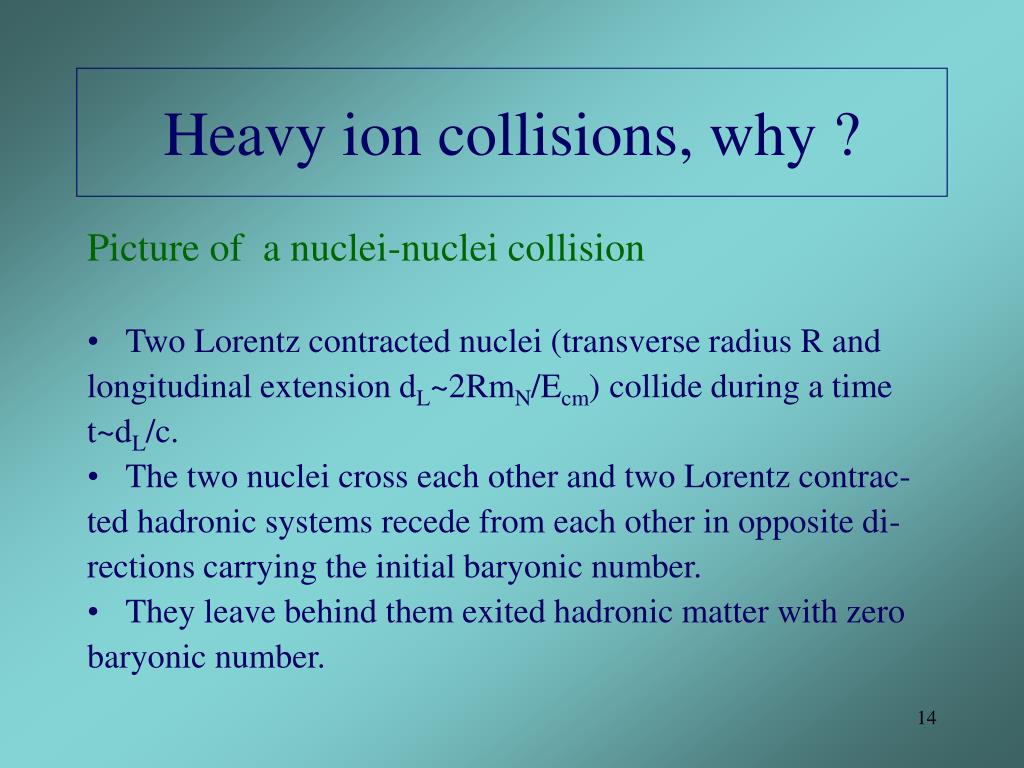

14. Heavy ion collisions, why ? Picture of a nuclei-nuclei collision • Two Lorentz contracted nuclei (transverse radius R and longitudinal extension dL~2RmN/Ecm) collide during a time t~dL/c. • The two nuclei cross each other and two Lorentz contrac- ted hadronic systems recede from each other in opposite di- rections carrying the initial baryonic number. • They leave behind them exited hadronic matter with zero baryonic number.

15. Typical numbers: Pb-Pb collision al LHC energies: Ecm = 2 TeV dL/c~7x10-3 fm/c Heavy ion collisions, why?

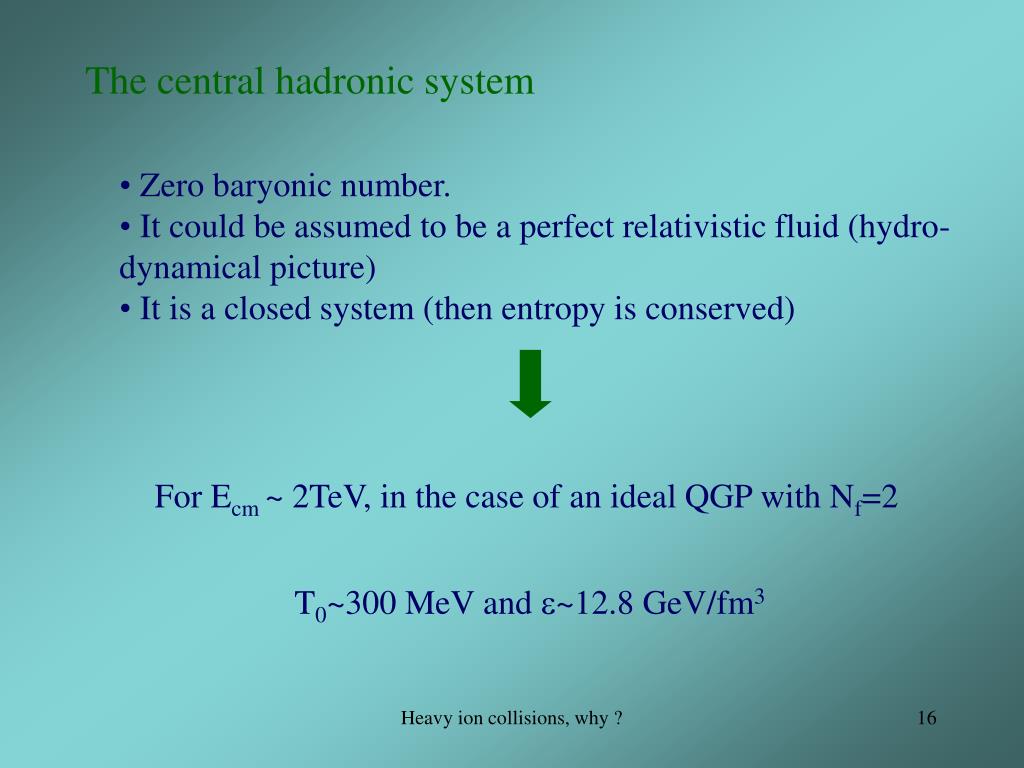

16. The central hadronic system • Zero baryonic number. • It could be assumed to be a perfect relativistic fluid (hydro- • dynamical picture) • It is a closed system (then entropy is conserved) For Ecm ~ 2TeV, in the case of an ideal QGP with Nf=2 T0~300 MeV and ~12.8 GeV/fm3 Heavy ion collisions, why ?

17. Once the QGP was produced then: 1- the expanding system reaches thermal equilibrium (~ 1fm) 2- temperature falls with expansion of the system 3- when T=Tc  mixed plasma-hadronic phase 4- chemical freeze-out  particle abundances preserved 5- thermal freeze out  all interactions between hadrons cease (~10 fm)

18. Signals for QGP production • Changes in the intrinsic properties of hadrons. • Increase in the multistrange particle production. • Changes in the dilepton spectrum. • J/ suppression. • Increase in the production of hadronic resonances. • Transverse and longitudinal hadronic flux outside of the production plane. • Etc…

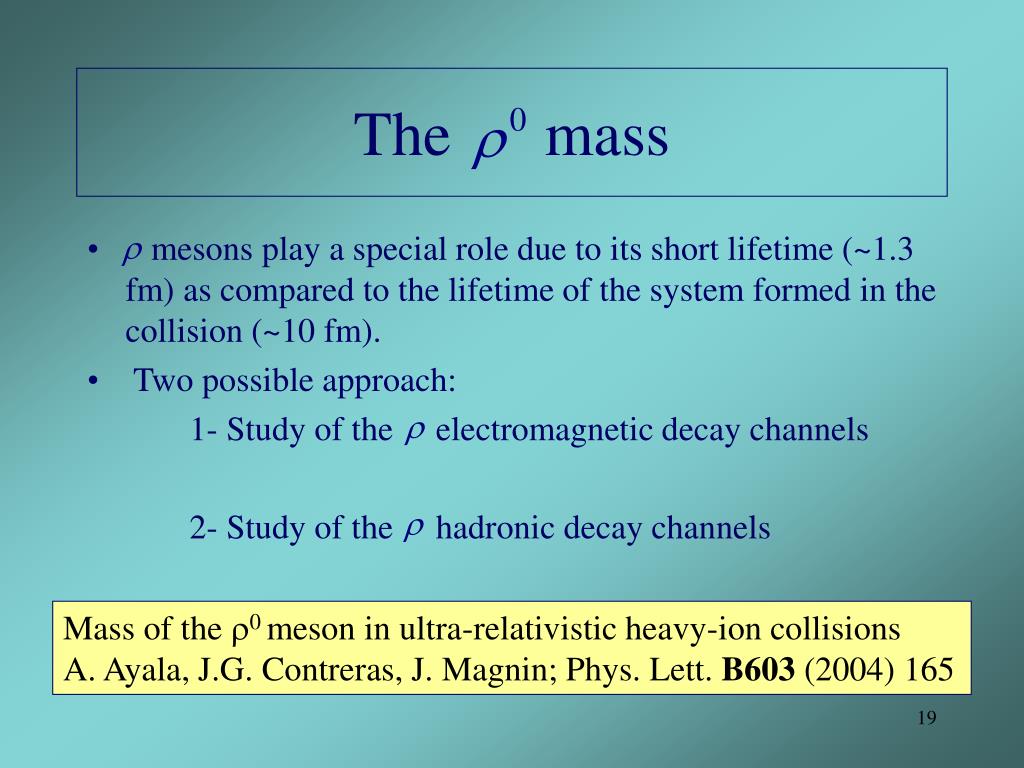

19. The mass • mesons play a special role due to its short lifetime (~1.3 fm) as compared to the lifetime of the system formed in the collision (~10 fm). • Two possible approach: 1- Study of the electromagnetic decay channels 2- Study of the hadronic decay channels Mass of the 0 meson in ultra-relativistic heavy-ion collisions A. Ayala, J.G. Contreras, J. Magnin; Phys. Lett. B603 (2004) 165

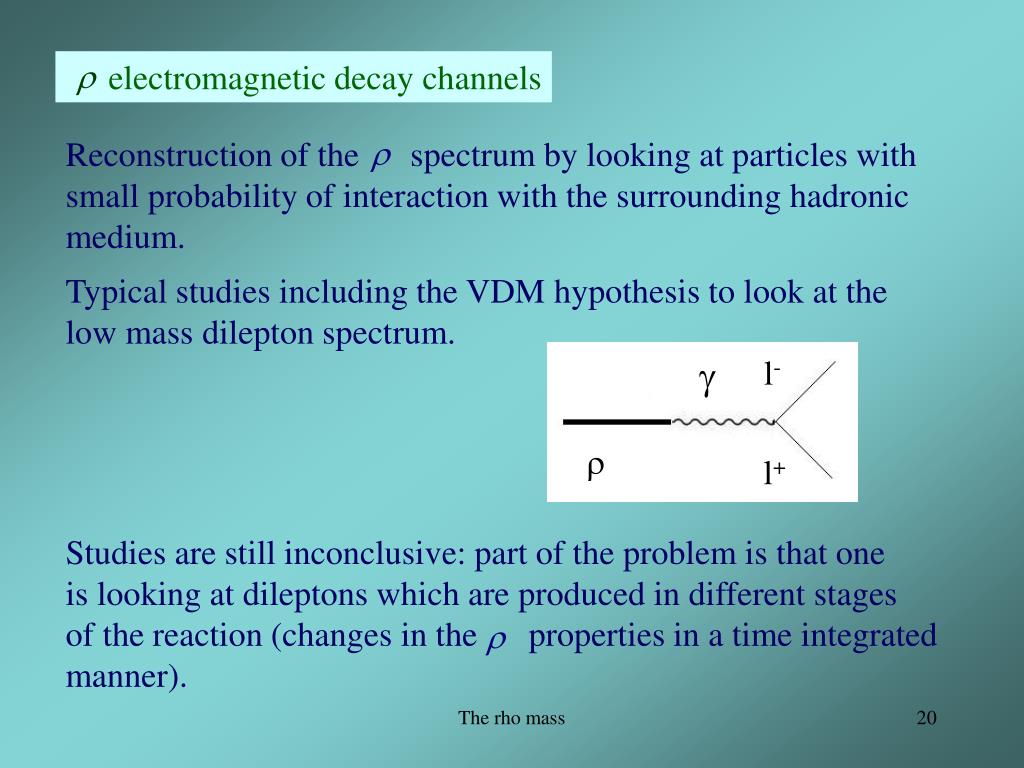

20. electromagnetic decay channels Reconstruction of the spectrum by looking at particles with small probability of interaction with the surrounding hadronic medium. Typical studies including the VDM hypothesis to look at the low mass dilepton spectrum.  l-  l+ Studies are still inconclusive: part of the problem is that one is looking at dileptons which are produced in different stages of the reaction (changes in the properties in a time integrated manner). The rho mass

21. hadronic decay channels Allows to look at the decay, regeneration and re-scattering of the meson within a dilute hadronic system STAR (RHIC) reported a shift of ~70 MeV for the peak of the invariant mass distribution of the decay in Au+Au collisions at GeV. m ~ 40 MeV The rho mass

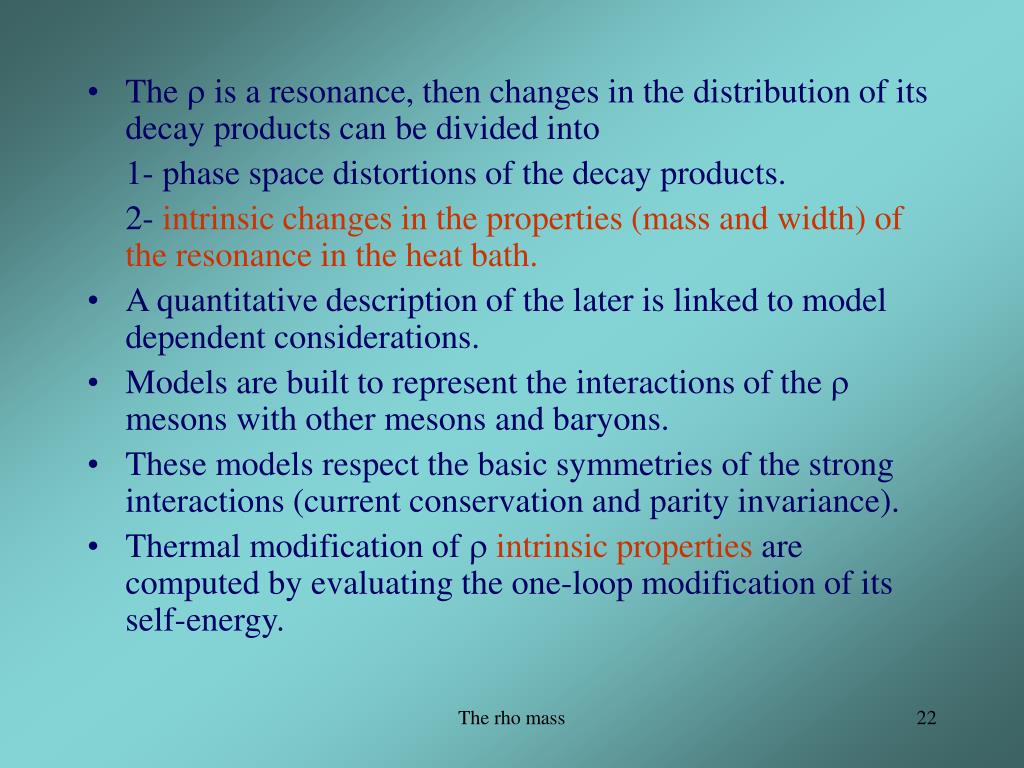

22. The  is a resonance, then changes in the distribution of its decay products can be divided into 1- phase space distortions of the decay products. 2- intrinsic changes in the properties (mass and width) of the resonance in the heat bath. • A quantitative description of the later is linked to model dependent considerations. • Models are built to represent the interactions of the  mesons with other mesons and baryons. • These models respect the basic symmetries of the strong interactions (current conservation and parity invariance). • Thermal modification of  intrinsic properties are computed by evaluating the one-loop modification of its self-energy. The rho mass

23. m mass of the  in vacuum M and tot are temperature and/or density dependent quantities •  at one-loop  • The self-energy  is related to the intrinsic  properties by •  is calculated using a covariant formalism. The rho mass

24. Use is done of Thermal Field Theory in the imaginary-time formulation (Matsubara) • Details to take care of • 1-We take the z axis as the direction of motion of the  meson, then the thermal mass can be computed from the thermal part of the component 11 in the limit of vanishing three-momentum. • 2- Recalculate coupling constants if necessary by adjusting theoretical expressions to experimentally measured branching ratios The rho mass

25. Interactions of  with baryons Look for baryonic resonances decaying into -nucleon The rho mass

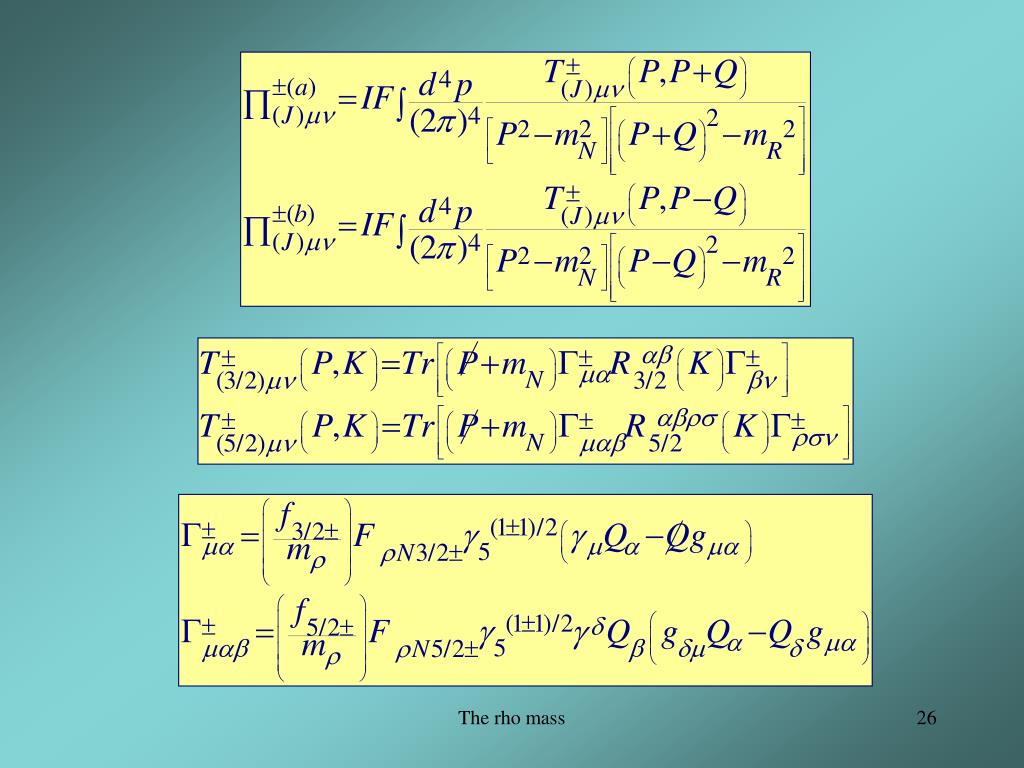

26. The rho mass

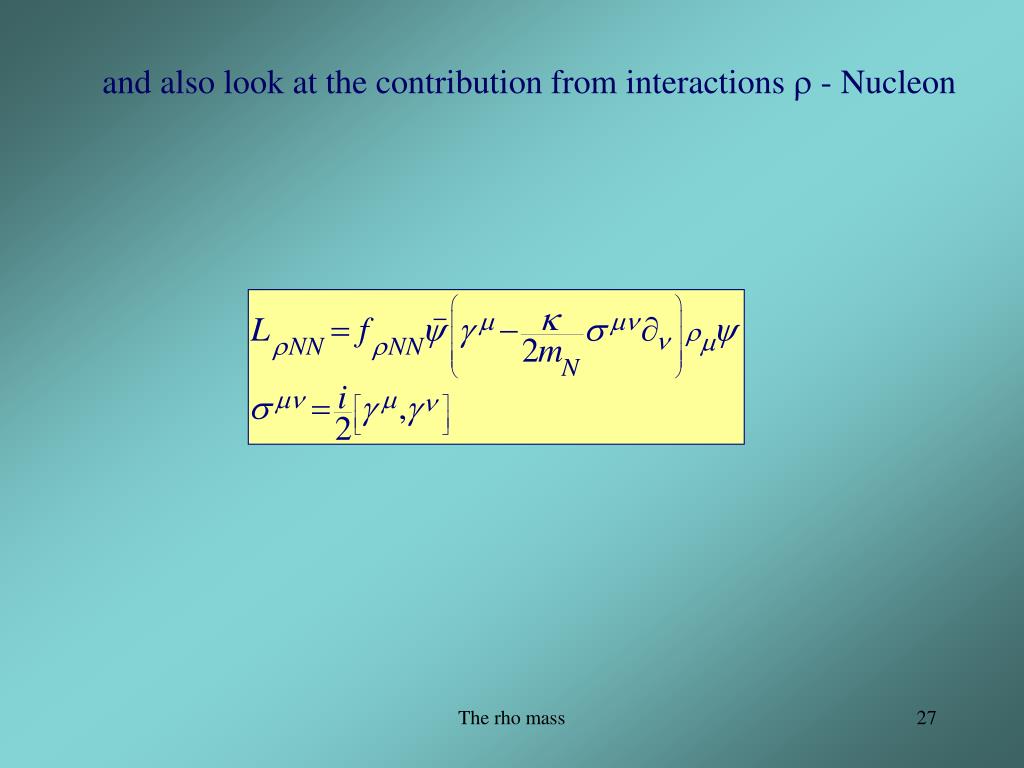

27. and also look at the contribution from interactions  - Nucleon The rho mass

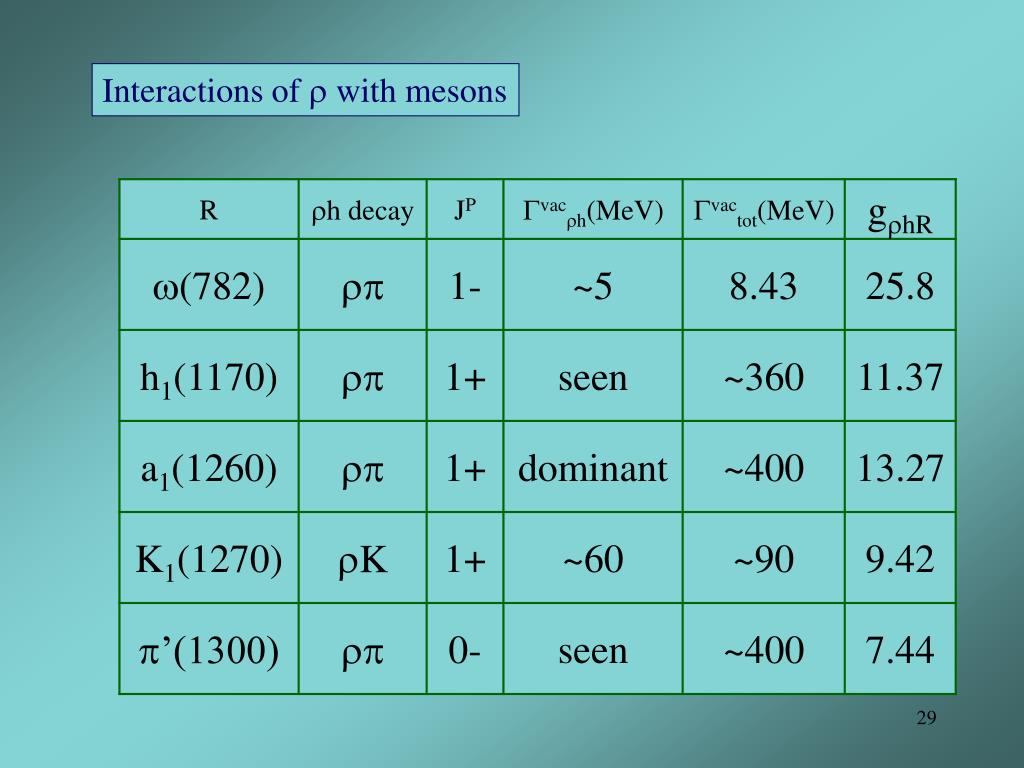

29. Interactions of  with mesons

31. and add also the - interaction

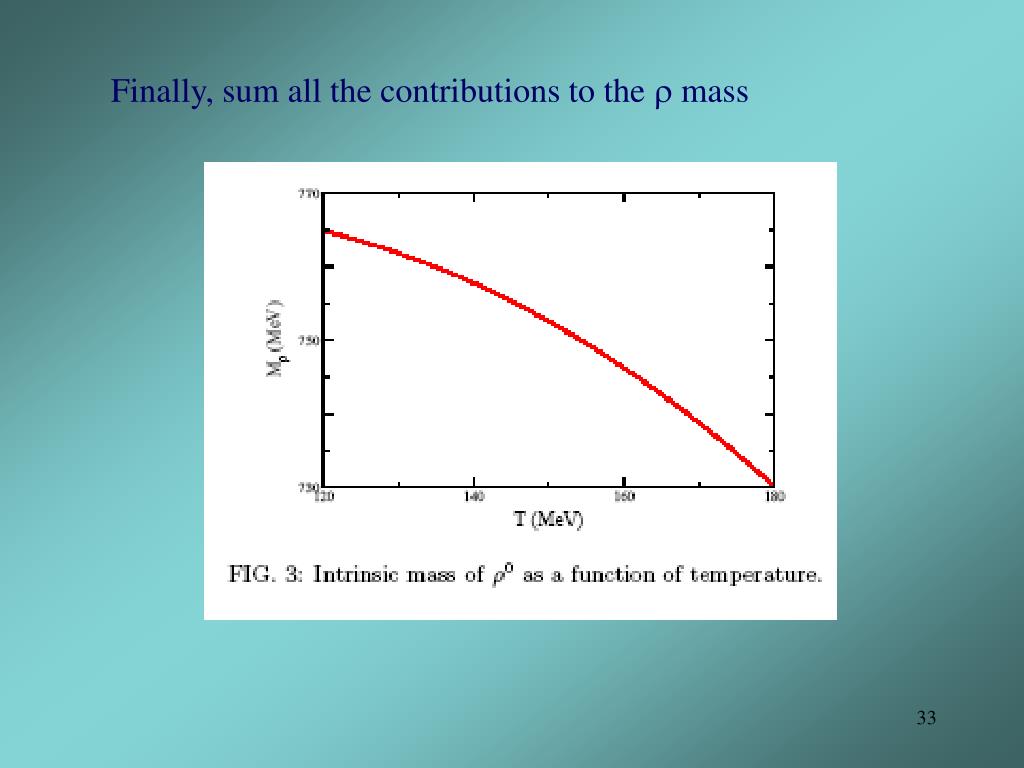

33. Finally, sum all the contributions to the  mass

34. Conclusions • We shown that it is possible to achieve a shift of ~40 MeV for a reasonable range of temperatures of the hadronic phase of a relativistic heavy ion collisions. • Chemical potential should help to increase the shift of the  mass. • The overall change in the mass of the +- distribution is also affected by phase space distortions due to thermal motion of the decay products and changes in the  width. • These results underline the importance of  meson and baryon scattering to decrease the intrinsic mass of the .
