  1. Emerged Technologies X.25 Nirmala Shenoy Department of Information Technology Rochester Institute of Technology

  2. X.25 • Scope • Purpose • Typical topology • Layers • PDU • Any other aspects • Conclusion

  3. X.25 • Purpose • User interface specification for packet switched networks • Packet switched networks • Public • Any configuration • Any protocol

  4. X.25 • Purpose • Specification of data exchange between user device (DTE) and network (DCE) • DCE is the agent used by the DTE to access the packet switched network • Expected data flow over unreliable media • Flow control

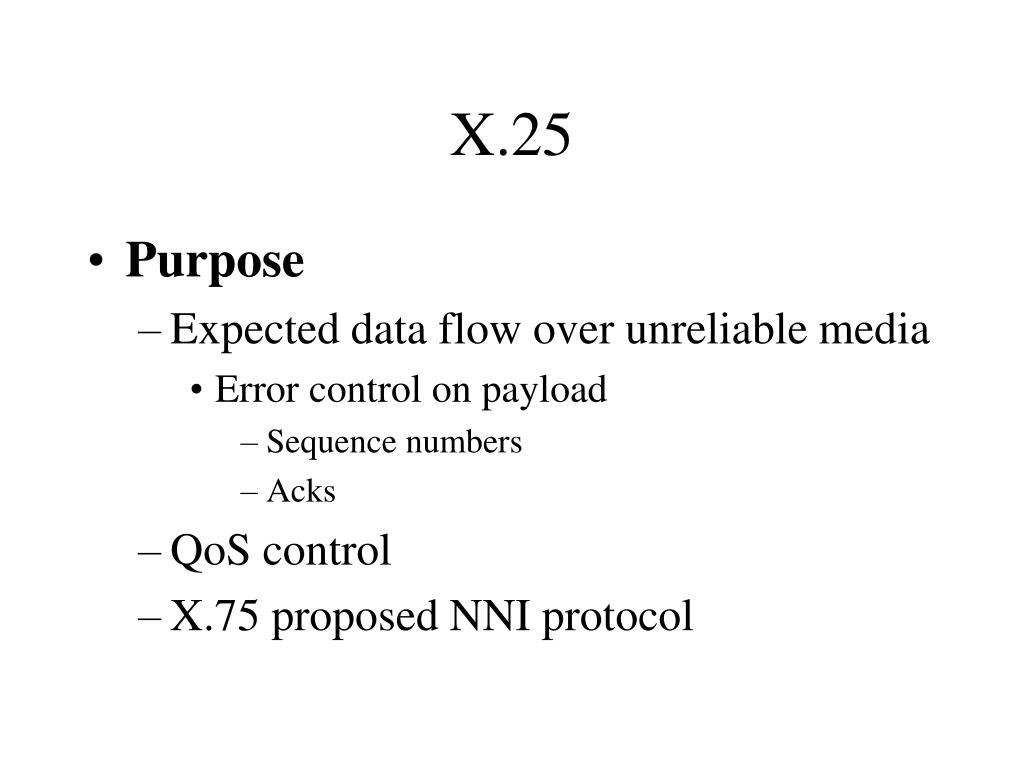

  5. X.25 • Purpose • Expected data flow over unreliable media • Error control on payload • Sequence numbers • Acks • QoS control • X.75 proposed NNI protocol

  6. X.25 • Three Layers of X.25 • Physical layer • V series, X.21, X.21bis etc • Data Link Layer – LAPB • Link Access protocol Balanced • Subset of HDLC • Network Layer – PLP • Packet Layer Procedures

  7. X.25 • PDUs in X.25 - PLP • PLP creates the packets that are to be transferred – end-to-end • Establish a connection • Tear down a connection • Manage packet flow • Uses sequence numbers, acks etc • Logical channel number management

  8. X.25 • PDUs in X.25 – LAPB • Payload of LAPB is PLP packet • PLP packet is in the information field • Address fields • Checksum • Link ctrl • Ack, Naks, Redundancy in reliability control

  9. X.25 • Other Aspects • PLP can support 4095 logical channels • Allocates and maintains the LCNs • Logical Channel Number • Virtual circuit comprise 2 logical channels at both ends

  10. X.25 • Other Aspects - Virtual circuits in X.25 • PVCs • Agreed by end users and network • SVCs • Based on need • Call request, Call tear down procedures

  11. X.25 • Other features • Provision for user requested QoS control • Special services • Call redirection • Closed user groups • Reverse charge

  12. X.25 • Conclusions • Intended to support an error prone WAN configuration • Old physical interfaces used • Pioneered the concepts of PVCs, SVCs, VCIs
