  1. 12-3 Protein Synthesis

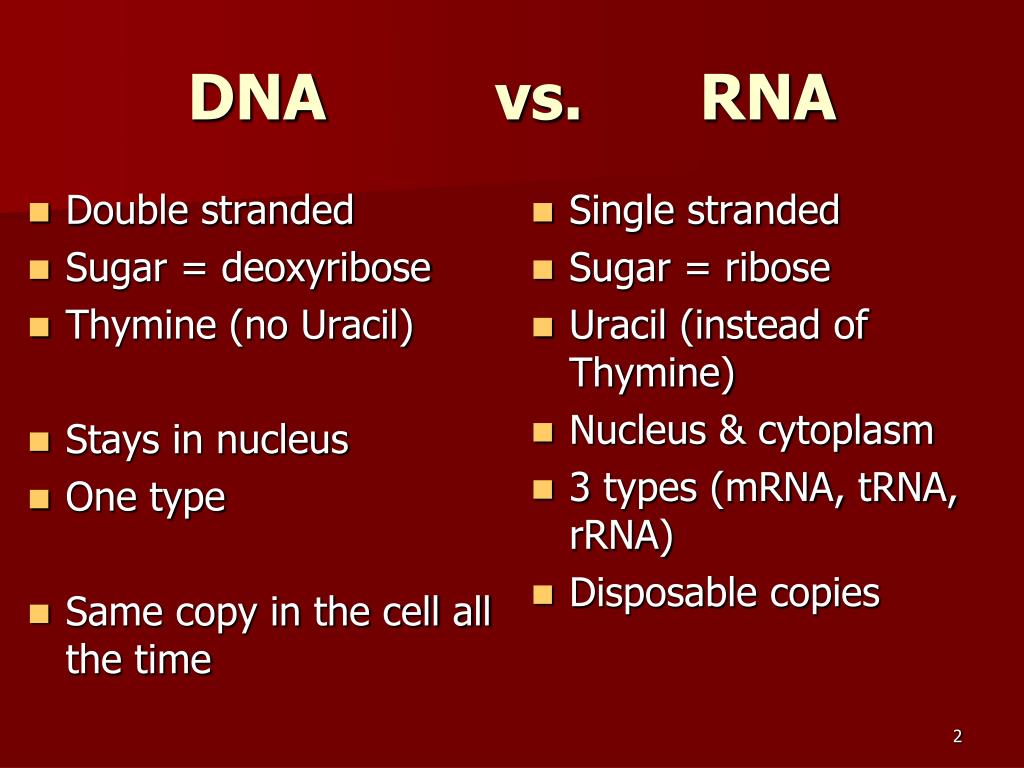

  2. Double stranded Sugar = deoxyribose Thymine (no Uracil) Stays in nucleus One type Same copy in the cell all the time Single stranded Sugar = ribose Uracil (instead of Thymine) Nucleus & cytoplasm 3 types (mRNA, tRNA, rRNA) Disposable copies DNA vs. RNA

  3. Ribose vs. Deoxyribose

  4. RNA • many functions but mostly just protein synthesis • three main types of RNA: messenger RNA, ribosomal RNA, and transfer RNA

  5. Types of RNA

  6. mRNA • RNA molecules that carry copies of the DNA instructions = mRNA • messenger RNA (mRNA) = serve as “messengers” from DNA to the rest of the cell

  7. rRNA • Ribosomes are made up of several dozen proteins, as well as a form of RNA known as ribosomal RNA (rRNA).

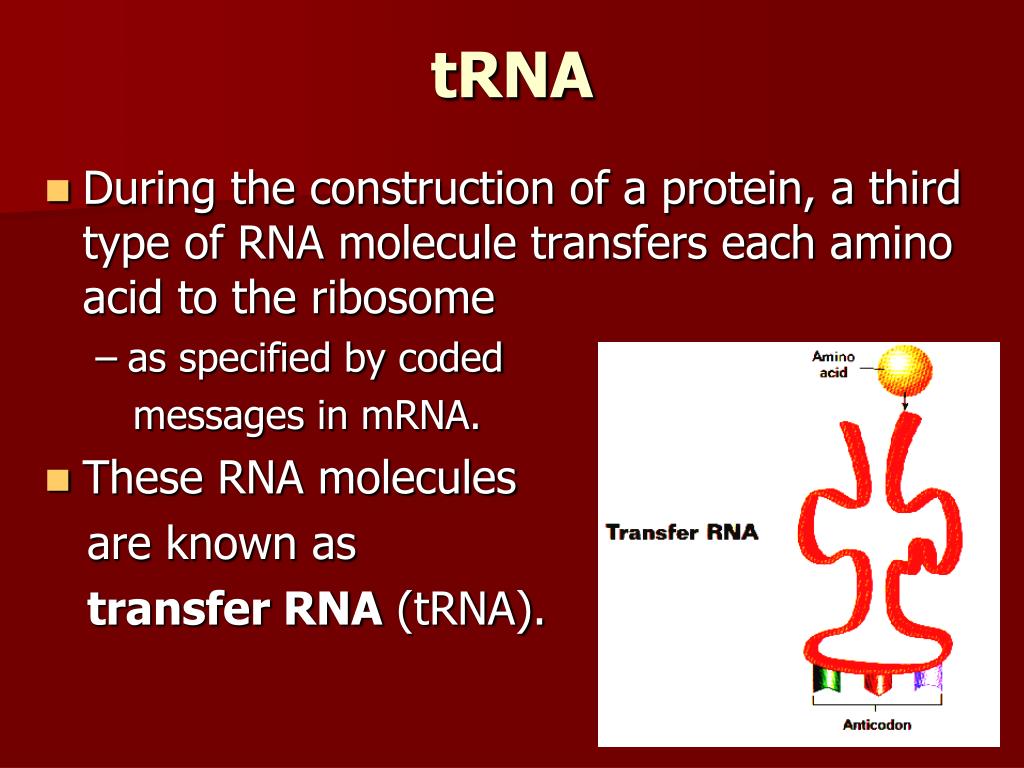

  8. tRNA • During the construction of a protein, a third type of RNA molecule transfers each amino acid to the ribosome • as specified by coded messages in mRNA. • These RNA molecules are known as transfer RNA (tRNA).

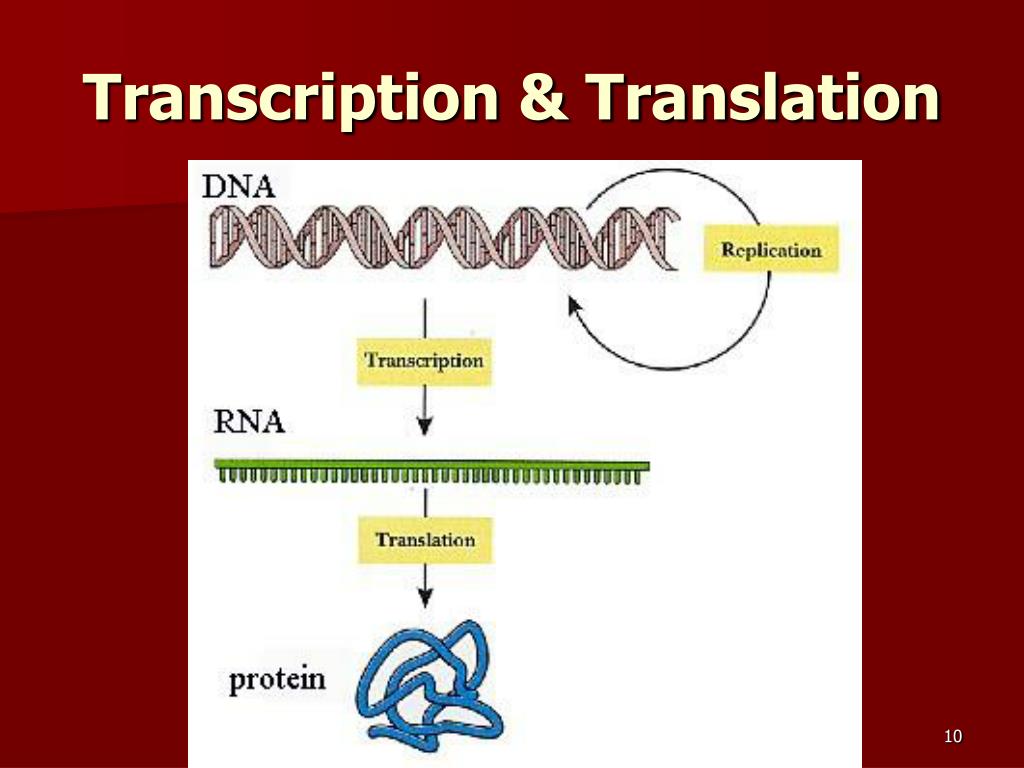

  9. Transcription & Translation

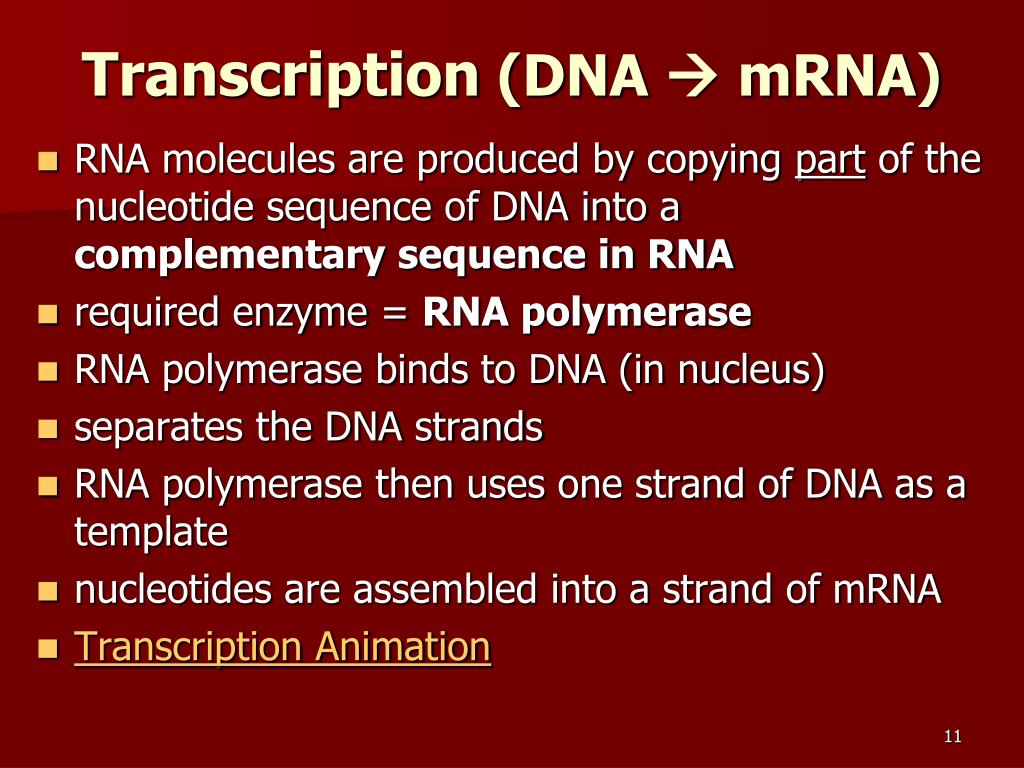

  10. Transcription (DNA  mRNA) • RNA molecules are produced by copying part of the nucleotide sequence of DNA into a complementary sequence in RNA • required enzyme = RNA polymerase • RNA polymerase binds to DNA (in nucleus) • separates the DNA strands • RNA polymerase then uses one strand of DNA as a template • nucleotides are assembled into a strand of mRNA • Transcription Animation

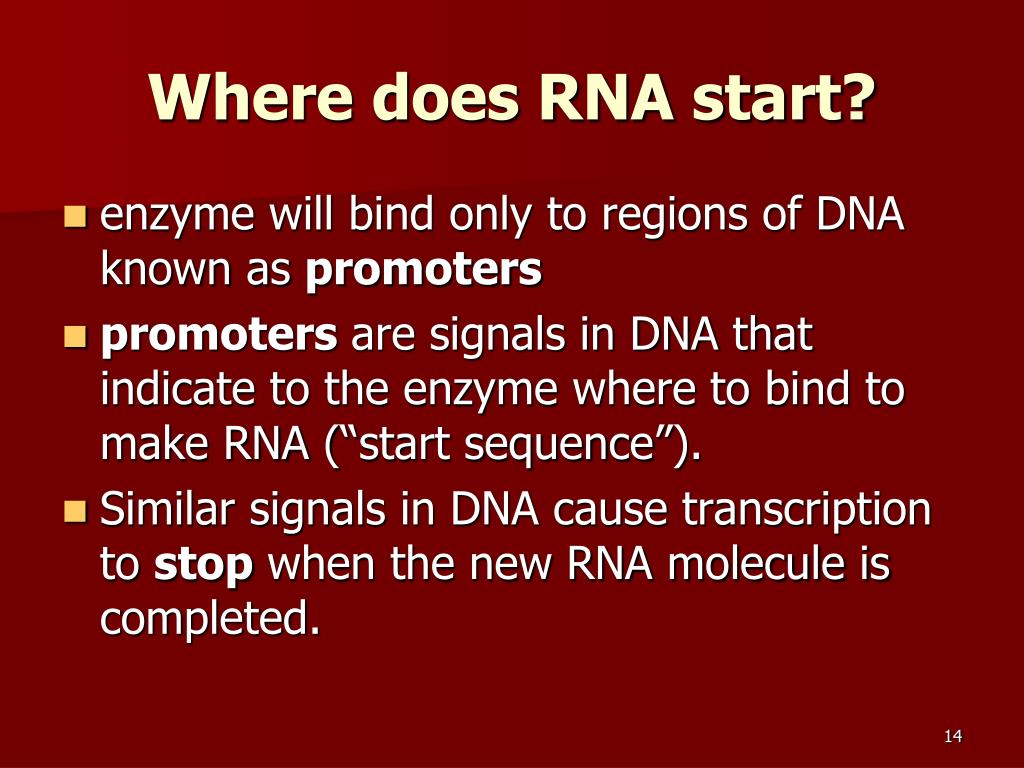

  11. Where does RNA start? • enzyme will bind only to regions of DNA known as promoters • promoters are signals in DNA that indicate to the enzyme where to bind to make RNA (“start sequence”). • Similar signals in DNA cause transcription to stop when the new RNA molecule is completed.

  12. RNA Editing • Intron = intervening sequence of DNA; does not code for a protein • Exon = expressed sequence of DNA; codes for a protein • When RNA molecules are formed, both the introns and the exons are copied from the DNA • introns are cut out of RNA molecules while they are still in the nucleus • exons are then spliced back together to form the final mRNA

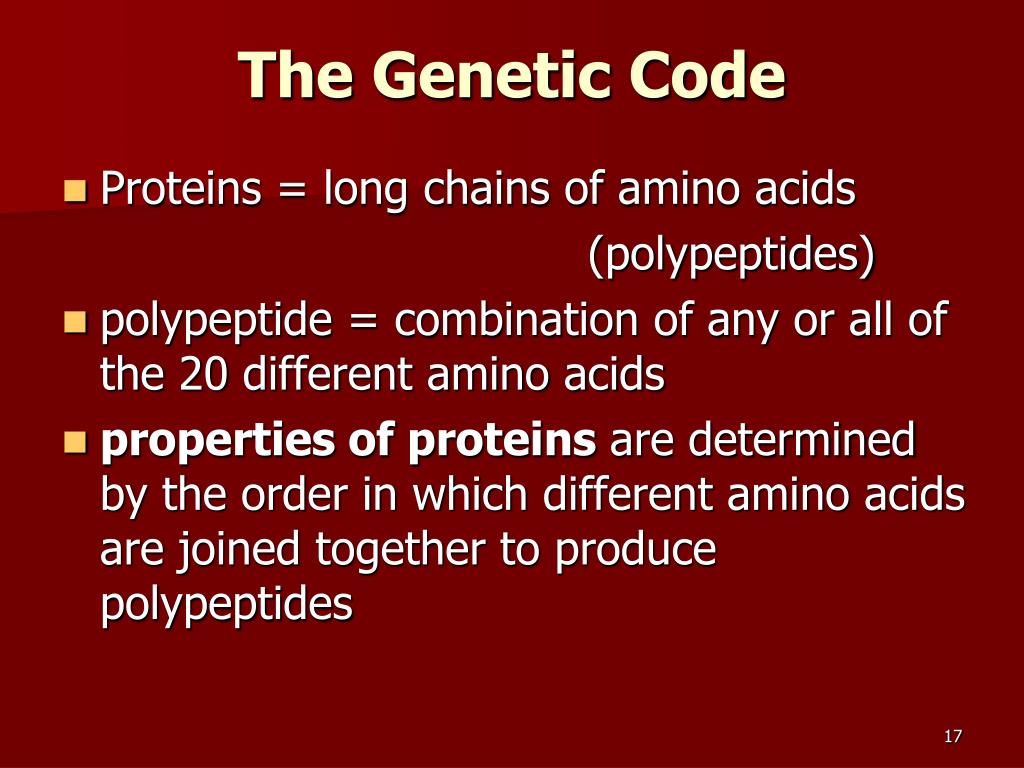

  13. The Genetic Code • Proteins = long chains of amino acids (polypeptides) • polypeptide = combination of any or all of the 20 different amino acids • properties of proteins are determined by the order in which different amino acids are joined together to produce polypeptides

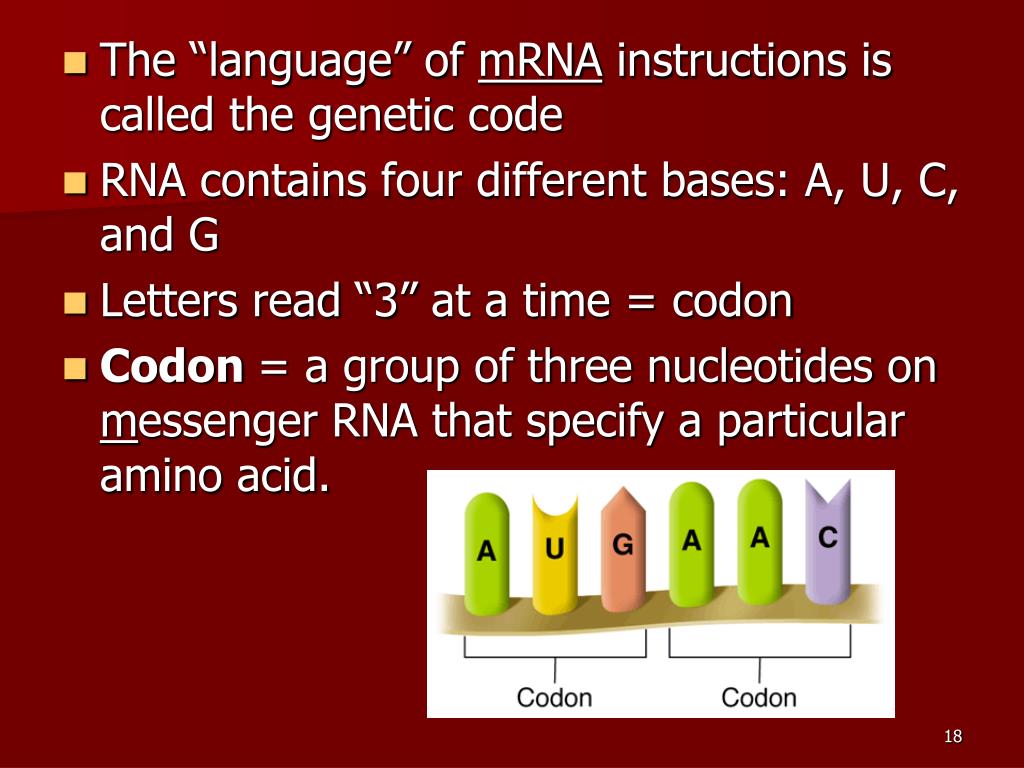

  14. The “language” of mRNA instructions is called the genetic code • RNA contains four different bases: A, U, C, and G • Letters read “3” at a time = codon • Codon = a group of three nucleotides on messenger RNA that specify a particular amino acid.

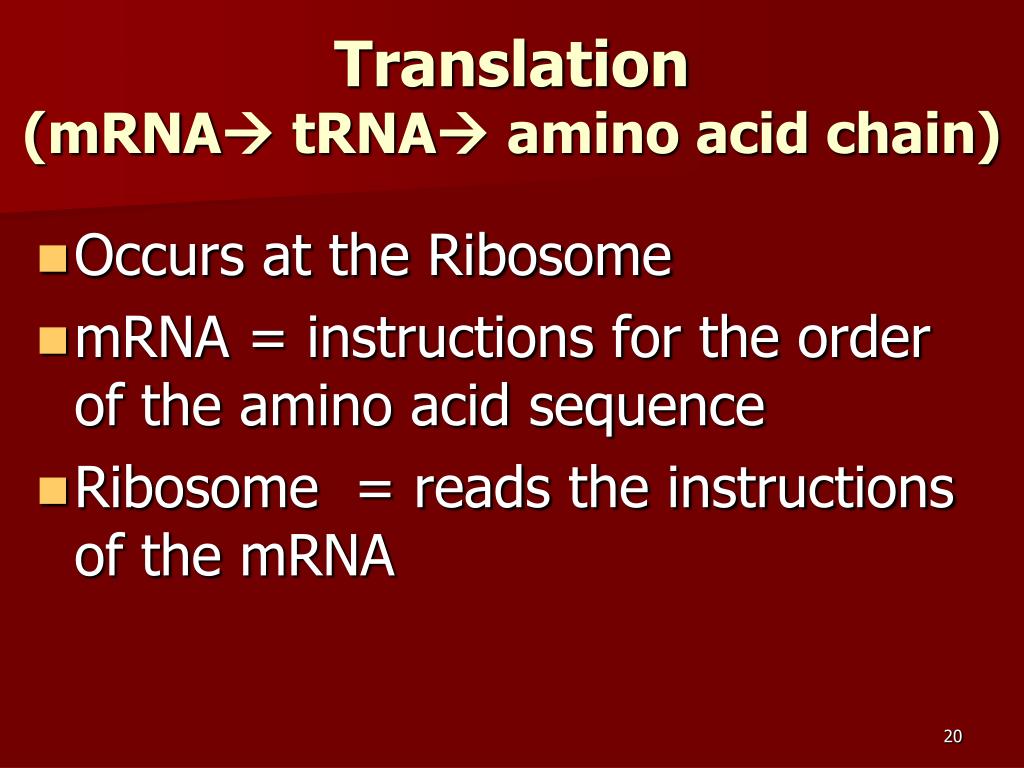

  15. Translation (mRNA tRNA amino acid chain) • Occurs at the Ribosome • mRNA = instructions for the order of the amino acid sequence • Ribosome = reads the instructions of the mRNA

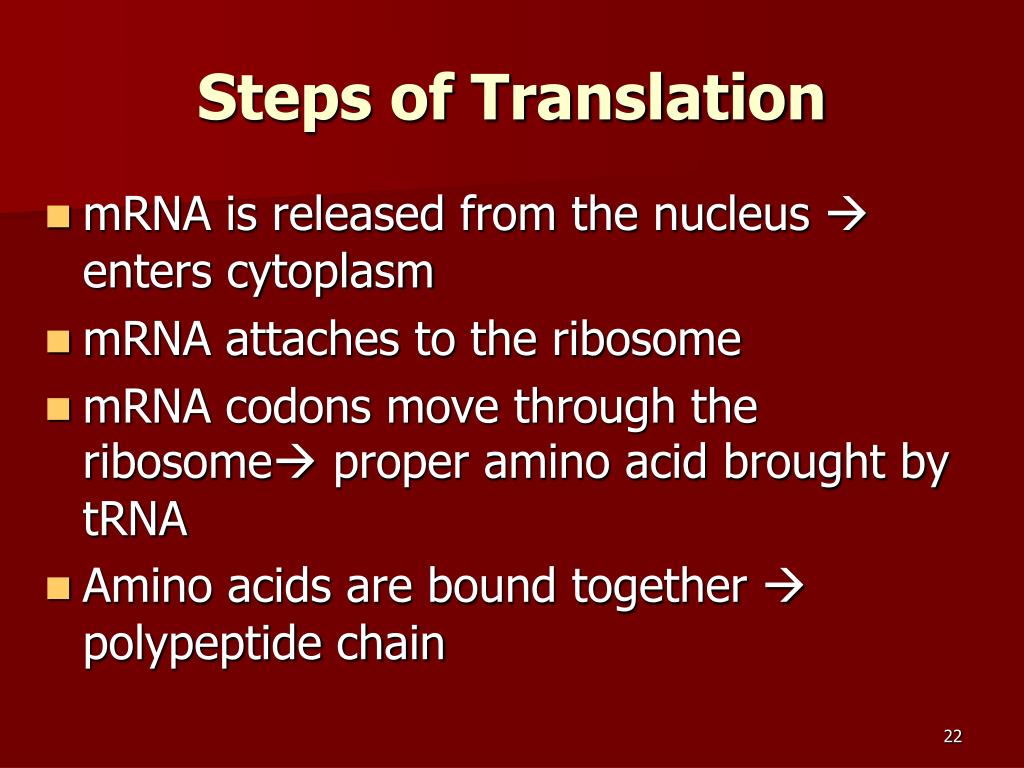

  16. Steps of Translation • mRNA is released from the nucleus  enters cytoplasm • mRNA attaches to the ribosome • mRNA codons move through the ribosome proper amino acid brought by tRNA • Amino acids are bound together  polypeptide chain

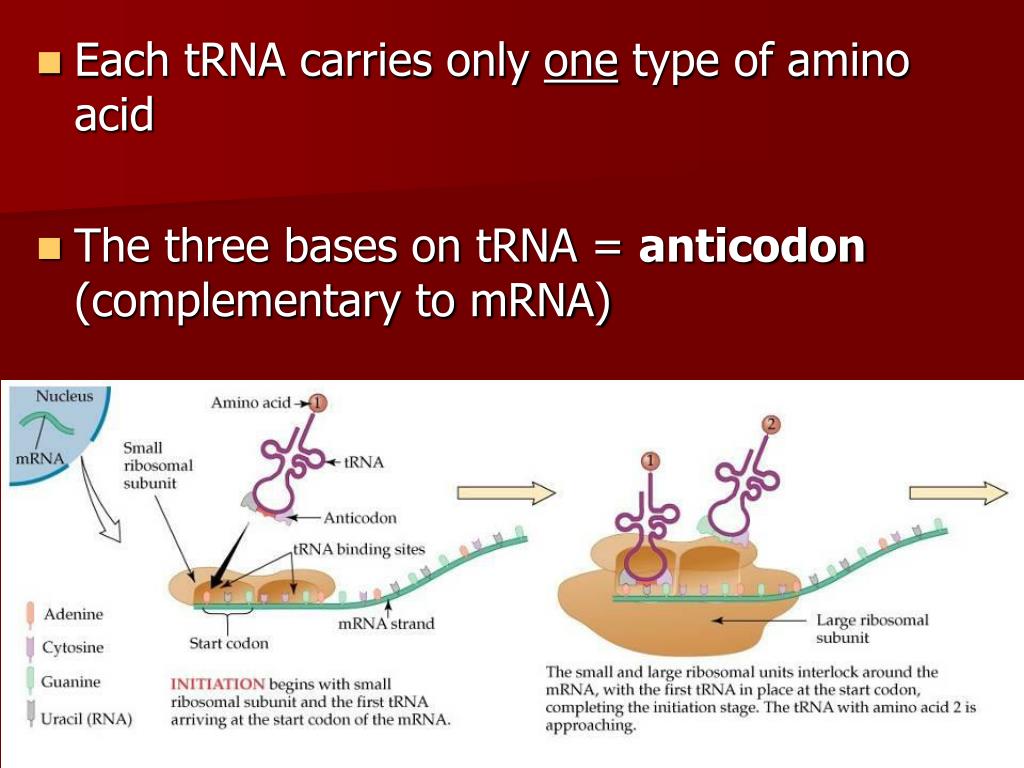

  17. Each tRNA carries only one type of amino acid • The three bases on tRNA = anticodon (complementary to mRNA)

  18. The ribosome forms peptide bonds between the neighboring amino acids • It also breaks the bonds between tRNA and the amino acids • Translation ends when a “stop” codon is reached

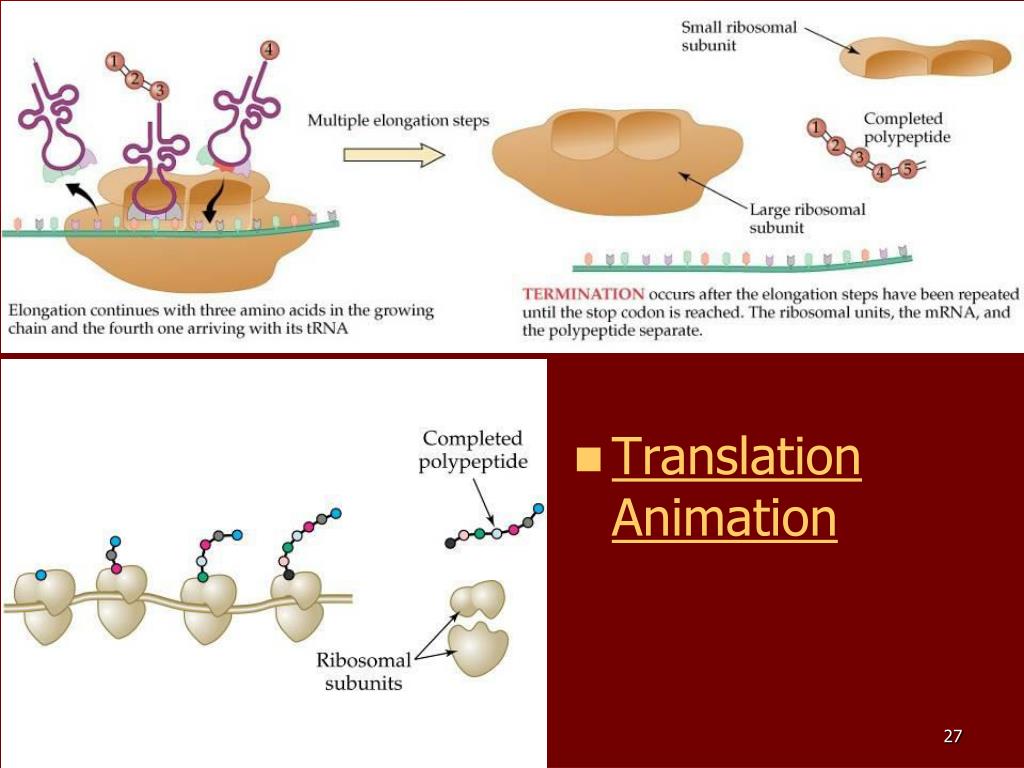

  19. Translation Animation

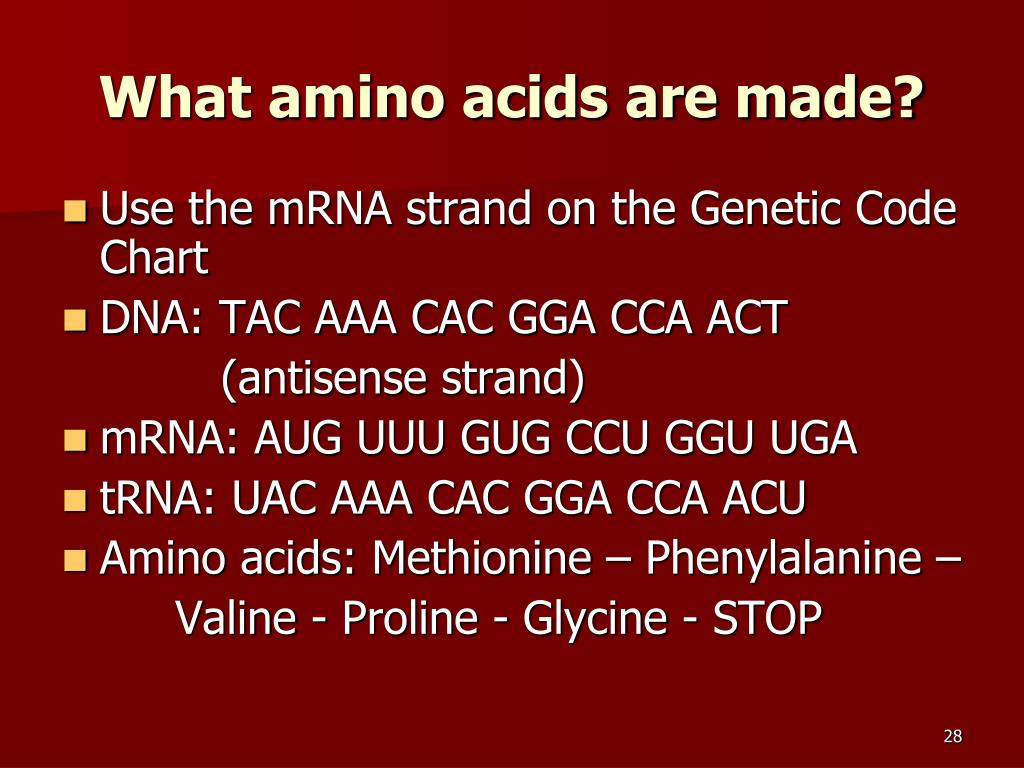

  20. What amino acids are made? • Use the mRNA strand on the Genetic Code Chart • DNA: TAC AAA CAC GGA CCA ACT (antisense strand) • mRNA: AUG UUU GUG CCU GGU UGA • tRNA: UAC AAA CAC GGA CCA ACU • Amino acids: Methionine – Phenylalanine – Valine - Proline - Glycine - STOP
