  1. Modal Comparison of Functionally Graded Material and Constant Material Rectangular Plates Joo Sub Rhee September 2010 Rensselaer Polytechnic Institute at Hartford

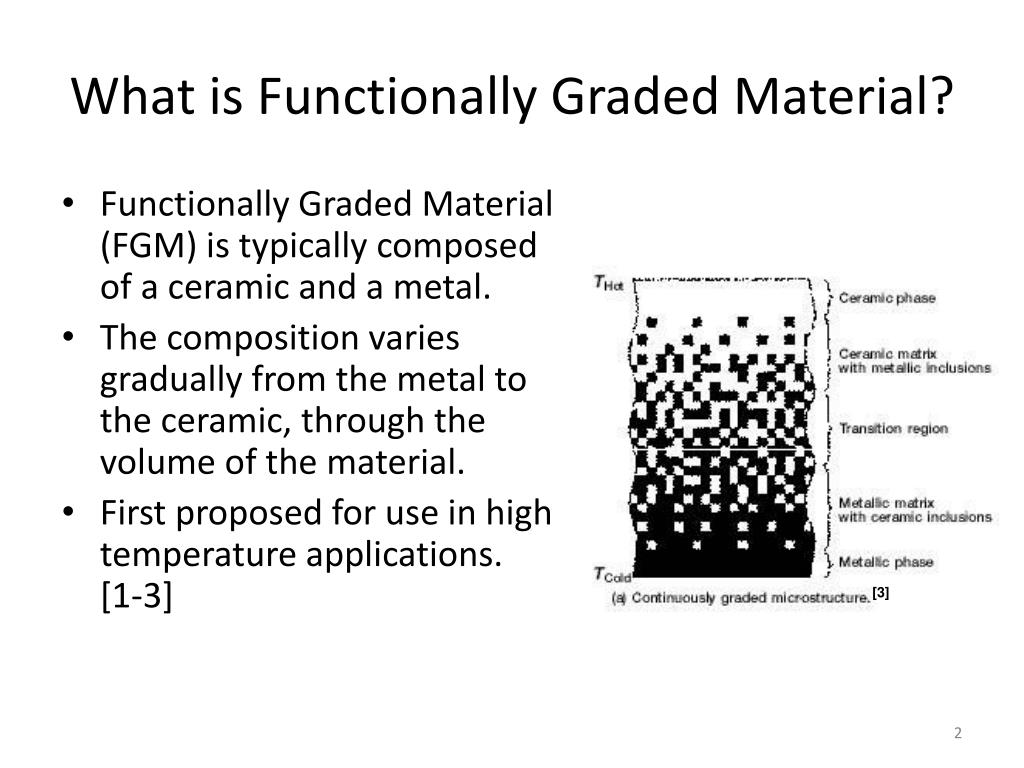

  2. What is Functionally Graded Material? • Functionally Graded Material (FGM) is typically composed of a ceramic and a metal. • The composition varies gradually from the metal to the ceramic, through the volume of the material. • First proposed for use in high temperature applications.[1-3] [3]

  3. Problem Description • Functionally graded material has potential use in areas such as turbine engine airfoils. • Behavior of functionally graded materials are still being explored. • Understanding vibratory modes are important to structures that are exposed to vibration excitation sources. • Modes and modal analysis methods of functionally graded material plates will be examined in this project.

  4. Methodology/Approach • Determine the exact solution 1st natural frequency and mode shape for a simply supported FGM plate and a simply supported ordinary plate. • Determine the 1st natural frequency and mode shape for a simply supported ordinary plate using finite element analysis. • Determine the 1st natural frequency and mode shape for a simply supported FGM plate, with a smooth continuous material grade, using finite element analysis. • Determine the 1st natural frequency and mode shape for a simply supported FGM plate, with a stepwise material grade, using finite element analysis.

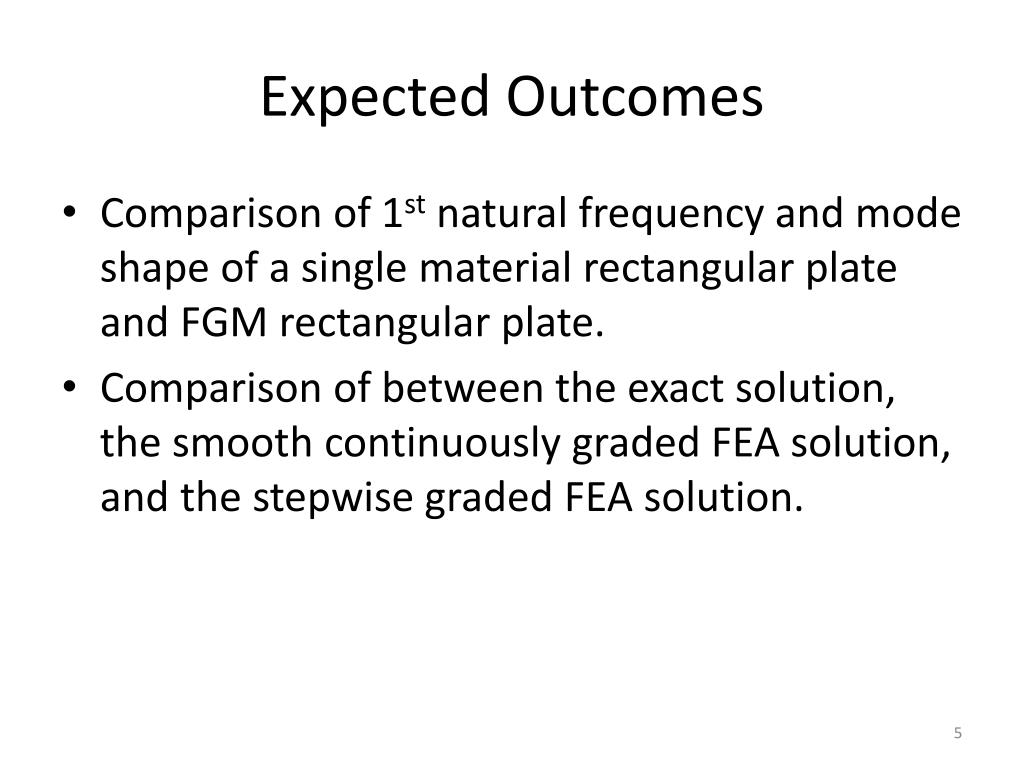

  5. Expected Outcomes • Comparison of 1st natural frequency and mode shape of a single material rectangular plate and FGM rectangular plate. • Comparison of between the exact solution, the smooth continuously graded FEA solution, and the stepwise graded FEA solution.

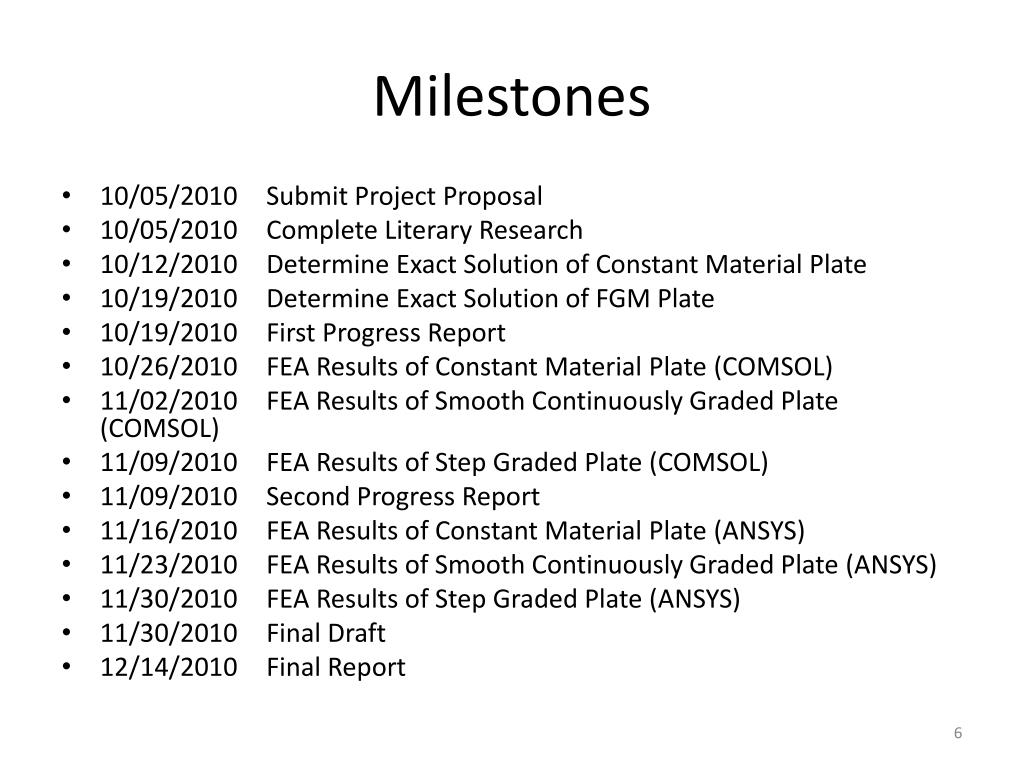

  6. Milestones • 10/05/2010 Submit Project Proposal • 10/05/2010 Complete Literary Research • 10/12/2010 Determine Exact Solution of Constant Material Plate • 10/19/2010 Determine Exact Solution of FGM Plate • 10/19/2010 First Progress Report • 10/26/2010 FEA Results of Constant Material Plate (COMSOL) • 11/02/2010 FEA Results of Smooth Continuously Graded Plate (COMSOL) • 11/09/2010 FEA Results of Step Graded Plate (COMSOL) • 11/09/2010 Second Progress Report • 11/16/2010 FEA Results of Constant Material Plate (ANSYS) • 11/23/2010 FEA Results of Smooth Continuously Graded Plate (ANSYS) • 11/30/2010 FEA Results of Step Graded Plate (ANSYS) • 11/30/2010 Final Draft • 12/14/2010 Final Report

  7. References [1] Akhavan, H., 2010, “Functionally Graded Plates”, http://www.scitopics.com/Functionally_Graded_Plates.html [2] Ruys, A., and Sun, D., 2002, “Functionally Graded Materials (FGM) and Their Production Methods”, http://www.azom.com/details.asp?ArticleID=1592 [3] Aboudi, J., Pindera, M.J., and Arnold, S. M., 2001, “Higher-Order Theory for Functionally Graded Materials”, http://www.grc.nasa.gov/WWW/RT/RT2000/5000/5920arnold3.html
